Gas Saving Honeycomb Ceramic Plate Tile with Catalyst for gas burner
- Category: >>>
- Supplier: Chongqing Haodong Technology Co. Ltd.
Share on (1600516739356):
Product Overview
Description
Products Description
Ceramic Catalytic Plate for Gas Infrared Burner or Heater
Specification:
This infrared ceramic plate is an alternative product for noble metal catalyst .It use rare earth as catalyst, which is with
relatively low cost, higher activity than noble metal. What’s more with rare earth catalyst, the surface burning temperature is more stable kept in 900℃than noble metal, like platinum. The burning occurs on the covering catalyst and radiate infrared ray,energy transfer can reach 95%. But the common infrared burner, it radiates by heating the ceramic, transfer rate only 80~85%. So infrared catalytic ceramic plate will save much energy than other common infrared plate.
relatively low cost, higher activity than noble metal. What’s more with rare earth catalyst, the surface burning temperature is more stable kept in 900℃than noble metal, like platinum. The burning occurs on the covering catalyst and radiate infrared ray,energy transfer can reach 95%. But the common infrared burner, it radiates by heating the ceramic, transfer rate only 80~85%. So infrared catalytic ceramic plate will save much energy than other common infrared plate.
Gas Industrial Infrared Burner,Heater Main Specification:
Item | Index | Specifications |
Material | Cordierite | Round Size:Φ116×13mm, Φ155×13mm, Φ158×13mm, Φ161×13mm, Φ173×13mm, customized Square Size: 129x75x13mm, 129x78x13mm, 129x88x13mm, 130x75x13mm, 133x92x13mm, 132×92×13mm, 135×94x14mm, 135×47×14mm, 150×78×13mm, 150×88×13mm, 163×72×1.5mm, customized Fan-shaped size: customized |
Special Function | Rare-earth catalyst save 20~50% energy | |
Water absorption | 50.4% | |
Open Porosity | 61% | |
Specific gravity | 0.9-1.10Kg/cm3 | |
Temperature softening | >1280 °C | |
Cooking Surface Temperature | 1000-1200 | |
COx Release | ≤80ppm | |
NOx Release | ≤10ppm |
Details Images
Appliation
Our Advantages
1. Natural gas (NG), liquefied petroleum gas, (LPG) fuel gas on high quality ceramic plate which coating catalyst achieve no flame catalytic combustion and heat release.
2. In catalytic combustion process, heat mainly infrared radiation, the efficient way to avoid the loss caused by light and
reaching the highest heat energy utilization.
3. Catalytic combustion plate which coating high oxygen storage materials, can guarantee the gas burning fire and burn holes never carbon, the service life of the product is far more than ordinary ceramic plate.
4. High selectivity of combustion catalyst effectively restrain the formation of the poisonous and harmful material, rarely
produces NOx, CO and CH pollutants. Catalytic combustion emissions are low, more friendly to environment.
2. In catalytic combustion process, heat mainly infrared radiation, the efficient way to avoid the loss caused by light and
reaching the highest heat energy utilization.
3. Catalytic combustion plate which coating high oxygen storage materials, can guarantee the gas burning fire and burn holes never carbon, the service life of the product is far more than ordinary ceramic plate.
4. High selectivity of combustion catalyst effectively restrain the formation of the poisonous and harmful material, rarely
produces NOx, CO and CH pollutants. Catalytic combustion emissions are low, more friendly to environment.
Company Profile
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.

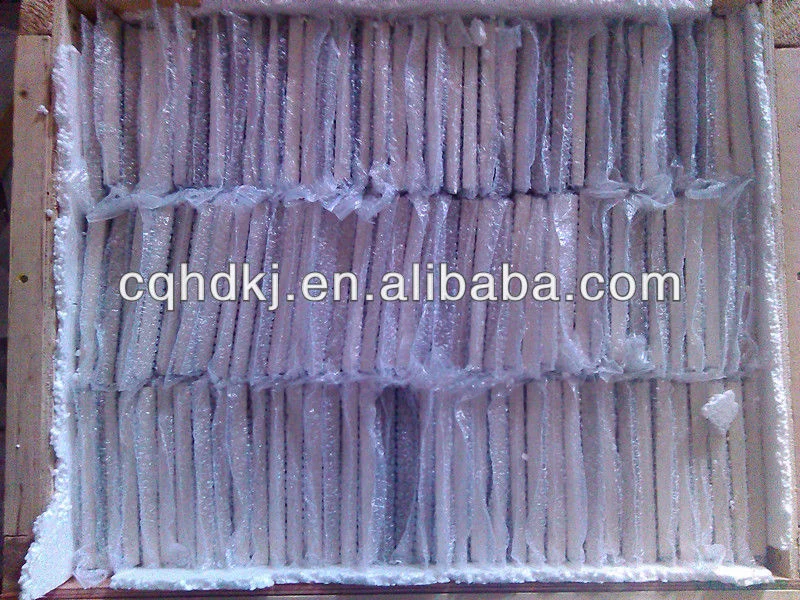

Product packaging
Contact
Cici lei
Mobile:+86 18716717704
Wechat&Whatsapp No.:+86 18716717704
