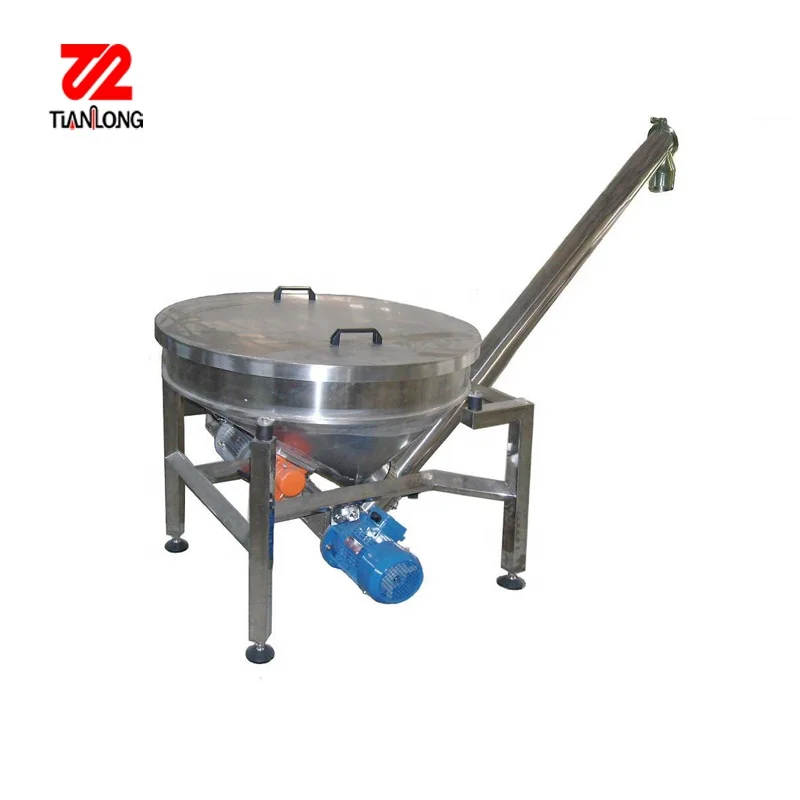

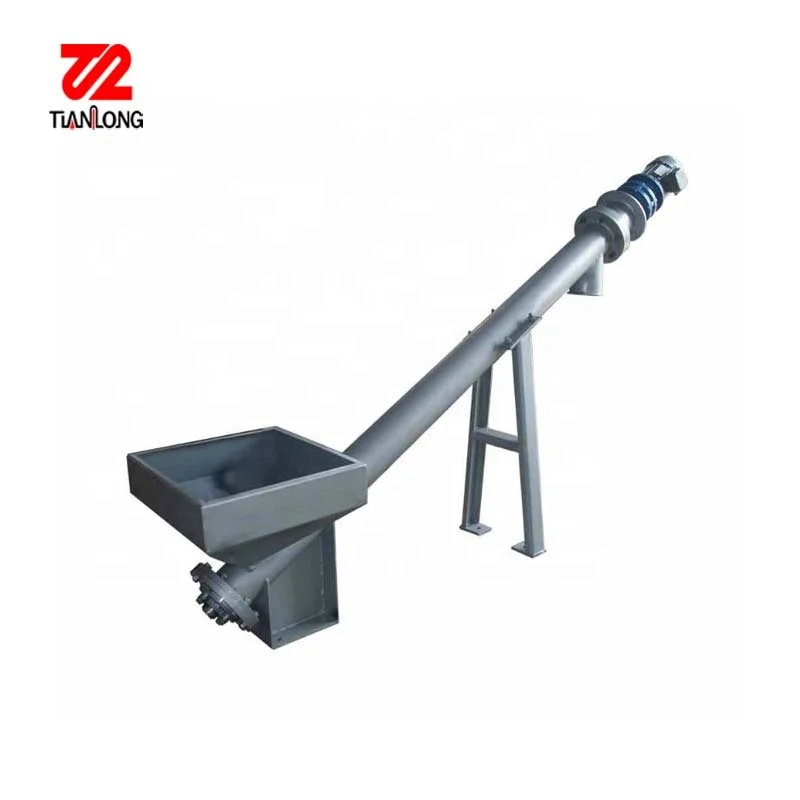

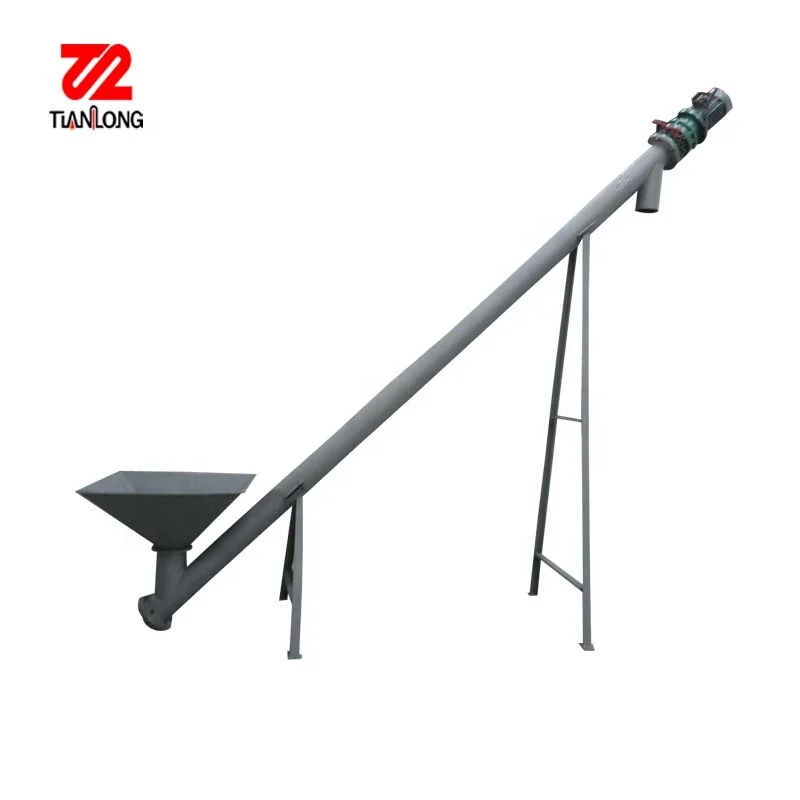

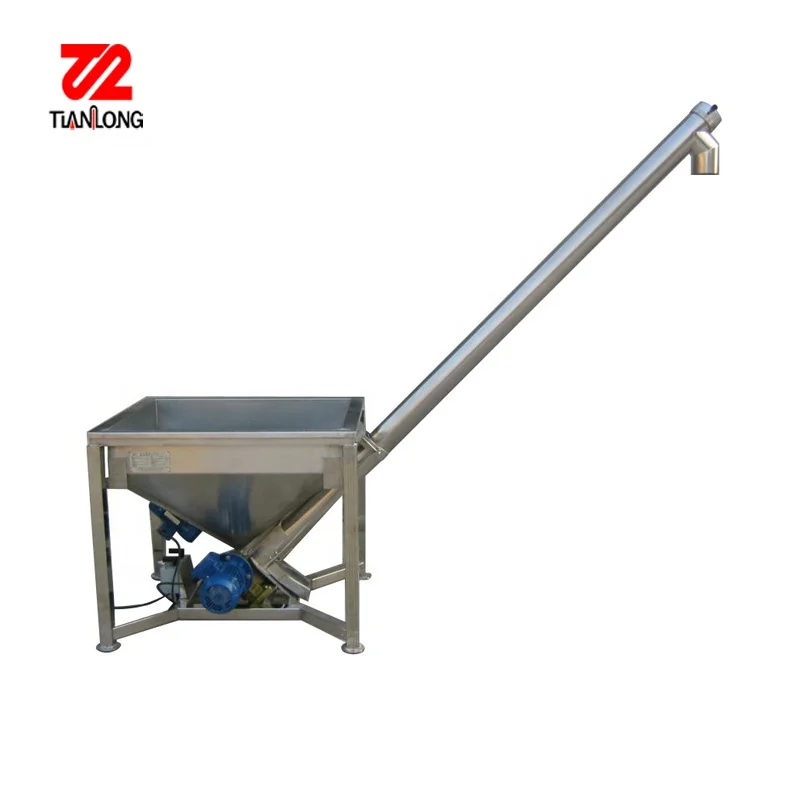

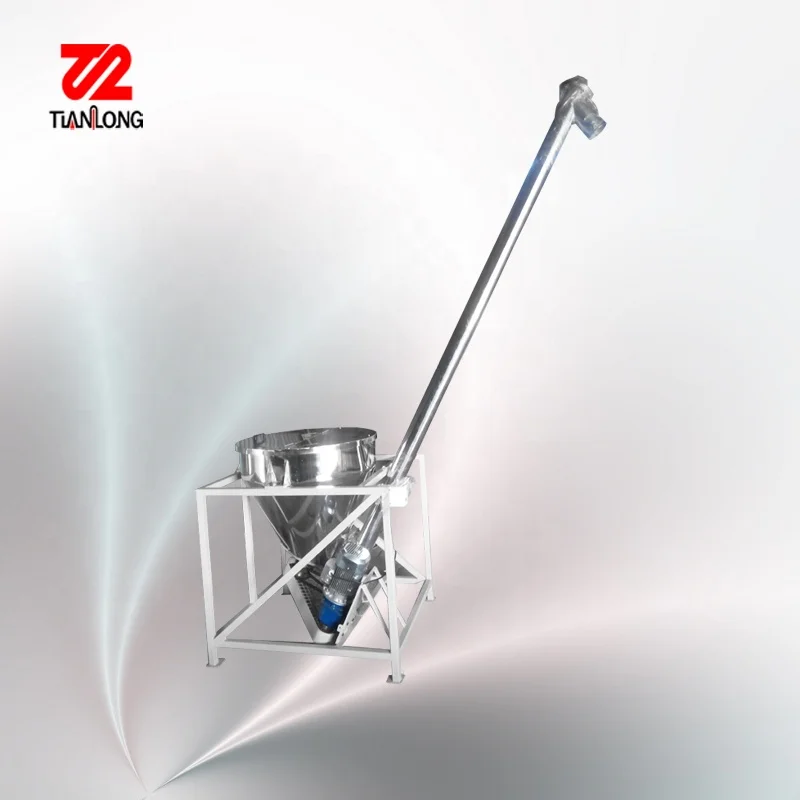

Screw Conveyor with Hopper
Screw Conveyor with Hopper
Screw Conveyor with Hopper
Screw Conveyor with Hopper
Screw Conveyor with Hopper
Screw Conveyor with Hopper
Screw Conveyor with Hopper

Screw Conveyor with Hopper

Share on (1600516761414):


Price:

Quantity:


Product Overview

Description


Product Show
Structure

It consist of drive unit, screw conveyor main body, inlet and outlet.

The screw conveyor main body include head joint, middle joint and rear joint.

Technical Parameters
\t
Model
\t
LS100
\t
LS160
\t
LS200
\t
LS250
\t
LS315
\t
LS400
\t
LS500
\t
Screw Diameter
\t
100mm
\t
160mm
\t
200mm
\t
250mm
\t
315mm
\t
400mm
\t
500mm
\t
Screw
 Pitch
\t
100mm
\t
160mm
\t
200mm
\t
250mm
\t
315mm
\t
355mm
\t
400mm
\t
Rotate Speed
(r/min)
\t
140
\t
112
\t
100
\t
90
\t
80
\t
71
\t
63
\t
Throughput
(0.33m³/h)
\t
2.2
\t
8
\t
14
\t
24
\t
34
\t
64
\t
100
\t
Rotate Speed
(r/min)
\t
112
\t
90
\t
80
\t
71
\t
63
\t
56
\t
50
\t
Throughput
(0.33m³/h)
\t
1.7
\t
7
\t
12
\t
20
\t
26
\t
52
\t
80
\t
Rotate Speed
(r/min)
\t
90
\t
71
\t
63
\t
56
\t
50
\t
45
\t
40
\t
Throughput
(0.33m³/h)
\t
1.4
\t
6
\t
10
\t
16
\t
21
\t
41
\t
64
\t
Rotate Speed
(r/min)
\t
71
\t
50
\t
50
\t
45
\t
40
\t
36
\t
32
\t
Throughput
(0.33m³/h)
\t
1.1
\t
4
\t
7
\t
13
\t
16
\t
34
\t
52
Produce Process

                 Pipe Cutting

           Flange Measuring

        Screw Blade Making

          Screw Blade Welding

          Hanging Bearing

                 Installing

Application cases

LS screw conveyor is a continuous conveying equipment which used to transport the powder, granule and bulk material. such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. It is widely used in building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, grain and the food industry.

Packaging & Shipping

Packing: Plastic bag + wooden case\u007F, or according to the client's requirment.
Shipping: by sea, by air, by international express such as DHL, UPS, FedEx, EMS etc.

Our Company

     Henan Tianlong Machinery Manufacture Co.,Ltd. was founded in the year 2003, But in fact, we have more than 30 years experience in producing and manufacturing products. We have a strict process flow. We are equipped with professional technical personnel and sophisticated testing instruments, Alibaba's 9th year member. Standard & non-standard & custom design acceptable. Since the 1990s, we began to export Europe, America, Germany and other countries and regions. Win a good reputation at home and abroad.
    Adhering to the "moderate, pargmatic, intergrity, efficient" business philosophy, we welcome customers all of the world together for a better tomorrow.
