NEEDLE PUNCHING CARPET NONWOVEN PRODUCTION LINE MIDDLE SPEED

Product Overview

Description



Needle punching machine Technical Specification
Working width	Max frequency	Stroke	Needleing type	Needle density	M/C Weight
2800mm	≤1000s/min	50mm	up	3500-4500n/m	9000kg
2700mm	≤1200s/min	38mm	down	4500-8000n/m	9000kg
2700mm	≤1200s/min	38mm	up	4500-8000n/m	9000kg
Delivery speed	1~8 m/min		Input side with PVC Lattice, output side is roller
Motor	Brand		Simens-Beide, Made in China
	11kw*1		Main shaft
	1.5kw*1		Input & Output roller
	1.5kw*2		supporting plate & stripper plate
Inverter	Delta/Danfoss
Needle fix beam	Alumimum Alloy
Guiding Pipe	Copper sheathing
Seal	INA seal
Bearing	The main shaft bearing use Germany brand.
Needle boards	The material is Alimimum Alloy, drilled with computer NC driller (hole 1.83m), so that certain the distance between the holes and the vertical between the hole and needle plate. The method of placing needles is decided by the requirement of the products. Fixing by Air-pressure tube.
Steel plate	The supporting board and stripper board are made of carbon steel of 12mm, hole 4.2mm, with chromium-plated surface, and polishing. Supporting net board and stripper board adopt electric for lift and down.
Frame	Machine frame is welded by carbon steel, with different thickness between 30mm-16mm, annealed under high temperature to eliminate internal stress.
Oil Box	Unit crankshaft box, whose main shafts are connected with half, case body is made of the HT200 steel by casting, annealing, and fine processing by the computer.The main movable shaft, guide bar and push bar on the case body are all made of 40Cr alloyed, then dealt by carbonization. Bearings of main shaft adopt the famous brand of Ina, German.

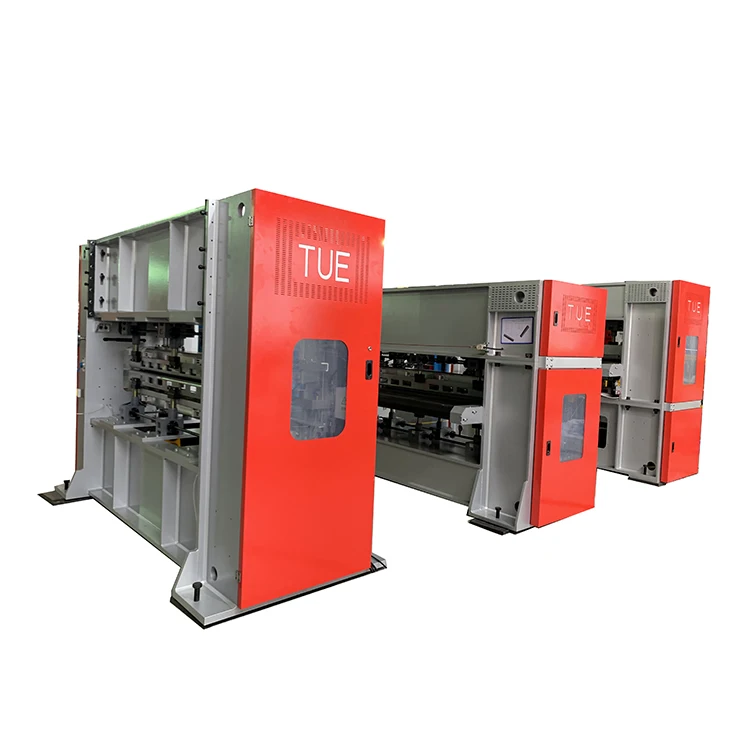

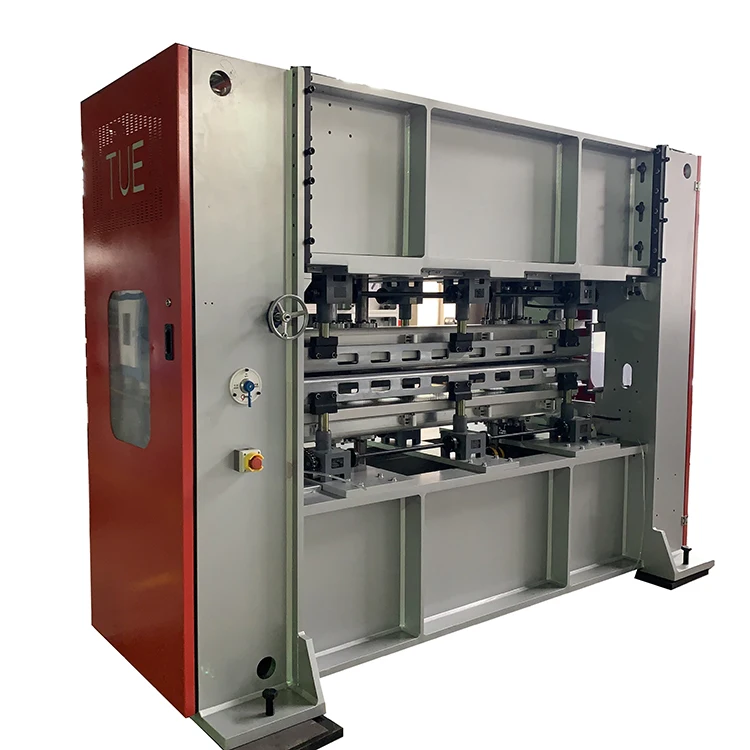

Needle Punching Machine:

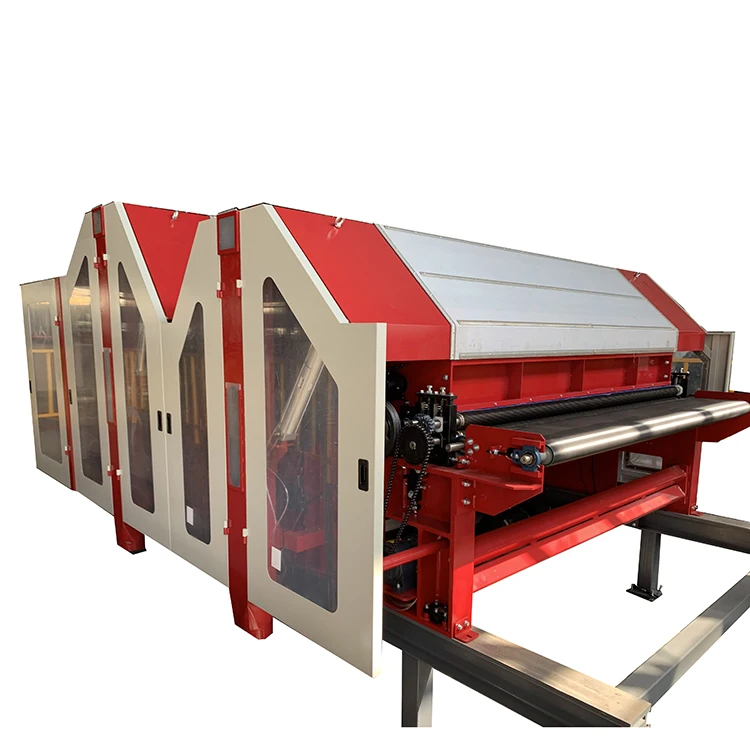

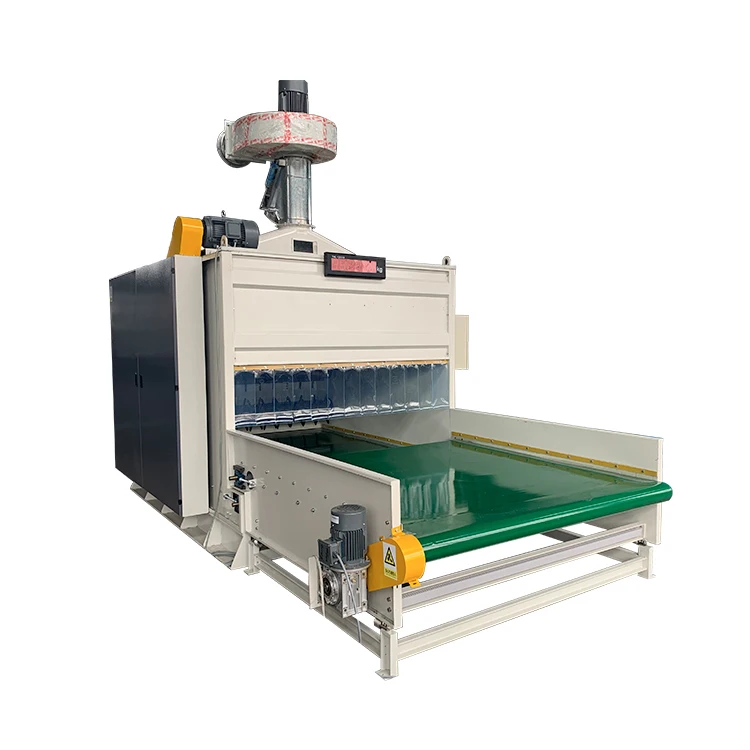

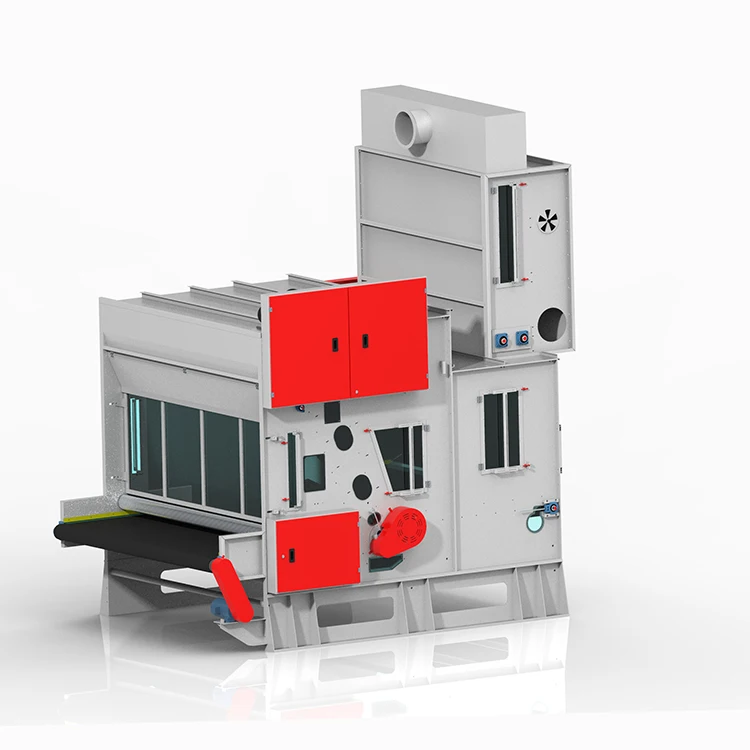

Needle Loom Making a further opening and blending after the Big Cabin Blender

then feed to next process by fan.



Baking finish house paint and dry the surface of machine. It can not only play the role of aesthetics of the equipment, but also to protect the items; It can prevent objects from corrosion in wet and dusty harsh environment  and can prevent metal from erosion.



Spray booth bring vacuum treatment to remove dust in the painting process and improve the quality of paint.





When loading the machinery to container,we will keep it max complete to avoiding the inconvenient of the assemble.
