Lvl Beams LVL Building Beam yeluwood Pressure Treated LVL Timber For Sale H20 Structural Laminated Veneer Lumber
- Category: >>>
- Supplier: Ningjin County Yelu Wood Co. Ltd.
Share on (1600516771049):
Product Overview
Description
production process
Shandong Yelu Wood Co., Ltd
The main raw materials of the products are imported New Zealand radiata pine and Russian larch. In the production process, all raw materials are first-grade whole boards and whole cores.After being cut into a single board and dried by its own processing plant, the veneer is coated with environmental protection glue, such as Tyre Phenolic Glue. As required, all the whole veneer is stitched together. Heat pressure for a certain period of time, semi-finished product is solidified in to a multi-layer plate. After cooling, it is sawn into appropriate size and conducted sand treatment to make the surface smooth and clean. The entire production link is supervised by quality inspectors, strictly controlling the final quality of products. The qualified products are packaged, waiting for the delivery.
Details Images

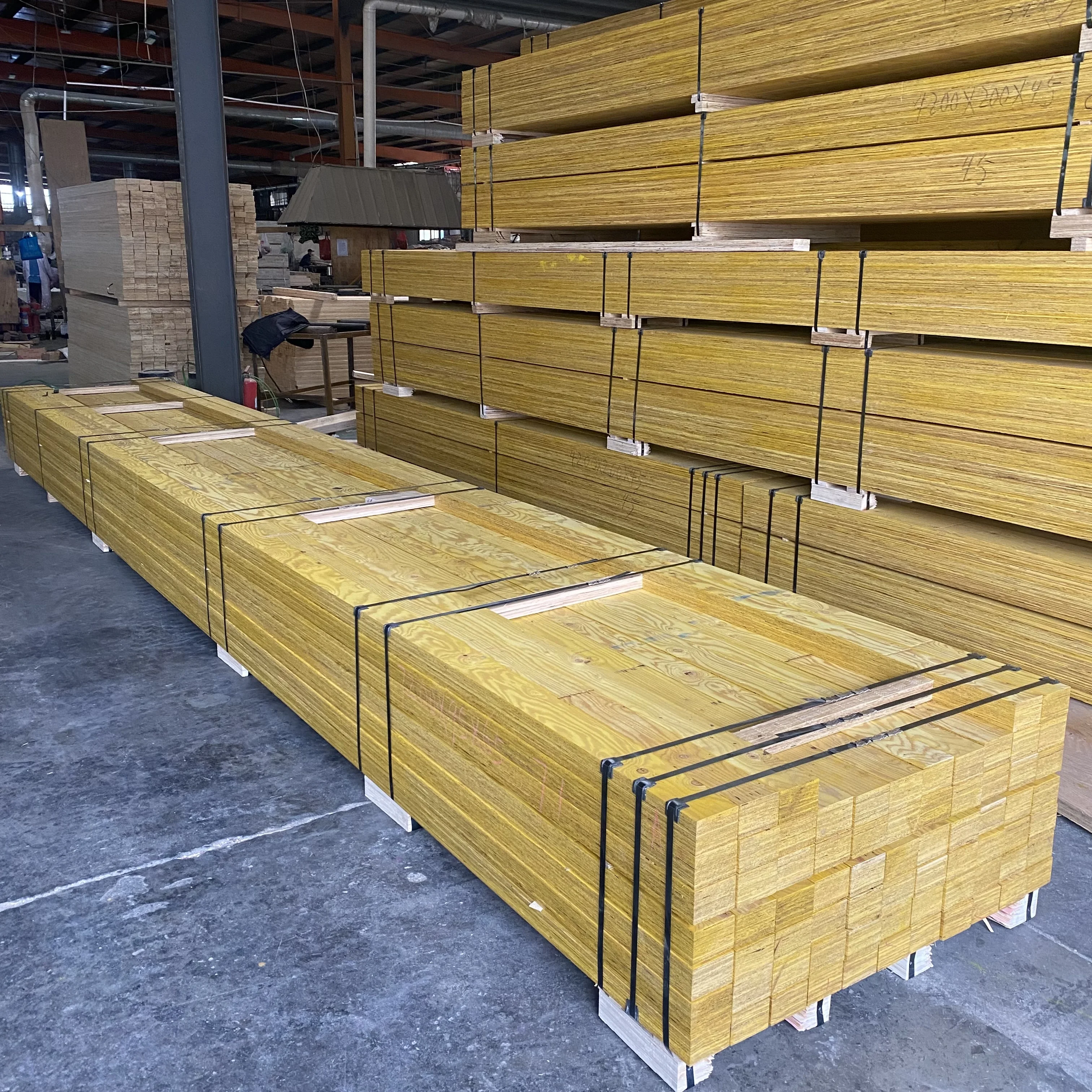

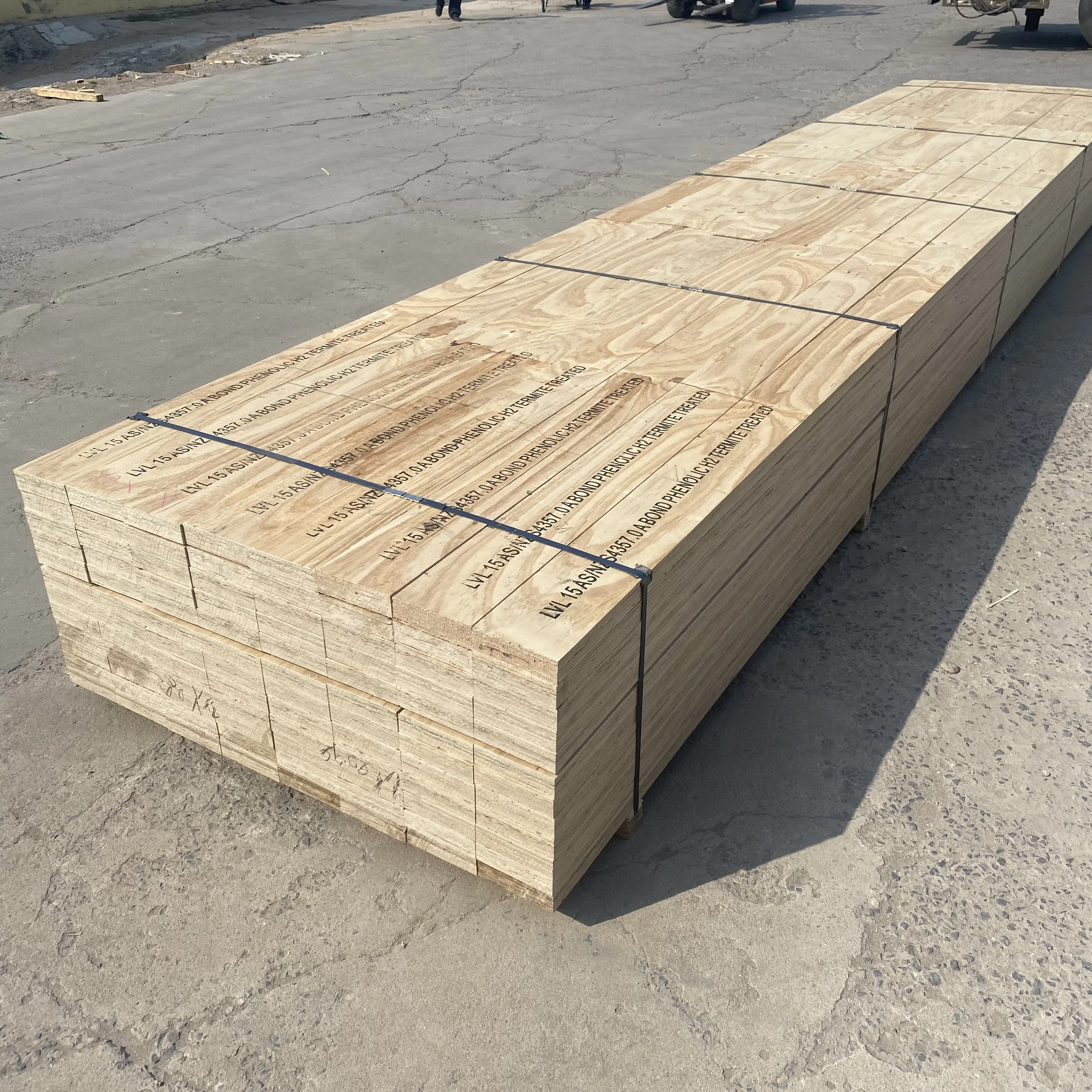

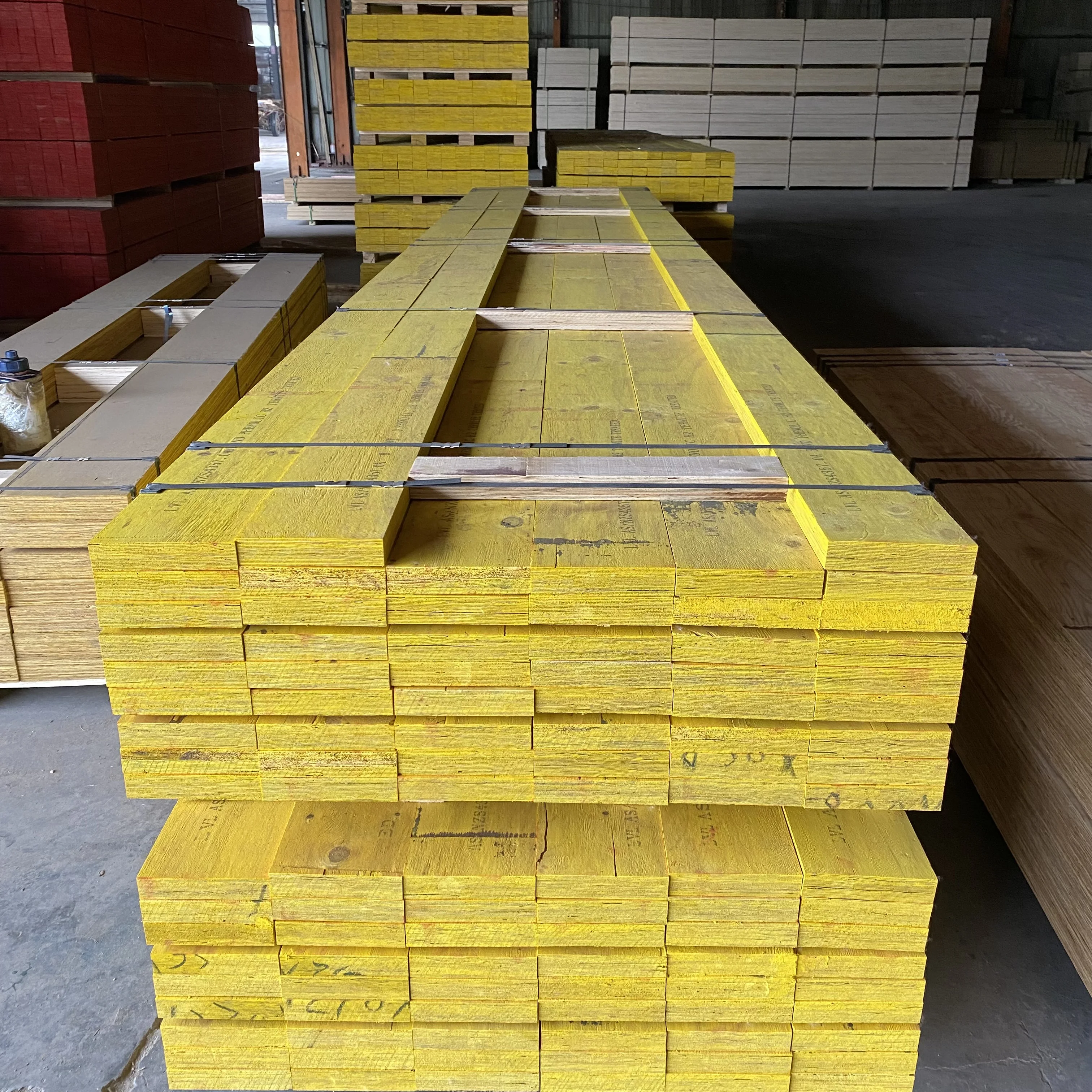

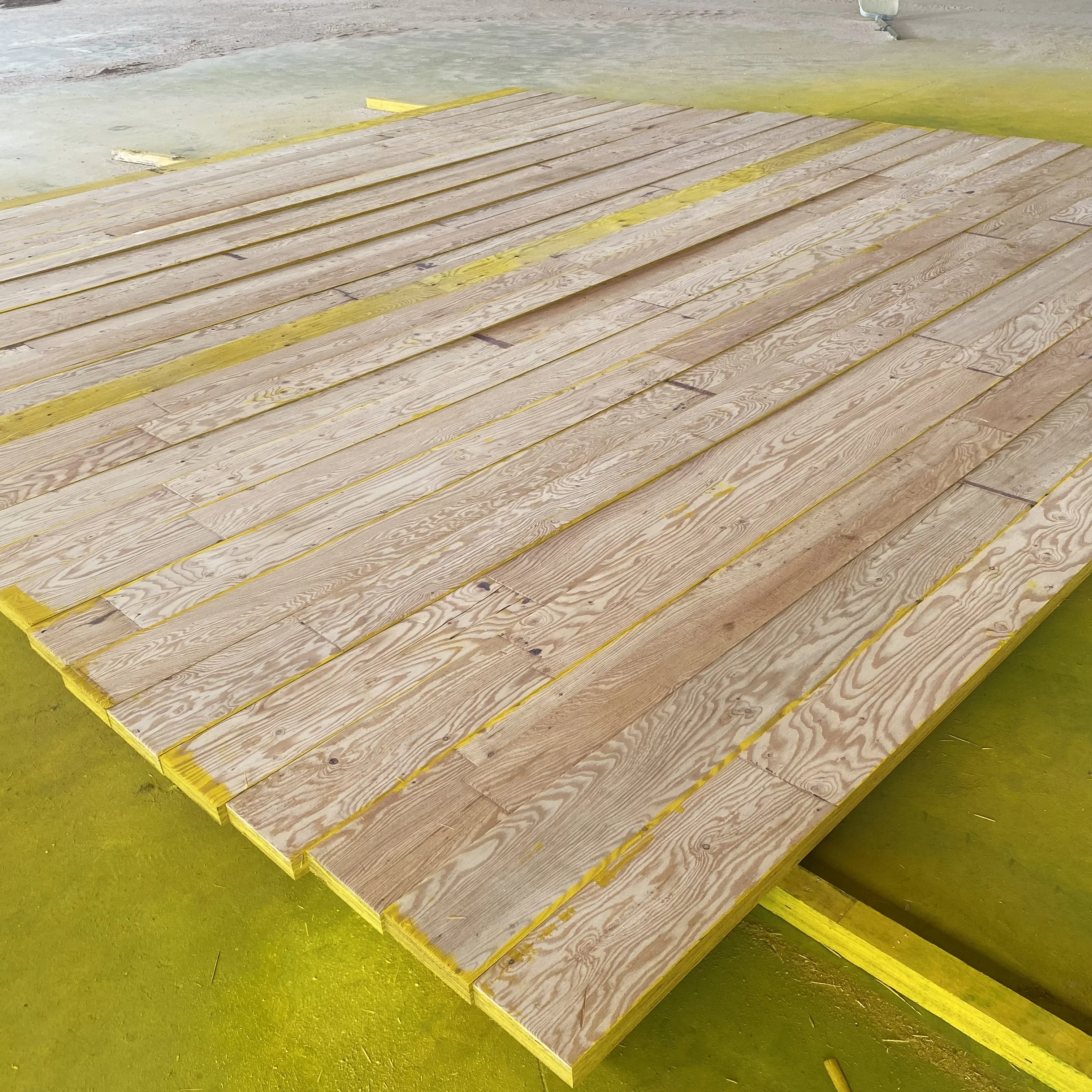

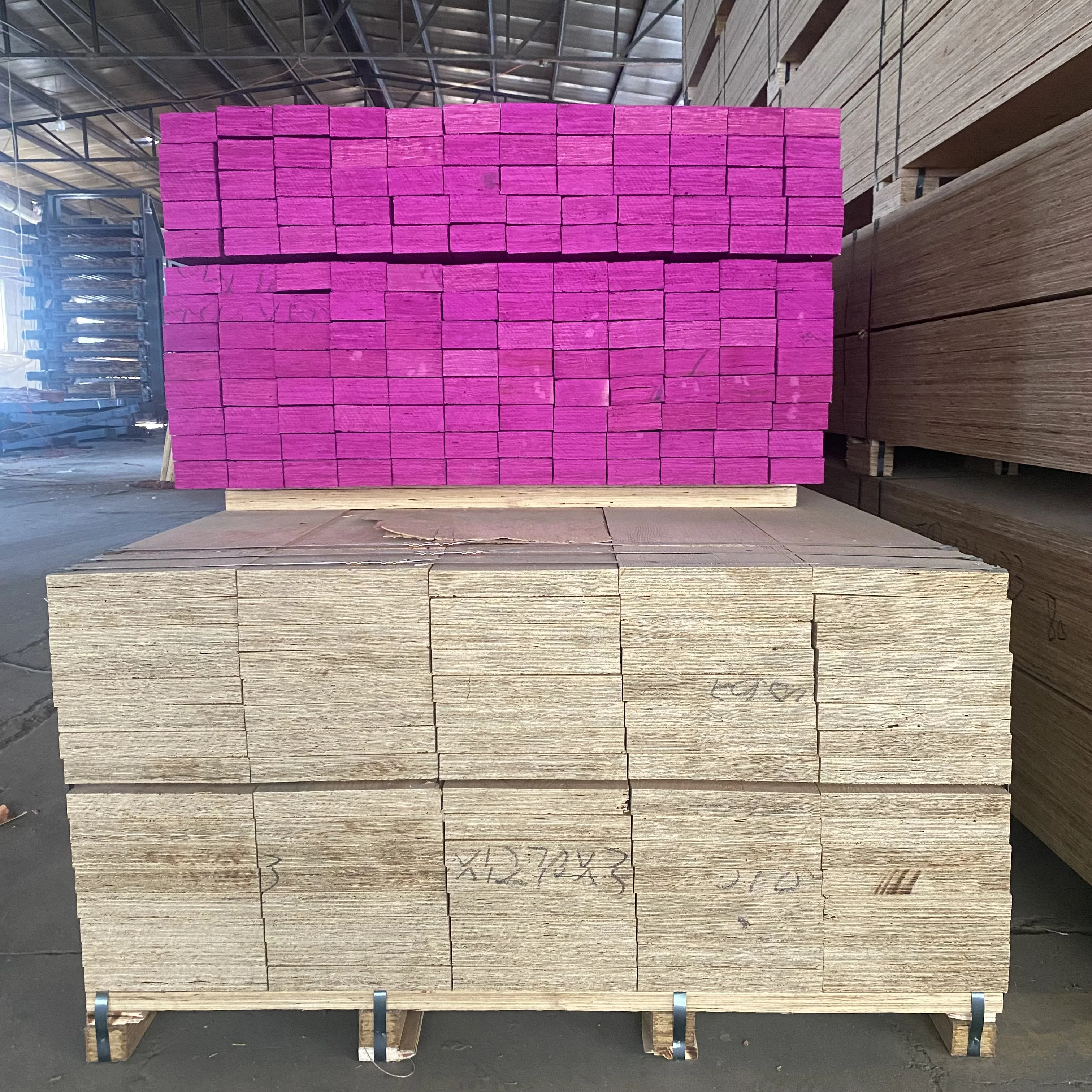

Larch plywood lvl beams
strong pressure resistance, no splitting, good straightness and easy construction.
The maximum size is 9.6 meters length, 1.5 meters width and 300 mm thickness.
Materia | Russian larch | New Zealand radiata pine | Product name | Structural LVL Beam |
Customization | logo | packaging | Grade | Structural Grade |
Model number | LVL | plywood | Gule | A Bond Phenolic |
Formaldehyde emission Standards | E0 | E1 | Painting | waterproof painting or other color as the customers request |
Product name | LVL beams | Moisture Contentpine lvl plywood | Moisture Content | <15% |
Thickness tolerance | +-1mm | +-0.5mm | Density | 720kg/m3 |
Usage | indoor | outdoor | Length | 1000-9600mm |
Application | Building Construction | house | Thickness | 5-200mm |
Size | Customer Requirments | maximum: 9600*1600*200mm | Width | 20-1600mm |
Low Cost
LVL production could use small diameter wood,bent wood and short logs,therefore the output rate could reach 60% to 70%.In other words,LVL cxould produce value-added effect by using small material and inferior material
Flexible Sizes
For special manufacturing method,the sizes of the LVL is not limited by the sizes of the logs or the veneers,so the sizes is flexible,can be freely chosen.LVL thickness is up to 200mm and above difficult to transport if too thick or too long,the length is up to 9.6 meters.
The company has 2 sub-plants, covering an area of 60,000 square meters, and 12 advanced production lines. It can produce a maximum
size of high-grade plate，9.6 meters length, 1.5 meters width and 300 mm thickness. With annual output of 80,000 cubic meters, its
products are widely used in packaging, construction, furniture and other fields.
size of high-grade plate，9.6 meters length, 1.5 meters width and 300 mm thickness. With annual output of 80,000 cubic meters, its
products are widely used in packaging, construction, furniture and other fields.
Advantages
1.High bending strength
2.Strong nail holding
3.Moisture-proof and easy work
4.Tight construction and high strength
5.No ratten or decay
6.Low formaldehyde emission
7.The productions are suitable for the construction of viaduct and tall frame building
8.If put in boiling water for 48 hours,it still glue sticking and still formed(for WBP glue)
9.If used abide by illustration strictly,it can be reuse more than 50 times
10.Solve the problem of leaking and rough surface during construction process.
2.Strong nail holding
3.Moisture-proof and easy work
4.Tight construction and high strength
5.No ratten or decay
6.Low formaldehyde emission
7.The productions are suitable for the construction of viaduct and tall frame building
8.If put in boiling water for 48 hours,it still glue sticking and still formed(for WBP glue)
9.If used abide by illustration strictly,it can be reuse more than 50 times
10.Solve the problem of leaking and rough surface during construction process.
Usages
1)for all kinds of fumigation-free packaging ; formwork ;Construction beams, rafters and columns for wide range of buiding structurals . 2)wood-based alternative to structural steel or reinforced concrete.
3) Packaging Material for mechanical equipment
Size range
T:5mm-200mm,W:20mm-1600mm,L:1000mm-9600mm
Tolerance
Thickness:±0.5mm,Width:±0.3mm,Length: -0/+2mm.
Tolerance
Thickness:±0.5mm,Width:±0.3mm,Length: -0/+2mm.
Application
indoor
construction
outdoor
Good Dimensional Stability
laminated structure of LVL greatly reduces the possibility arping and twisting .so the dimensional stability of LVL is good
High Strength
As the LVL is made of veneers which are cut by rotary cutting machine and assembled with adhesives through hot-pressing.Therefore,it can rdduce the influence of strength defects
Company Profie
2 sub-plants
12 advanced production lines
covering an area of 60,000 square meters
Certifications
Exhibition
FAQ
Q:Where is the factory located?
A:Shandong Yelu Wood Co., Ltd. is located in Ningjin County, Dezhou City, Shandong Province.
Q:What is a LVL?
A:Laminated veneer lumber (LVL) is a structural product manufactured from thin peeled veneers of wood glued with a durable adhesive with the grain running parallel to the main axis of the member.its products are widely used in packaging, construction,furniture and other fields.
Q:What are the advantages of LVL?
A:High strength-to-weight ratio - more than 40 stronger than solid sawn products.
High design values for bending, stiffness and shear strength.
Resists shrinking, warping, splitting and checking.
No defects to cut out and less waste on the job.
Ordinary nail assembly - installs as easily as ordinary lumber.
Q:What are the features of fumigation-free wood?
A:What are the features of fumigation-free wood?LVL Board is a special material for exporting wood packaging. It has the
characteristics of no fumigation, high strength, high toughness, good stability and accurate size.
Q:Why choose yelu?
A:The company has 2 sub-plants, covering an area of 60,000 square meters, and 12 advanced production lines. It can produce a
maximum size of high-grade plate,9.6 meters length, 1.5 meters width and 300 mm thickness. With annual output of 80,000 cubic
meters.
A:Shandong Yelu Wood Co., Ltd. is located in Ningjin County, Dezhou City, Shandong Province.
Q:What is a LVL?
A:Laminated veneer lumber (LVL) is a structural product manufactured from thin peeled veneers of wood glued with a durable adhesive with the grain running parallel to the main axis of the member.its products are widely used in packaging, construction,furniture and other fields.
Q:What are the advantages of LVL?
A:High strength-to-weight ratio - more than 40 stronger than solid sawn products.
High design values for bending, stiffness and shear strength.
Resists shrinking, warping, splitting and checking.
No defects to cut out and less waste on the job.
Ordinary nail assembly - installs as easily as ordinary lumber.
Q:What are the features of fumigation-free wood?
A:What are the features of fumigation-free wood?LVL Board is a special material for exporting wood packaging. It has the
characteristics of no fumigation, high strength, high toughness, good stability and accurate size.
Q:Why choose yelu?
A:The company has 2 sub-plants, covering an area of 60,000 square meters, and 12 advanced production lines. It can produce a
maximum size of high-grade plate,9.6 meters length, 1.5 meters width and 300 mm thickness. With annual output of 80,000 cubic
meters.
