tracker Full Band GPS GLONASS BD Galileo High Precision GNSS Surveying gps rtk antenna Whole Band Patch L1 L2 gps ANTENNA
- Category: >>>
- Supplier: Shenzhen Qifan Communication Equipment Co. Ltd.
Share on (1600516776117):
Product Overview
Description
Specifications
Frequency (MHz) | GPS L1/L2/L5/L-Band GLONASS G1/G2/G3 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5a/E5b/E6 |
Gain (dBi) | ≥5dBi |
Antenna AD (dB) | ≤3.0 |
Horizon coverage angle | 360° |
Port Impendence (Ω) | 50 |
V.S.W.R | ≤2.0 |
Phase center error (mm) | ±2 |
Polarization | Right-hand circular polarization (R.H.C.P) |
LNA Gain (db) | 40±2 |
Noise figure (dB) | <1.8 |
In-band flatness (dB) | ±2 |
Operating voltage (V) | 3.0 - 18.0 |
Operating current | ≤45mA |
Diiferential propagation delay(ns) | ≤5 |

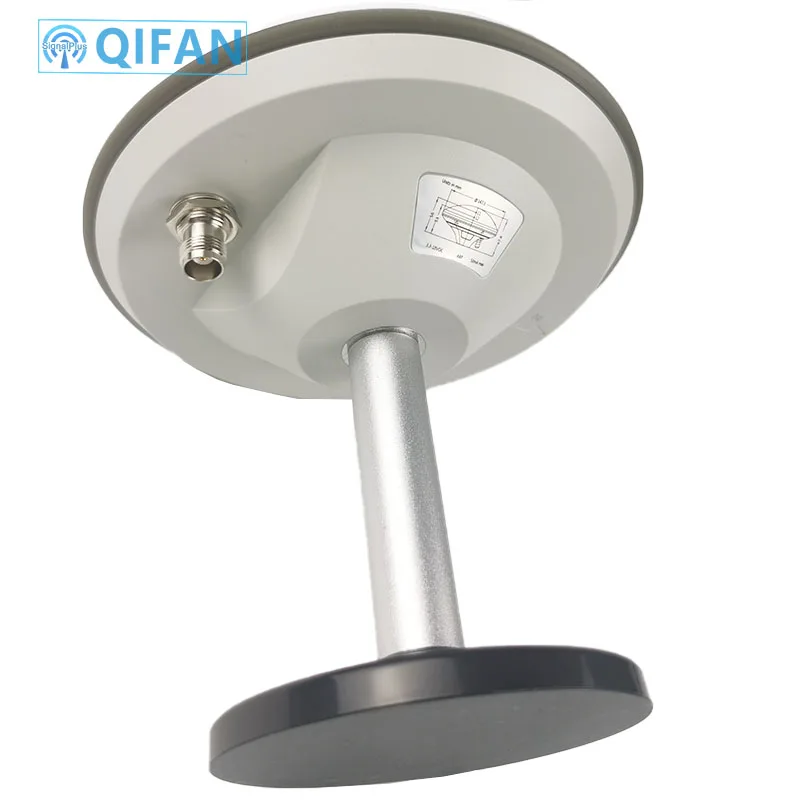

Connector Type | TNC-K |

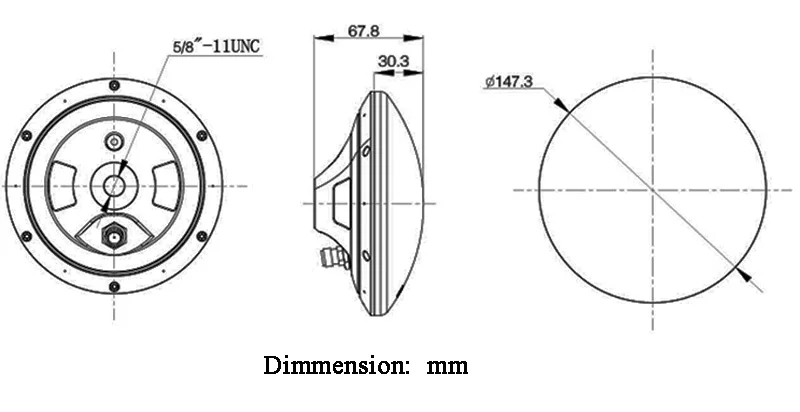

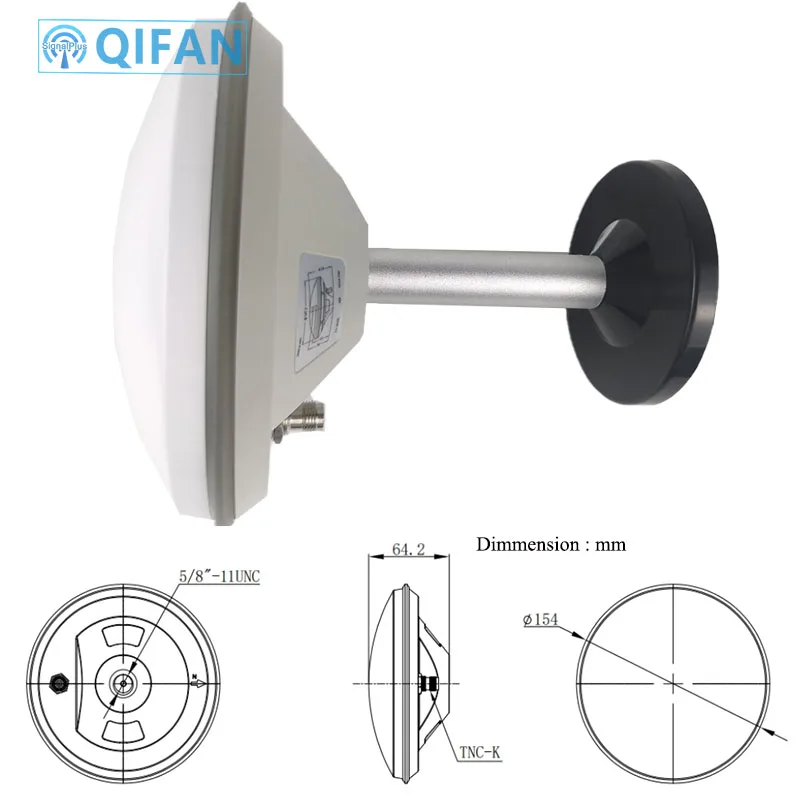

Antenna Size (mm) | D160*H66.5 |
Weight (g) | 400 |
Operating temperature | -40 +70 |
Waterproof grade | IP67 |
Products Details
FAQ
Q: How is your product quality?
A: All our products have strict QC process and will be 100% tested before shipping. And Our antennas engineers have more than 10 years experience.
Q: Do you accept customized ?
A: Sure! We have own professional researching team and we do produce as customer requirement .OEM&ODM are welcome.
Q: Could you offer free sample to test ?
A:In general , for new customer you pay the sample fee first, but when you order required amount we refund the sample cost back to you.
Q: When can you ship the items ?
A:Usually , we take about 6-15 days to prepare your bulk order.
Q: What is your payment term?
A: 50% payment should be paid when you make the order and the 50% should be paid when the products are ready for shipping.
Packing & Shipping
Packing
We have 10 years of experience packing and shipping abroad. We would make sure the goods arrive safely.
Shipping
We would help you choose the shipping option that makes the most sense for you. Provide the destination of your shipment, sort your results by time or cost to find the most cost-effective shipping service.
