Fanless j4125 quad core mini linux pc 4 lan micro firewall appliance of 1COM HD VGA
- Category: >>>
- Supplier: Shenzhen Iwill Technology Co. Ltd.
Share on (1600516779306):
Product Overview
Description
Notice: This link's price is barebone system price, doesn't include CPU, ram and hard disk, WiFi card and Wifi Antennas, if you need them, please contact us, we will give you the best price.
Fanless j4125 quad core mini linux pc 4 lan micro firewall appliance of 1COM HD VGA
Pls contact with Jennifer,my Email is jennifer@iwilltech.cn
Product Paramenters
Model | N25 fanless soft router |
Case Color | Black (any color can be customized) |
Material | High-quality all aluminum，surface anodic oxidation |
CPU | Intel Celeron J4125（Quad core quad threading，4MB cache，2.0GHz，Max turbo 2.7GHz） |
BIOS | AMI EFI BIOS |
CPU Architecture | Gemini Lake Refresh |
RAM | Support 2*DDR4 MAX 8GB RAM Slot， |
Storage | 1*MSATA，1*2.5’’SDD/ HDD |
Display Chip | Intel HD Graphics Card 600 |
Display Interface | 1*HD，1*VGA |
Front I/O | 1*Power Switch，1*HD，1*VGA，1*COM(support Console) , 2*USB3.0 |
Rear I/O | 1*DC，4*Intel 2.5G LAN |
Network Card | 4*Intel i226V 2.5G LEthernet Lan |
Expansion | 1*full height Mini PCIE slot (optional support WIFI/3G/4G, Embedded SIM Slot ) |
Other Function | Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot |
Power Supply | Support DC 12 Input |
Work Temp | 0℃ ～ +50℃（Commercial HDD），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
Work Humidity | 0% ～ 95% non-condensing |
Cetificates | CE, CCC, FCC Class A, ROHS |
Dimension | 134 * 126 * 38.5 mm (L*W*H); |
Application | Firewall, VPN, Network Server, Network Security, Router and etc. |
Products Description
Details Images

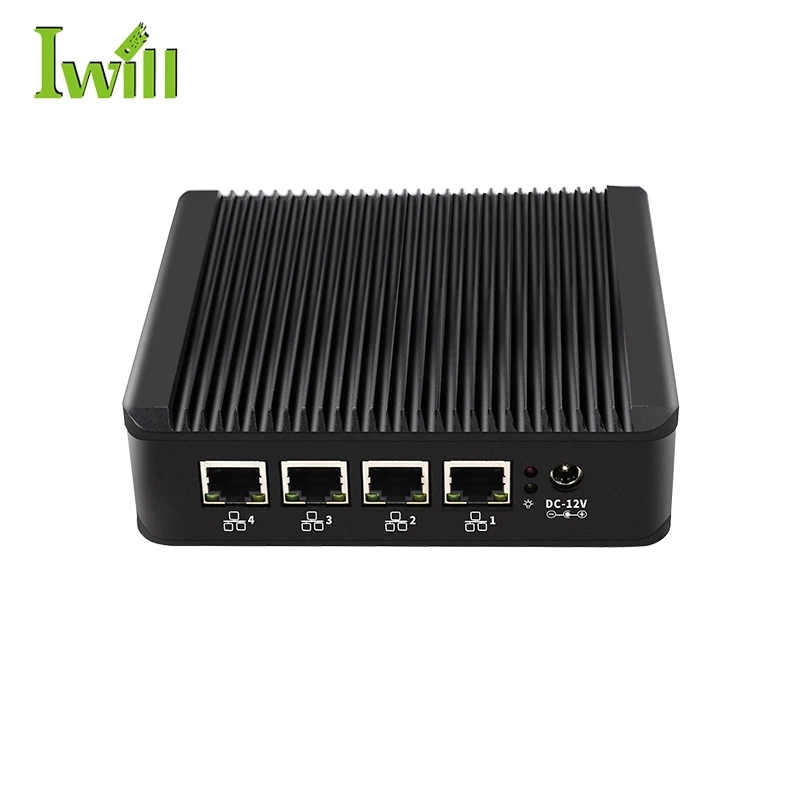

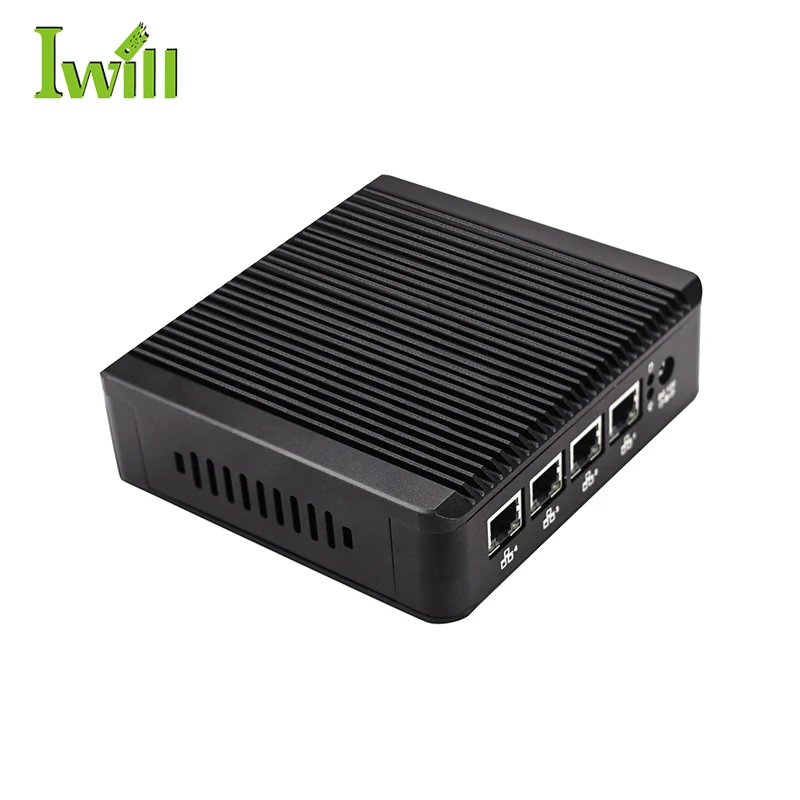

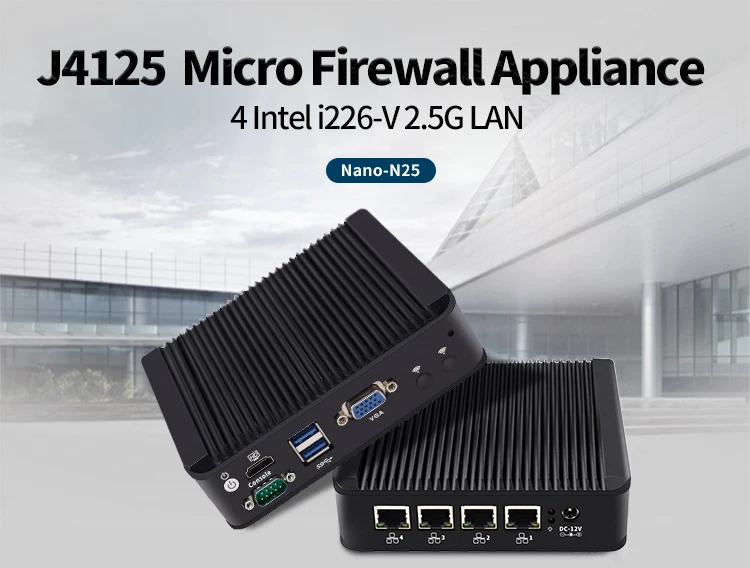

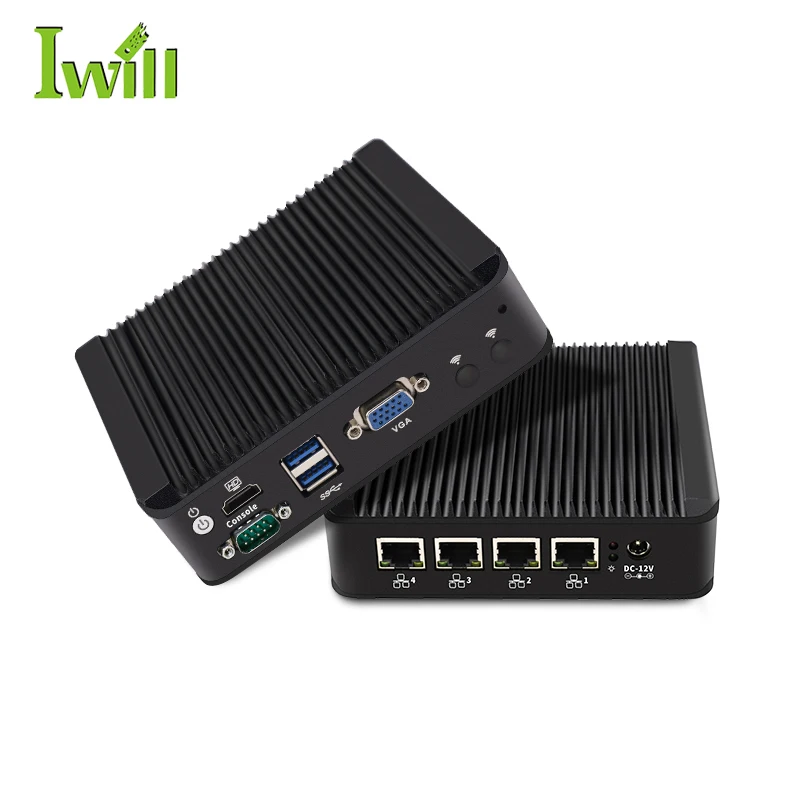

NANO -N25 J4125 Fanless Soft Router
1) Powerful Quad Cord Processor Small PC--In-tel Cele-ron J4125 Quad core quad threading 2.0GHz
2) Support 2*DDR4 Max 8GB Ram Slot
3)1*Power Switch+1*HD+1*VGA+1*COM+2*USB3.0+1*DC+4*Intel 2.5G LAN
4) Nuc Dimension: 134*126*38.5 mm
5) Support 4*Intel i226V-2.5G Ethernet LAN
6) Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot
7) 1*full height MINI PCIE slot (optional support WIFI/3G/4G, Embedded SIM Slot )
8) Applied in Router, VPN, Firewall, Network server etc .
2) Support 2*DDR4 Max 8GB Ram Slot
3)1*Power Switch+1*HD+1*VGA+1*COM+2*USB3.0+1*DC+4*Intel 2.5G LAN
4) Nuc Dimension: 134*126*38.5 mm
5) Support 4*Intel i226V-2.5G Ethernet LAN
6) Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot
7) 1*full height MINI PCIE slot (optional support WIFI/3G/4G, Embedded SIM Slot )
8) Applied in Router, VPN, Firewall, Network server etc .
Packing & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

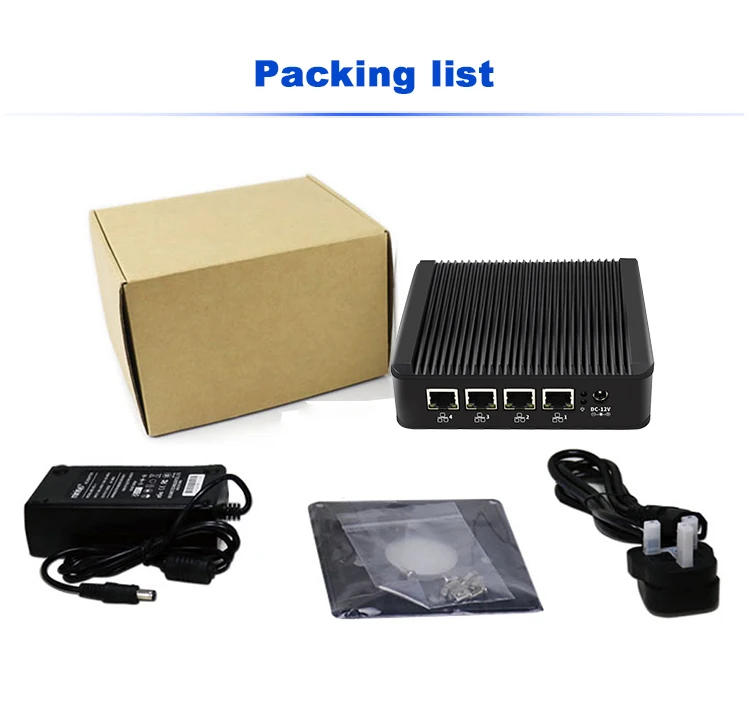

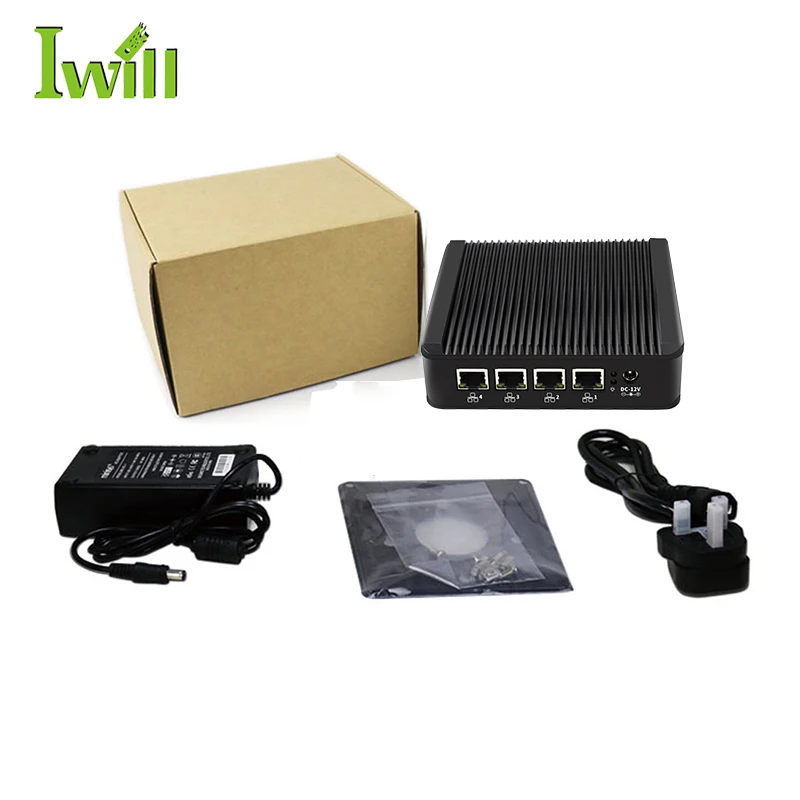

2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Company Profile
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Certifications
Our Services & Strength
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
FAQ
Question: Can you put my brand name (logo) on these products?
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
Answer: Yes,.We can support OEM/ODM service, the process of customization is following:
1:provide your specific requirement. 2:our design engineer draw the design draft.
3:you confirm the design draft. 4.we start produce it.
Question: How much do I need to pay for your OEM servise?
Answer: You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.
Question: What payment method do you accept?
Answer: T/T,Western Union,PayPal.
Question: What is the Minimum Order Quantity(MOQ)?
Answer: We can sell one piece sample for your test.
Question: What is the lead time of your products?
Answer: 1-3 days for one sample, 15 working days for a large quantity.
