80mm 90mm 120mm thickness Single Blade Woodworking Rip Saw Machine for Wood
- Category: Wood Saw Machines >>>
- Supplier: Qingdao Hongshenghong Machinery Co. Ltd.
Share on (1600516781433):
Product Overview
Description
Automatic rip saw
Product Paramenters
Models | MJ153A | MJ153B | MJ153 |
Sawing thickness | 5~85mm | 5~85mm | 5~85mm |
Maximum sawing width | 450mm | 360mm | 360mm |
Minimum sawing length | 300mm | 300mm | 300mm |

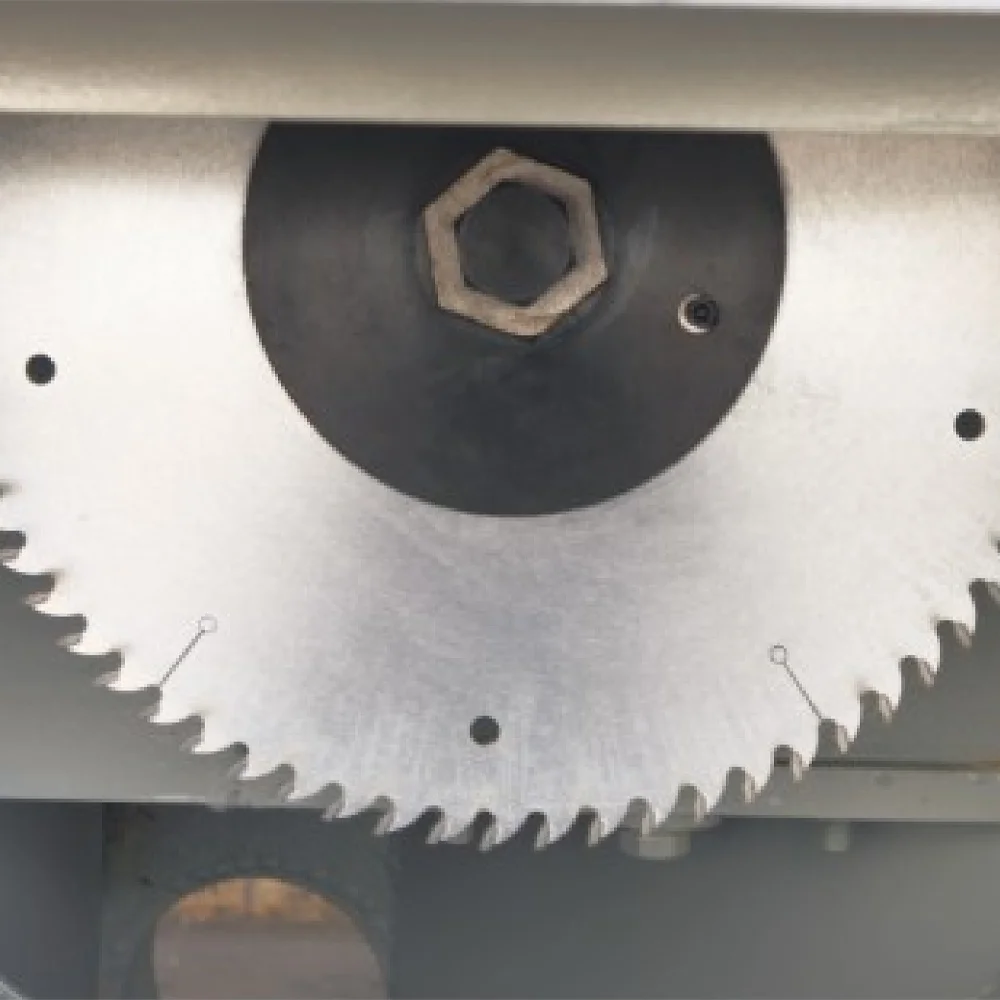

Maximum saw blade diameter | Ø305mm | Ø305mm | Ø305mm |
Saw blade inner diameter | Ø 25.4mm | Ø 25.4mm | Ø25.4mm |
Saw shaft speed | 3660r/min | 3750r/min | 3750r/min |
main motor power | 11kW | 7.5kW | 7.5kW |
Feed motor power | 0.75kW | 0.75kW | 0.75kW |
Total power | 11.75kW | 8.25kW | 8.25kW |
weight | 930kg | 950kg | 900kg |
working desk size | 1850*980mm | 1750*950mm | 1550*950mm |
Dimensions | 1750*950* 1420mm | 1750*950* 1420mm | 1550*950* 1420mm |
Packing size | 1850*1050* 1520mm | 1850*1050* 1520mm | 1650*1050* 1520mm |
Product Configuration

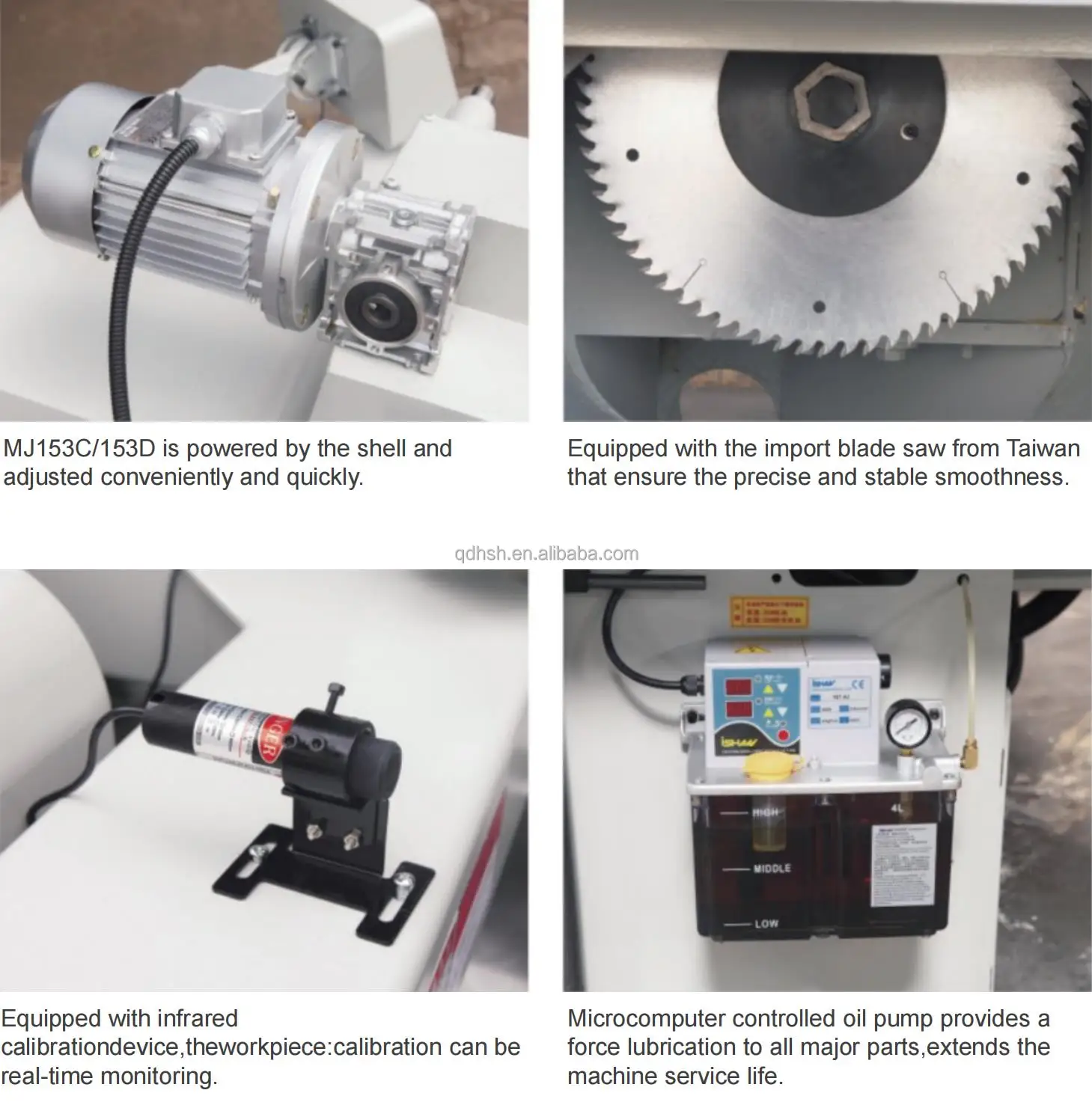

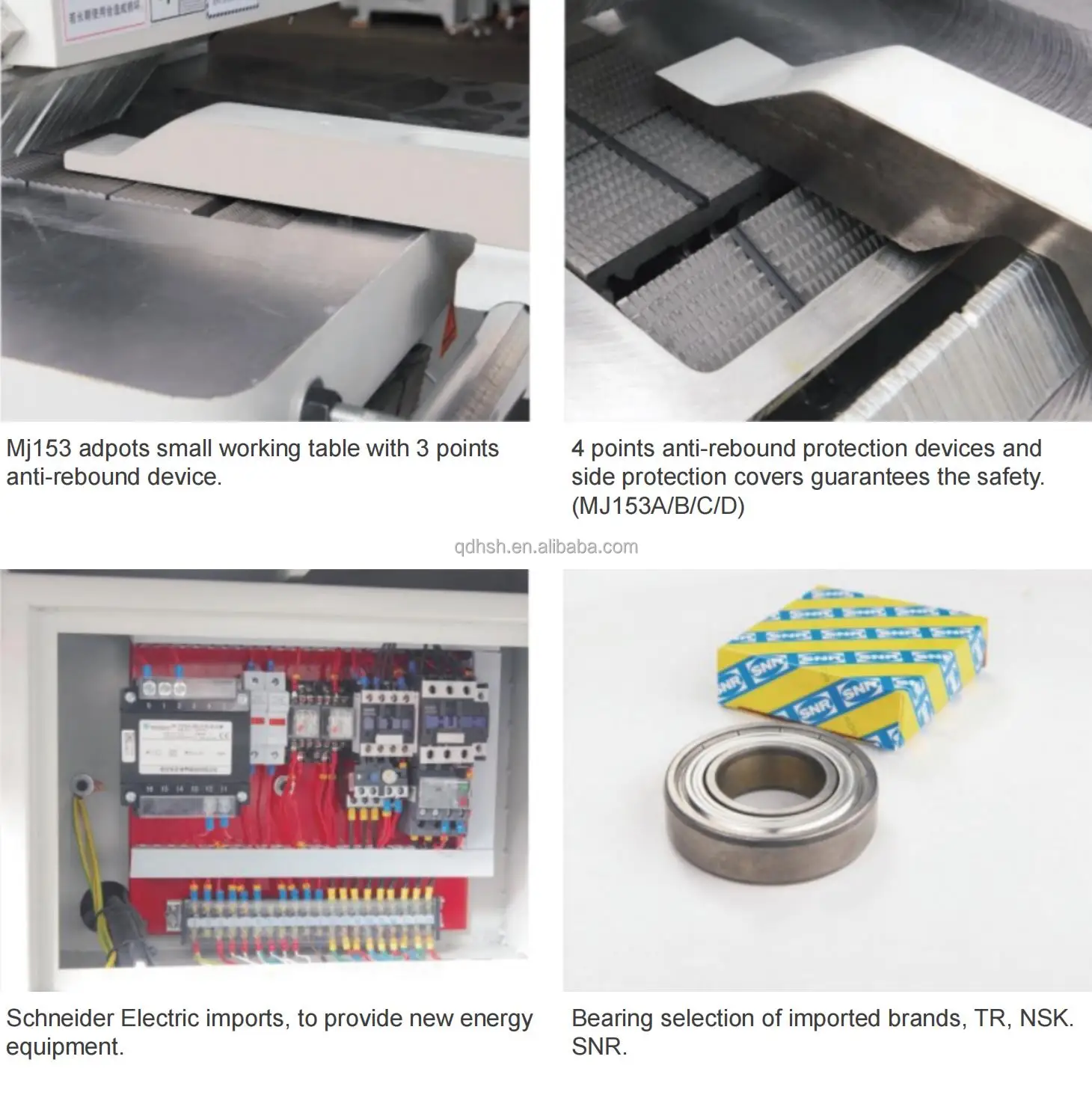

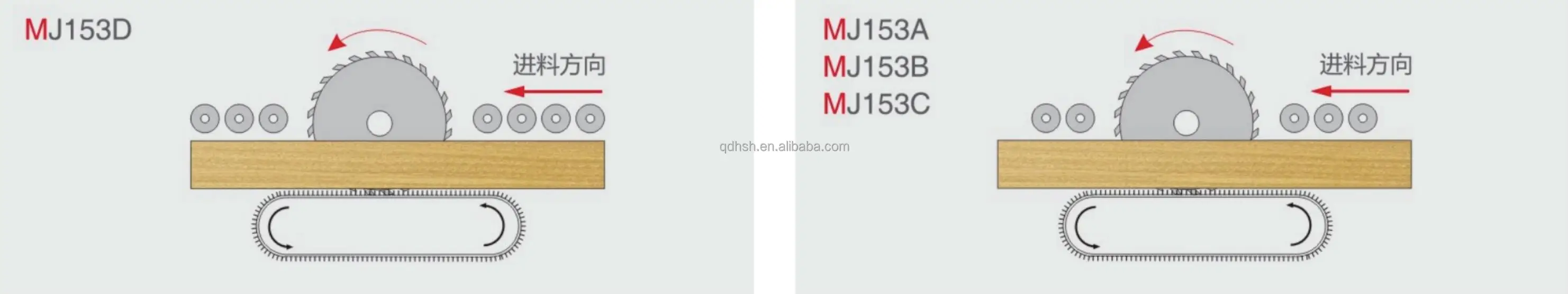

Structure
Plug type conveyor belt
MJ153D Feed Width:5~120mm
MJ153A/153C Feed Width:5~85mm

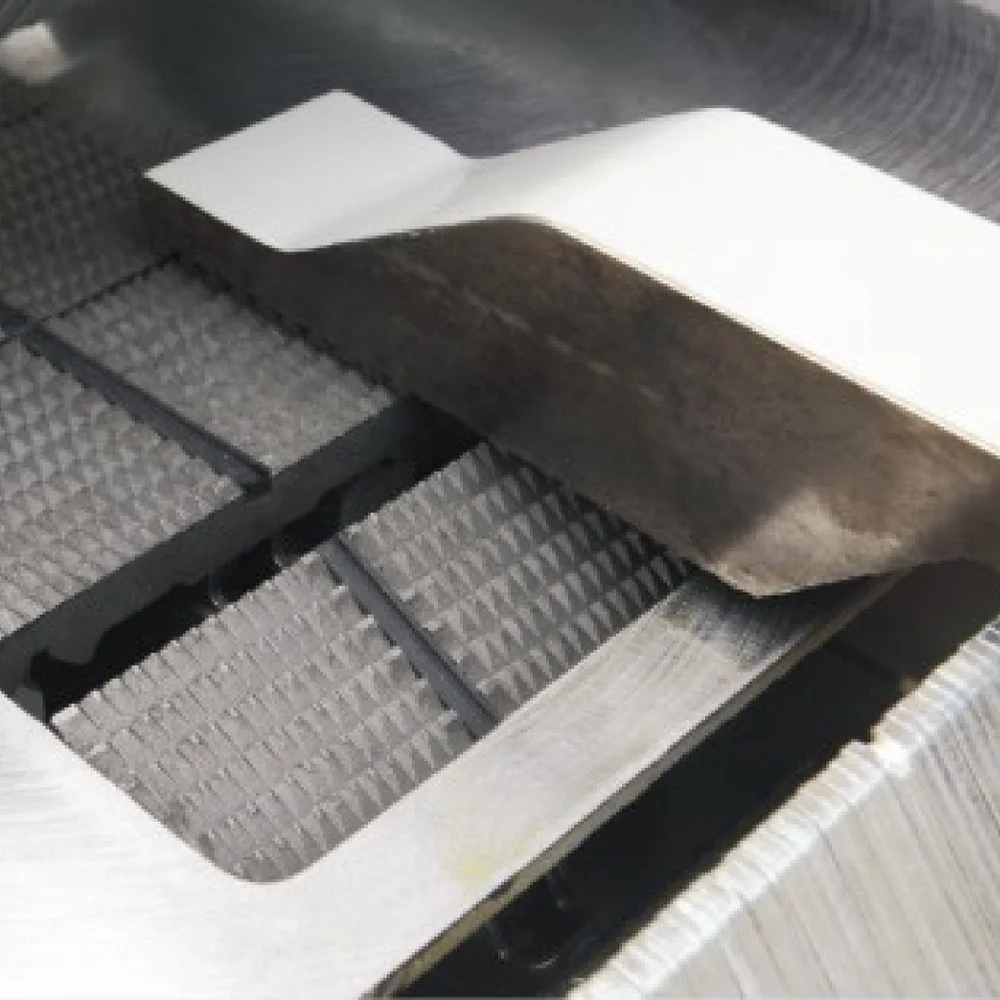

Chain conveyor belt
MJ153/153B Feed Width:5~85mm

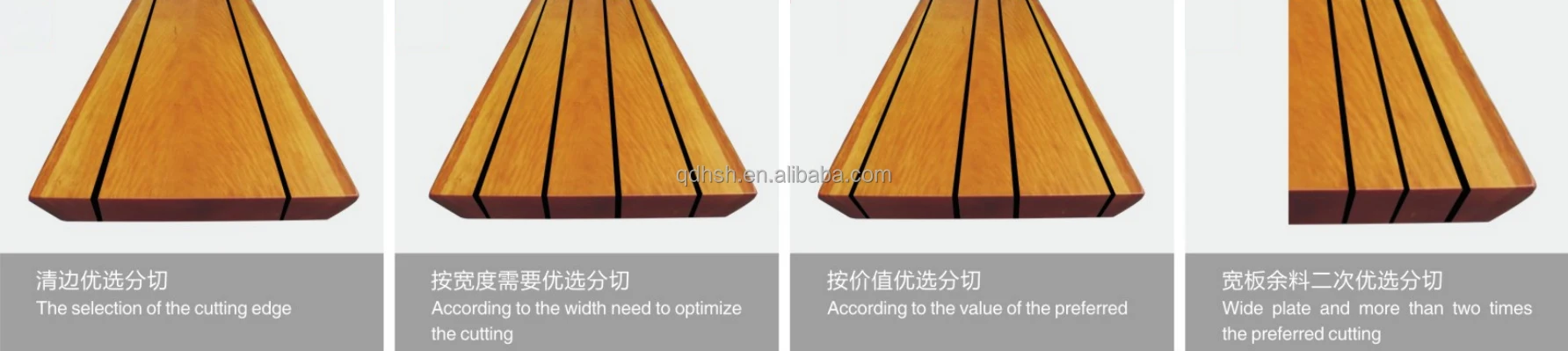

Application
High precision, high efficiency and longitudinal optimization of cutting processing, improve the comprehensive utilization of timber.
Similar Products

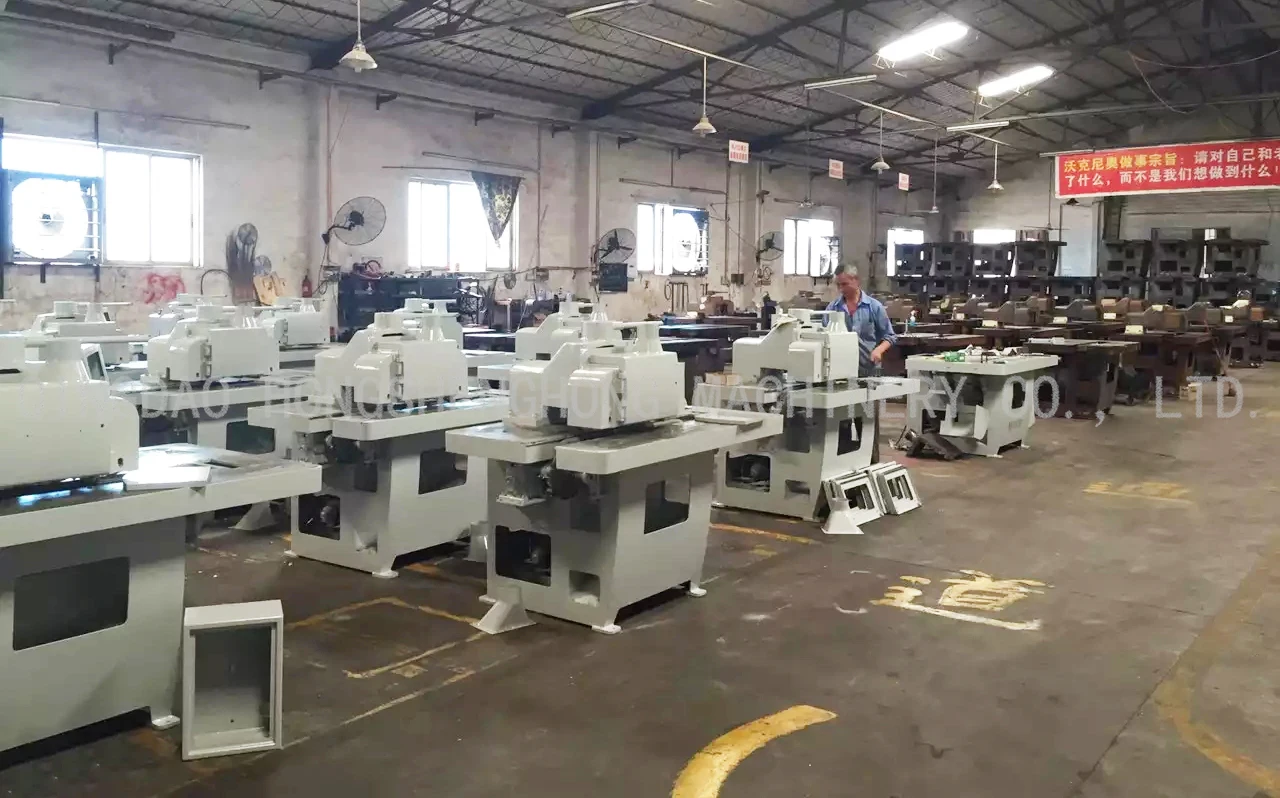

Workshop showing
After sale service
Pre-sale service.
(1) Provide the free consultation of equipment.
(2) Provide the standard device and the flow chart.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
(3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment.
(4) Welcome to visit our factory.
Service during the sales.
(1) Inspect the machine before leaving the factory.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
(2) Oversea install and debug the equipment.
(3) Train the first-line operator.
After sale service.
(1) 24 hours online service.
(2) Provide the VIDEO with install and debug the equipment.
(2) Provide the VIDEO with install and debug the equipment.
(3) Provide technical exchanging.
