Scrap Recycling Equipment Mixed Metal Solid Waste Recycling Aluminum Removal Pet Flakes Eddy Current Magnetic Separator Machine
- Category: >>>
- Supplier: Zhengzhou Tianyu Heavy Industry Machinery Co. Ltd.
Share on (1600516817751):
Product Overview
Description
Product Overview

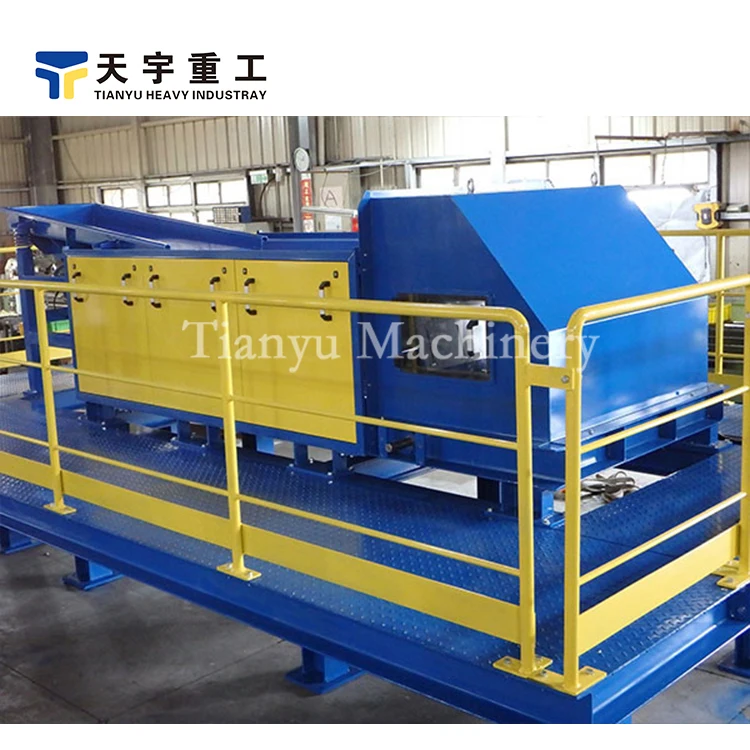

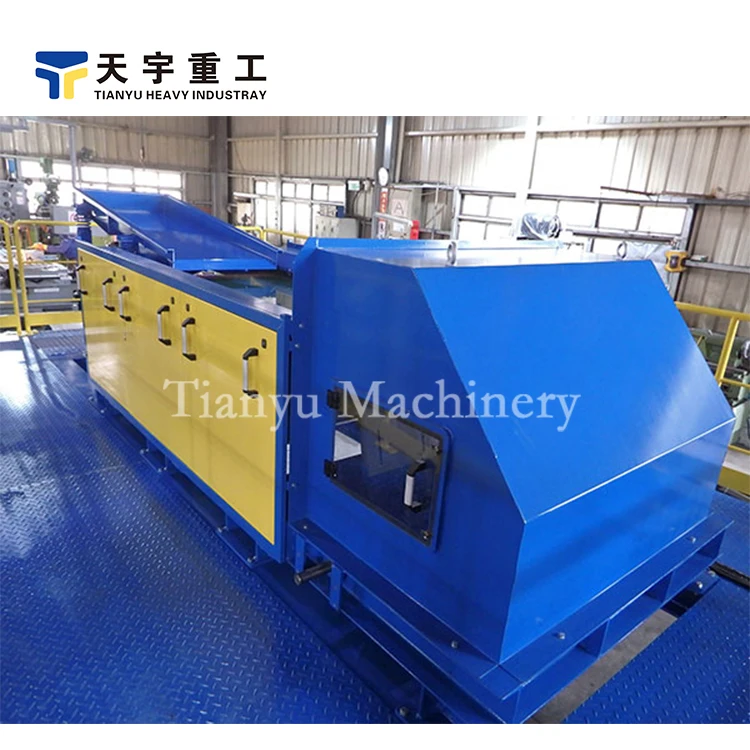

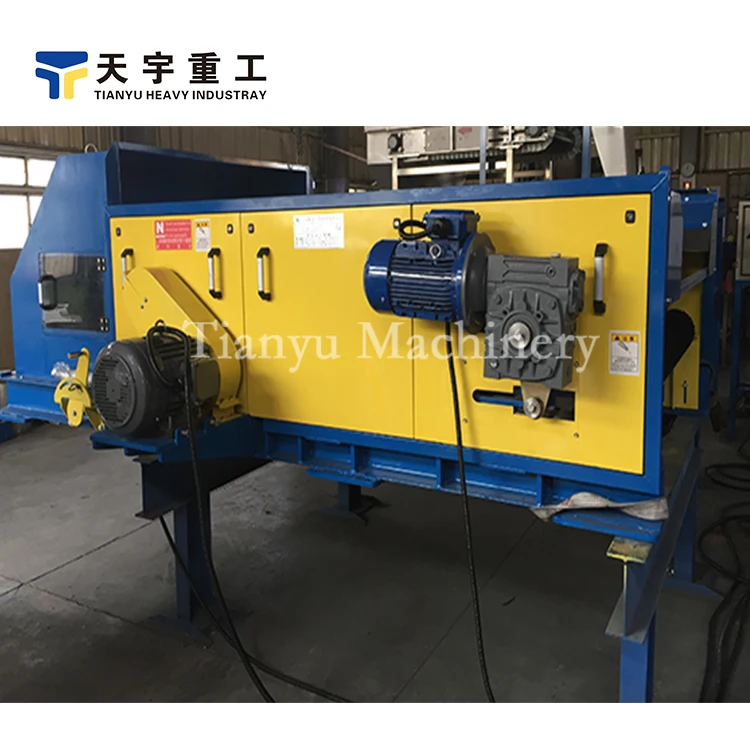

Eddy current separator
Eddy current separator (ECS) is a machine that uses a powerful magnetic field to separate non-ferrous metals from an input waste or ore stream. The device makes use of eddy currents to effect the separation. Non-ferrous metals typically separated by an
ECS include aluminum, copper and die-cast metals.
ECS include aluminum, copper and die-cast metals.

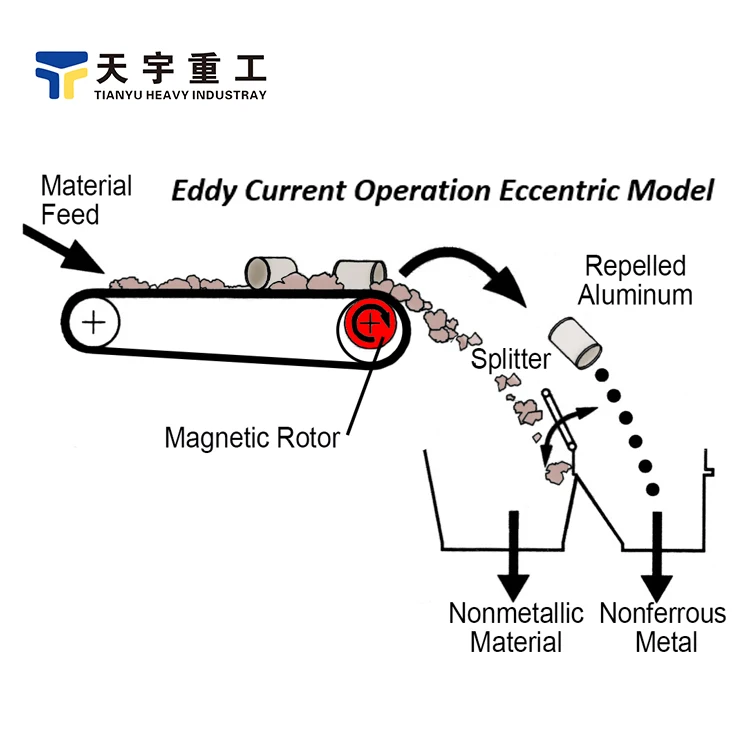

Working Principle
Eddy current separators have a high-speed magnetic rotor conveyor belt system. The rotation speed of the magnets generates an induction field, creating a rapidly changing magnetic field. The principle that every electrically conductive particle located in an alternating magnetic field is temporarily magnetized is the basis of the separation.

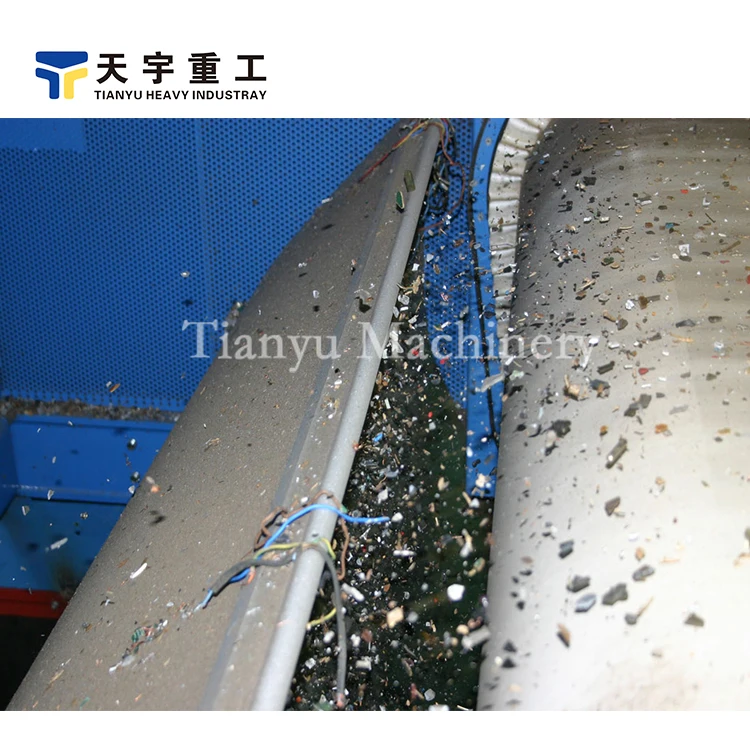

For a moment, all metals that pass the magnetic roller become magnetized themselves, causing them to be ejected. This allows the system to separate a huge number of non-ferrous metals and their alloys, including aluminum, copper and brass.
For a moment, all metals that pass the magnetic roller become magnetized themselves, causing them to be ejected. This allows the system to separate a huge number of non-ferrous metals and their alloys, including aluminum, copper and brass.
Technical Performance
The raw materials could be the broken materials, after the vortex current separator, the metal copper or aluminum can be separated from the raw materials.The vortex current separator has great performance, excellent ability and easy to operate.
Product Paramenters
Model | Rotary speed (r/min) | Belt width (mm) | Capacity (t/h) | Power (kw) | Weight (kg) |
400 | 0-3000 | 450 | 2-4 | 3.0+0.55 | 1000 |
600 | 0-3000 | 650 | 4-6 | 4.0+0.75 | 1400 |
800 | 0-3000 | 850 | 6-10 | 5.5+1.1 | 1800 |
1000 | 0-3000 | 1050 | 10-12 | 7.5+1.5 | 2200 |
1200 | 0-3000 | 1250 | 12-15 | 11+2.2 | 2400 |
Feature & Advantage
1. The equipment uses the PLC automation programming control and man-machine interface touch screen control with the automatic alarm function with regard to faults.
2. The whole assembly line uses the broken, crushed and dry physical mechanical dissociation and sorting with static sorting, the recovery rate of metals and plastics can reach up to more than 99%, and aluminum can directly cast aluminum ingots or make aerated aluminum pastes of steamed tiles and plastic particles.
3. Use the simple bag or pulse to remove dust in the production line to purity the working environment.
4. The automation control system simplifies the operation procedures and the entire assembly only needs 1 to 2 people.
5. Do not burn and soak with chemical solution, which is in line with requirements for environmental protection.
2. The whole assembly line uses the broken, crushed and dry physical mechanical dissociation and sorting with static sorting, the recovery rate of metals and plastics can reach up to more than 99%, and aluminum can directly cast aluminum ingots or make aerated aluminum pastes of steamed tiles and plastic particles.
3. Use the simple bag or pulse to remove dust in the production line to purity the working environment.
4. The automation control system simplifies the operation procedures and the entire assembly only needs 1 to 2 people.
5. Do not burn and soak with chemical solution, which is in line with requirements for environmental protection.
FAQ
Q: How To Choose One Suitable Eddy Current Separation Recycling Line?
A: Please tell us your raw materials and the capacity, we will recommend you the most suitable eddy current separation recycling line.
Q: What's The Raw Material?
A: The raw materials can be non-ferrous metals and non-metals, such as copper plastic composite materials, aluminum plastic composite materials, etc.
Q: What About The Machine Installation?
A: We will send engineers to customer working site for the installation guidance, commissioning and training when everything is ready on your working site, like power, cable, labors, forklift, etc.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and separation recycling line before delivery and send you the working video. You also can come to us for inspection before delivery.
A: Please tell us your raw materials and the capacity, we will recommend you the most suitable eddy current separation recycling line.
Q: What's The Raw Material?
A: The raw materials can be non-ferrous metals and non-metals, such as copper plastic composite materials, aluminum plastic composite materials, etc.
Q: What About The Machine Installation?
A: We will send engineers to customer working site for the installation guidance, commissioning and training when everything is ready on your working site, like power, cable, labors, forklift, etc.
Q: How About The Spare Parts?
A: We provide spare parts at cost price permanently and will give you the spare parts list when you purchase machine.
Q: Will You Test The Machine Before Delivery?
A: Yes, we will test every machine and separation recycling line before delivery and send you the working video. You also can come to us for inspection before delivery.
