Custom Diameter 60mm 70mm 80mm 100mm 150mm 200mm 300mm AR/DLC coating Infrared Germanium Window
- Category: Lenses >>>
- Supplier: Wuhan Especial Optic Inc.
Share on (1600516836804):
Product Overview
Description
Product Description

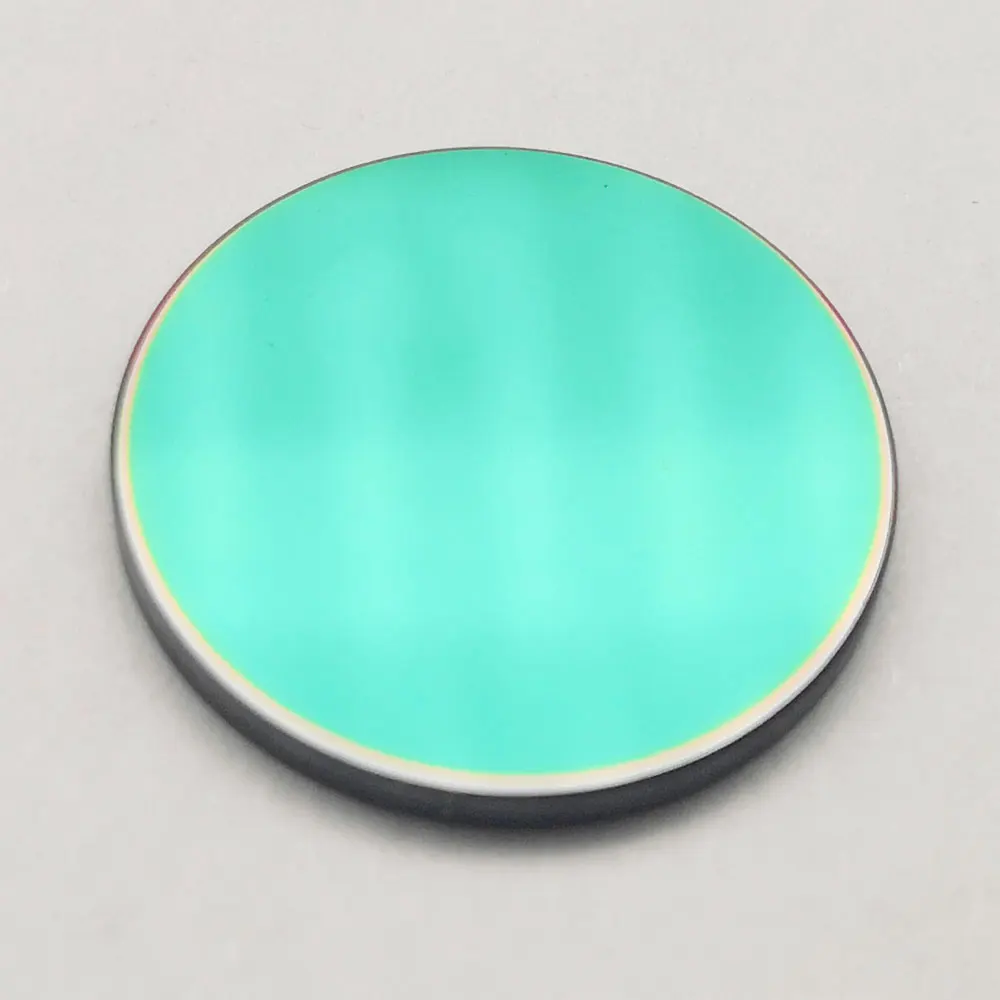

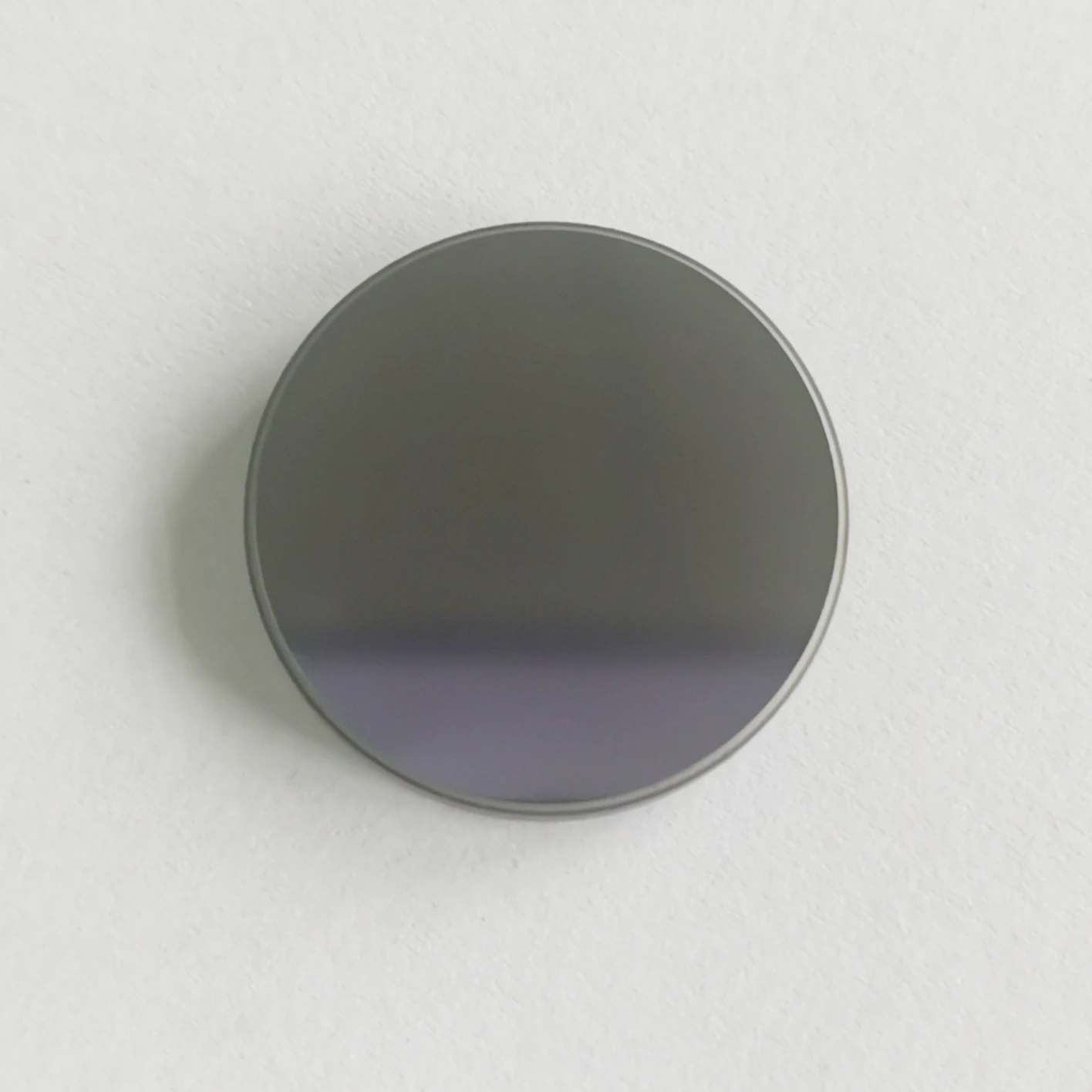

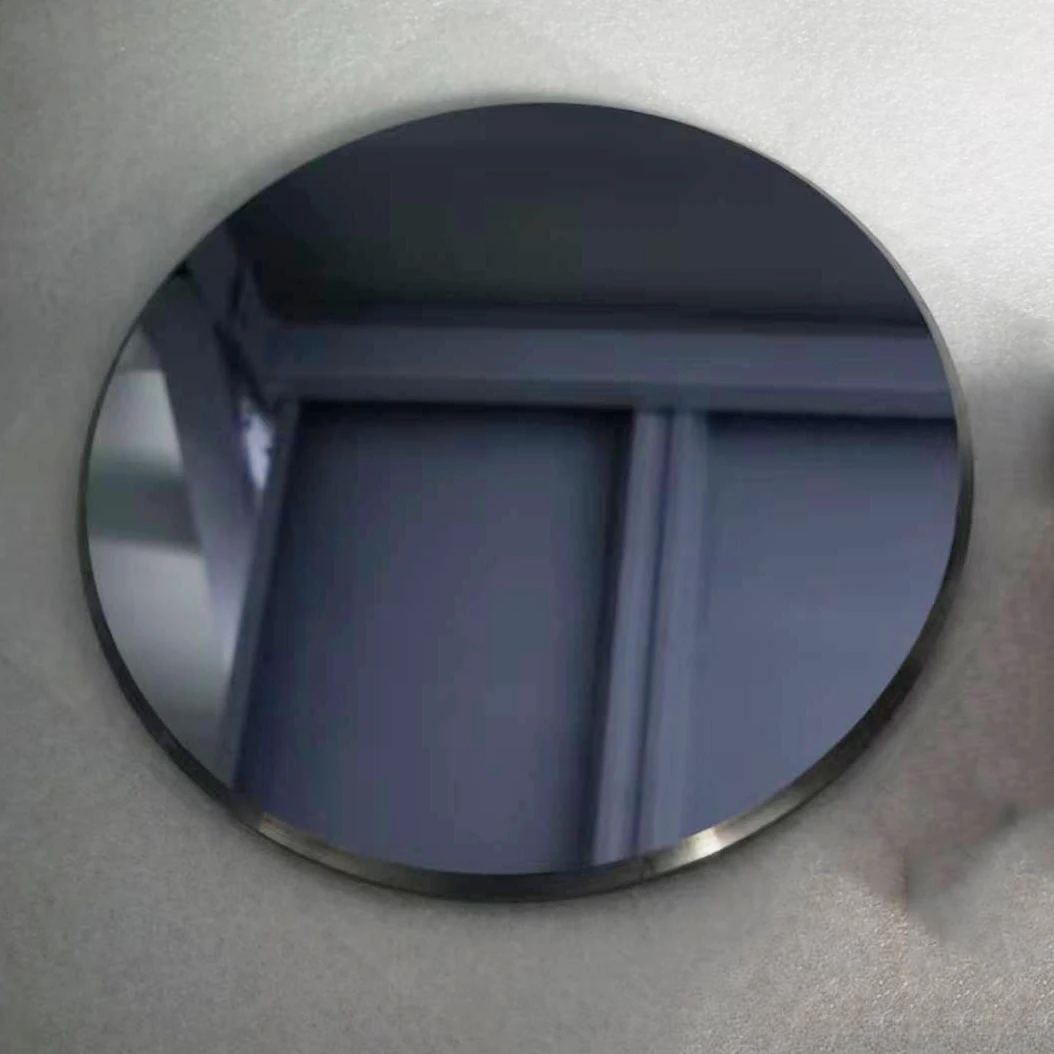

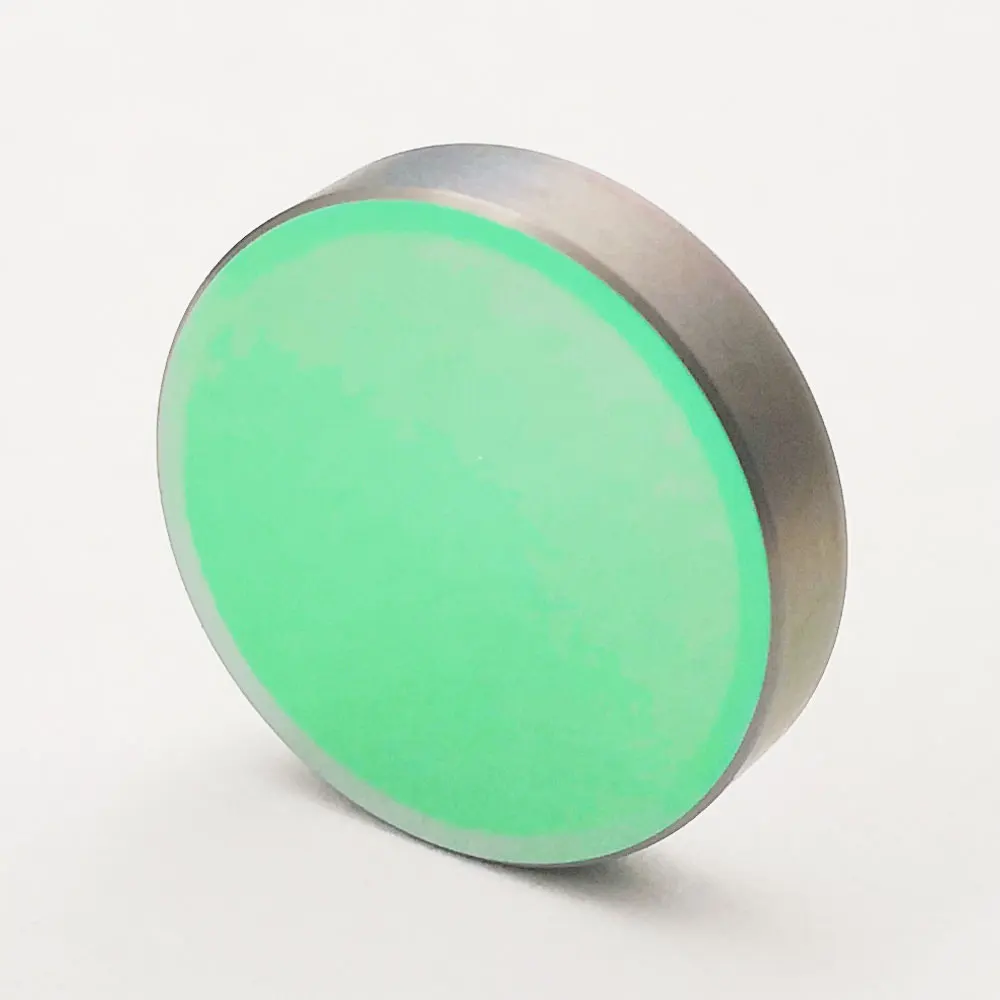

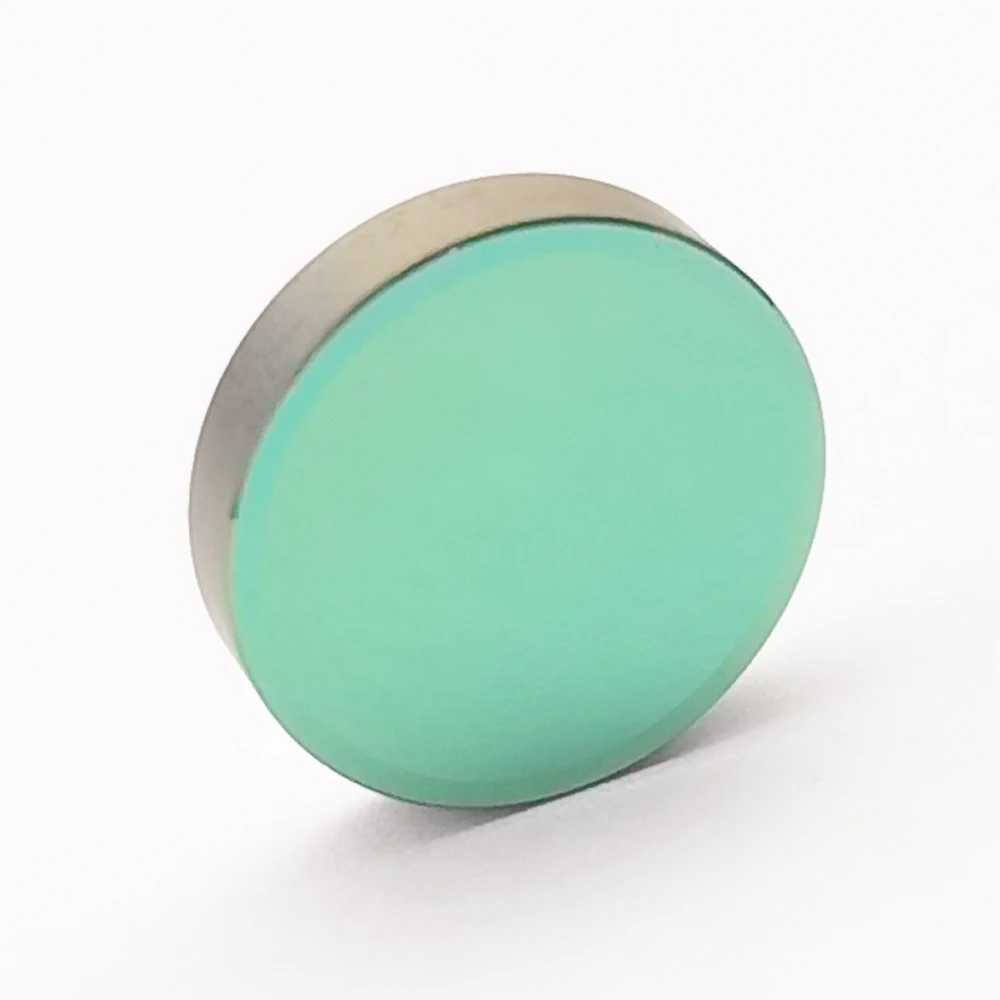

Large Size Ge windows
Germanium (Ge) is a relatively hard, high-density, IR transmitting material that blocks UV and VIS wavelengths but allows IR from 2-16µm. Germanium has the highest refractive index of commonly available IR-transmitters and has low optical dispersion, which makes it desirable in aspects of lens designing where its high refractive index allows otherwise impossible specifications to be built. AR/AR coating or AR/DLC coatingis recommended to improve transmission.
The transmission of uncoated Germanium is around 45% @2-14μm under room terperature but transmission degrades slowly at 100⁰C then more rapidly above 200⁰C. Exposure to higher temperatures can lead to reduction of its performance so Germanium is unsuitable for use in high temperature. Additionally, its relatively high density should be considered where weight is an issue.
Fore more questions or samples, please kindly reach out to sales@wheo.cn.
Germanium windows specifications: | ||||
Standard | High precision | |||
Dimension | φ5-350mm | φ3-350mm+0/-0.2 | ||
Thickness | 1-40mm | 1-50mm | ||
Parallelism | <3 arcmin | <10 arcsec | ||
Surface Quality | 60/40 | 20/10 | ||
Flatness | N<λ/2 @633nm | N<λ/10 @633nm | ||
Clear Aperture | >90% | >95% | ||
Chamfer | Protected Chamfer | Protected <0.5mmx45deg | ||
Coating | AR/AR coating, AR/DLC coating or as request | |||
Our Company
Wuhan Especial Optic is a leading manufacrurer of high precision optics, which was established in 2012 and have passed ISO 9001:2015.
WHEO has around 60 sets of manufacturing equipments including lapping polishing machines, high polishing machines, low polishing machines, coating machines and so on and advanced testing instruments including Interferometers, Spectrophotometers, precision goniometers, and digital micrometers etc.
Our products are not limitted to optical windows, mirrors, lenses, prisms and filters, we can also help customers to develop fully new optics upon their unique use. In addition, we especially have extensive expeience in manufacturing of ultra-high precision, ultra-large size, ultra-thin and special-shaped infrared optical components.Now we're in small mass production of polygon scanning mirrors for several famous autonomous vehicles companies.
We always uphold a philosophy: customer satisfaction is our eternal pursuit! We will make continuous efforts to provide customers with stronger, better and more perfect services.
For more information or free samples, please feel free to reach out at sales@wheo.cn.
WHEO has around 60 sets of manufacturing equipments including lapping polishing machines, high polishing machines, low polishing machines, coating machines and so on and advanced testing instruments including Interferometers, Spectrophotometers, precision goniometers, and digital micrometers etc.
Our products are not limitted to optical windows, mirrors, lenses, prisms and filters, we can also help customers to develop fully new optics upon their unique use. In addition, we especially have extensive expeience in manufacturing of ultra-high precision, ultra-large size, ultra-thin and special-shaped infrared optical components.Now we're in small mass production of polygon scanning mirrors for several famous autonomous vehicles companies.
We always uphold a philosophy: customer satisfaction is our eternal pursuit! We will make continuous efforts to provide customers with stronger, better and more perfect services.
For more information or free samples, please feel free to reach out at sales@wheo.cn.
Our products
Our Service
a: Dimesion size : 5-300mm , thickness up to customer requirements
b: Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
c: AR HR DLC coating or as your request
For more please visit our website: www.wheo.cn
Packing & Delivery
Packing Details: First layer Tissue paper, then Protective film or Capacitor paper, Pearl cotton, Cardboard box.
Delivery Details: 7 days for stock.
3-4 weeks for custom-made products.
in common, ≥4 weeks for mass production.
FAQ
Are you factory or trader?
We're factory, focus on high precision optics manufacturing for over 10 years.
How to pay?
Through Trade Assurance Order on Alibaba, you can pay by TT, credit card, Paypal and so on.
What's the deliver time?
For inventory: within 5 workdays.
Custom-made: typically 30 days, also depends on the quantity and precision.
Can I customize the products based on my need?
Sure, we can customize all optical components upon your uique needs.
How do you ship goods?
FedEx, UPS, DHL, TNT, EMS or upon request.
Contact us
Wuhan Especial Optic Inc.
Contact: David Liu
Tel: +86-027-87504830
WhatsApp: +86-18622556450
Email: sales@wheo.cn
Website: www.wheo.cn
