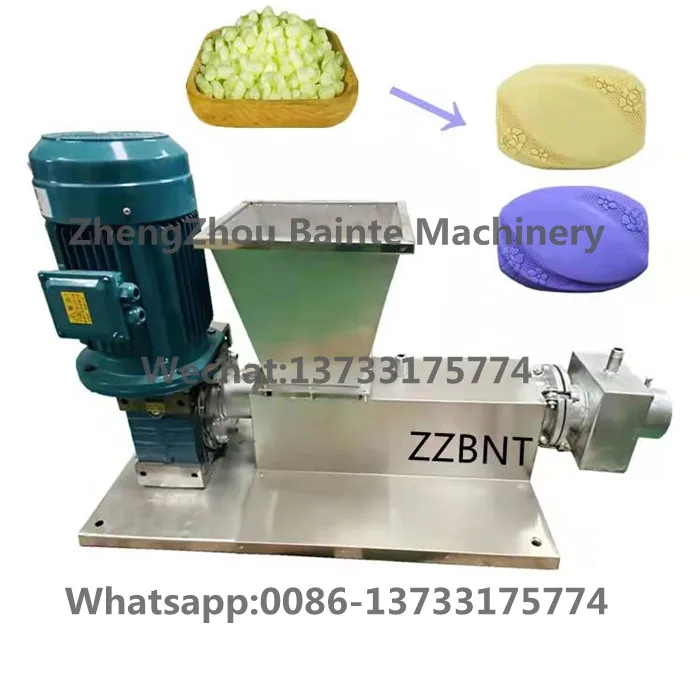

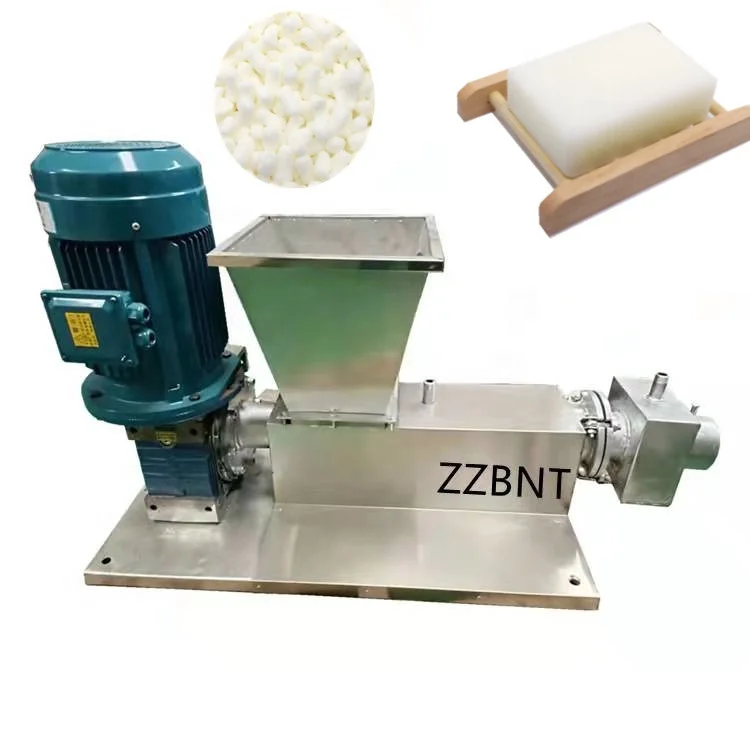

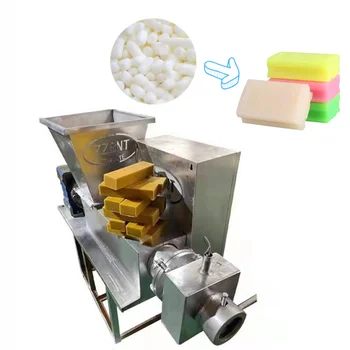

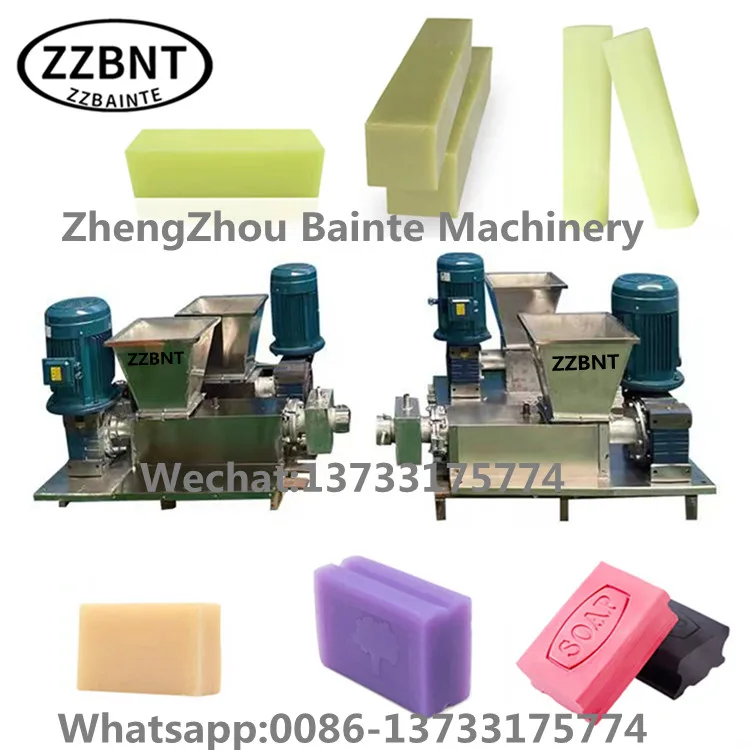

Laundry Toilet Soap Plodder Machine Of Factory Wholesale

Design description:

This production line is a soap molding production line with soap particles as raw materials and an output of 50-100kg/h. After mixing and grinding of raw materials, vacuum stripping and printing, medium and high-grade soaps with fatty acid content of 55-70% can be produced. The production line adopts a vacuum strip machine, which can make the soap structure tight and not easy to dry and crack.Production process:
1: First put the soap granules or soap flakes into the mixer, start the mixer, and then evenly put in the essence, pigment, other auxiliary materials, preservatives, etc. After mixing evenly, open the valve of the square material, put the material into the silo and wait, close it mixer.

2: Start the first conveyor and the first three-roller grinder, then open the silo valve to let the material enter the conveyor and send it to the grinder for grinding.

3: Start the second and third conveyors and the second three-roll mill.

4: After the material enters the double vacuum extruder, confirm that it can be continuously produced, start the first screw, and start the second screw after discharging.

5: After the article is published. Start the printer and the fourth conveyor, and confirm whether the printing speed and the output speed are the same, the good soap is loaded on the tray, and the soap head and the poor input conveyor are returned to the output machine.

Welcome your visiting to my factory:

  We are able to provide our customers with the total solution of "Soap Factory" according to the different needs of customers, including technical support and guidance on equipment for oil treatment, saponification, vacuum drying, molding and packaging as well as soap production process.

  For oil processing, building and vacuum drying systems, we choose the right soap based on the type of crude oil used (coconut oil, palm oil, animal oil, etc.) and the type of finished soap (soaps, transparent soaps) System, output up to 7 tons / hour

For the forming line, we can make any formula of soap and transparent soap products. Not only can we produce 50-100 kg / h laboratory production lines for customer R & D and small-scale production, but also produce the world's largest production capacity of 4000-6000 kg / h production line, print 720 soap per minute. Soap shape customizable according to customer, and can produce two-color soap, striped soap, pattern soap and other colors, and the soap can be printed on all sides to meet the multi-faceted, personalized needs.

  For the packaging line, we have been able to achieve all of the currently popular packaging formats in the market, such as carton packs, pillow packs, double paper packs and round packs.

  For line-end equipment, we not only offer fully automatic and semi-automatic case packers, but also robotic palletizers to meet the needs of our customers in reducing the number and cost of personnel and increasing line automation.

In general, we are the supplier of complete equipment for soap production and provide our customers with a total solution for soap factories.

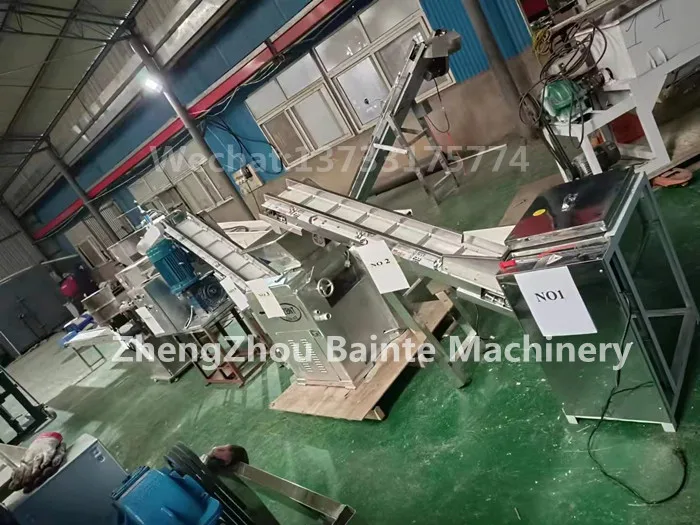

Soap Production Line:

 Mixer---Three-Roll Mill---Plodder Machine---Soap Printer

   Zhengzhou Bainte Machinery Equipment Co., Ltd. was established in 2017. It is mainly engaged in the import and export business of soap production equipment. Its business scope covers 136 countries and regions including Africa, Southeast Asia, the Middle East, North Europe, and the Americas. The profound friendship has established the BNT brand which enjoys a high reputation in the industry and has won a broad international market space!

     We treat our work and life in an optimistic mentality and aspiring actions. we bring into full play to make the most importantthing best Never shall we be satisfied with current situation at any time but to seek new breakthrough for both the individualityand the company we have a strong desire to keep the constant improvement on ourselves as well as our products and service towin the market.

1, Q: Soap industry production process?

A, Basically, the soap production need 2steps:

a, using all kinds of oil&fast as material to produce semi-finished soap noodle;

b, using seme-product soap noodle to produce end bar soap.

2, Q:What is the kinds of the soaps?

A: For convenience, we separate the soap into two kinds, toilet soap for washing hand&taking bath, herbal soap, hotel soap, antiseptic soap are included;

The second kind is laundry soap for washing clothes, etc.

3,Q: What kind of oil is suitable for soap production?

A: All kinds of vegetable oil and animal fats are usable, palm oil, cotton seed oil, tallow oil, coconut oil, sunflower oil, etc.

4.Q: What is the formula?

A: Raw material is oil, caustic soda and salt; semi-product is soap noodle, perfume and color.

Accurate formula based on your local market’s request is available after confirmation of order.

Why choose us?

1.Our professional designers design machines according to your needs.

2.Video will be provided to customers.

3.Instruction book with every set of machine

4.Provide vulnerable parts

5.Quick response to any question about the machine

6.Competitive price as direct manufacturer

7.Superior quality

8.Good after-sale service

 After-Sales Service

1.Training how to instal and use the machine.

2.Engineers available to service machinery overseas.

3.Free warranty within one year

4.Our company also provides you with life-long technical support and accessories.

5.If you have some problems when you are using our products, please contact us at any time.
