Best Price Metal Element Testing X Ray Fluorescence Spectrometer Handheld XRF Analyzer explorer 5000 EXP5000

Product Overview

Description

Best Price Metal Element Testing X-Ray Fluorescence Spectrometer Handheld XRF Analyzer explorer 5000 EXP5000

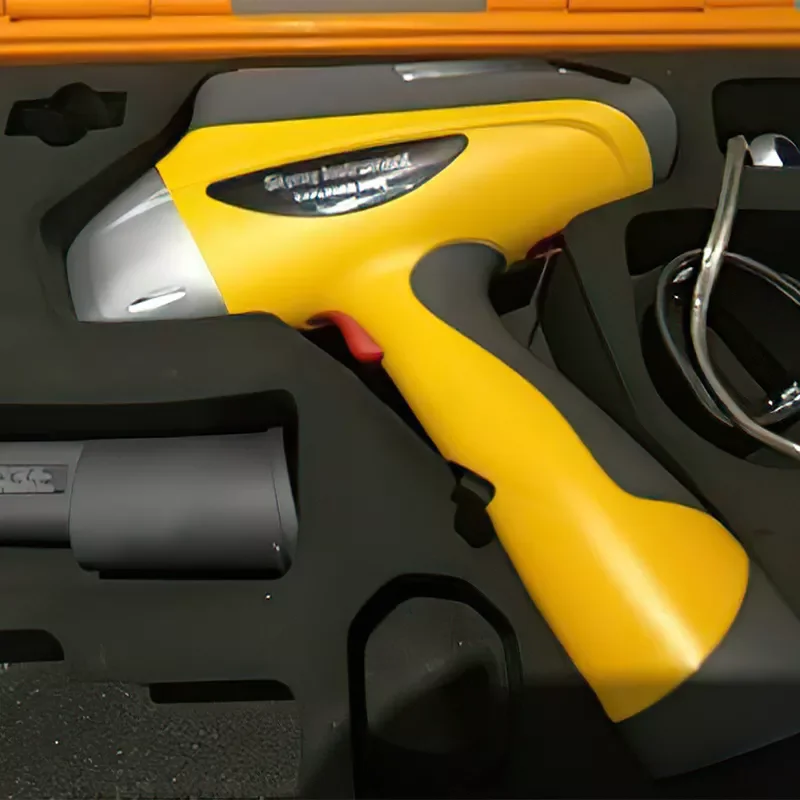

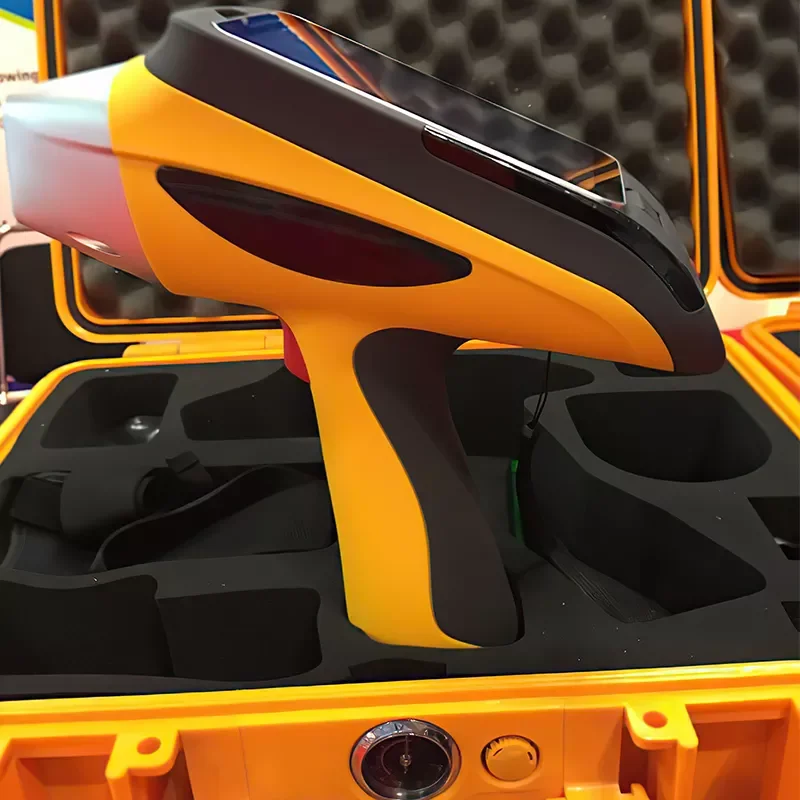

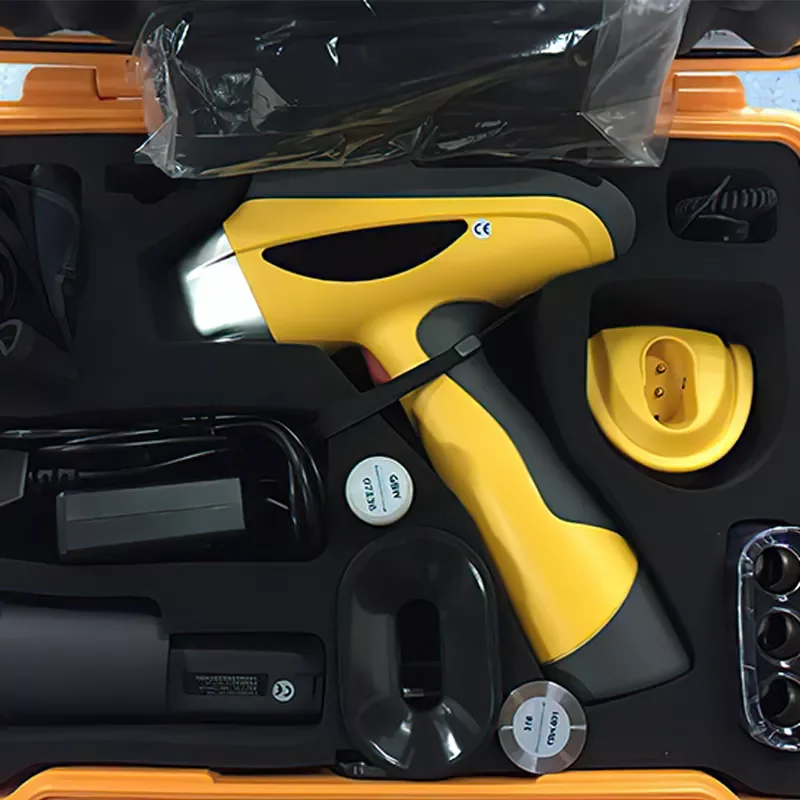

EXPLORER 5000 Handheld XRF Analyzer

• EXPLORER 5000 handheld alloy analyzer is the first to use large-screen,high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, EXPLORER is portable for testing and suitable for analyzing different kinds of alloy.



EXP-5000 Product configuration:



• 24 hours / 7 day uninterrupted service


• response response within 4 hours


• remote online troubleshooting


• long term spare parts inventory


• free installation training of new machine


• warranty period can be customized according to customer requirements


• one year warranty for new machine, free maintenance of software for life

 EXP-5000 Technical parameters and indicators:



NO.	Index	Description
1	Model	EXPLORER handheld XRF analyzer
2	Analytical Method	Energy dispersive X ray fluorescence analytical Method
3	Elements Measuring Range	Atomic number from 12 to 92 [elements from Mg (Mg) to uranium (U)] can be measured
4	Simultaneous detector elements	Simultaneous analysis 40 elements
5	Microcomputer system	Customized system, CPU: 1G, system memory: 1G, extended stored maximum support 32G, standard 4G for mass storage data
6	The content range	ppm~99.99%
7	The detection time	1-60 seconds (a second report results)

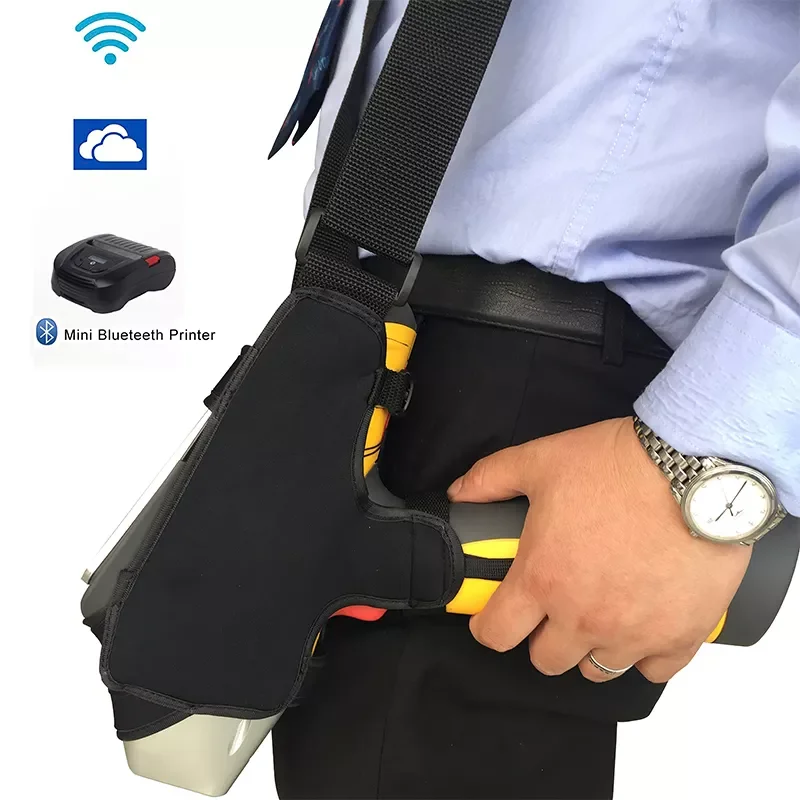

8	A built-in system	GPS, WIFI, Bluet.
9	Power Supply	Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh super battery with wide voltage 110V ~ 220V universal adapter for  recharging power supply.
10	Detection Objective	Solid, liquid, powder
11	Detector	SDD detector or Fast-SDD detector (optional)
12	Detector resolution	Minimum can reach 125eV
13	The excitation source	50KV/200uA- Ag/Rh target end window integrated miniature X ray tube and high voltage power supply
14	Collimator and filter	Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
15	Video system	500W pixel high resolution camera

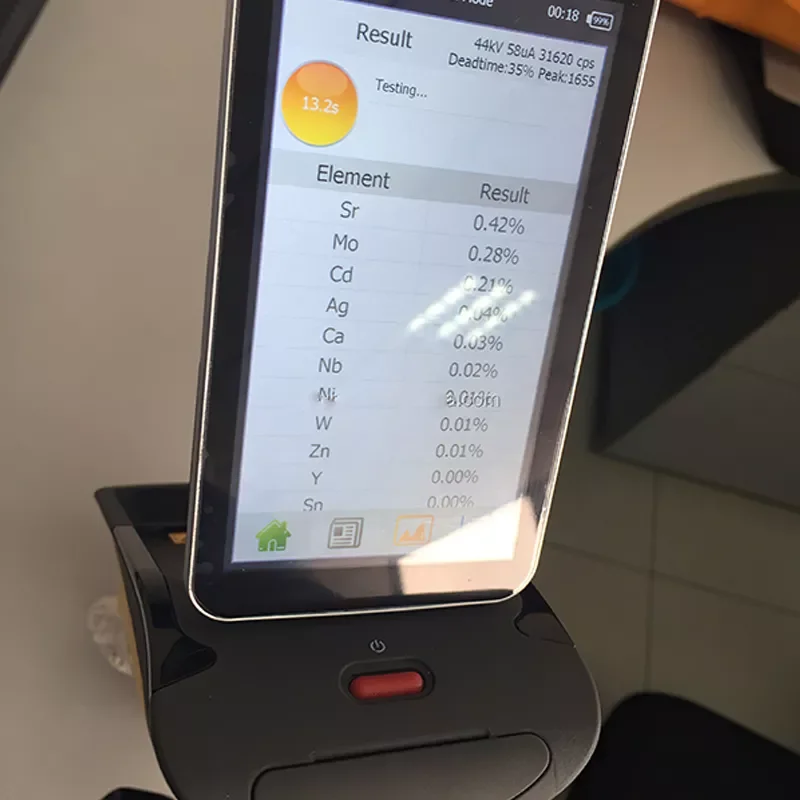

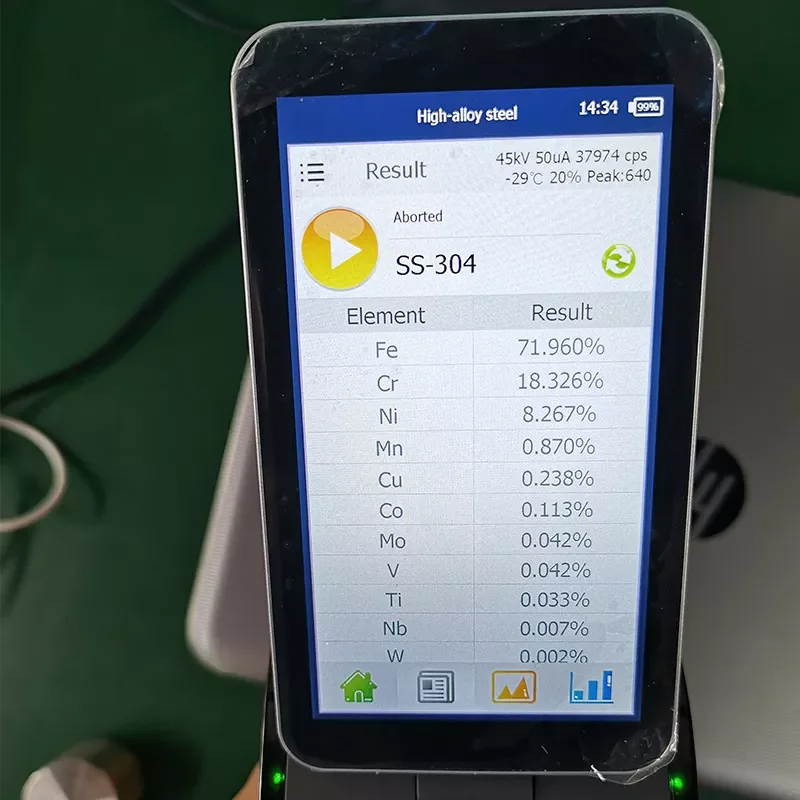

16	Display screen	Brand new 5 inch transflective LCD touch screen, the resolution is 1080*720.
17	The limit of detection	The minimum detection limits at 1 ~ 500 ppm.
18	Safety	Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument.
19	Specialty	Ore special edition analysis software, using intelligent one key test
20	Convenience of application	Key intelligent matching the best curve that no need to select curve
