M8xP0.35 VCM VCA voice coil motor actuator
- Category: >>>
- Supplier: Foshan Xieliang Optoelectronic Products Co. Ltd.
Share on (1600516904804):
Product Overview
Description
Product Description
Product Name | throust voice coil motor |
Material | PC, stainless steel |
Function | The main principle of voice coil motor is that in a permanent magnetic field, the tension position of the spring is controlled by changing the DC current of the coil in the motor, so as to drive up and down movement. Mainly used in small stroke, high speed, high acceleration movement, suitable for small space.The camera uses VCM to realize auto focus function, and the position of lens can be adjusted by VCM to display a clear image. |
Package | 48 pieces per plastic tray,1152 pieces (24 trays) per carton. |

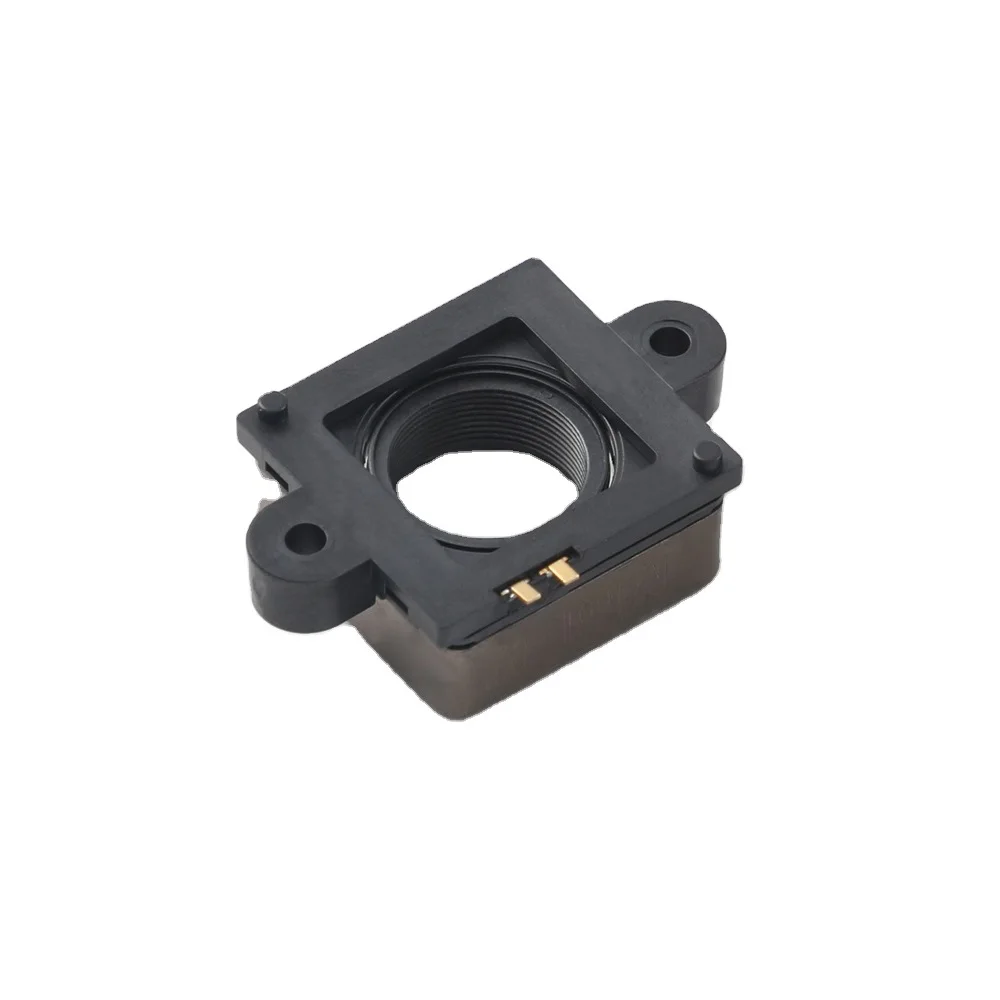

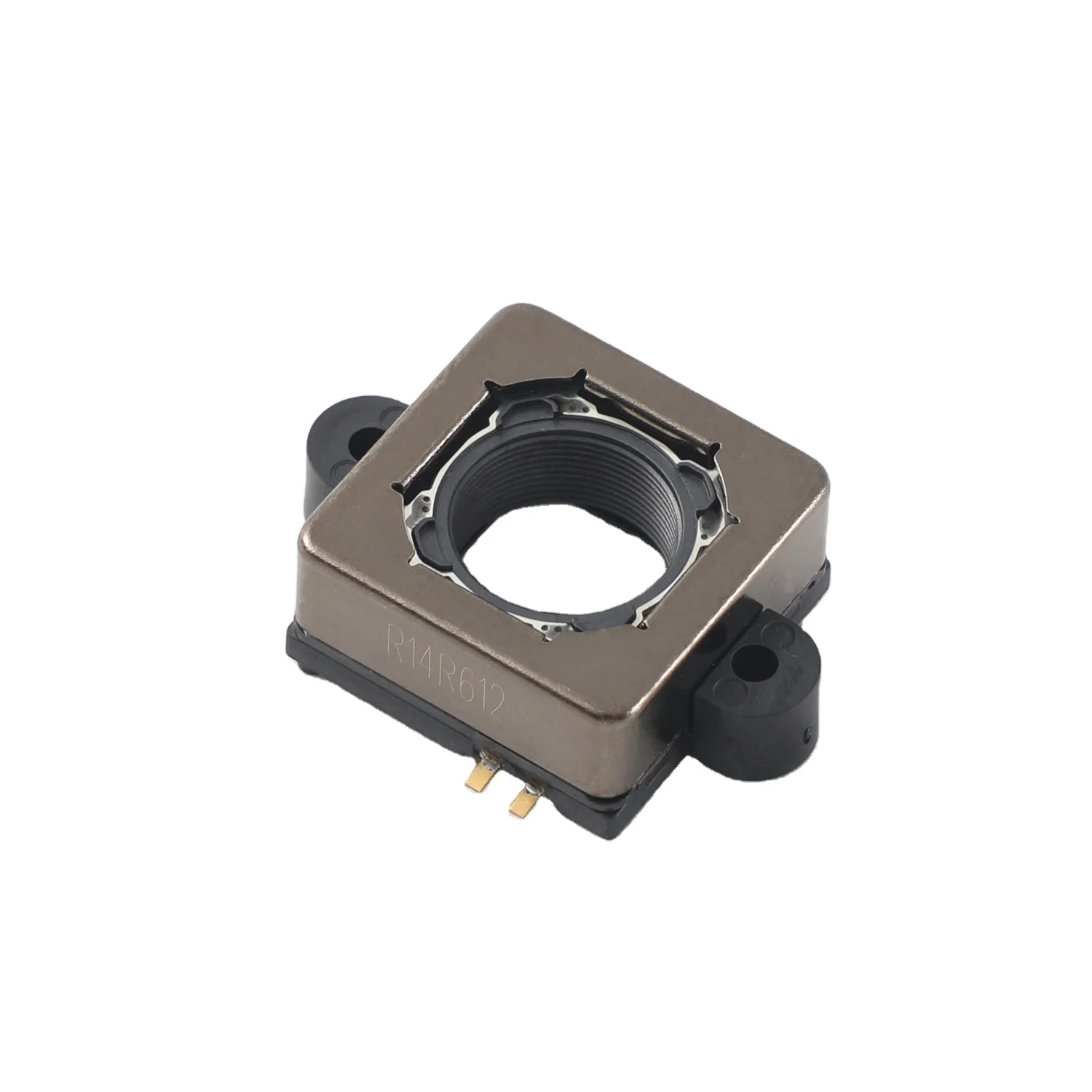

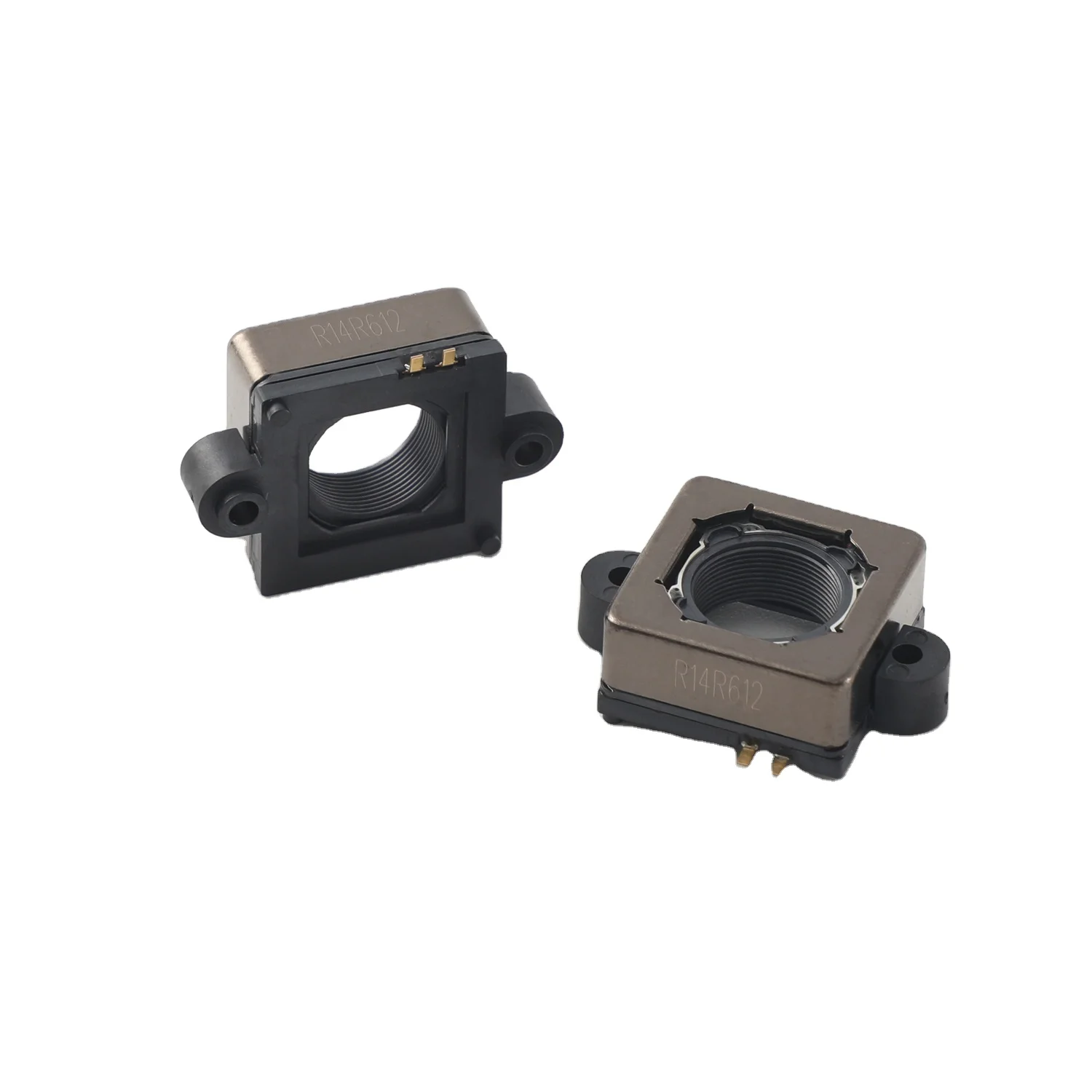

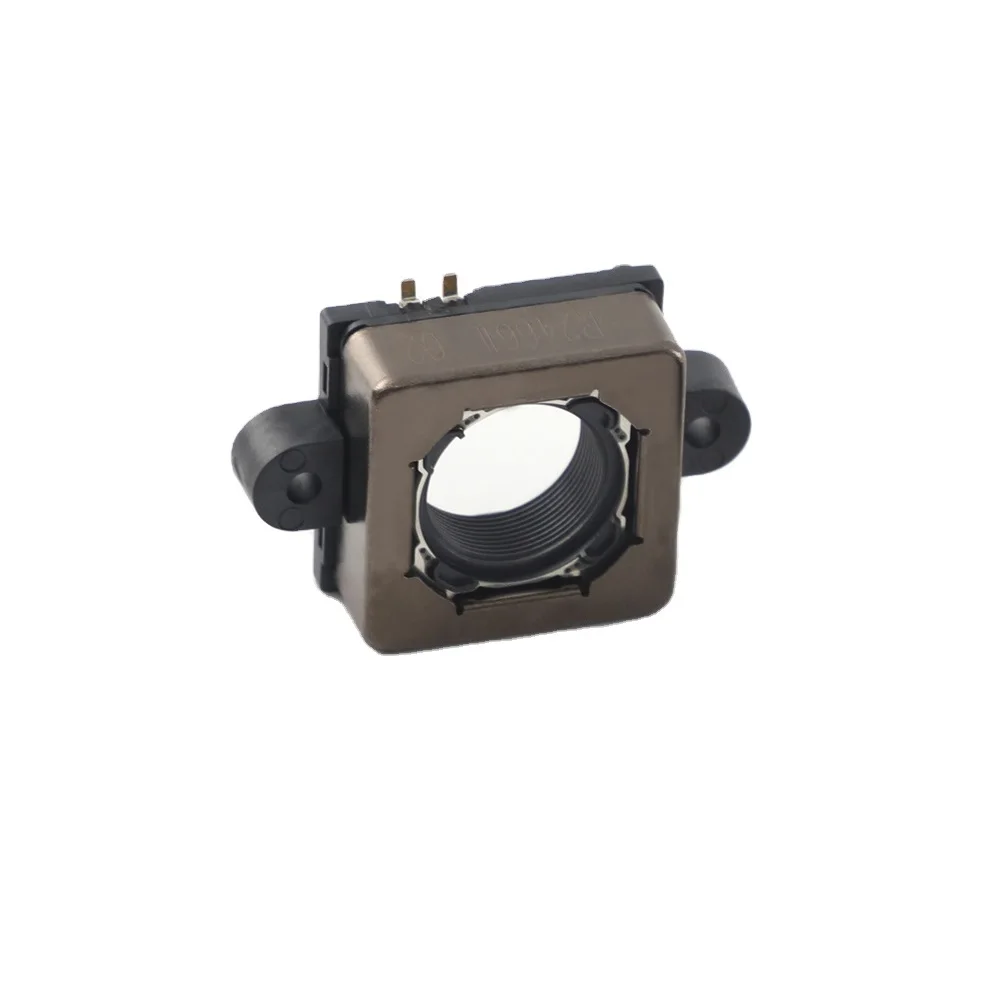

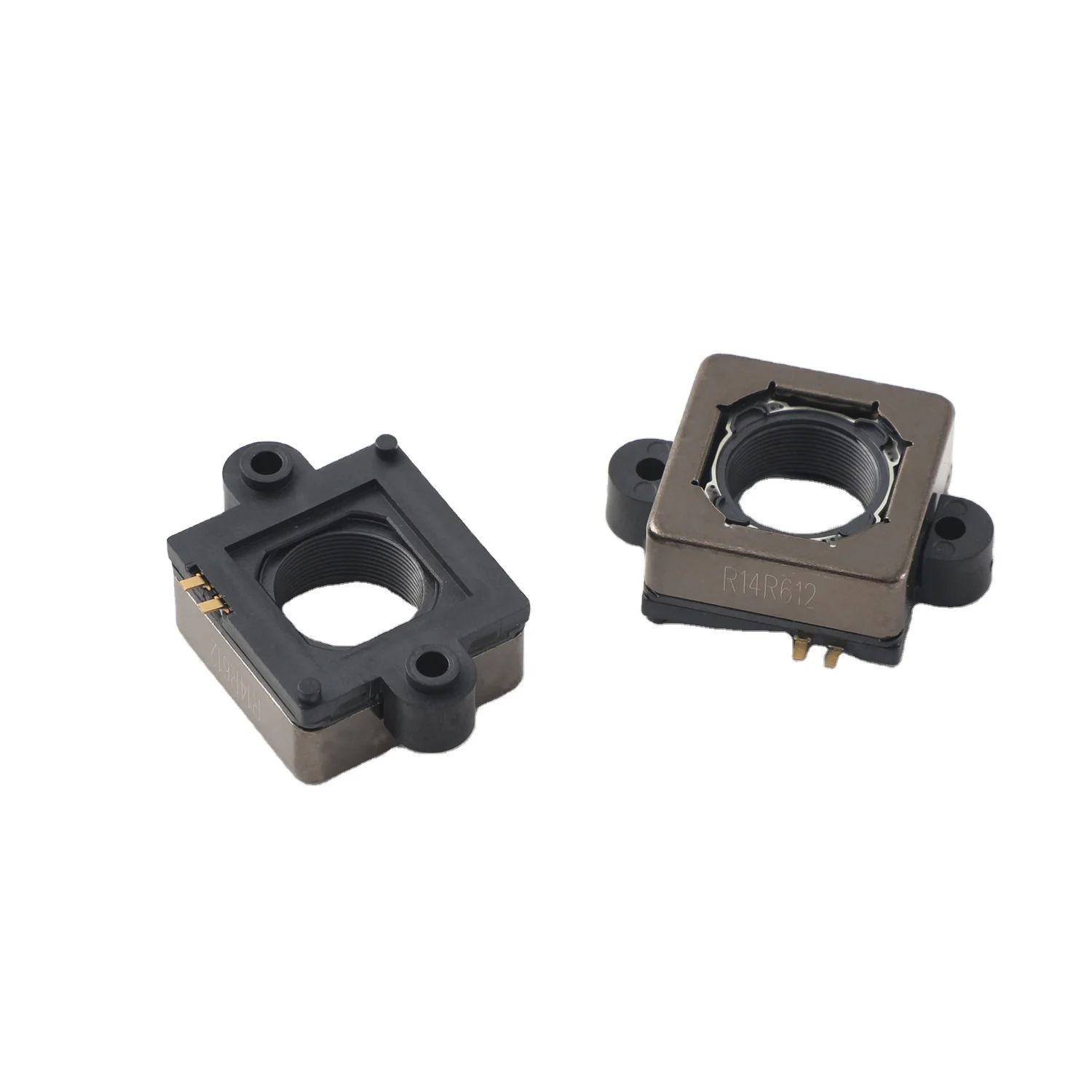

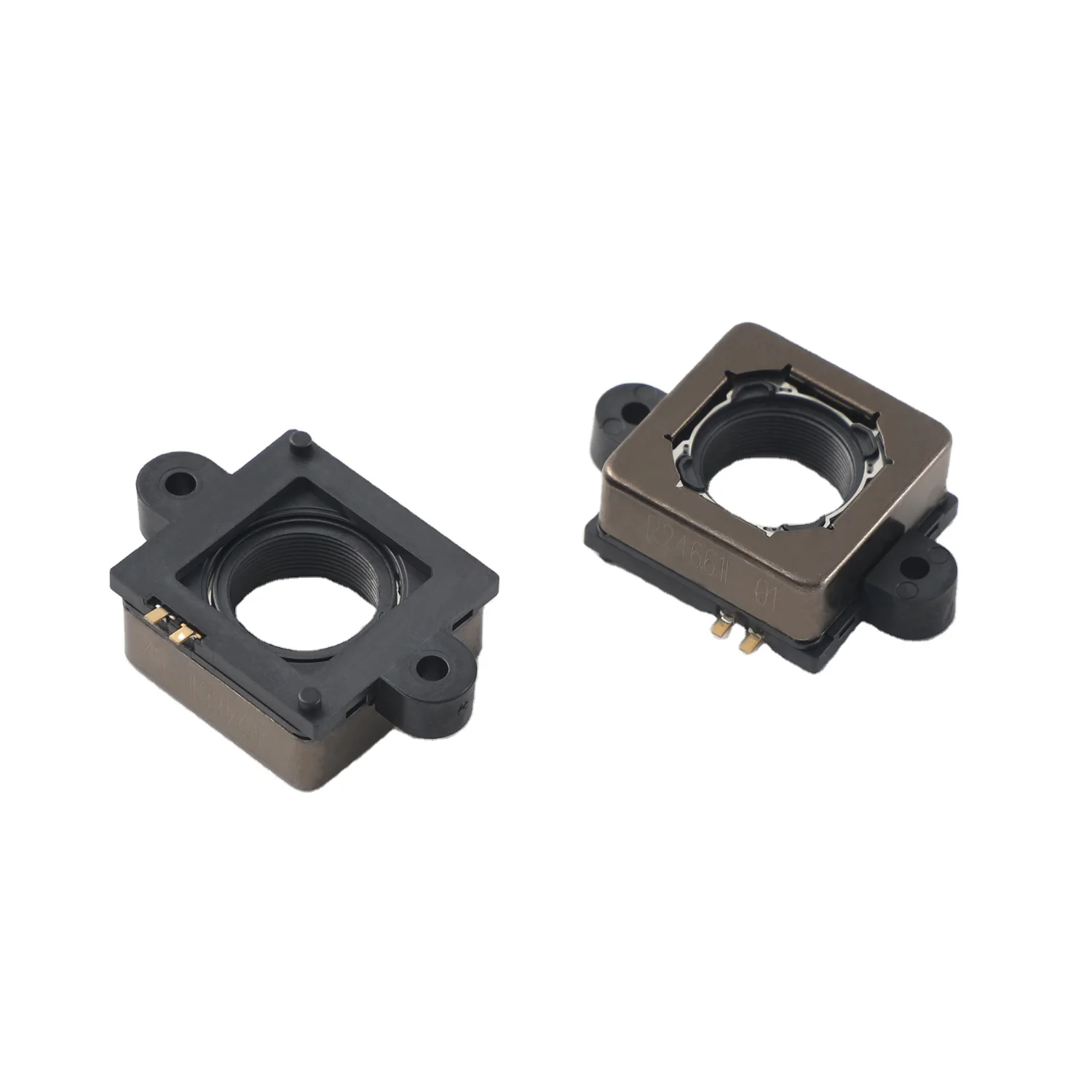

Details Images
Product Usage
Digital camera
Digital camera
Digital camera
Related Products
Packing&Shipping
Company Introduction
Foshan Xieliang Optoelectronic Products Co., Ltd. which is also named as Foshan V-Light Corporation specializes in R&D, production and sales of AUTO IRIS (automatic aperture), ICR switcher module (dual filter switcher), thermal imaging shutter motor and CNC matching processing of core body, solenoid valve, micro stepping motor sets, gearbox, optoelectronic control device, security VCM motor, and ultra-low reflection processing on aluminum alloy surfaces, etc.
The products are designed and developed by the senior engineering research and development team. With the equipment
for environment and reliability testing, the instruments for image measuring and other testing, the company implements one-stop service to ensure product quality from parts design to mold making. The company is highly praised by well-known companies at home and abroad, and it can also provide OEM and ODM services for all customers.
The products are widely used in cameras, CCTV lenses, car night vision modules, mobile phones, printers, household appliances, laser rangefinder, infrared thermal imager, drones, robots,medical and health care industry, etc.
The products are designed and developed by the senior engineering research and development team. With the equipment
for environment and reliability testing, the instruments for image measuring and other testing, the company implements one-stop service to ensure product quality from parts design to mold making. The company is highly praised by well-known companies at home and abroad, and it can also provide OEM and ODM services for all customers.
The products are widely used in cameras, CCTV lenses, car night vision modules, mobile phones, printers, household appliances, laser rangefinder, infrared thermal imager, drones, robots,medical and health care industry, etc.
Our Services & Strength
With 17 utility model patents, 10 technical and 10 quality control staffs, Xieliang company can not only develop new products quickly and efficiently but also provide high quality after-sale service.
Certifications
Hith-tech Enterprise Certificate
Utility model patent
A filter day-night switch.
Utility model patent
A filter day-night switch.
Utility model patent
A strong seismic shutter component switch for thermal imaging cameras
Utility model patent
A square shutter switcher device
for infrared cameras
for infrared cameras
Utility model patent
A thermal imaging shutter device
that automatically resets.
that automatically resets.
Utility model patent
A horizontal, quake-resistant shutter switcher device for infrared cameras.
Utility model patent
A medical rapid degassing valve device.
Utility model patent
A small switch device for infrared camera technology.
Utility model patent
A multi-stage aperture device
that can be fully controlled.
that can be fully controlled.
Utility model patent
A time-switching filter device.
Utility model patent
A CCTV camera stepping motor
for automated production.
for automated production.
Utility model patent
A vertical shutter switch for infrared cameras and mounting molds.
Utility model patent
A special anti-self-locking stepping motor
for security cameras.
for security cameras.
Utility model patent
A shutter assembly for projectors.
FAQ
Q1. Are you a trader or a manufaturer?
We are a professional manufacturer of optoelectrnic products.
Q2. Can your products be customized?
Yes, all of our products can be customized acording to your design needs.
Q3. Is it possible for you to develop new products if we underteke the tooling cost?
Yes, it is. You're welcome to place an order of new products.
Q4. What's your minimum order quantity?
The MOQ is based on the model you order. In addition, we also can negotiate according to your exact situation.
Q5. How about your products’ quality?
We have strict and standardized quality management system, advanced and precise production and inspection equipment, skilled workers, to ensure the quality of products.
