  • HENGXIANG high quality encoder MP55 14 24mm hollow shaft absolute rotary encoder SSI 17 24bit single turn multiturn encoder
HENGXIANG high quality encoder MP55 14 24mm hollow shaft absolute rotary encoder SSI 17 24bit single turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder
HENGXIANG high quality encoder MP55 14-24mm hollow shaft absolute rotary encoder SSI 17-24bit single-turn multiturn encoder

HENGXIANG high quality encoder MP55 14 24mm hollow shaft absolute rotary encoder SSI 17 24bit single turn multiturn encoder

Share on (1600516920789):


Price:

Quantity:


Product Overview

Description



Products Description
















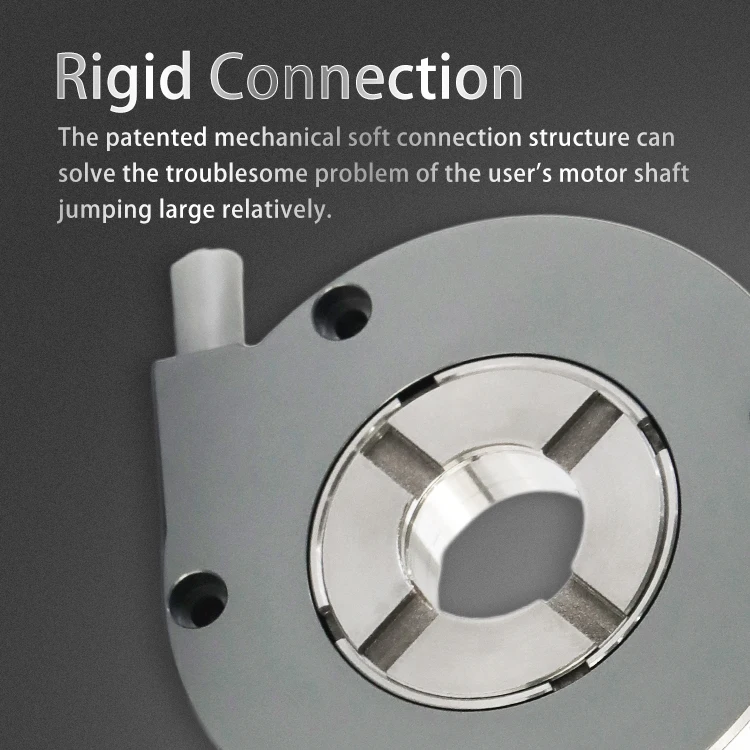

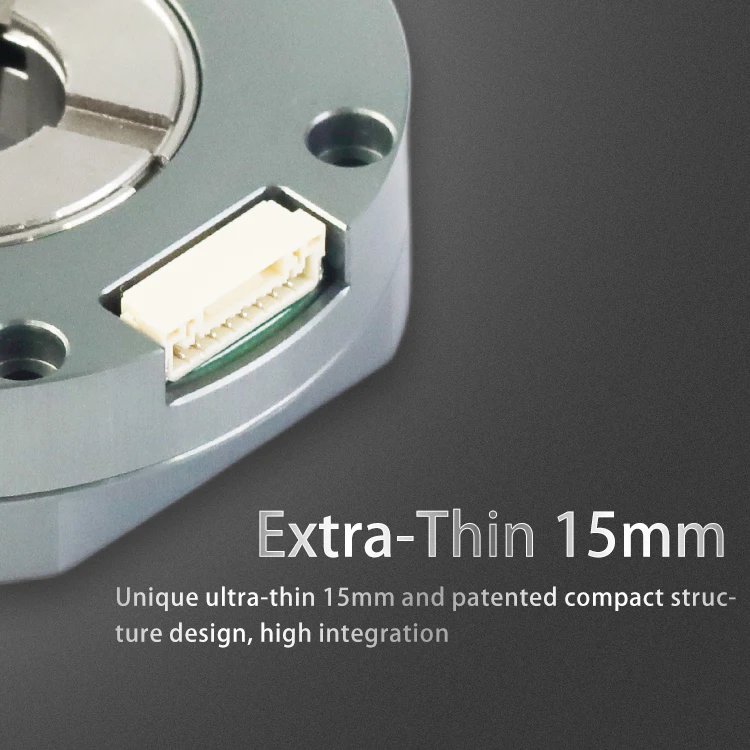

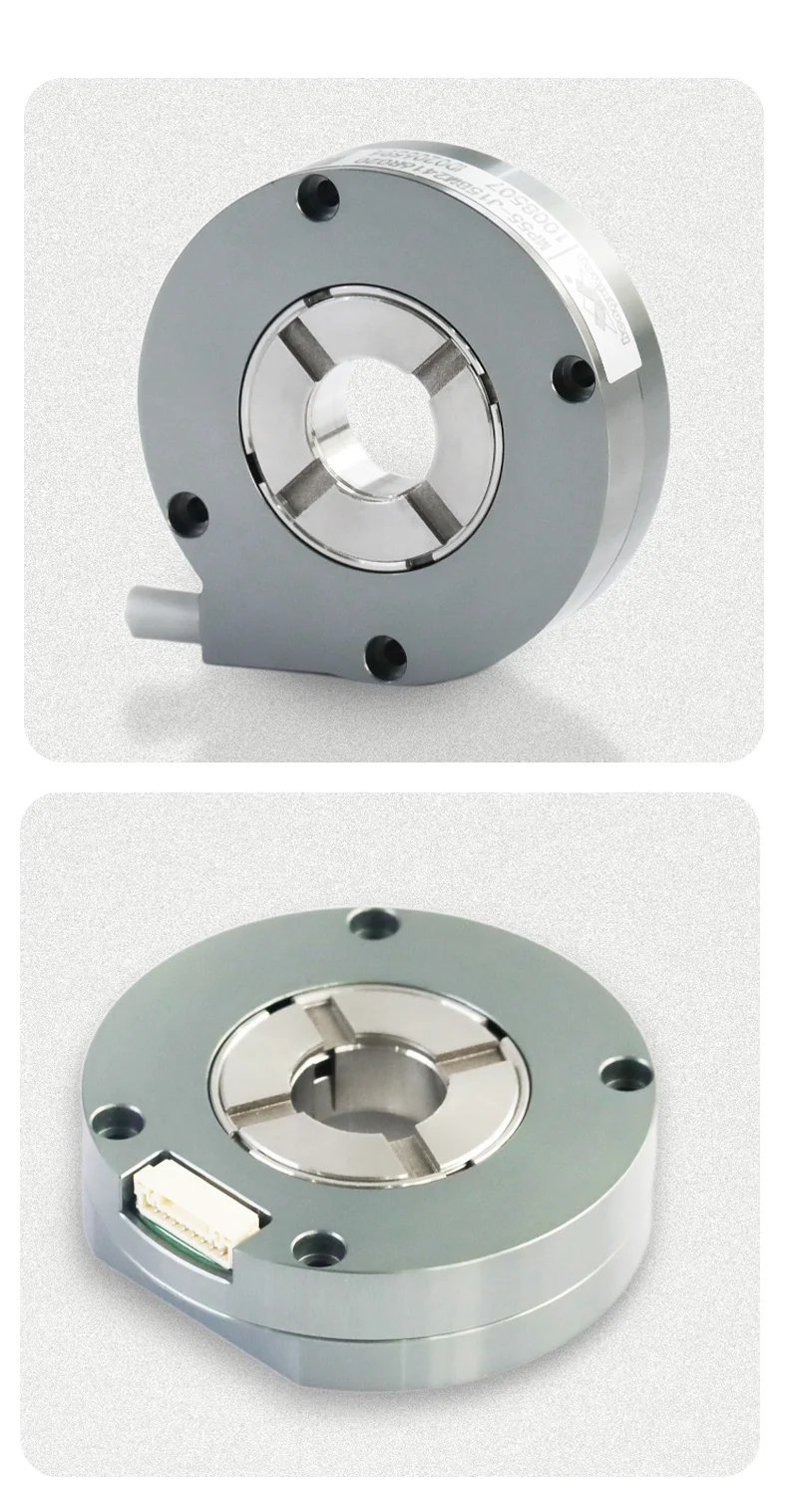

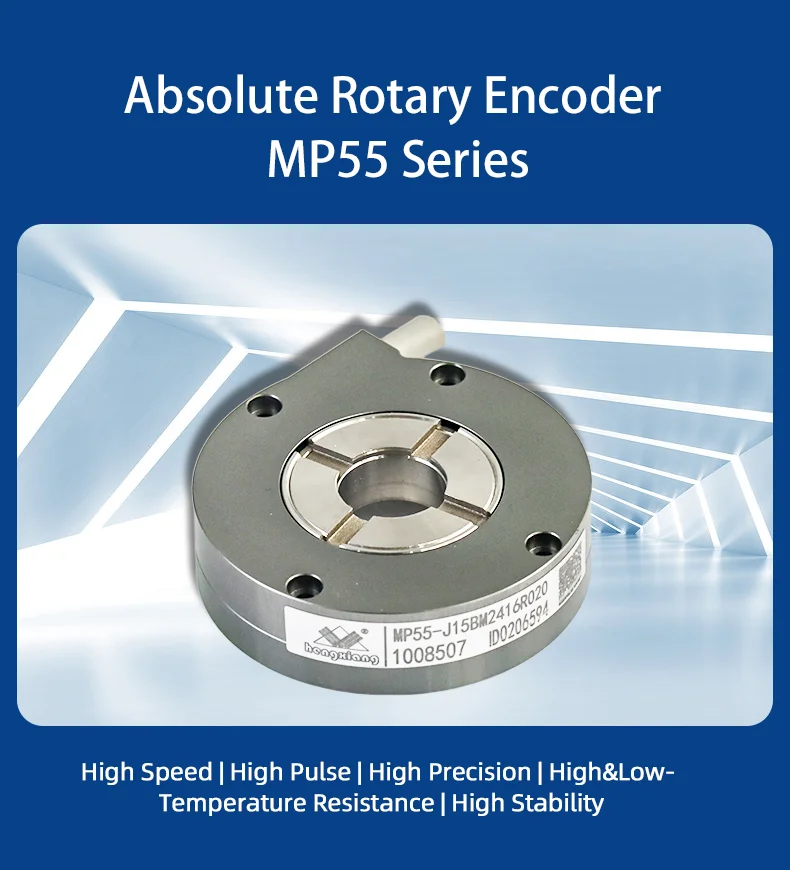

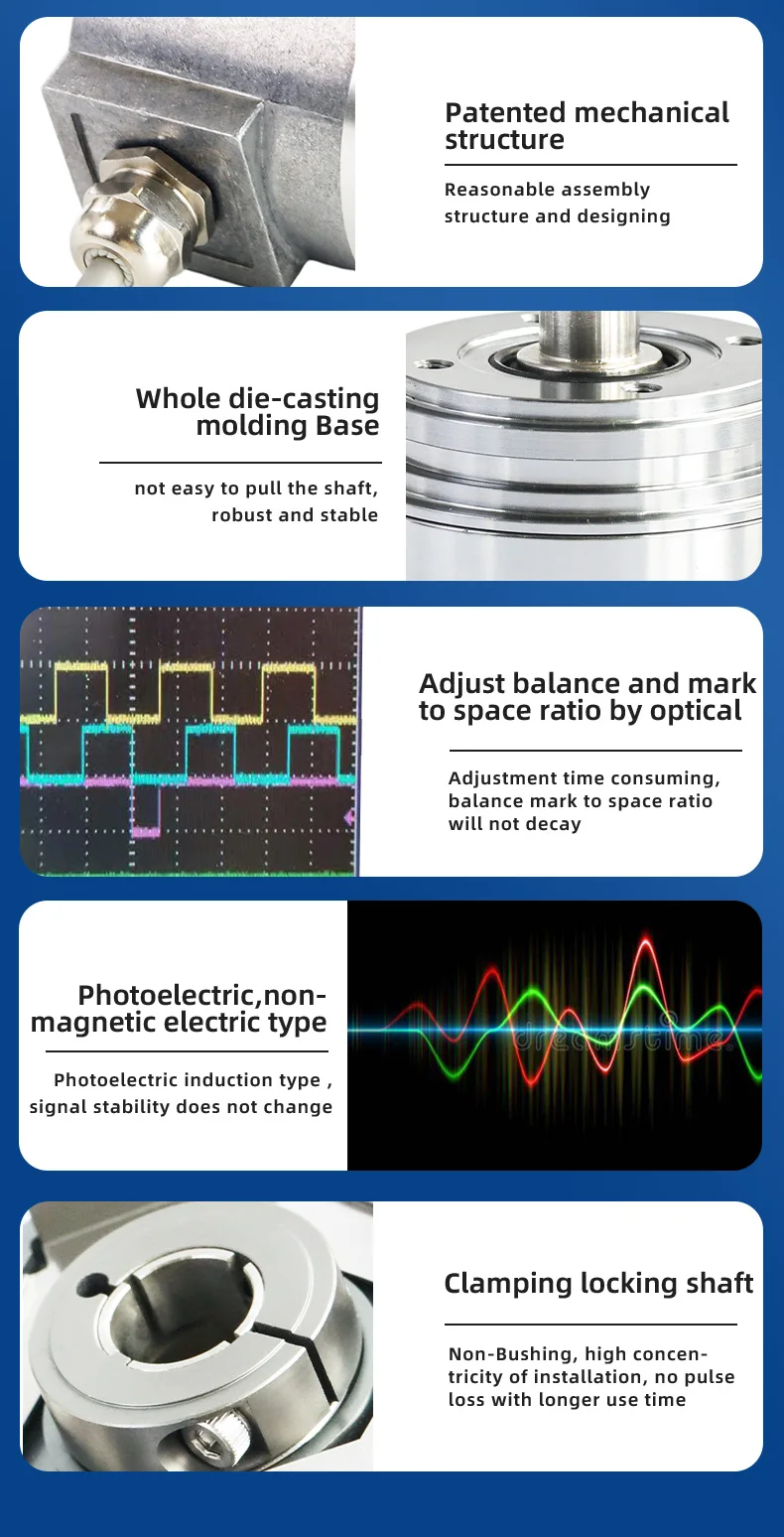

Details Images

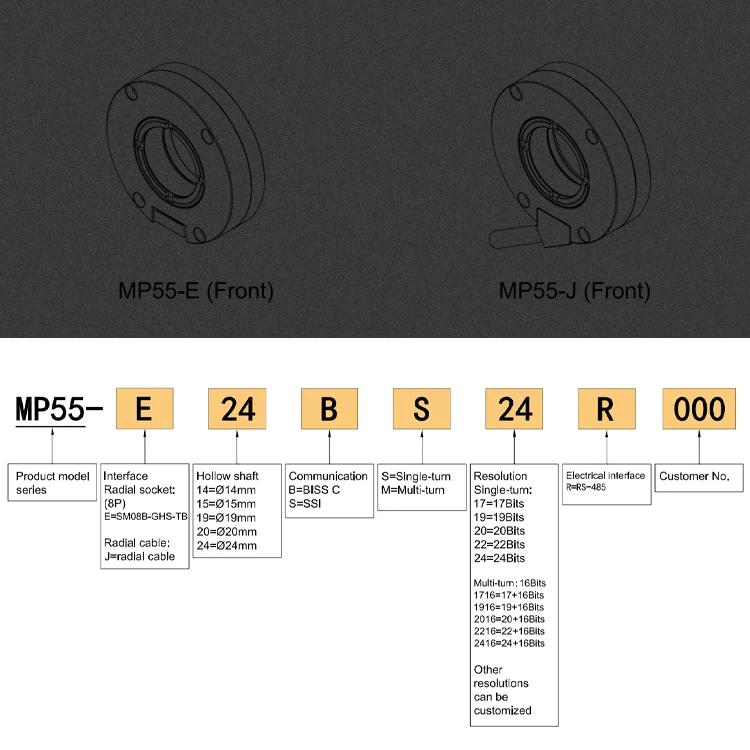

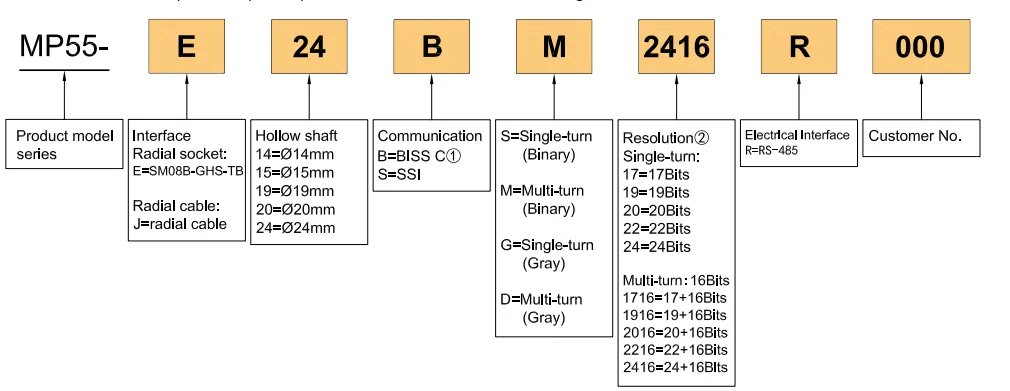

Model Selection Guide






Product Paramenters


Brand
Hengxiang
Encoder type
Absolute encoder

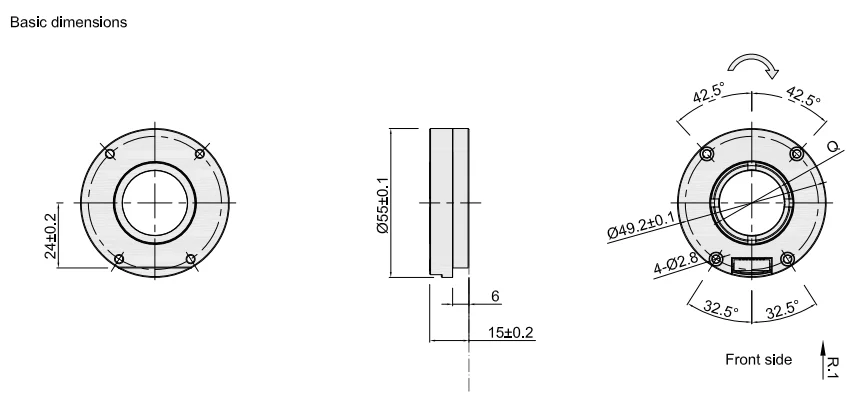

External diameter
55mm
Thickness
14.5mm
Installation dimension
49.2mm
Hollow shaft type
Through hole
Hollow shaft diameter
14mm; 15mm; 19mm; 20mm; 24mm
Resolution
single-turn:17Bit, 19Bit,20Bit, 22Bit, 24Bit
multi-turn: 1716=17+16Bit, 1916=19+16Bit,
2016=20+16Bit, 2216=22+16Bit,2416=24+16Bit
Interface
E=SM08B-GHS-TB
Communication
BISS-C; SSI
Electrical connection
Radial socket
Output mode
Multi-turn(Binary&Gray)
Single-turn(Binary&Gray)
Scanning principle
Photoelectric
Accuracy
±80"
Response speed
Normal action: 6000min
RMS position signal noise
±2@18 bits/r
Communication clock frequency
≤10MHz(BISS) or ≤ 5MHz(SSI)
Starting time
typical value: 13ms
Absolute position sampling period
≤75 ns
Allowable speed
≤32200 r/min (restricted by mechanical speed limit)
Cable
Differential twisted-paired cable
Cable length
200mm-10000mm
Mechanical Connection
Ring locking to the shaft, steel connection fixed to the motor platform
Starting Torque
less than 9.8×10-3 N.m
Inertial moment
less than 6.5×10-6 kg.m2
Shaft load
Radial 20N; Axial 10N
Slew speed
≤3000rpm
Shell Material
Aluminum
Weight
about 100g
Environmental temperature
Operating: -20~+95℃; Storage: -25~+95℃
Environmental humidity
Operating and storage: 35~85%RH(Noncondensing)
Vibration
Amplitude 1.52mm, 5~55HZ,2h for X,Y,Z direction individually
Shock
980m/s2 11ms, three times for X,Y,Z direction individually
Protection
IP50
