Красно белый аисг 5 м кабель с разъемами IP67 Номинальная мужской 8 контактный разъем 8 pin, красно белый управление двигателем Кабельные соединители
- Category: >>>
- Supplier: Shenzhen Wirenet Telecom Technology Co. Ltd.
Share on (1600516951123):
Product Overview
Description

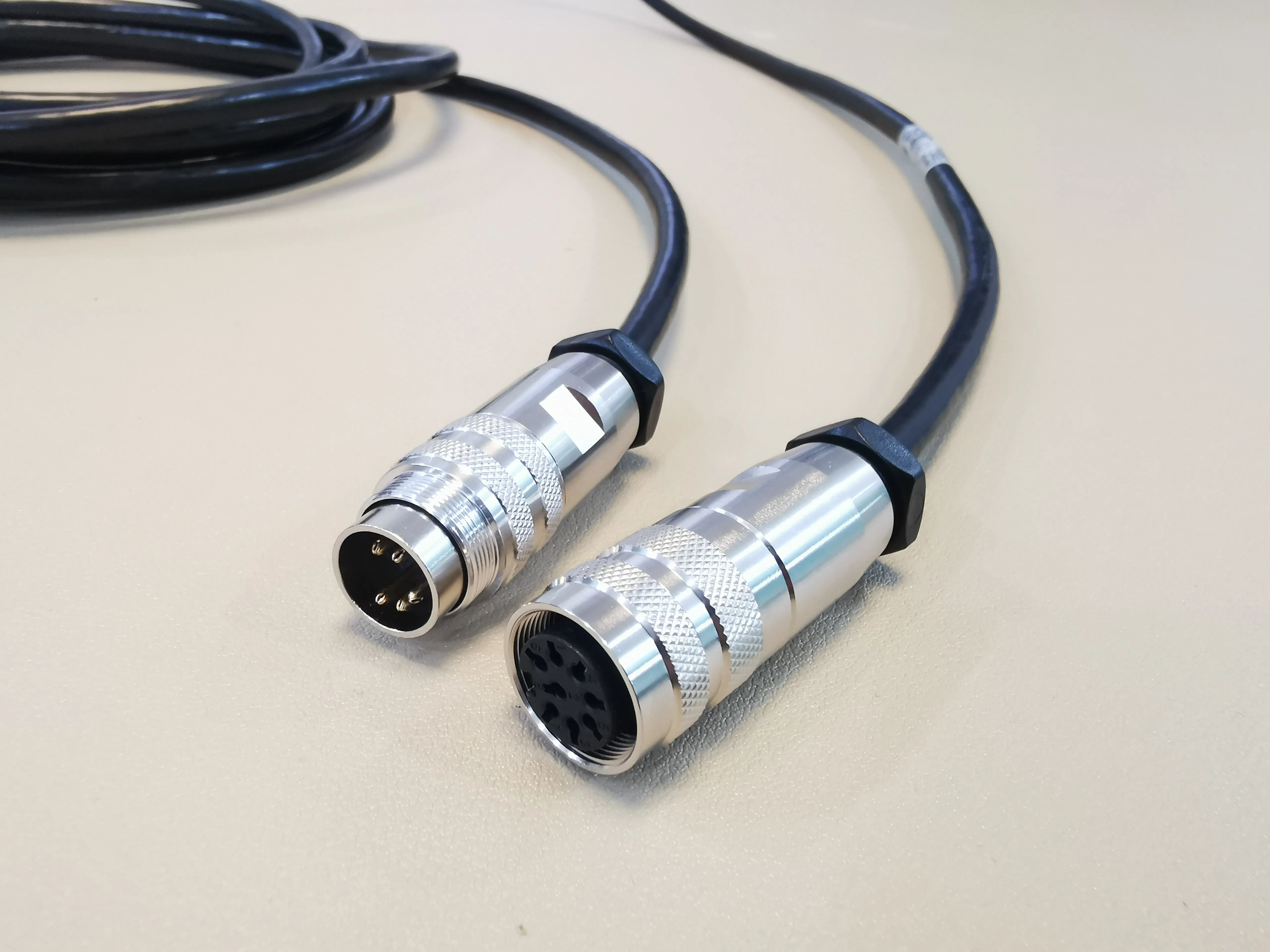

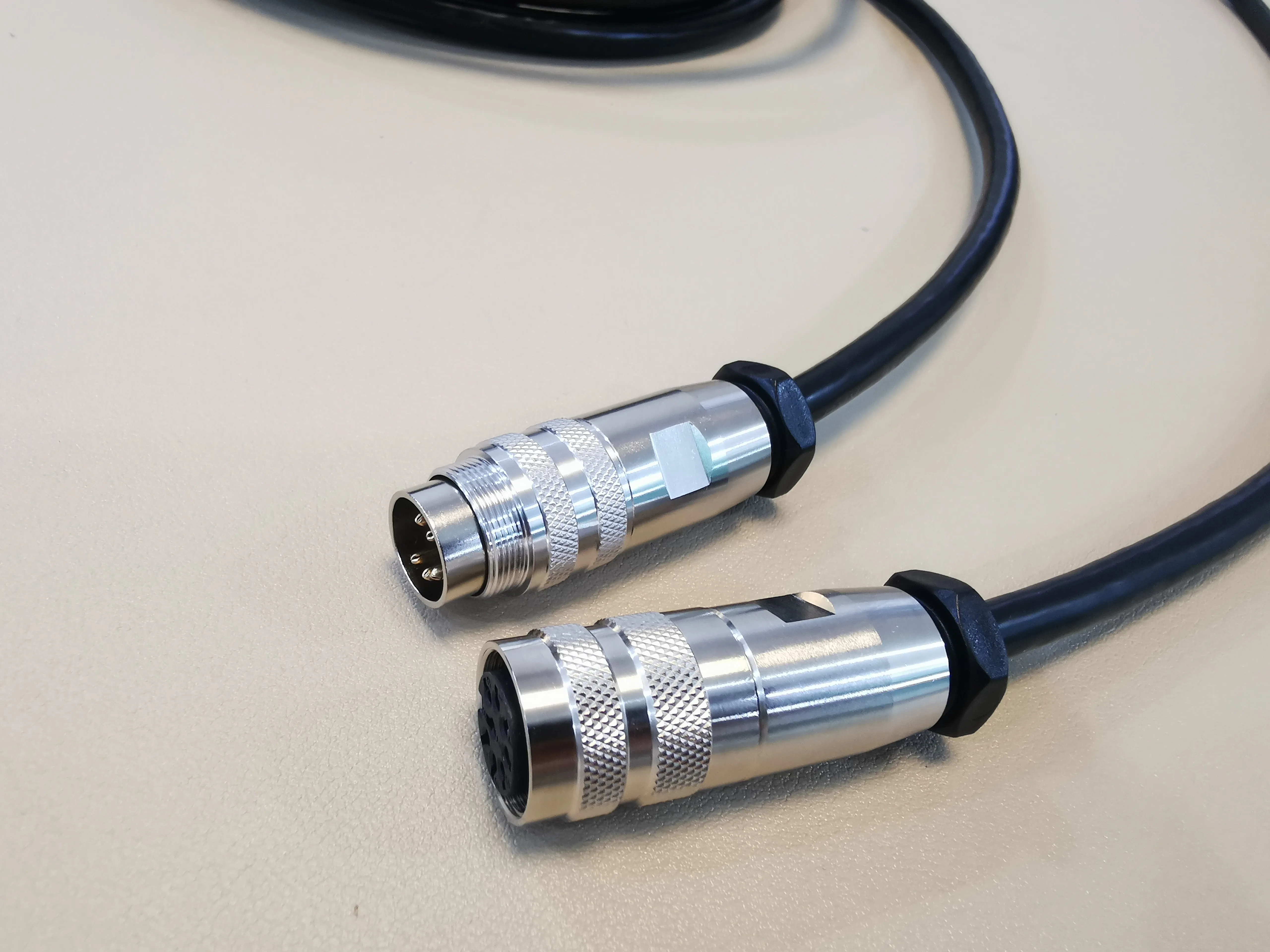

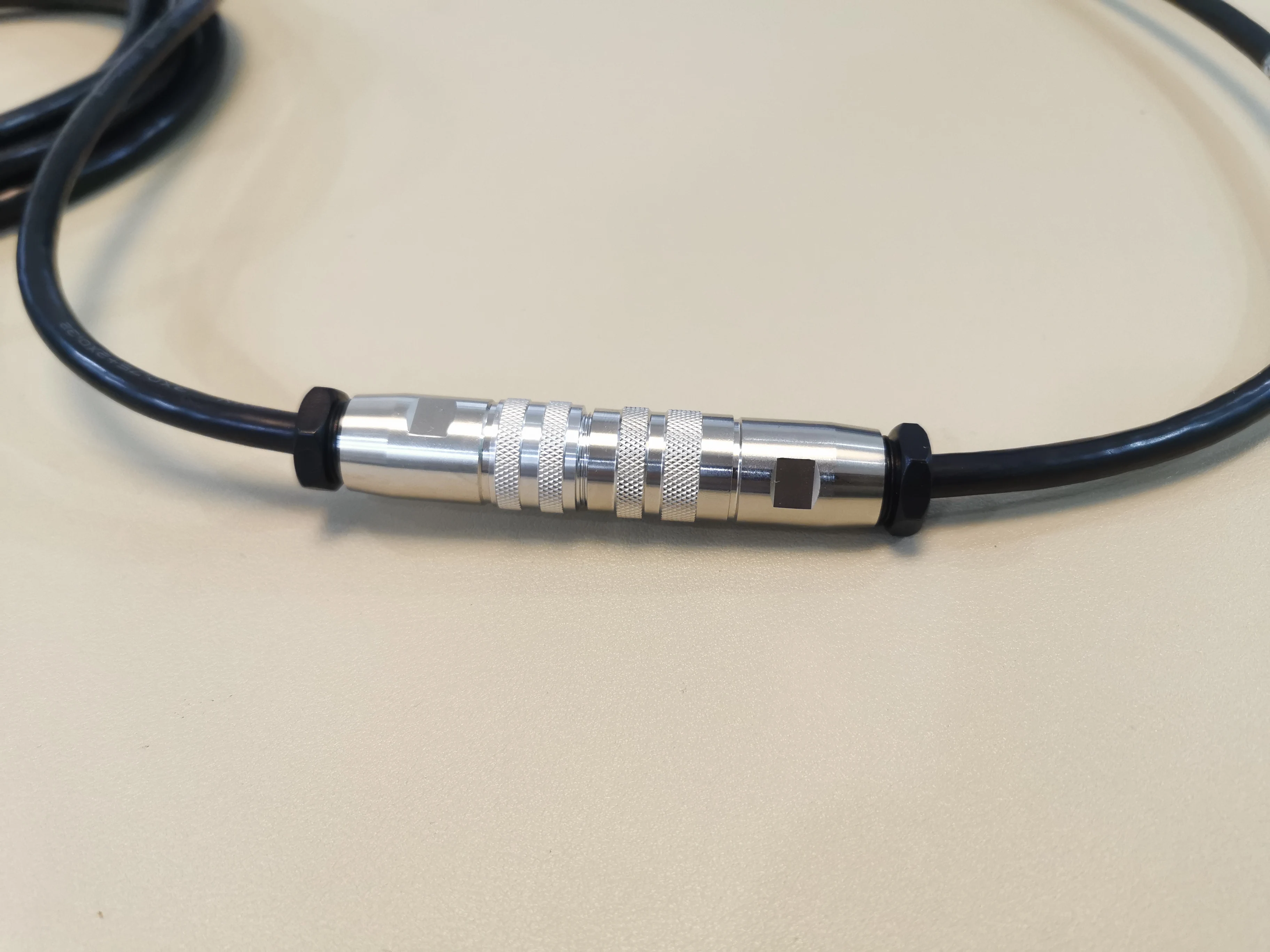

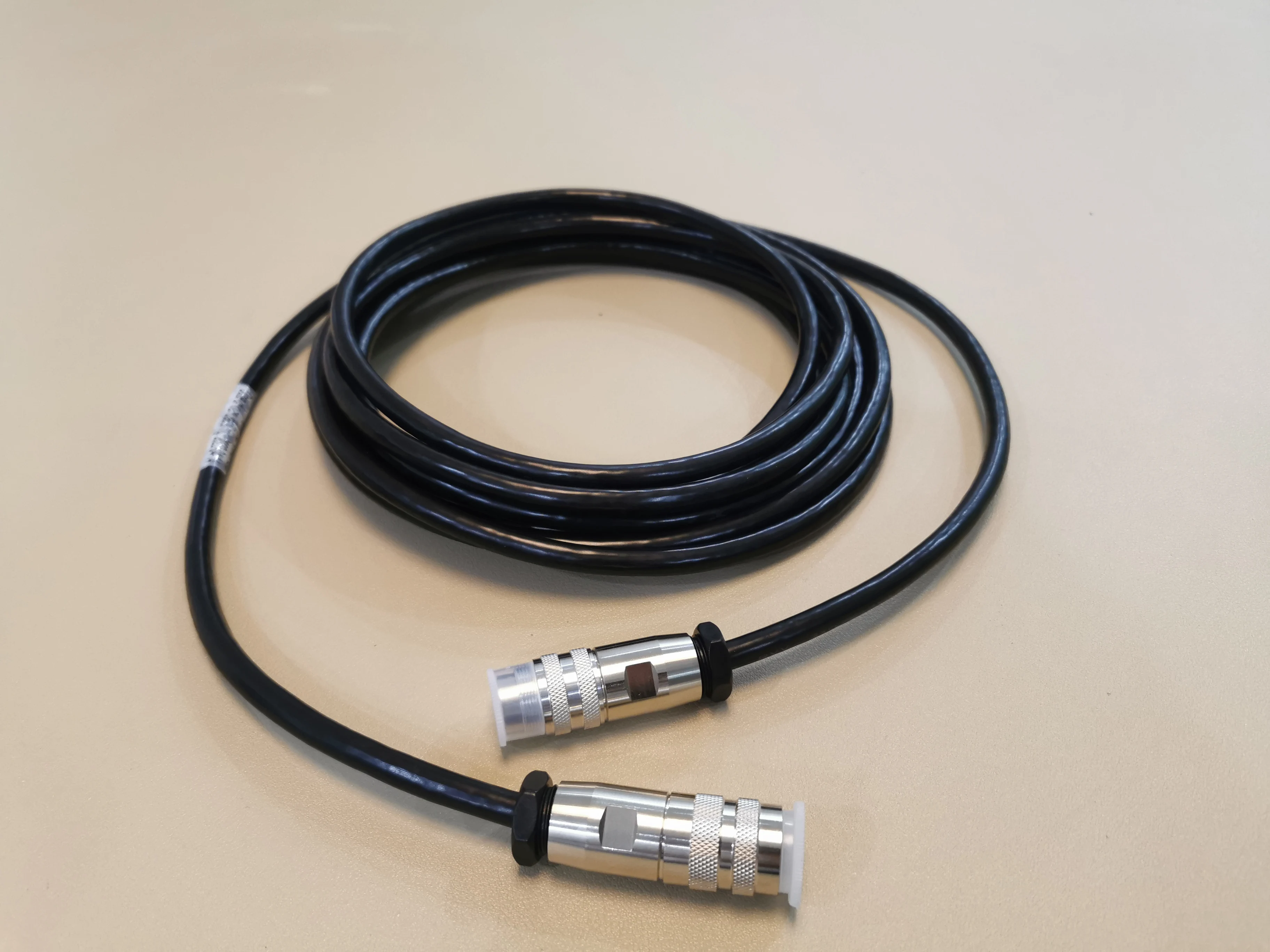

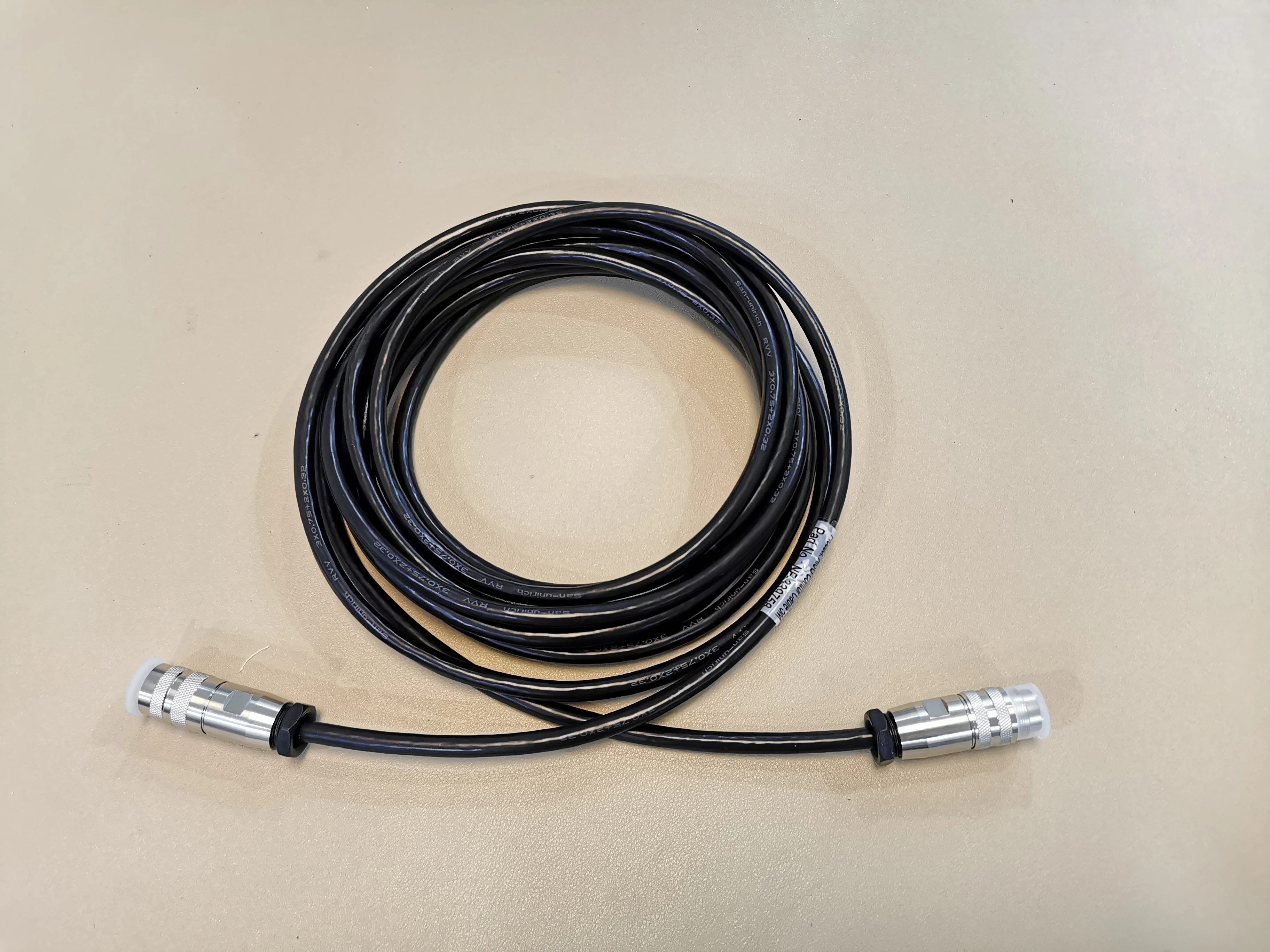

RET AISG 5 Meter Cable Assembly IP67 rated Male 8 pin Female 8 Pin RET motor control cable connectors
CROSS REFERENCE
Equivalent To : 840 10409, AISGC-M-F-15FT, ATCB-B01-005, CMA-RET/AC5,
Equivalent To : 840 10409, AISGC-M-F-15FT, ATCB-B01-005, CMA-RET/AC5,
CXTDWM23WF-5M, D-WM23WF-5M and others
ELECTRICAL SPECIFICATIONS
Rated Current (Amps) : 4A
Maximum Voltage :300 V RMS
Inner Construction :Shielded, 1 x twisted pair 100 ohm/1 MHz, 2 x power supply, 2 x ground,
ELECTRICAL SPECIFICATIONS
Rated Current (Amps) : 4A
Maximum Voltage :300 V RMS
Inner Construction :Shielded, 1 x twisted pair 100 ohm/1 MHz, 2 x power supply, 2 x ground,
AWM style 20317 I/II, A/B + 20549 +20237
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature :-40°C to +80°C (fixed position)
Flammability Rating :VL 1581 VW-1, CSA FT-5
Weather Standard :IP 68
PHYSICAL SPECIFICATIONS
Options :AISG Protocol v1.1 & v2.0
Cable Length :5 Meter
Connector A :AISG Male 8 pin
Connector B :AISG Female 8 pin
Connector Torque :0.5–1 Nm (0.36–0.73 lb/ft)
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature :-40°C to +80°C (fixed position)
Flammability Rating :VL 1581 VW-1, CSA FT-5
Weather Standard :IP 68
PHYSICAL SPECIFICATIONS
Options :AISG Protocol v1.1 & v2.0
Cable Length :5 Meter
Connector A :AISG Male 8 pin
Connector B :AISG Female 8 pin
Connector Torque :0.5–1 Nm (0.36–0.73 lb/ft)
Impedance | N/A |
Frequency | N/A |
Voltage rating | 48V(rms) |
Dielectric withstanding voltage | 800V |
insulation resistance | ≥100MΩ |
Contact resistance | ≤3Ω |
About Us

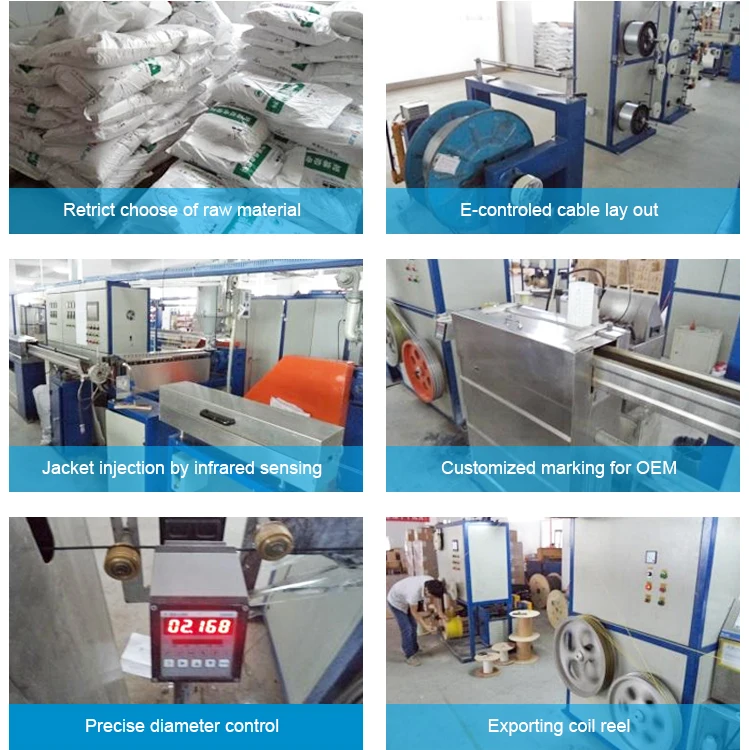

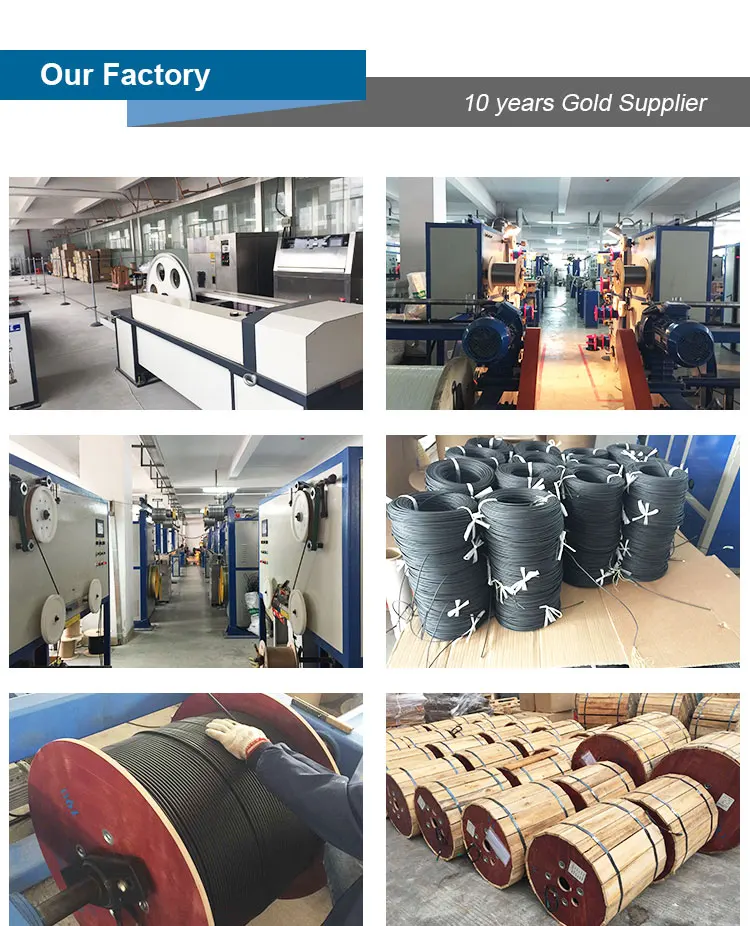

Wirenet Technology Co., Ltd was established in 2009 in Hong Kong, and in 2011 registered in Shenzhen, China. Through nearly 13 years developing,currently have fiber optical cable factory& patch cord factory.Wirenet's main products are fiber optic telecommunication cable system, including indoor&outdoor fiber cable& patch cord and fiber distribution system.

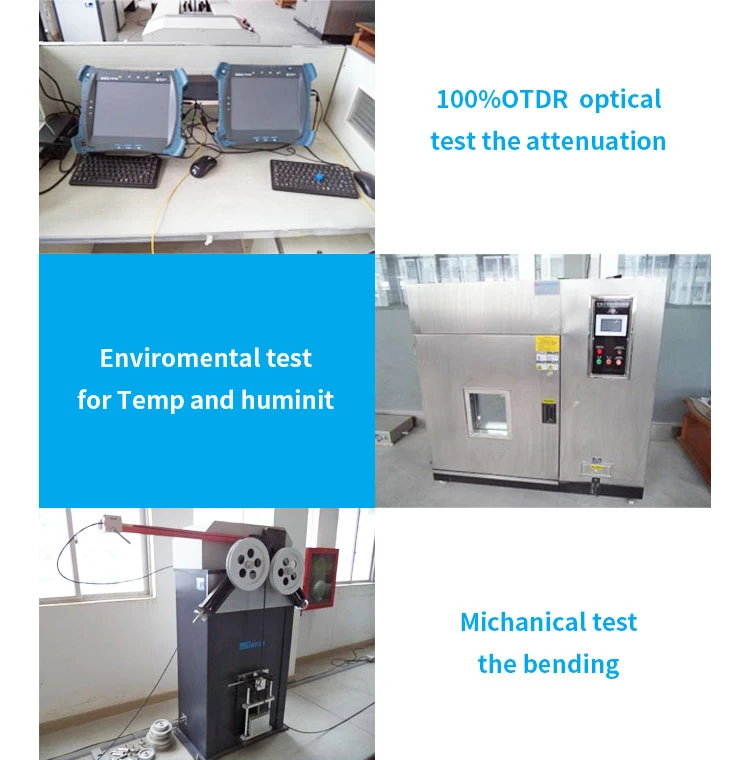

We have our own sales team, R&D team and quality control team. ,For Guarantee, the Cable has 30 years of life time, and the fiber is ensured 70 years life time. For quality inquiry, our after-sales team will respond in the first time, and QA team will solve the problem at fast speed. So,OEM and ODM are always welcome.
