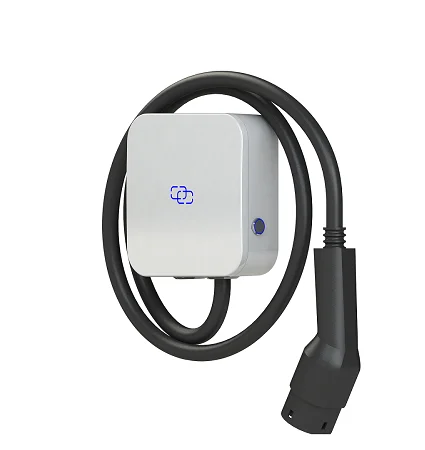

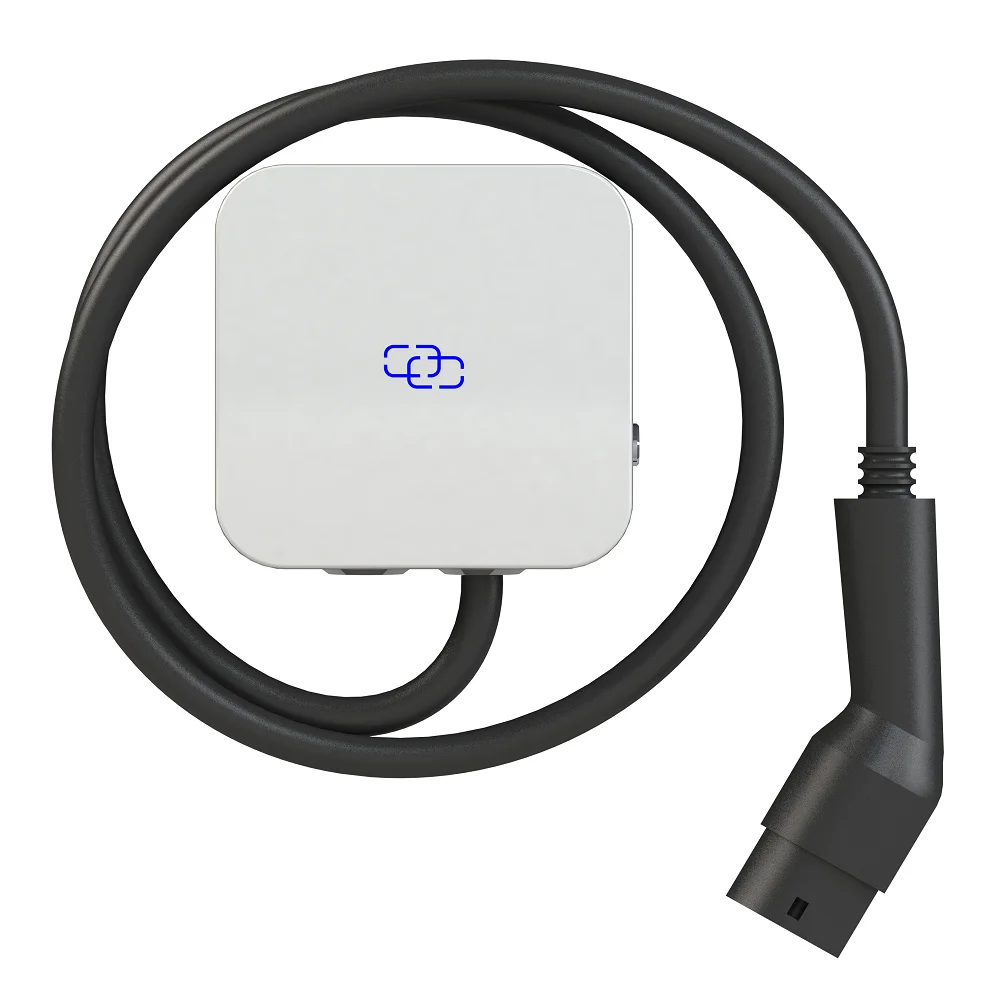

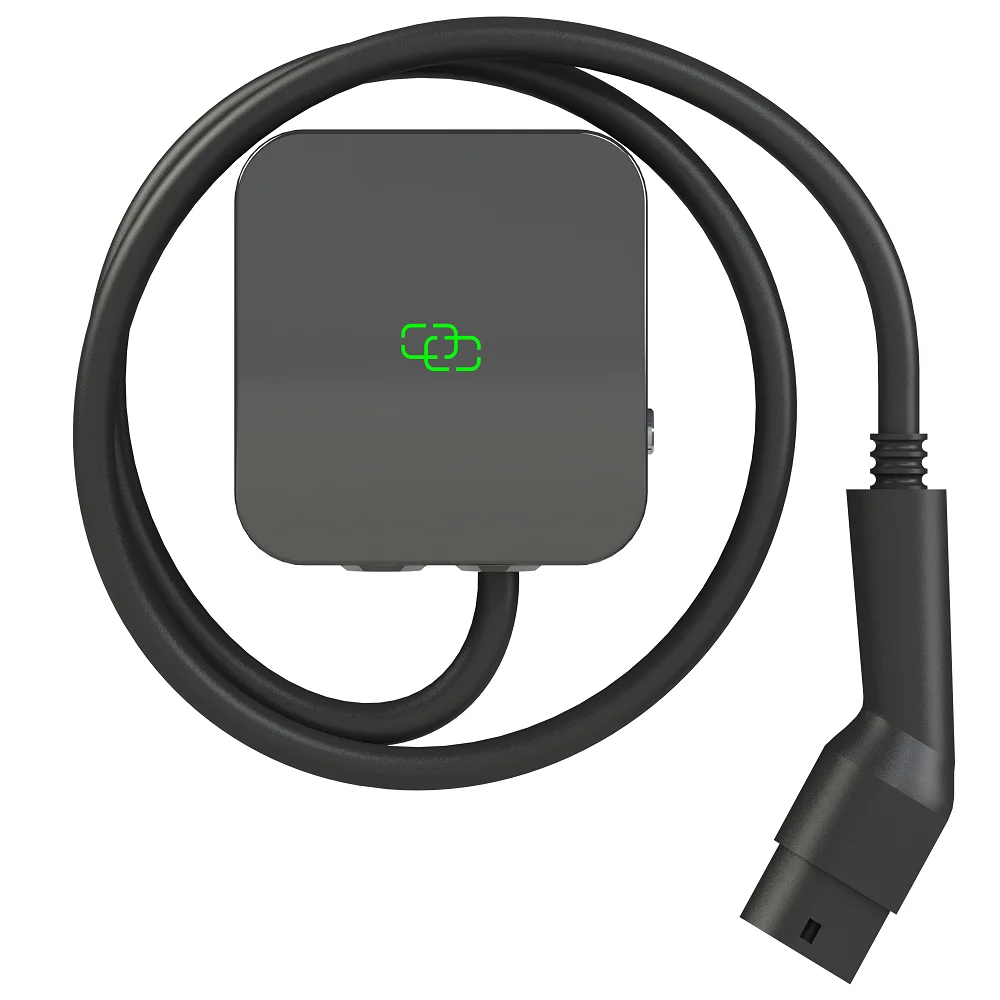

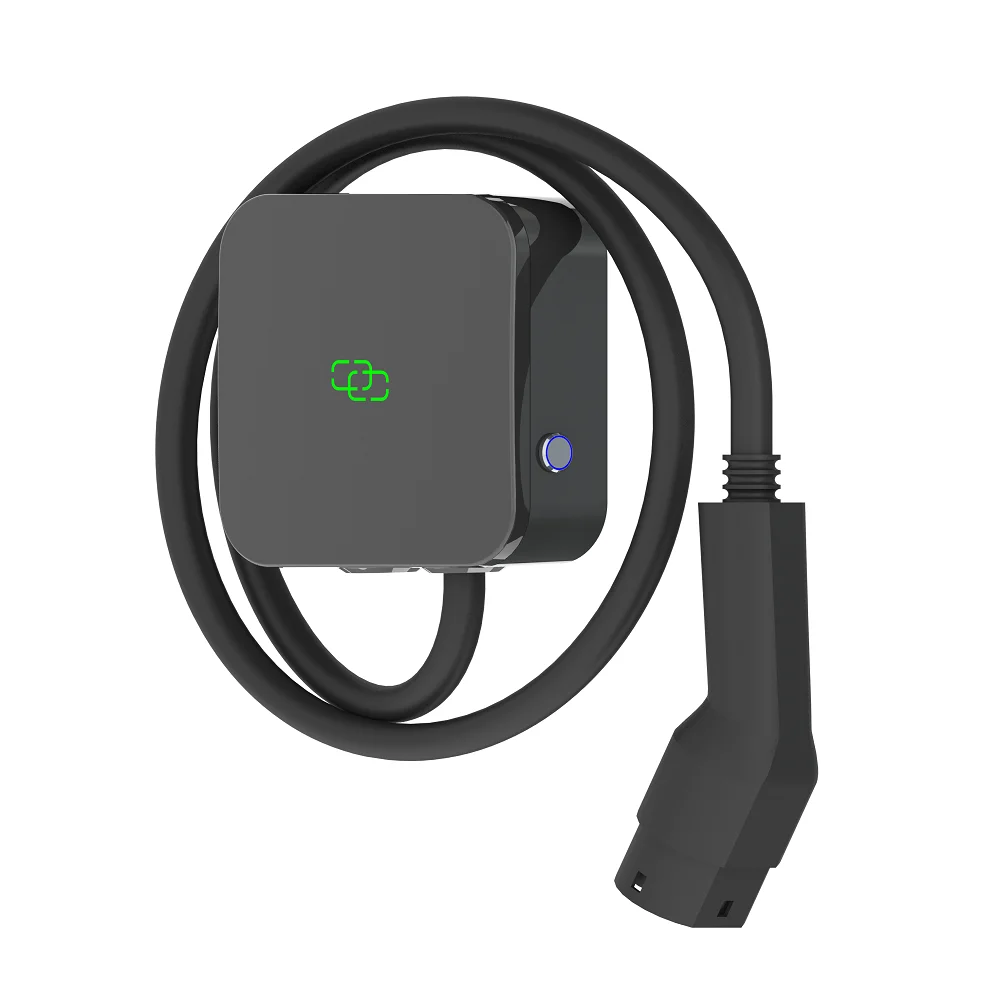

Home 220V 32A 7KW 11KW Wall Mounted AC EV Charger Station Wallbox Charging for Electric Vehicle Car
- Category: >>>
- Supplier: Sichuan Weiyu Electric Co. Ltd.
Share on (1600517057780):
Product Overview
Description

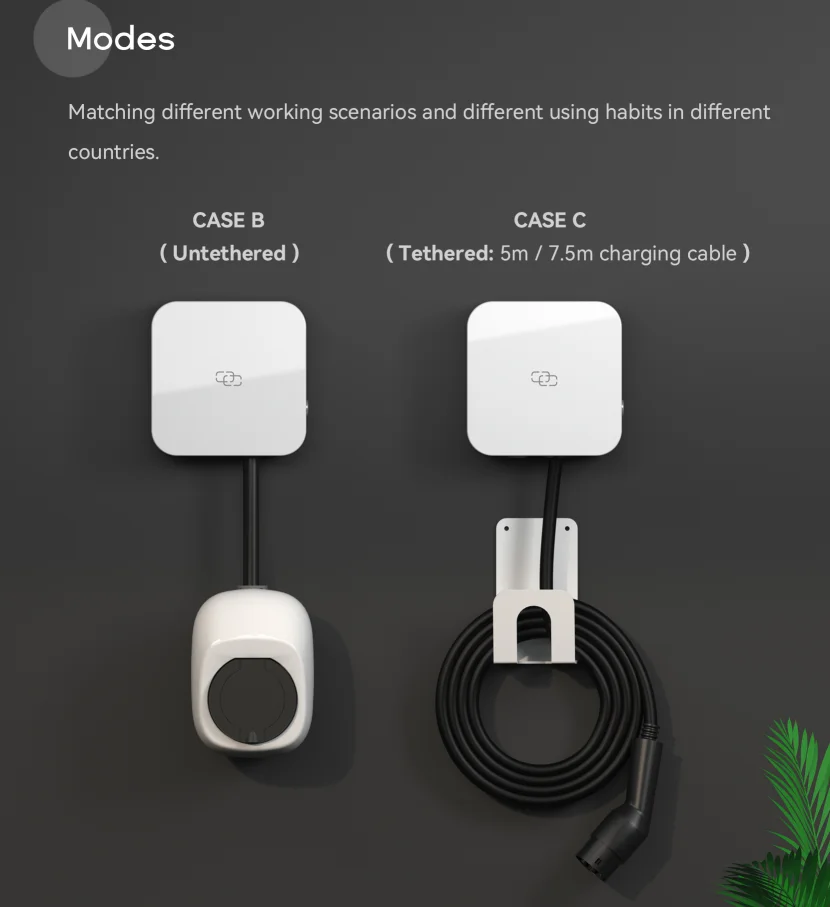

Home 220V 32A 7KW 11KW Wall Mounted AC EV Charger Station Wallbox Charging for Electric Vehicle Car
Home 220V 32A 7KW 11KW Wall Mounted AC EV Charger Station Wallbox Charging for Electric Vehicle Car
Specification
Wallbox charger specification
Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 | ||||||
AC Power input rating | 1 phase 220V±15% | 3 phase 380V±15% | AC Level 2 240V | |||||
AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A | |||||
7KW/32A | 22KW/32A | 7KW/32A | ||||||
N/A | 43KW/63A | 10KW.40A | ||||||
Rated Frequency | 50/60HZ | |||||||
User interface & control | ||||||||

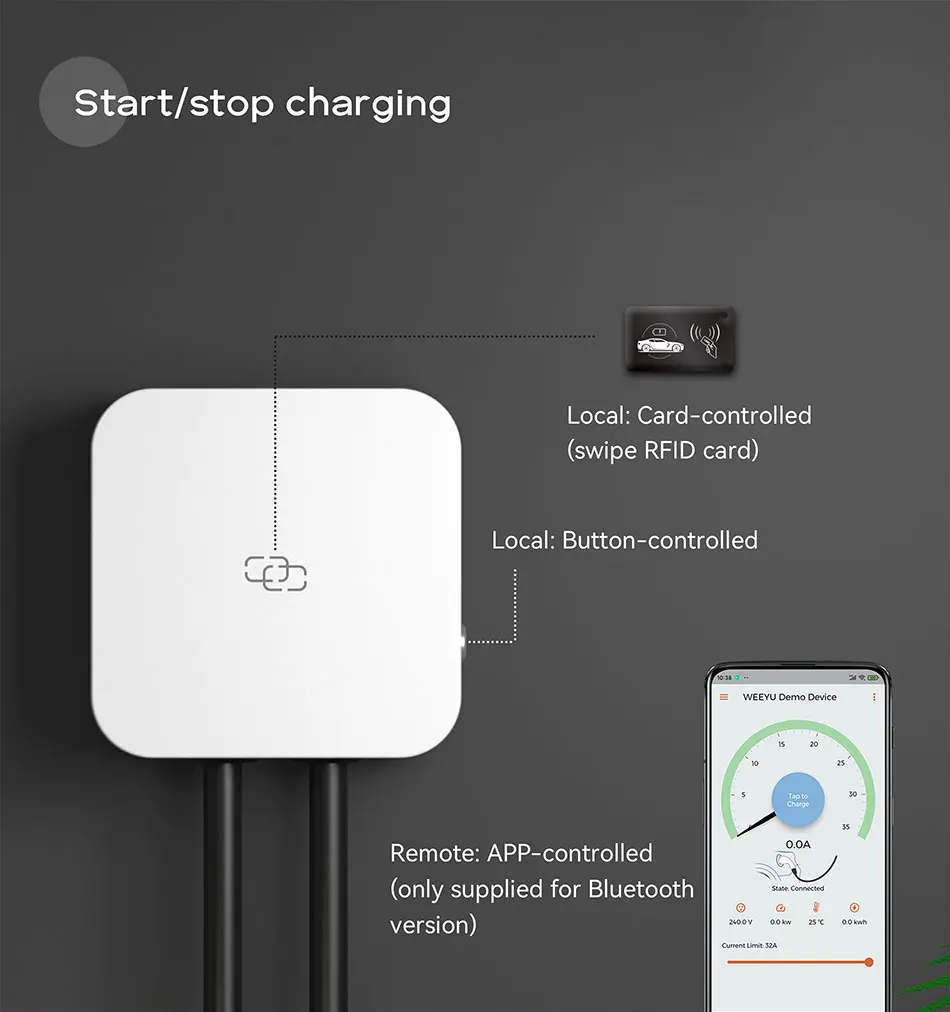

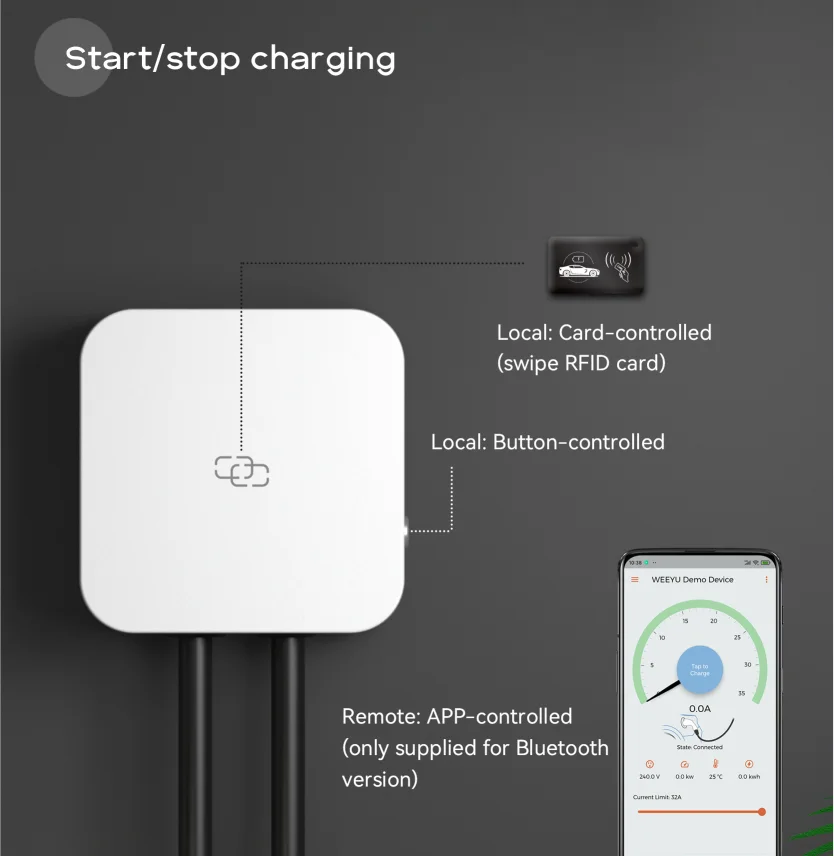

Charging control | Plug and charge √ | RFID card √ | CMS operate √ | |||||
Display Screen | 4.3inch LCD screen | |||||||
Wifi connection | Support √ | OCPP Protocol | 1.6J √ | 2.0.1 √ | ||||
Ethernet Interface | LANE(RJ-45) √ | APP interface | Support √ | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
Protection | ||||||
Over Voltage Protection | √ | Under Voltage Protection | √ | |||
Over Load Protection | √ | Short Circuit Protection | √ | |||
Earth Leakage Protection | √ | Ground Protection | √ | |||
Over-temp Protection | √ | Surge Protection | √ | |||

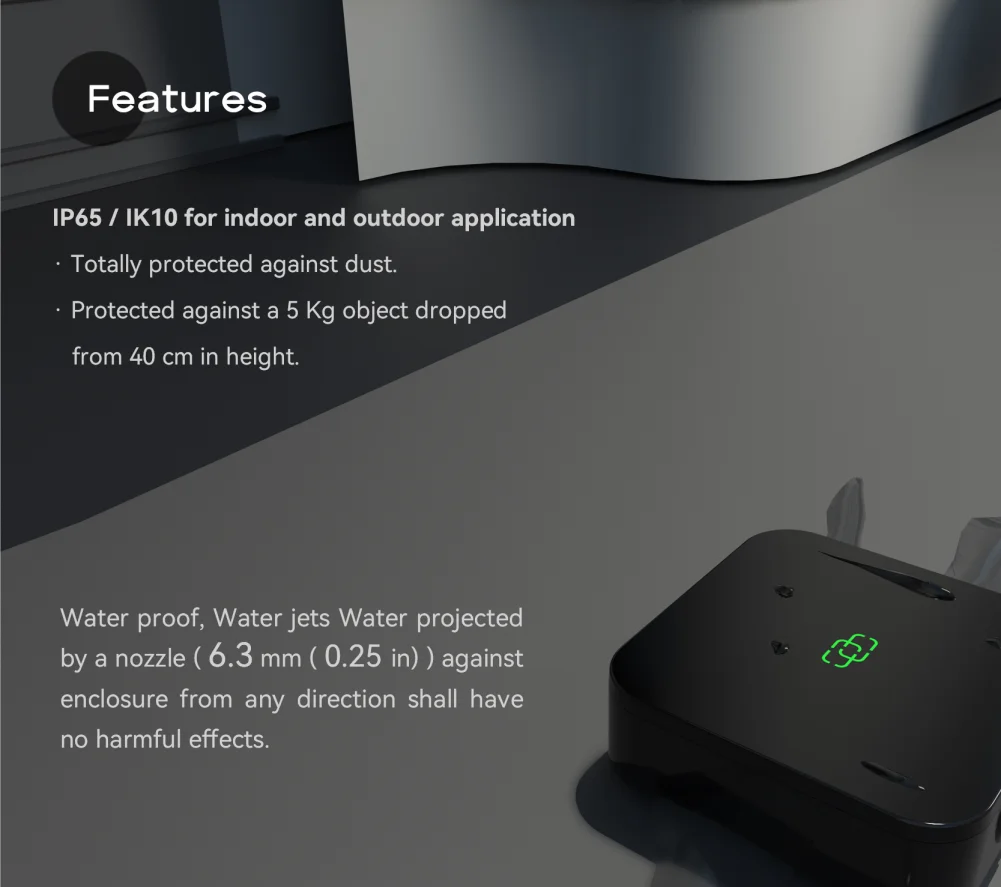

RCD | RCCB or Type B | Protection ratings | IP54 ( CE certified) | |||
Wallbox Charger Mechanical | ||||||

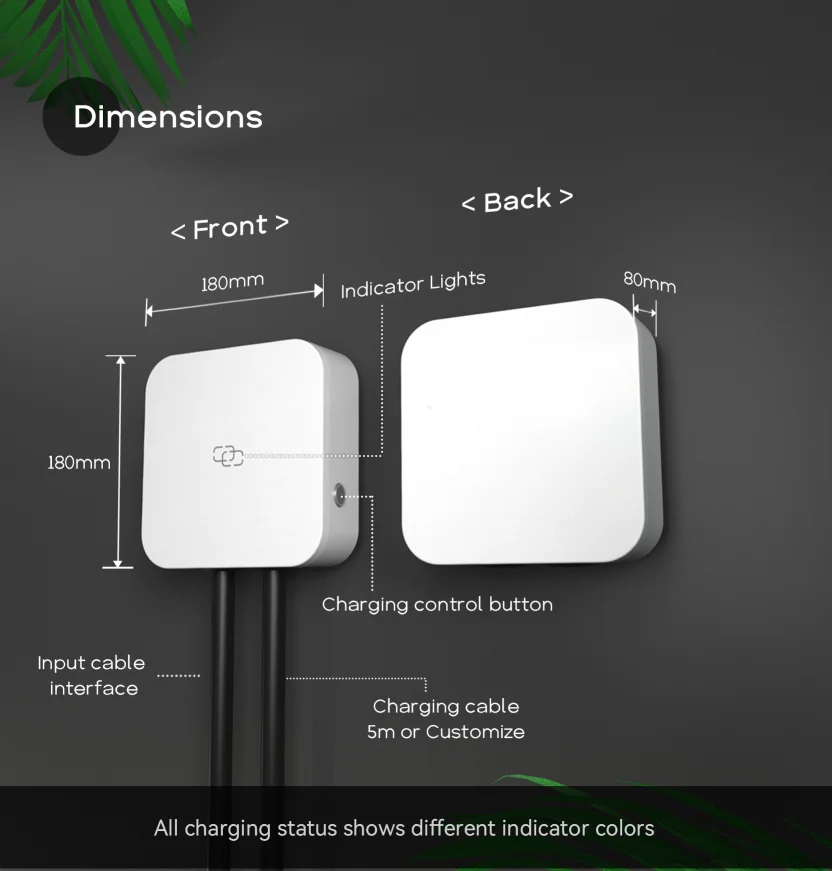

Dimension(H×W×D,mm) | 180×180×80 | Weight | 6kg | |||
Charging Cable Length | 5m(16ft) for standard customized length | Enclosure Material | PC | |||
M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||

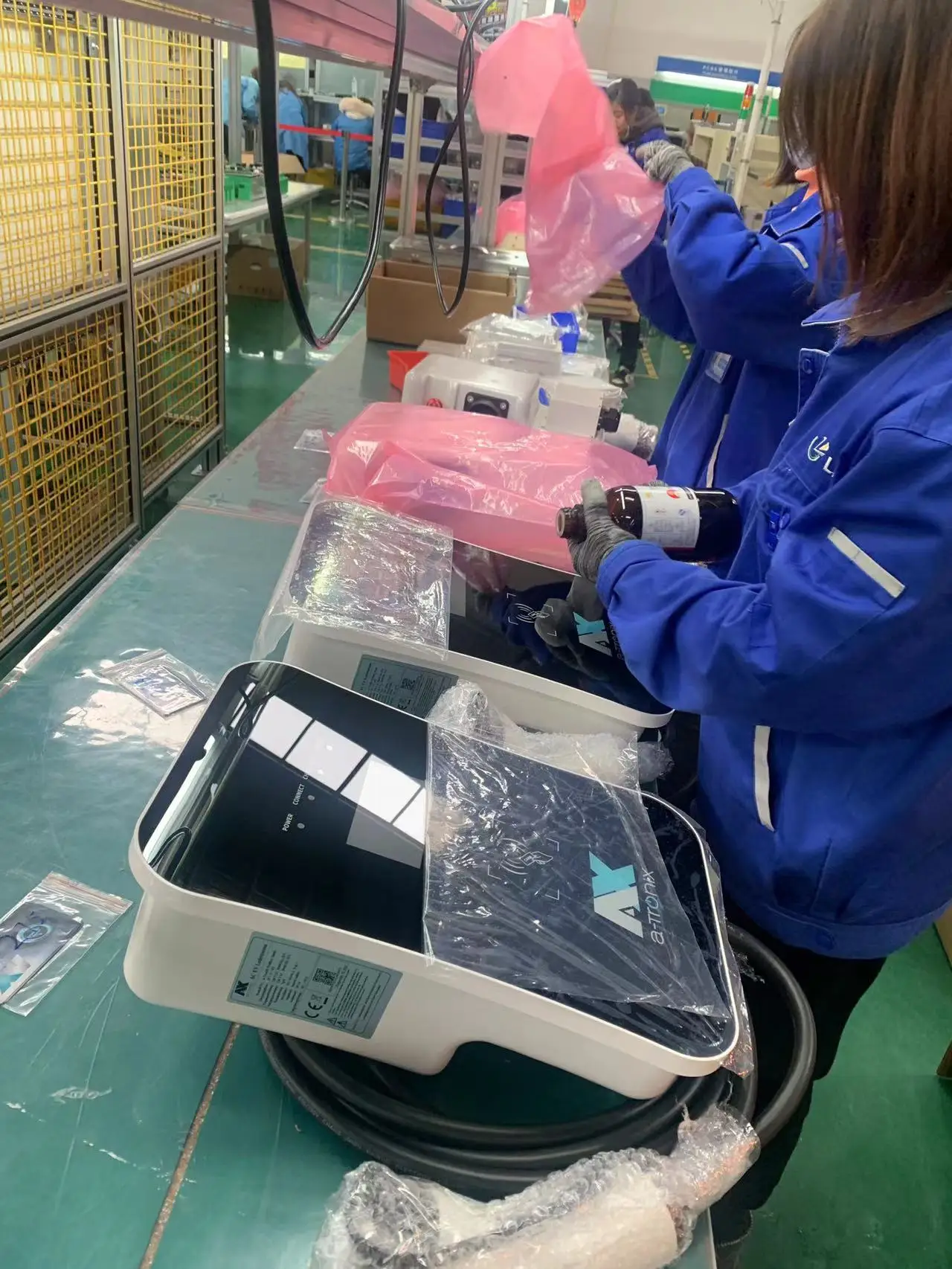

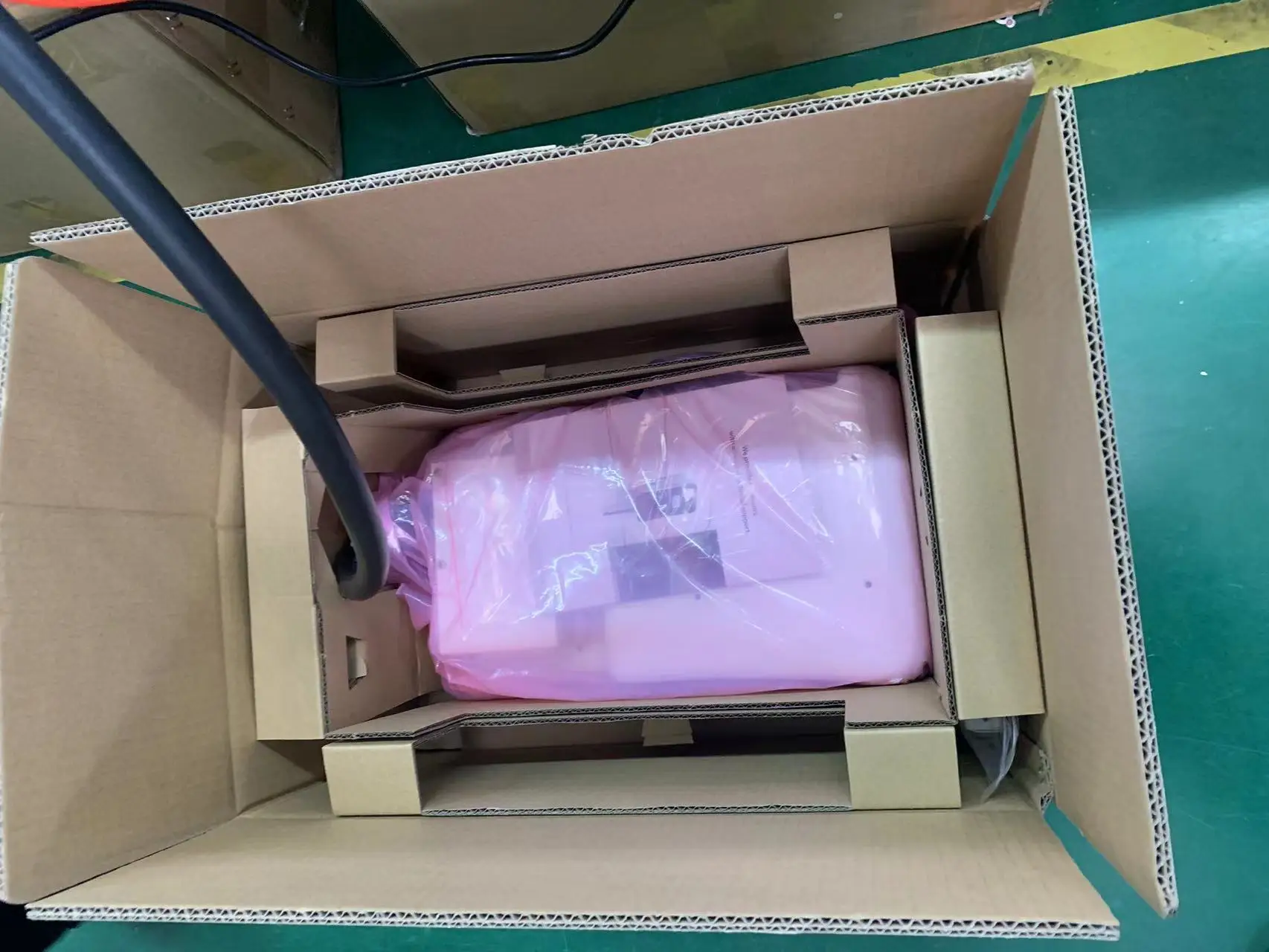

Packing

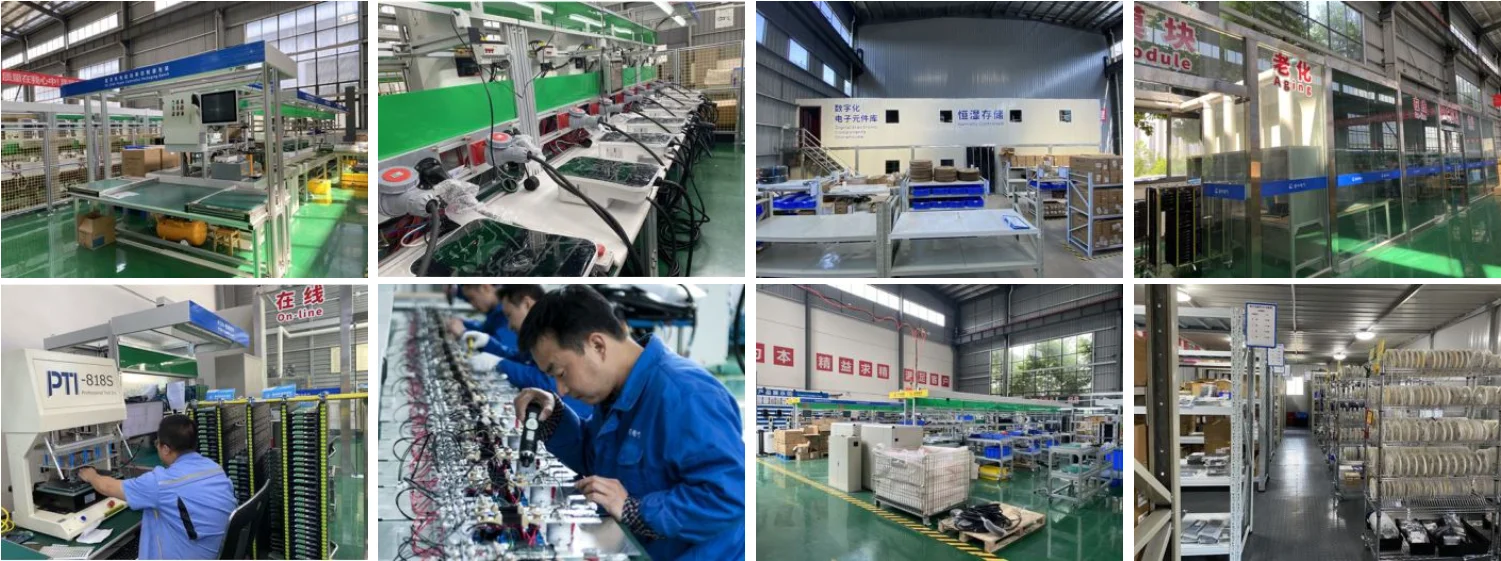

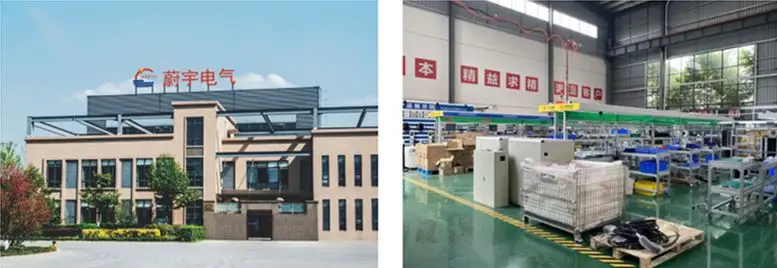

Company Profile
Weeyu strictly manufactures EN/AS ev chargers with type 1(SAE J1172)/type 2( EC 62196-2), 220V 1p/380V 3p/ Level 2(240V or 208V),currents of 16A, 32A, 40A current, powers of 3.5kw, 7kw, 10kw, 11kw, 22kw for household (residential) and commercial use.Meanwhile, in order to meet local use standards in different countries, Weeyu has passed different certifications including ISO9001, CE, RoHS, REACH, UL, FCC to provide you safe and efficient ev charger.
Weeyu AC EV chargers have served hundreds of customers from more than 40 countries, including Poland, German, UK, Russia, India, Slovakia, Bolivia, Argentina, USA, Singapore, Netherlands, Switzerland.
Welcome all friends visit our factory for partnership!!!
Common Questions
Q1: How to pack Weeyu EV Charging station?
Q4: What is your sample policy?
More questions, please feel free to contact us for discussion.
A: We pack our EV Charging Point in cartons.
Q2: What's the MOQ?
A: MOQ=1pcs.If you have customized requirements, let's discuss.
Q3: Can you produce according to the samples?
A: Yes, we can do OEM/ODM. We can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4: What is your sample policy?
A: We can supply the sample for charge.
Q5: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
More questions, please feel free to contact us for discussion.
