SAND BLASTING ROOM

Product Overview

Description

SAND  BLASTING ROOM



Product Name	sand blasting room
Applied to wach material	casting, metal parts, profiles etc
Applicable industry	machinery, foundry, forging, mechanical and steel industry
function	production sand  mould
Voltage	380V/50HZ or 220V/60HZ	Warranty	One year
Power	Electricity	Certificate	CE, ISO 9001
Model	Q26	PLC	Siemens,Omron
Productivity	Customized	Low voltage	Schneider
Condition	New	Brands	Dongheng
Color	Customized	Size	Customized
Cleaning method	Automatic	Electrical control system	Auto-detection, auto-alarm and auto-cutout.
Material	Metal/coil	Origin	Shangdong, China
Cleaning material	Shot steel/shot grit/wire cut etc	After-sales service	Engineers available to service machinery
If you have any question or concerns. pls feel free to contact us.

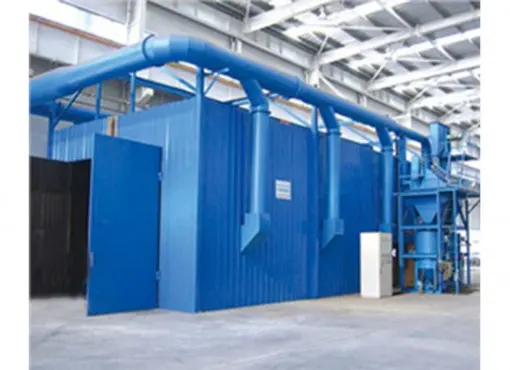

shotblasting chambers are designed for manual or automatic compressed air shotblasting of various work pieces, such as welded pieces, castings, forgings, railway wagons, containers, etc.

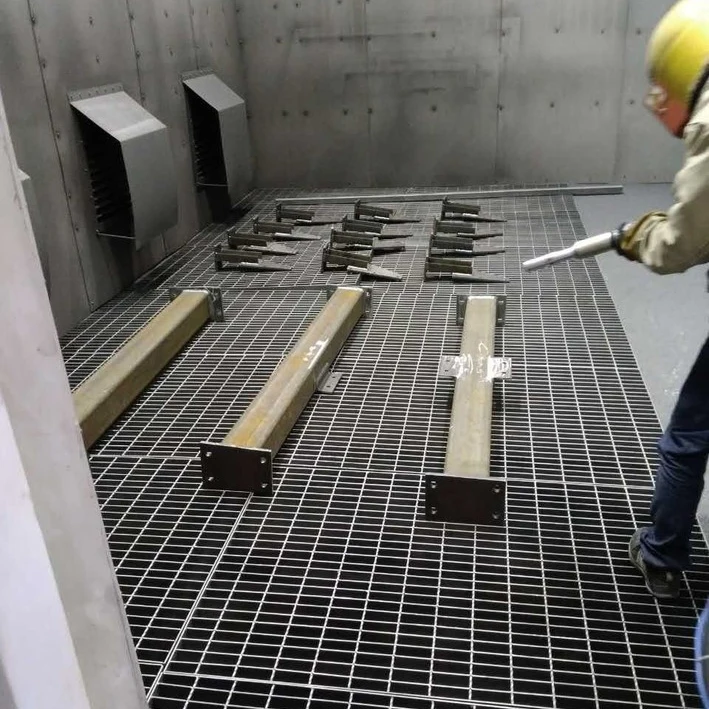

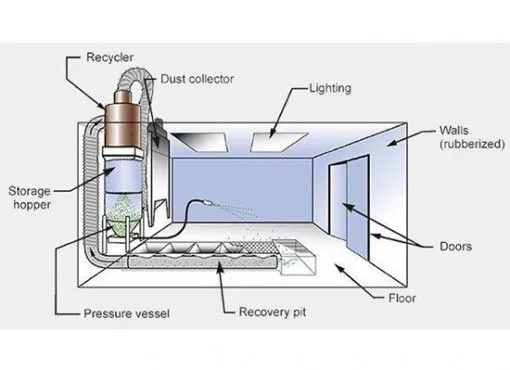

Work pieces are blasted in the chamber using compressed air that directs the blasting agent toward work pieces via a blasting nozzle. Then, a mixture of the blasting agent and residue falls into a trough, from where it is transported automatically to the elevator and air separator using scrapers and a transverse rotating worm. There, the blasting medium is purified, and after this it falls into a collection silo, ready to be used again. The shotblasting agent may be steel shot (round or granule), corundum, glass beads, etc.



CHARACTERISTICS:

shotblasting chambers are designed for blasting work pieces of large dimensions and weights, and complex geometries

The shot transport system using scrapers requires minimal foundation depth

We provide a minimum level of dust in the chamber, since dust that is formed during the shotblasting procedure is removed using a cartridge dust collector, whereas fresh air enters the chamber through the ceiling

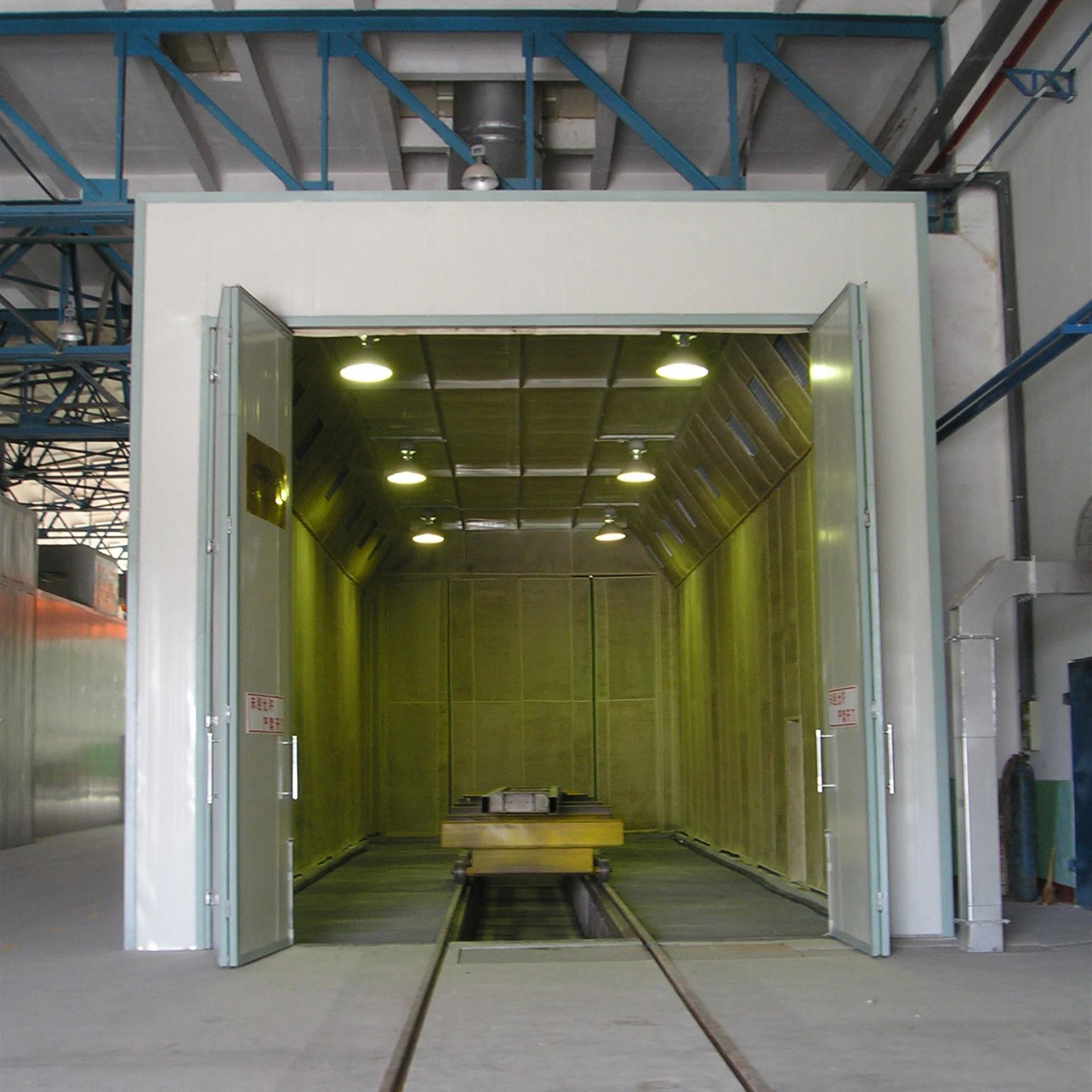

The chamber may be equipped with a transport trolley or an overhead rail in the interior in order to manipulate work pieces

A partial or full automation of the shotblasting procedure is possible using shotblasting robots

They are used in technologies, such as removal of rust, preparations for surface protection, matting, roughening, etc.

There is a selection of chambers available with different sizes of work space and with numerous optional accessories which allow us to adjust our chambers to the needs of even the most demanding customer.











Shandong Baoda Metal Group Co., Ltd. is a professional foundry casting equipment manufacturers, Located in the Lingang Industrial Park, Huangdao District of Qingdao City, here is the manufacturing base, complete industry categories, mechanical and electrical supporting the environment and strategic location, land and sea air transportation facilities.

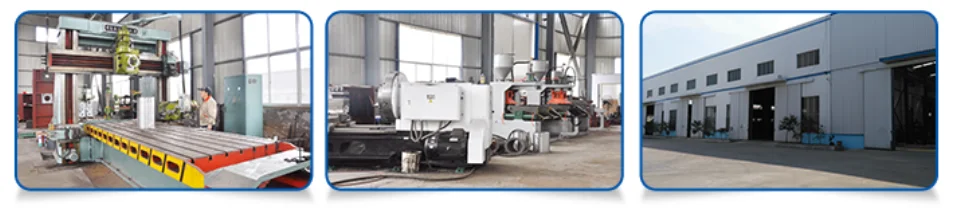

Southern Cross Harbor Tunnel through the Qingdao Railway Station, north cross-sea bridge in-line near Qingdao Airport. Shandong Baoda Metal Group Co., Ltd. the existing staff of about100 people, covering an area of nearly 40 acres, plant area of over 10,000 square meters, is a collection of scientific research, design, manufacture, installation and commissioning, and technical advice as one of modern integrated machinery business.

Production of resin sand casting line, clay sand reclamation complete sets of equipment; V-process casting line, EPC modeling equipment; sand & shot blasting equipment; core shelling machinery, core shooting machine, molding machine.

Complete sets of automatic molding line environmental protection equipment for casting enterprises to provide a full range of pre and post sales services.



1. What is the target market for this machine?

The Blaster is designed for customers who require a more sophisticated method than just manual cleaning in preparation for further processing or painting.



2. What type of abrasive media does it use?

The Blaster is designed to use the round steel shot and shot grit. The shot is recycled inside the system and gets smaller and smaller during the blasting process until it is completely consumed. Approximately two tons are required for start-up, and approximately 20 pounds are consumed per blasting hour. Replenishment is easily done as needed.



3. What utilities are needed to run the Blaster?

The electrical system runs on three-phase input and a transformer will be provided for your supply voltage is required. The clean and dry compressed air supply is also needed.



4. What does it cost to operate?

The highly efficient turbines require much less power than competitor's shot blast machines. Including abrasive consumption, power consumption, and maintenance, the total operating cost averages around $20 per hour in the US. When comparing this to your current methods, keep in mind that the Blaster is at least 4 to 5 times as productive as manual cleaning and only one operator is required to load and run the machine while it is working. Labor costs are much lower, plus you will have a huge amount of extra capacity for cleaning.



5. Are there any special operator skills required for the Shot Blaster?

No, once the machine is installed and adjusted by our technician, running the machine consists of merely switching it on and setting the speed dial for the desired surface finish. Maintenance is simple too.
