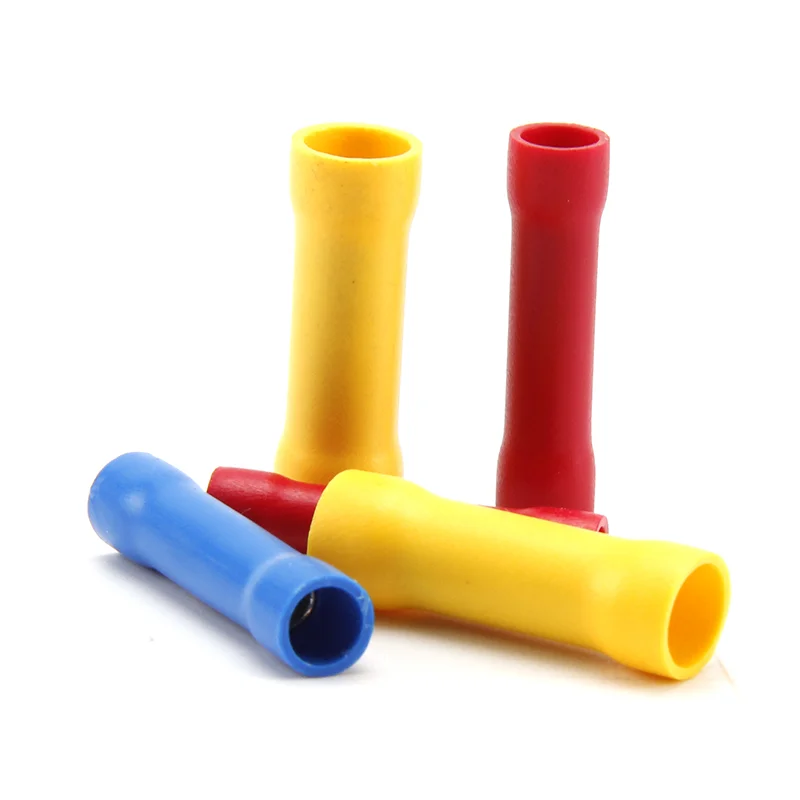

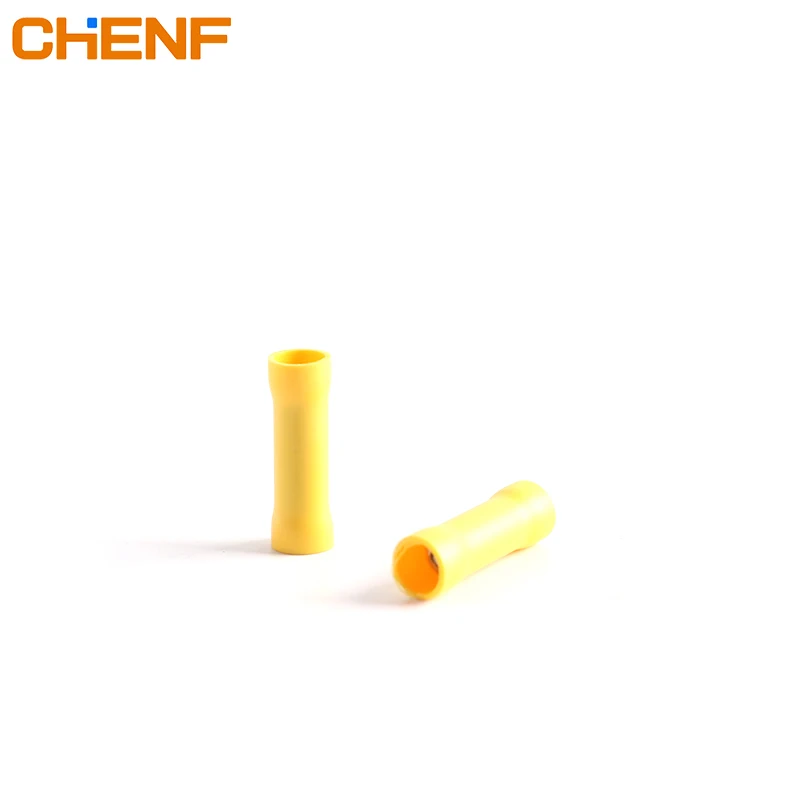

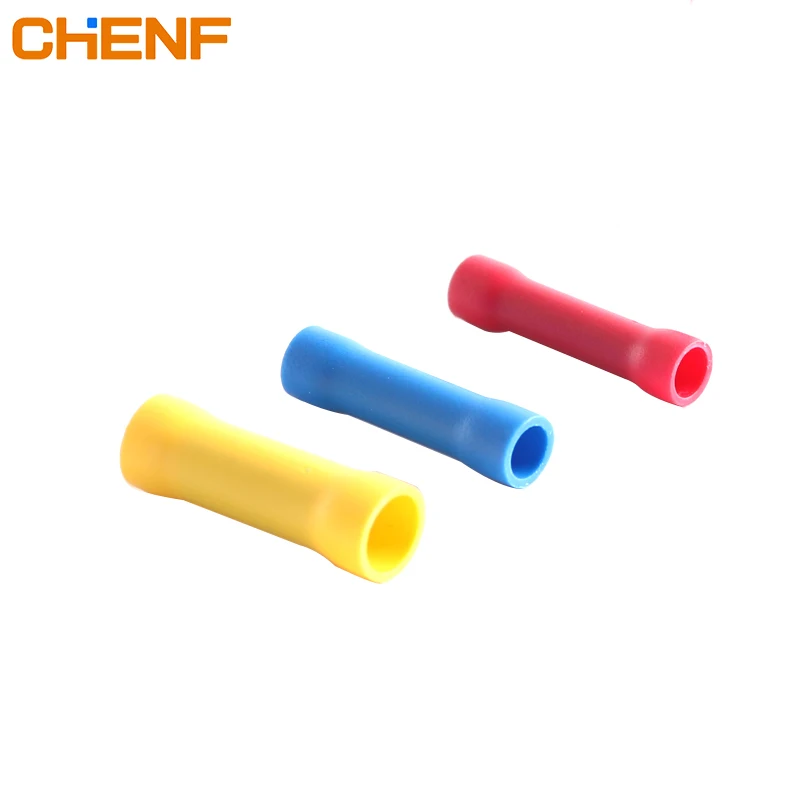

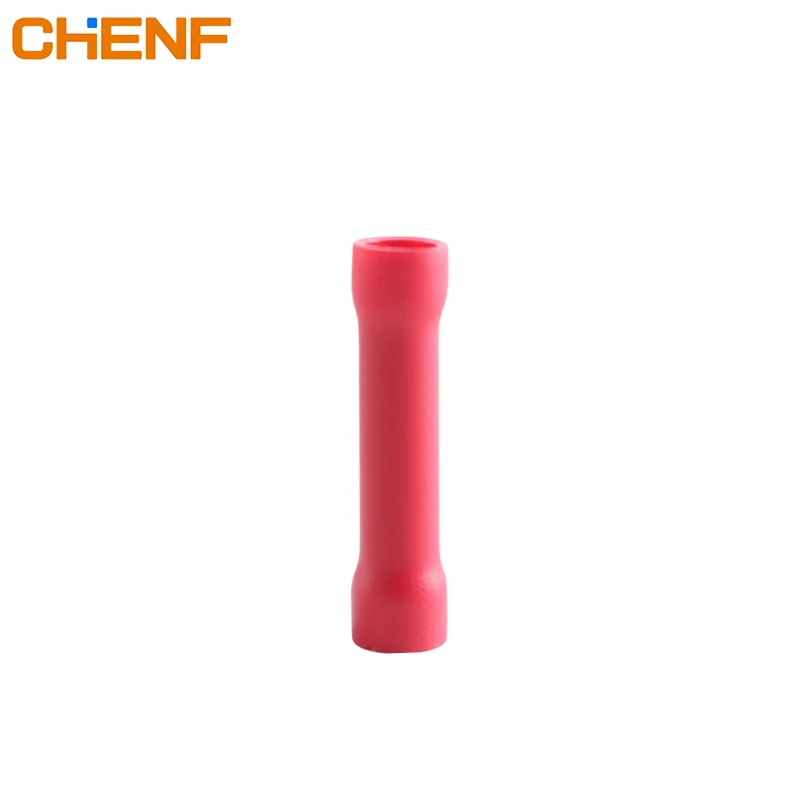

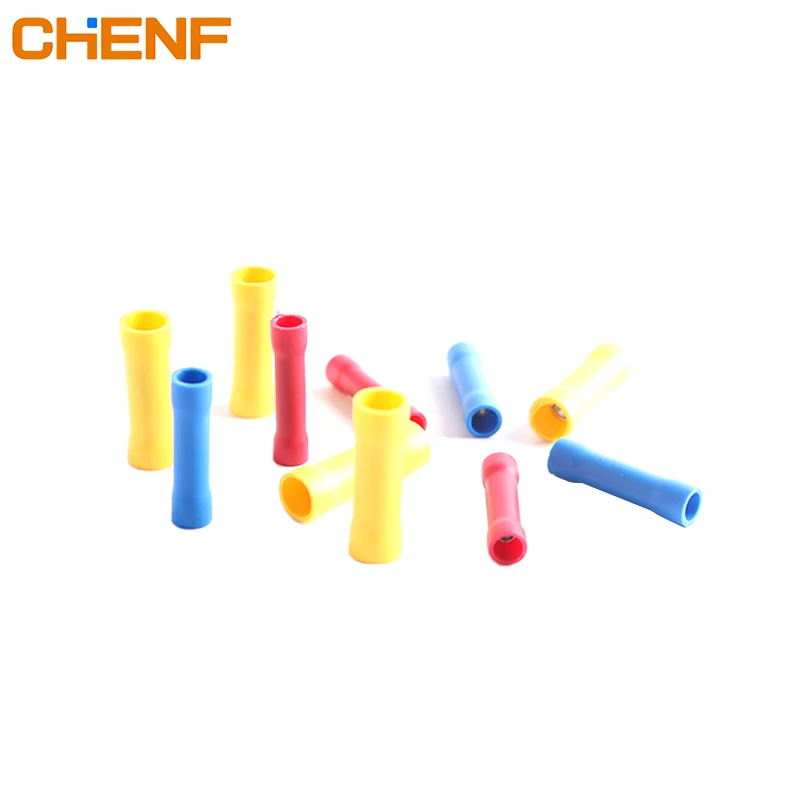

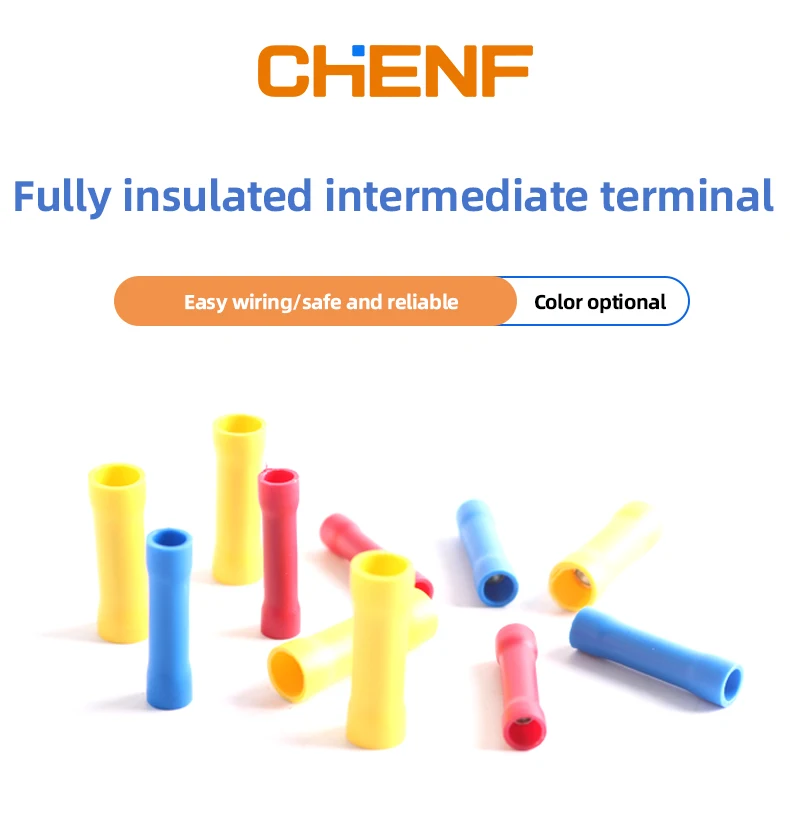

Factory Supplier BV PVT series insulation Joint Solder Seal Wire Connectors Cable Terminal For Quick Crimp Electrical Connectors
- Category: >>>
- Supplier: Yueqing Chenf Electric Co. Ltd.
Share on (1600517090383):
Product Overview
Description
Factory Supplier BV PVT series insulation Joint Solder Seal Wire Connectors Cable Terminal For Quick Crimp Electrical Connectors

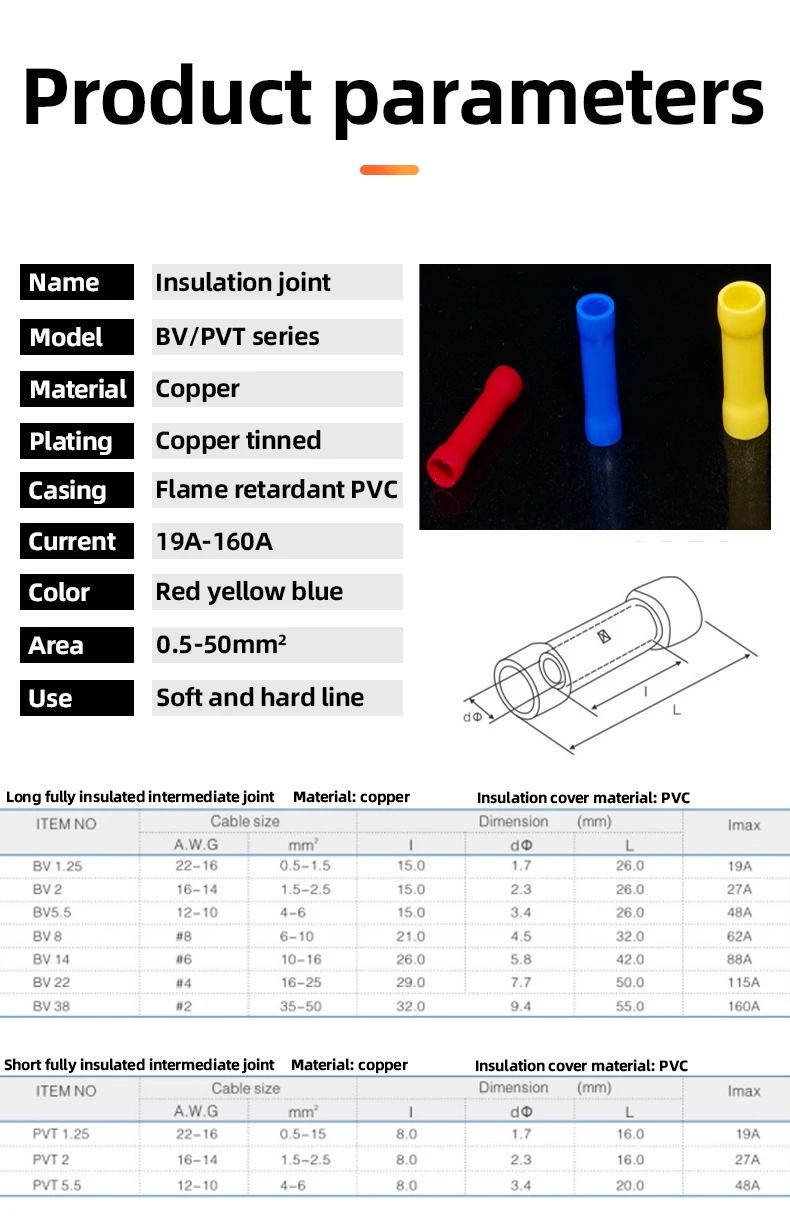

Product Description
| Item NO. | Cable Size | Dimension | Imax | Color | ||||
| A.W.G | mm | I | d | L | ||||
| BV | 1.25 | 22-16 | 0.5-1.5 | 15 | 1.7 | 26 | 19A | red |
| BV | 2 | 16-14 | 1.5-2.5 | 15 | 2.3 | 26 | 27A | blue |
| BV | 5.5 | 12-10. | 4-6. | 15 | 3.4 | 26 | 48A | yellow |
| BV | 8 | #8 | 6-10. | 21 | 4.5 | 32 | 62A | red |
| BV | 14 | #6 | 10-16. | 26 | 5.8 | 42 | 88A | blue |
| BV | 22 | #4 | 16-25 | 29 | 7.7 | 50 | 115A | yellow |
| BV | 38 | #2 | 35-50 | 32 | 9.4 | 52 | 160A | red |
| PVT | 1.25 | 22-16 | 0.5-1.5 | 8 | 1.7 | 16 | 19A | red |
| PVT | 2 | 16-14 | 1.5-2.5 | 8 | 2.3 | 16 | 27A | blue |
| PVT | 5.5 | 12-10. | 4-6. | 8 | 3.4 | 20.5 | 48A | yellow |
