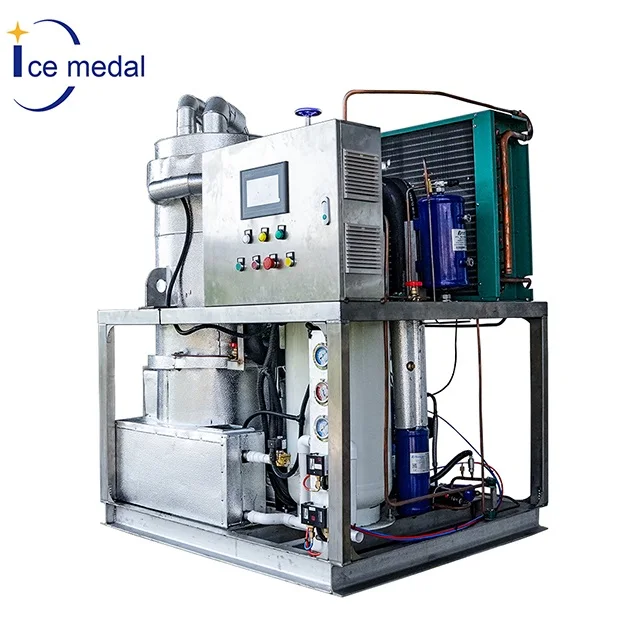

Ice Medal 1 Ton Tube Ice Machine Industrial Tube Ice Making Machine
- Category: >>>
- Supplier: Hunan Icemedal Refrigeration Equipment Co. Ltd.
Share on (1600517093034):
Product Overview
Description
Ice Medal 1 Ton Tube Ice Machine Industrial Tube Ice Making Machine
Product Description
Specification
Model | Daily Output(T/24h) | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unite Size (L*W*H mm) Integrated type | Unit N.W.(KG) | ||
10 | 1 | 4.1 kw | 0.25 kw | 1.1 kw | 1100*900*1780 | 900 | ||
20 | 2 | 7.44 kw | 0.25 kw | 1.5 kw | 1250*1000*1950 | 1200 | ||
30 | 3 | 10 kw | 0.55 kw | 1.5 kw | 1300*1100*2200 | 1500 | ||
50 | 5 | 19.9 kw | 0.55 kw | 2.2 kw | 1600*1400*2250 | 1800 | ||
Model | Daily Output(T/24h) | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Unite Size (L*W*H mm)Split type | Unit N.W.(KG) | ||
Mian Host | Brine Tank | |||||||
100 | 10 | 27.9 kw | 1.5 kw | 4 kw | 1900*1600*1850 | 1200*1200*3390 | 3500 | |
150 | 15 | 46.4 kw | 1.5 kw | 5 kw | 2700*2000*2200 | 1500*1200*4250 | 4250 | |
200 | 20 | 55.7 kw | 2.2 kw | 7.5 kw | 2800*2200*2500 | 1500*1200*4700 | 6500 | |
300 | 30 | 83.6 kw | 2.2 kw | 7.5 kw | 3100*2200*2500 | 1800*1500*5700 | 7200 | |
400 | 40 | 111.4 kw | 2.2 kw | 11 kw | 3900*2250*2500 | 2000*1500*6800 | 8300 | |
500 | 50 | 139.3 kw | 3.75 kw | 15 kw | 4500*2250*2500 | 2200*1800*7200 | 9500 | |
1. Compact Structure 3D design standardizes production, and making the structure more reasonable.

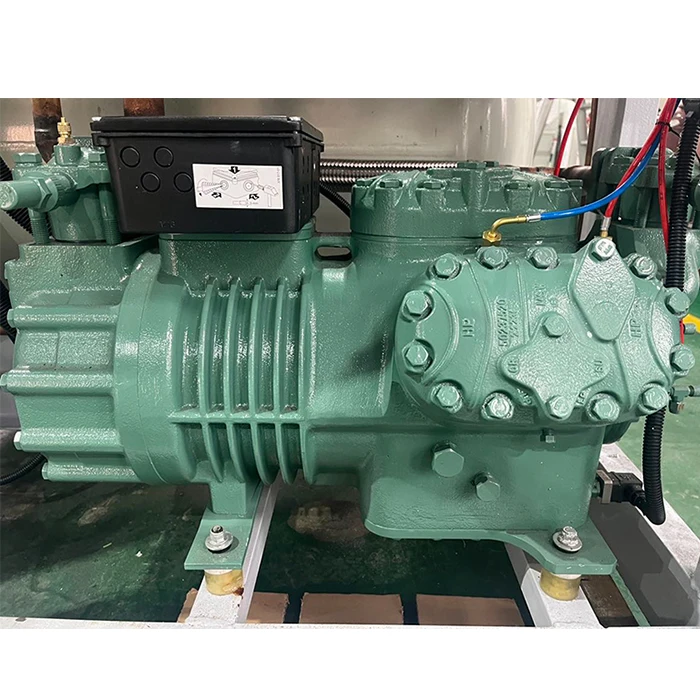

2.Brand Compressor, Bitzer from Germany, Copeland from America, those are the compressor brands we use for your better ice machine.
3. Special Pipe Insulation,Aluminum pipe insulation is using insulating material and aluminum surface to cover the evaporator and pipe, to increase the efficient of ice making.
4. Stainless Steel Water Pump ,The water circulating pump is stainless steel rpump, all material getting touch with water is food standard. The water is clean inside the system.
5.Danfoss Pressure Protector,The system is protected by Danfoss pressure protector to ensure the stable pressure. The products from Danfoss have better quality and accuracy.
2.Brand Compressor, Bitzer from Germany, Copeland from America, those are the compressor brands we use for your better ice machine.
3. Special Pipe Insulation,Aluminum pipe insulation is using insulating material and aluminum surface to cover the evaporator and pipe, to increase the efficient of ice making.
4. Stainless Steel Water Pump ,The water circulating pump is stainless steel rpump, all material getting touch with water is food standard. The water is clean inside the system.
5.Danfoss Pressure Protector,The system is protected by Danfoss pressure protector to ensure the stable pressure. The products from Danfoss have better quality and accuracy.
