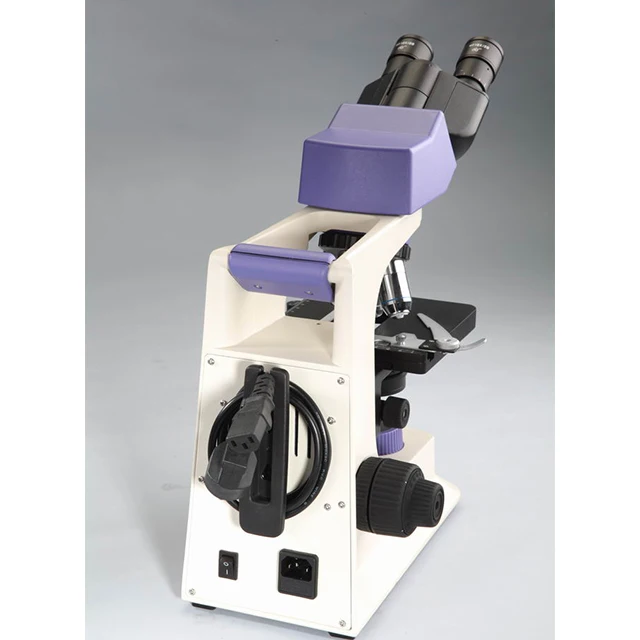

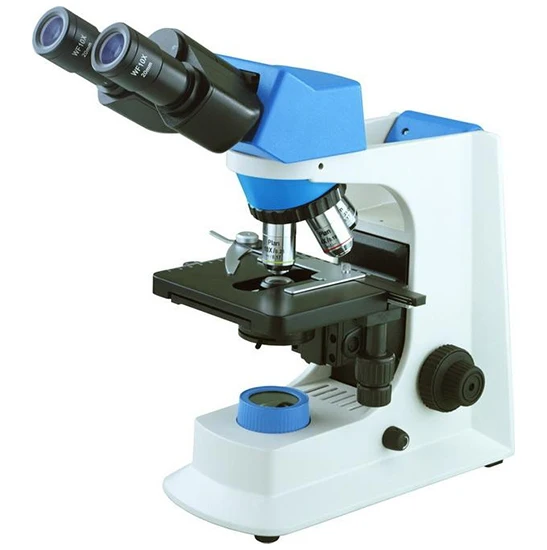

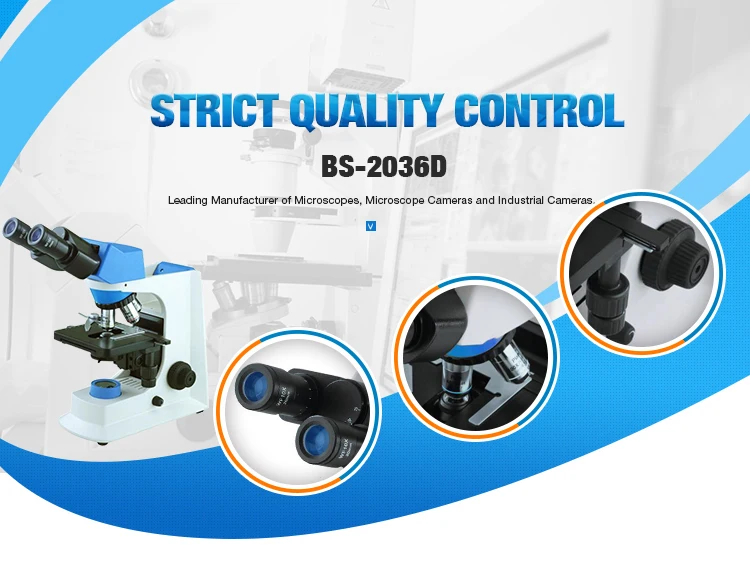

BestScope BS 2036D Plan 4x 10x 40x 100x Professional Education Biological Binocular Microscope
- Category: >>>
- Supplier: Beijing BestScope Technology Co. Ltd.
Share on (1600517108464):
Product Overview
Description

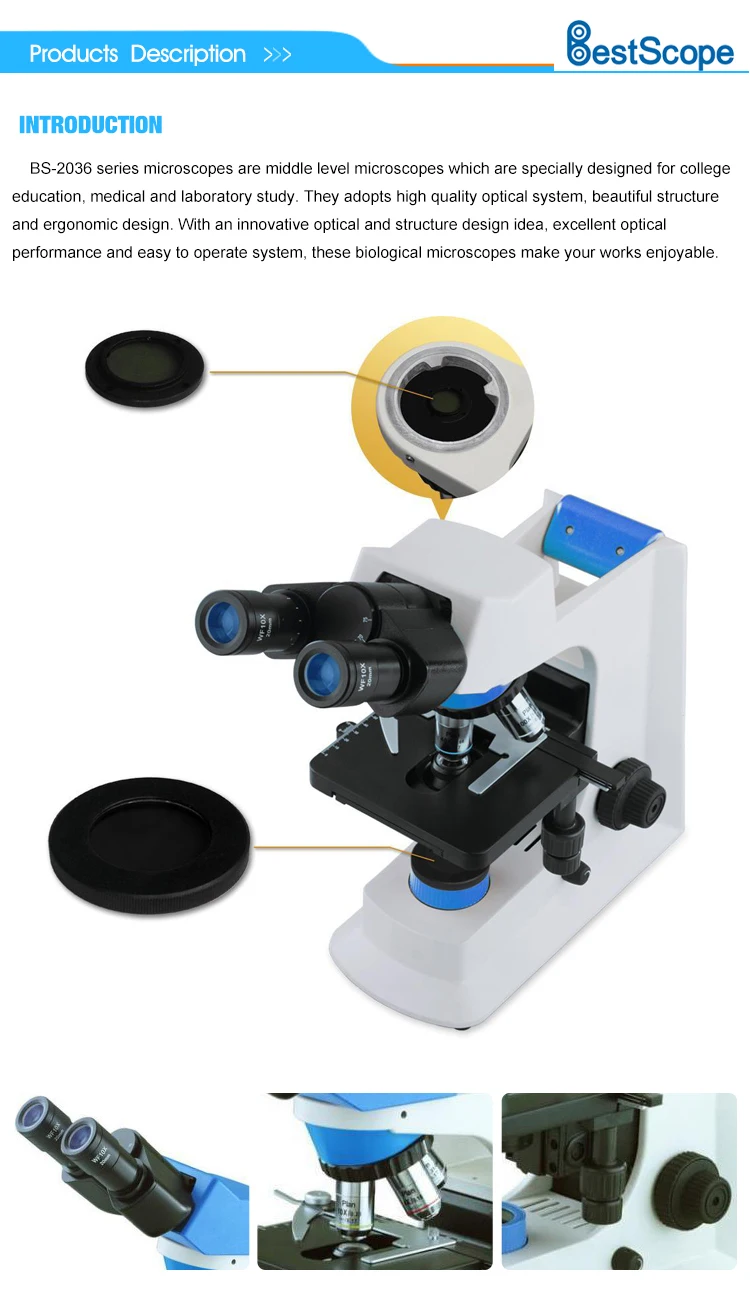

Products Description
Specification
Item | Specification | BS-2036A | BS-2036B | BS-2036C | BS-2036D |
Optical System | Finite Optical System | ● | ● | ||
Infinite Optical System | ● | ● | |||
Viewing Head | Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm | ● | ● | ● | ● |
Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary 48-75mm, Light Distribution: 20:80 (eyepiece: trinocular tube) | ○ | ○ | ○ | ○ | |
Eyepiece | WF10×/18mm | ● | |||
WF10×/20mm | ● | ● | ● | ||
WF16×/13mm | ○ | ○ | ○ | ○ | |
Reticule Eyepiece WF10×/18mm (0.1mm) | ○ | ○ | ○ | ○ | |
Reticule Eyepiece WF10×/20mm (0.1mm) | ○ | ○ | ○ | ||
Achromatic Objective | 4×, 10×, 40×(S), 100×/1.25 (Oil) (S) | ● | |||
20×, 60× (S) | ○ | ||||
Plan Achromatic Objective | 4×, 10×, 40×/0.65 (S), 100×/1.25 (Oil) (S) | ● | |||
20×, 60× (S) | ○ | ||||
Infinite Achromatic Objective | E-Plan 4×, 10×, 40× (S), 100× (Oil) (S) | ● | |||
Plan 4×, 10×, 40× (S), 100× (Oil) (S) | ○ | ● | |||
Plan 20×, 60× (S) | ○ | ○ | |||
Nosepiece | Backward Quadruple Nosepiece | ● | ● | ● | ● |
Backward Quintuple Nosepiece | ○ | ○ | ○ | ○ | |
Focusing | Coaxial Coarse & Fine Focusing knobs, Travel Range: 26mm, Scale:2um | ● | ● | ● | ● |
Stage | Double Layers Mechanical Stage, Size: 145×140mm, Cross Travel 76×52mm, Scale 0.1mm, Two Slide Holder | ● | ● | ● | ● |
Rackless Double Layers Mechanical Stage, Size: 140×135mm, Cross Travel 75×35mm, Scale 0.1mm, Two Slide Holder | ○ | ○ | ○ | ○ | |
Condenser | Abbe Condenser NA1.25 with Iris Diaphragm | ● | ● | ● | ● |
Illumination | 3W LED Illumination Systems, Brightness Adjustable | ● | ● | ● | ● |
6V/20W Halogen Lamp, Brightness Adjustable | ○ | ○ | ○ | ○ | |
6V/30W Halogen Lamp, Brightness Adjustable | ○ | ○ | ○ | ○ | |
Field Diaphragm | ○ | ○ | ○ | ○ | |
Dark Field Condenser | N.A.0.9 (Dry) Dark Field Condenser(For 10×-40× objective) | ○ | ○ | ○ | ○ |
N.A.1.3 (Oil) Dark Field Condenser(For 100× objective) | ○ | ○ | ○ | ○ | |

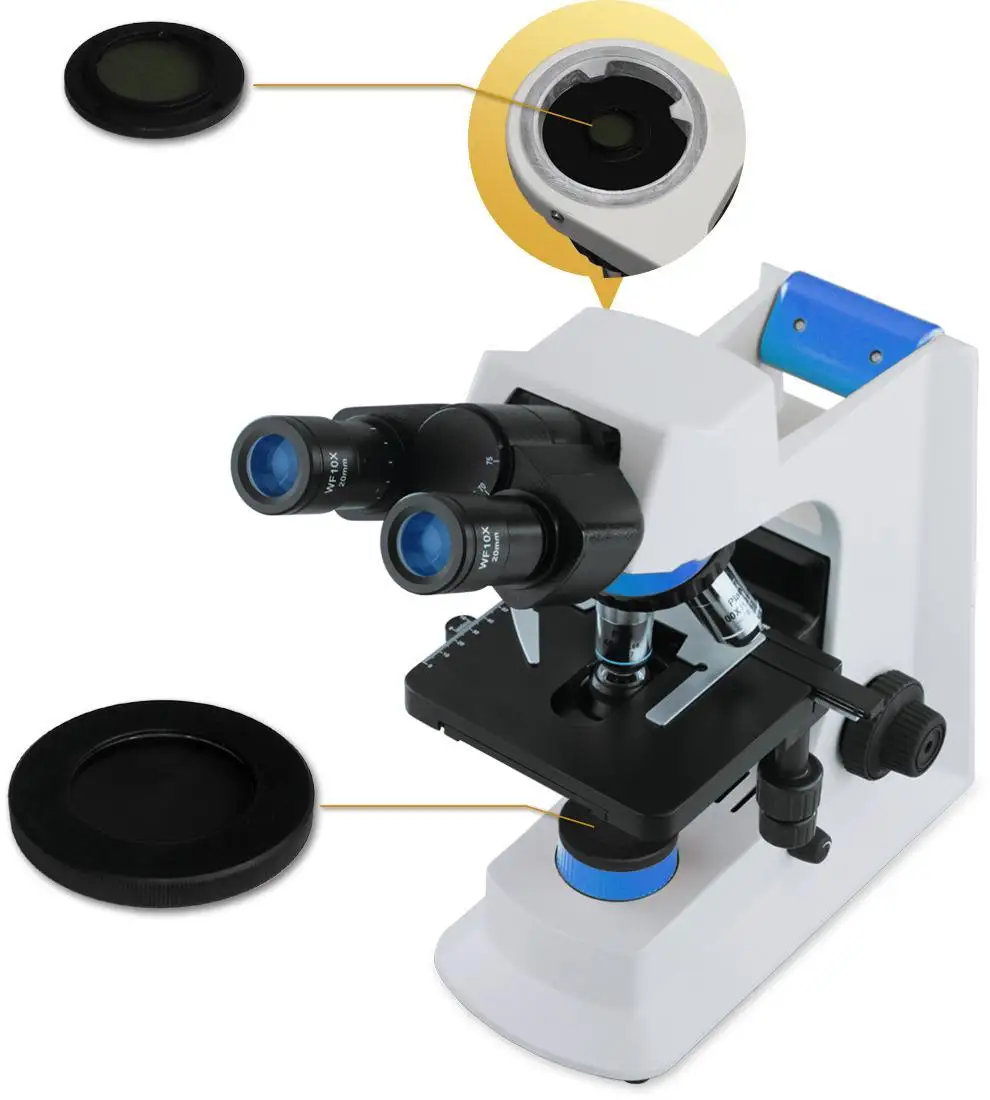

Polarizing Set | Analyzer and Polarizer | ○ | ○ | ○ | ○ |
Phase contrast unit | With Infinite Plan Objectives 10× /20× /40× /100× | ○ | ○ | ||
Fluorescence Attachment | Epi-fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp. | ○ | ○ | ||
Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G), 5W LED fluorescence lamp. | ○ | ○ | |||
Filter | Blue | ○ | ○ | ○ | ○ |
Green | ○ | ○ | ○ | ○ | |
Yellow | ○ | ○ | ○ | ○ | |
Photo Adapter | Used to Connect Nikon/Canon/Sony/Olympus DSLR camera to the microscope | ○ | ○ | ○ | ○ |
Video Adapter | 0.5X C-Mount (Focus adjustable) | ○ | ○ | ○ | ○ |
1X C-Mount | ○ | ○ | ○ | ○ | |
Mirror | Reflect Mirror | ○ | ○ | ○ | ○ |

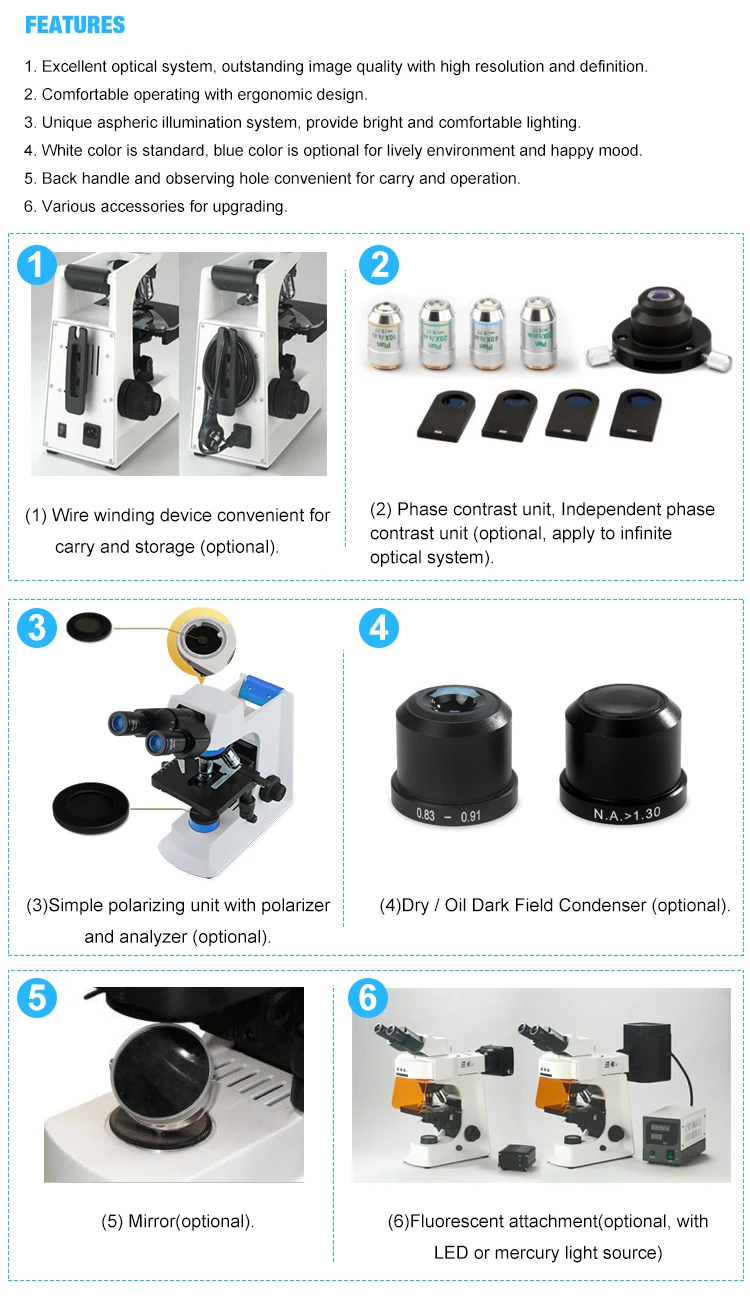

Cable Winding Device | Used to wind cable on back of the microscope | ○ | ○ | ○ | ○ |
Rechargeable Battery | 3pcs AA rechargeable Nickel-metal hydride battery | ○ | ○ | ○ | ○ |
Package | 1pc/carton, 42cm*28cm*45cm, Gross Weight 8kg, Net Weight 6.5kg | ○ | ○ | ○ | ○ |
Note: ● Standard Outfit, ○ Optional
