Discharge Medicao de tensao de terra transiente Dedektor Tester
- Category: Other Electrical Instruments >>>
- Supplier: Weshine,Electric,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Features

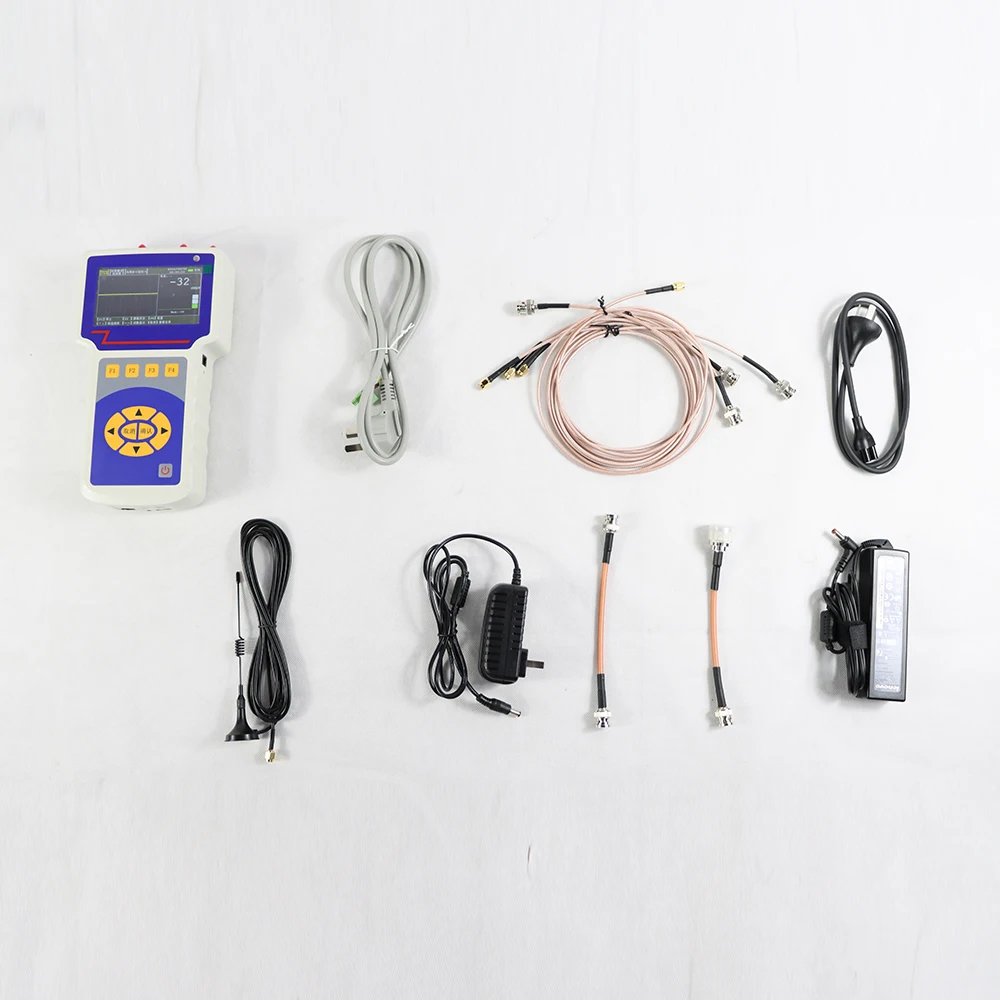

TEV partial discharge inspection instrument uses two emerging technologies, transient-to-ground voltage (TEV) measurement and ultrasonic (US) measurement, to detect faults in switchgear. The equipment is portable and easy to operate. The TEV sensor is attached to the wall of the box, and the US sensor scans and detects along the gap on the switch cabinet. There is no damage to the high voltage switch and switch cabinet. All the tests do not cause any operation of the high voltage switch and switch cabinet equipment. influences. The product can perform multi-period observation of the measurement signal, identify the frequency of the discharge, and analyze it through multiple modes, which can clearly determine whether the switchgear is malfunctioning.
Specification
item | value |
Place of Origin | China |
Hebei | |
Brand Name | Weisheng |
Model Number | VSPD-100Z |
Display Type | Digital Only |
Measuring Range | 0~60dB |
Accuracy Class | ±1dB |
Supply Voltage | AC220V±10% |
Operating Temperature | 0℃~45℃ |
Dimensions | 235mm*133mm*48mm |
Weight | 0.85kg |
Product Name | Handheld Partial Discharge Tester |
Number Of Detectable Channels | 2 Channels, 1 TEV Channel, 1 US Channel |
Sampling Accuracy | 12bit |
Detection Bandwidth | 3M-100MHz |
Resolution | 1dB |
Maximum Number Of Pulses Per Cycle | 720 |
Minimum Pulse Frequency | 10Hz |
Output Interface | Standard SMA |
Normal Working Hours | About 7 Hours, Charging Time Is About 3 Hours |
Warranty | 1 Year |
