Nano coating machine
- Category: >>>
- Supplier: Qingdao Ubu Vacuum Equipments Corp. Ltd.
Share on (1600517130273):
Product Overview
Description
Product Description

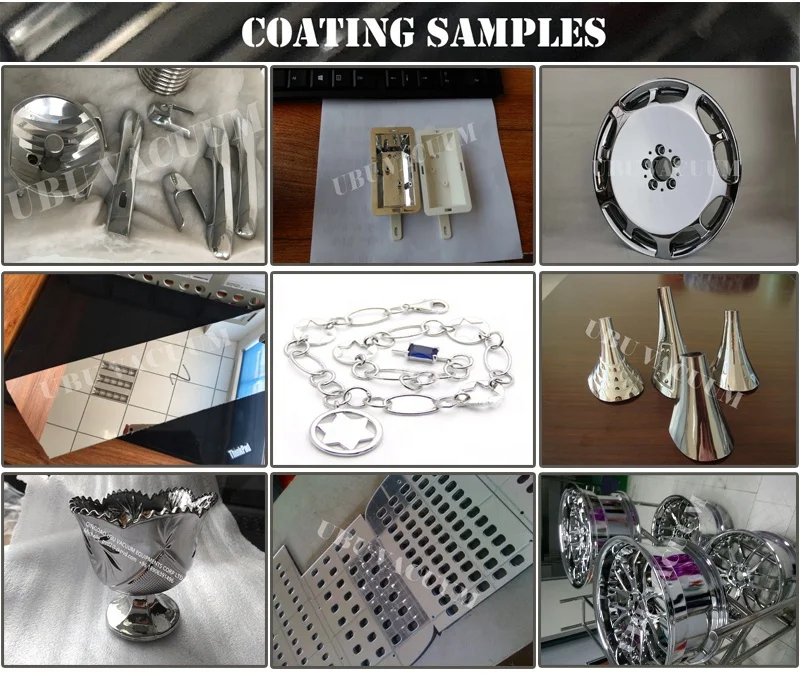

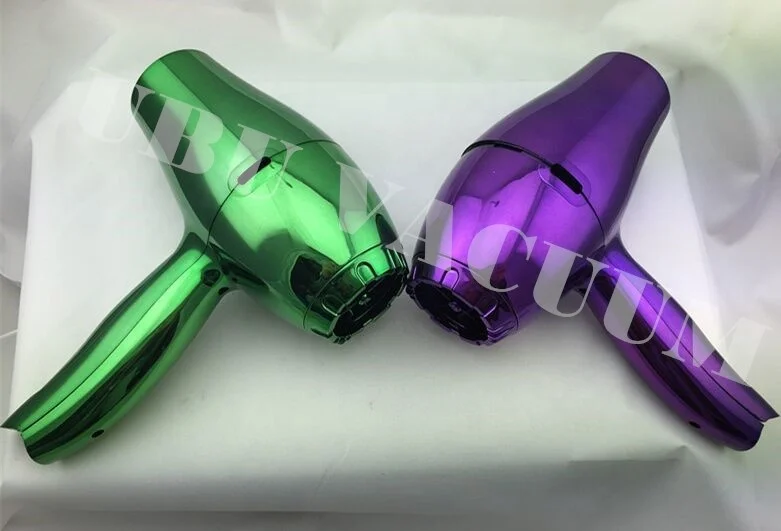

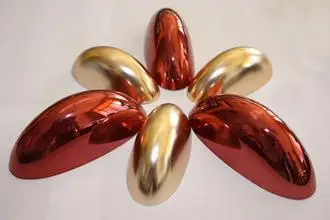

Vacuum evaporation coating machine is mainly used in coating plastics and ceramics products with metal surface film (aluminum, chrome, stainless steel and other metals), colorful film and imitation gold film etc., then can obtain bright, beautiful and inexpensive plastic and ceramic surface metallization products. In addition, it is widely used in lamps, furniture, toys, bottle caps, female shoes heel, car mirrors, crafts, jewelry, watches, cell phones, DVD, MP3, PDA outer covering, cosmetic shell and Christmas gifts etc. industries. Machinable substrate include ABS, PS, PP, PC, PVC, nylon, metal, glass, ceramics and TPU materials.
Detailed Images
Size Information
Model | EVZF-1000 | EVZF-1200 | EVZF-1400 | EVZF-1600 | EVZF-1800 | EVZF-2000 | |||||
Vacuum chamber size | D1000×H 1200mm | D1200×H 1500mm | D1400×H 1600mm | D1600×H 1800mm | D1800×H 2000mm | D2000×H 2200mm | |||||
Power supply | Resistance evaporation power supply | ||||||||||
Vacuum chamber material | SS304 superior stainless steel or superior carbon steel | ||||||||||
Vacuum chamber structure | Vertical single/double door, back vacuum acquisition system | ||||||||||
Ultimate vacuum | Better than 8.0x10-4Pa (no-load), leak rate1h≤0.6Pa | ||||||||||
Pumping speed | From atmosphere to 6.7×10-3Pa spend 8~15min (no-load） | ||||||||||
Evaporation power | 10KW | 15KW | 20KW | 20KW | 25KW | 35KW | |||||
Total power | 25KW | 40KW | 60KW | 65KW | 85KW | 95KW | |||||
Vacuum system | Diffusion pump + roots pump + rotary vane pump + holding pump (can be adjusted) | ||||||||||
Measurement system | Use automatic digital display vacuum gauge | ||||||||||
Intake system | Flow controller can be optional and with automatic control, also can be shifted between manual and automatic | ||||||||||
Rotation mode | Frequency stepless | ||||||||||
Cooling system | Water-cooling circulatory system,cooling water tower or industrial cooling water machine is also needed (supplied by customer) | ||||||||||
Control mode | Manual or PLC + touch screen, can achieve automatic, manual and semi-automatic control | ||||||||||
Alarm and protection | Water pressure alarm, atmosphere pressure alarm, over current protection, related protective measures and electrical interlock functions. | ||||||||||
Other data | Water pressure≥0.2MPa, water temperature≤25℃, atmosphere pressure 0.5-0.8MPa | ||||||||||
Remark | Specific configuration size can be designed according to customer requirements. Can be equipped with magnetron sputtering power supply and intermediate frequency power supply. Customizable vacuum chamber size range is D:500-3000mm, H: 500-3000mm. | ||||||||||
Related Products
Packing&Shipping
After Sales Service
1.We will response within 24 hours after the buyer's formal Technical Support Reprt.
2. After the buyer receives the formal Finishing Inspection Report from seller, the buyer should inspect the machine in site
within 7 days. After inspection approval,the buyer should pay the balance before shipment.
3. 12 months' warranty and the whole machine life maintenance.(Charged during the warranty due to human's damage or wrong operation).
4. Sellers provide Customer Files for maintenance and repairing service.
5. Sellers should provide the spare parts to buyer during the equipment's life time as requested.
2. After the buyer receives the formal Finishing Inspection Report from seller, the buyer should inspect the machine in site
within 7 days. After inspection approval,the buyer should pay the balance before shipment.
3. 12 months' warranty and the whole machine life maintenance.(Charged during the warranty due to human's damage or wrong operation).
4. Sellers provide Customer Files for maintenance and repairing service.
5. Sellers should provide the spare parts to buyer during the equipment's life time as requested.
Company Introduction
Qingdao UBU Vacuum Equipments Corp.,Ltd., established in 2009,is a high-tech enterprise who is professional in R&D, manufacture and marketing of the vacuum coating equipments. Our headquarters is located in the international port city - Qingdao, with convenient transportation and brilliant talents, but we also have offices and agents in Shenzhen, Shanghai and some foreign cities.
We supply 9 main coating equipments, including Multiple arc plasma vacuum coating machine, Magnetic sputtering vacuum coating machine, Multifunctional intermediate frequency vacuum coating machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coating machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering vacuum coating line. In addition, we also provide professional PVD coating services, supply related accessories and machine updating service, solve customer’s problems and make customers satisfied.
Now our company covers more than 20,000 sqms with more than one hundred employees and we have our own individual R&D team, production team, marketing team and after-sale service team. As a leader high-end manufacturing enterprise, our company successfully listed in 2014.
Adhering to the "Customer supreme and keep improving" concept ,following the "high quality, high efficiency, low energy
consumption" development strategy, we have provided powerful vacuum service for many famous domestic and foreign companies. UBU will continue to cooperate with all the customers for the brilliant future.
We supply 9 main coating equipments, including Multiple arc plasma vacuum coating machine, Magnetic sputtering vacuum coating machine, Multifunctional intermediate frequency vacuum coating machine, Evaporation vacuum coating machine, Automatic optical coating equipment, Vacuum roll coating machine, DLC vacuum coating machine, UV lacquer curing system and Continuous magnetic sputtering vacuum coating line. In addition, we also provide professional PVD coating services, supply related accessories and machine updating service, solve customer’s problems and make customers satisfied.
Now our company covers more than 20,000 sqms with more than one hundred employees and we have our own individual R&D team, production team, marketing team and after-sale service team. As a leader high-end manufacturing enterprise, our company successfully listed in 2014.
Adhering to the "Customer supreme and keep improving" concept ,following the "high quality, high efficiency, low energy
consumption" development strategy, we have provided powerful vacuum service for many famous domestic and foreign companies. UBU will continue to cooperate with all the customers for the brilliant future.
FAQ
Question 1: Are you manufacturer?
Answer: Yes, We are a CE, ISO,SGS certification manufacturer. Welcome to visit our factory anytime!
Question 2:Are engineer avaliable for after sales?
Answer: Yes. Engineer avaliable to oversea for trainning .
Question 3: What is price of the machine?
Answer: The machine is custom made.But we still have price range for reference based on the system.
If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired
capacity.
Our team will provide our professional suggestions and work out an appropriate design for your project.
Question 4: Does the machine operate and maintain easily?
Answer: Yes. We alway focus on intelligent operation and high quality deliver system to reduce maintenance.But we still have 1 year's warranty.The smart design makes it easily to control. named components make circuit protection system more safety.
Question 5: Do I have to pay for the pollution?
Answer: The machine is environment-friendly, there is no chemical liquid waste or harmful gas. This is a green technology.

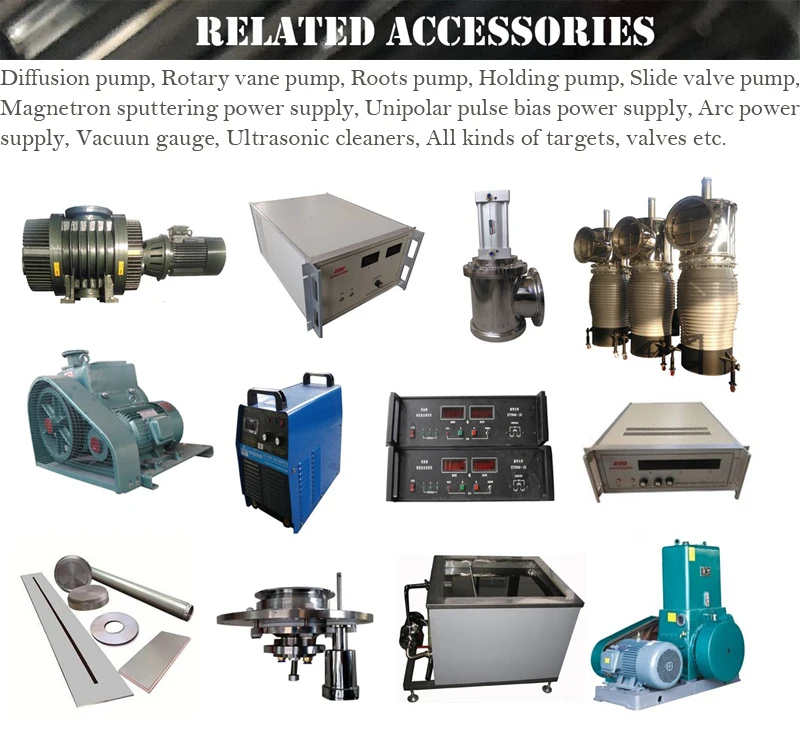

We also provide the accessories of vacuum coating machine.
Answer: Yes, We are a CE, ISO,SGS certification manufacturer. Welcome to visit our factory anytime!
Question 2:Are engineer avaliable for after sales?
Answer: Yes. Engineer avaliable to oversea for trainning .
Question 3: What is price of the machine?
Answer: The machine is custom made.But we still have price range for reference based on the system.
If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please tell us the max. dimension of your products, its application, and your desired
capacity.
Our team will provide our professional suggestions and work out an appropriate design for your project.
Question 4: Does the machine operate and maintain easily?
Answer: Yes. We alway focus on intelligent operation and high quality deliver system to reduce maintenance.But we still have 1 year's warranty.The smart design makes it easily to control. named components make circuit protection system more safety.
Question 5: Do I have to pay for the pollution?
Answer: The machine is environment-friendly, there is no chemical liquid waste or harmful gas. This is a green technology.
We also provide the accessories of vacuum coating machine.
