Daswell concrete truck mixer price volumetric concrete mixer truck with quality assurance
- Category: >>>
- Supplier: HENAN DASWELL MACHINERY CO. LTD
Share on (1600517153755):
Product Overview
Description
Product Description
Introduction of concrete mixer truck:
The tank body of the mechanical concrete mixer truck follows the popular European and American styles, and the whole vehicle has a unique and beautiful shape. The structure is compact and reasonable, the tank material is made of high-quality steel from well-known domestic steel mills, and different types of special steel are used for different parts of the body, so that the tank has a longer service life; it covers the entire range of the mixer industry.

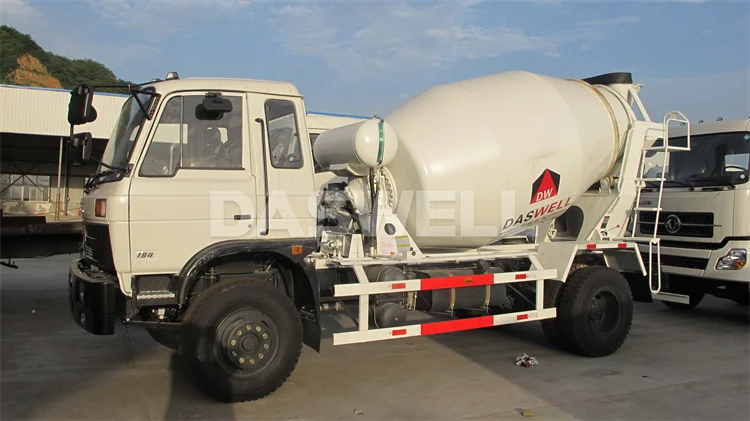

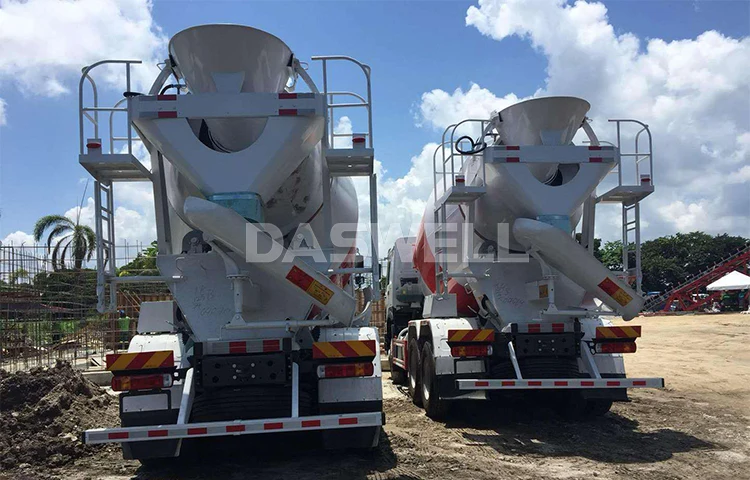

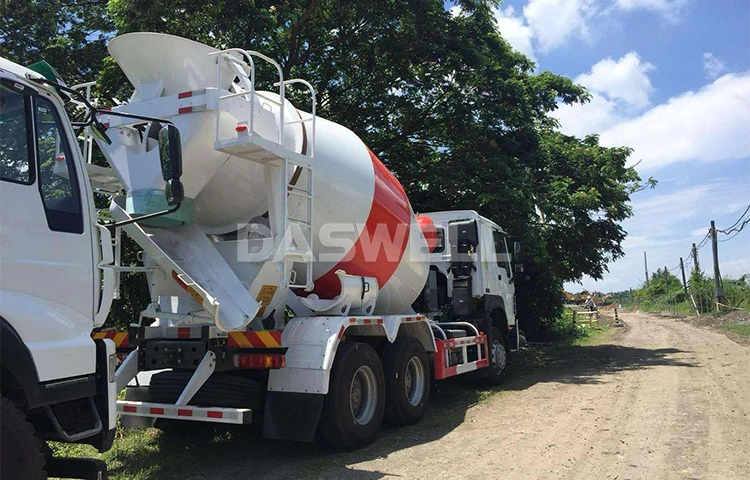

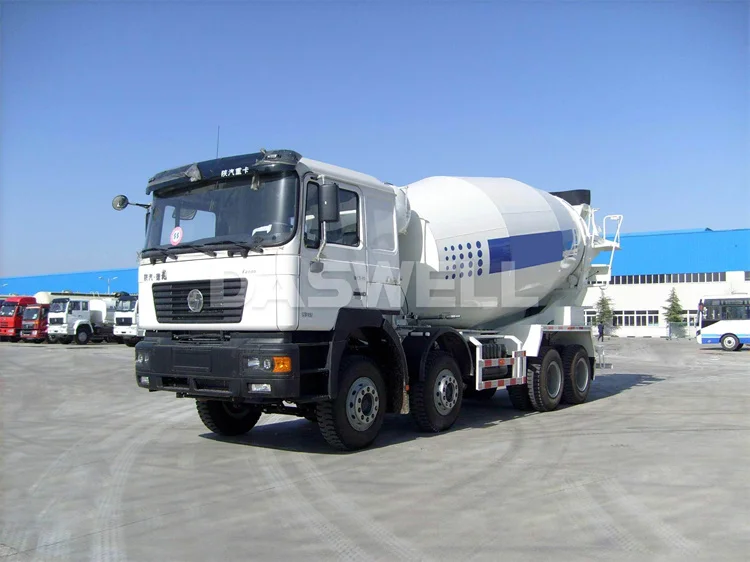

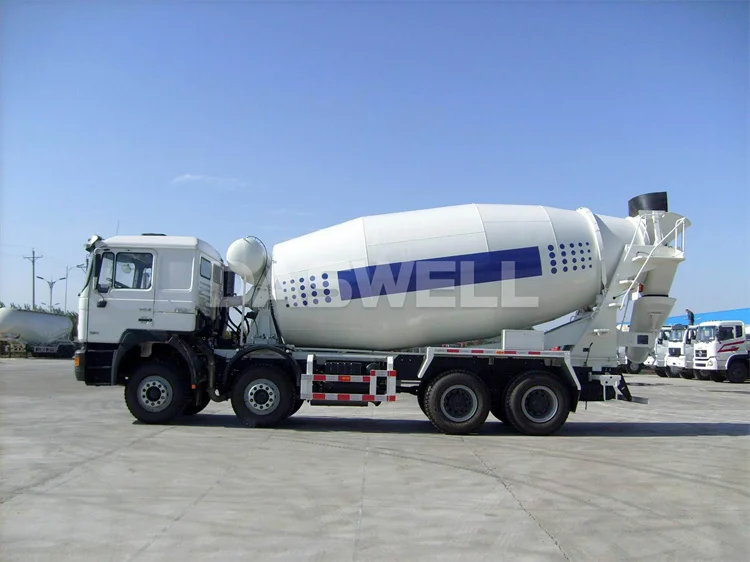

Detailed Images
Introduction of concrete mixer truck:
1. Control system: Three-point control is adopted to realize the control of the mixing tank, which is flexible and convenient for accounting.

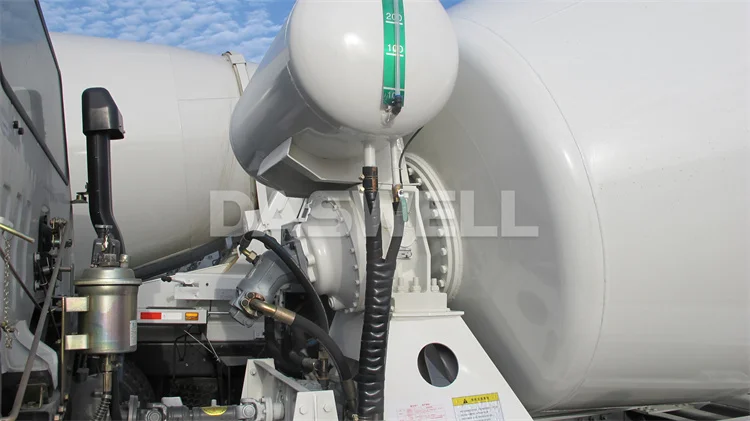

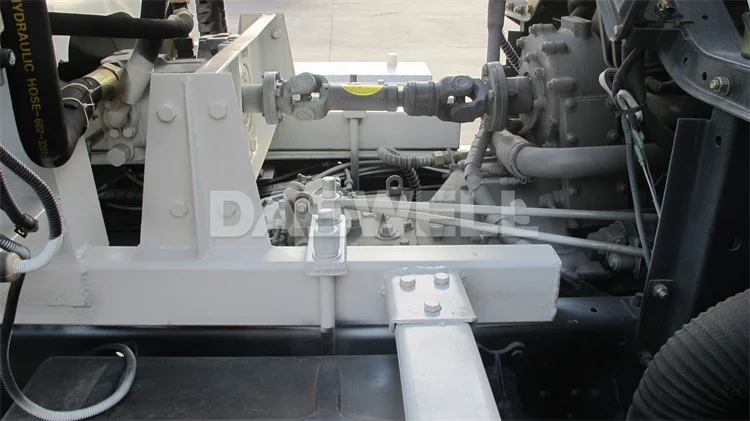

2. Hydraulic system: The hydraulic system adopts the top brands in the field of hydraulic transmission from Germany, Italy and the United States.
3. Water supply system: It has a variety of large water tanks to ensure mixing and cleaning water.
4. Blade: The mixing blade ensures the homogeneity of concrete while increasing the speed of feeding and discharging. Increase the blade wear protection device to extend the life of the vehicle.
5. Blade process: The blade manufacturing process adopts a new process method, and there is no obvious imprint on the surface.
Parameter:
Model | CMT-8 | CMT-10 | CMT-12 | CMT-14 |
Mixing Capacity m3 | 8 | 10 | 12 | 14 |
Charging Speed m3/min | ≥3 | ≥3 | ≥3 | ≥3 |
Discharging Speed m3/min | ≥2 | ≥2 | ≥2 | ≥2 |
Water Tank Capacity L | 450 | 450 | 450 | 450 |
Mixing Tank Material | 16Mn-Alloy Steel | 16Mn-Alloy Steel | 16Mn-Alloy Steel | 16Mn-Alloy Steel |
Tank Body Thickness mm | 5 | 5 | 5 | 5 |
Head Thickness mm | 6 | 6 | 6 | 6 |
Hydraulic Pump | Sunny-USA / Eaton[1]USA /PMP- Italy | |||
Hydraulic Motor | Sunny-USA / Eaton[1]USA /PMP- Italy | |||
Reducer | ZF Brand-Germany /Bonfiglioli- Italy /PMP- Italy | |||
Radiator L | 18 | 18 | 18 | 18 |
Available Chassis | HOWO/FOTON/ SHACMAN | |||

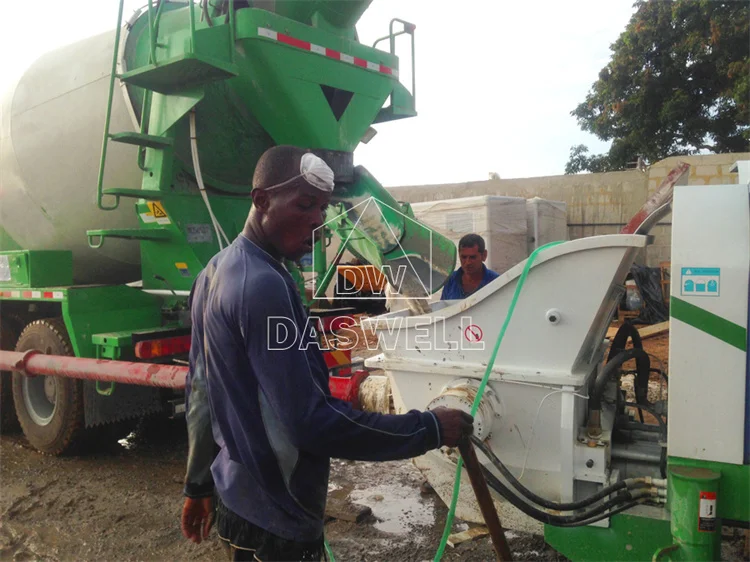

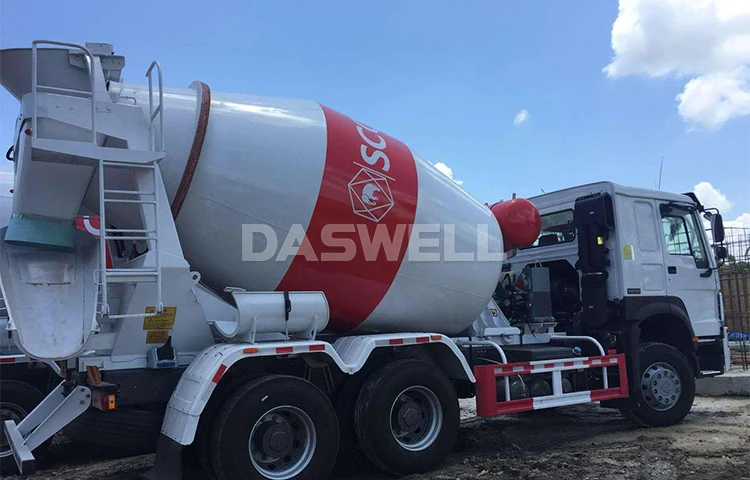

Buyer Feedback

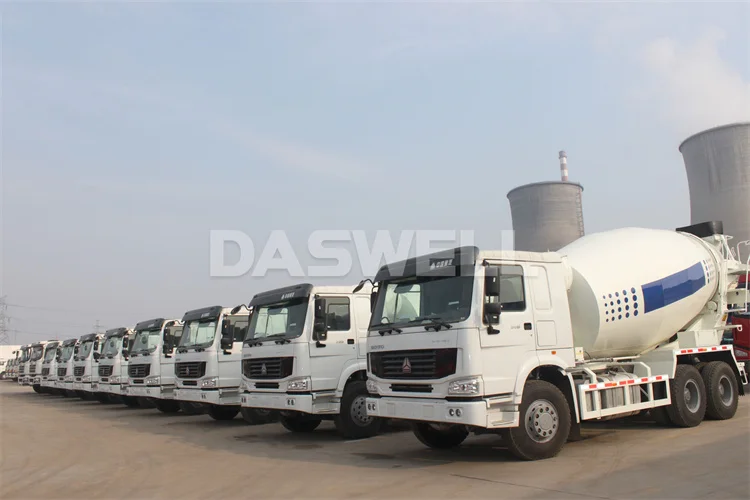

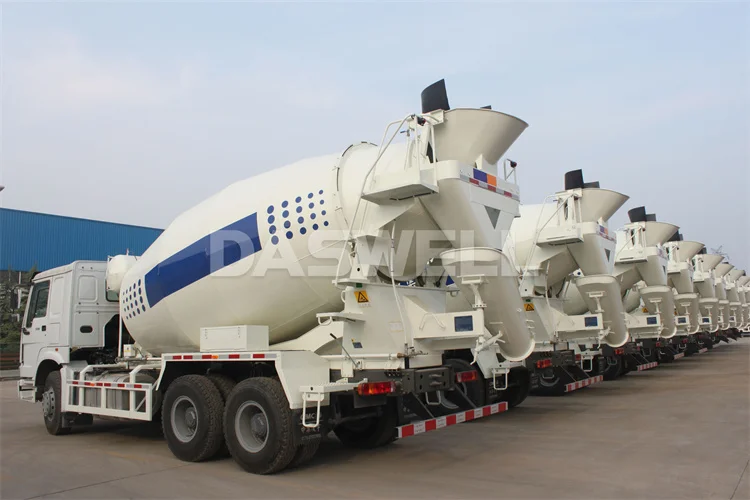

Factory show

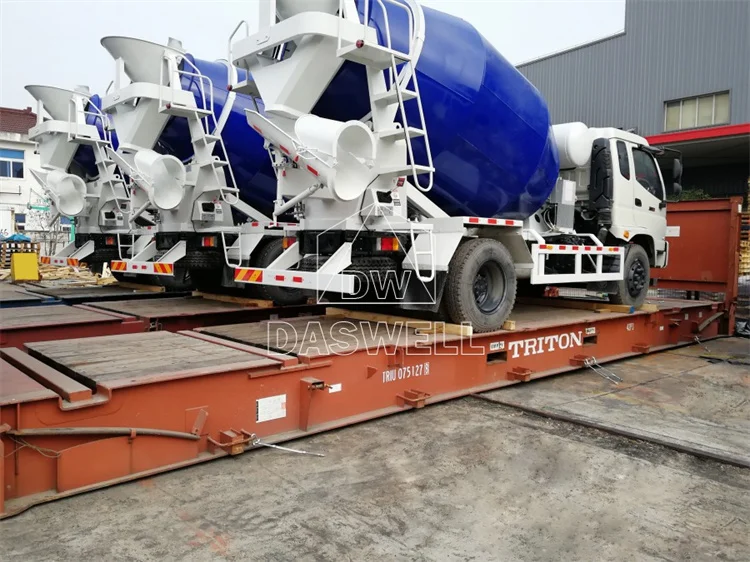

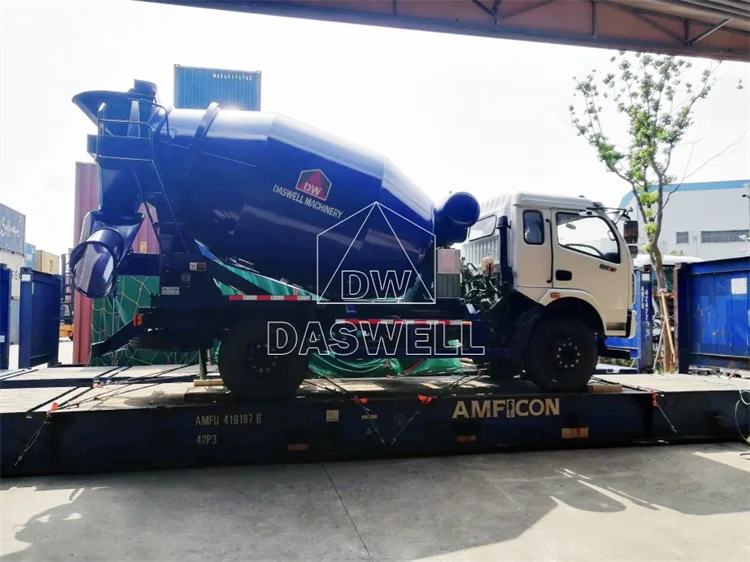

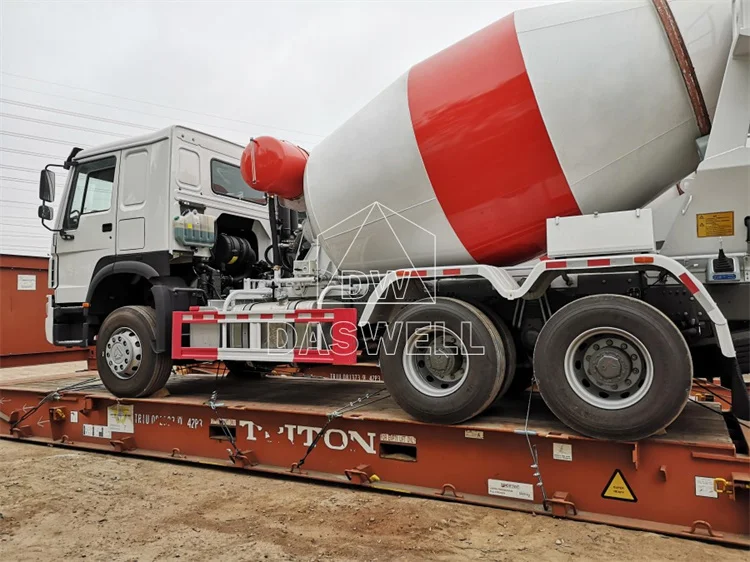

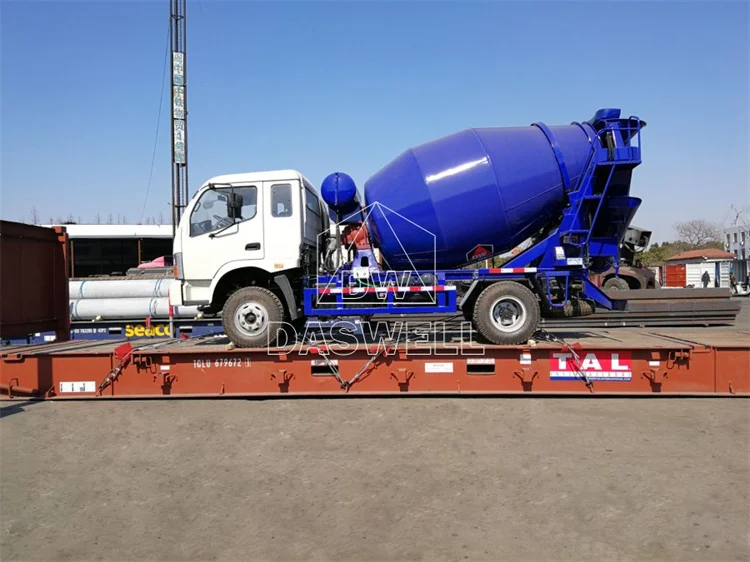

Packaging & Shipping
Overseas exhibition
FAQ
FAQ:
What material is the tank made of?
The tank body is wear-resistant Q345 steel.
How thick is the tank?
The thickness of the tank body steel plate is 5mm, and the tail is 6mm.
Can the upper part be sold separately?
No problem, the customer needs to provide us with parameters such as the chassis wheelbase, and we can match the bodywork for the customer.
What brand of chassis can it be equipped with?
It can be equipped with heavy trucks, Shaanxi Automobile, Foton, Jiefang and so on.
How is the hydraulic system guaranteed?
The hydraulic system is guaranteed for 3 years without any reason. As long as it is broken, we can replace it for free.
How big is the container for 8 square tops?
One container can hold two.
