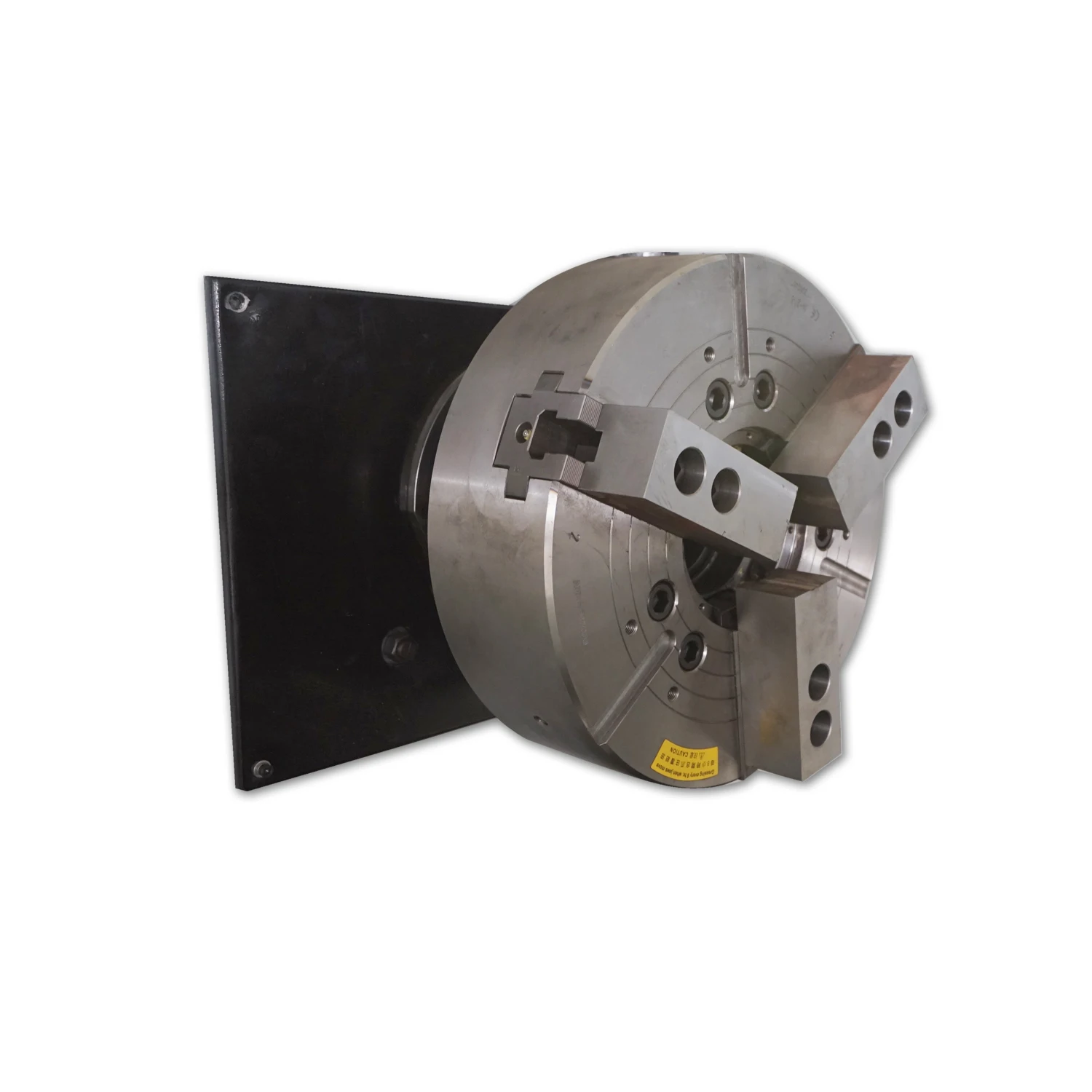

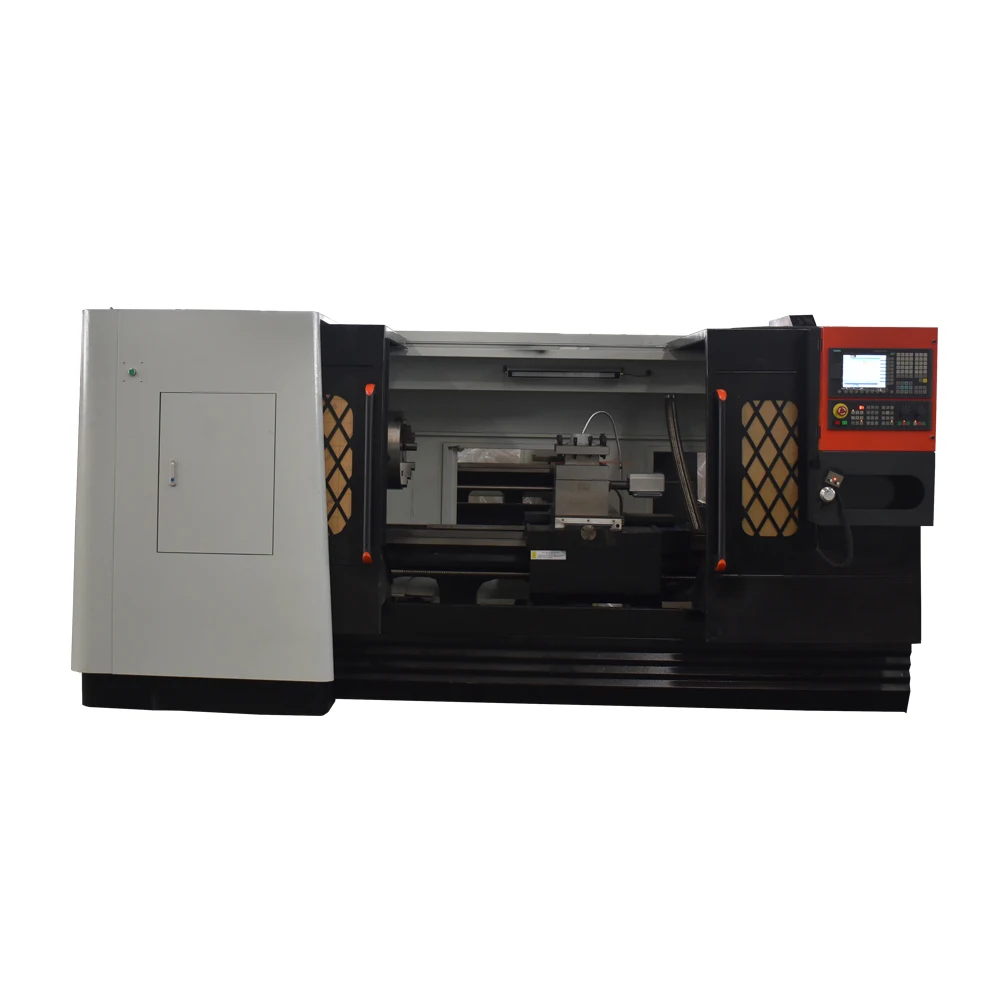

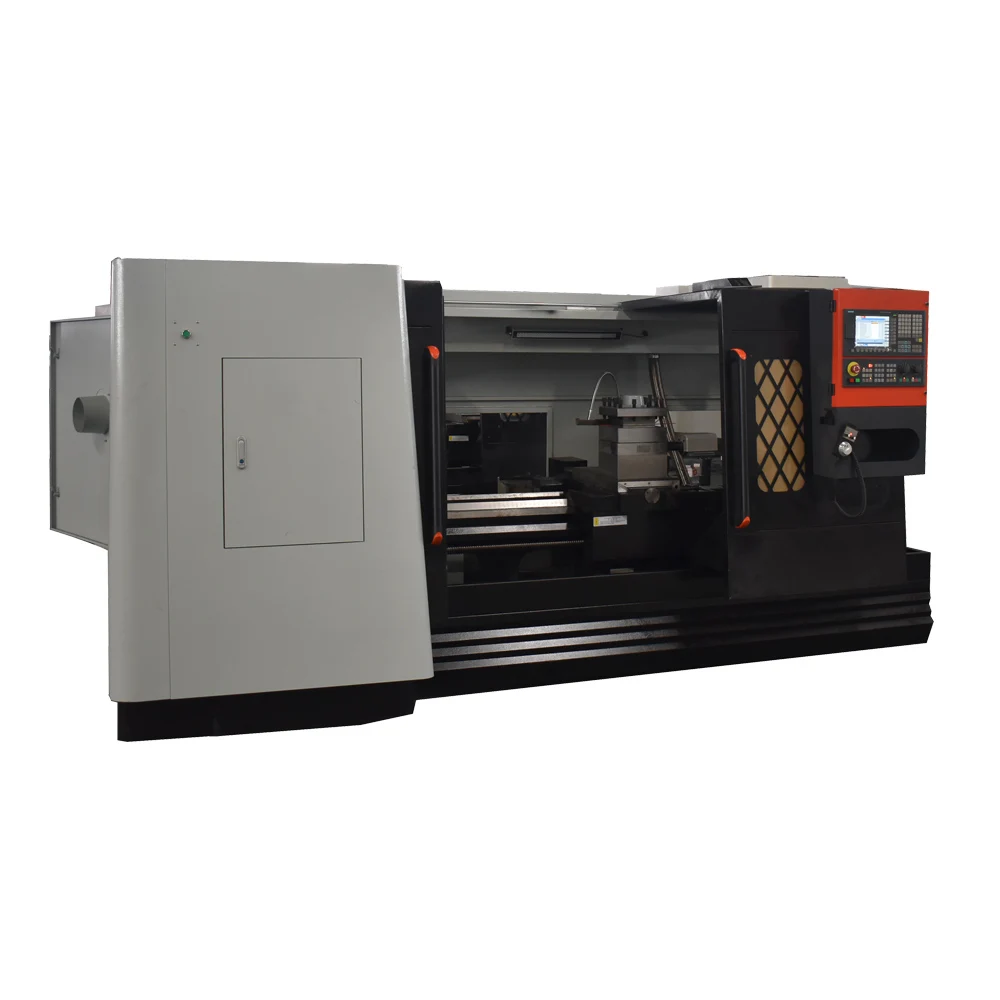

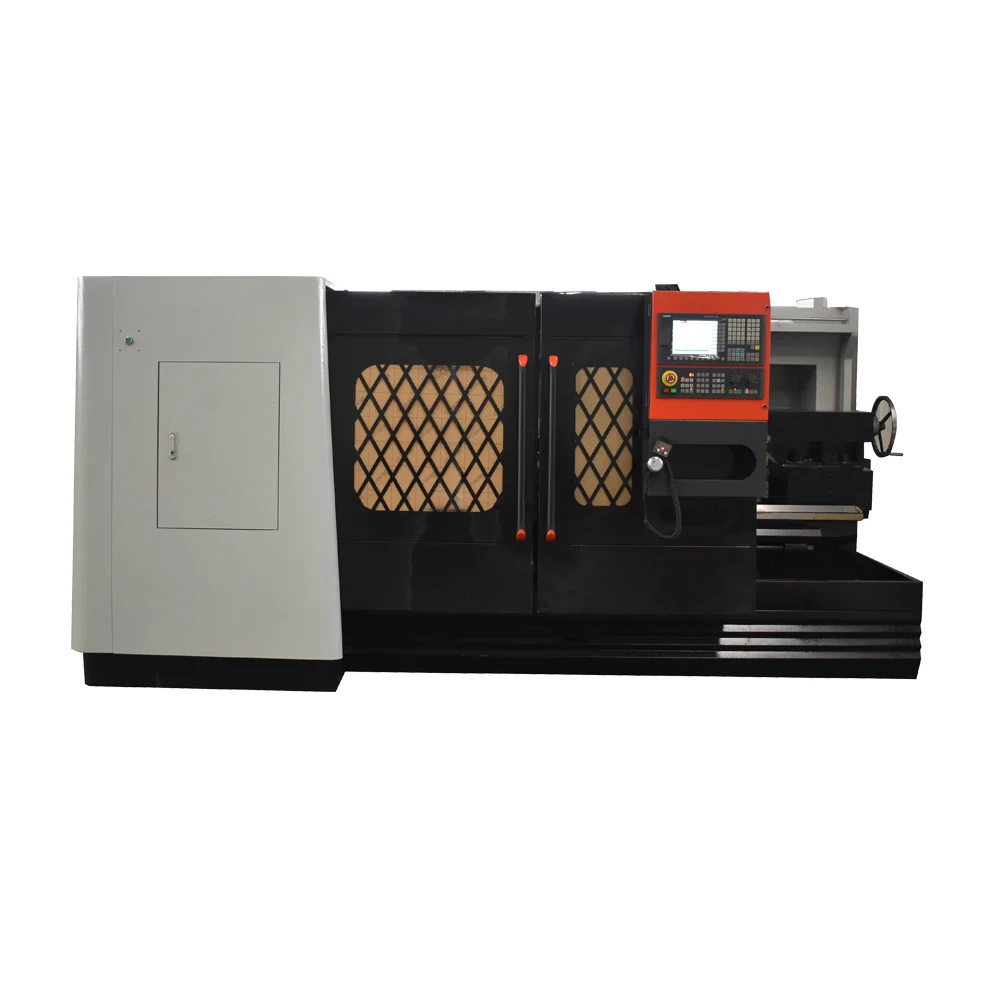

CNC Heavy Duty CNC Lathe Machine With Pneumatic Collet Chuck / Air Collet Chuck
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600517154776):
Product Overview
Description
Product Overview
Good service : Pre-sale service / After-sale service / All -life technical consult service.
Best price: Own factory, independent production / design / research / development.
We have more than 20 years experience in this field and will provide more professional solutions.
PRODUCT SPECIFICATIONS
No | Item | Unit | Parameter |
1 | Max.swing over bed | mm | 800 |
2 | Max.swing over slide | mm | 480 |
3 | Max.processing length | mm | 1500/3000/6000 |
4 | Guideway width of bed | mm | 550 |
5 | X axis travel | mm | 400 |
6 | Z axis travel | mm | 1500 |
7 | X/Z axis rapid speed | m/min | 4/7 |
8 | X/Z axis positioning accuracy | mm | 0.025/0.03 |
9 | X/Z axis re-positioning accuracy | mm | 0.01/0.015 |
10 | Processing precision | mm | IT6-IT7 |
11 | Surface roughness | RA1.6 | |
12 | Spindle head type | C11 | |
13 | Dia.of spindle thru-hole | mm | 130 |
14 | Spindle hold tapper | 1:20 | |
15 | Chuck | mm | 400 |
16 | Spindle motor power | kw | 11/15 |
17 | Tool holder type | 4/6/8 station electrical tool turret | |
18 | Turning tool size | mm | 30*30 |
19 | Tailstock/Quil sleeve travel | mm | 250 |
20 | Tailstock sleeve dia, | mm | 100 |
21 | Tailstock sleeve taper | Morse 5 | |

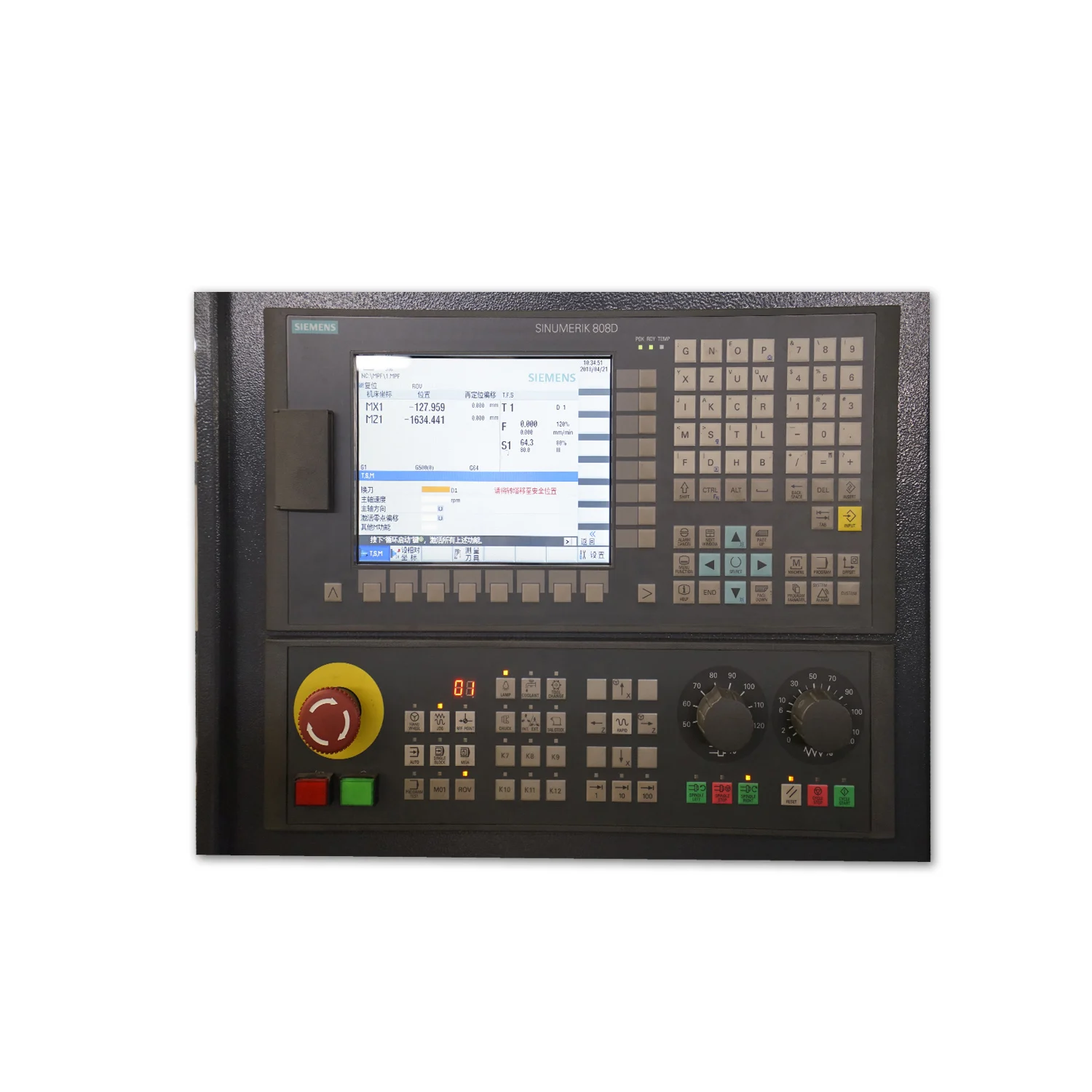

22 | Controller | Siemens / Fanuc / GKS / Syntec / Mitsubishi | |
23 | N.W | kg | 4000 |
24 | Dimension | mm | 3700*1700*2000 |

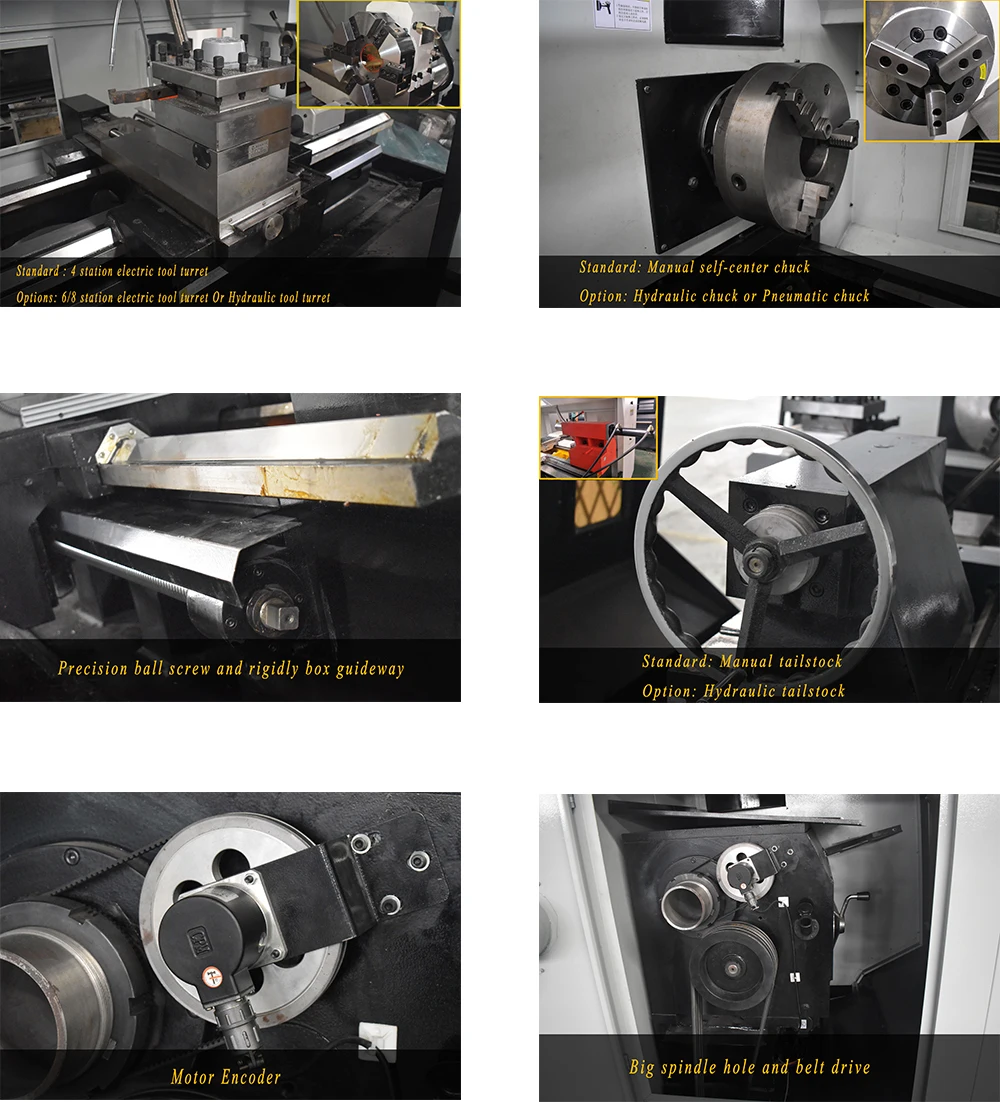

PRODUCT CONFIGURATION
PACKAGES AND SERVICE
Company Profile
CONTACT US
Vicky
----------------------------------
Email: vicky@hkcnclathe.com
Tel/Whatsapp: +86 13656405707
Skype: amychen1616
FAQ
1. What is your minimum order quantity and warranty? MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK ,KND, SYNTEC. It depends on your choice.
3. Payment Terms
30% by T/T as deposit, 70% balance by T/T before delivery. If others payment terms, we can discuss.
4. How can I choose the most suitable machines?
Please tell us your detailed requirements, then we will give you the best solutions
5. Do you provide frame or customized service?
Yes,we provice frame and customized service including LOGO,outlook and configurations of the machine.
