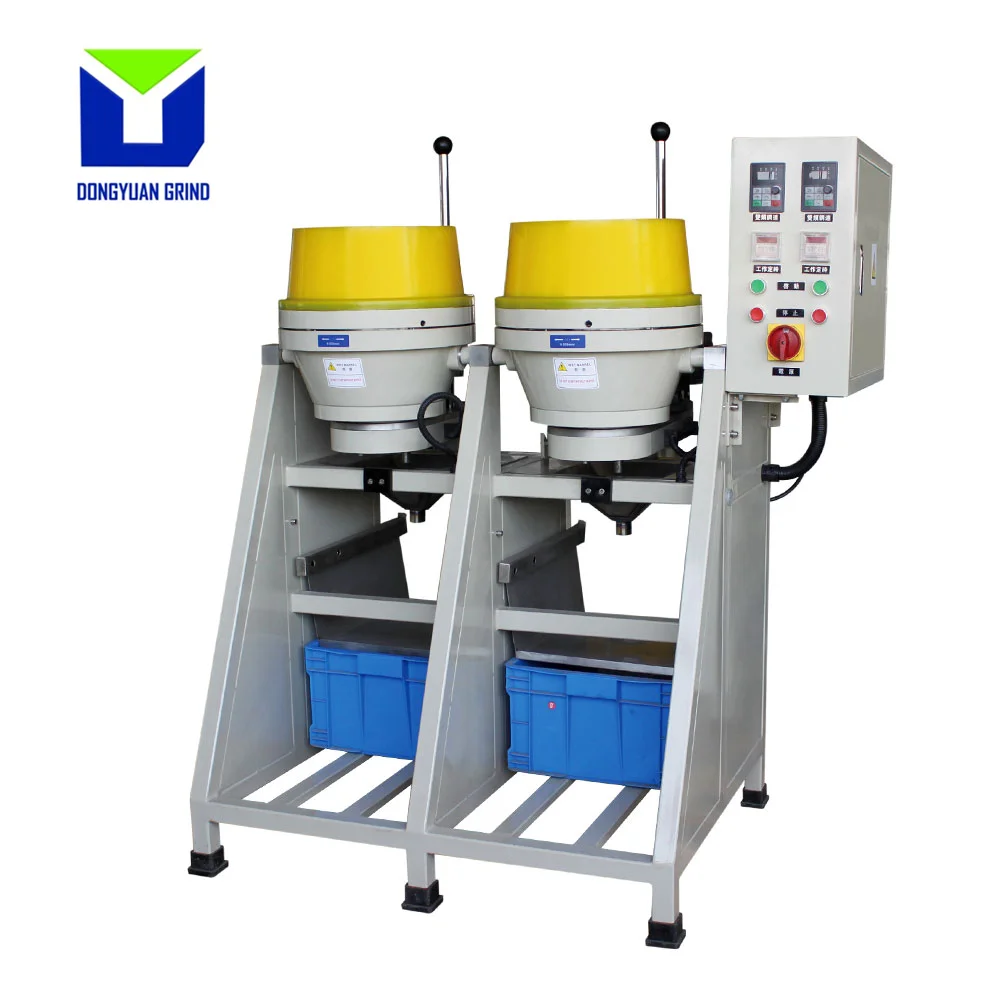

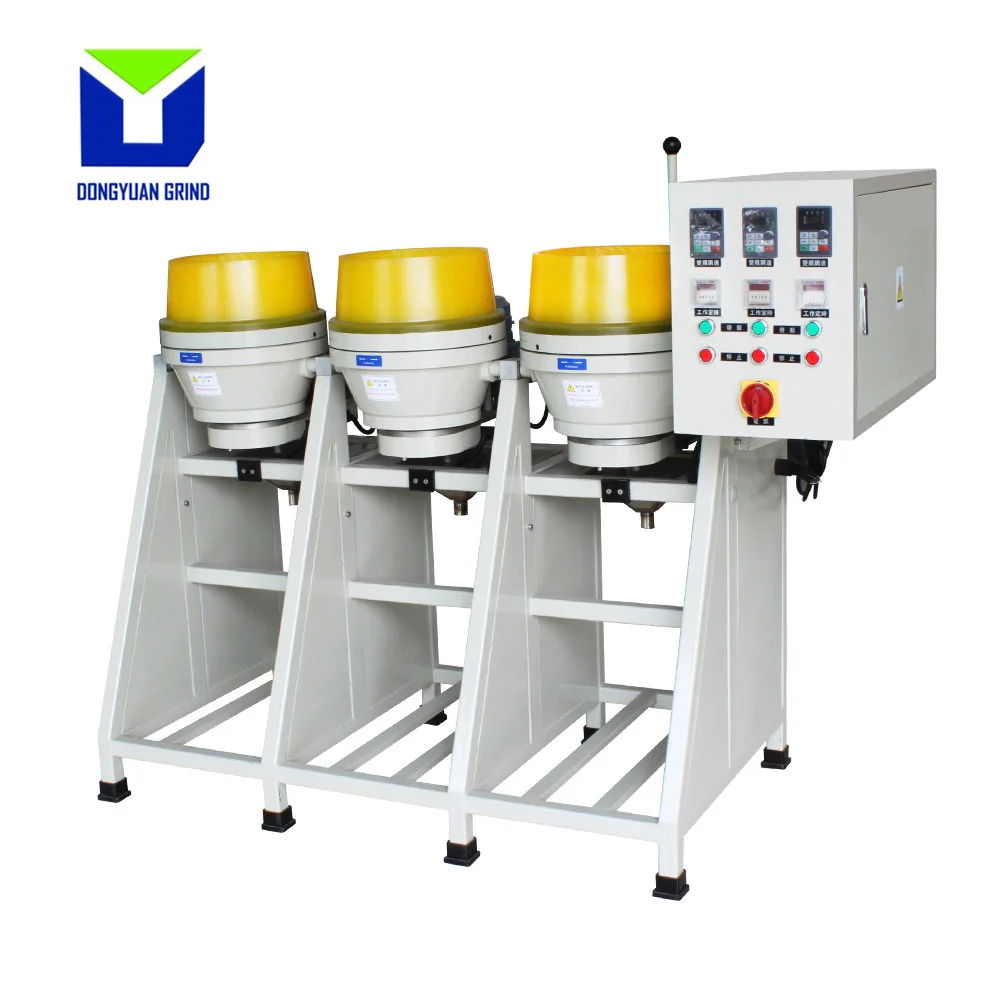

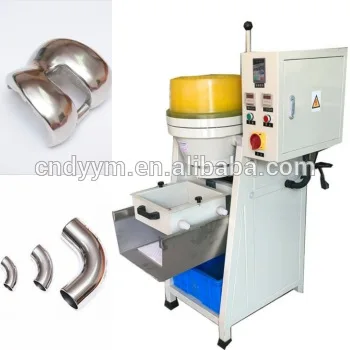

Disc finishing machine zipper mirror finishing centrifugal polisher machine
- Category: >>>
- Supplier: Dongguan Dongyuan Grinding Machinery Co. Ltd.
Share on (1600517164518):
Product Overview
Description
Welcome to our company website.
We are a manufacturer of high quality DISC polishing machine. The motor adopts Taiwan original motor , very small gap 0.035MM.Dry and wet .In the operation process ,the machine shows excellent quality at any time,No need to worry about the after-sale, and the price is Cost-effective. Welcome to inquiry.
Product Description

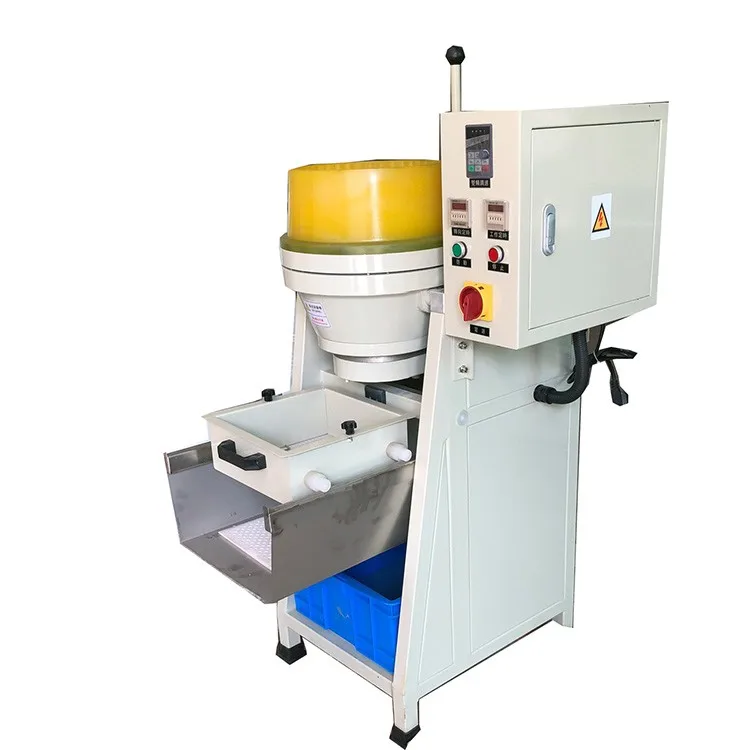

The equipment is used for wet-polishing and dry- polishing, it includes grinding disc, rotating disc,abrasive-resistance ring, driving system and electric- control system. When the rotating disc rotates,the abrasive material and workpieces in the grinding disc will move upward along the barrel shell for the reason of centrifugal force action. Then fall back the center of the rotating disc from the high position by their weight of workpieces and abrasive material. Repeat the above movement to make the grinding media spiraling movement, and realize high efficiency grinding effect. It is suitable for workpiece surface processing of various gold and silver jewelry, electronic parts, clocks and watches,glasses parts etc.on deburring, chamfering, mirror -finish polishing, high gloss precious polishing.
Product specifications
Features:
1.Unique compact gap adjustment structure design, suitable for wet grinding and dry grinding;
2.Using thick PU lining/wheel wear and long service life;
3.Using high wear -resistant ceramic/tungsten alloy/manganese steel washer structure,wear-resistant; .
4.Operating speed can be adjusted continuously, with regular work and reverse rotation;
5.Configure automatic circulating water system.
Model | Volume (mm) | Weight (kg) | Main Power(kw) | Rotary Speed (R.P.M) | Size kg |
DY-W20L | 20 | 140 | 0.75 | 0~450 | 720X800X1450 |
DY-W20L/2 | 20x2 | 235 | 1.5 | 0~450 | 1180X800X1450 |
DY-W20L/3 | 20x3 | 330 | 2.25 | 0~450 | 1700X800X1450 |
DY-W38L | 38 | 220 | 2.2 | 0~400 | 900X820X1450 |
DY-W38L/2 | 38x2 | 370 | 4.4 | 0~400 | 1500X820X1450 |
DY-W38L/3 | 38x3 | 530 | 6.6 | 0~400 | 2150X820X1450 |
DY-W50L | 50 | 650 | 2.2 | 0~380 | 1450X2000X2350 |
Feature:

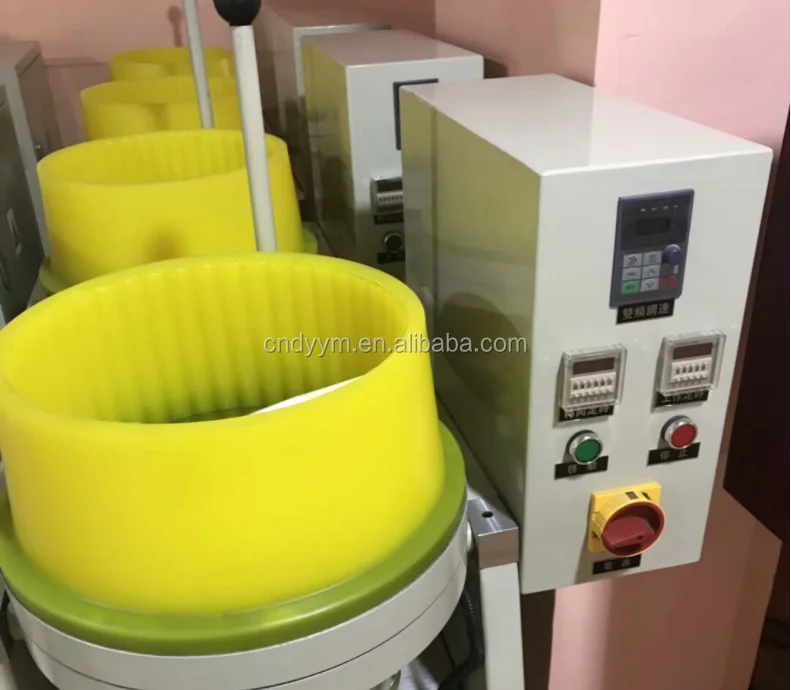

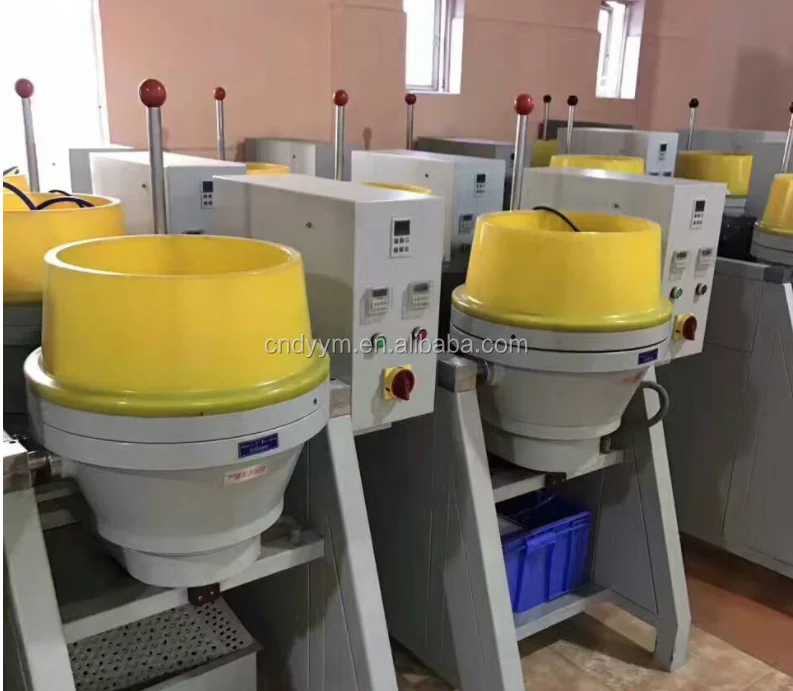

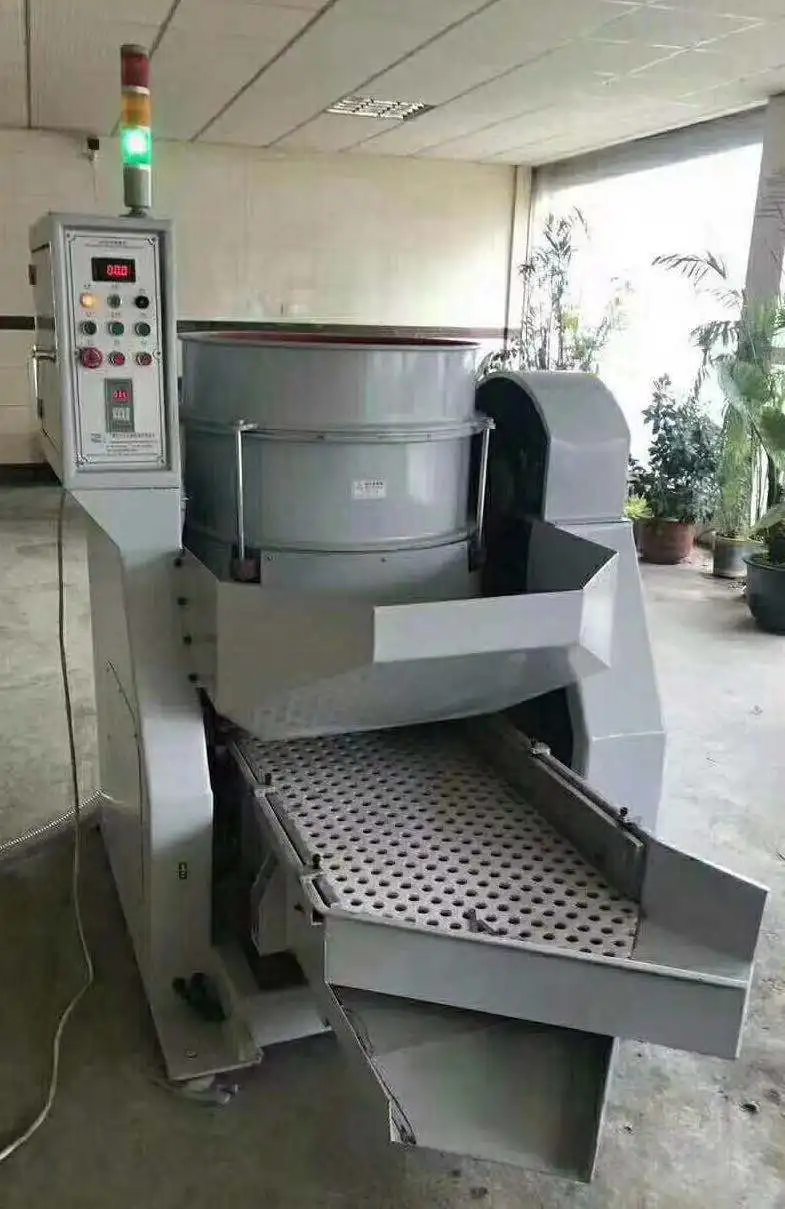

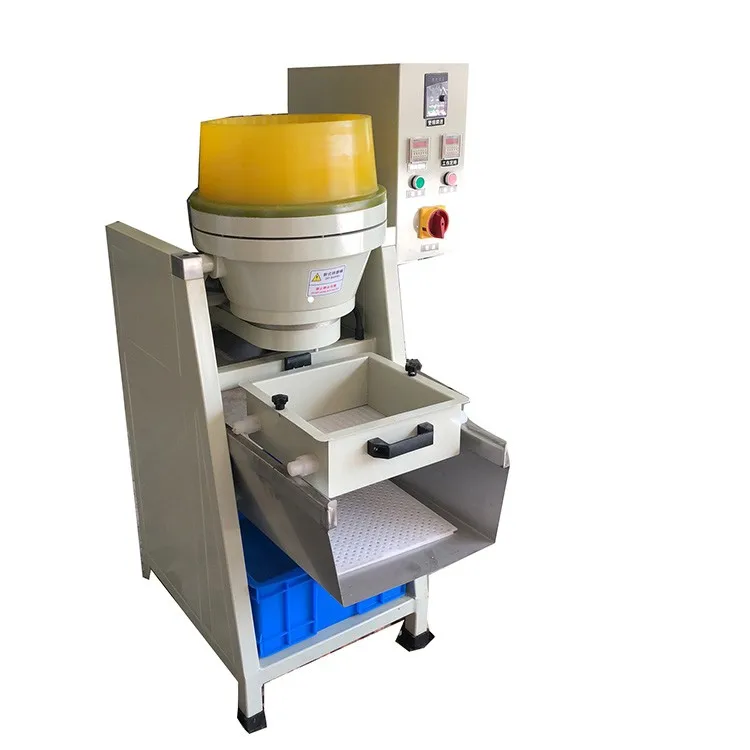

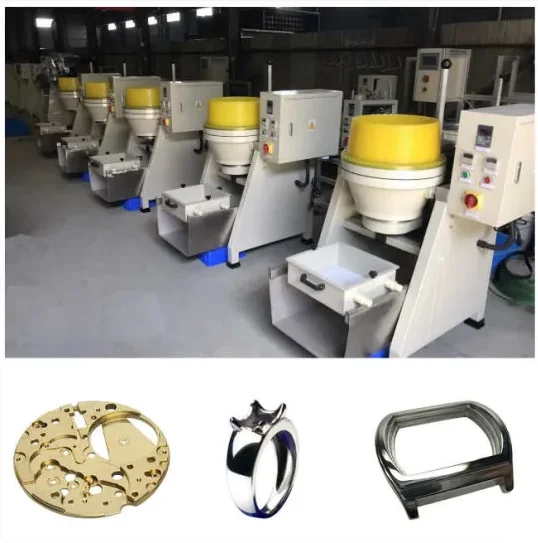

Detailed Images

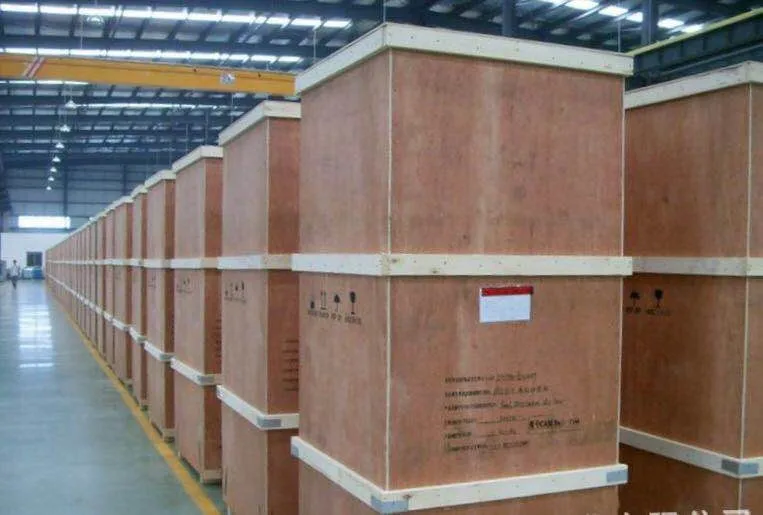

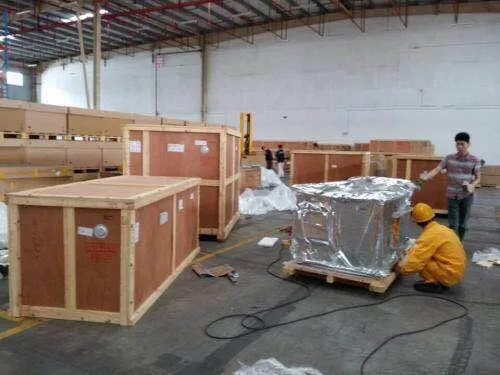

Packing & Delivery
1pc/wood box
Delivery: Depends on the quantity and trpy of product,the lead time is 5-15 days after payment received.
Our Company
FAQ
1.What type of your company ? trade company or factory ?
We are factory ,all items is product by ourself .
2.Can you OEM for us ?
Yes,We can provide OEM service
3.What's the MOQ?
Basically,We have no MOQ,you can order 1pcs if you need
4. How will you ensure quality of your products?
All products had been treated through strict process checked by IQC and OQC department before shipping
One year warranty and life time free consult to any needs related with our product
