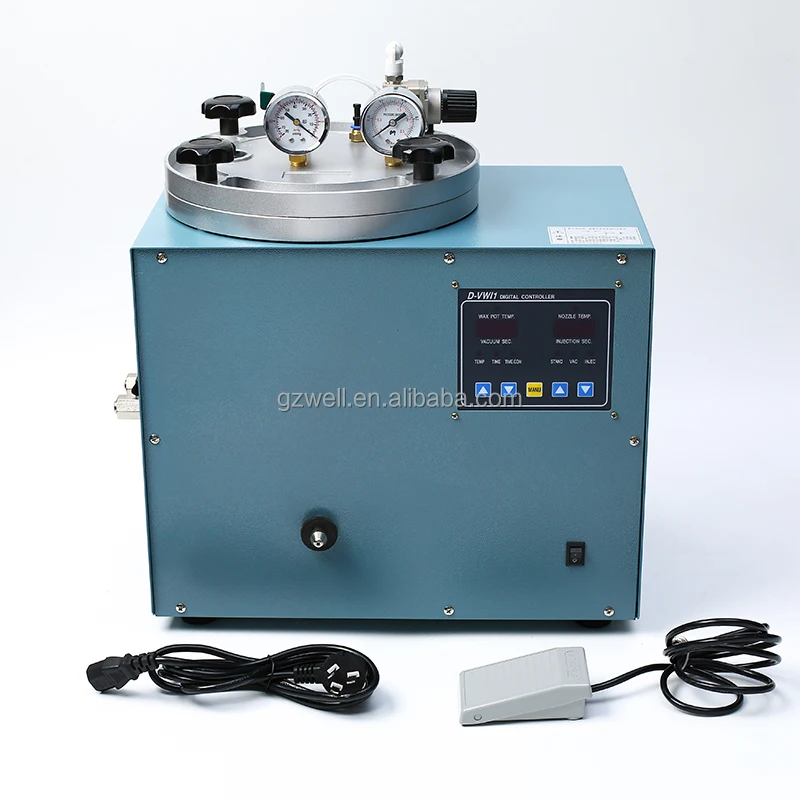

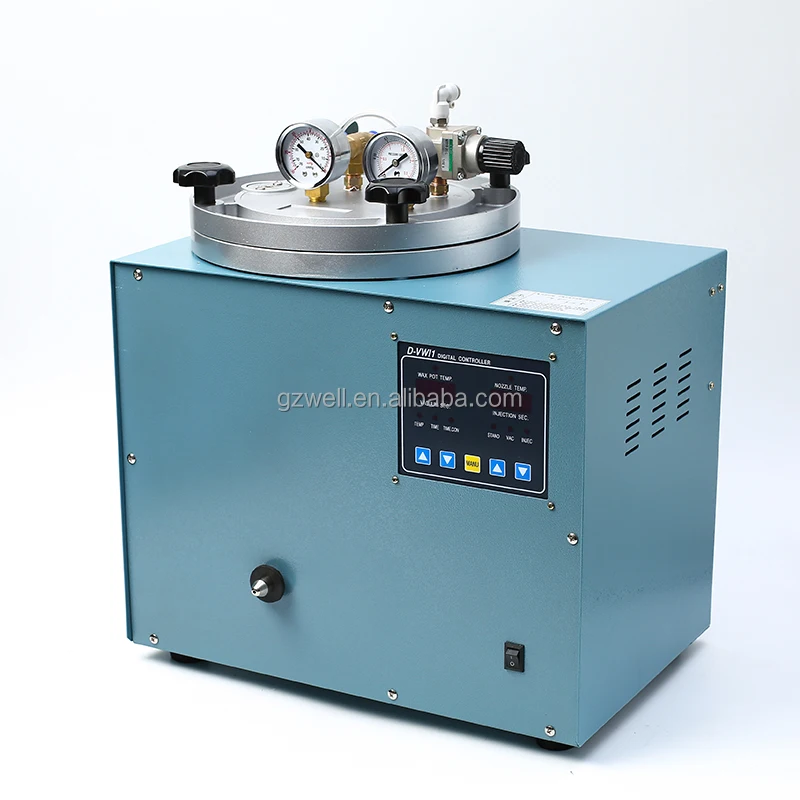

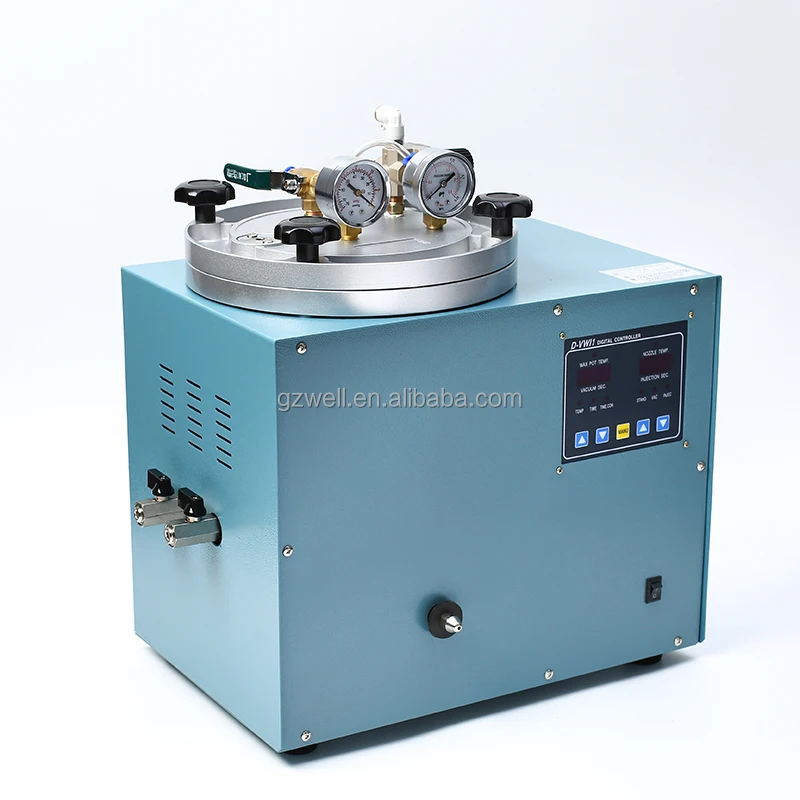

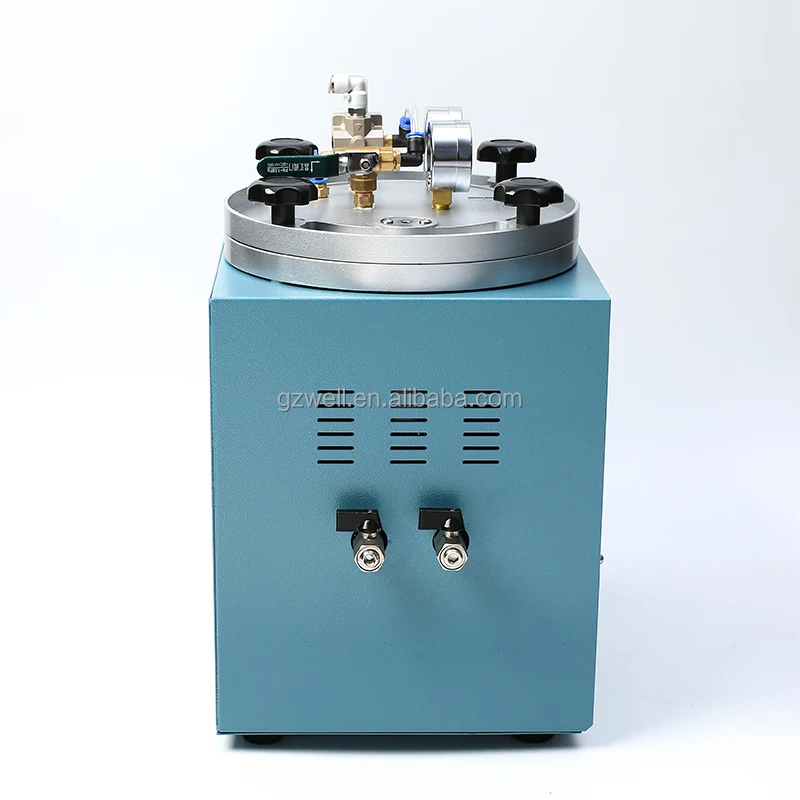

Used for jewelry mold production and with numerical control, electronic digital display wax injection machine
- Category: >>>
- Supplier: Guangzhou Weier Jewelry Co. Ltd.
Share on (1600517239473):
Product Overview
Description
product information
item | value |
Brand Name | weier |
Place of Origin | China |
province | Guangdong |
Model Number | ZLJ-105 |
Jewelry Tools & Equipments Type | Jewelry mould |
Product name | CNC wax injection machine |
Applicable to | Used for making metal jewelry molds |
weight | 19KG |
Material | Metal |
frequency | 50/60HZ |
Container bearing weight | 3KG |
rate of work | 400W |
input voltage | 220V/110V |
Product features | Small and mini, suitable for small processing workshops to operate wax injection process |
after-sales service | Provide product technical support service and product related parts replacement within one and a half years |
quality guarantee | Non-human quality problems within 7 days, can be replaced with new products |
Instructions for Use (for reference only)
External input pressure :0.4 ~ 0.7mpa
Voltage regulator setting range :0.25~ 0.3mpa
Pressure sensor display range :-5~240KPa
Clamping pressure setting range :30~235Kpa
Positive pressure setting range :65~235Kpa
Mold retaining time setting range :0~300(s)
Vacuum time setting range :0~99.9(s)
Injection time setting range :0.1~99.9(s)
Maximum workpiece count :0 to 9999
Total amount of data to be stored :10000
Start mode: magnetic induction or button
Rubber model specifications (common):H55 × W 110 × L 135(maximum)
H65 X W 140 X L 135(Max)
Voltage regulator setting range :0.25~ 0.3mpa
Pressure sensor display range :-5~240KPa
Clamping pressure setting range :30~235Kpa
Positive pressure setting range :65~235Kpa
Mold retaining time setting range :0~300(s)
Vacuum time setting range :0~99.9(s)
Injection time setting range :0.1~99.9(s)
Maximum workpiece count :0 to 9999
Total amount of data to be stored :10000
Start mode: magnetic induction or button
Rubber model specifications (common):H55 × W 110 × L 135(maximum)
H65 X W 140 X L 135(Max)

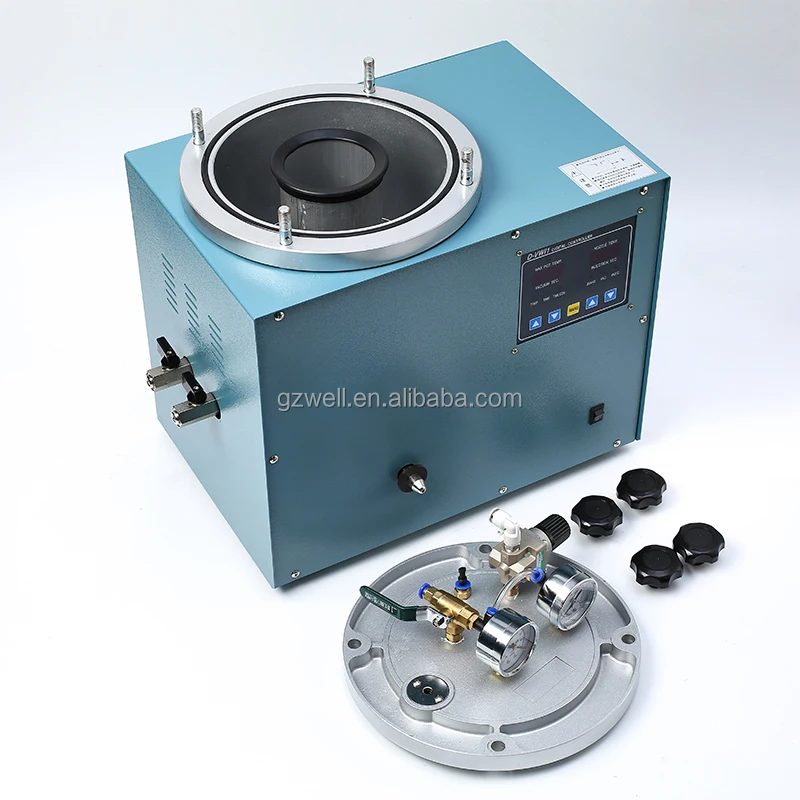

Function Accessories
1.Vacuum Pressure Gauge
2.Wax Tank Pressure Gauge
2.Nut
4.Cylinder Head
5.Wax Outlet
6.Digital Control Panel
7.Wax Nozzle
8.Switch
9.Foot Pedal
Product accessory parameters
Item Name: Digital Wax Injector
Power: AC100/150V 220V50/60Hz simplex Voltage: 40cW
Fuse: 5A
Y: 35CW Heater: 40W Air Pressure: 0.40-0.70MPa Temperature Display: 40.0-99.9 C[103-210F]
Temperature Setting: 40.0-99.9C[103-193F]
Vacuum time: 0-9.99/0-99.9 sec Wax injection time: 0-9.99/0-600 sec
Heating timing: 0-99 hours Wax bucket capacity: 3kg
Pressure range: 0-0.2MPa[0-2kg/cm']
Weight: 16kg
Machine size; 450L*310W*450H[MM]
Control box size: 260L*160W*150H[MM]
Fixture size: 450L*160W*240H[MM]
Power: AC100/150V 220V50/60Hz simplex Voltage: 40cW
Fuse: 5A
Y: 35CW Heater: 40W Air Pressure: 0.40-0.70MPa Temperature Display: 40.0-99.9 C[103-210F]
Temperature Setting: 40.0-99.9C[103-193F]
Vacuum time: 0-9.99/0-99.9 sec Wax injection time: 0-9.99/0-600 sec
Heating timing: 0-99 hours Wax bucket capacity: 3kg
Pressure range: 0-0.2MPa[0-2kg/cm']
Weight: 16kg
Machine size; 450L*310W*450H[MM]
Control box size: 260L*160W*150H[MM]
Fixture size: 450L*160W*240H[MM]
