Product Overview
Description
Product Description

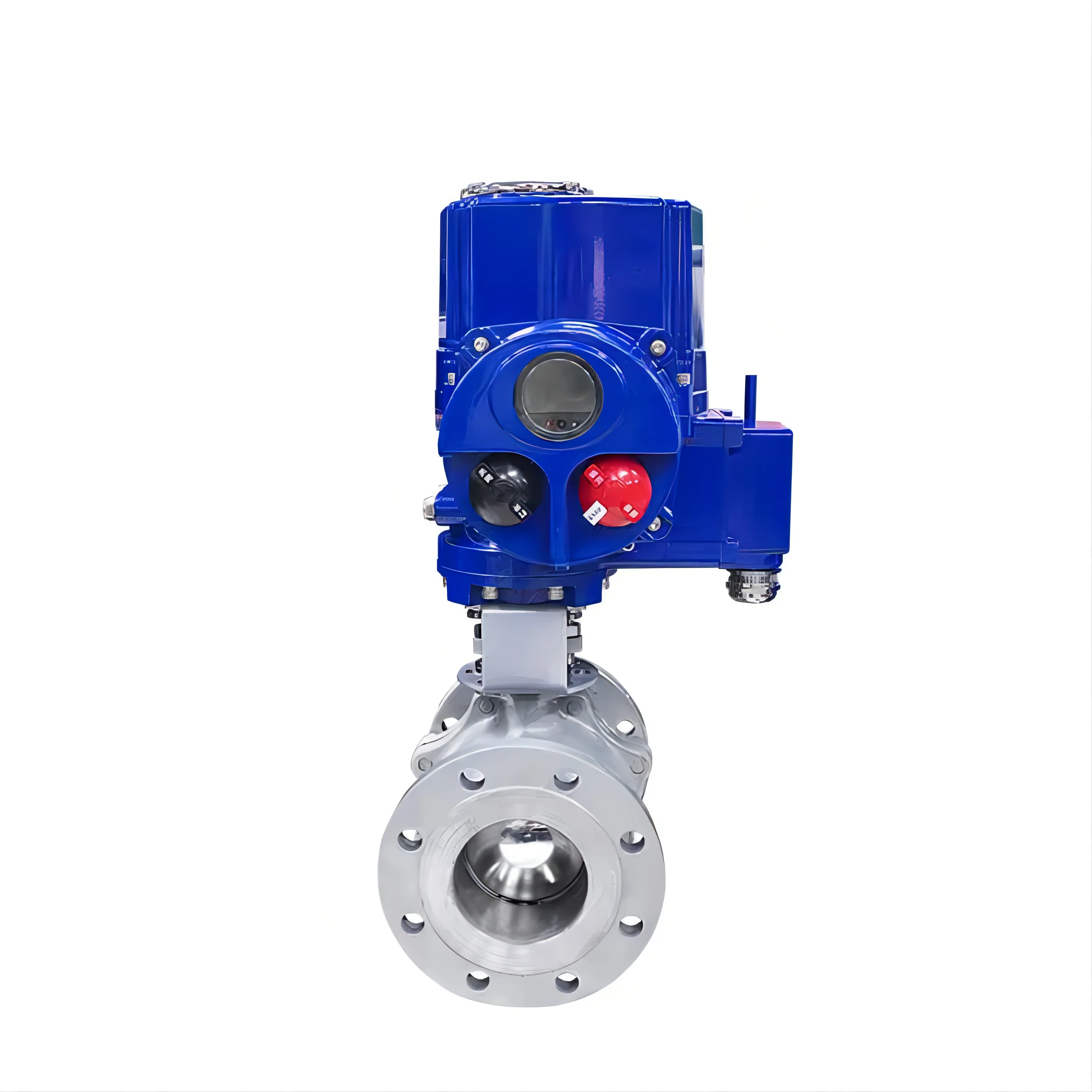

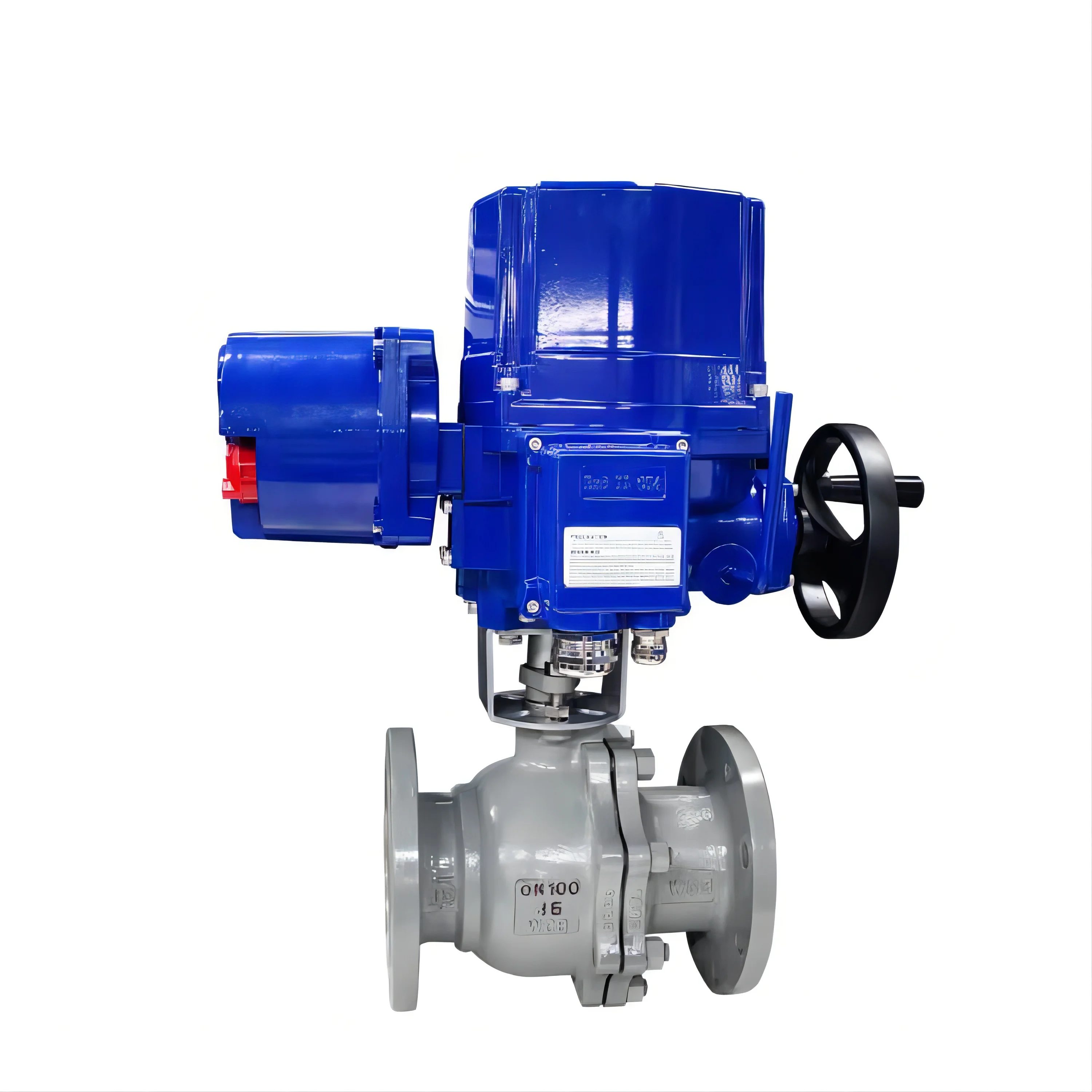

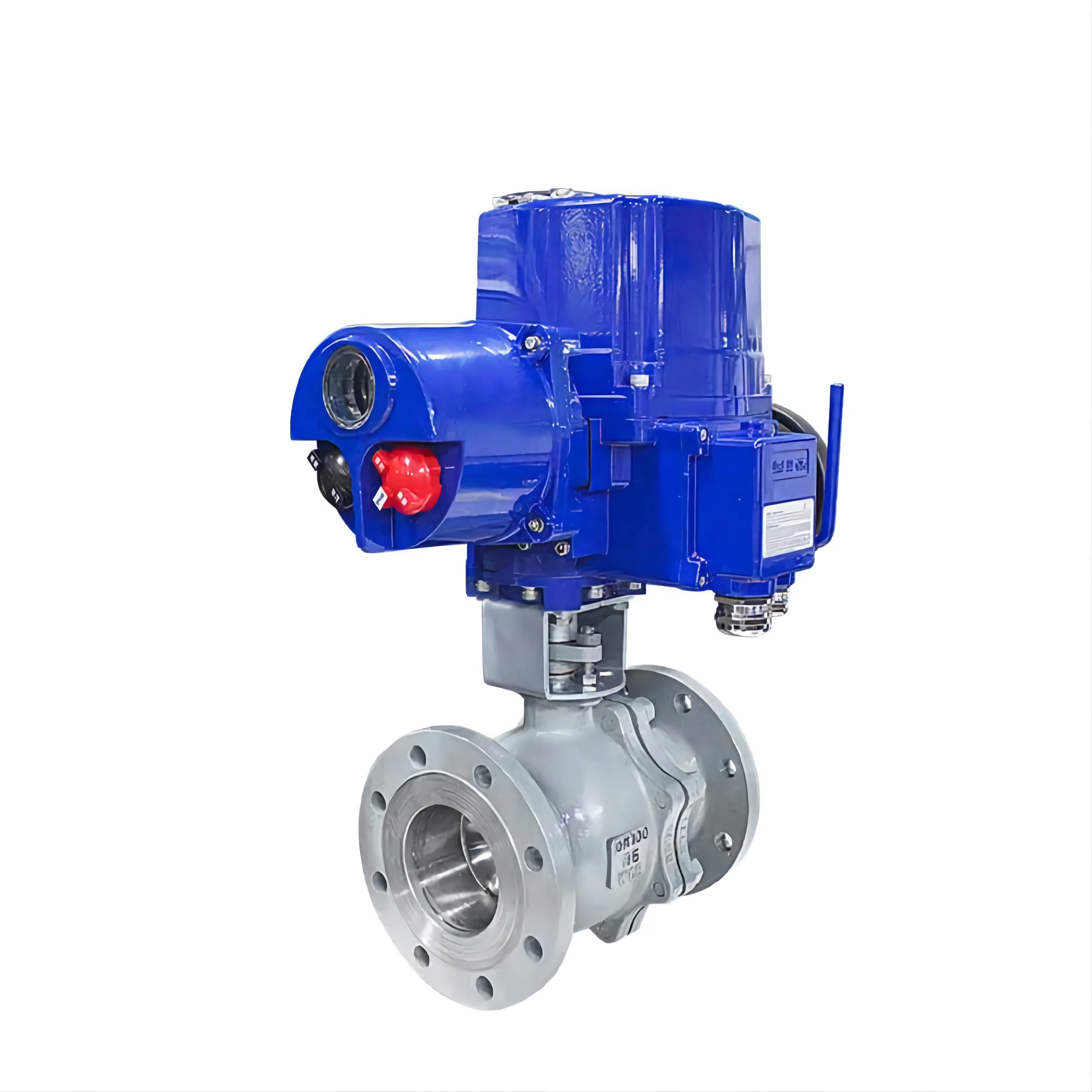

COVNA HK60-Q-F-LQ Series Explosion Proof 2 Way Electric Ball Valve Stainless Steel Rotary Ball Valve for Gas Lpg Industry
Name | COVNA HK60-Q-F-LQ Series Explosion Proof 2 Way Electric Ball Valve Stainless Steel Rotary Ball Valve for Gas Lpg Industry |
Keyword | 2 way Electric Ball Valve Stainless Electric Steel valve |
Actuator Type | Explosion Proof Type |
Body Material | Stainless Steel / WCB |
It is a rotary ball valve by luring 90°, with the characteristics of good sealing performance. Not easy to explode even working in harsh environments. Such as gas, LPG industry.
COVNA provide all types of ball valve with electric actuator in explosion-proof actuator and quarter-turn actuator for your applications. Inquiry us to get a free actuator valve solution!
Model
Pressure: 10 / 16 / 20 / 40 / 64 bar
Temperature Of Media: For PTFE/PPL Sealing: -40 to 80℃ (-40℉ to 176℉); For Metal Sealing: -40℃ to 350℃ (-40℉ to 662℉)
Suitable Media: Air, oil, gas, steam, etc
Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Connection Type: Flange
COVNA provide all types of ball valve with electric actuator in explosion-proof actuator and quarter-turn actuator for your applications. Inquiry us to get a free actuator valve solution!
Model
Pressure: 10 / 16 / 20 / 40 / 64 bar
Temperature Of Media: For PTFE/PPL Sealing: -40 to 80℃ (-40℉ to 176℉); For Metal Sealing: -40℃ to 350℃ (-40℉ to 662℉)
Suitable Media: Air, oil, gas, steam, etc
Voltage: DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Connection Type: Flange
Company Profile
Main Products
Customer Photos
Exhibition
Our Factory
FAQ
Pneumatic Valve FAQ
Q: What is the difference between Normally Open and Normally Closed valves?
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.
Q: What is the life span of your pneumatic actuators?
A: We have passed 1 million times of product quality test, and obtained the certificate
Q: Does the air actuated valve have a manual override?
A: The air actuator does not have a manual override, but a manual override is provided with optional direct mount solenoid valves.
Q:How fast does an air actuated valve operate?
A: See product specifications. Generally, smaller valves less than 2 inch pipe size, cycle in about one second. Larger valves up to 6 inch pipe, cycle in about 1.5 seconds. A cycle is per 90° rotation
Q:Can I add a High Temperature kit to an existing Valworx air actuated
A:Yes, you would need to select a kit matching both the actuator and valve mounting patterns. See actuator accessories
Q:Can I mechanically adjust the flow rate of an air actuated ball valve?
A: No, but we do offer pneumatic positioners with 4-20mA or 3-15PSI inputs. Positioners allow user to adjust flow 0-100%.
Q:Can I use the air actuated ball valve outside?
A: Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature specifications.
Q:Do you have a way to confirm the air actuated valve is in the closed position? Open position?
A: Yes, we offer an optional valve monitor/limit switch box. Monitor contains (2) dry contact limit switches used to confirm open and closed position. There is also a highly visual valve position indicator.
Q:What is the maximum allowable fluid velocity?
A:Metal valves: 5 to 10 feet/second, closer to 5ft/sec is better PVC valves: < 5 feet/second
Q:Can you customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
Q: What is the difference between Normally Open and Normally Closed valves?
A: As the name suggests, Normally Open valves allow air to pass when they are not energized (or actuated). Normally Closed valves must be actuated to allow air to pass.
Q: What is the life span of your pneumatic actuators?
A: We have passed 1 million times of product quality test, and obtained the certificate
Q: Does the air actuated valve have a manual override?
A: The air actuator does not have a manual override, but a manual override is provided with optional direct mount solenoid valves.
Q:How fast does an air actuated valve operate?
A: See product specifications. Generally, smaller valves less than 2 inch pipe size, cycle in about one second. Larger valves up to 6 inch pipe, cycle in about 1.5 seconds. A cycle is per 90° rotation
Q:Can I add a High Temperature kit to an existing Valworx air actuated
A:Yes, you would need to select a kit matching both the actuator and valve mounting patterns. See actuator accessories
Q:Can I mechanically adjust the flow rate of an air actuated ball valve?
A: No, but we do offer pneumatic positioners with 4-20mA or 3-15PSI inputs. Positioners allow user to adjust flow 0-100%.
Q:Can I use the air actuated ball valve outside?
A: Yes, air actuated valves are weatherproof per materials of construction. Do not exceed minimum and maximum temperature specifications.
Q:Do you have a way to confirm the air actuated valve is in the closed position? Open position?
A: Yes, we offer an optional valve monitor/limit switch box. Monitor contains (2) dry contact limit switches used to confirm open and closed position. There is also a highly visual valve position indicator.
Q:What is the maximum allowable fluid velocity?
A:Metal valves: 5 to 10 feet/second, closer to 5ft/sec is better PVC valves: < 5 feet/second
Q:Can you customize the color of the actuator?
A: We can customize different colors, LOGO and so on according to customer's requirements.
