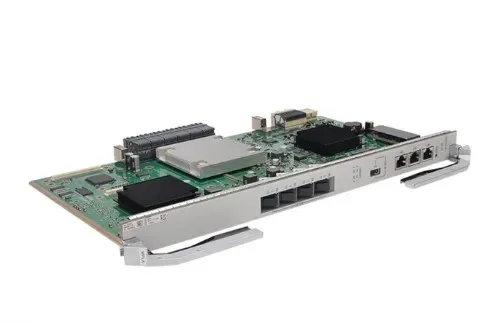

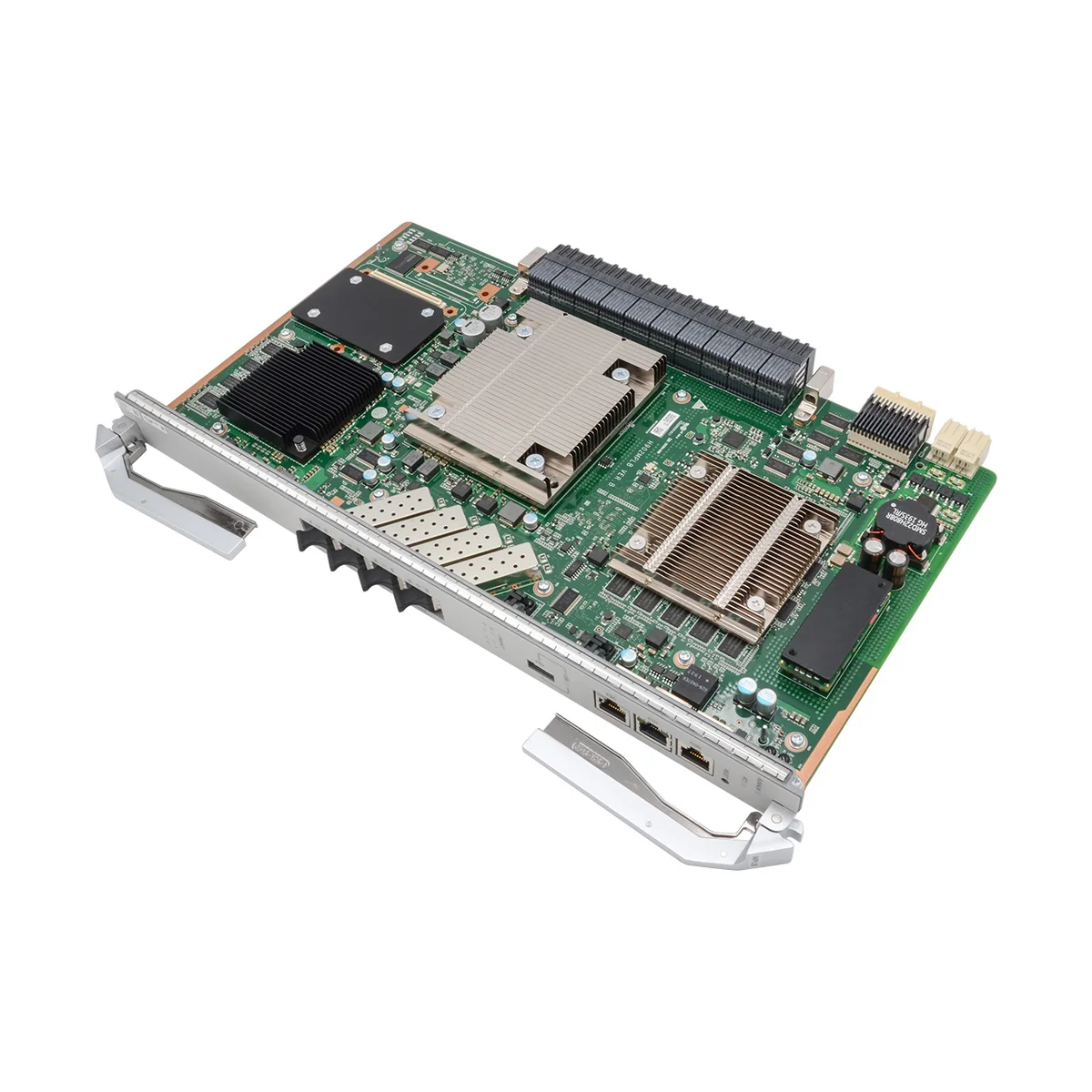

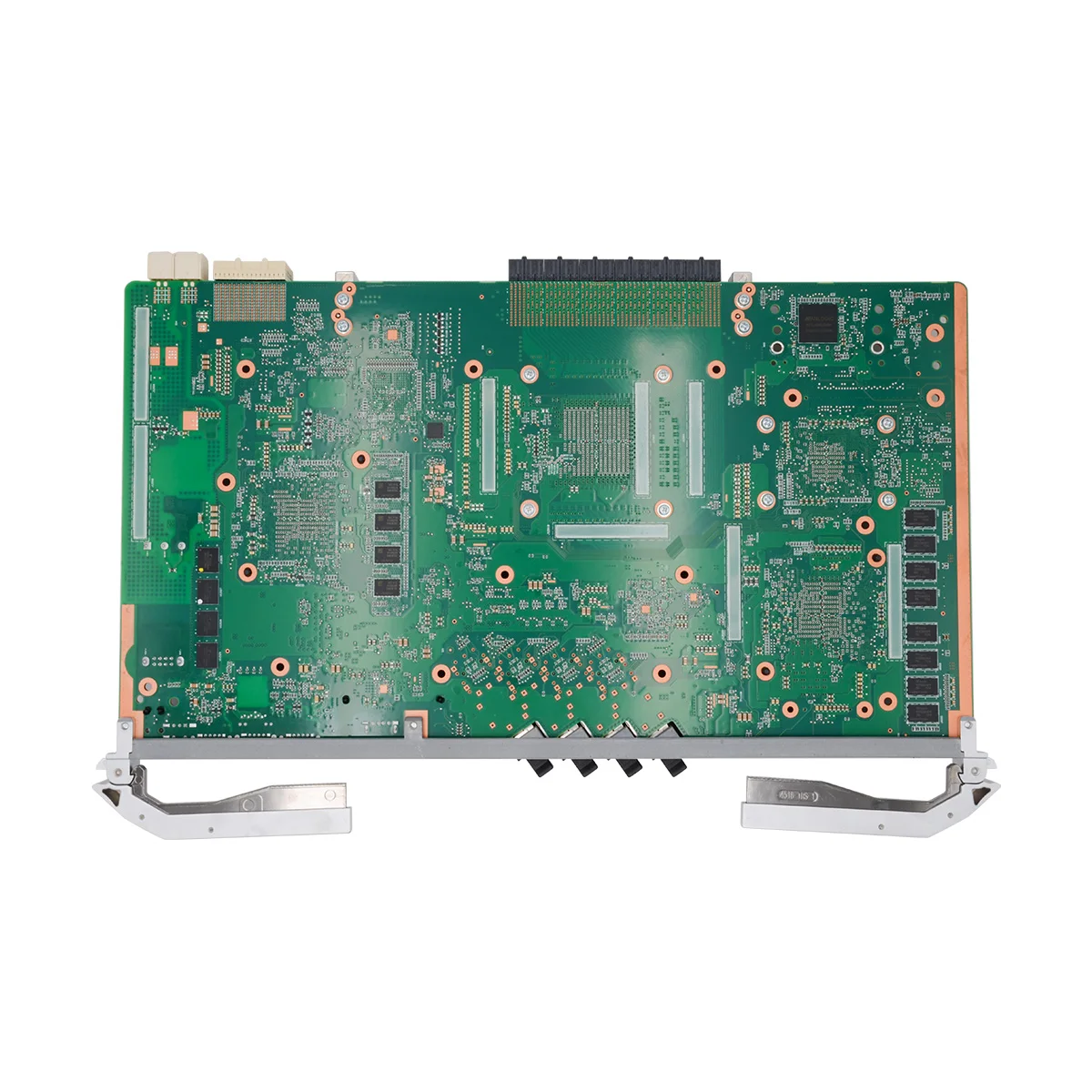

HUAWEI main processing board MPLB olt ma5800 uplink card
- Category: >>>
- Supplier: Changsha Silun Network Technology Co. Ltd.
Share on (1600517376136):
Product Overview
Description
Product Description
Product Name | huawei olt uplink 10g |
Model No. | MPLB |
Application | MA5800-x17, MA5800-x15, MA5800-X7 |
Interface | 4*10GE/GE |

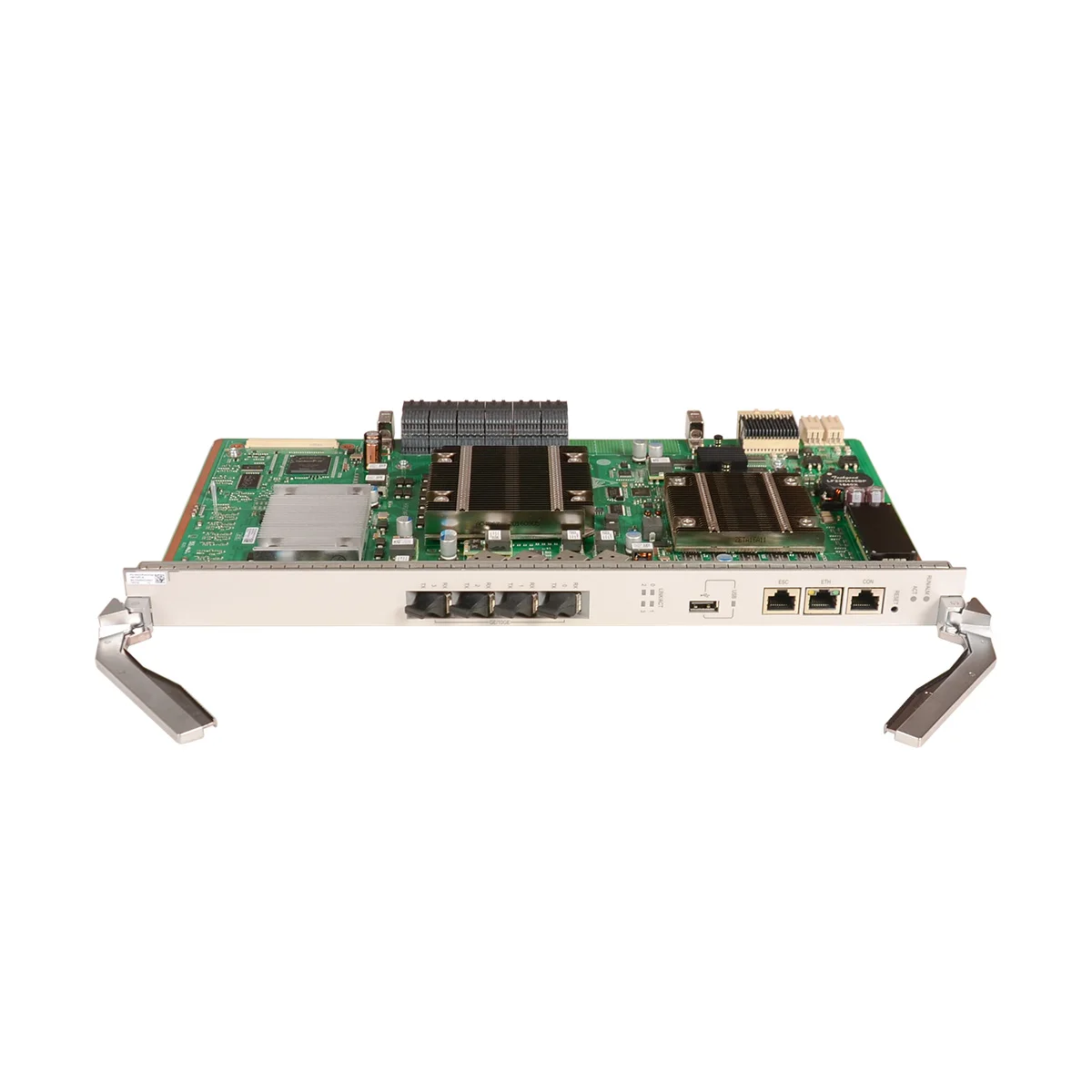

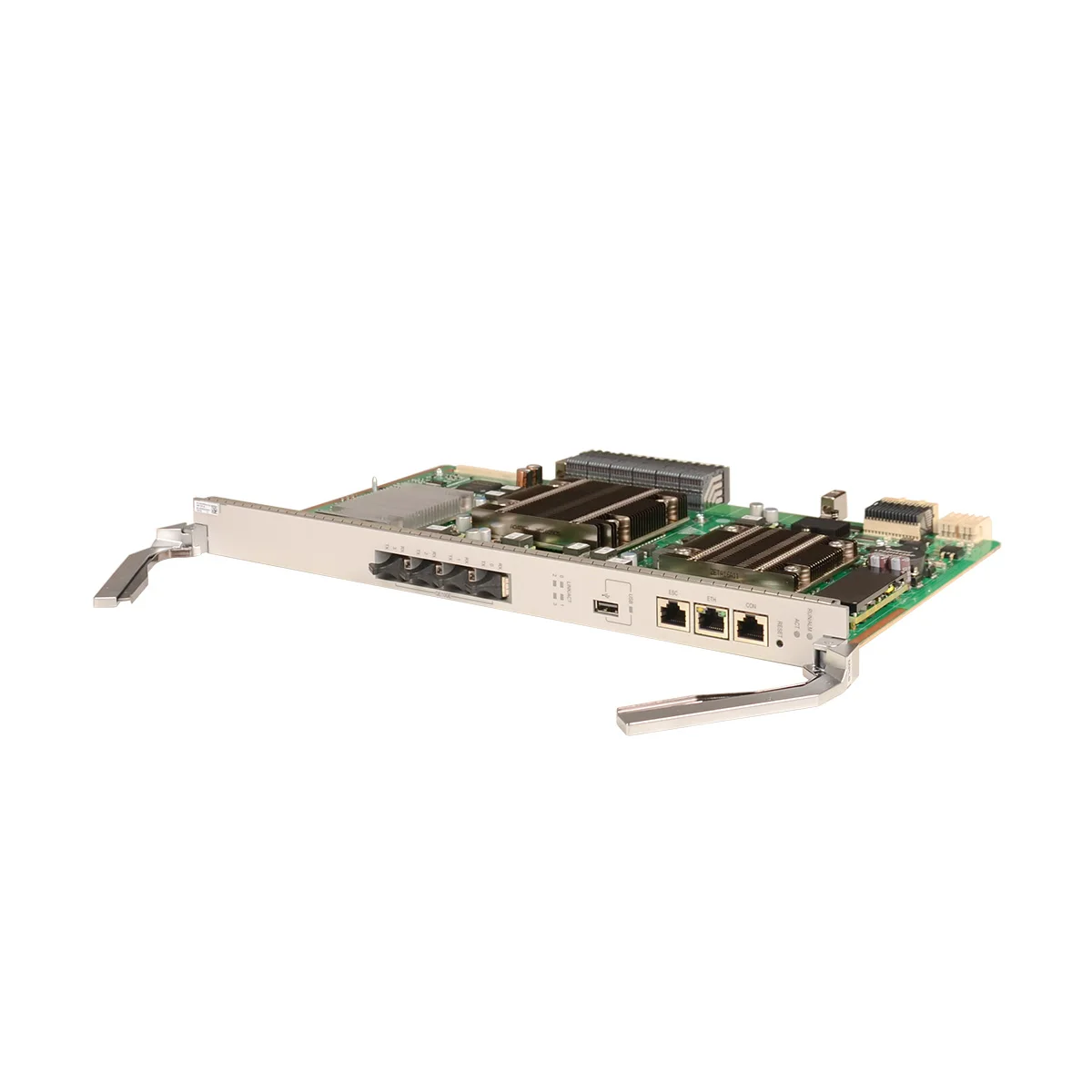

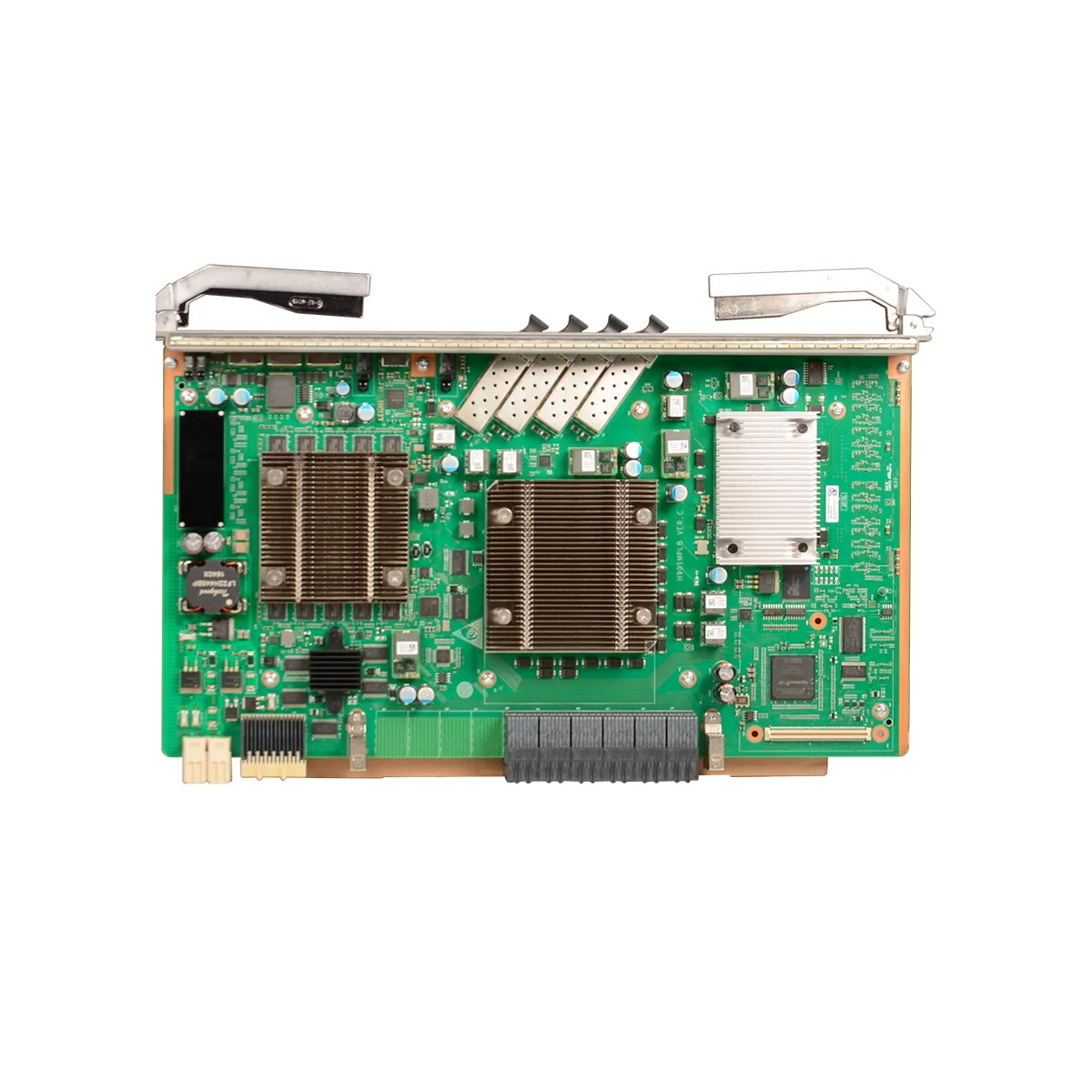

Huawei MPLB Board is main control card for Huawei SmartAX MA5800 OLT. This is the core of system control and service switching and aggregation. MAX access to 17408 subscribers.
Huawei MPLB Board transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
Huawei MPLB Board transmits key management and control information through the master-slave serial port, the in-band GE / 10GE channel and the service board, completes the configuration, management and control of the entire product, and at the same time implements simple routing protocols and other functions.
Product Usage
Huawei MPLB Board is the main control unit board and the core of system control and service exchange convergence, and can also be used as the management and control core of the unified network management.
Supports active/standby switchover
Supports load sharing mode, doubling processing performance
Supports ISSU, saving the upgarde interruption time
Supports synchronization Ethernet
Supports 1588v2 and 1588ACR

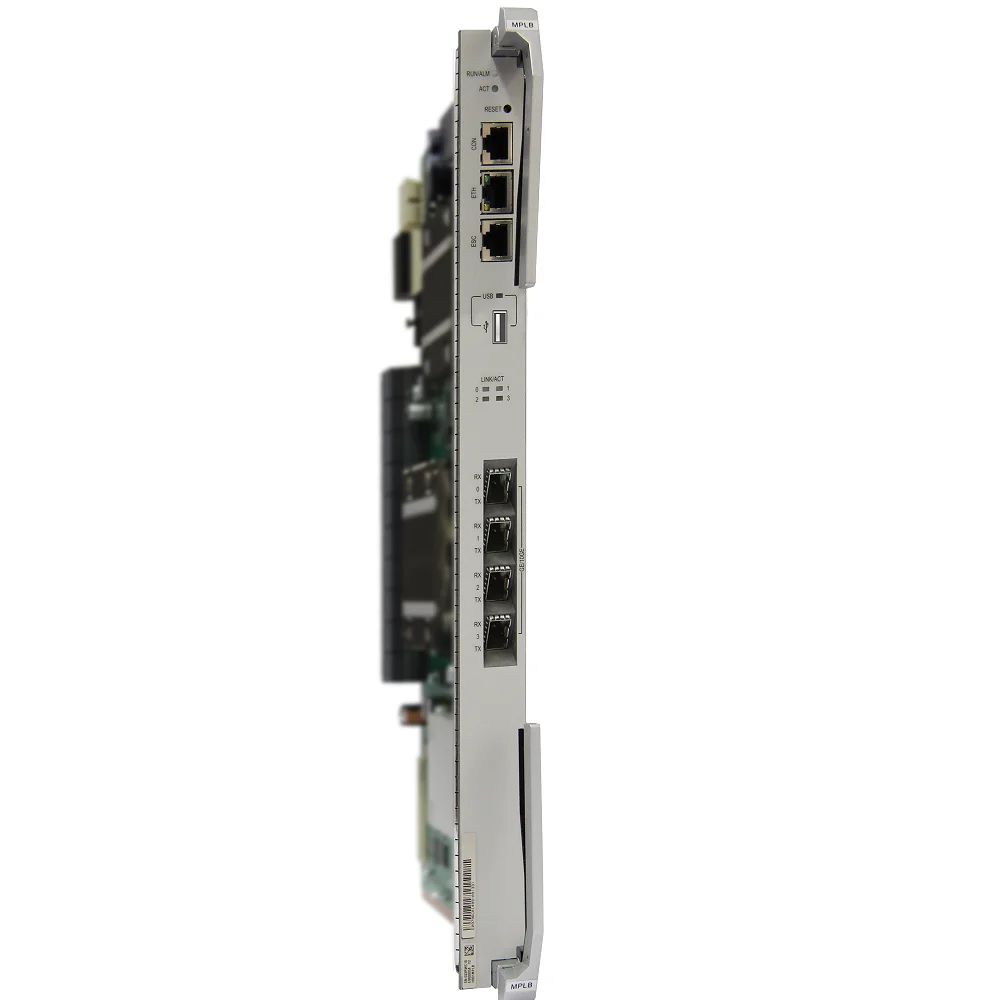

Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP+/SFP 10GE/GE ports)
Supports load sharing mode, doubling processing performance
Supports ISSU, saving the upgarde interruption time
Supports synchronization Ethernet
Supports 1588v2 and 1588ACR
Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP+/SFP 10GE/GE ports)
Brand | Huawei |
Model | MPLB |
Bandwidth per slot | 200Gbit/s (load sharing mode) |
MAC address table | 262143 |
Access ONT | 17408 |
Multicast user | 17408 |
Configurable multicast channel | 4096 |
Concurrent multicast channel | 4000 |
IPv4 routing table | 65536 |
IPv6 routing table | 16384 |
Service port | 139264 |
ARP table | 66048 (Before the V100R017C10 version) 98816 (V100R017C10 version) 131072 (V100R018C00 and later version) |
ACL rule | 1042 |
Maximum Frame Size | 2052 bytes. 9216 bytes (jumbo frame enabled) |
Operating temperature | -40°C to +65°C |
Power consumption | Static: 62W Maximum: 117 W |
Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
Weight(kg) | 2.2 |
