FILLING AUTO BRAND 10 50kg Beans Pellets Packaging Machine Automatic Wood Pellet Packing Machine Without Bucket Scale
- Category: >>>
- Supplier: Boloni (Jinan) International Trade Co. Ltd.
Share on (1600517377216):
Product Overview
Description
Product Details

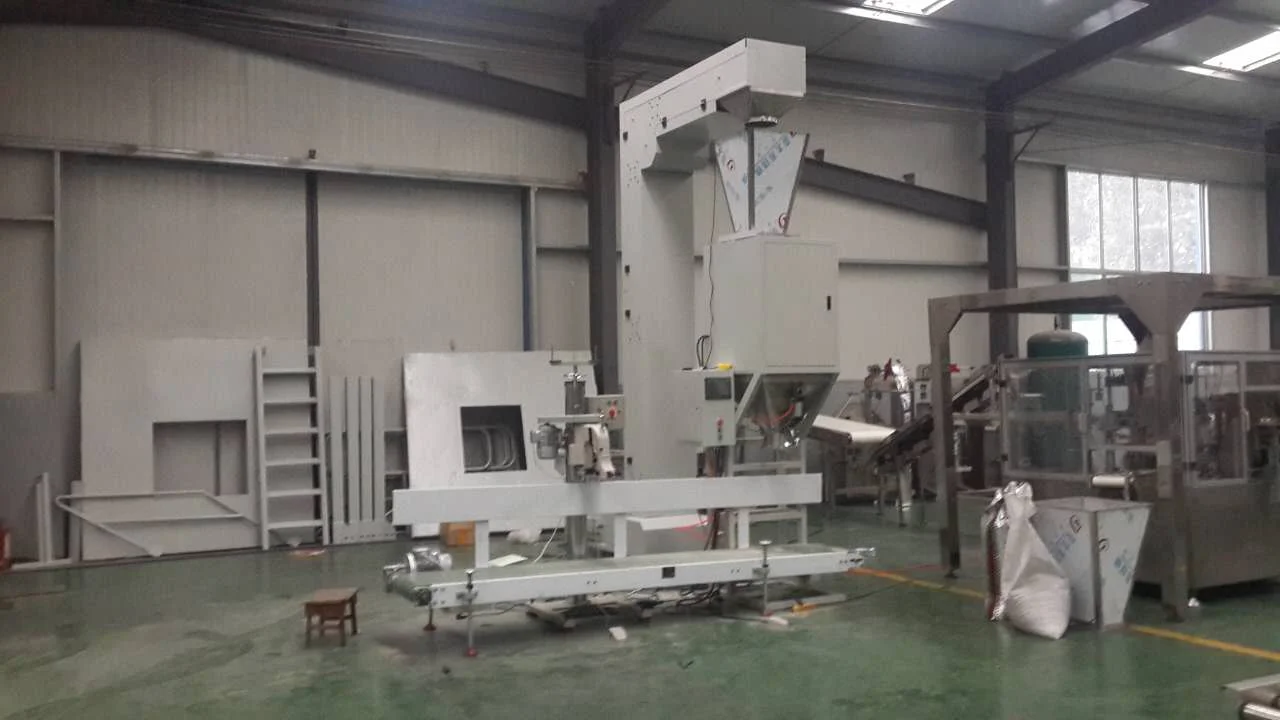

ZX-C50 packaging weigher(pneumatic and vibratile)
ZX-C50 packaging weigher is a kind of mechanical-electrical integration product, used separate double measurement control system, integrated a number of latest technology. Performance indicators is at the leading level in domestic. The machine is suitable for automatic quantitative packing of granule materials, such as sugar, salt, food, feed, chemical industry, etc .
1.Structure & Operation theory
The machine consists of mechanical and electrical control. Electric control consists of pressure sensors and electric cabinet; Mechanical control consists of multistage feeding mechanism ,weighing hopper ,folder bag mechanism and fraree, etc
When electronic scale is working, feeding door were shut down in the first place under the control of the controller, open feeding mechanism for charging after automatic peeling and reset. Materials are putted into the weighing hopper continuously, pressure sensor converts weight into corresponding electrical signals , and then sent to the controller. Controller shows the weight of the material on the front panel window.And according to the parameters to output control signal in turns, weighing hopper were charging by the feeding mechanism in 3 flow rate ways: fastest, general fast, slow. Because of the original with a triple combination cylinder form, the machine shake seriously. Now it changed to a single set of separation and vibration feeding of blanking form, complete quantitative feeding accurately without shaking. Were not squeeze and damage to the appearance of the materials. Feeding mechanisms all closed down after the completion of the loading process, the weighing hopper opened the bottom of the feeding door first, The material being pumped into bag depend on the weight of it’s own. After feeding, the feeding door close, folder bag mechanism open and put down the bag. Clip bag toggle switch control folder bag institutions open and shut up, to manual bagging operations. And only when the folder bag institutions are in a state of clamp,then control signal can be sent out, then feed.
When electronic scale is working, feeding door were shut down in the first place under the control of the controller, open feeding mechanism for charging after automatic peeling and reset. Materials are putted into the weighing hopper continuously, pressure sensor converts weight into corresponding electrical signals , and then sent to the controller. Controller shows the weight of the material on the front panel window.And according to the parameters to output control signal in turns, weighing hopper were charging by the feeding mechanism in 3 flow rate ways: fastest, general fast, slow. Because of the original with a triple combination cylinder form, the machine shake seriously. Now it changed to a single set of separation and vibration feeding of blanking form, complete quantitative feeding accurately without shaking. Were not squeeze and damage to the appearance of the materials. Feeding mechanisms all closed down after the completion of the loading process, the weighing hopper opened the bottom of the feeding door first, The material being pumped into bag depend on the weight of it’s own. After feeding, the feeding door close, folder bag mechanism open and put down the bag. Clip bag toggle switch control folder bag institutions open and shut up, to manual bagging operations. And only when the folder bag institutions are in a state of clamp,then control signal can be sent out, then feed.
2.Features
1）Use separate metering system, no interference, packing speed is fast;
2）Measurement control system adopt force sensor with high precision , display controller which conversion speed is at 500 times per second, and the special design of multistage charging mechanism, combined with scientific control algorithm.With high measuring accuracy and good stability.
3）Easy operate, operator just need bag and touches bag switch, and actions such as charging ,pouring into bags, discharging bags all be done automatically by the weigher.
4）Equipped with manual control switch, can be manually controlled charging, easy to clean up the remaining materials.
5）All parts contacting with materials are stainless steel
6）Technical features
Packaging Net Weight:3-50kg/bag
Packaging Accuracy:0.1%F.S(±10g)
Packaging Speed: 100-350bag/h
Operate Mode: Artificial bagging, clip bag automatically after touching the switch, weighted materials were poured into bags automatically
Scale body can be installed on the ground directly, also can be installed on the steel structure platform ,it has two kind of operation mode:automatic and manual control, the normal way of working is automatic and manual control is used for debugging ,checking for equipment and maintaining.
Within the scope of quantitative, quantitative values can be set through the instrument keyboard . Within 10% to 200% of the rated packing weight ,the value can be set up freely.
Packing weight and packing time can be shown automatically, packing weight and count can be shown at any time.
Diagnose trouble automatically, fault code hinting, metering out-of-tolerance alarm
Automatically back to zero;every loop, the zero can be tested.and automatically corrected,
A 485 communication interface, you can communicate with the computer
2）Measurement control system adopt force sensor with high precision , display controller which conversion speed is at 500 times per second, and the special design of multistage charging mechanism, combined with scientific control algorithm.With high measuring accuracy and good stability.
3）Easy operate, operator just need bag and touches bag switch, and actions such as charging ,pouring into bags, discharging bags all be done automatically by the weigher.
4）Equipped with manual control switch, can be manually controlled charging, easy to clean up the remaining materials.
5）All parts contacting with materials are stainless steel
6）Technical features
Packaging Net Weight:3-50kg/bag
Packaging Accuracy:0.1%F.S(±10g)
Packaging Speed: 100-350bag/h
Operate Mode: Artificial bagging, clip bag automatically after touching the switch, weighted materials were poured into bags automatically
Scale body can be installed on the ground directly, also can be installed on the steel structure platform ,it has two kind of operation mode:automatic and manual control, the normal way of working is automatic and manual control is used for debugging ,checking for equipment and maintaining.
Within the scope of quantitative, quantitative values can be set through the instrument keyboard . Within 10% to 200% of the rated packing weight ,the value can be set up freely.
Packing weight and packing time can be shown automatically, packing weight and count can be shown at any time.
Diagnose trouble automatically, fault code hinting, metering out-of-tolerance alarm
Automatically back to zero;every loop, the zero can be tested.and automatically corrected,
A 485 communication interface, you can communicate with the computer
7）Technical features
Model | ZX-C50 |
Rated package weight (kg) | 3－50 |
Packing weight at a time (kg) | 3-50 |
Division Value (g) | 10 |
Packing error | 0.1%F.S |
Packaging Ability (bag/h) | 100-350， |
environment /power supply | Temperature: -10～40℃ Relative humidity:10% -90%， Power：Single phase220V±15%、50HZ |
Power consumption | 220V 120W |
Gas consumption | 0.4～0.6Mpa compressed air，1m3 /h |
3.Lifting conveyer
The belt conveyor of sewing machine: including conveyor framework (including belt conveyor, speed regulating motor) sewing machine column (including sewing machine, sewing motor operation, control box
The conveyor length is 2.2 m, width 0.40 m.
The conveyor’s speed is adjustable and sewing match. The conveyor can be lifted ,sewing machine can be lifted to match with bag.
The site operation control box is equipped with a control button, trip protection and air switch , control circuit apparatus adopt Schneider.
Sewing machine adopts GK35-2, adopt single needle and double lines. Packaged materials will not fall when the bag filled with materials pouring out
The conveyor length is 2.2 m, width 0.40 m.
The conveyor’s speed is adjustable and sewing match. The conveyor can be lifted ,sewing machine can be lifted to match with bag.
The site operation control box is equipped with a control button, trip protection and air switch , control circuit apparatus adopt Schneider.
Sewing machine adopts GK35-2, adopt single needle and double lines. Packaged materials will not fall when the bag filled with materials pouring out

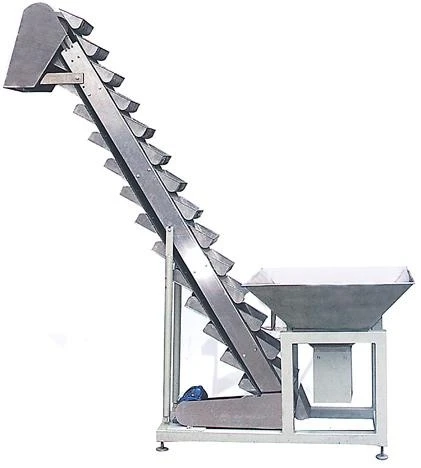

Z type Bucket Elevator
Capacity 1-3T/H
Bucket capacity 0.5 cubic meters(customized)
Conveyor Height: 3700 mm
Shaft speed (r / min): 10r/min-80r/min
according to the customer's requirement
Power: 0.75-3kw
Bucket capacity 0.5 cubic meters(customized)
Conveyor Height: 3700 mm
Shaft speed (r / min): 10r/min-80r/min
according to the customer's requirement
Power: 0.75-3kw
Standard Features:
1)It’s suitable use in delivery the grain, food, food stuff etc.
2)Conveyor with the character of large quantity. NO crash material. High Lifting etc.
3) Lifting height: 2.0-10m (according to customer’s requires)
4) It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.
5)It has circuit control and switch that realize stopping and feeding automatically. With the advantages of big hoist capacity and height.
2)Conveyor with the character of large quantity. NO crash material. High Lifting etc.
3) Lifting height: 2.0-10m (according to customer’s requires)
4) It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.
5)It has circuit control and switch that realize stopping and feeding automatically. With the advantages of big hoist capacity and height.
Related Products

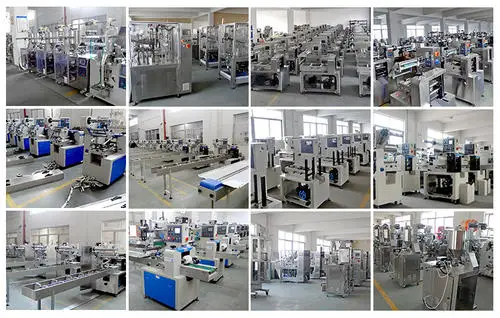

Company Profile
