Commercial Applications Water Cooling Chiller Multifunction Bath Tub Cooling Air Chiller
- Category: >>>
- Supplier: Guangdong Yake New Energy Technology Co. Ltd.
Share on (1600517532470):
Product Overview
Description
Product Description
Description

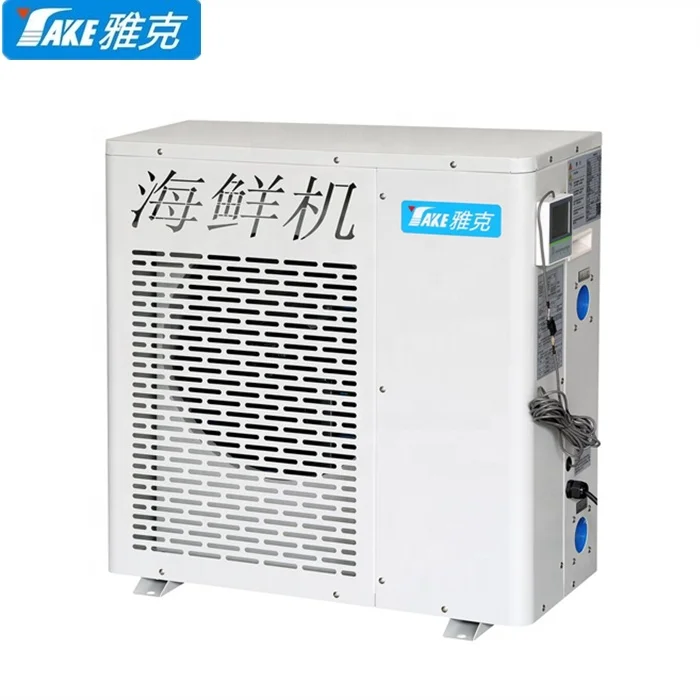

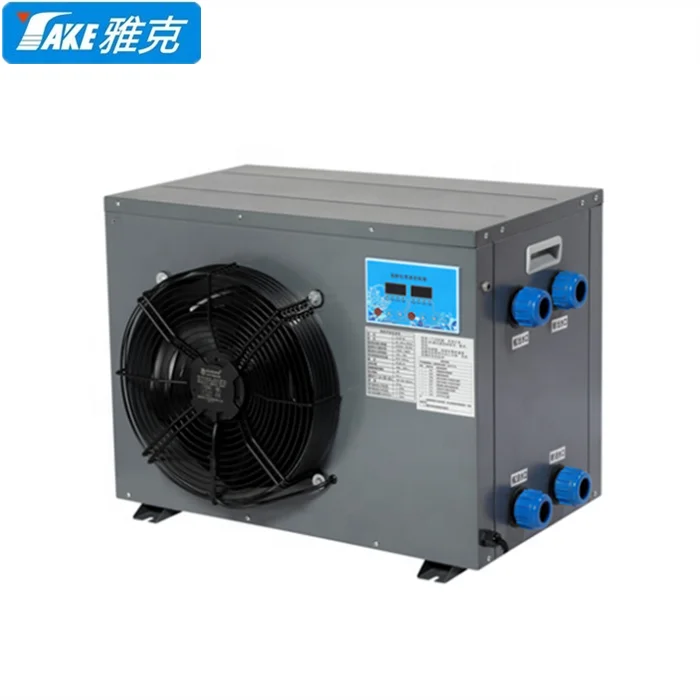

This water chiller is an auto-control unit which is designed for chilling/heating water tanks while keeping the temperaturesteady.
Other Application
This chiller can also be widely used to cool and heat small pools, fish tanks and etc. It keeps a constant temperature and creates
a stable environment for fish to grow.
This chiller can also be widely used to cool and heat small pools, fish tanks and etc. It keeps a constant temperature and creates
a stable environment for fish to grow.
Control Board
Main control board with digital display, allows adjusting the chiller's operating mode and setting temperatures. Easy to operate,
reliable control and stable performance.
reliable control and stable performance.
Rotary Compressor
Famous brand compressors are adapted. Longer economic life with high efficiency & reliability, low noise and vibration.
Evaporator
Chiller's evaporator is made with industrial pure titanium coil which has strong resistance to corrosion specially designed for
marine water. Stainless steel 304 coil is also available for food use and high weather condition.
marine water. Stainless steel 304 coil is also available for food use and high weather condition.
Specifications
MODEL | HXJR-25 | HXJR-35 | HXJR-50 | ||
POWER | AC 220V/50HZ (110V/50HZ, 220V/60HZ can be customized) | ||||
RATED COOLING/HEATING CAPACITY | 2500W/2750W | 3500W/3670W | 5000W/5250W | ||
RATED COOLING/HEATING POWER | 925W/982W | 1300W/1310W | 1850W/1875W | ||
RATED COOLING/HEATING CURRENT | 4.3A/4.4A | 5.9A/6.0A | 8.4A/8.5A | ||
COOLING INPUT POWER | 1300W | 1820W | 2590W | ||
COOLING INPUT CURRENT | 6.0A | 8.2A | 12A | ||
SETTING TEMPERATURE RANGE | 0~40℃ (factory default 25℃) | ||||
WORKING ENVIRONMENT | -10~50℃ | ||||
INLET/OUTLET SIZE | 1 inch outer thread | ||||
NOISE LEVEL | ≤52dB(A) | ≤52dB(A) | ≤58dB(A) | ||
REFRIGERANT/CHARGE AMOUNT | R22/580g | R22/800g | R22/1300g | ||
WATER VOLUME APPLICABLE | 700~1200L | 1000~1500L | 1500~2000L | ||
DIMENSION | 695×396×545mm | ||||
NET WEIGHT | 32KG | 36KG | 43KG | ||
Customization Options
9000BTU/12000BTU/18000BTU/24000BTU availableCooling only/Cooling & Heating
110V~220V/50Hz~60Hz
R22/R410a
YAKE logo/OEM
110V~220V/50Hz~60Hz
R22/R410a
YAKE logo/OEM
Installation Instructions
Circulation pumps are needed to help circulate water in and out from water tank/fish tank to water chiller.
Detailed Images
High Quality Heat Exchanger
Industrial level PVC casing with Titanium/Stainless Steel inner coil designed for rapid water chilling. Diamater and coil length
can be customized based on your ambient condition.
can be customized based on your ambient condition.
Branded Compressors
All products adopt famous branded compressors with high efficiency and longer stability.
Packing & Delivery
Carton box
Used high quality carton boxes with foam that are suitable for international container shipping.
Wooden case
Carton box with wooden case/pallet can provide stronger protection for air shipping of sample orders.

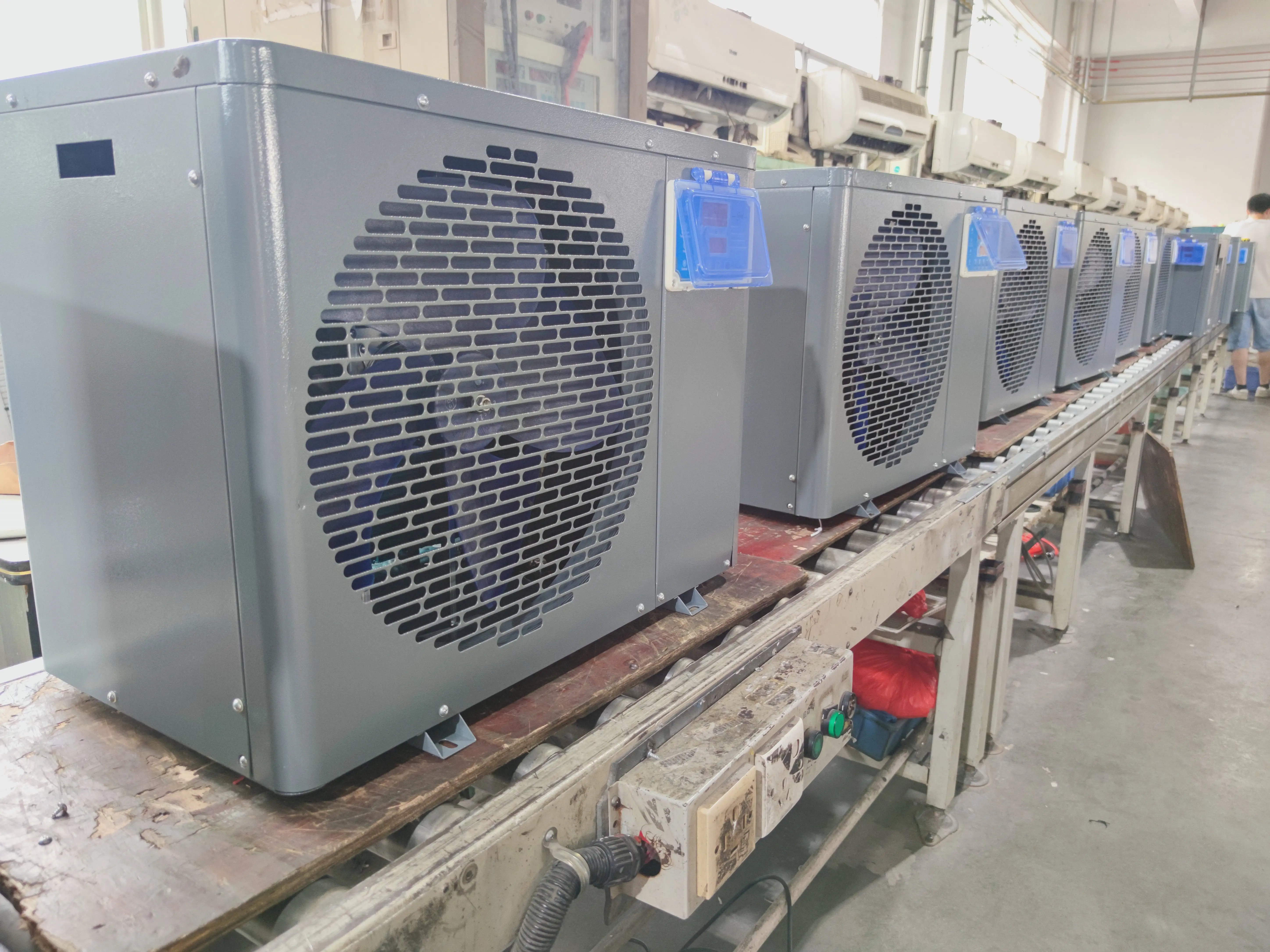

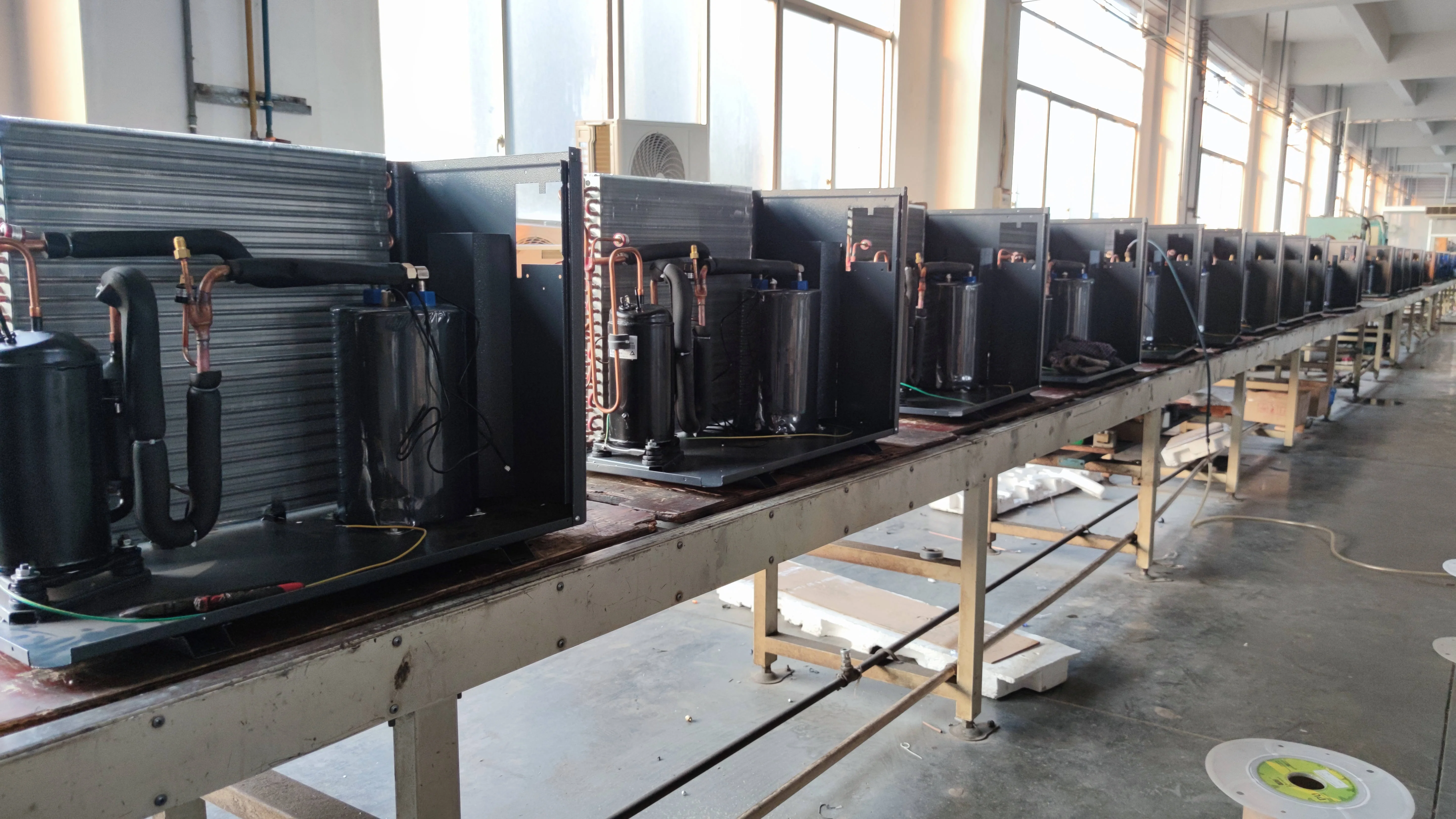

Our Company
Guangdong Yake New Energy Technology
Guangdong Yake New Energy Technology Co., Ltd was established in 2008 with former name Foshan Baohua Refrigeration Co.,Ltd.
The company has its own sheet metal production line, evaporators & condensers production line, stainless steel procesing line, test room as well as four assembly lines. A design and development team with more than ten experienced engineers and technicians together with almost a hundred staff here to offer you the MOST PROFESSIONAL SOLUTIONS with the MOST EFFICIENT REFRIGERATION PRODUCTS.
We would be your supporting manufacuturer and OEM cooperative partner.
FAQ
Q: Are we dealing with a manufacture?
A: Yes, we are a manufacture, not an agent. Feel free to visit us anytime!
Q: Can you put our brands?
A: Yes, we can do OEM.
Q: What's the MOQ?
A: 50 sets each model. Price may differ if quantity is less than this.
Q: What's the delivery time?
A: 7~30 days after the confirmation of all the artworks.
Q: Can we order samples?
A: Yes, however sample fees may be applied.
Q: What are your terms for pricing?
A: EXW/FOB/CFR/CIF depending on your preference.
