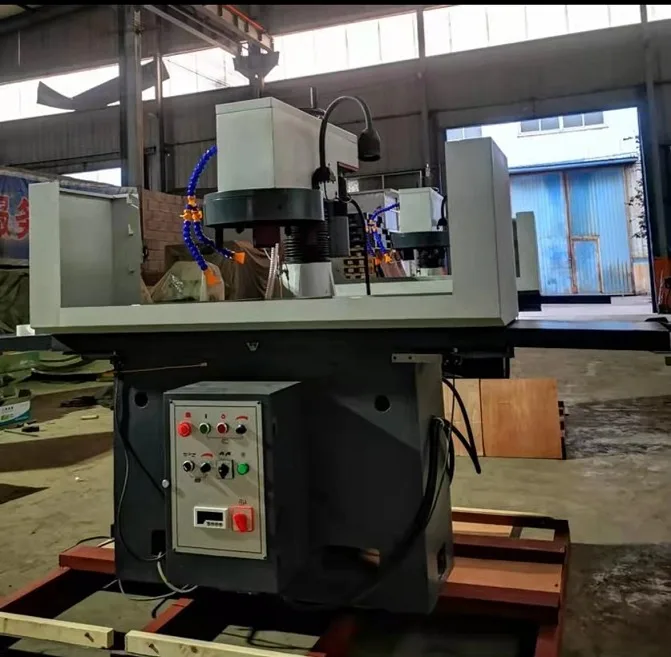

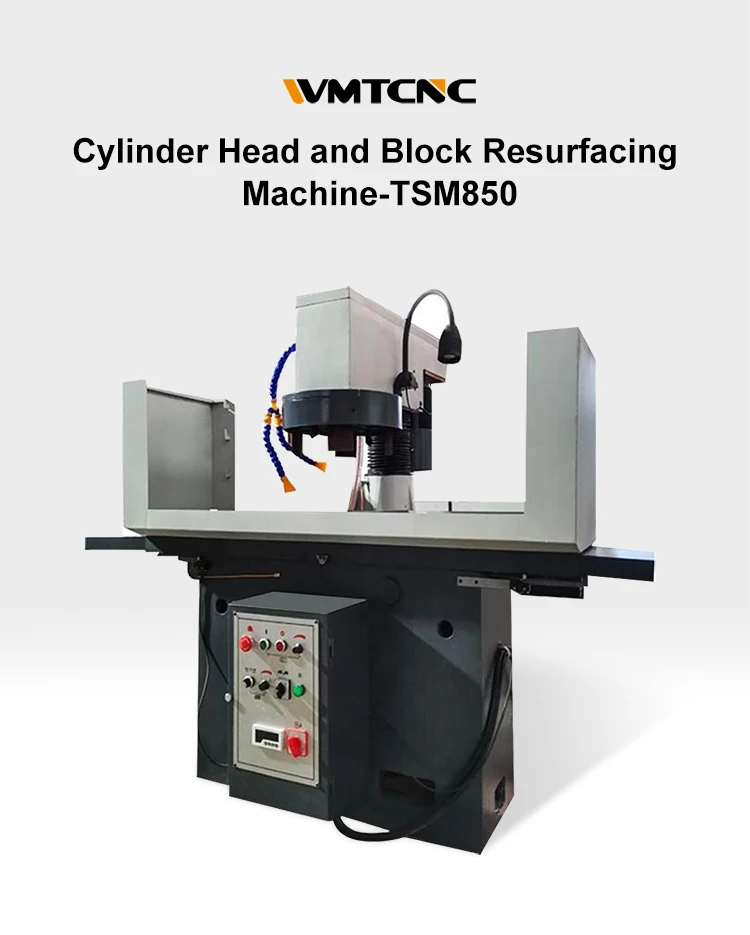

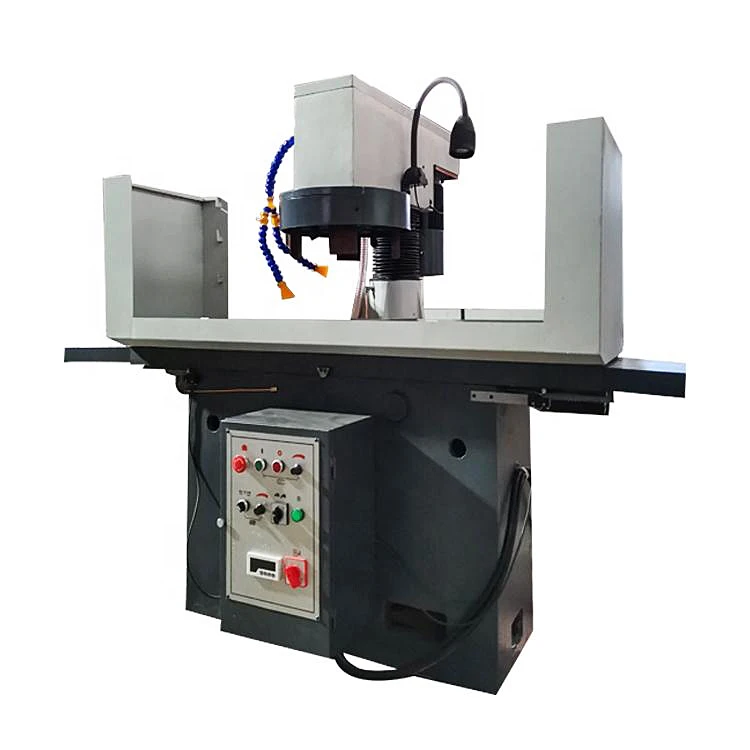

TSM850 Cylinder head and block resurfacing machine

Share on:


Price:$6,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description




Cylinder Head and Block Resurfacing Machine TSM850 Main Features:
This machine tool is used to grind (or mill) the connecting plane of the engine block and cylinder head.
Equipped with corresponding fixtures, it can also be used for plane processing of other parts.
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw,stepless speed frequency control, convenient and stable adjustment.
3. Coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.


Specification
TSM850
Table travel
1115mm
Max. workpiece length
850mm
Max. workpiece width
330mm
Max. workpiece height
430mm
Min. workpiece height
160mm
Table feed
0-600mm/min
Milling wheel diameter
330 mm (13")
Cutting tool speed
300-1200g/min(rpm)
Voltage
(+/- 15%) 230V, 400V
Phases
1, 3
Min.protection degree
IP 44
Main motor power
1.5kw
Gear box motor power
0.75kw
Total power
2.25kw
Environment conditions
temperature 10-30℃
umidity
15-90 %RH
Weight
800kg
Dimensions (length*width*height)
1720*870*1630mm


Detailed Images






Company Profile








Professional Service




Customers' Feedback




FAQ


Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.

Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.

Q3:Do you have a stock?
A3:Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.

Q4:What’s the MOQ?
A4:One set only.

Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.

Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.

Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
