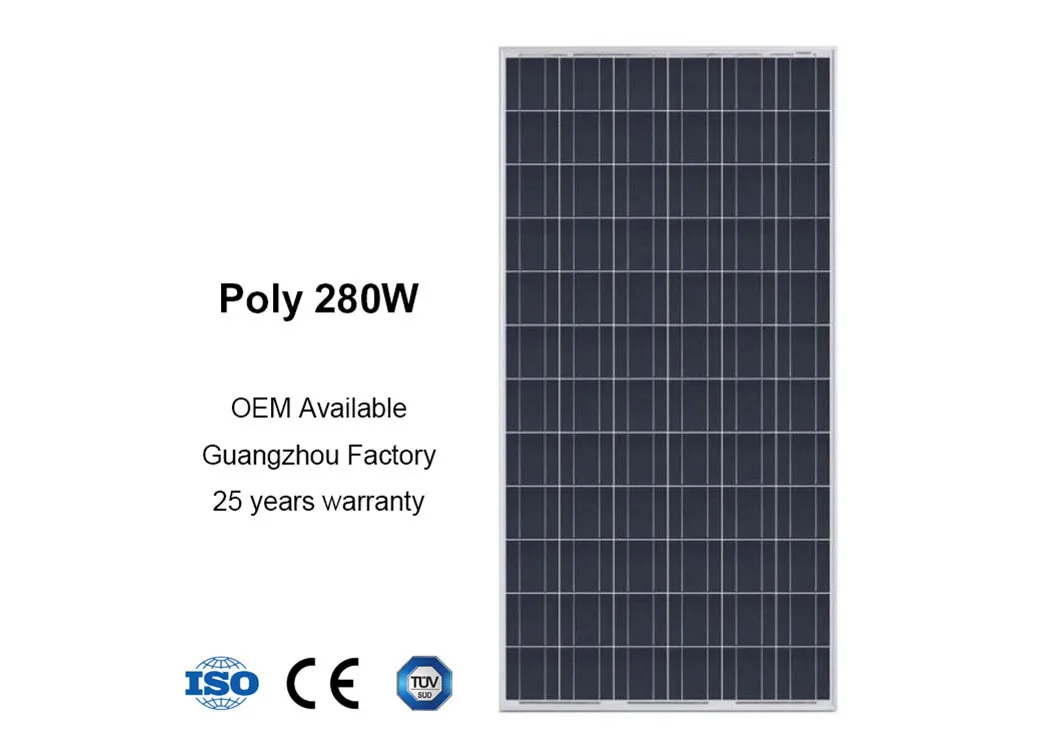

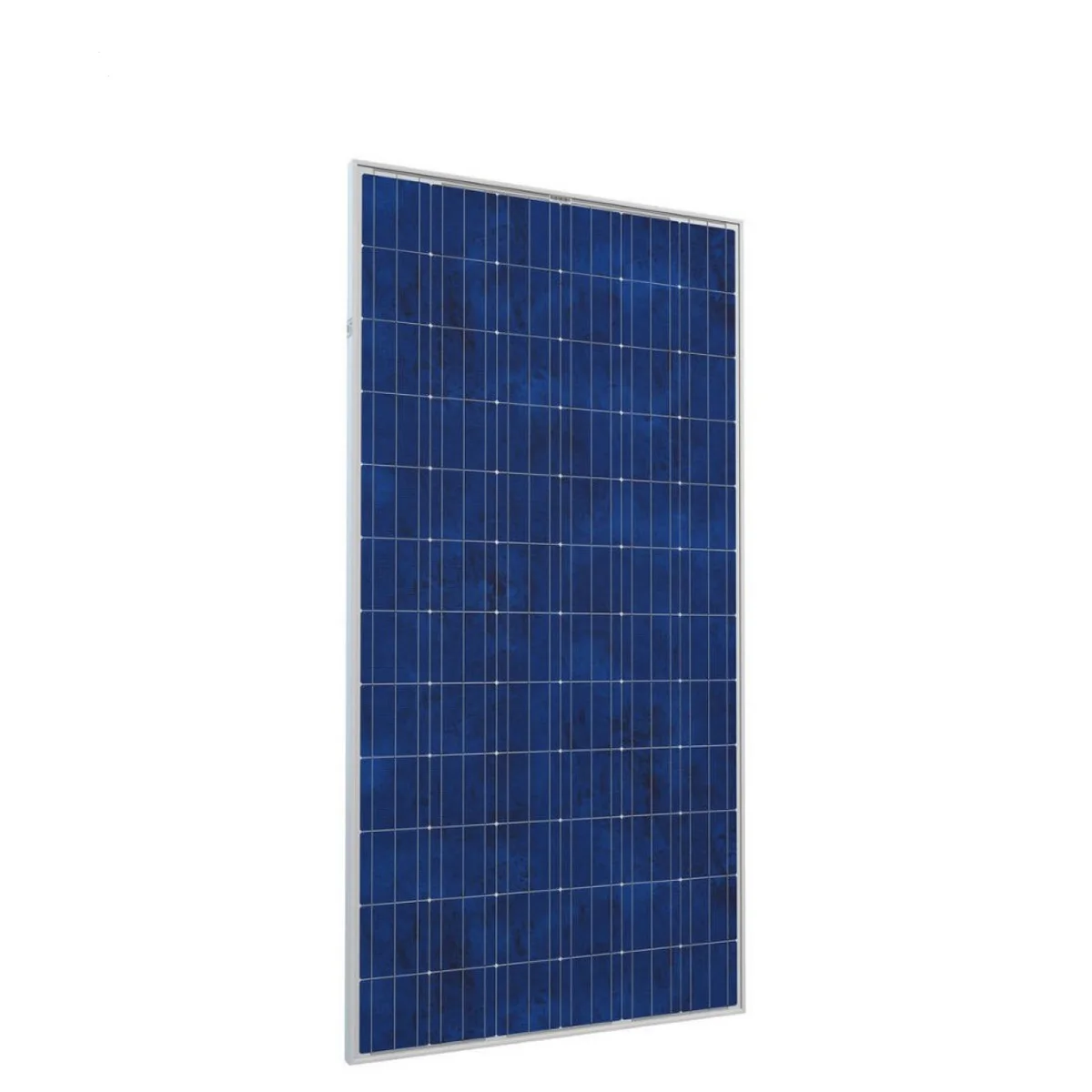

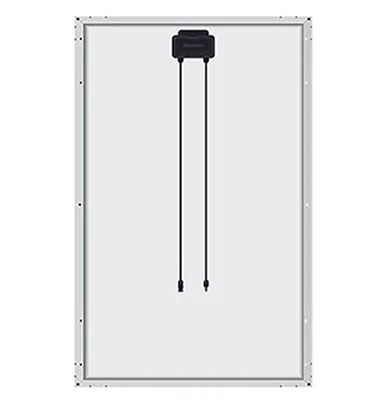

Sunpal Solar Panel 280W Poly Solar Energy System PV Module with CE Certificates
- Category: >>>
- Supplier: Guangzhou Tongli New Energy Co. Ltd.
Share on (1600517808932):
Product Overview
Description
Product Description
Specification
Product name | 280W Polycrystalline Solar Panels for shed |
Power | 280W |
Size | 1640*992*35mm |
Effectiveness | 17.1% |
Solar cell | 60 |
Life Span | >= 25 years |
Frame | Aluminum Alloy |
Weight | 22kg |
Maximum power voltage | 31.4V |
Maximum power current | 8.92A |
Open circuit voltage | 38.2V |
Short circuit current | 9.40A |
System voltage | 1500 V |
Operational Temperature | -400C to +850C |
Mechanical Load | 5400Pa |
Wind Load | 2400Pa |
Module Voltage | Module | Vmp(V) | Imp(A) | Voc(V) | Isc(A) | η(%) | Size (MM) | Weight (KG) |
18V | 17.8 | 0.56 | 21.9 | 0.61 | 12.80 | 340*232*15 | 1.1 | |
18.0 | 1.12 | 22.1 | 1.20 | 13.08 | 450*340*20 | 1.9 | ||
18.0 | 1.67 | 22.1 | 1.81 | 14.12 | 625*420*25 | 2.8 | ||
18.1 | 2.21 | 22.1 | 2.39 | 14.21 | 670*420*25 | 3.5 | ||
18.2 | 2.75 | 22.1 | 2.98 | 13.62 | 680*540*25 | 4.1 | ||
18.1 | 3.31 | 22.1 | 3.58 | 13.78 | 670*650*25 | 4.9 | ||
18.1 | 3.87 | 22.3 | 4.20 | 16.07 | 670*650*25 | 4.9 | ||
18.1 | 4.42 | 22.3 | 4.81 | 15.08 | 780*680*25 | 6.0 | ||
18.1 | 4.97 | 22.3 | 5.41 | 15.23 | 895*660*25 | 6.5 | ||
18.2 | 5.49 | 22.3 | 6.02 | 14.96 | 1005*665*30 | 7.5 | ||
18.2 | 6.45 | 22.3 | 7.01 | 15.10 | 1195*665*30 | 9.0 | ||
18.1 | 7.73 | 22.3 | 8.27 | 16.97 | 1240*665*30 | 9.3 | ||
18.5 | 8.06 | 22.3 | 8.53 | 15.24 | 1480*665*30 | 11.2 | ||
18.6 | 8.60 | 22.3 | 9.11 | 16.26 | 1480*665*30 | 11.2 | ||
36V | 36.8 | 4.89 | 45.1 | 5.18 | 15.15 | 1200*990*35 | 14.7 | |
36.9 | 5.42 | 45.1 | 5.75 | 15.30 | 1320*990*35 | 15.6 | ||
TYL220P | 37.6 | 5.85 | 45.3 | 6.21 | 16.83 | 1320*990*35 | 15.6 | |
37.1 | 6.73 | 45.2 | 7.14 | 15.40 | 1640*992*35 | 19.1 | ||
30V | 30.5 | 8.20 | 37.6 | 8.61 | 15.40 | 1640*992*35 | 19.1 | |
TYL260P | 30.8 | 8.44 | 37.8 | 8.90 | 16.00 | 1640*992*35 | 19.1 | |
TYL265P | 30.8 | 8.60 | 37.8 | 9.10 | 16.20 | 1640*992*35 | 19.1 | |
30.9 | 8.73 | 37.9 | 9.22 | 16.5 | 1640*992*35 | 19.1 | ||
31.4 | 8.92 | 38.2 | 9.40 | 17.1 | 1640*992*35 | 19.1 | ||
TYL285P | 31.6 | 9.02 | 38.3 | 9.49 | 17.4 | 1640*992*35 | 19.1 | |
36V | 37.9 | 7.39 | 45.6 | 7.84 | 17.25 | 1640*992*35 | 19.1 | |
37.1 | 8.09 | 45.1 | 8.53 | 15.46 | 1956*992*40 | 21.2 | ||
37.8 | 8.73 | 45.6 | 9.20 | 17.01 | 1956*992*40 | 21.2 | ||
38.6 | 9.08 | 47.4 | 9.53 | 18.56 | 1956*992*40 | 21.2 | ||
39.1 | 9.22 | 48.1 | 9.65 | 20.25 | 1956*992*40 | 21.2 |

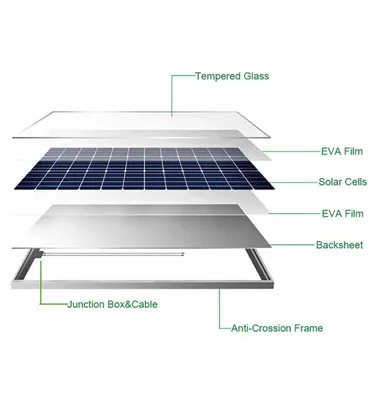

Detailed Images

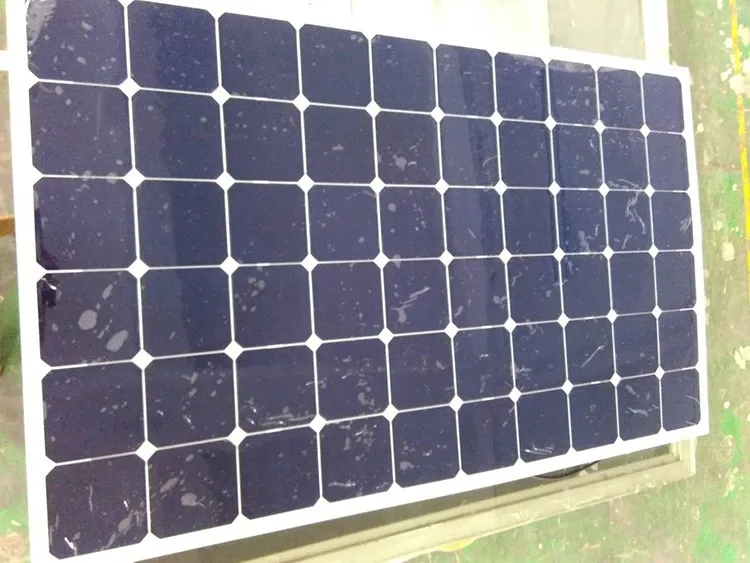

Solar Cell.
> High efficiency 5BB PV cell
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
> Uniform color
> Anti-PID
> Germany standard Cell
> Full test
Glass.
> Antireflective glass> Translucency of normal luminance is increased 2%
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
> Module efficiency is increased 2%
> Self-clean function
> Service life 25 years
Junction box.
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Frame.
> Stock-size
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
> Silvery and black
> thickness 30/35/40/45/50mm
> stress test.
Humanized design.
> More protection with practical and effective design
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
> Prevent the aluminum frame from scratching the hand
> Using the rain to clean dirt remaining on the solar module
Certifications
Production Process
Cell sorting

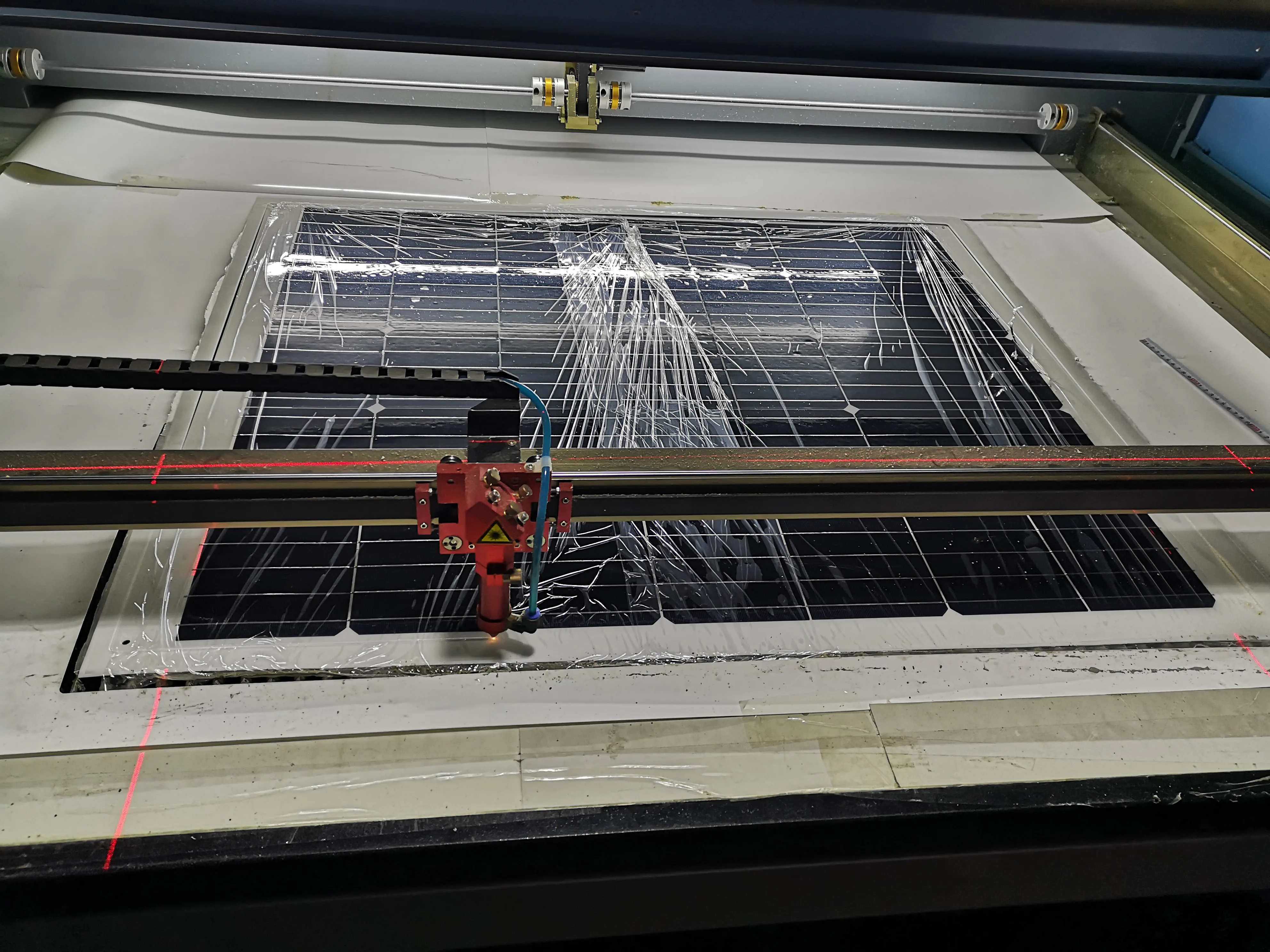

Cell sorting and cutting
Aotomatic Stringing
Battery chip receiving area
Laying
Solar Panel Kanban Inspection
Solar panel EL test
Laminate solar panel
Fully automatic lamination of solar panels
Fitted Frame
Flexible solar panel sorting and packaging
Integrated solar street light assembly
Company Profie
Guangzhou Tongli New Energy co., LTD.
belongs to Guangdong Tongli Group,witch was founded in Guangzhou in 1999 by Dr Tony Tong, which is a comprehensive hi-tech enterprise of R&D,manufacturing and trade.
And the first company that is engaged in Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive battery, motorcycle batteries, motorcycle electrical parts in China.
And the first company that is engaged in Solar Power system, Solar panels，Solar Gel Battery，Solar street light, Automotive battery, motorcycle batteries, motorcycle electrical parts in China.
Company Philosophy Professional Trustworthiness Win-win, Quality Policy Product is constantly improved, service is forever.
Quality Objective:
Quality Objective:
1.The wastage rate of production is controlled below 0.1%.
2.The rate of contract fulfillment on schedule is100%.
3.The degree of customer satisfaction is above 99%.
Environment Policy:
1.Being disciplined and law-abiding;
2.Control of environmental pollution;
3.Promoting energy conservation by innovation;
4.Full participation;
5.Continual improvement.
Public-spirited
Help-Guangdong Tongli donated 140KW solar power station in "Da Aipingjiang" Archives
Helping the poor-Guangdong Tongli donated 70KW solar power station in the "Ai Pingjiang" Anding Home for the Elderly
Assistance-Guangdong Tongli donated home drinking water project
Teaching Assistant-Guangdong Tongli Donated Hometown Alma Mater Construction
Teaching Assistant-Guangdong Tongli donated multimedia teaching to Guangzhou Yongxing Primary School
Teaching Assistant-Guangdong Tongli donated 70KW solar power station in Pingjiang No.1 Middle School
Teaching Assistant-Guangdong Tongli Boss initiates the establishment of his hometown alma mater Pingjiang No. 1 Middle School with 3 million scholarships
Student Aid-Guangdong Tongli Boss Gives Big Red Envelopes to Employees of 211 University
Solar power generation on roofs of factories in Guangdong Tongli
Customer case
French LV customer
Indian customers
Pakistan customers
African customers

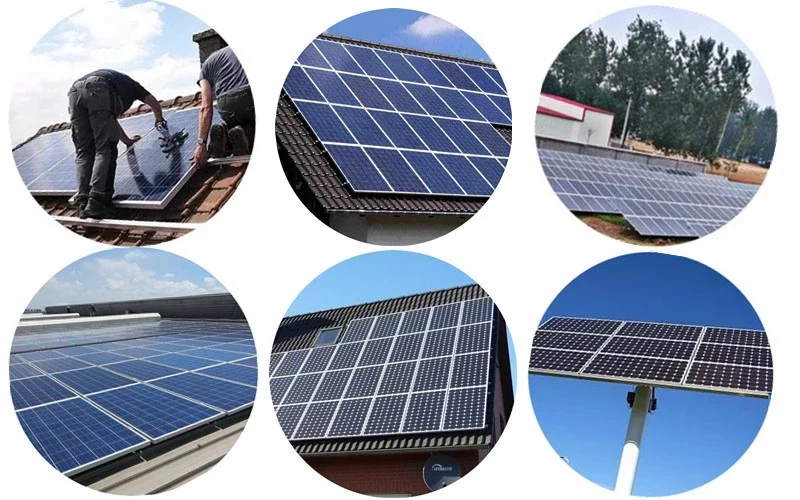

Installation Case

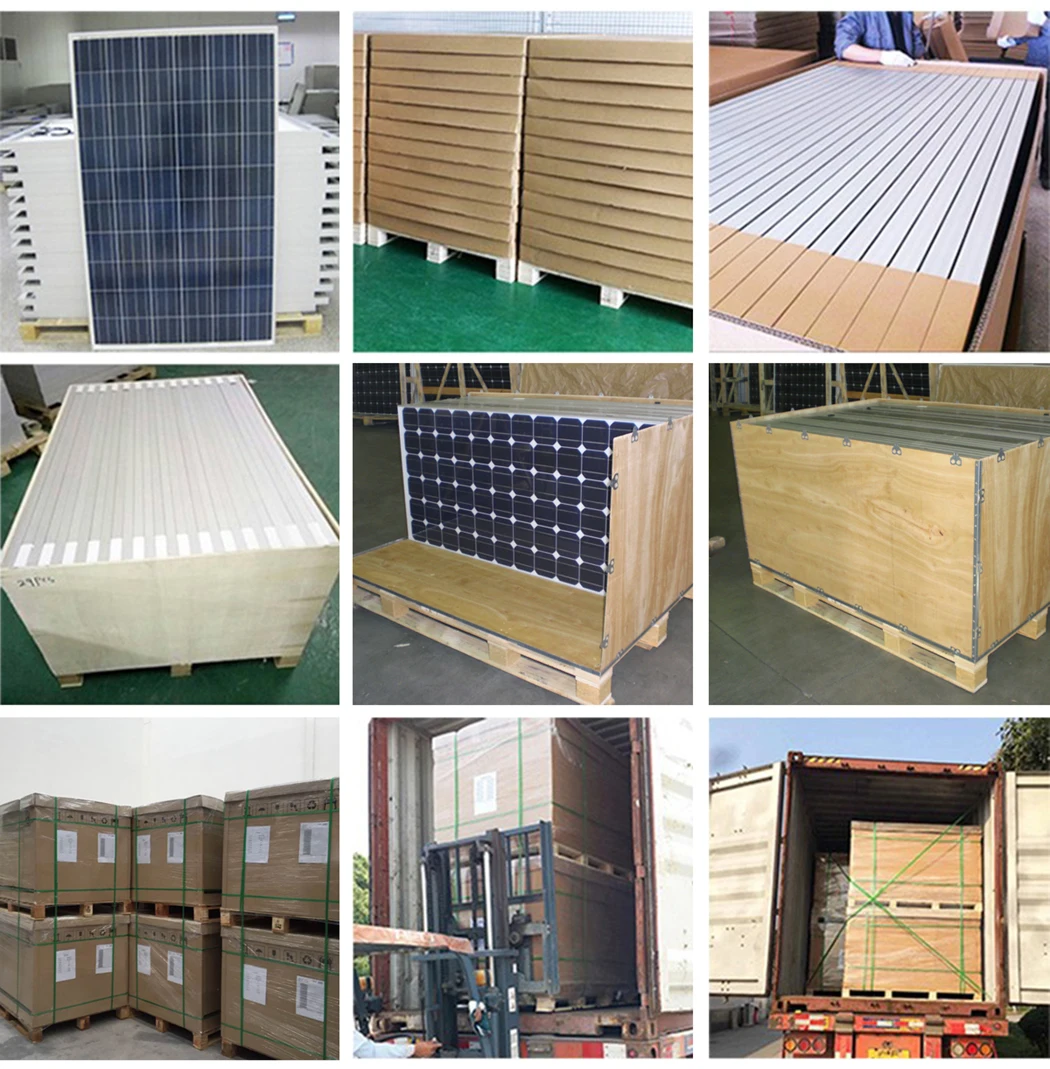

Package
FAQ
Q1: How to choose the right Panel?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A1: Tell us your demand, then our sales will recommend a suitable panel for you.
Q2: What's the difference between Mono and Poly panel?
A2: Monocrystalline solar panels have the highest efficiency rates since they are made out of the highest-grade silicon. The process used to make polycrystalline silicon is simpler and costs less. The amount of waste silicon is less compared to monocrystalline.
Q3: How about the delivery time?
A3: 7 days for sample; 15 days for bulk order.
Q4: How to get samples ?
A4: We provide free sample for most of products, and you just need to arrange the delivery things.
Q5: What is the warranty for solar panels?
A5: 5 years warranty on FGET-Solar product, 10 year optional, while the life time is 30 years ,
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you factory ?
A7: We are manufacturer in solar products area more than 10 years .
Q5: What is the warranty for solar panels?
A5: 5 years warranty on FGET-Solar product, 10 year optional, while the life time is 30 years ,
Q6: How to solve the technical problem?
A6: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Q7: Are you factory ?
A7: We are manufacturer in solar products area more than 10 years .
