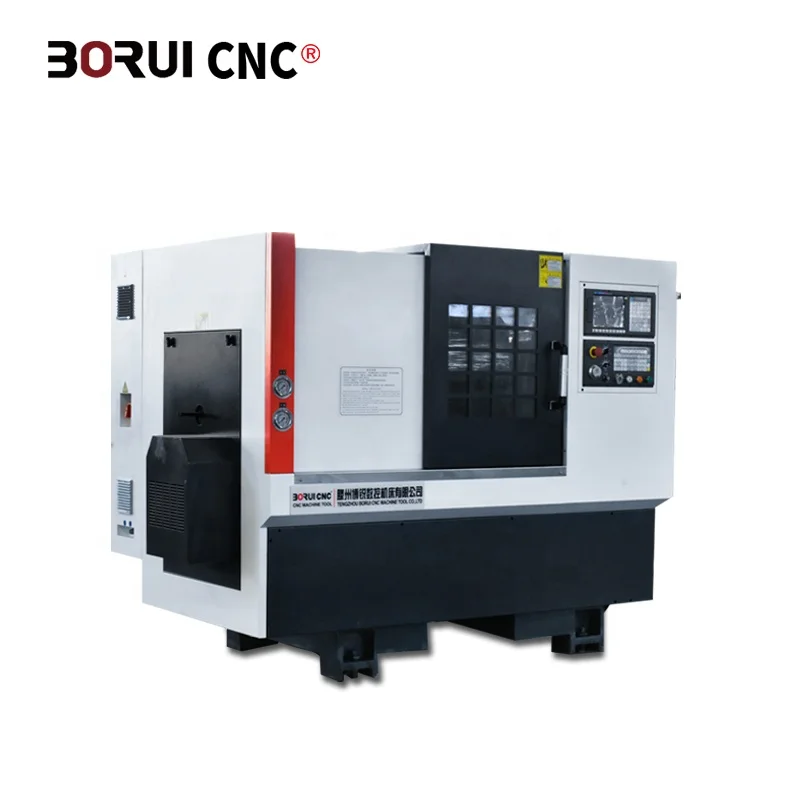

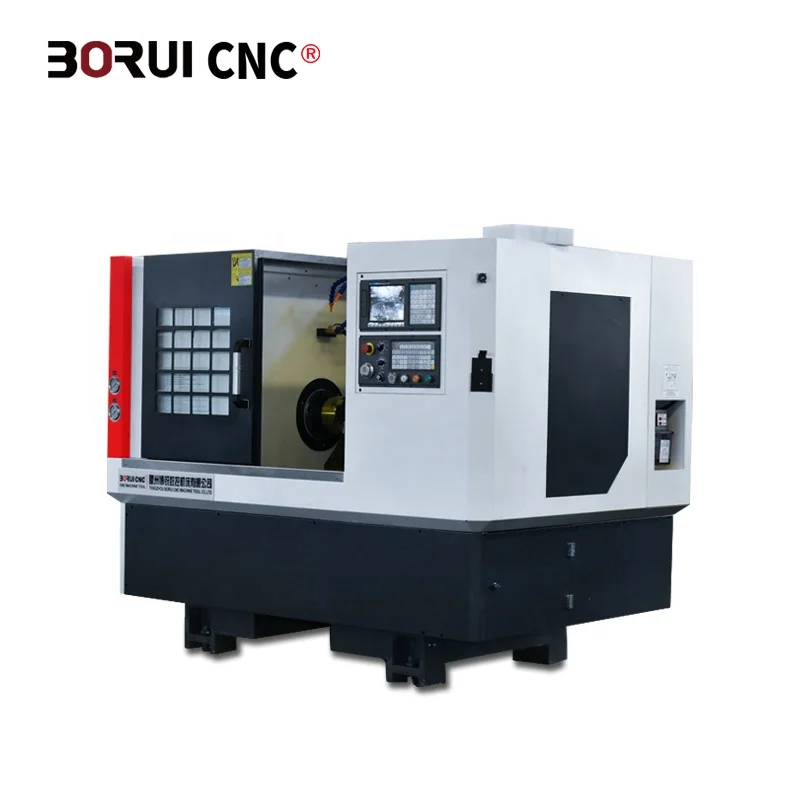

TCK6340 Buy Made In China 5 Axis Slant Bed CNC Lathe Metal CNC Lathe For Sale
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600517829837):
Product Overview
Description
TCK6340 Buy Made In China CNC Lathe 5 Axis Slant Bed CNC Lathe Metal China Multifunction For Sale
Product Description
Product description:
45 degrees slant bed CNC lathe Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post
Standard configuration
Servo main motor
140mm spindle units (3500 rpm)
Taiwan linear Railway
Ball screw
gang type
Hydraulic collet
Optional configuration
5000 rpm
Taiwan spindle units
Taiwan ball screw
6/8 station Electric turret
8/12 station Hydraulic turret
Hydraulic chuck
Chip conveyor
Product main technical parameters:
45 degrees slant bed CNC lathe Higher accuracy Taiwan linear
Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back
Screw pre-stretching structure
Gang type tool post
Standard configuration
Servo main motor
140mm spindle units (3500 rpm)
Taiwan linear Railway
Ball screw
gang type
Hydraulic collet
Optional configuration
5000 rpm
Taiwan spindle units
Taiwan ball screw
6/8 station Electric turret
8/12 station Hydraulic turret
Hydraulic chuck
Chip conveyor
Product main technical parameters:
SPECIFICATIONS | Units | TCK6340 | TCK6340S | TCK6350 |
Swing over bed | mm | 400 | 400 | 500 |
Swing over cross slide | mm | 140 | 140 | 220 |
Distance between centers | mm | 200 | 500 | 410 |
Spindle bore | mm | 48 | 56 | 66 |
Spindle nose type | - | A2-5 | A2-5 | A2-6 |
Spindle speed steps | - | Stepless | Stepless | Stepless |
Spindle speed range | rpm | 3500 | 3500 | 3000 |
Turret/tool post | - | Gang type | Gang type | Gang type |
Tool size | mm | 20 x 20 | 20x 20 | 25 x 25 |
X axis travel | mm | 400 | 400 | 500 |
Z axis travel | mm | 300 | 500 | 410 |
X axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Z axis rapid traverse | mm/min | 18000 | 18000 | 18000 |
Main spindle motor | kw | 5.5 | 5.5 | 7.5 |
Guide rail type | - | Linear rail | Linear rail | Linear rail |
Machine weight | kg | 2300 | 2500 | 2900 |
Overall dimension | mm | 2200x1600x1780 | 2400x1600x1780 | 2500x1600x1890 |

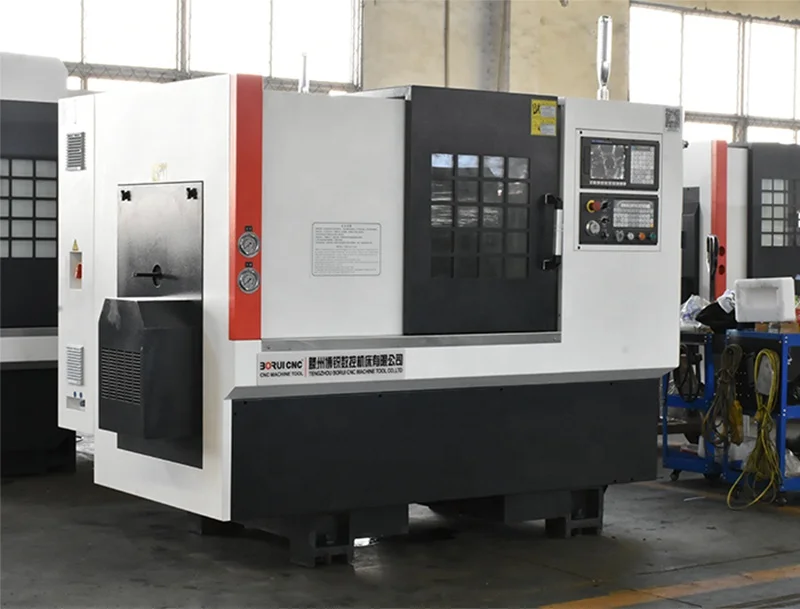

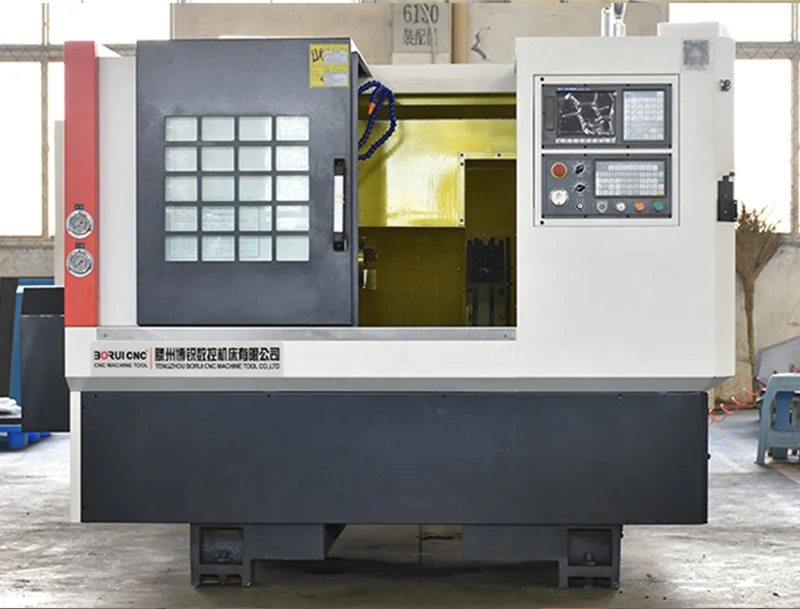

Details Display
Recommend Products
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
