Product Overview

Description

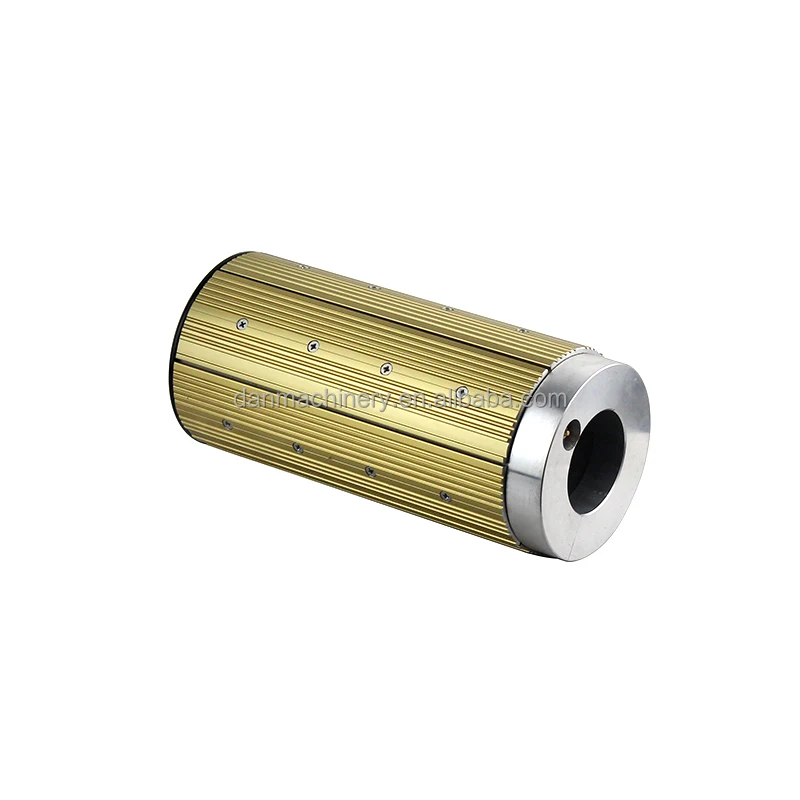

300mm Leaf type Special expansion sleeve for air expanding shaft/Air Chucks



Decription:

It is fixed onto ready –made air shaft ,positioned at the end of air shaft ,mainly applied to 3 inches air shaft and 6-inches rolls

We can use 3-inches air shaft ,in this own grabbing force to fix the inside diameter of expanding sleeve chuck,or using posssed air shapped rings

The body and air shaped ring are made from aluminium,and the expanding parts is made from rubber

The through hole can be customized by requirements. Our expanding sleeve chuck Can be linked and senes .it is fit to work transiently,and 6 inches air shaft is recommended for long term use



Feature:



1.   Dramatically improve splice reliability


2.   Increase operating speeds


3. Save time and money with repeated use of cores without damaging core ends, which can lead to excessive dust.



1.Technical parameters

Model No	300mm
Material	Aluminum
Length	300mm
inner diameter	76mm
outside daimeter	148mm



Usage :

Widely use in printing industry and packaging industry

As you can see in below catalogue, there are two drawings for air shaft adaptor, which are our standard products, we recommend to use our standard one, cause it can help you to save much cost.
