China Supplier Aayee 1300Kg Motor 220 v Automatic Door Rolling Shutter Motor For Residential Use With 1 Year Warranty
- Category: >>>
- Supplier: Hangzhou Aayee Technology Co. Ltd.
Share on (1600517852376):
Product Overview
Description
Products Description
Rolling door motors have been widely used in our lives.Such as buildings, garages, shopping malls, factories, warehouses, docks, airports, etc.As a standard accessory for garage doors, it brings people the most convenient way to open them, saving time and effort. Our rolling door motor has its excellent quality.
1. Nice designs with powerful drive.
2. With overheat protection, overload protection.
3. Easy to install and maintain, long useful life.

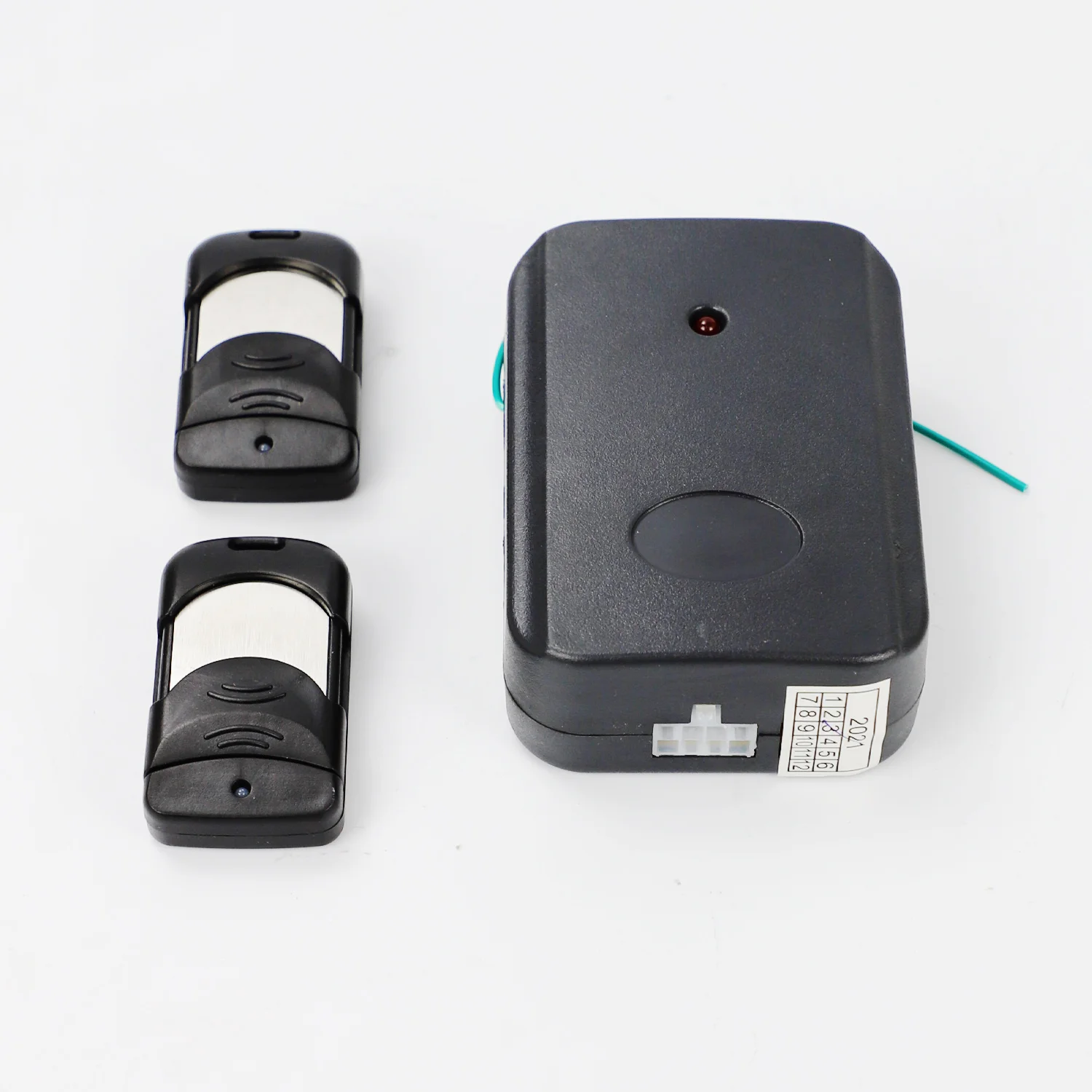

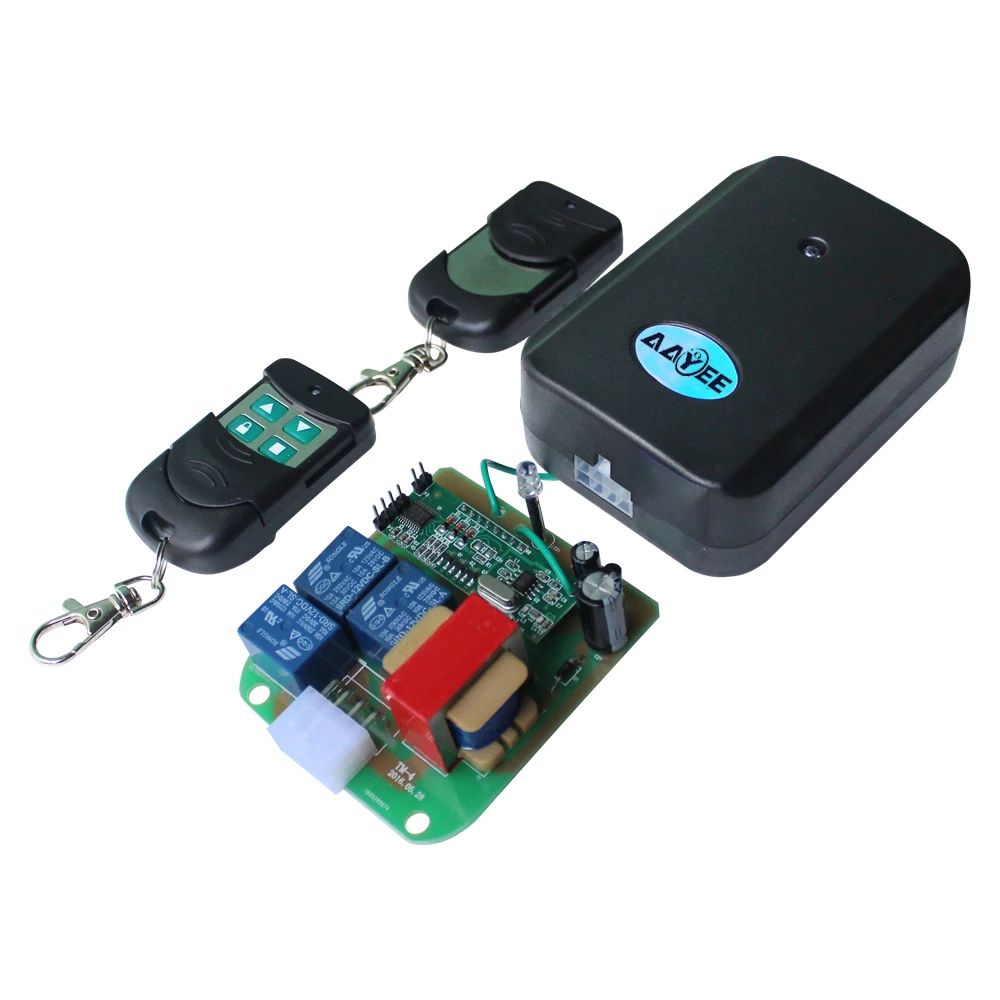

4. Couldoperate by remote control, push button, and manual chain.
5. Couldwork with UPS, so without worry about power off.
6. With Chain-break protection device, also couldwork with safety brake, ensure the safety of your life and property.

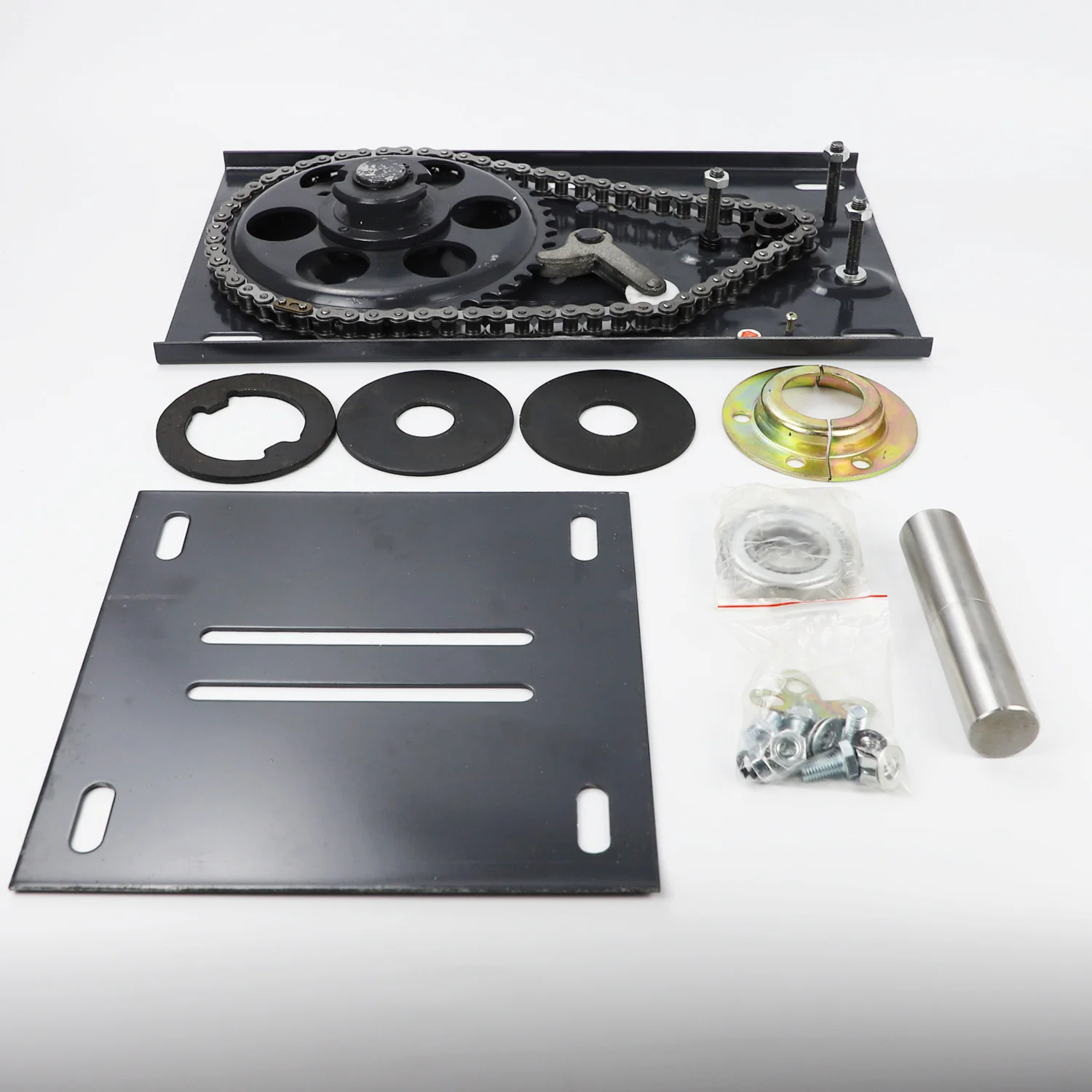

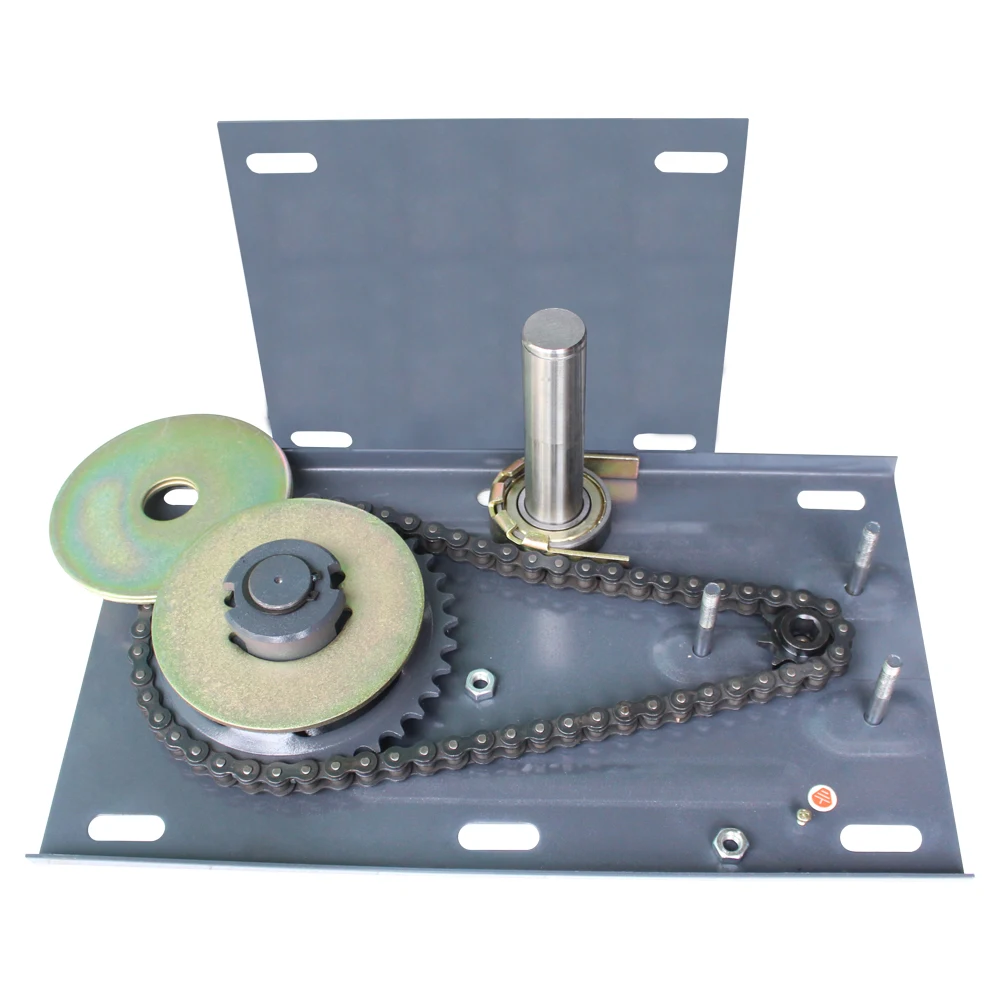

7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be choose.
1. Nice designs with powerful drive.
2. With overheat protection, overload protection.
3. Easy to install and maintain, long useful life.
4. Couldoperate by remote control, push button, and manual chain.
5. Couldwork with UPS, so without worry about power off.
6. With Chain-break protection device, also couldwork with safety brake, ensure the safety of your life and property.
7. bracket size:505*280*3.0/ 280*280*3.0, 495*280*3.0/280*280*3.0, also other size can be choose.
AC Motor specification | ||||||||||||||||||
Model | Rated output torque (N.m) | Rated output speed (r/min) | Motor power(w) | Rated voltage (V/Hz) | Rated current (A) | Continuous working time(min) | Durm dube diameter (mm) | Max lifiting force (kg.f) | Max lifiting height(m) | |||||||||
Single Phase Motor | ||||||||||||||||||
AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 | |||||||||
AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 | |||||||||
AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 | |||||||||
AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 | |||||||||
AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 | |||||||||
Three Phase Motor | ||||||||||||||||||
AC300-3P | 168 | 5.4 | 250 | 380/50 | 1.5 | 15 | 114 | 300 | 6 | |||||||||
AC600-3P | 343 | 5.4 | 250 | 380/50 | 1.5 | 15 | 140 | 600 | 6 | |||||||||
AC800-3P | 647 | 5.4 | 370 | 380/50 | 2.3 | 15 | 165 | 800 | 6 | |||||||||
AC1000-3P | 809 | 5.4 | 370 | 380/50 | 2.8 | 15 | 165 | 1000 | 7 | |||||||||
AC1300-3P | 1401 | 4 | 850 | 380/50 | 3.2 | 15 | 219 | 1300 | 8 | |||||||||
AC1500-3P | 1617 | 4 | 1000 | 380/50 | 3.8 | 15 | 219 | 1500 | 12 | |||||||||
AC2000-3P | 2450 | 3.6 | 1000 | 380/50 | 4.1 | 15 | 245 | 2000 | 12 | |||||||||
DC Motor specification | ||||||||||||||
Model | Rated voltage (V/Hz) | Max lifiting force (kg.f) | Rated output torque (N.m) | Rated output speed (r/min) | Motor power (w) | Max lifiting height (m) | Standard Barrel Dim(inch) | |||||||
DC600 | 220/50 | 600 | 412 | 5.3 | 240 | 6 | 4'' | |||||||
DC800 | 220/50 | 800 | 550 | 5.3 | 400 | 9 | 5'' | |||||||
DC1000 | 220/50 | 1000 | 550 | 5.3 | 550 | 9 | 6'' | |||||||

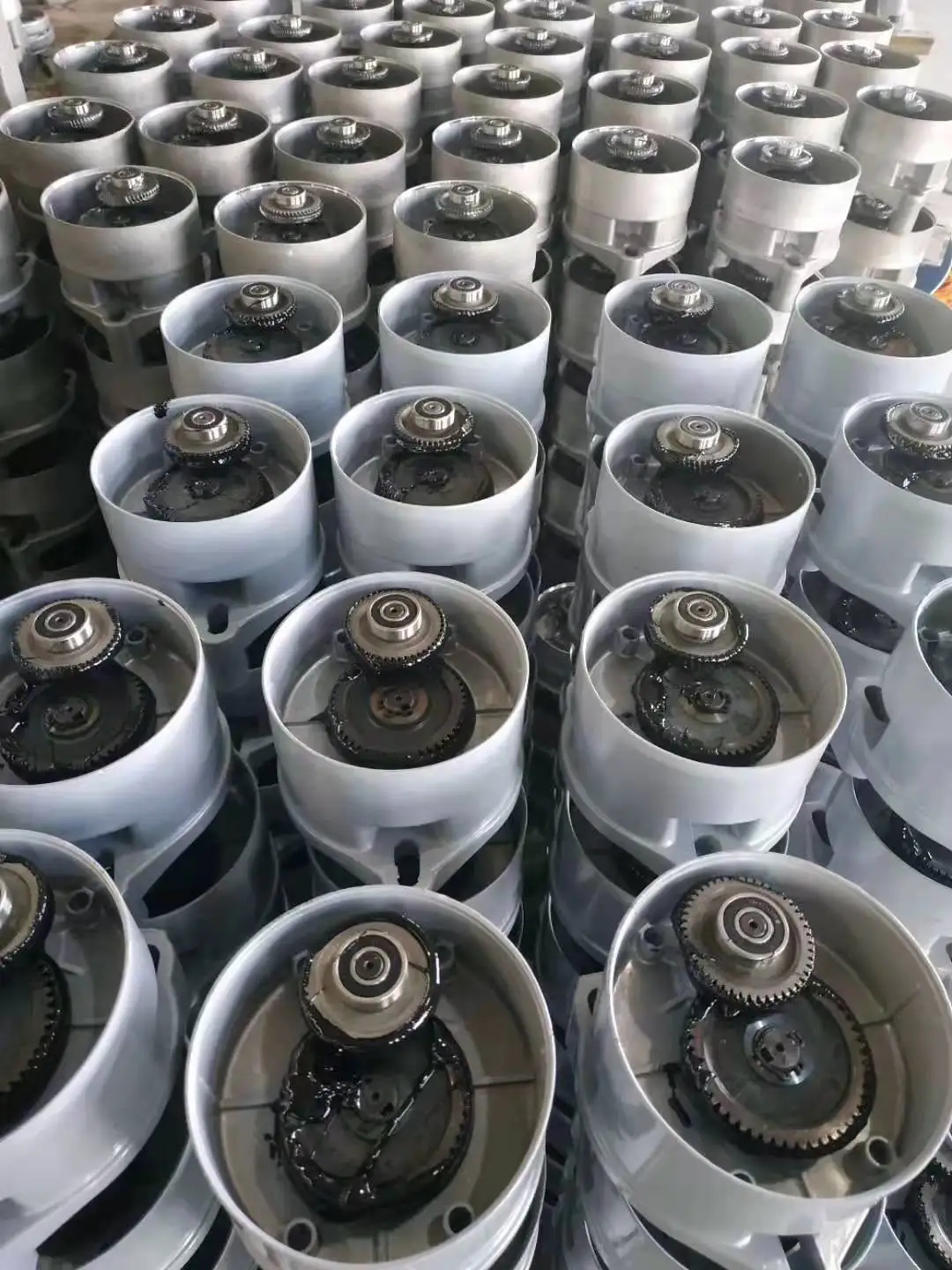

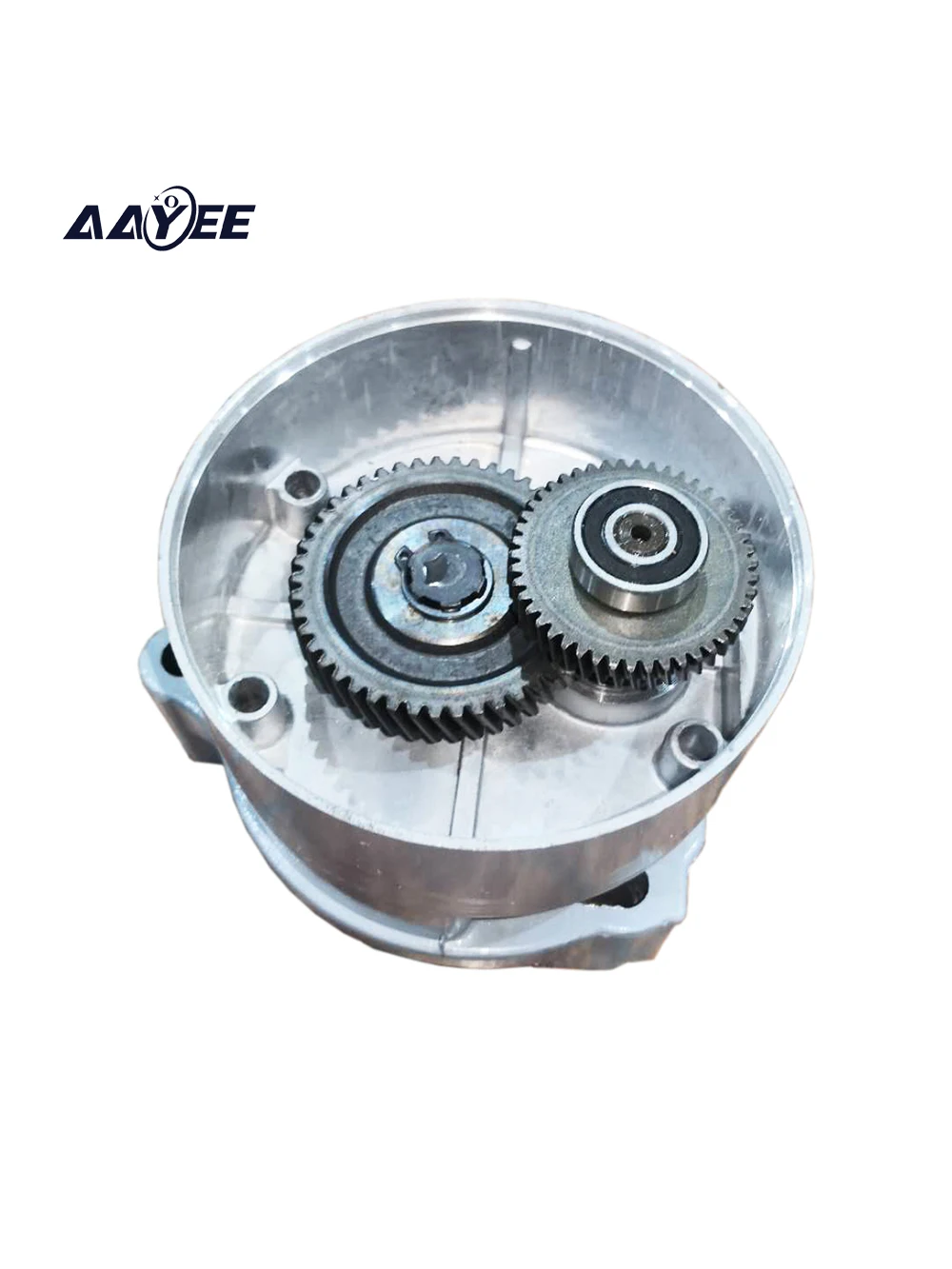

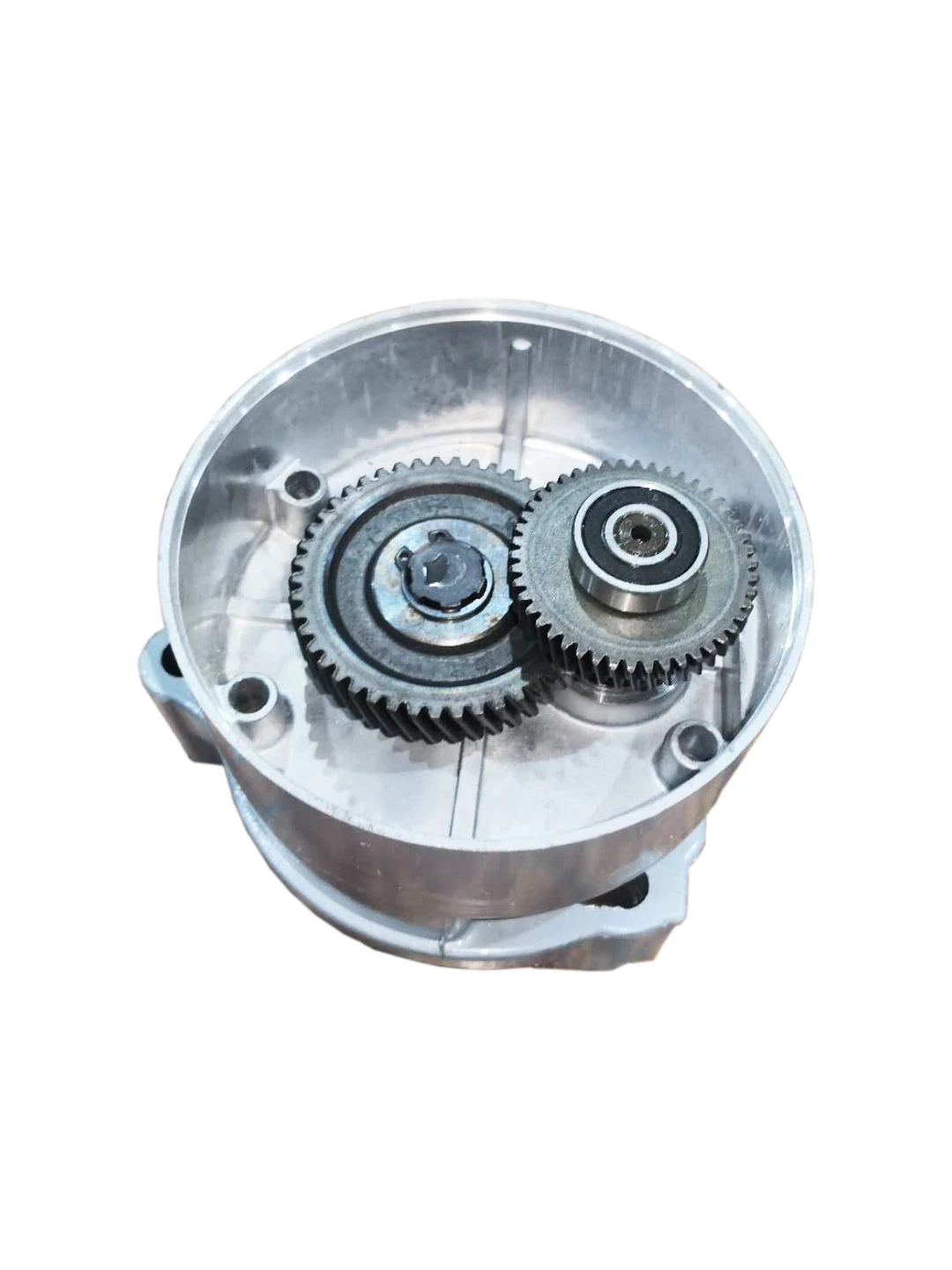

Details Images
Installation Precautions
●The roller shutter door motors should be installed exactly horizontally with precision.
●The roller axle of the shutter should door should be homocentric and horizontal .
●The roller shutter should be free of any obstructions.
●The vertical hanging length of the chain must be adjusted within 3-6mm-adjustment should be made before hanging the shutter onto the roller axis.
●It is strictly forbidden to pull on the motor down lead.
●External power cord should be ≥1.0mm diameter.
●Special attention should be given to protecting the motor from humidity and rain, to prevent short-circuiting.
●The motor must be satisfactorily earthed to prevent potential injury from shocks .The earthing connection bolts should be fixed to the chain wheel support board or electric appliance control box.

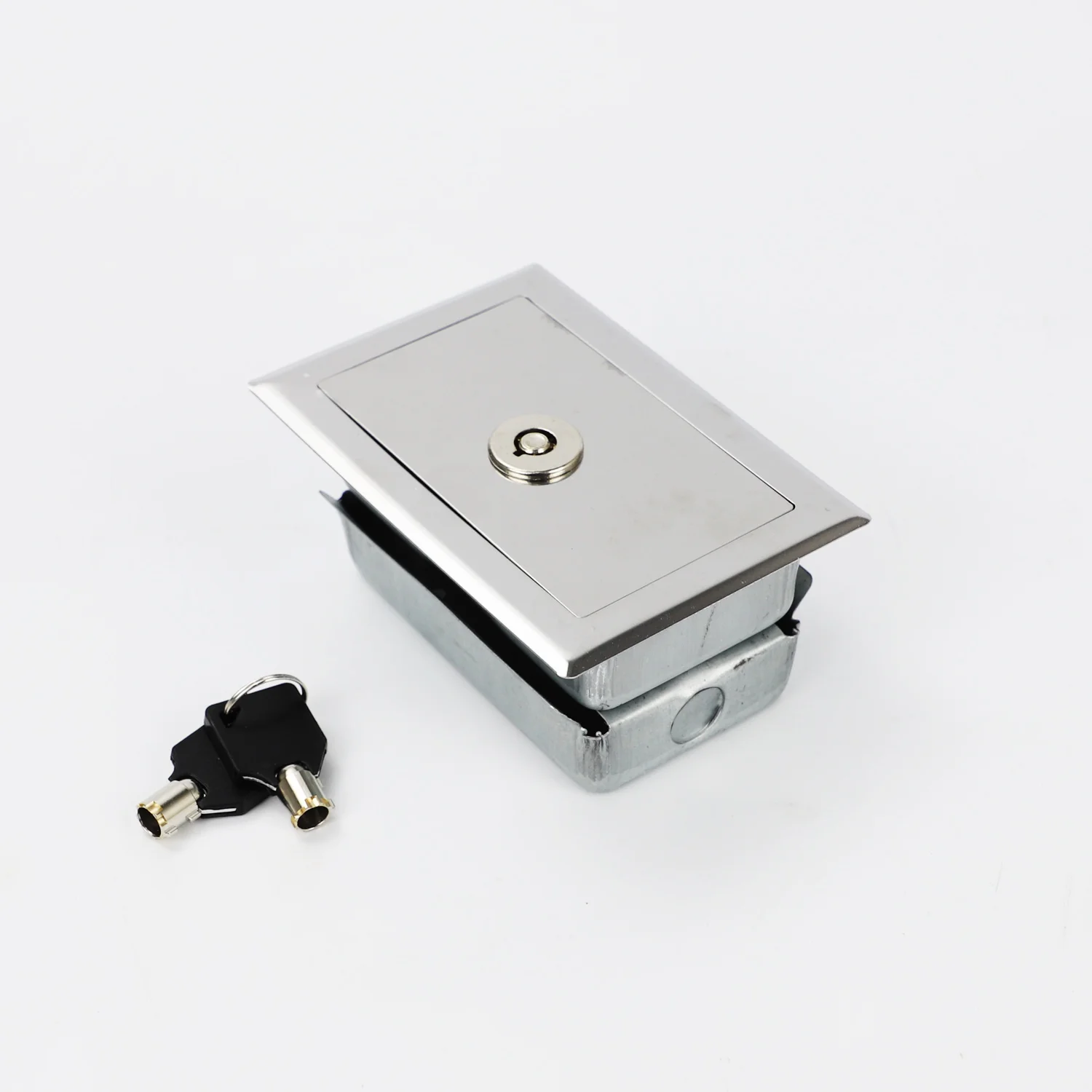

●The switch box has to be installed on the dry wall and placed at a high of over 1.5 meters high, this is to ensure that children cannot operate the wall switch and remote controller.
●The disabled and the people lacking of experience (including the children) are forbidden to operate the shutter door motors,unless they are guarded by someone can respons for their safety or reading the instructions carefully in advance.

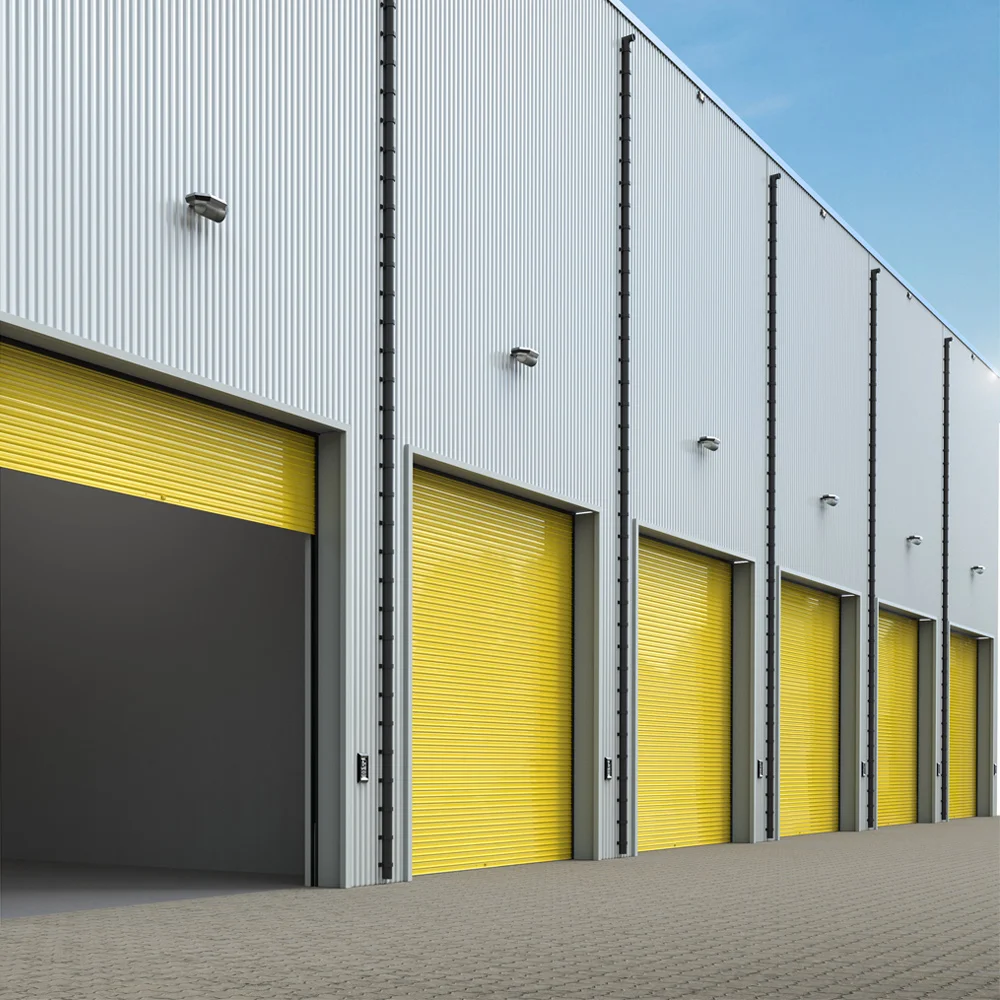

Application

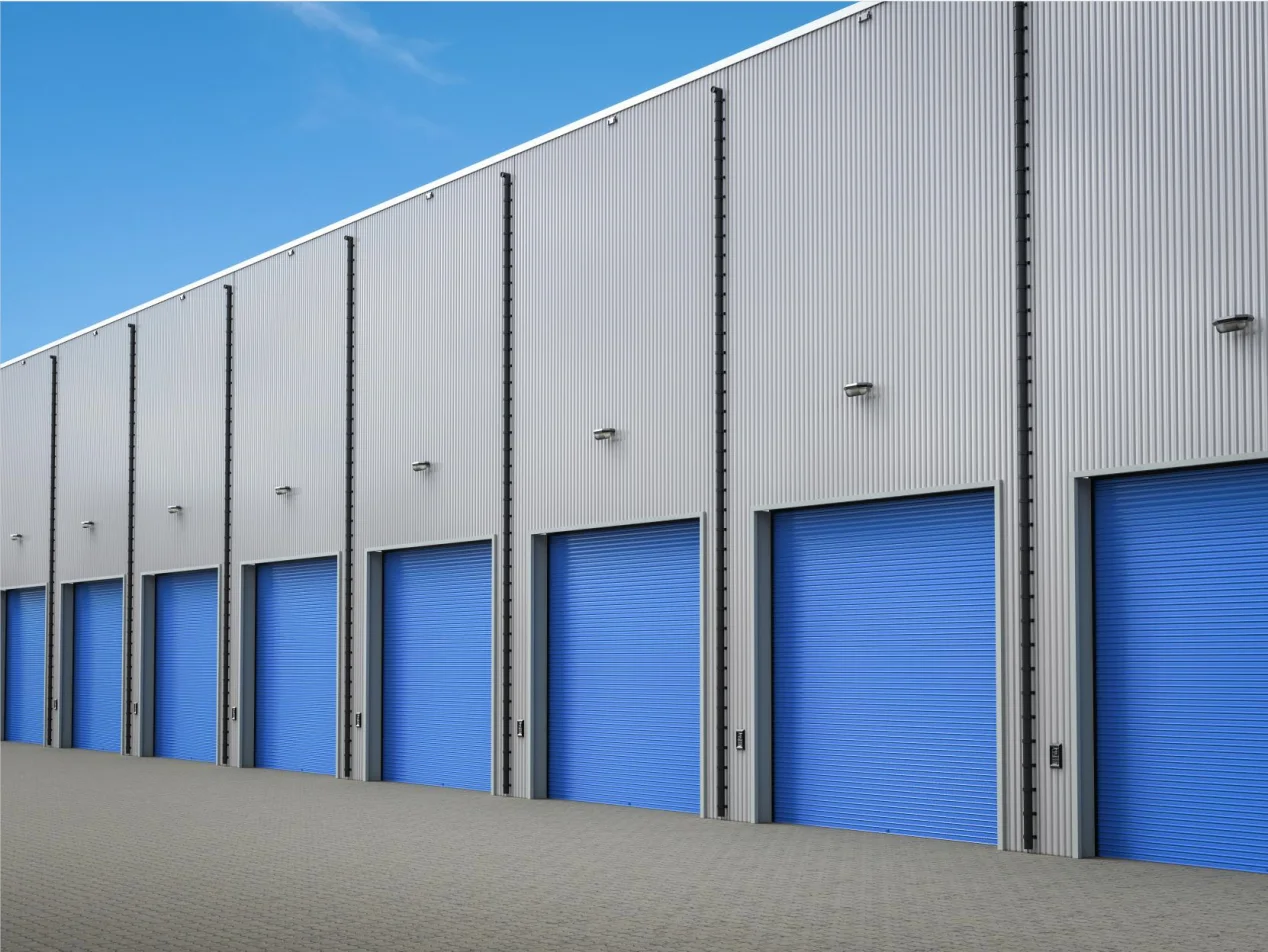

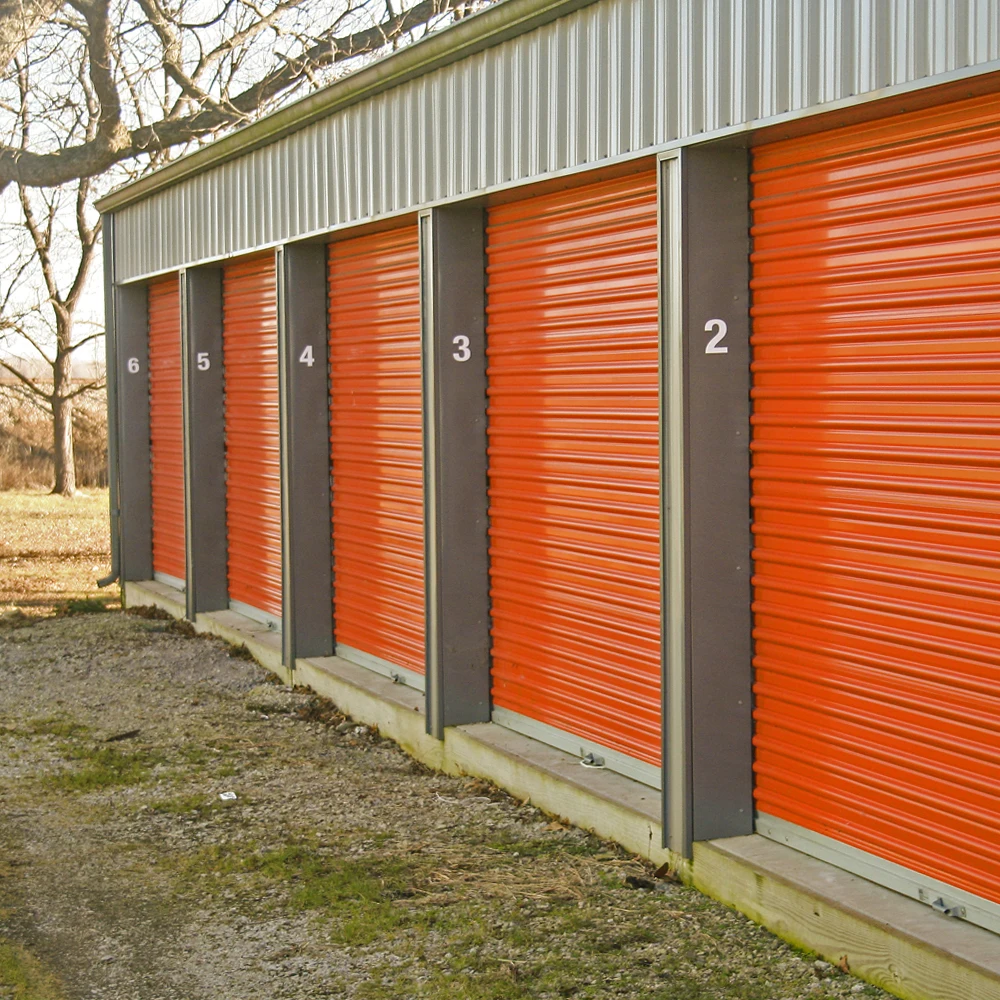

Our motors are applied to shopping centers, warehouse, garages, theaters, hotels, banks,factories and other buildings' rolling shutter doors' opening and closing with electric and manual function.
Company Profile
Aayee Tech Group
Our group was established in 2010 and is located near Hangzhou, Shanghai and Ningbo international ports. Easily traffic,perfect supply chain and sufficient spare parts support Aayee Technology to supply Stable quality and perfect service for you. In 2013 Aayee Technology specialized in sliding gate motors for 3 years, then we extend this business line to swing gate motors,DC24V motors. Now our business production includes sliding gate motors, swing gate opener ,rolling shutter motors, car barrier and solar motor export to all over the world.
Why Choose Us
We takes the “Quality Is Life” as production standard and principle, executing complete quality assurance system involving the whole process from R&D to manufacture, so our products have enjoyed a good reputation for high quality and low failure rate among our customers.
Sometimes, what they need is very simple–reliable quality, reasonable price, on-time delivery and good service,these are what we can supply.
Contact
FAQ
Usage Notice:
● The rolling gate machine is a short-time work system, and the continuous operation time should not exceed 7 minutes;

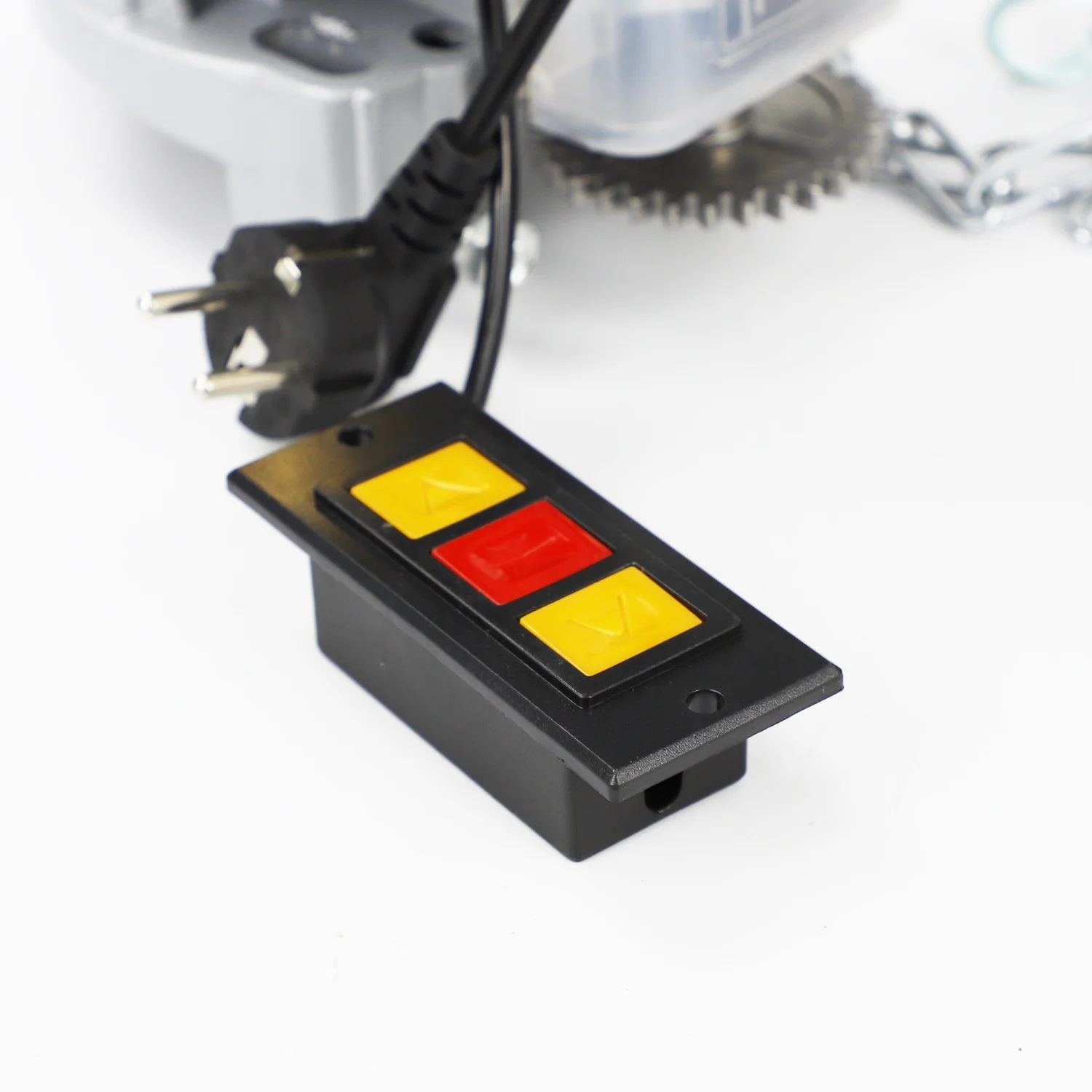

● The operation of the rolling door is controlled by the remote control or the "up", "down" and "stop" buttons on the remote control. When pressing the "up" and "down" keys, if there is no upward or downward movement, you must press the "stop" key to cut off the power immediately to avoid burning the motor;
● In the event of a power failure, use the hand zipper to raise the door curtain. It is strictly forbidden to exceed the set height to avoid damage to the limit switch and cause the top; to close the door curtain, you can gently pull the manual lever to make the door curtain drop at a uniform speed. When the door curtain is about to be fully closed, it should be released Pull the rod, and then pull it again to fully close to prevent damage to the limit switch;
● When there is a thunderstorm in the weather, disconnect the external power source as much as possible;
● When using the rolling door machine, the operator shall not leave the scene, and should immediately cut off the power supply if the abnormal situation is found, and then use it again after troubleshooting.
● The rolling gate machine is a short-time work system, and the continuous operation time should not exceed 7 minutes;
● The operation of the rolling door is controlled by the remote control or the "up", "down" and "stop" buttons on the remote control. When pressing the "up" and "down" keys, if there is no upward or downward movement, you must press the "stop" key to cut off the power immediately to avoid burning the motor;
● In the event of a power failure, use the hand zipper to raise the door curtain. It is strictly forbidden to exceed the set height to avoid damage to the limit switch and cause the top; to close the door curtain, you can gently pull the manual lever to make the door curtain drop at a uniform speed. When the door curtain is about to be fully closed, it should be released Pull the rod, and then pull it again to fully close to prevent damage to the limit switch;
● When there is a thunderstorm in the weather, disconnect the external power source as much as possible;
● When using the rolling door machine, the operator shall not leave the scene, and should immediately cut off the power supply if the abnormal situation is found, and then use it again after troubleshooting.
