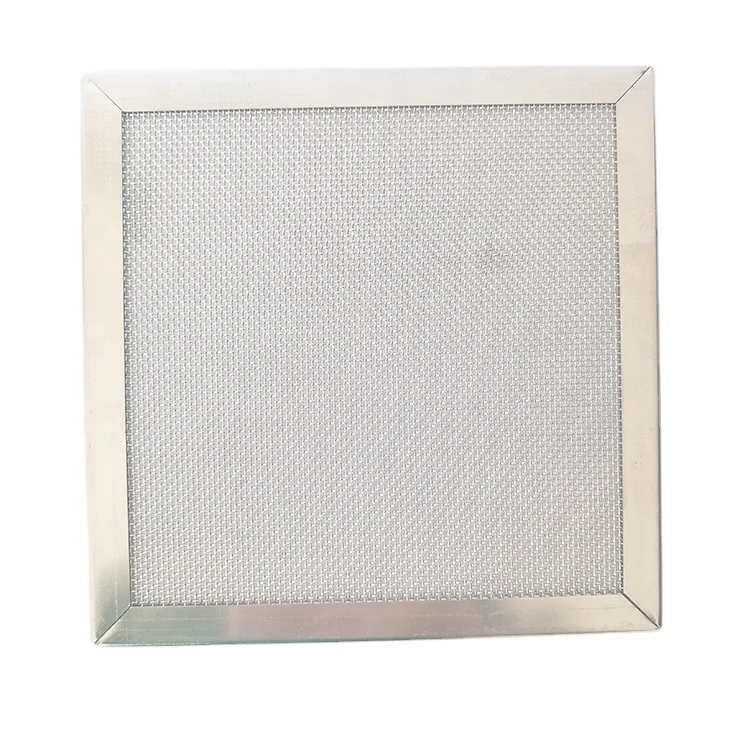

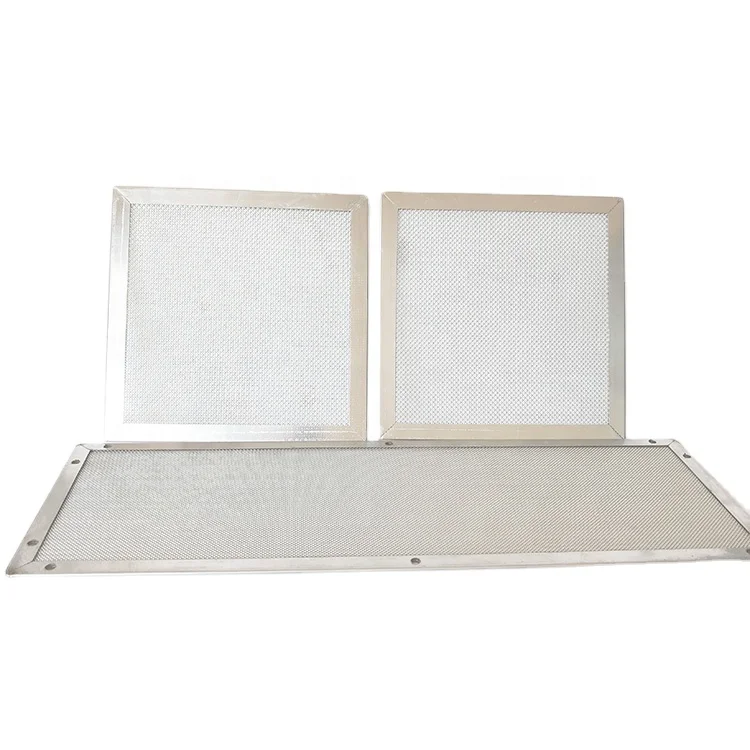

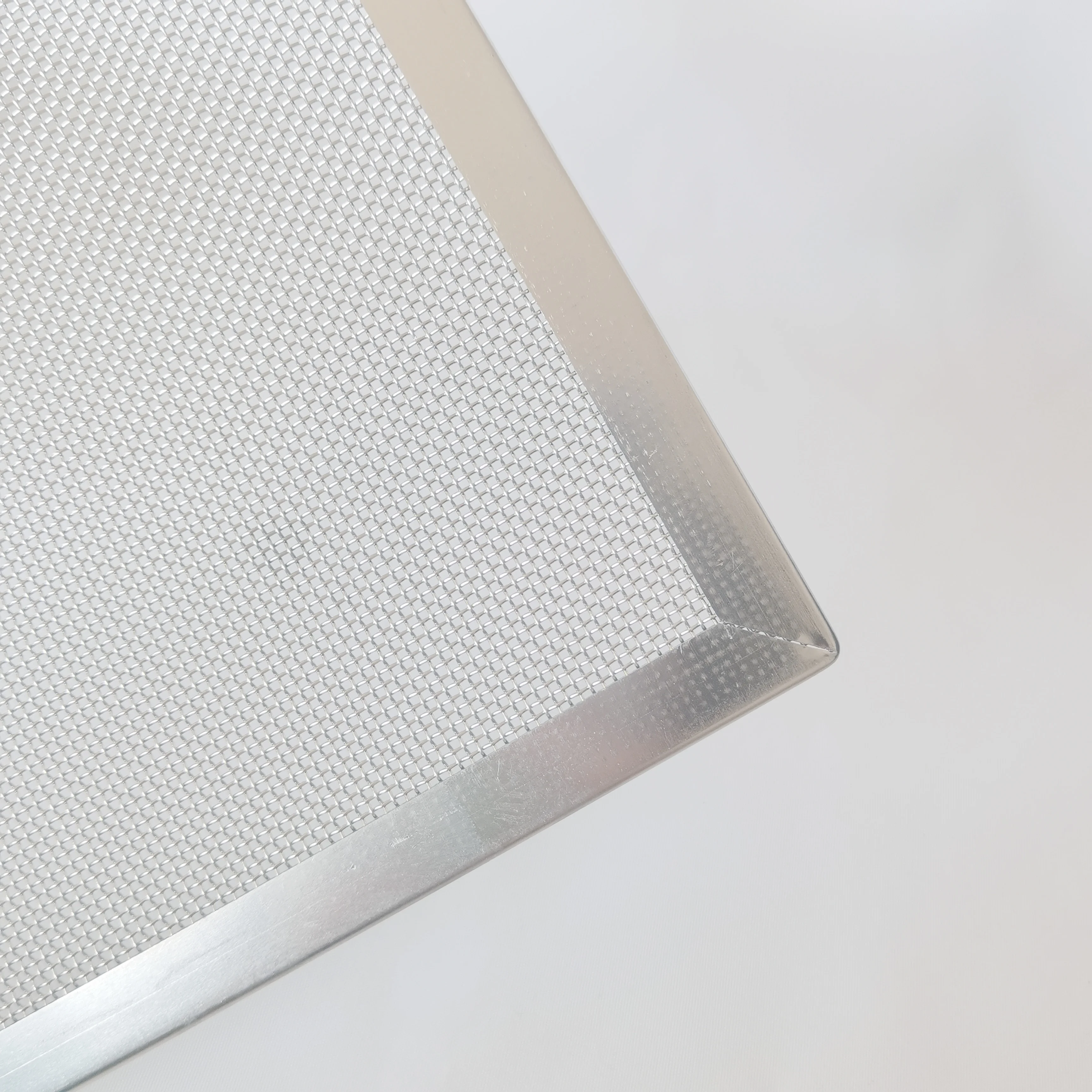

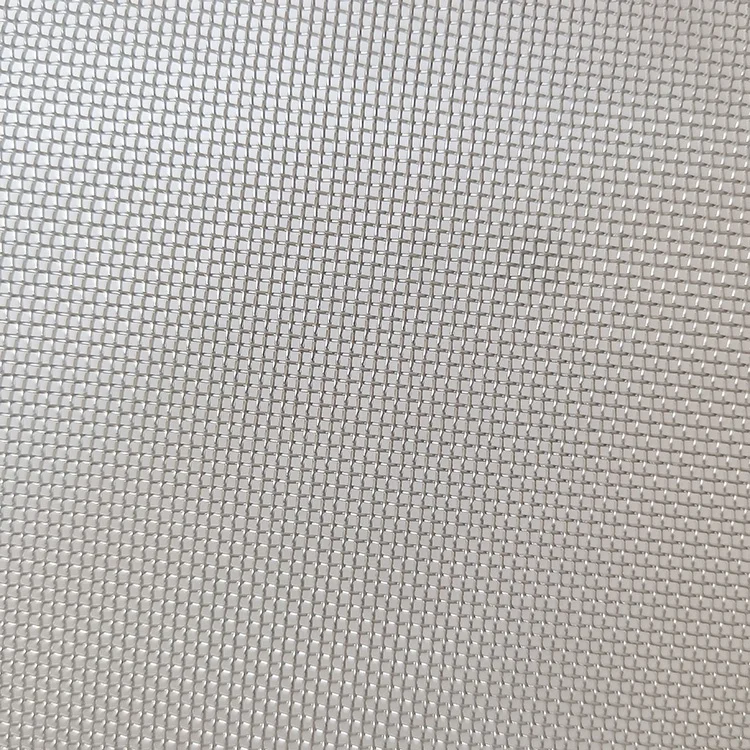

Factory custom 304 316l stainless steel square filter mesh multi layer edge air tank particle dust oil mist filter mesh
- Category: >>>
- Supplier: Anping Dingya Wire Mesh Products Co. Ltd.
Share on (1600517853587):
Product Overview
Description
Product Overview

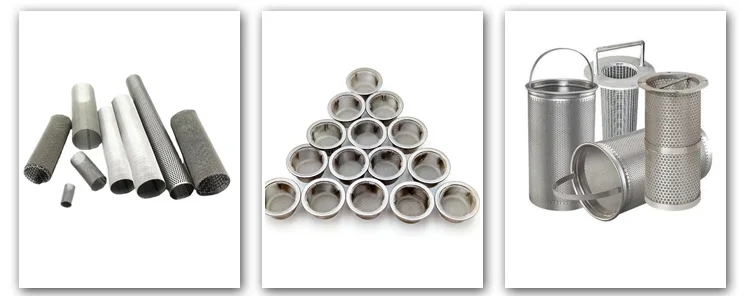

SIMILAR PRODUCTS
Filter tube
Filter cap
Basket strainer
PRODUCT SPECIFICATIONS

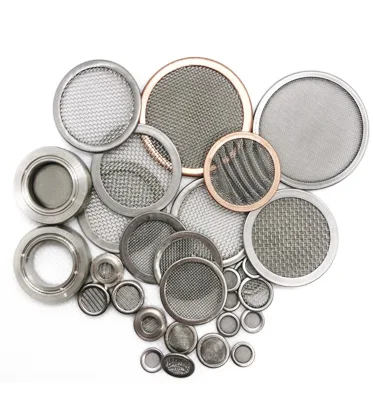

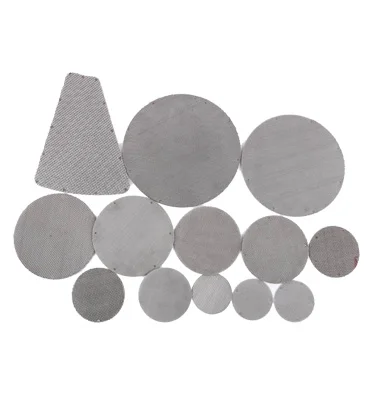

Filter disc has unbounded filter disc and edged filter disc.
The unbounded filter disc can be directly processed into the required shape by a punch
through a special mold.The edged filter disc is first processed into the required shape by
a special mold through a punch, and then hemmed with slats through the mold.The filter
disc is made of stainless steel mesh, black wire mesh, galvanized mesh and so on.
The unbounded filter disc can be directly processed into the required shape by a punch
through a special mold.The edged filter disc is first processed into the required shape by
a special mold through a punch, and then hemmed with slats through the mold.The filter
disc is made of stainless steel mesh, black wire mesh, galvanized mesh and so on.
Single-layer multi-layer screen Stainless steel spot-welded metal screen Washable and reusable disc filter

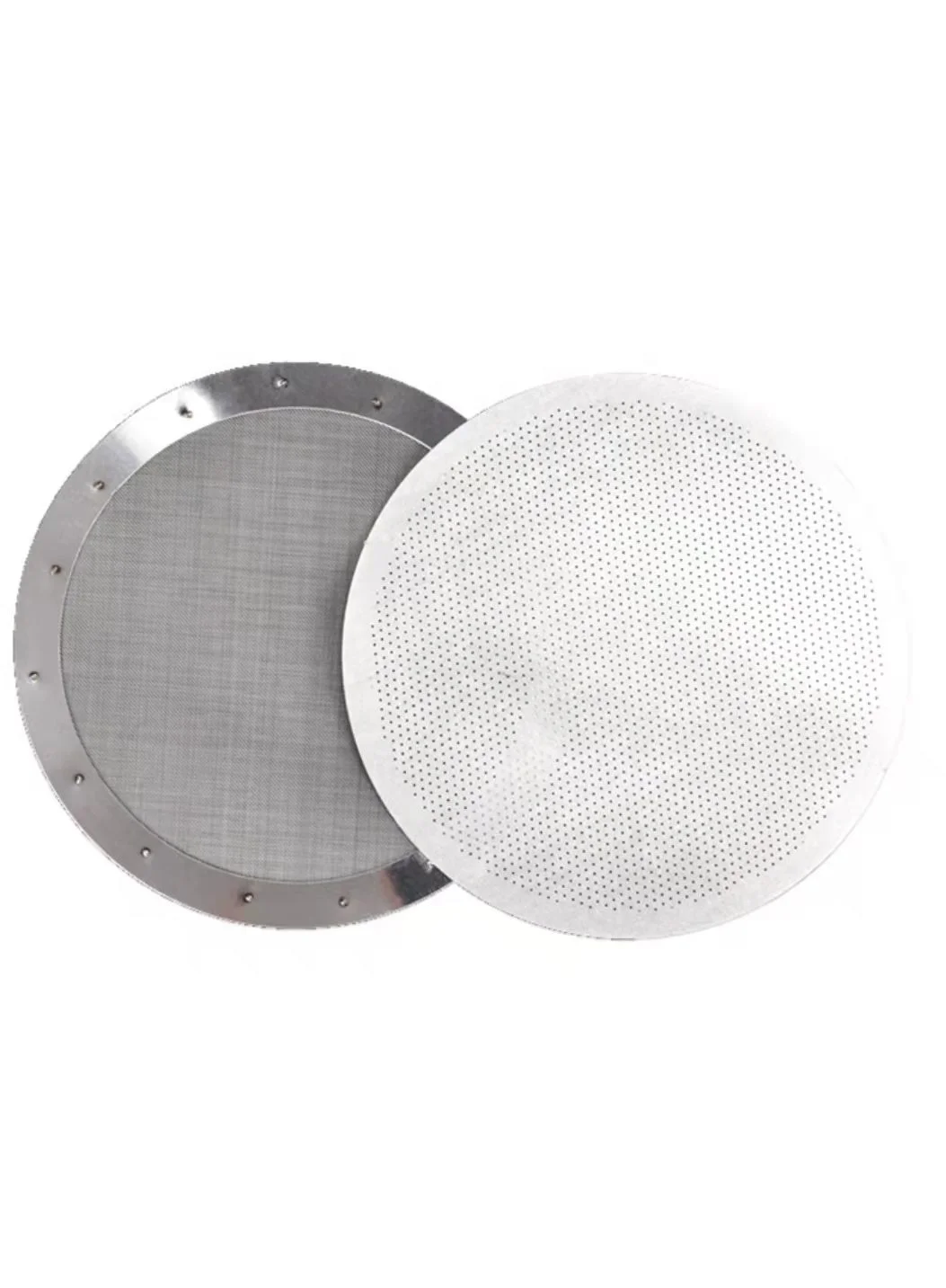

unbounded filter disc
edged filter disc
Product name | mesh filter disc | Data | |||||
Material | Monel wire and stainless steel AISI304, AISI316, AISI316L. | 37.5KW | |||||
Diameter | 10 mm to 3000 mm. | 2.8 M3 | |||||
Filter Rate | 2 microns to 300 microns. | 125Ton | |||||
Thickness | 1 mm to 5 mm. | 96kN | |||||
Heat resistance | -200 °c - 600 °c continuous filtration. | 96kN | |||||
Weaving method | plain weave mesh, herringbone mesh, mat mesh, twill mesh, ciphertext mesh | ||||||
Product use | plastic particle filter mesh, film blowing machine filter, blow molding machine filter mesh disc | ||||||
Details Images
20 mesh 0.27mm wire diameter.
30 mesh 0.15mm wire diameter
40 mesh 0.12mm wire diameter.
60 mesh 0.1mm wire diameter.
30 mesh 0.15mm wire diameter
100 mesh 0.08mm wire diameter
120 mesh 0.07mm wire diameter
150 mesh 0.06mm wire diameter
200 mesh 0.05mm wire diameter
Manufacturing Technique
1. RAW MATERIALS
2. STAMPING
3. TAKE SHAPE
Mining
Pharmaceutical industry
Chemical
Product packaging

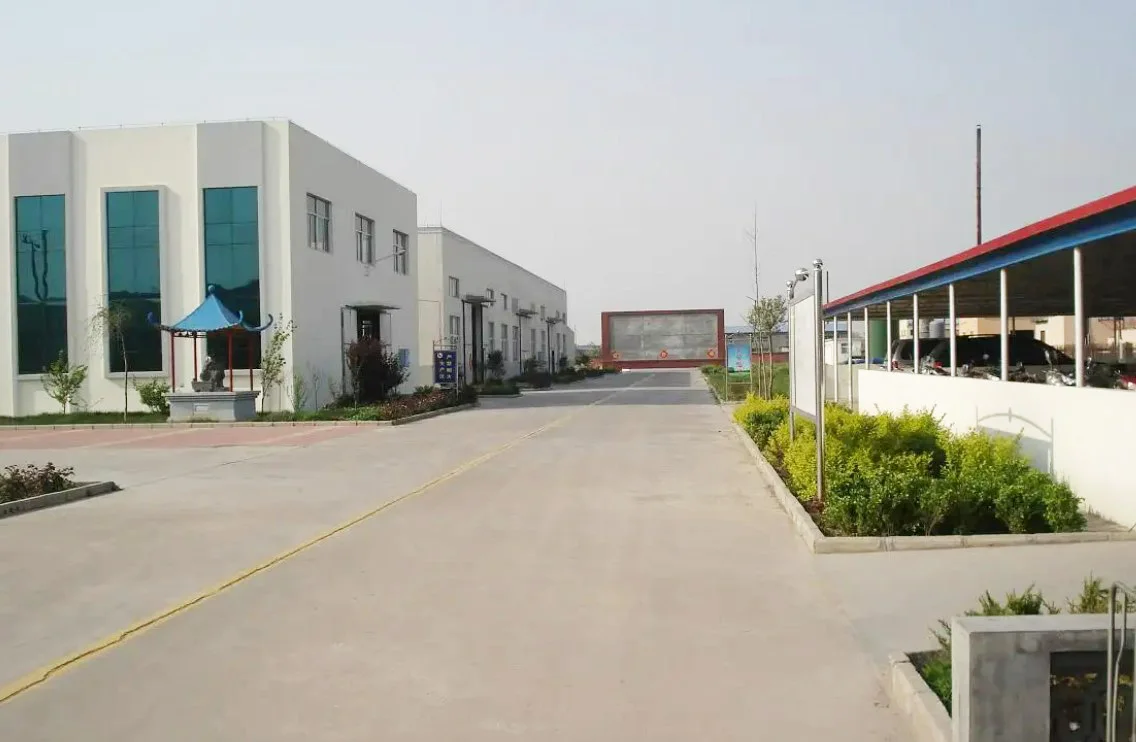

Company Profile
Dingya Wire Mesh Factory has been operating since 2006, specializing in the production of micro-woven wire stainless steel filters.
We bring together experienced professionals in aerospace and industrial filtration manufacturing to solve your engineering challenges with competitive pricing and on-time delivery.
The manufacturing process and testing of our filters are strictly controlled and our quality system is ISO9001 certified. Our professionals are ready to work for your company.
We bring together experienced professionals in aerospace and industrial filtration manufacturing to solve your engineering challenges with competitive pricing and on-time delivery.
The manufacturing process and testing of our filters are strictly controlled and our quality system is ISO9001 certified. Our professionals are ready to work for your company.
FAQ
Q1：What is a disc filter used for?
A1：A disc filter is a type of water filter used primarily in irrigation, similar to a screen filter, except that the filter cartridge
is made of a number of plastic discs stacked on top of each other like a pile of poker chips.
is made of a number of plastic discs stacked on top of each other like a pile of poker chips.
Q2：Which filter is best for drinking water?
A2：Reverse osmosis filters are top of the line for removing a large percentage of contaminants out of the water, potentially including dangerous waterborne bacteria. The filters work by pushing water through the reverse osmosis membrane using pressure.
Q3：What is the difference between screen filter and disc filter?
A3：Disc filters perform more efficiently than screen filters when it comes to algae, moss and other organic materials. Because of their design, disc filters are better equipped to filter out fine particles such as bacteria, sand, chemical sludge, and slime
Q4：How to ensure and control filters quality?
A4：Our advanced testing equipment and strict quality control standards make our filter housing and filter element conform to ISO9001
A4：Our advanced testing equipment and strict quality control standards make our filter housing and filter element conform to ISO9001
