12075 12mm audio 85db panel mounted ac 3V 5V 12V mini alarm passive continous acoustic components magnetic buzzer
- Category: >>>
- Supplier: Guangzhou Yueneng Technology Co. Ltd.
Share on (1600517869706):
Product Overview
Description
12mm audio 85db panel mounted ac 3V 5V 12V mini alarm passive continous magnetic buzzer
Product Name | 12mm 85db ac 3V 5V 12V mini alarm passive continous magnetic buzzer |
Type | Buzzer |
Rated Voltage | 3Vo-p;5Vo-p；12Vo-p； |
Operating Voltage | 2-4Vo-p；3-7Vo-p;9-12Vo-p； |
Operating Temperature | -20℃～+45℃ |
Storage Temperature | -25℃～+60℃ |
Rated Current | Max.80mA；Max.50mA；Max40mA； |
Sound Output at 10cm | Min. 80dB;Min. 85dB;Min. 85dB; |
Coil Resistance | 16Ω±4；42Ω±6；140Ω±14 |
Resonant Frequency | 2000±0.3Hz; |
Dimension | 13.5*φ12*H7.5（㎜） |
R o H S | Yes |

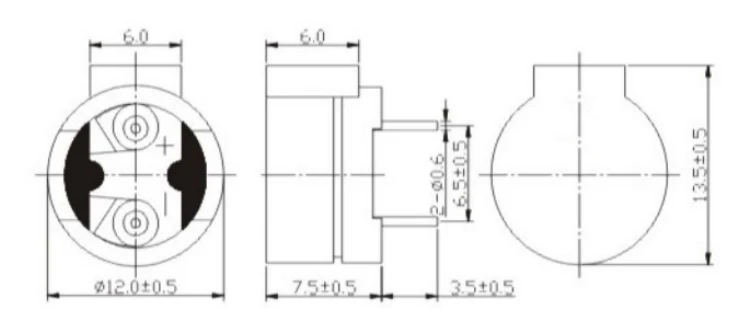

1. Magnetic Buzzer Dimensions

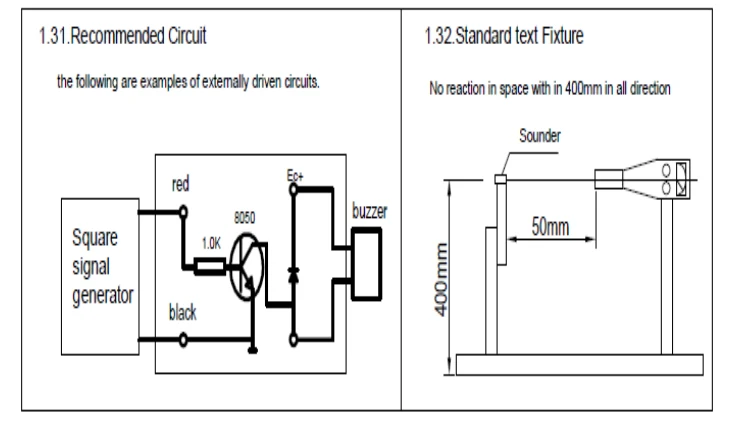

2. Magnetic Buzzer Test Circuit

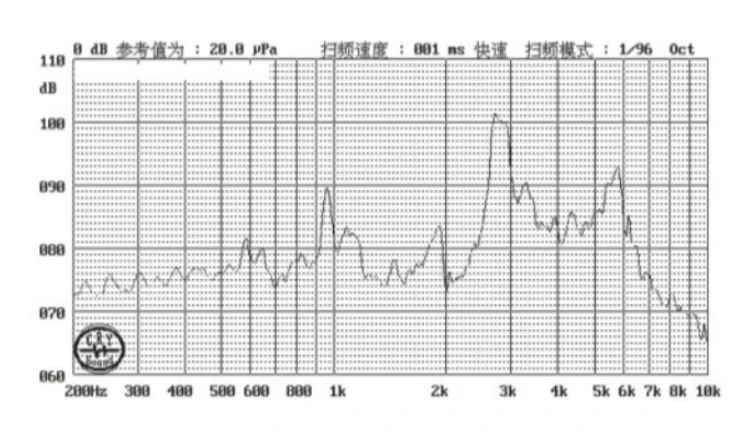

3. Magnetic Buzzer Frequency Response
4. Magnetic Buzzer Packing
Note:
1. In automated mounting of the SMD sound transducers on PCB, any bending, expanding and pulling forces or shocks against the SMD sound transducers shall be kept minimum to prevent them from electrical failures and mechanical damages of the devices.
2. In the reflow soldering, too high soldering temperatures and too large temperature Gradient such as rapid heating or cooling may cause electrical failures and mechanical damages of the devices.
