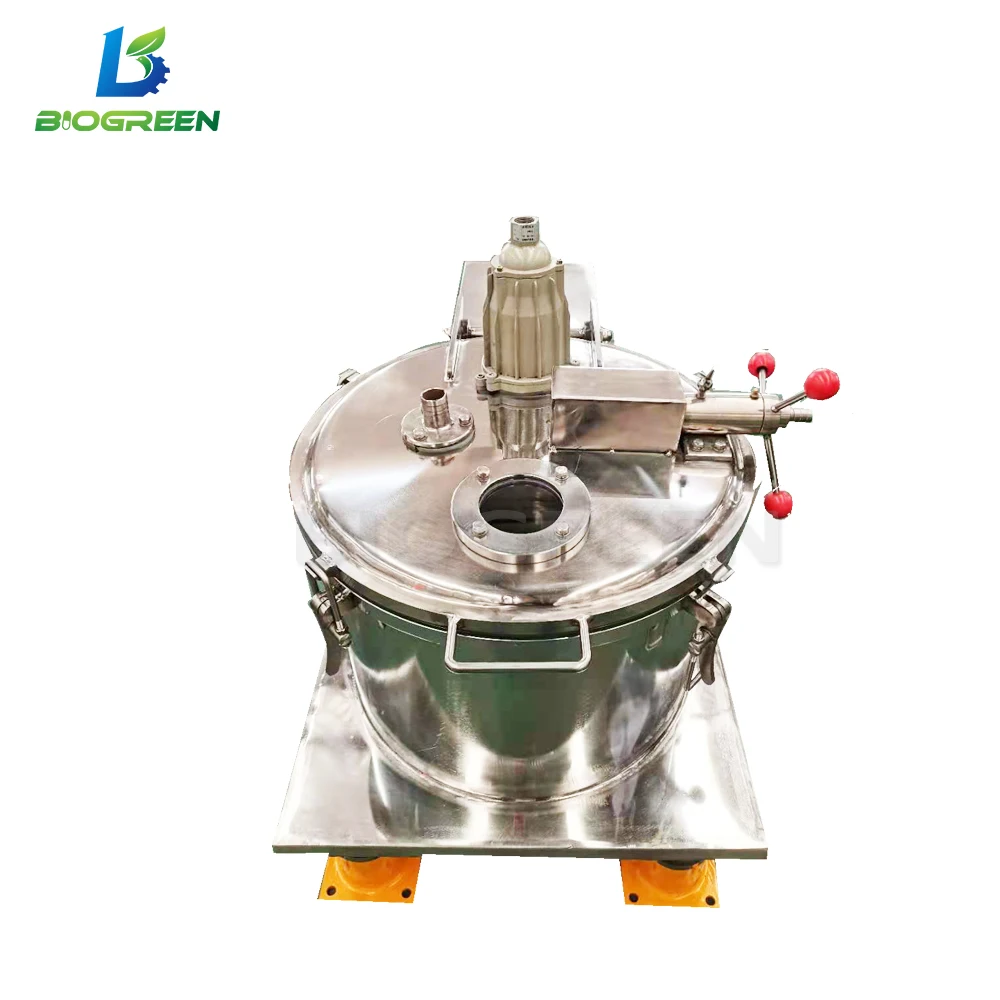

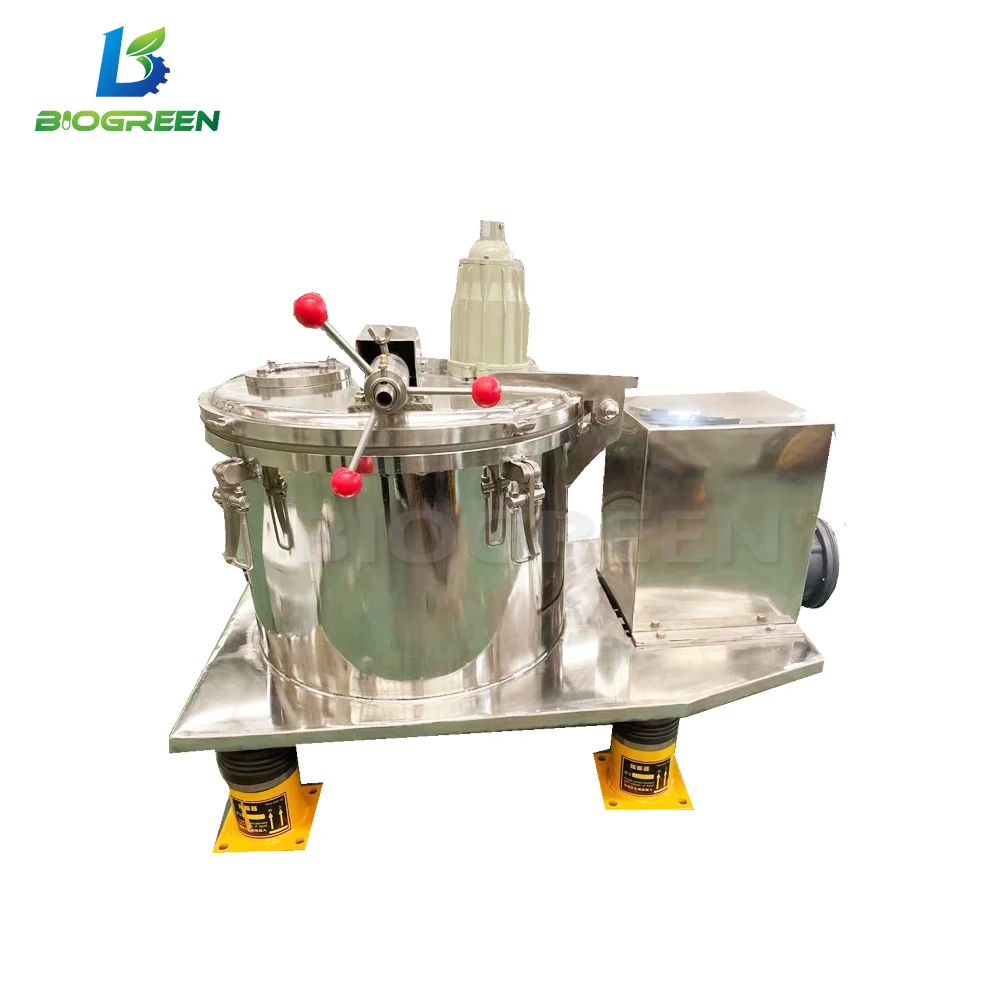

Industrial Plate Spinner Centrifuge Price
- Category: >>>
- Supplier: Wuxi Biogreen Pharma Technology Co. Ltd.
Share on (1600517875918):
Product Overview
Description
Product Parameter
The flat plate filter centrifuge provides the ability to extract and target botanical compounds from diverse plant
species. This unique extraction technology can isolate specific botanical compounds through programmable
sequences, effectively targeting the desired separation.
species. This unique extraction technology can isolate specific botanical compounds through programmable
sequences, effectively targeting the desired separation.
Equipment parameters:
Model | BDPC-300 | BDPC-350 | BDPC-450 | BDPC- 600 | BDPC-800 | BDPC-1000 | |||||
Capacity | 19L | 30L | 60L | 110L | 200L | 310L | |||||
Motor | 1.5kw | 1.5kw | 2.2kw | 4kw | 7.5kw | 11kw | |||||
Rotating Speed | 1200rpm | 1600 | 1000rpm | 900rpm | 780rpm | 700rpm | |||||
Separation factor | 240ω²r/g | 280ω²r/g | 250ω²r/g | 270ω²r/g | 270ω²r/g | 270ω²r/g | |||||
Voltage | Single or three phase 220V 60Hz | 1800 | 3650 | 3000 | 2-25 | 15-22 | |||||
Size(mm) | 860x500x700 | 930x550x700 | 950x650x750 | 1350x850x800 | 1650x1050x850 | 1900x1250x950 | |||||
Weight | 200kg | 300kg | 480 | 680 | 800 | 1200 | |||||

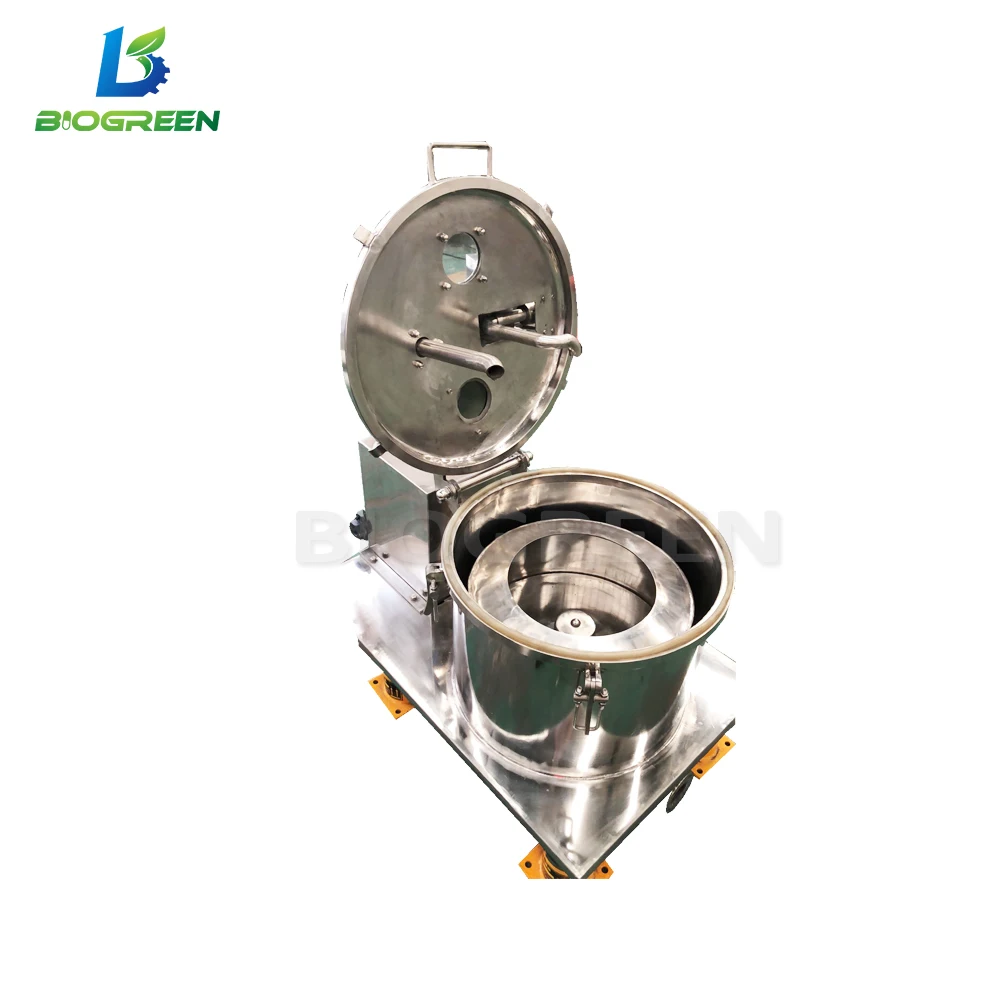

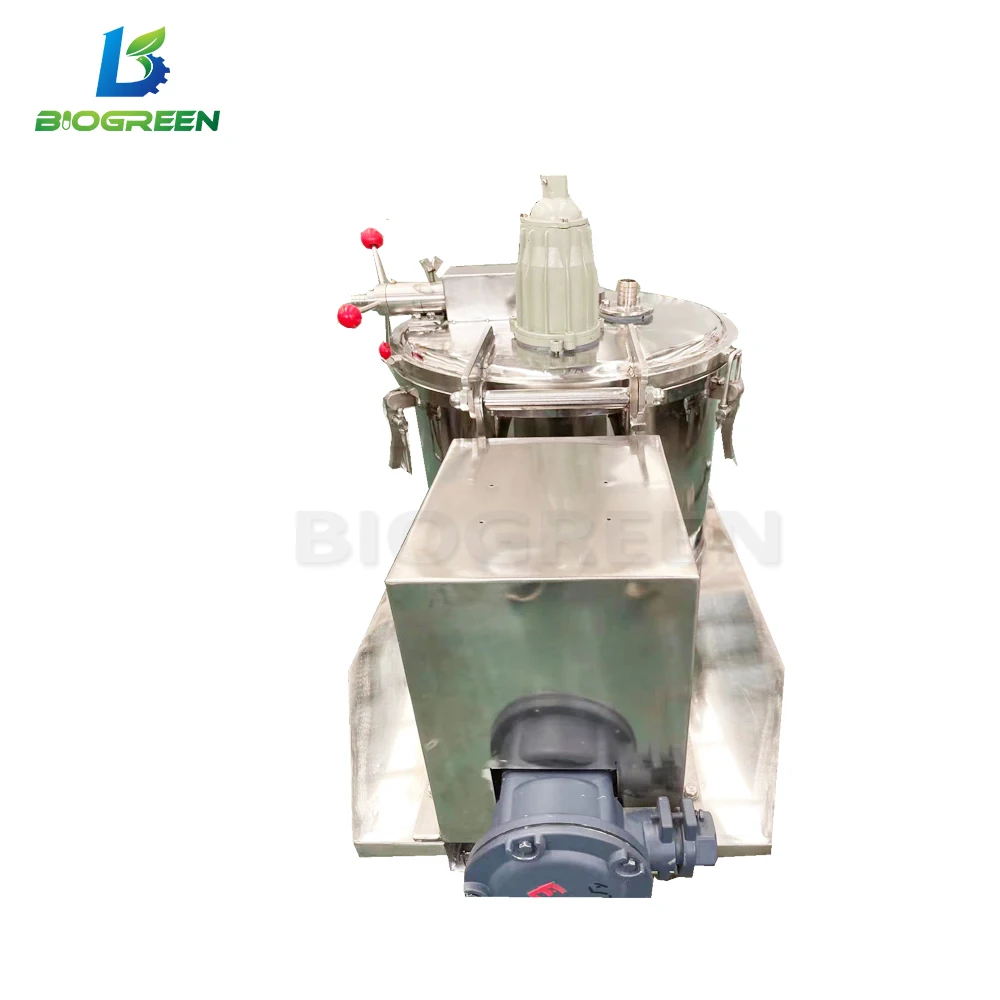

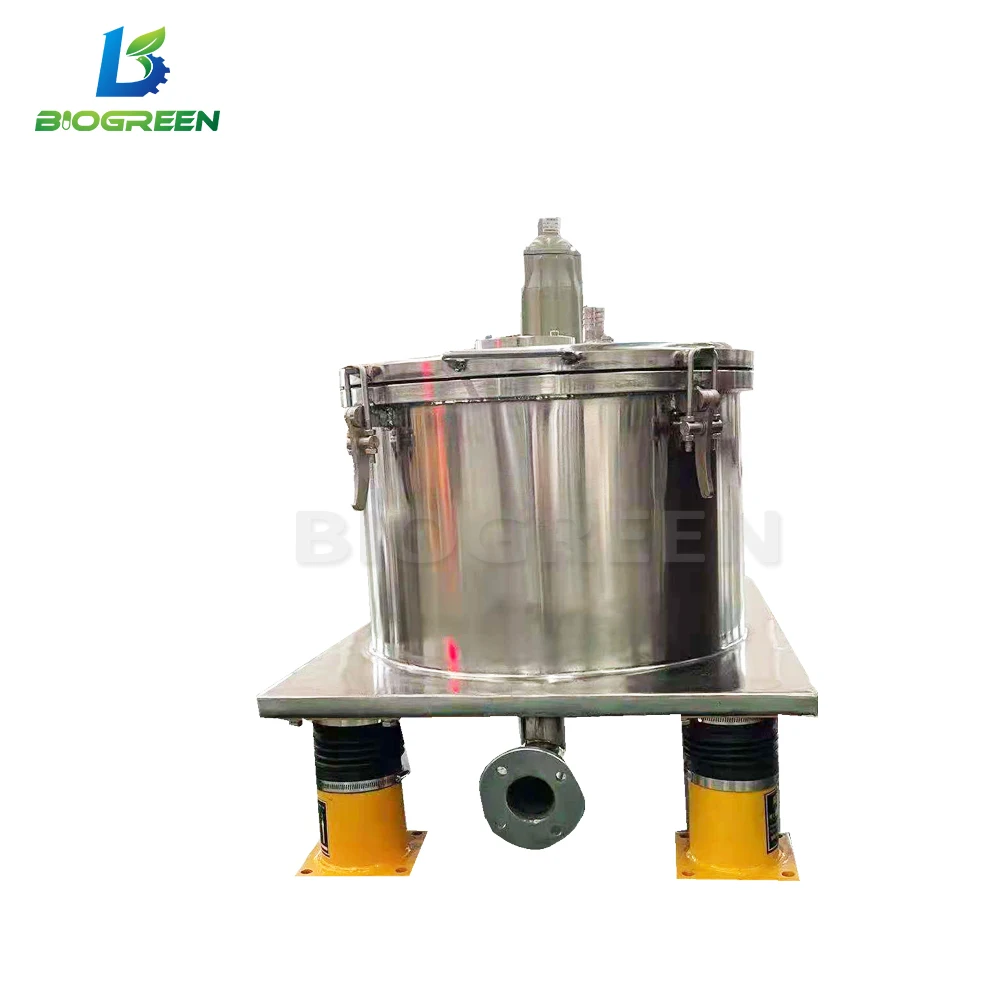

Industrial production centrifuge:

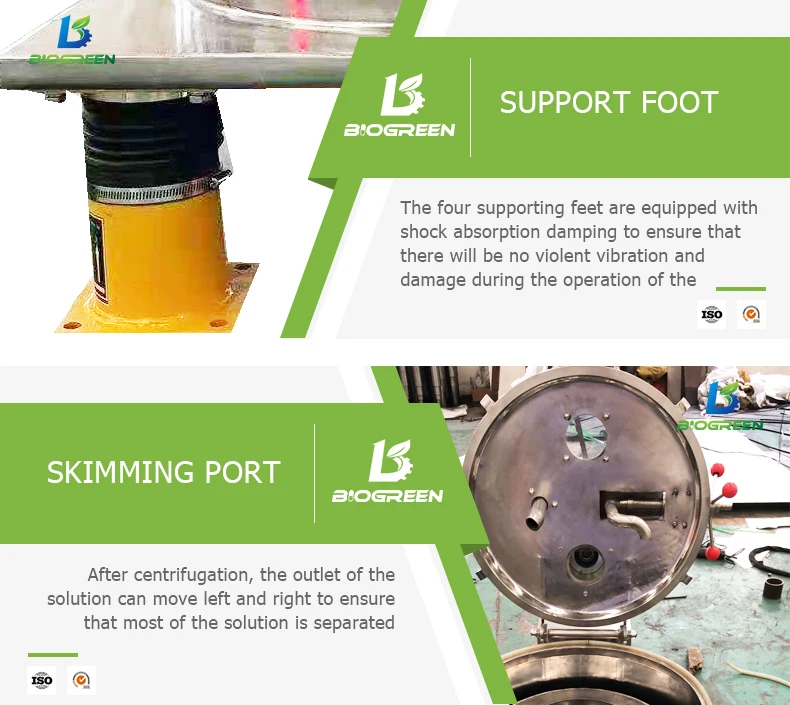

It cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp
vibration isolator without base install. Inverter controls the motor, it connects directly with the bowl through the
motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then
the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid
penetrates the solid and the filter screen gap, then it is tossed to the main case space, and discharged from the
bottom liquid outlet, the solid material will hold back in the filter bag on the bowl. After machine shut down, the
solid material will be discharged by special lifting device.
It cancelled traditional suspension support leg, and adopts flat plate balance weight and high viscosity damp
vibration isolator without base install. Inverter controls the motor, it connects directly with the bowl through the
motor spindle, which makes the bowl rotating at high speed around itself axis to form centrifugal force field, then
the centrifugal force pushes the material equispaced on the bowl to separate the solid and the liquid. The liquid
penetrates the solid and the filter screen gap, then it is tossed to the main case space, and discharged from the
bottom liquid outlet, the solid material will hold back in the filter bag on the bowl. After machine shut down, the
solid material will be discharged by special lifting device.

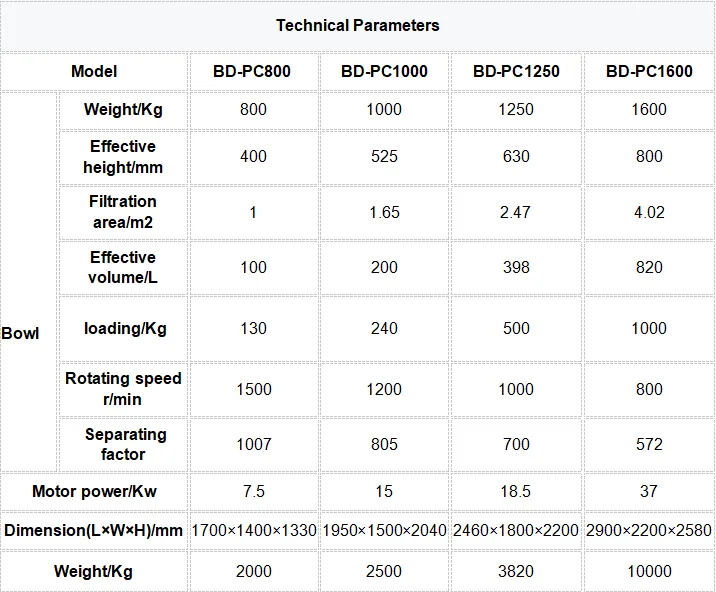

Equipment parameters:
Main Features:
1.Inverter control, stable starting, the separating factor can be regulated.
2.Fast type lifting and discharging with convenient operation reduce labor work, increase working efficiency.
3.Closed structure, sealing parts are made of silicon rubber or fluororubber, achieve the purpose of closed explosion
proof, suitable for the poisonous, inflammable, and explosive places.
4. Equipped with cleaning spray system, can achieve CIP for centrifuge, clean the external shell and internal wall,
external and internal surface of bowl, surface of liquid collector and any other places which difficult to be cleaned,
make the environment condition to meet GMP requirement.
5.Universal property is great, widely used, the crystal is difficult to be damaged.
2.Fast type lifting and discharging with convenient operation reduce labor work, increase working efficiency.
3.Closed structure, sealing parts are made of silicon rubber or fluororubber, achieve the purpose of closed explosion
proof, suitable for the poisonous, inflammable, and explosive places.
4. Equipped with cleaning spray system, can achieve CIP for centrifuge, clean the external shell and internal wall,
external and internal surface of bowl, surface of liquid collector and any other places which difficult to be cleaned,
make the environment condition to meet GMP requirement.
5.Universal property is great, widely used, the crystal is difficult to be damaged.
Options:
1.CIP.
2.Vibration protection device.
3.N2 protection system, online oxygen content determination.
4.Cover open protection device.
5.Contact type and non-contact type material layers controller.
6.Outlet liquid sealing device.
7.PLC control.
8.For anti-corrosive purpose, different raw materials would be equipped with different materials of construction:
SUS304, 321, 316, 316L stainless steel, titanium, Hastelloy, the surface which contact with raw material could
be lined with rubber, plastic(PE), teflon(F4), Halar, and etc.
9.Pneumatic, electrical assistant cover open.
10.Others: lifting arm, etc.
2.Vibration protection device.
3.N2 protection system, online oxygen content determination.
4.Cover open protection device.
5.Contact type and non-contact type material layers controller.
6.Outlet liquid sealing device.
7.PLC control.
8.For anti-corrosive purpose, different raw materials would be equipped with different materials of construction:
SUS304, 321, 316, 316L stainless steel, titanium, Hastelloy, the surface which contact with raw material could
be lined with rubber, plastic(PE), teflon(F4), Halar, and etc.
9.Pneumatic, electrical assistant cover open.
10.Others: lifting arm, etc.

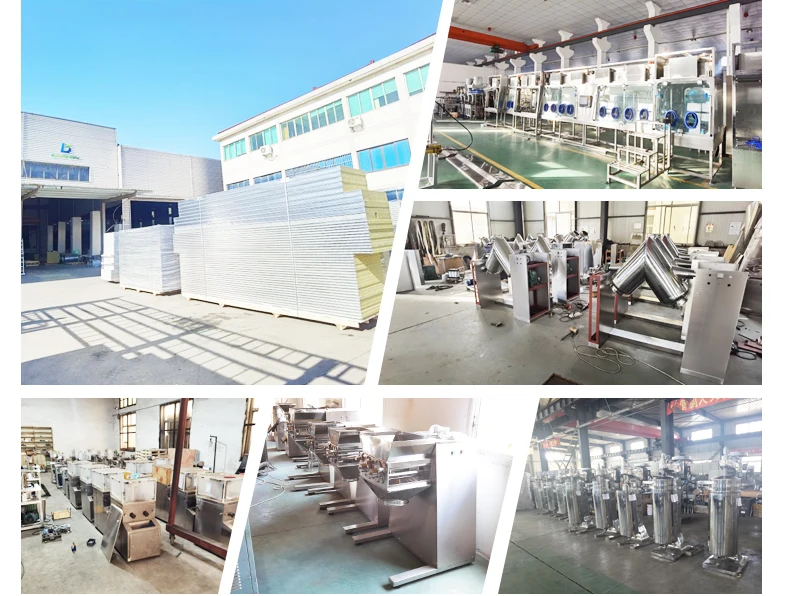

Our Company
