Professional Woodworking Machinery Diy 1325 Cnc Router Manufacturer
- Category: >>>
- Supplier: Guangdong Super Intelligent Equipment Co. Ltd.
Share on (1600517880736):
Product Overview
Description
Products Description
PRODUCT FEATURES
1. Adopt industrial heavy-duty seamless welded structures design, identify the deformation of welded structures by finite element analysis, also use low temperature annealing control, in order to ensure the best strength and rigidity.
2. Gantry moving design, Y-axis dual motors with precision grinding helical gear transmission to ensure the accuracy of the machine.
3.Equipped with two pieces high power 6KW air cooling spindle, speed 18000rmp / min, can make machine working with high efficiency, long service time and stable movement.
4. Configuration with original TAIWAN DELTA servo system, powerful transmission, more faster.
6. Removable rotary axis, to ensure the real flat working area up to 1300x2500mm, and easier to load and unload to container. It can not only meet the processing of flat workpieces, but also the processing of cylindrical workpieces.
7. Standard configuration with matrix vacuum table, great bearing capacity, strong adsorption.
8. Independent controlling cabinet, isolate heavy-current and weak-current, simple maintenance.
Product Parameters
NO. | DESCRIPTION | |||||
1 | Working area (XY) | 1300x2500mm | ||||
2 | Z travel height | 200mm, double Z axis with coupling | ||||
3 | Rotary axis | Rotary dia-200mm, length 2500mm | ||||
4 | Spindle power | 2PCS 6KW air cooling spindle | ||||
5 | NO. of revolution | 18000rpm/min | ||||
6 | Guide | Original Taiwan HIWIN guiding rail | ||||
7 | Motor | Taiwan DELTA servo motors and drives | ||||
8 | Positioning accuracy | ±0.03/300mm | ||||
9 | Repositioning accuracy | 0.03mm | ||||
10 | Controller | CNCSUPER 4 axis control system | ||||
11 | Reducer | Japan SHIMPO reducer | ||||
12 | Software compatibility | TYPE 3 or ARTCAM | ||||
13 | Table | 5 zones vacuum table | ||||
14 | Vacuum pump | 5.5KW air vacuum pump | ||||
15 | Lubrication | Self-lubrication system | ||||
16 | Max. speed | 35000mm/min | ||||
17 | Max. working speed | 20000mm/min | ||||
18 | Command | G Code, *u00, *mmg, *plt | ||||
19 | Diameter of cutter | 3.175-12.7mm | ||||
20 | Working voltage | AC380V, 3PH/50HZ | ||||
21 | Lathe structure | Seamless welded steel structure | ||||
22 | Weight | 2200KG | ||||

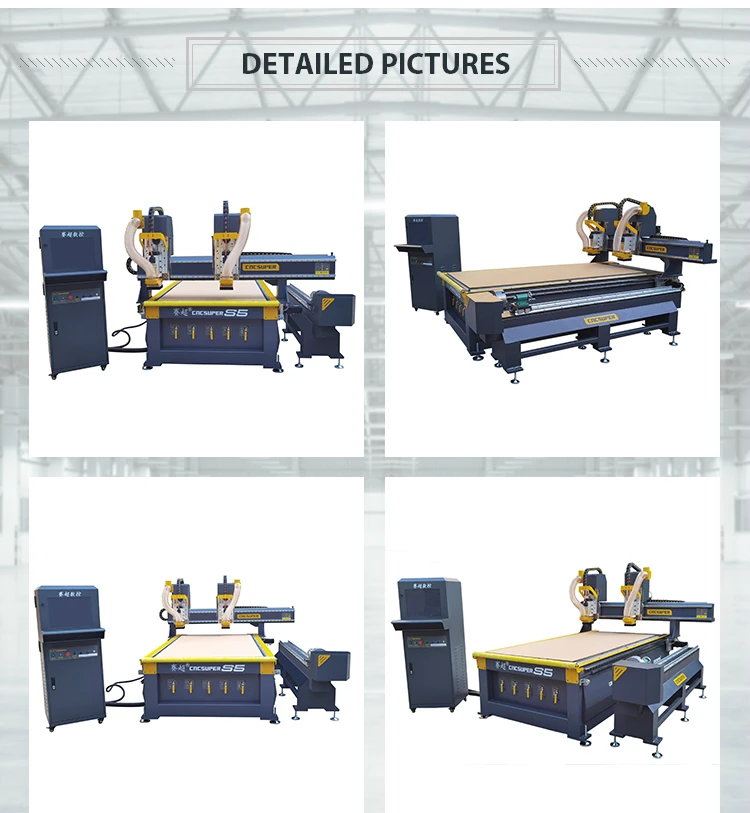

Product Details
