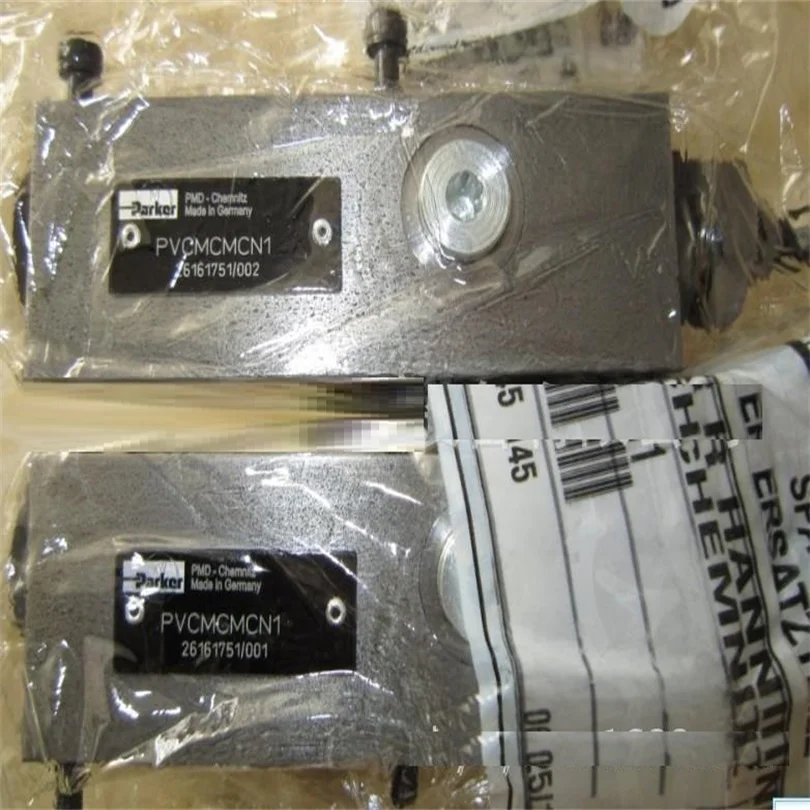

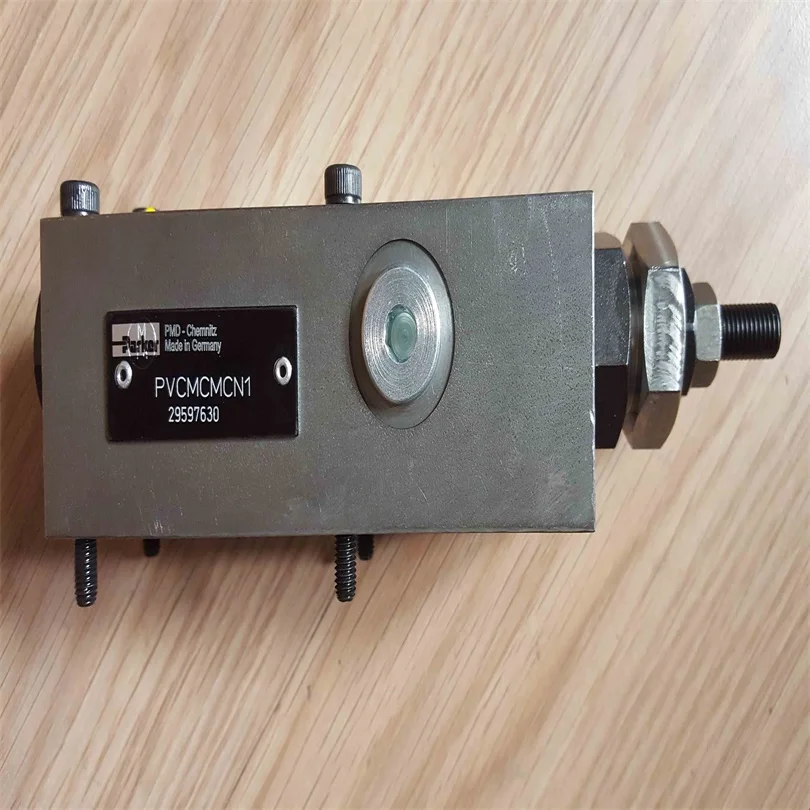

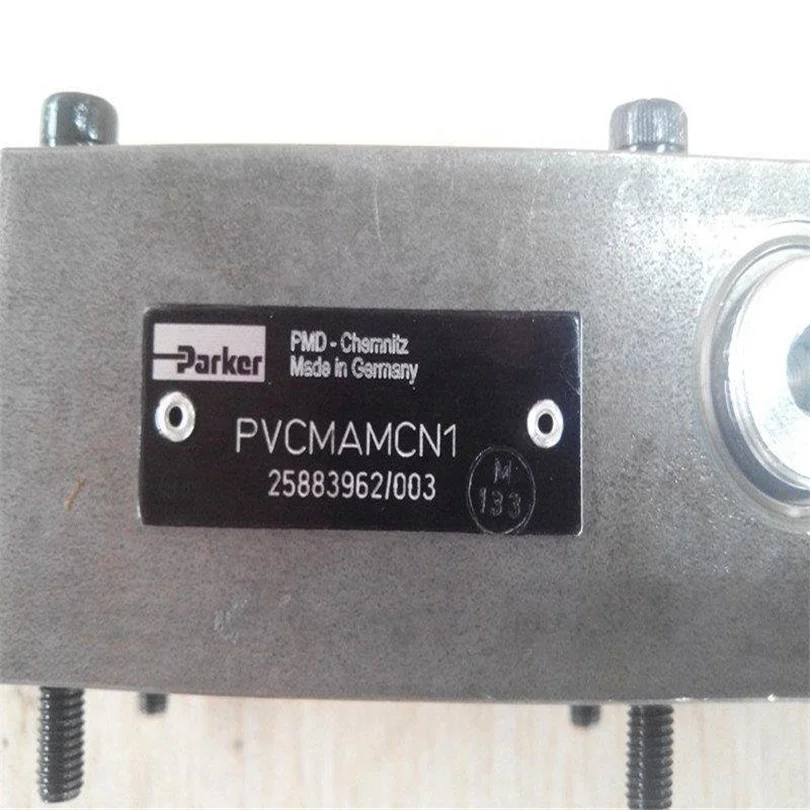

PVCMCMCN1 Flow control valve hydraulic water level control valve
- Category: >>>
- Supplier: Youwen Hydraulic Technology (shanghai) Co. Ltd.
Share on (1600517892596):
Product Overview
Description
Products Description
Product name | Control valve |
Weight | 2kg |
Features
Features
WEIGHT:2KG
Spare part kits, compensators,
design series 45, PV series
Sheet: PVCM-MC
For Parker-internal use only
PVCM compensator for PV series 45 and higher
A for frame sizes BG1 and BG2, PV016 - PV046, PV076
C for frame size BG3, PV063, PV080 - PV092
E for frame sizes BG4 and BG5, PV140 - PV270
MC standard pressure compensator
N seals NBR
V seals FKM
1 metric screws
3 UNC screws
includes:
pos. qty item number description remark
101 1 cover plug 7/8-20 UNEF, SW 27
103 1 o-ring 3-910-N552-90; 19,18 x 2,46 seals NBR
103 (1) o-ring 3-910-V747-75; 19,18 x 2,46 seals FKM
104 1 PS 14 X 20 X 1,2 DIN 988 ST
105 1 control spool R compensator
106 1 control sleeve standard PV016 - PV092
106 (1) control sleeve high flow PV140 - PV270
107 1 spring washer
108 1 valve spring 1, PV compensator, series 45
109 1 body PV comp., series 45
111 4 o-ring 2-012-N552-90; 9,25 x 1,78 seals NBR
111 (4) o-ring 2-012-V747-75; 9,25 x 1,78 seals FKM
114 1 pressure pilot cartridge for PV comp., series 45, NBR seals NBR
114 (1) pressure pilot cartridge for PV comp., series 45, FKM seals FKM
116 1 name plate
117 2 rivet 1,9 x 3,2
119 4 hex. head cap screw M 5 x 50 DIN 912, 12.9, SW 4 threads 1 and 8
119 (4) hex. head cap screw Nr. 10-24 UNC x 2" threads 3 and 7
120 1 orifice Ø 0,6; M5 x 6; internal hex. SW 2,5 PV016 - PV046, PV076
120 (1) orifice Ø 1,0; M5 x 6; internal hex. SW 2,5 PV063, PV080 - PV092
120 (1) orifice Ø 1,2; M5 x 6; internal hex. SW 2,5 PV140 - PV270
121 1 orifice Ø 0,8; M4 x 5; internal hex. SW 2
standard pressure compensator, code ...MMC
ordering code for replacement compensator:
page 3 of 45 11.08.2010
WEIGHT:2KG
Spare part kits, compensators,
design series 45, PV series
Sheet: PVCM-MC
For Parker-internal use only
PVCM compensator for PV series 45 and higher
A for frame sizes BG1 and BG2, PV016 - PV046, PV076
C for frame size BG3, PV063, PV080 - PV092
E for frame sizes BG4 and BG5, PV140 - PV270
MC standard pressure compensator
N seals NBR
V seals FKM
1 metric screws
3 UNC screws
includes:
pos. qty item number description remark
101 1 cover plug 7/8-20 UNEF, SW 27
103 1 o-ring 3-910-N552-90; 19,18 x 2,46 seals NBR
103 (1) o-ring 3-910-V747-75; 19,18 x 2,46 seals FKM
104 1 PS 14 X 20 X 1,2 DIN 988 ST
105 1 control spool R compensator
106 1 control sleeve standard PV016 - PV092
106 (1) control sleeve high flow PV140 - PV270
107 1 spring washer
108 1 valve spring 1, PV compensator, series 45
109 1 body PV comp., series 45
111 4 o-ring 2-012-N552-90; 9,25 x 1,78 seals NBR
111 (4) o-ring 2-012-V747-75; 9,25 x 1,78 seals FKM
114 1 pressure pilot cartridge for PV comp., series 45, NBR seals NBR
114 (1) pressure pilot cartridge for PV comp., series 45, FKM seals FKM
116 1 name plate
117 2 rivet 1,9 x 3,2
119 4 hex. head cap screw M 5 x 50 DIN 912, 12.9, SW 4 threads 1 and 8
119 (4) hex. head cap screw Nr. 10-24 UNC x 2" threads 3 and 7
120 1 orifice Ø 0,6; M5 x 6; internal hex. SW 2,5 PV016 - PV046, PV076
120 (1) orifice Ø 1,0; M5 x 6; internal hex. SW 2,5 PV063, PV080 - PV092
120 (1) orifice Ø 1,2; M5 x 6; internal hex. SW 2,5 PV140 - PV270
121 1 orifice Ø 0,8; M4 x 5; internal hex. SW 2
standard pressure compensator, code ...MMC
ordering code for replacement compensator:
page 3 of 45 11.08.2010
