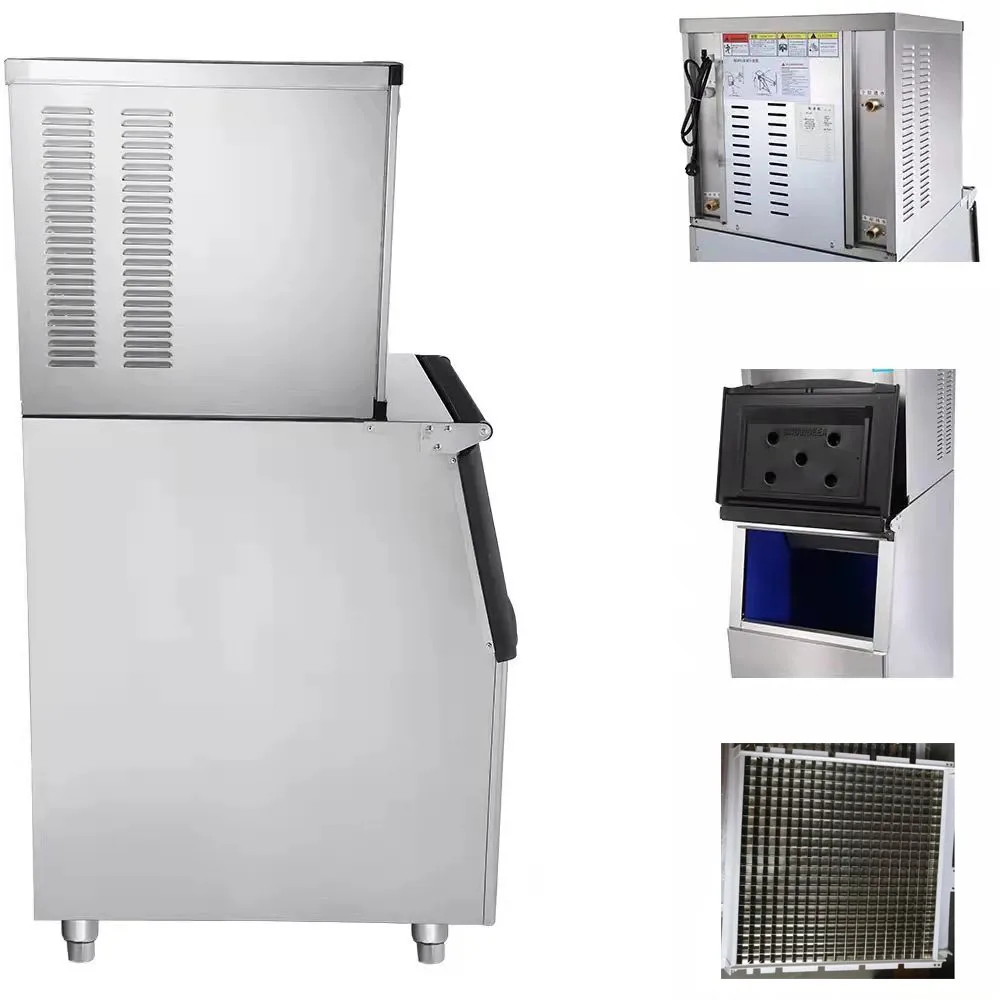

Commercial ice machine 500kg Ice Cube Maker For Sale Ice Plant Shop Bar Milk tea
- Category: >>>
- Supplier: Jiangsu Eternity Import & Export Co. Ltd.
Share on (1600517895735):
Product Overview
Description
Products Description

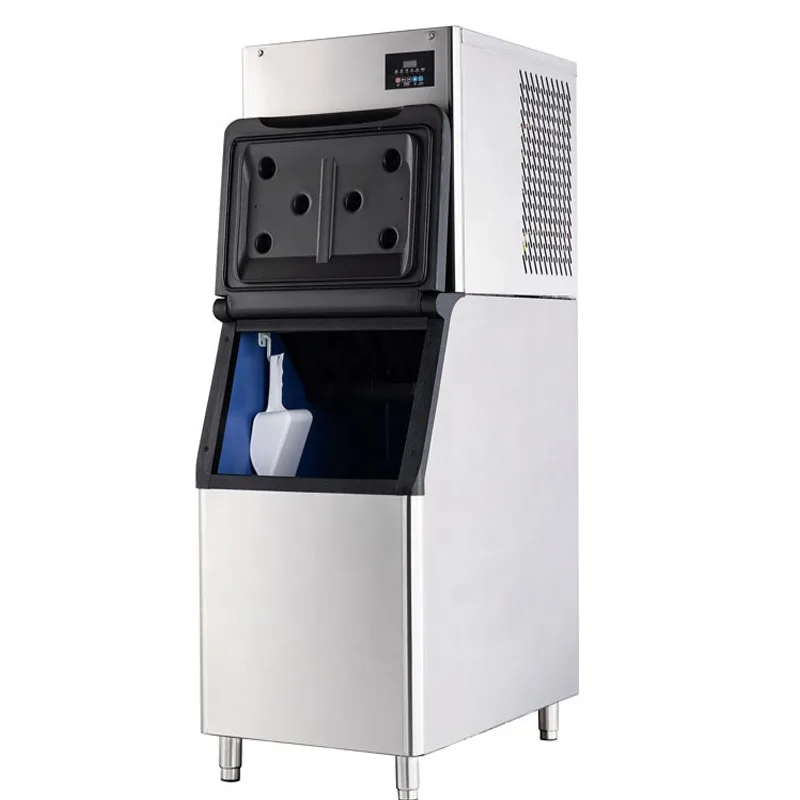

Model:ETD-C350
Ice Production: 158kg/24hIce Storage: 480kg
Input Power: 800W
Net Weight:150kg
Compressor:HIGHLY/COPELAND
Refrigerant: R404a/R22/R134a
Ice Size:
22*22*22mm or customized
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Features
1.The system is embedded in an automatic control panel, which can operate and monitor the equipment from the panel, and can directly view the fault code in the event of a fault-- Replace the mechanical ice thickness switch with time control, it is more convenient and intuitive to adjust the ice thickness, and there is no need to open the front cover.
--The high-efficiency scroll compressor has less noise and is suitable for use in any environment
--High-quality copper electroplating ice tray, faster heat transfer, higher ice-making efficiency and longer service life
--The independent ice storage bucket has a larger ice storage capacity and does not require frequent ice removal.
Model | Output | Input Power | Ice Storage | Refrigerant | Power supply | Machine Size |
ETD-C120 | 54kg/24h | 400W | 26kg | R404a/R134a/R22 | 220v/1p/50hz | 530*600*820mm |
ETD-C150 | 68kg/24h | 420W | 46kg | R404a/R134a/R22 | 220v/1p/50hz | 530*600*820mm |
ETD-C200 | 90kg/24h | 600W | 60kg | R404a/R134a/R22 | 220v/1p/50hz | 530*600*820mm |
ETD-C280 | 128kg/24h | 650W | 66kg | R404a/R134a/R22 | 220v/1p/50hz | 680*690*1000mm |
ETD-C300 | 136kg/24h | 750W | 150kg | R404a/R134a/R22 | 220v/1p/50hz | 560*830*1560mm |
ETD-C350 | 158kg/24h | 800W | 150kg | R404a/R134a/R22 | 220v/1p/50hz | 560*830*1580mm |
ETD-C500 | 227kg/24h | 1180W | 250kg | R404a/R134a/R22 | 220v/1p/50hz | 760*830*1610mm |
ETD-C700 | 318kg/24h | 1350W | 250kg | R404a/R134a/R22 | 220v/1p/50hz | 760*830*1730mm |
ETD-C1000 | 454kg/24h | 1860W | 250kg | R404a/R134a/R22 | 220v/1p/50hz | 760*830*1780mm |
ETD-C1200 | 544kg/24h | 2150W | 250kg | R404a/R134a/R22 | 220v/1p/50hz | 760*830*1800mm |
ETD-C1500 | 681kg/24h | 2800W | 480kg | R404a/R134a/R22 | 220v/1p/50hz | 1240*950*1910mm |
ETD-C2000 | 1000kg/24h | 3680W | 480kg | R404a/R134a/R22 | 380v/3p/50hz | 1240*950*1950mm |

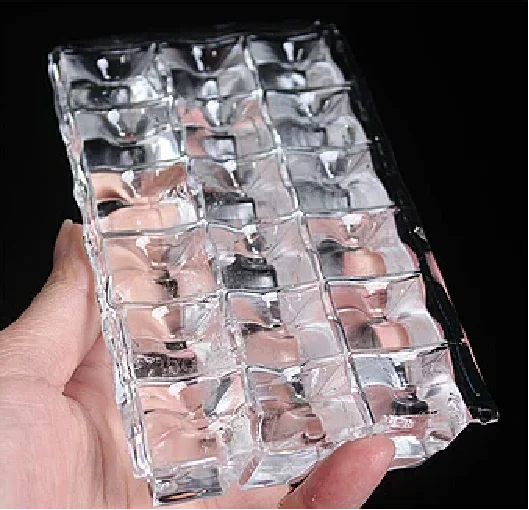

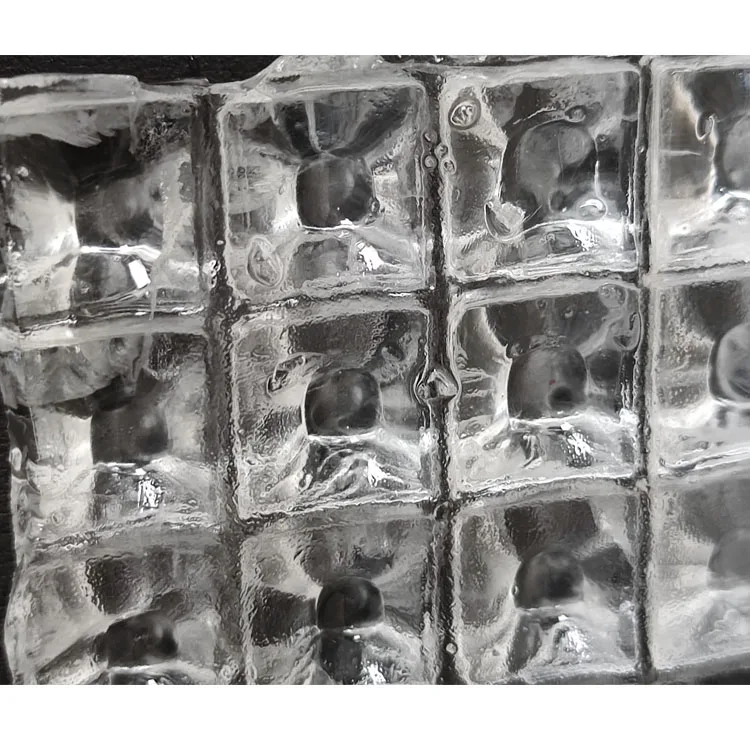

Ice Detail
The following
specifications of ice can be customized
11x22x22mm
22x22x22mm
29x29x22mm
35x35x22mm
40x40x22mm
For other models,please consult with sales manager
You can choose any ice cube size you want
The Maximum Size is 45*45*22
Product acessories
Scroll Compressor
1.Scroll compressors are small in size and light in weigh
2. Good stability and high security with low noise3. Long service life,Efficient and reliable Lightweight

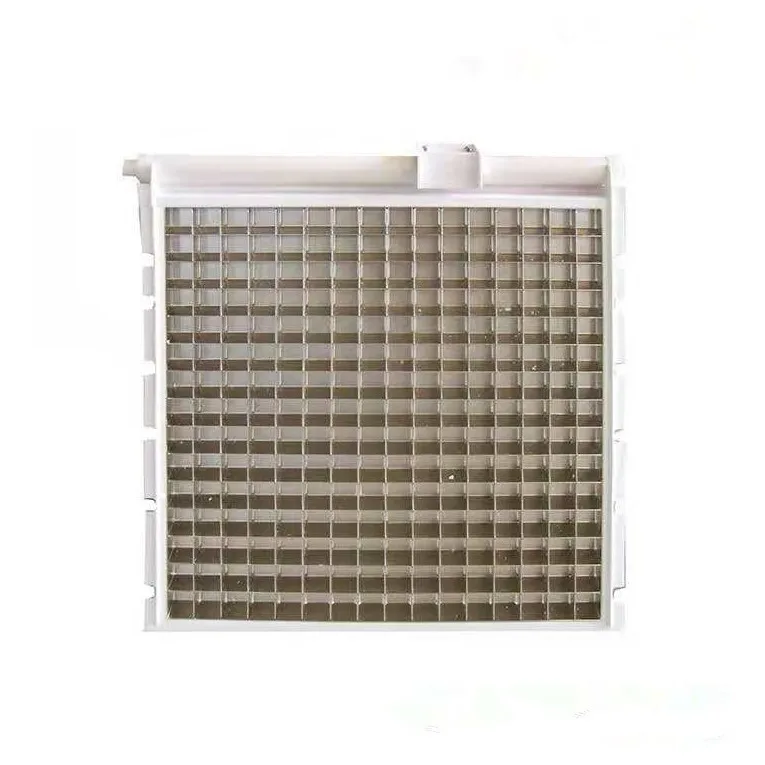

Food Grade Ice Tray
1.High-quality copper electroplating ice tray
2.Nickel plated is
2.Nickel plated is
storage/safe/hygienic
3.Strong corrosion resistance and good heat transfer effect
3.Strong corrosion resistance and good heat transfer effect
Danfoss Expansion valve
1.High-quality expansion valve in refrigeration industry, higher refrigeration efficiency and lower failure rate
2.Pure copper valve body, high thermal conductivity, good gasification effect, can effectively reduce the risk of compressor liquid hammer
3.Select internal balance expansion valve, more stable in small refrigeration system

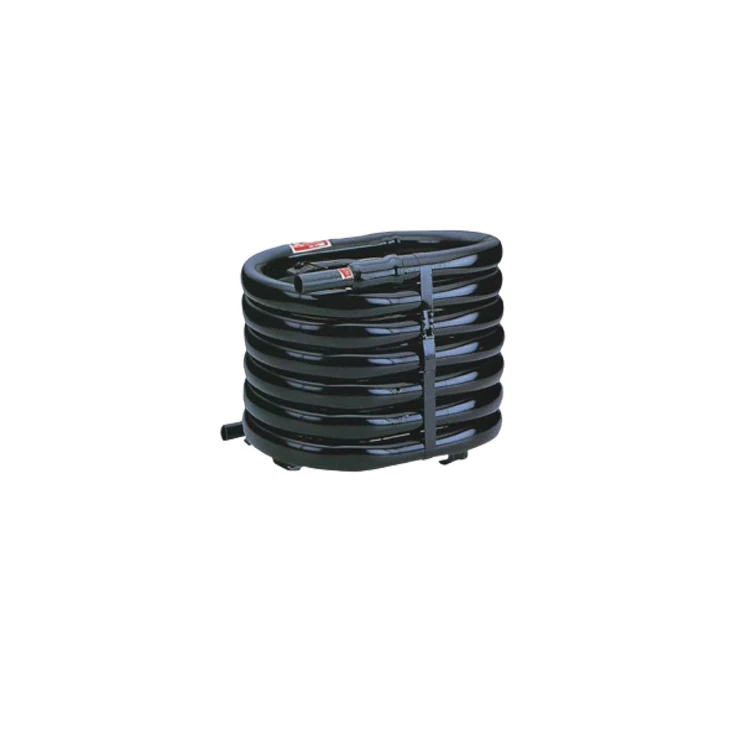

Reliable Condenser
1. Small footprint, capacity expansion.
2.One-time bending and molding, the quality is more guaranteed, and there is no leakage phenomenon
3.Long service life, Surface anti-corrosion paint

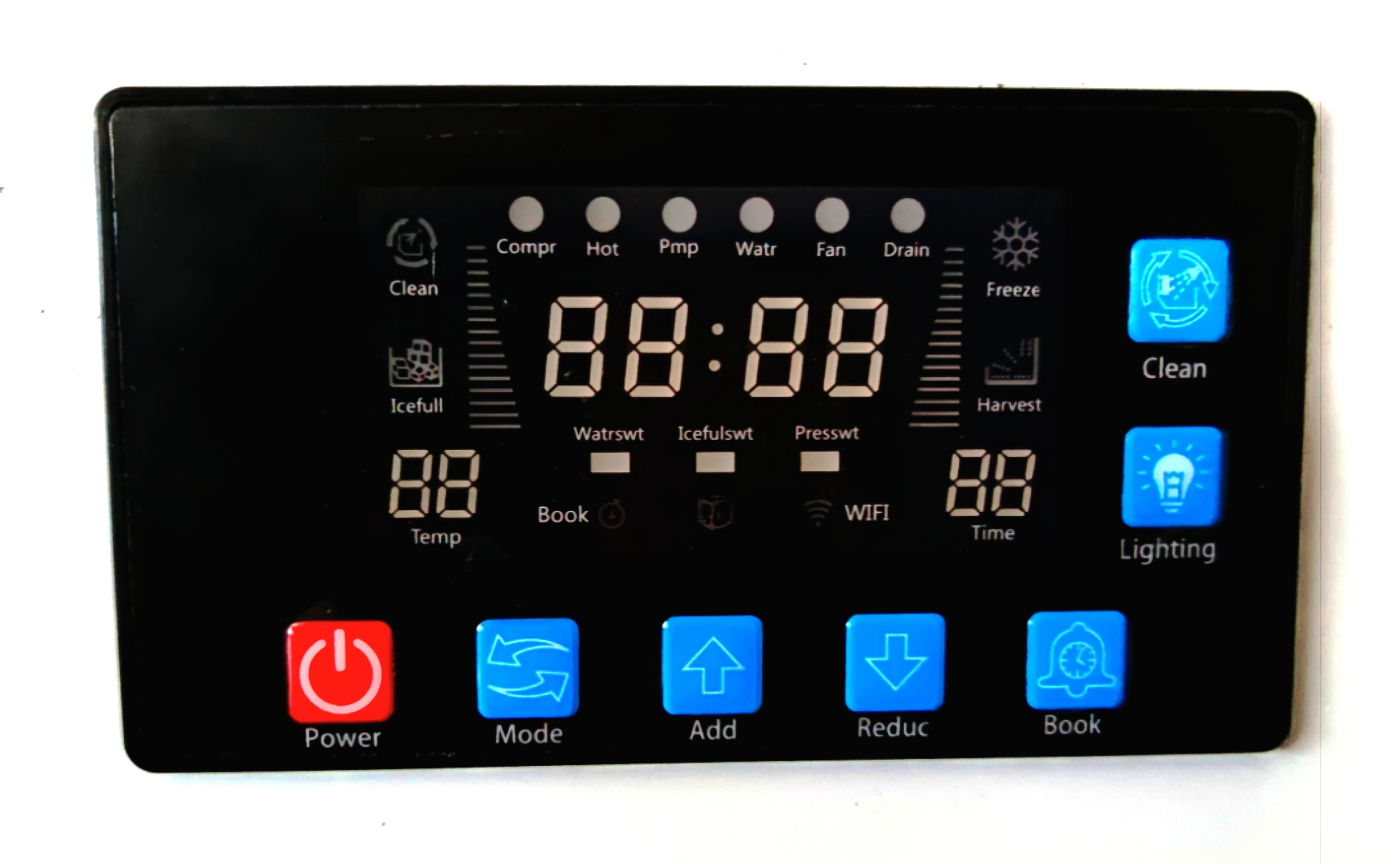

Multi-Function English Display
1.It can realize one-key start and stop, reservation ice making and other functions
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
4.More status indications to facilitate machine maintenance

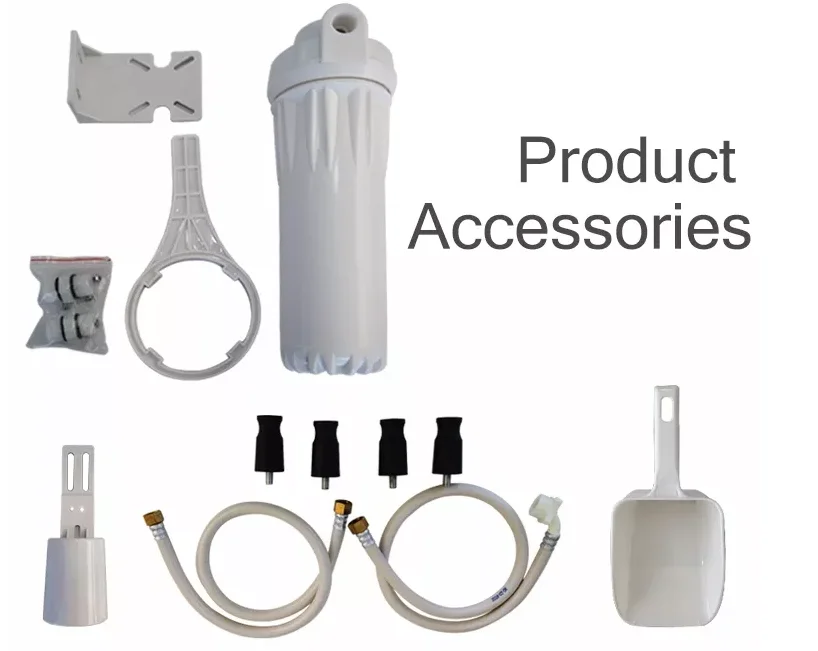

Free accessories
1.Provide a wealth of random accessories for convenience of installation
2. Randomly presented ordinary filters, you can also choose other filters
2. Randomly presented ordinary filters, you can also choose other filters
3. For more needs, please consult the sales manager
Cooling Fan (Air Cooling)
PC Board
Electric Generator
Dry Filter

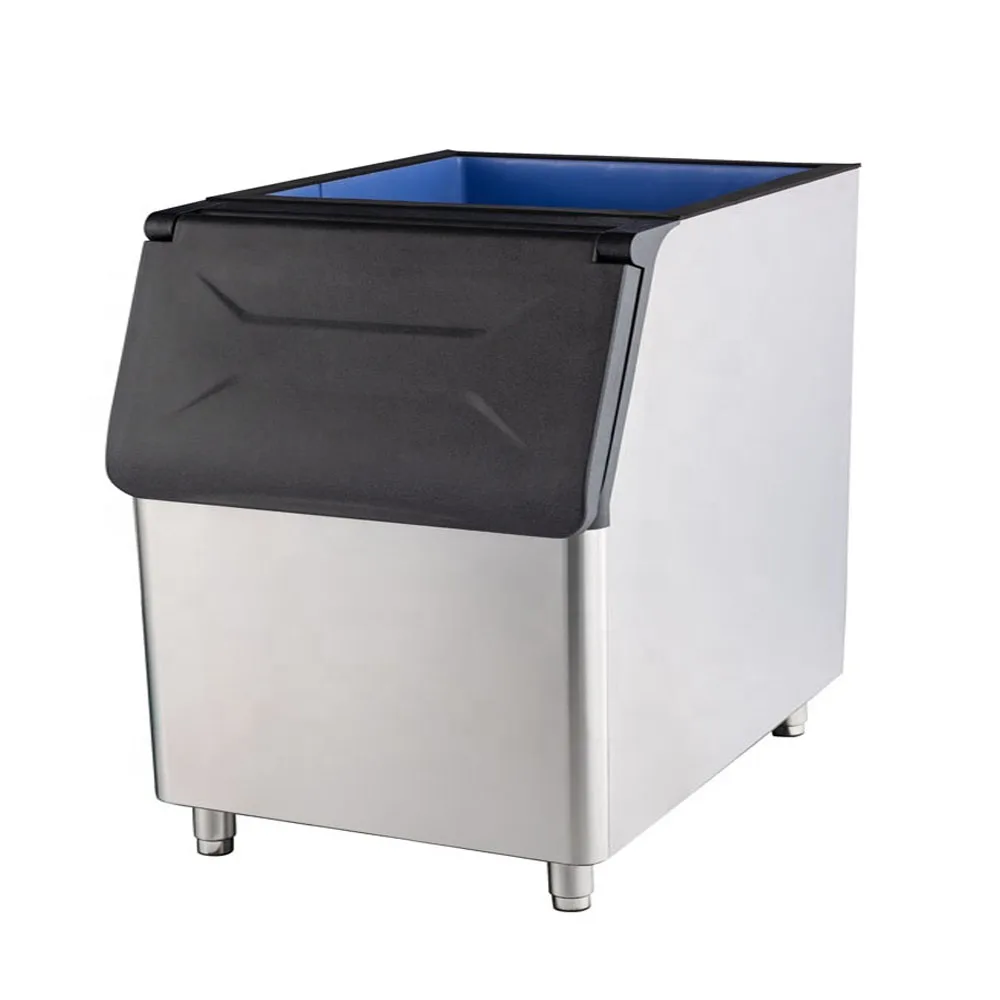

Ice Storage
Water Filter
Production Process
Sheet-metal Working
1. Design 2. Blanking 3. Laser cutting 4. Bending 5. Welding 6. Polishing
Assembling
1. Fix all accessories 2. Connect pipes 3. Weld copper pipes 4. Keep pressure, leak detection 5. Wiring 6. Vacuum
Heat Preservation
1. Foaming 2. Rubber and plastic
Test
1. Filling refrigerant 2. Testing current 3. Testing pressure 4. Testing output
Application
Cube ice machines are located in hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where ice cubes are needed to meet every customer who needs ice pellets.
The cube ice produced by the cube ice machine is crystal clear, clean and hygienic; it is efficient, safe, energy-saving, durable and environmentally friendly, and is your first choice for ice making.
Collaboration Company
Company Profile
Jiangsu Eternity Import & Export Co.,Ltd is a enterprise that Product quality and sales service.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,Jiangsu Eternity Import & Export Co.,Ltd has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.
We have our OEM factory in Jiangsu, specializing in supplying all kinds of ice equipment. Eternity integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.
Client Partner
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Certificate
Eternity is a modern company with technical strength and innovation ability.
FAQ
Q1-What is the lifespan of the machine? | ||||||||
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine. | ||||||||
Q2-What is your payment method? | ||||||||
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you? | ||||||||
Q3-Which brands of compressors do you use? | ||||||||
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on. | ||||||||
Q4-What type of refrigerant are you using? | ||||||||
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22) | ||||||||
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received? | ||||||||
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use. | ||||||||
