15 20% Work sulfur capacity pellet biogas desulfurizer catalyst
- Category: >>>
- Supplier: Gongyi City Beishankou Daqing Activated Carbon Factory
Share on (1600517901753):
Product Overview
Description
PRODUCT DESCRIPTION
15-20% Work sulfur capacity pellet biogas desulfurizer catalyst
Biogas desulfurizer catalyst is a kind of high efficiency gas cleaning agent. It takes iron oxide as main active component as well as other promoters. It has a very high removal performance for Hydrogen Sulfide (H2S) during 20°C ~ 100°C, and also has a certain removal effect on mercaptan organic sulfur and most nitrogen oxides.Biogas desulfurizer catalyst advantage:
1.High Desulfurization Accuracy: 20 Times higher than normal Fe2O3.
2. Fast Speed Reaction: 5~6 Times faster than normal Fe2O3.
3. Working Penetrate Sulfur Capacity: 5~6 Times faster than normal Fe2O3.
4. High strength and water resistance: After boiling 2 hours or impreganated 30days, it doesn't pulverize and strength keeps the same.
5. Widely usage temperature: 0~100ºC.
6. Can be used in the absence of O2 or high CO2 conditions. In the absence of oxygen, H2S removal sulfur capacity is more than12~15%.
1.High Desulfurization Accuracy: 20 Times higher than normal Fe2O3.
2. Fast Speed Reaction: 5~6 Times faster than normal Fe2O3.
3. Working Penetrate Sulfur Capacity: 5~6 Times faster than normal Fe2O3.
4. High strength and water resistance: After boiling 2 hours or impreganated 30days, it doesn't pulverize and strength keeps the same.
5. Widely usage temperature: 0~100ºC.
6. Can be used in the absence of O2 or high CO2 conditions. In the absence of oxygen, H2S removal sulfur capacity is more than12~15%.
Desulfuration and Renewal Principles of Biogas desulfurizer catalyst
Desulfuration Reaction: Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O Renewal Reaction: 2Fe2S3.H2O+3O2=2Fe2O3.H2O+6S (strong exothermic reaction)
Note: The desulfuration renewal can be cyclic regeneration when there is O2 or O2/H2S≥2.5 in the air, and the reaction formula combines into 2H2S+O2=H2O+2S with the iron oxide as the catalyst.
Desulfuration Reaction: Fe2O3.H2O+3H2S=Fe2S3.H2O+3H2O Renewal Reaction: 2Fe2S3.H2O+3O2=2Fe2O3.H2O+6S (strong exothermic reaction)
Note: The desulfuration renewal can be cyclic regeneration when there is O2 or O2/H2S≥2.5 in the air, and the reaction formula combines into 2H2S+O2=H2O+2S with the iron oxide as the catalyst.

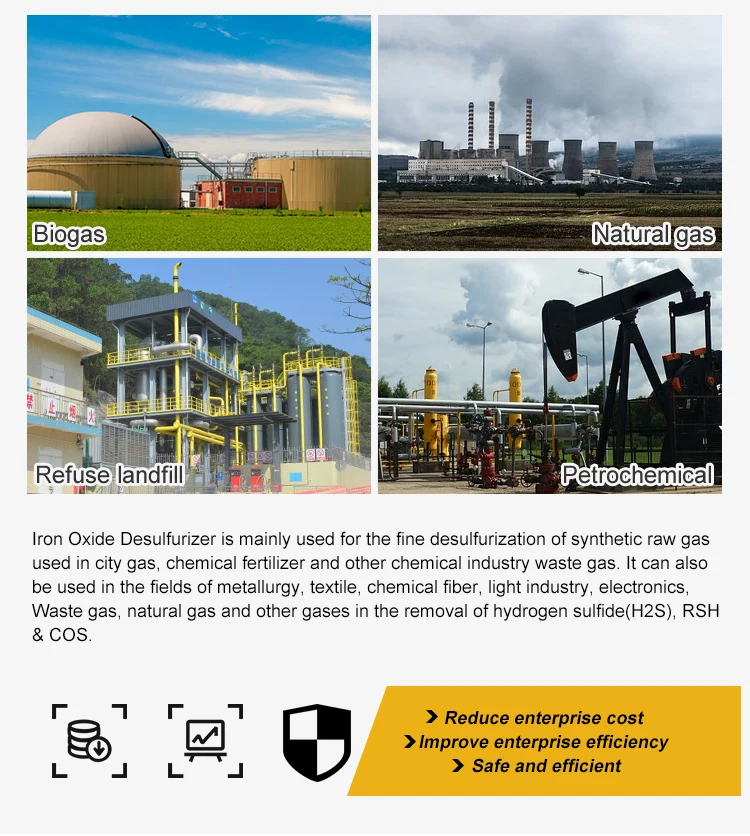

Biogas desulfurizer catalyst application:
Biogas desulfurizer catalyst is mainly used for the fine desulfurization of synthetic raw gas used in city gas, chemical fertilizer and other chemical industry waste gas. It can also be used in the fields of metallurgy, textile, chemical fiber, light industry, electronics, Waste gas, natural gas and other gases in the removal of hydrogen sulfide(H2S), RSH & COS.
Biogas desulfurizer catalyst patameter:

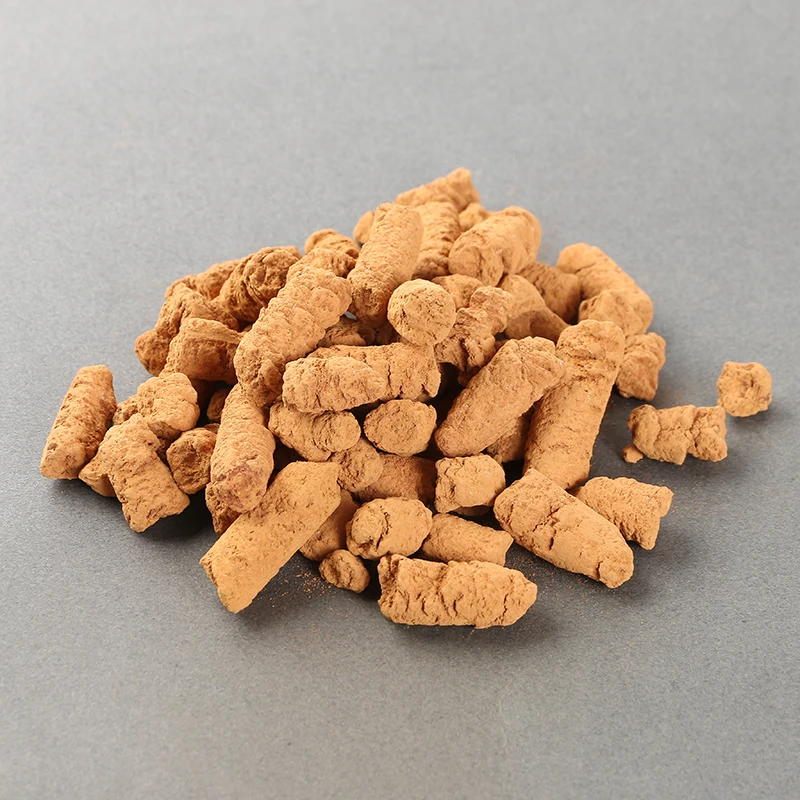

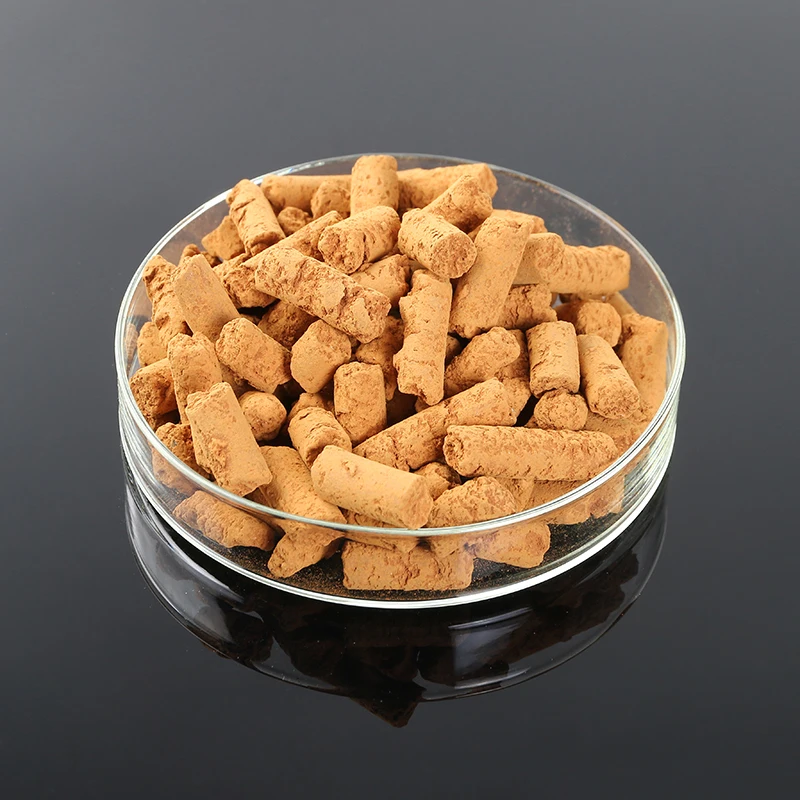

Appearance | Brownish red pellet | |

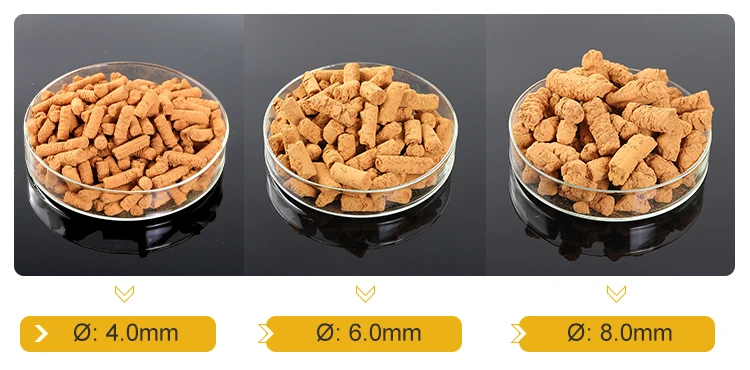

Diameter, mm | 3~6 | |
Length, mm | 5~15 | |
Bulk density, kg/L | 0.7~0.8 | |
Crushing strength, N/cm | side pressure≥50 | |
Water tolerance | not pulverization in the water | |
Porosity, % | 40~50 | |
H2S:200-2000mg/m3 in gas | Outlet H2S≤20 mg/m3, the desulfurization rate >90%; total sulfur capacity of work≥40% (weight) | |
H2S<20 mg/m3 in gas | Outlet H2S ≤ 1 mg / m3, total sulfur capacity of work ≥ 30% (weight) |
ASSOCIATED PRODUCTS
CERTIFICATES

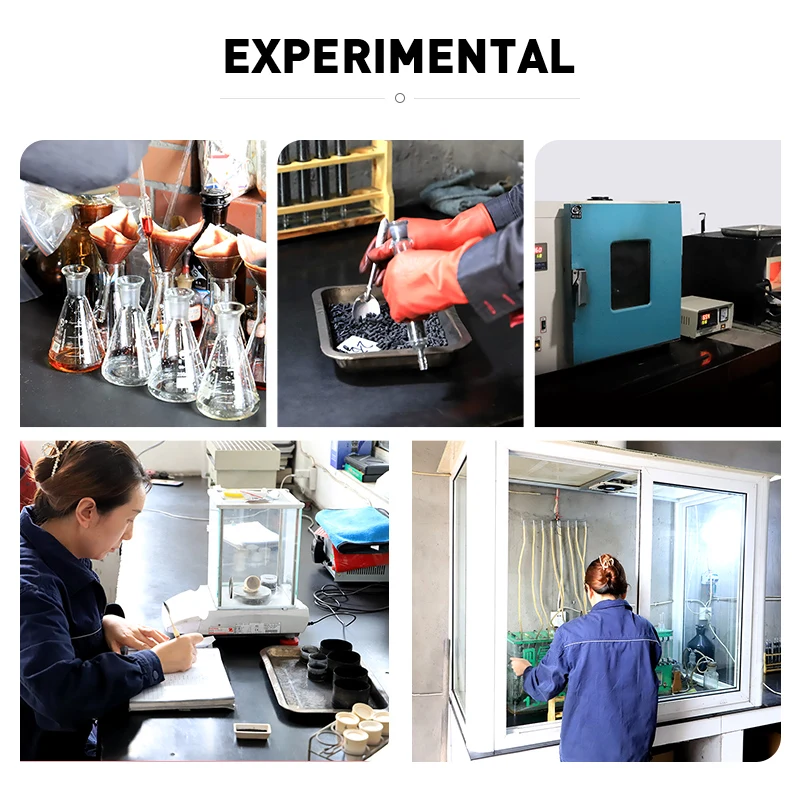

The factory has set up a technical centre, which is capable of testing the product indicators of various standards such as national standards and American standards. The technical centre is equipped with testing equipment such as electronic balances, bulk density meters, water capacity measuring devices, spectrophotometers, acidity meters and other testing instruments to achieve accurate, reliable and rapid testing of conventional and non-conventional items of activated carbon. It is fully equipped to determine particle size, strength, packing density, methylene blue value, iodine value, carbon tetrachloride, ash, floating rate, caramel decolourisation rate and other indicators.
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 15 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
4.How about the delivery time?
A: Within 15 days after we confirm you requirement.
5.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
