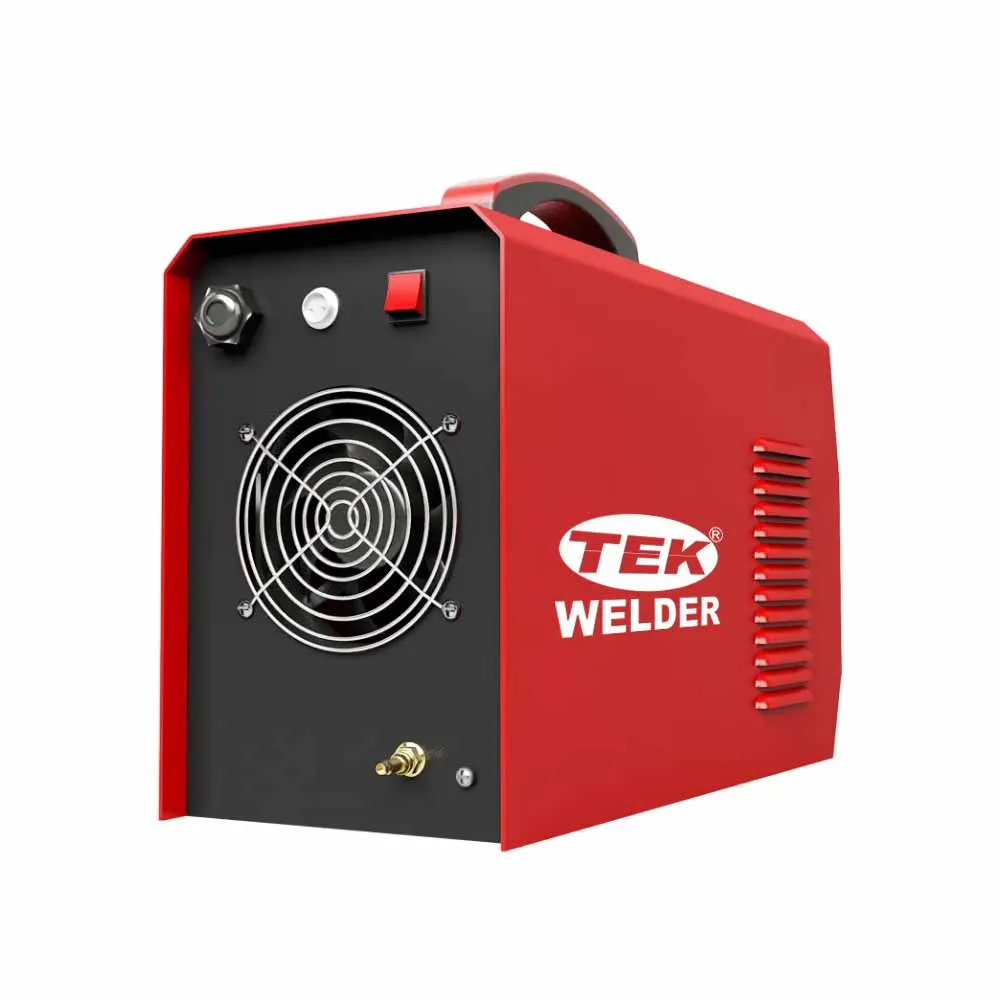

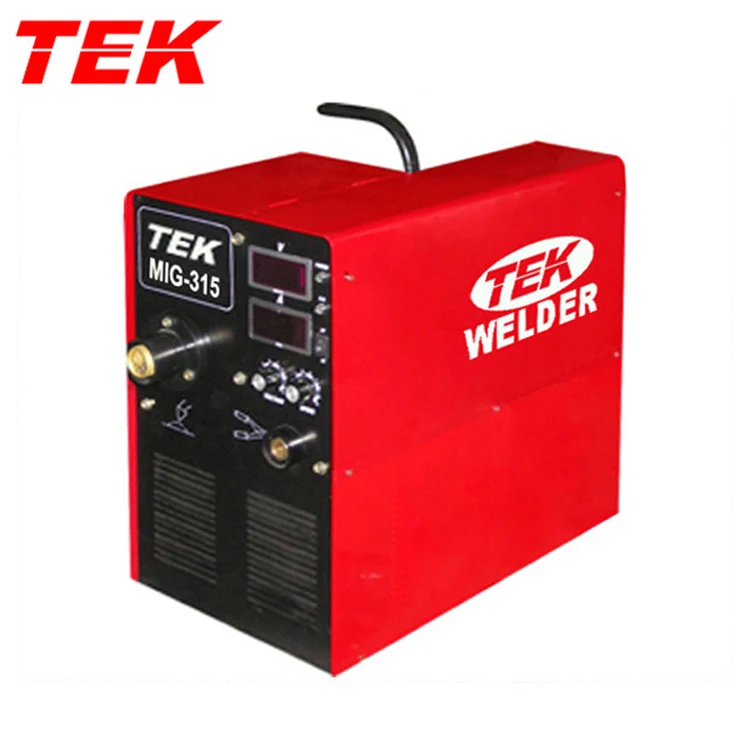

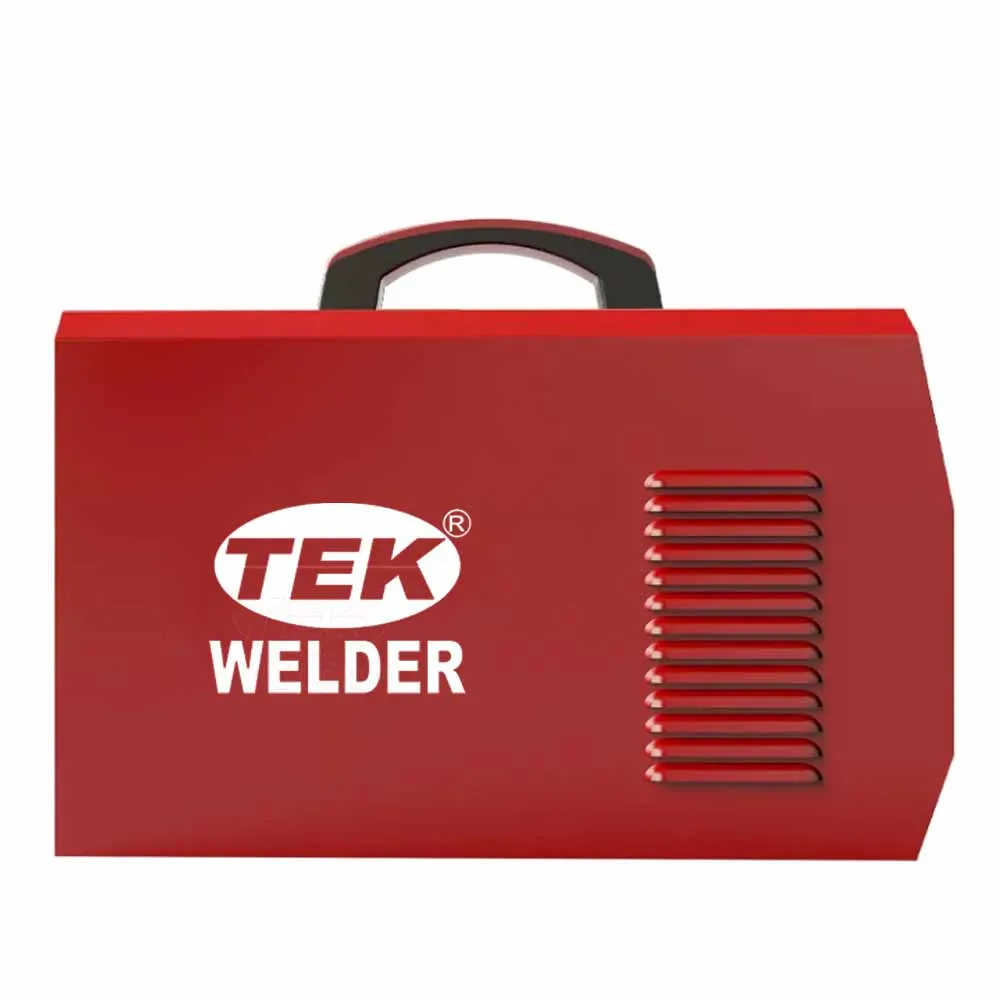

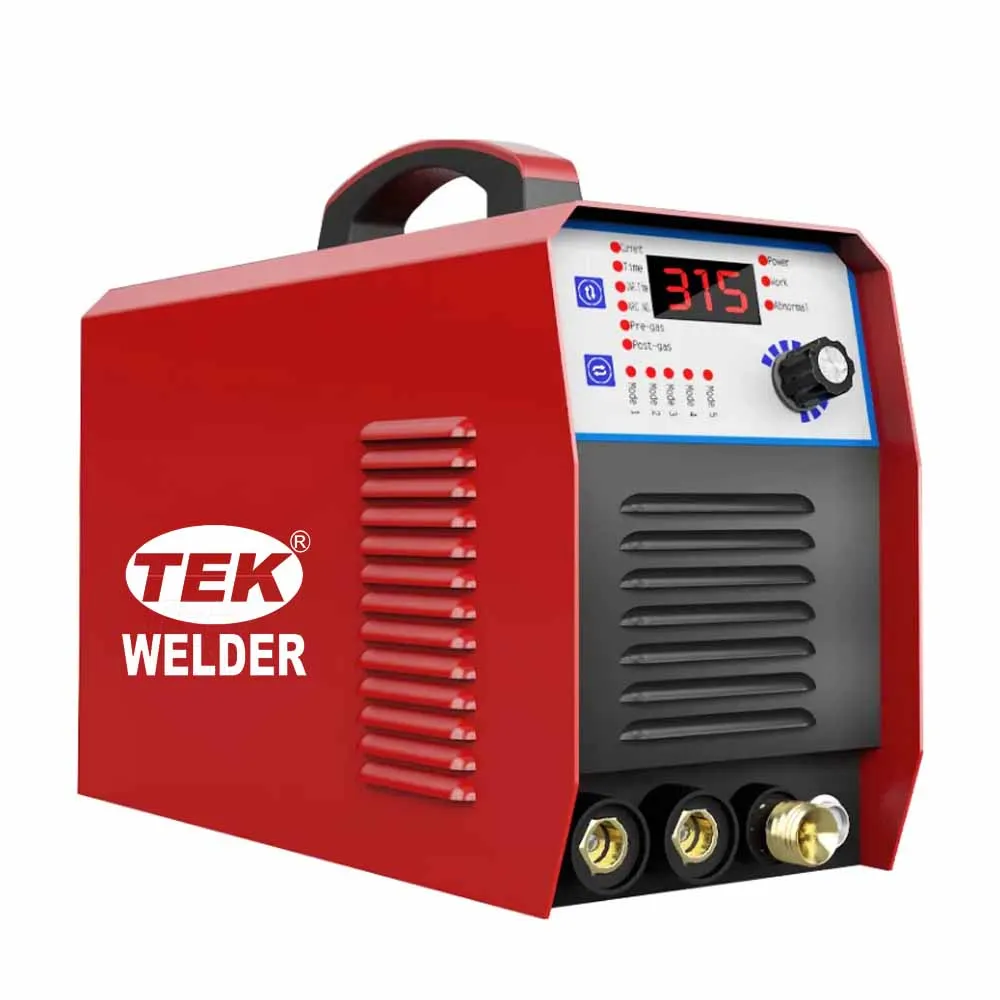

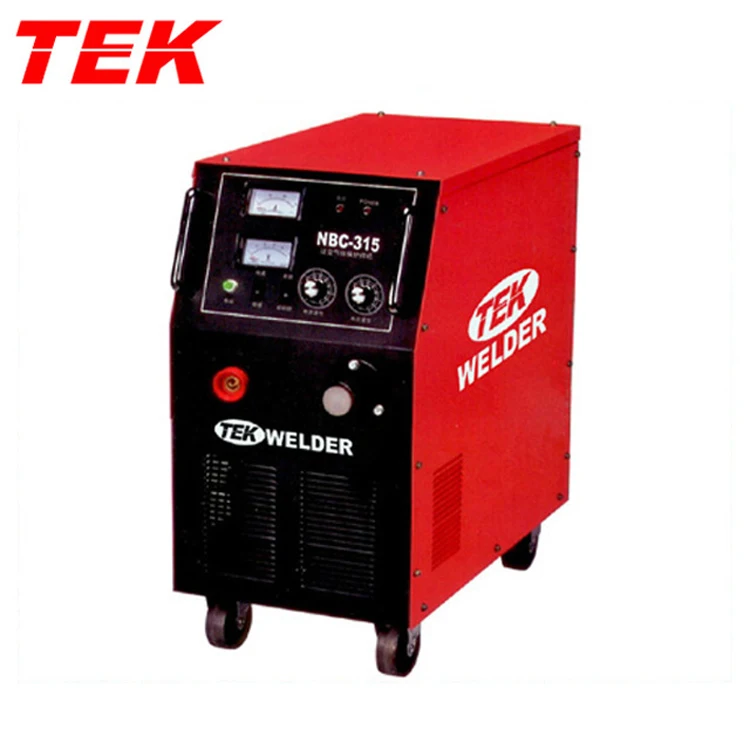

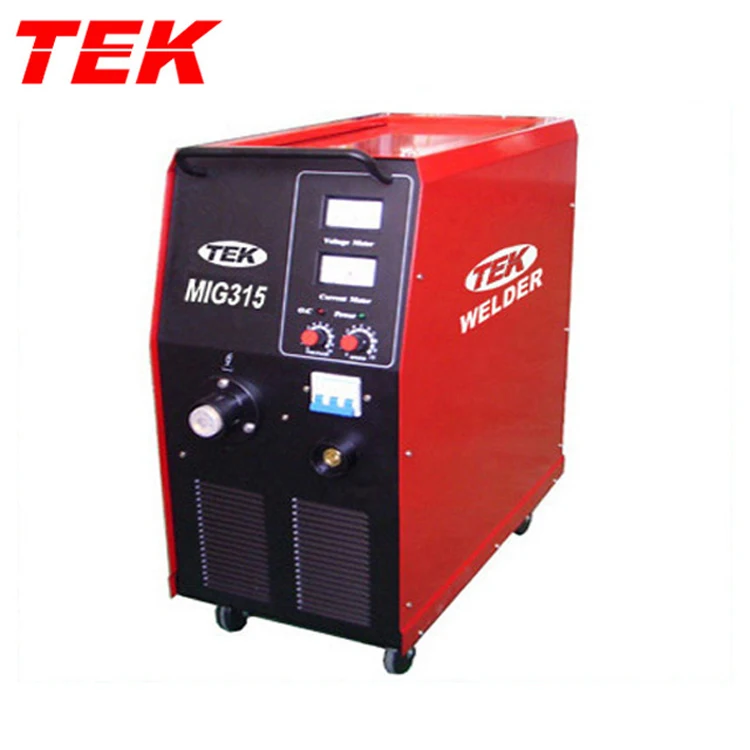

IGBT Single NBC 315Y IGBT MIG 315Y MAG 315Y GMAW 315Y FCAW 315Y CO2 Shield Wire Feeder Integrated Inverter Welding Machine OEM

Product Overview

Description

IGBT Single NBC-315Y IGBT MIG-315Y MAG-315Y GMAW-315Y FCAW-315Y CO2 Shield Wire Feeder Integrated Inverter Welding Machine OEM



1. IGBT inverter technology with current control, reliable quality, stable performance.
2. Equip with closed loop feedback, constant voltage output, good at protest fluctuation of voltage with automatic compensation function(±15%).
3. Be controlled by electronic reactor, make it possible for stable welding process, little spark, deep pool, excellent molding.
4. Can observe the current and voltage at the same time.
5. 2T/4T switch be selected, suitable for long distance operation.

6. Proper slowly wire feeding when igniting arc, wipe off molten drop after welding, can ensure the success rate of arc-strike.
7. Small volume and light weight, it is utility and economic, very easy to operate.
8. Suitable for sheet over 0.8mm
9. Cost saving and efficiency improving
10. With wire machine, and easy and considerable for operation
11. High welding speed, high arcing success rate
12. Continuous and discontinuous welding function
13. Automatic voltage pulsation compensation capability
14. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
15. Little spatter, uniform welding pool, good welding shape



TECHNICAL SPECIFICATIONS
MODEL	NBC-315Y IGBT
Power voltage frequency	AC. (three phase380V ±15% 50Hz-60Hz
Input current	17A
Power capacity	12 KVA
Rated output current	50- 315A
Output voltage	15-32V
Duty cycle	60%
Power factor	0.8
Efficiency	85%
Insulation class	F
Type of wire feeder	Integrated
Overall dimention	570*300*550mm
Protection class of case	IP21
Feeding speed	3-15m/min
Pastflow time	1±0.5
Diameter of coil	270mm
Weight	27
Length of earth cable	more than 5m
