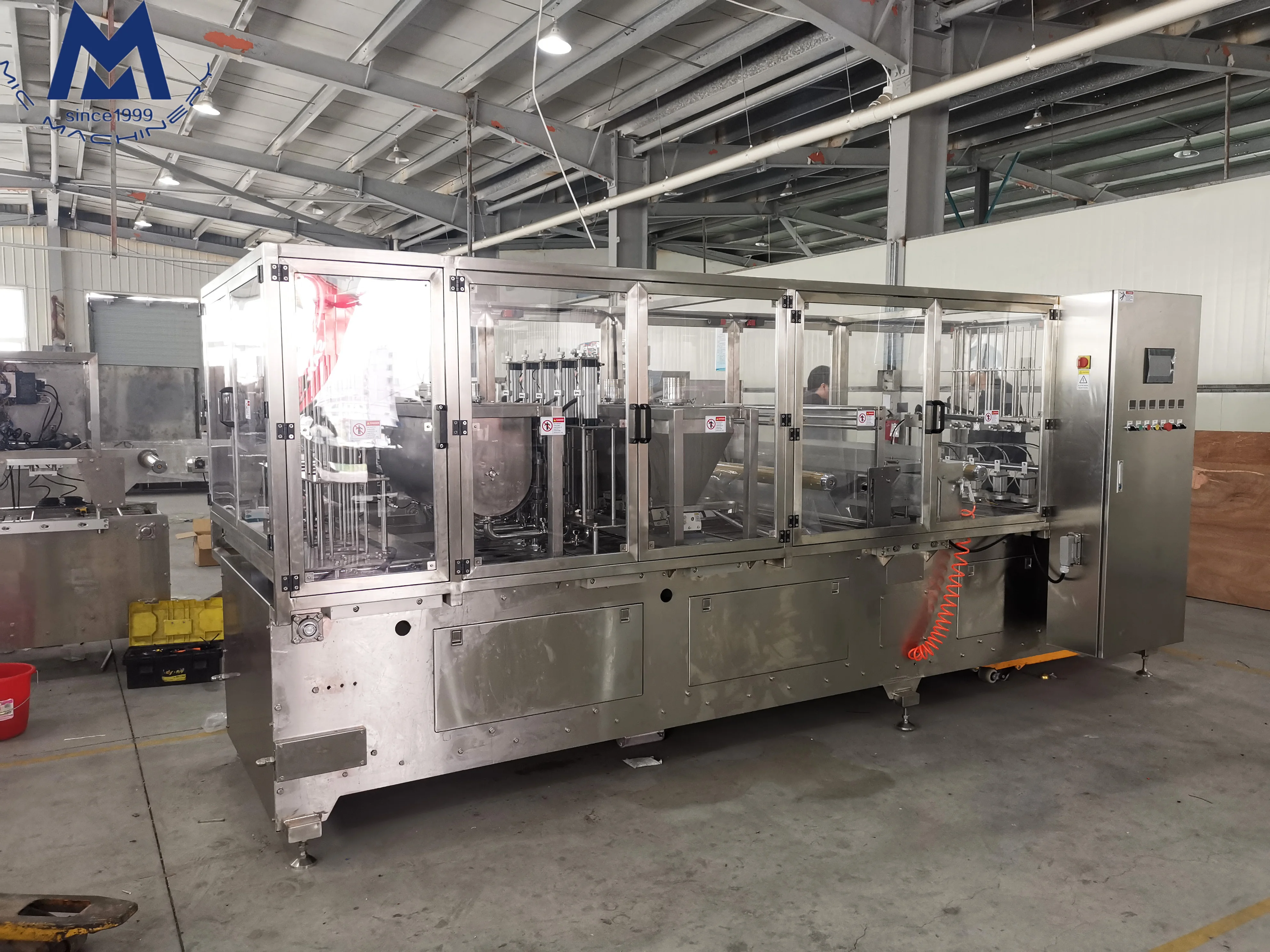

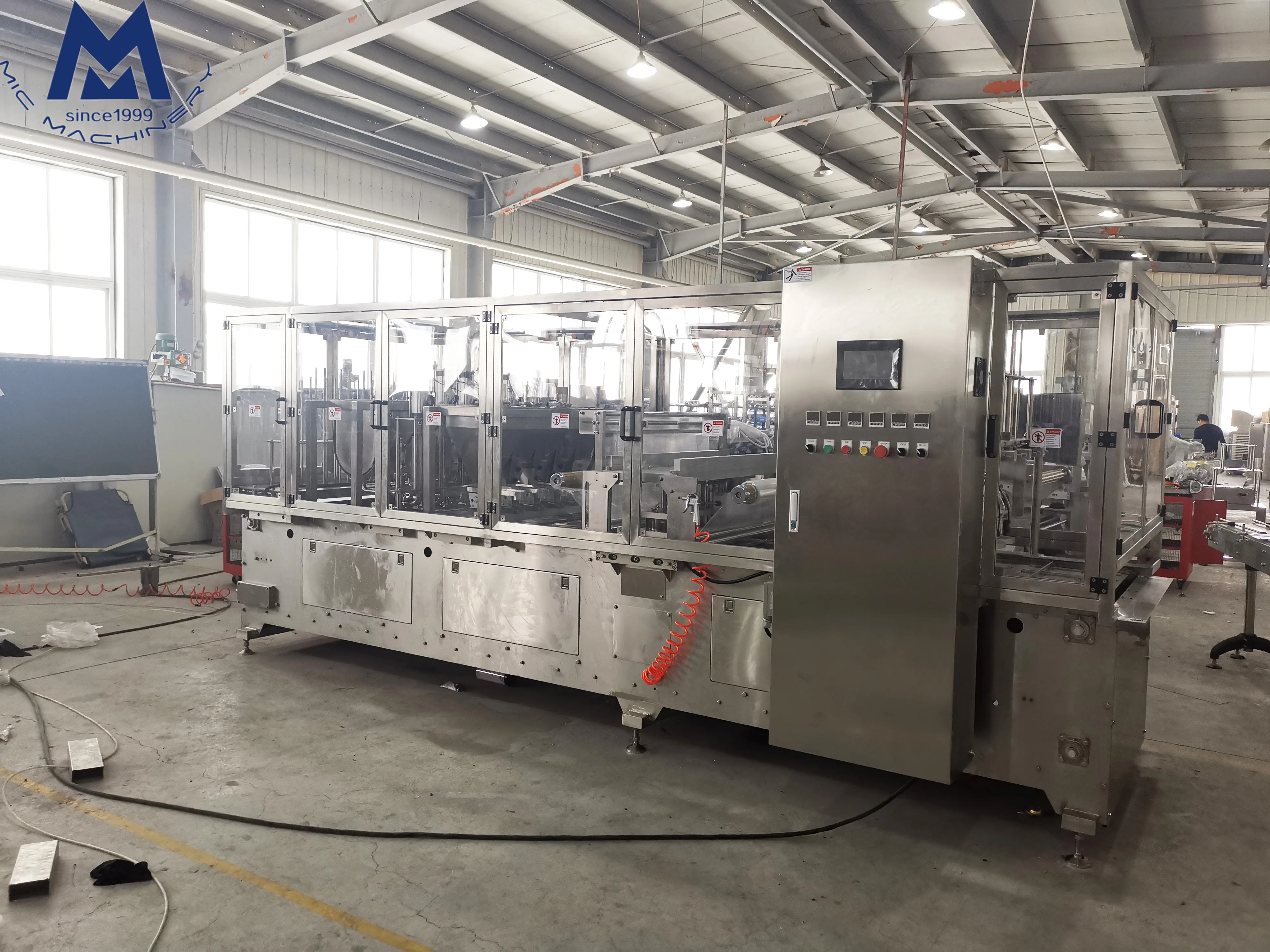

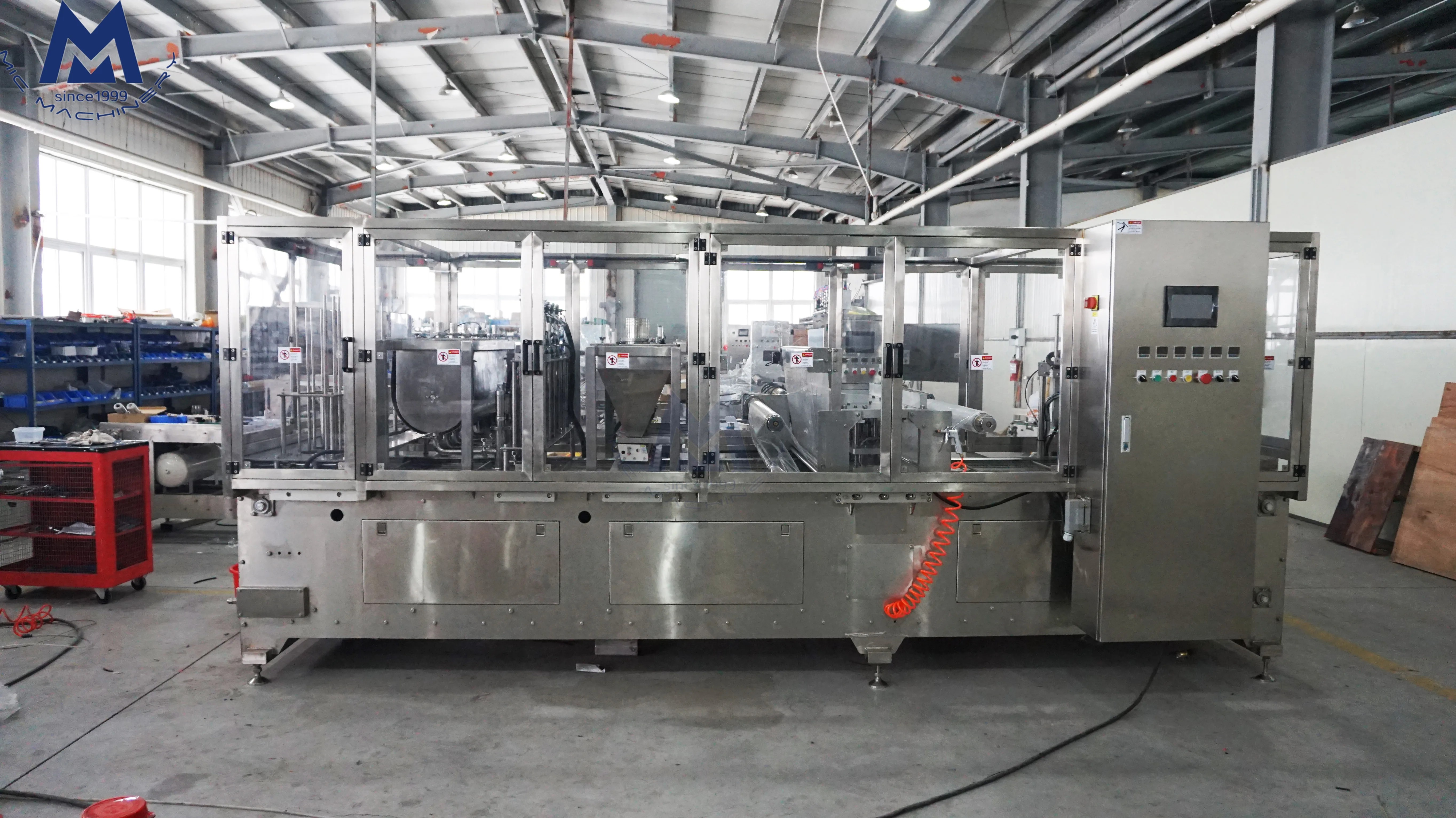

Automatic linear vacuum fast food rice paste sauce hummus bowl tray filling sealing machine
- Category: >>>
- Supplier: Zhangjiagang Mic Machinery Technology Co. Ltd.
Share on (1600517929306):
Product Overview
Description
Application
Product Introduction
Automatic food dipping sauce chickpea puree hummus plastic cup tray filling sealing machine
1.) This Automatic cup tray filling sealing machine is suitable for filling hummus, hoummus, chickpea puree, food sauce into various plastic round cups and other shape trays with the range from 100ml-500ml.
2.) This machine function is: ①Automatic loading empty cups/trays. ②Automatic piston filling sauce material. ③Auto filling small granules/nuts ④Automatic roll film vacuum sealing＆N2 injection＆cutting ⑤Automatic pick up the lids and pressing ⑥Automatic output the finished products. ⑦No cup no filling ⑧No cup no capping
3.) This machine has the function of vacuum sealing and N2 injection at the same time. To extended the shelf life
4.) We can also supply the inkjet printer, sticker labeling machine, metal detector and other equipment.
Equipment Parameter
Technical Parameter | ||||||
Weight | 3000Kg | Dimension | 4000*1500*2000mm | |||
Voltage | 380V/ 50-60Hz/3Phase | Motor | 7KW | |||
Filling Quantity | 50-500ml, customized | Capacity | 20-40 cups/min | |||
Compressed Air | 0.6-0.8Mpa | Quantity Error | 99% | |||
Main Configuration List | ||||||||
PLC | Mitsubishi (Japan) | |||||||
Touch screen | WEINVIEW (Taiwan, China) | |||||||
Servo drive system | Mitsubishi (Japan) | |||||||
Servo motor | Mitsubishi (Japan) | |||||||
Pneumatic system | AirTAC (Taiwan, China) | |||||||
Temperature controller | Omron (Japan) | |||||||
Sensor | Omron (Japan) | |||||||
Electrical appliances | Schneider (France) | |||||||
Product Details

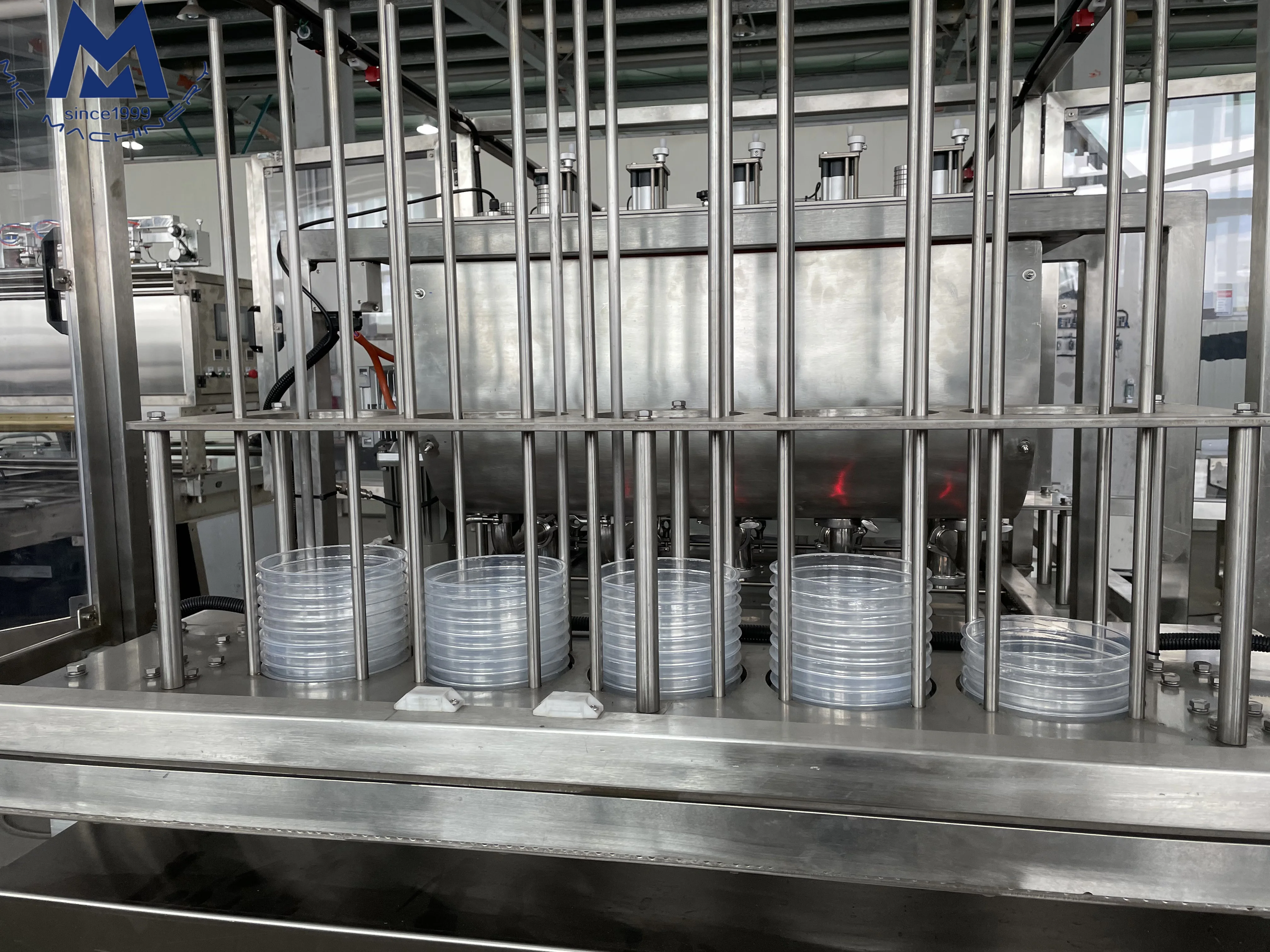

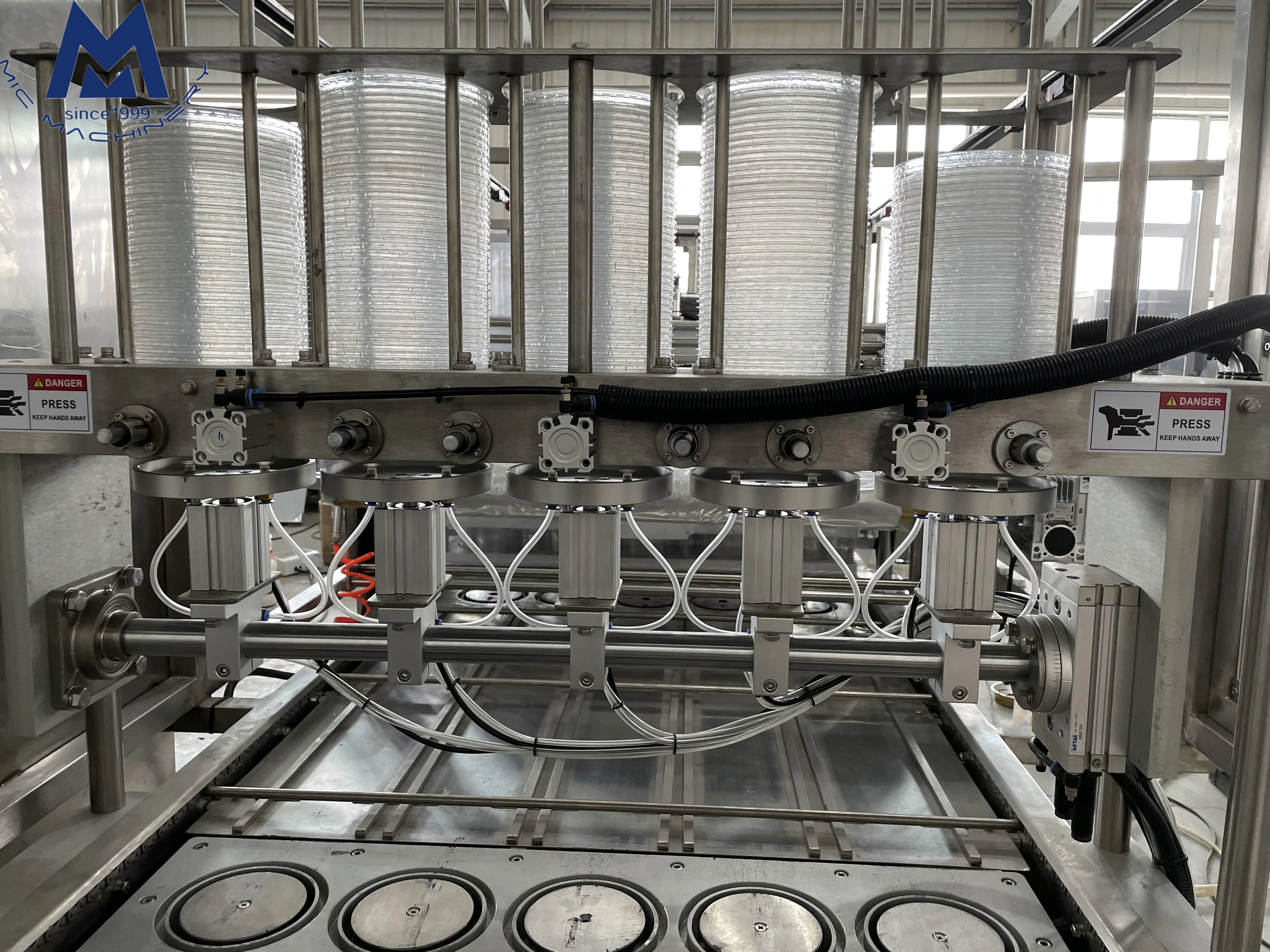

Automatic Empty Cup Tray Loading Station
Its adopt spiral separating and pressing technology which can avoid the cup damaging and deforming, it has vacuum sucker which can guide the cup to onto the mold accuracy. It's only need the operator to put the empty cups into the cup loading tunnel is available. There is a empty cup detection sensor under each station to detect if this station has cup or not, it can avoid the mistake filling and sealing if the station without the cup, reduce the product waste and machine cleaning.

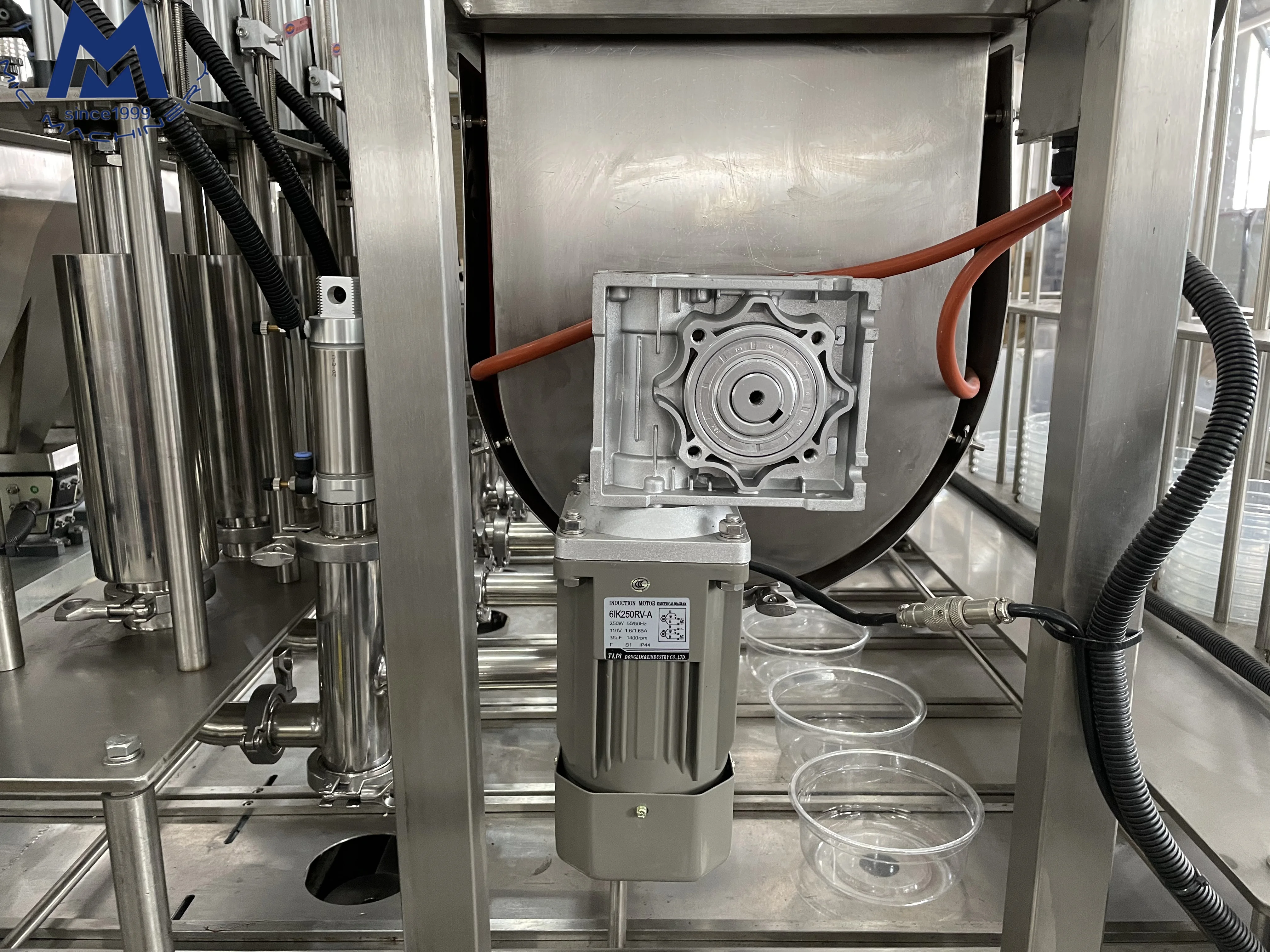

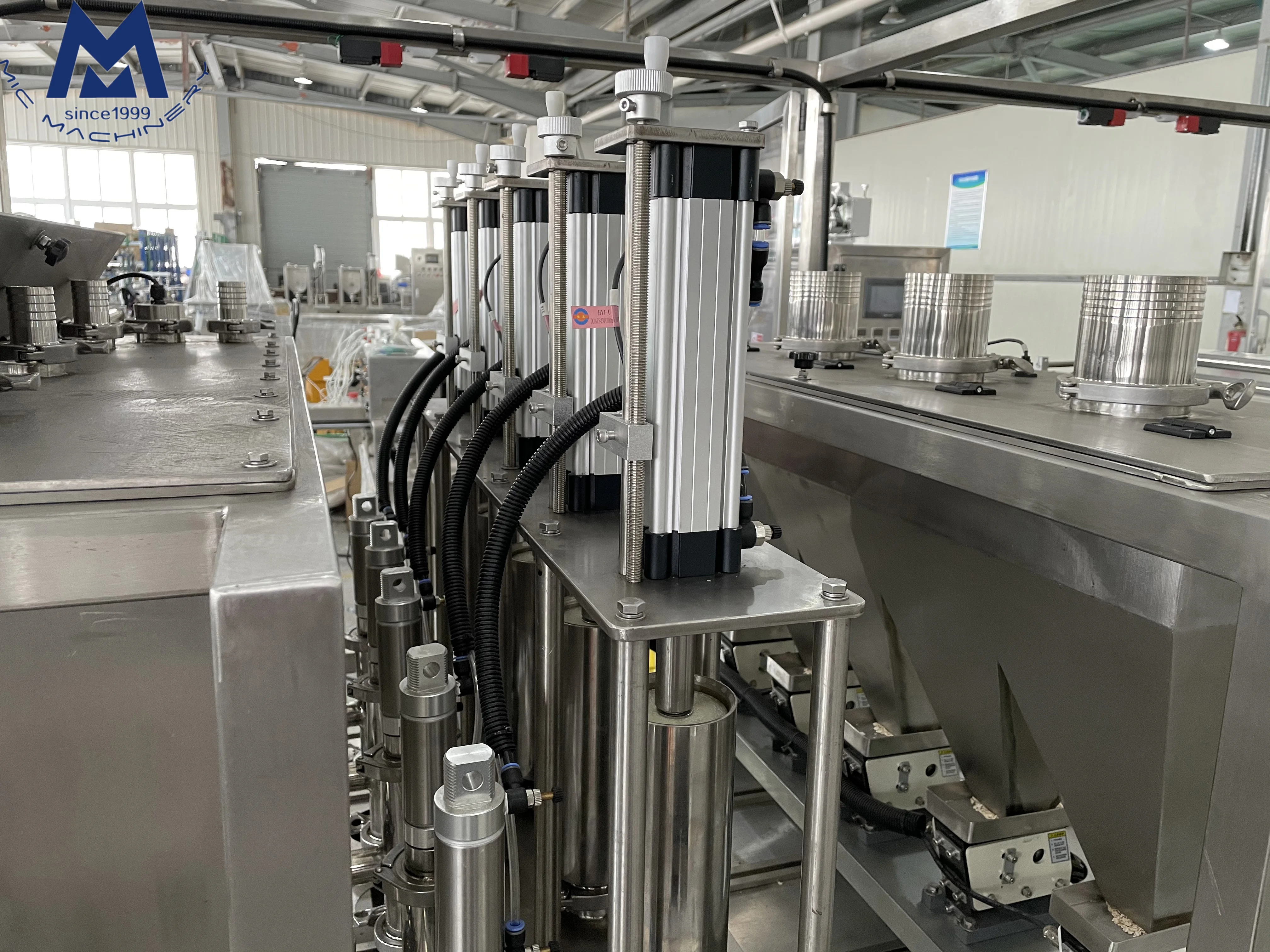

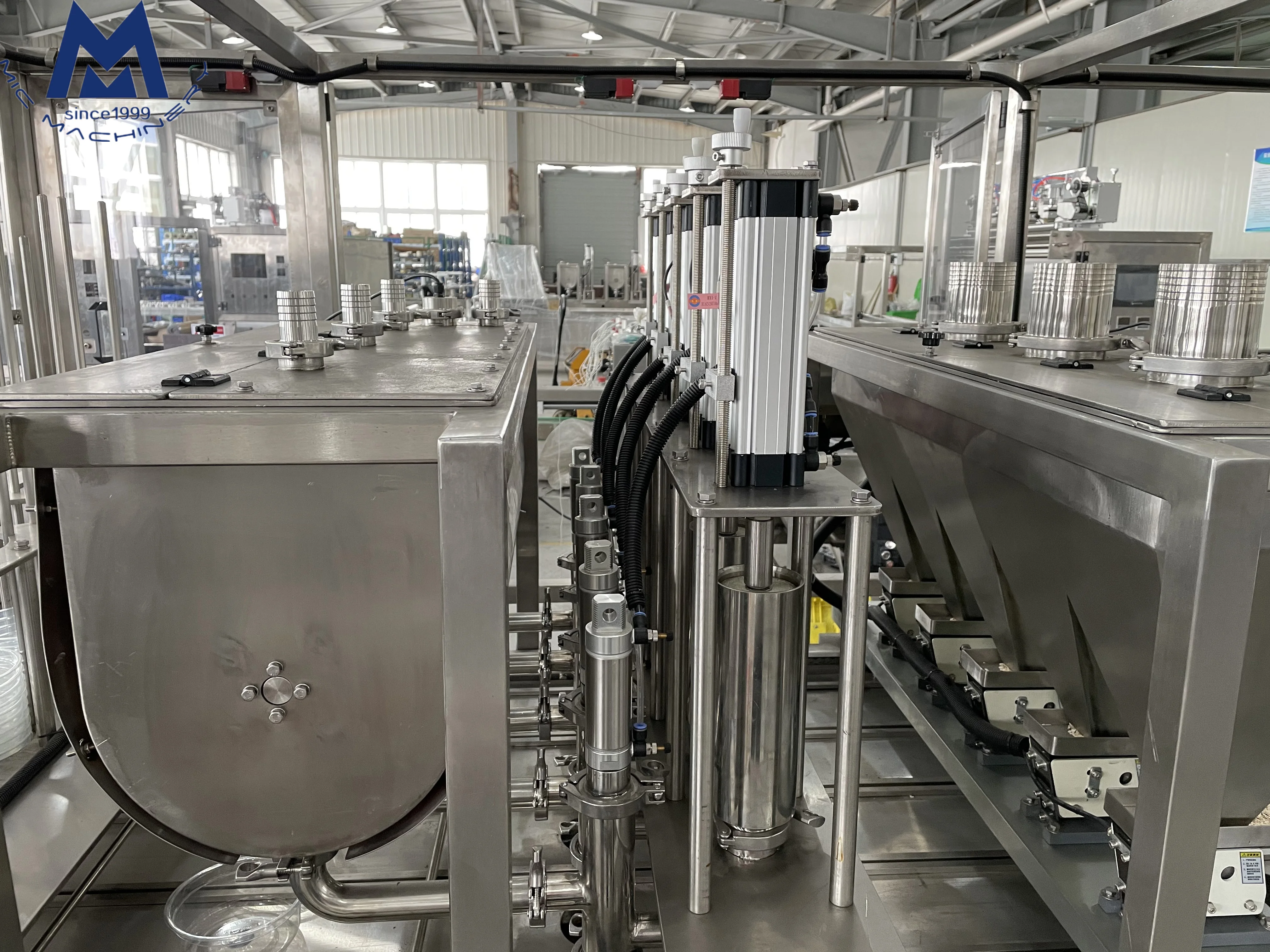

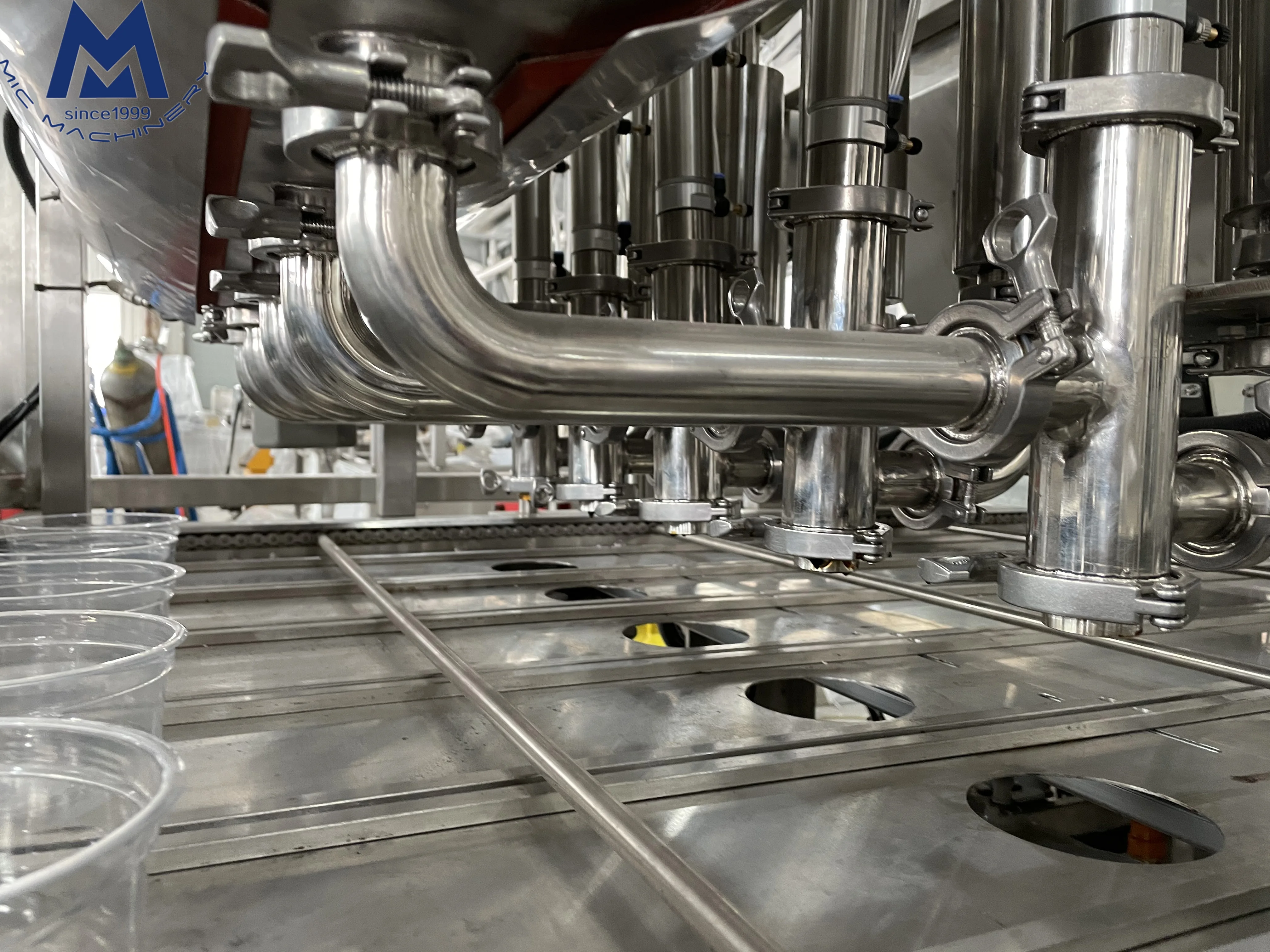

Automatic Quantitative Sauce Filling Station
It adopts piston filling and lifting function, to prevent residual materials from dropping on the rim of the cup during filling, thus affecting the sealing effect. no splash and leakage, the filling system also has CIP clean function. The material hopper can also equipped with stirring and heating function as your demand.

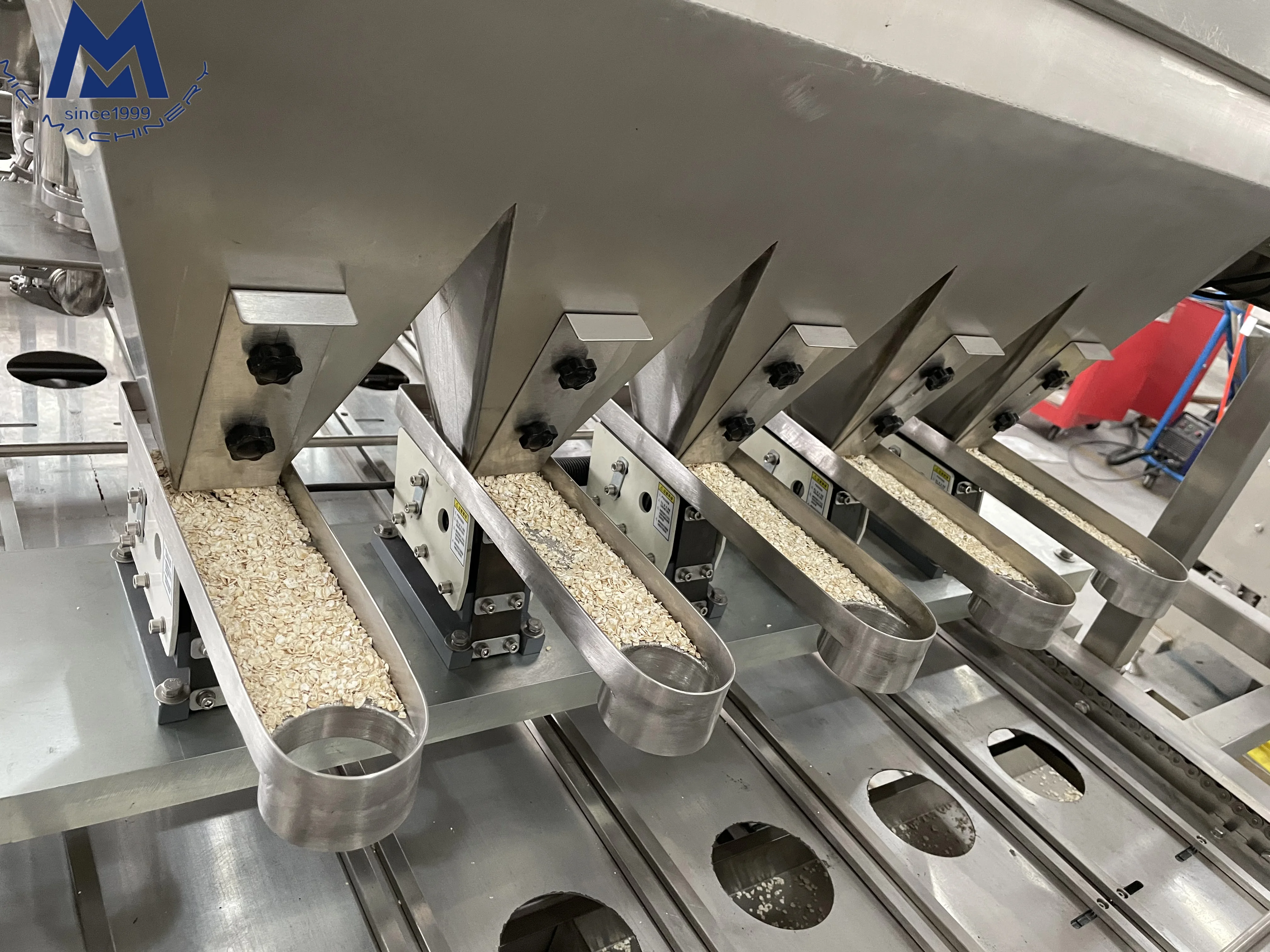

Automatic Granule Nuts Filling Station
The vibrator is used to sprinkle small particles into the cup through vibration. The filling accuracy of this method is not high. If you have high requirements for filling accuracy, we suggest you to use multi-head combined weigher for filling.

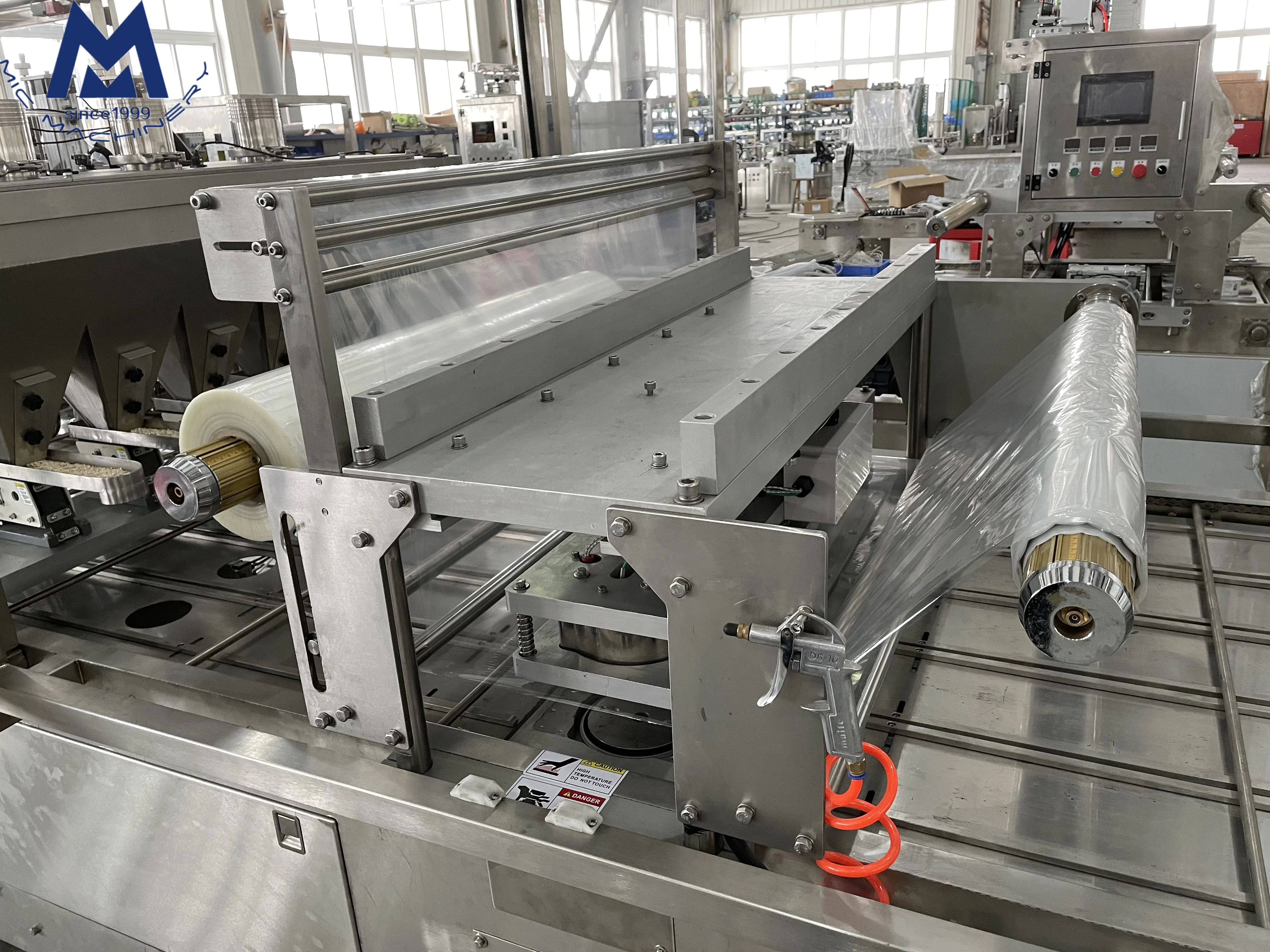

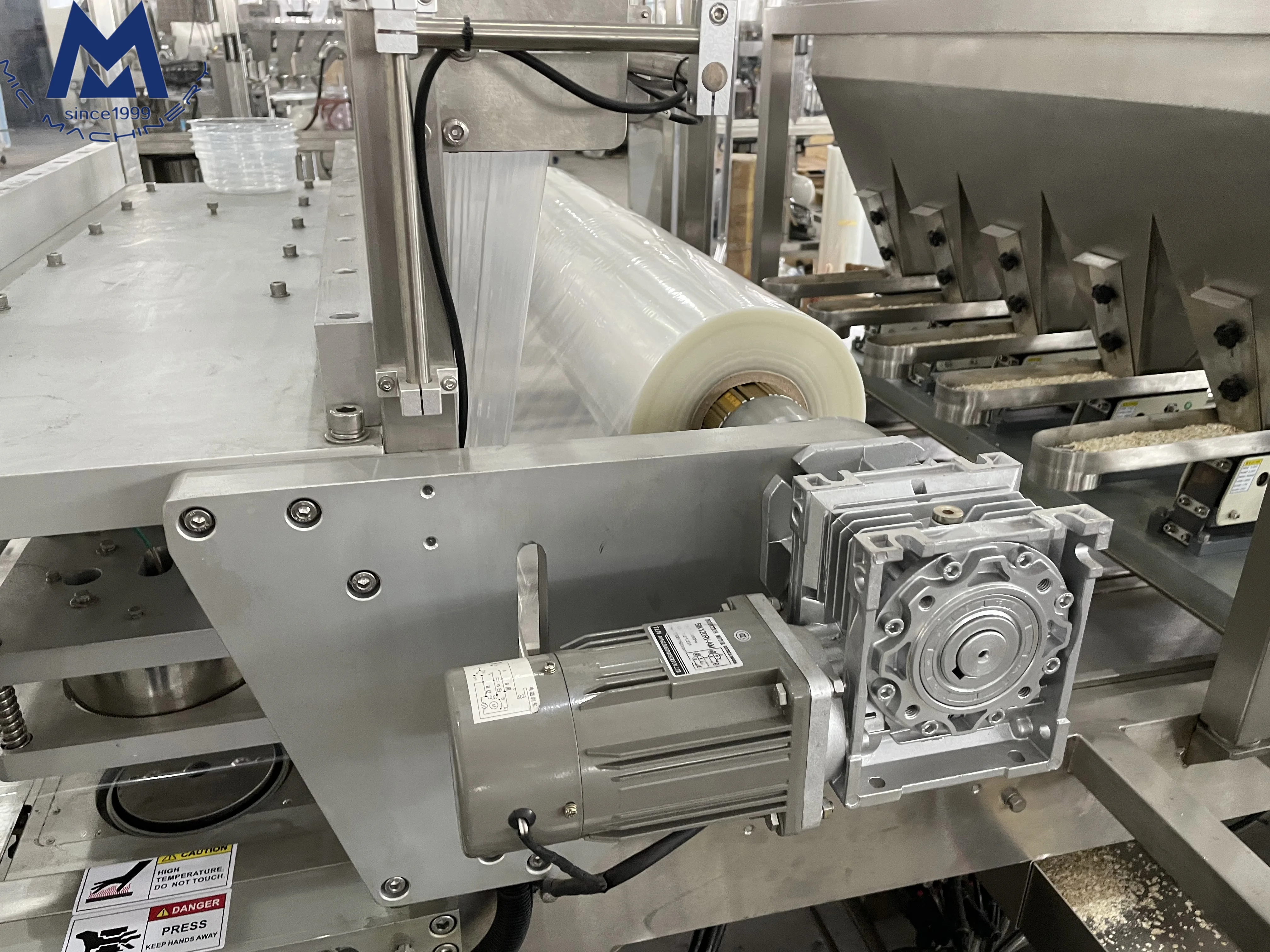

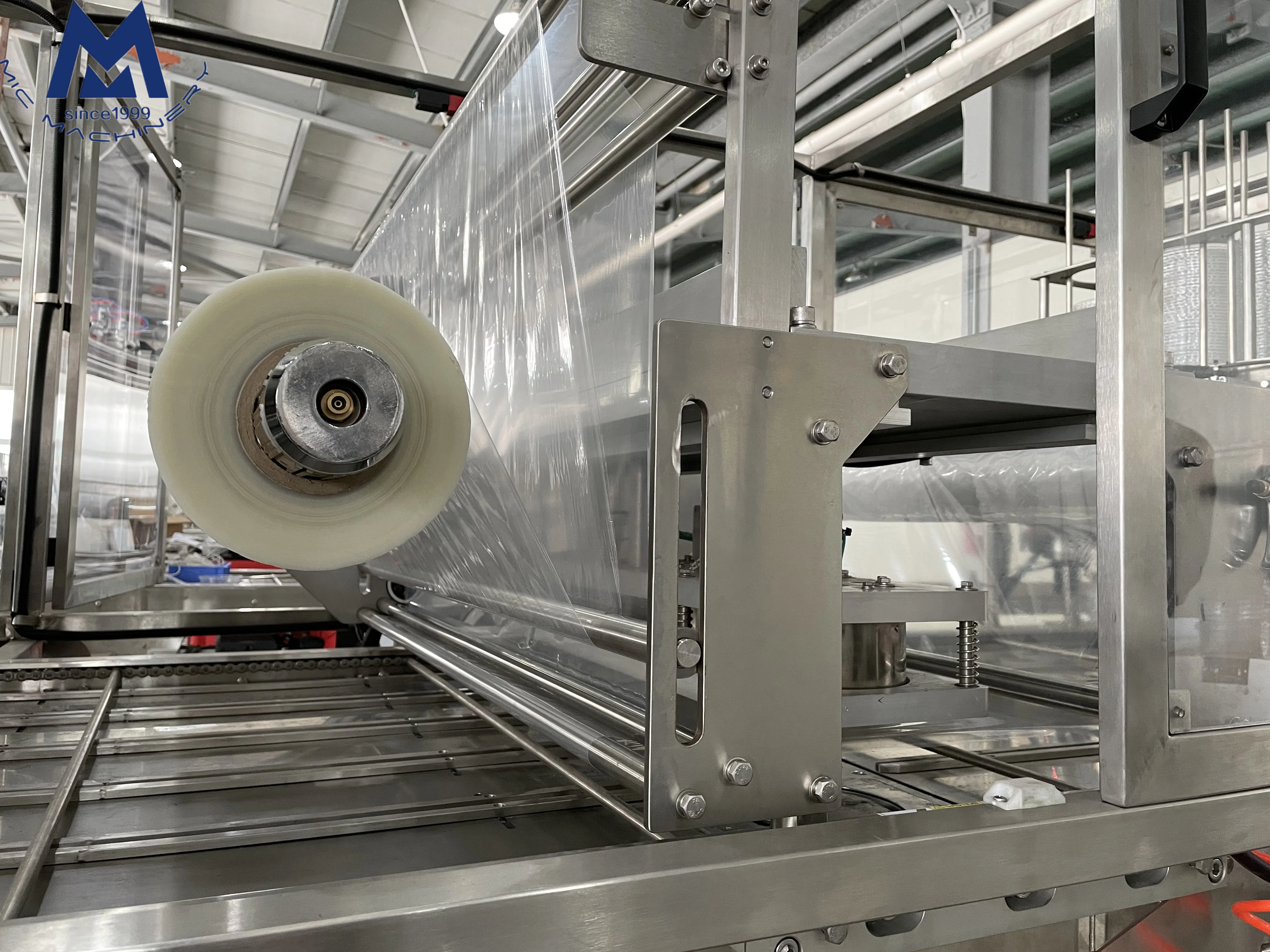

Automatic Film Sealing and Cutting Station
The system consists of automatic film drawer, printing film location, waste film collection and thermostat sealing system, sealing system can runs fast and locates at the printed film accurately. Thermostat sealing cutting system uses Omron PID temperature controller and sensor for high-quality heat sealing. We can also equipped with vacuum sealing and N2 injection function as your demand.

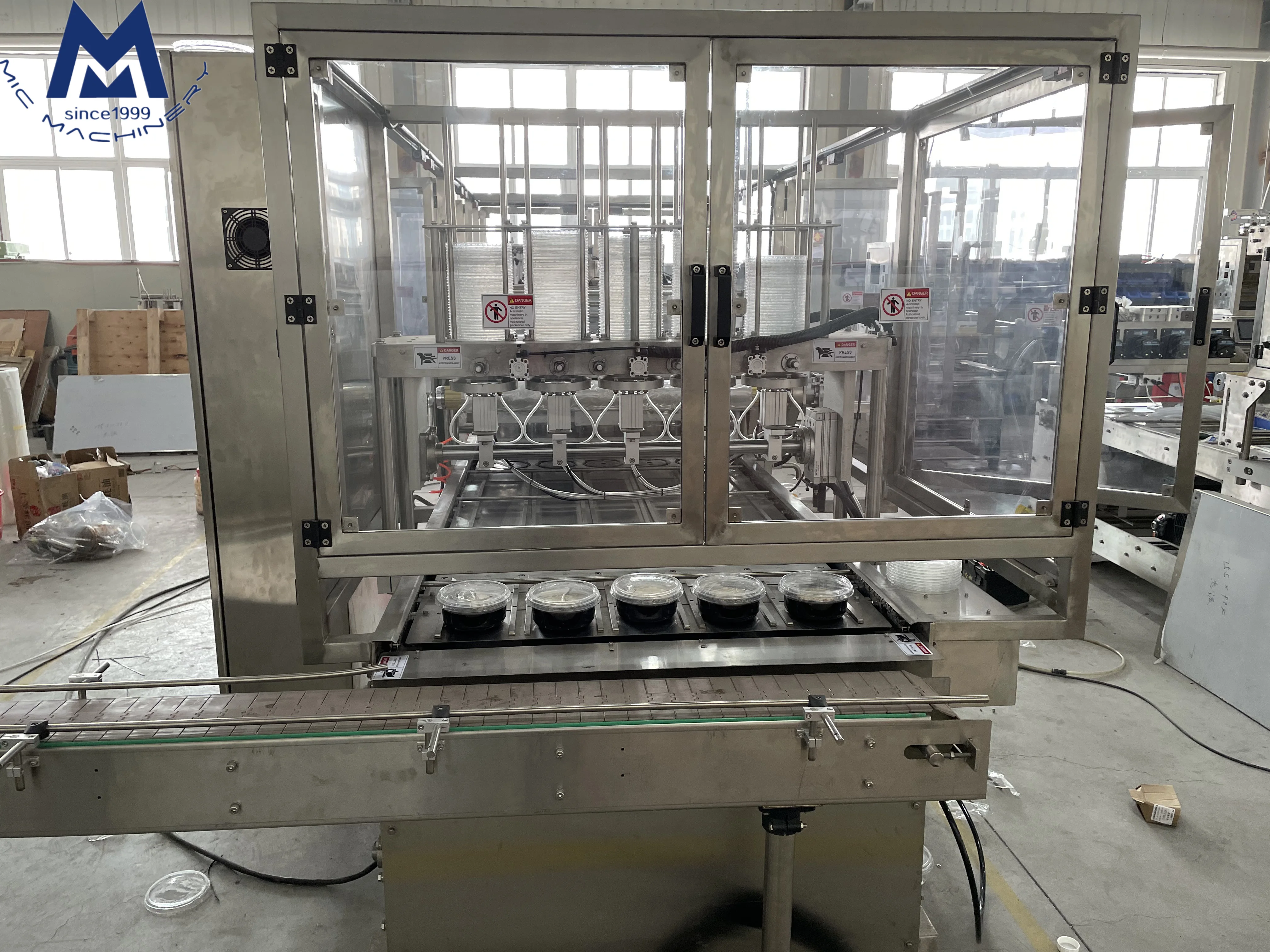

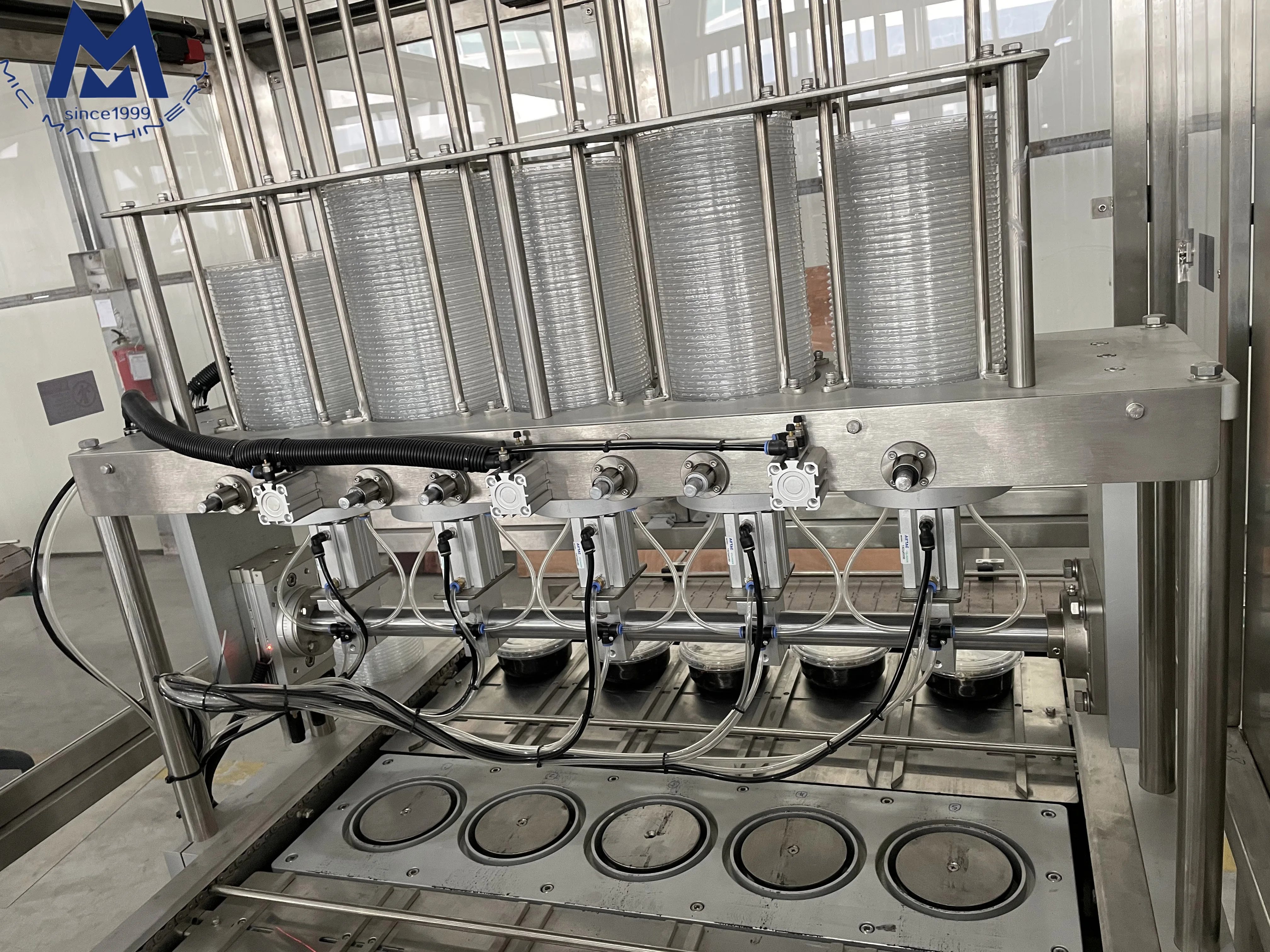

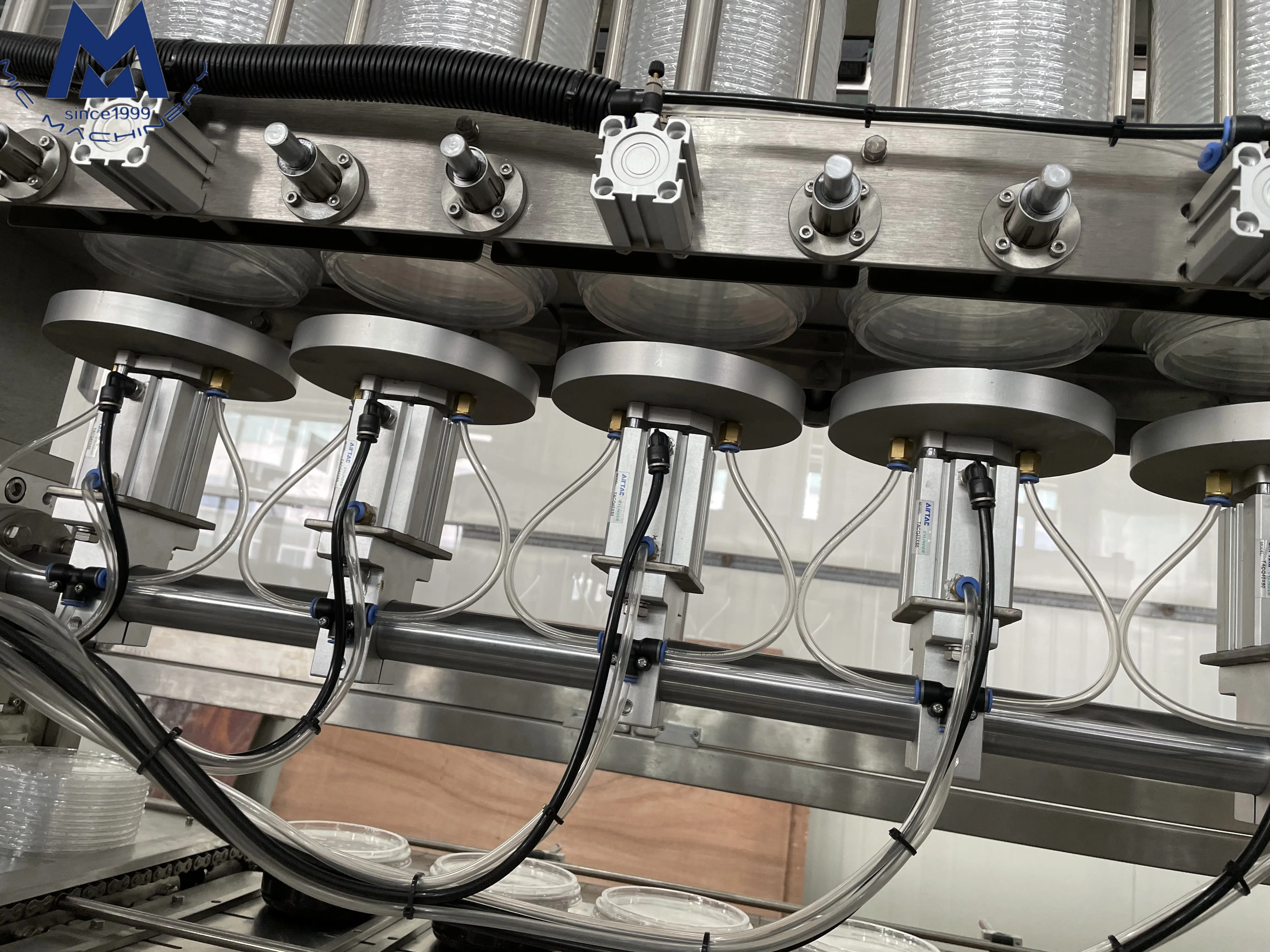

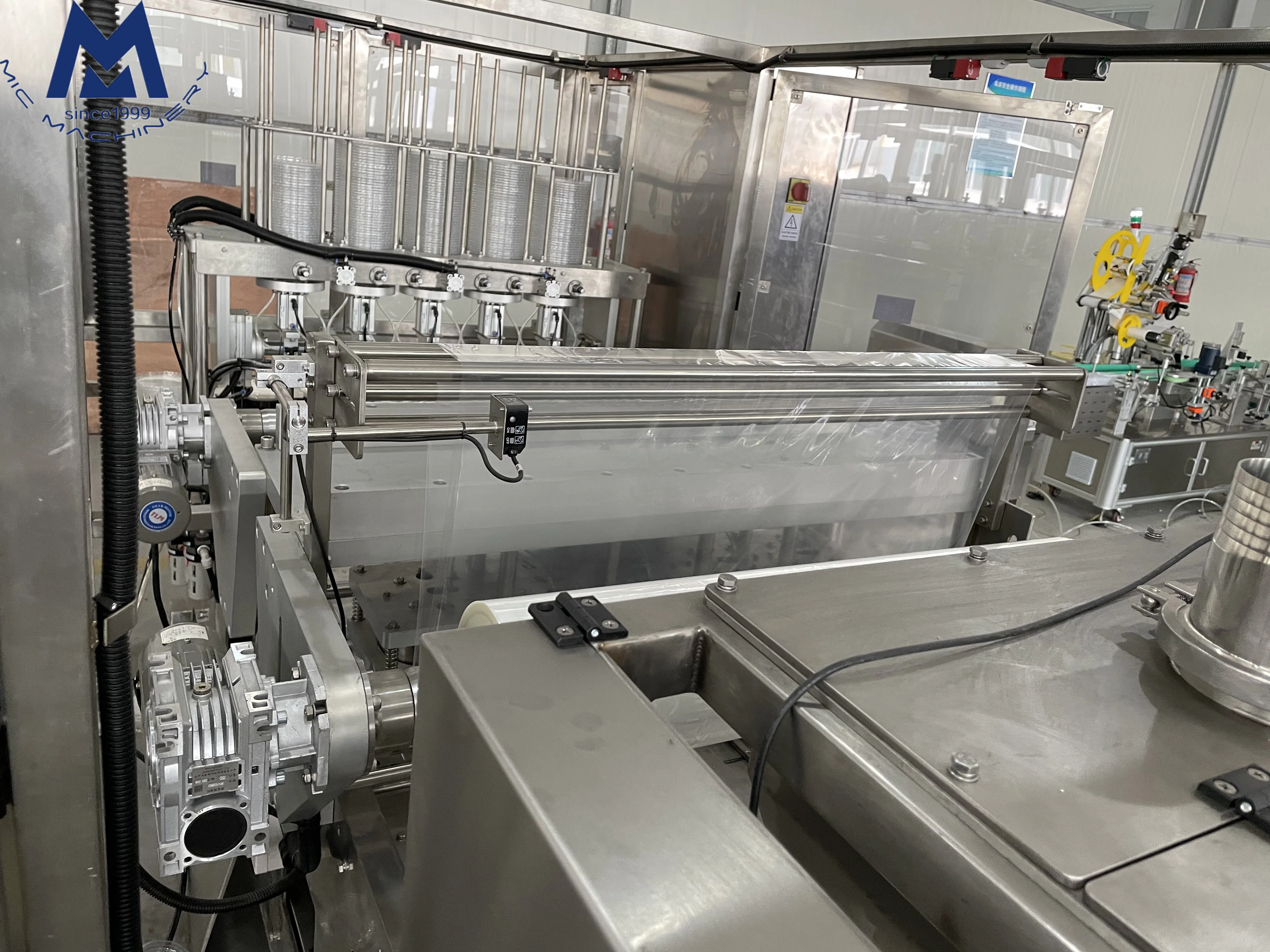

Automatic Plastic Lid Pick Up and Place Station
It is composed of lower locating mold, lid storage frame and lid releasing manipulator. The position of the cover is accurate, the success rate is high, to ensure that the cover is closely connected with the plastic cup.
Automatic Output Finished Cups Trays
It can output the sealed cups and sends it to the outside conveyor belt for collection and packing.

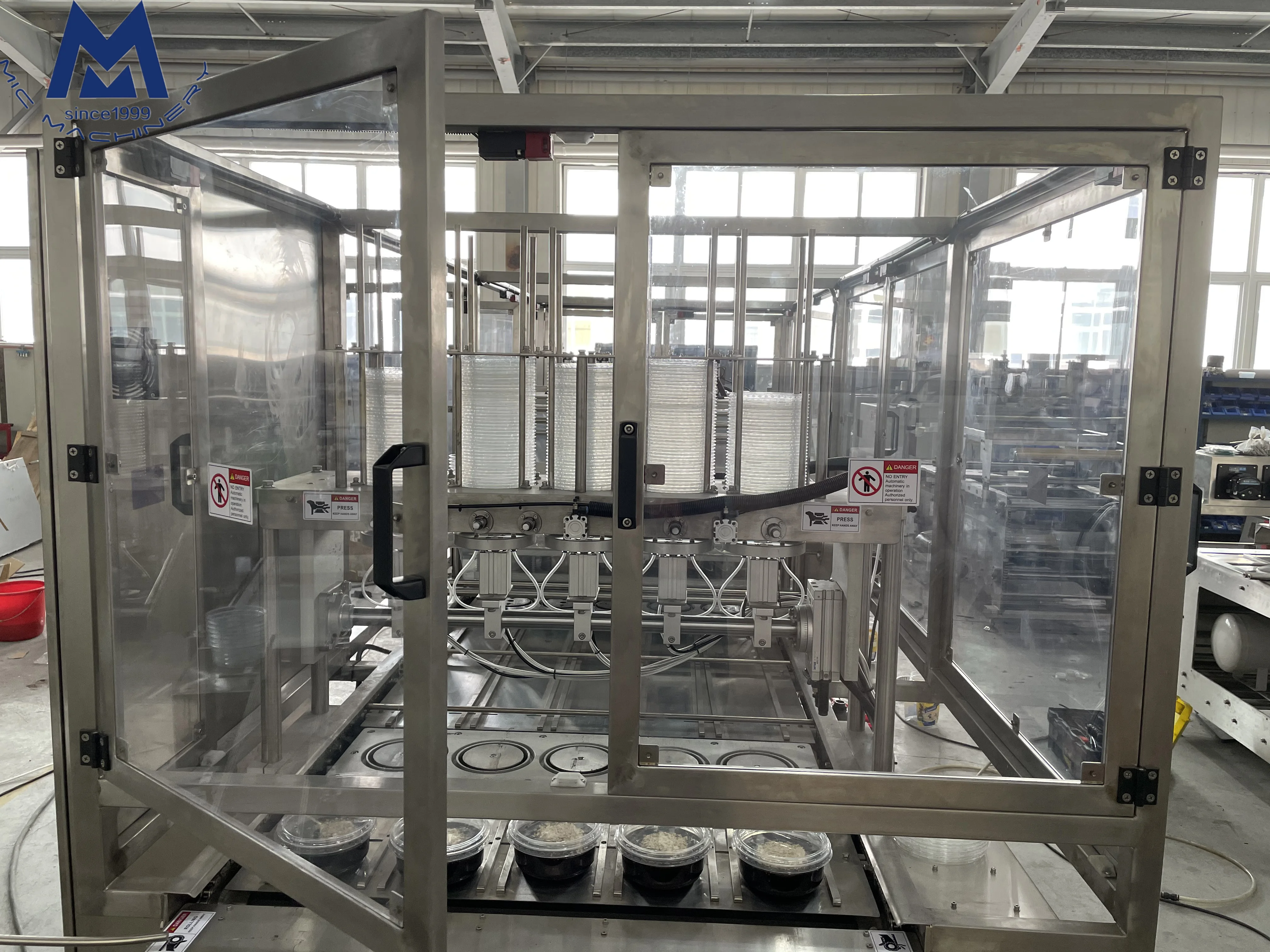

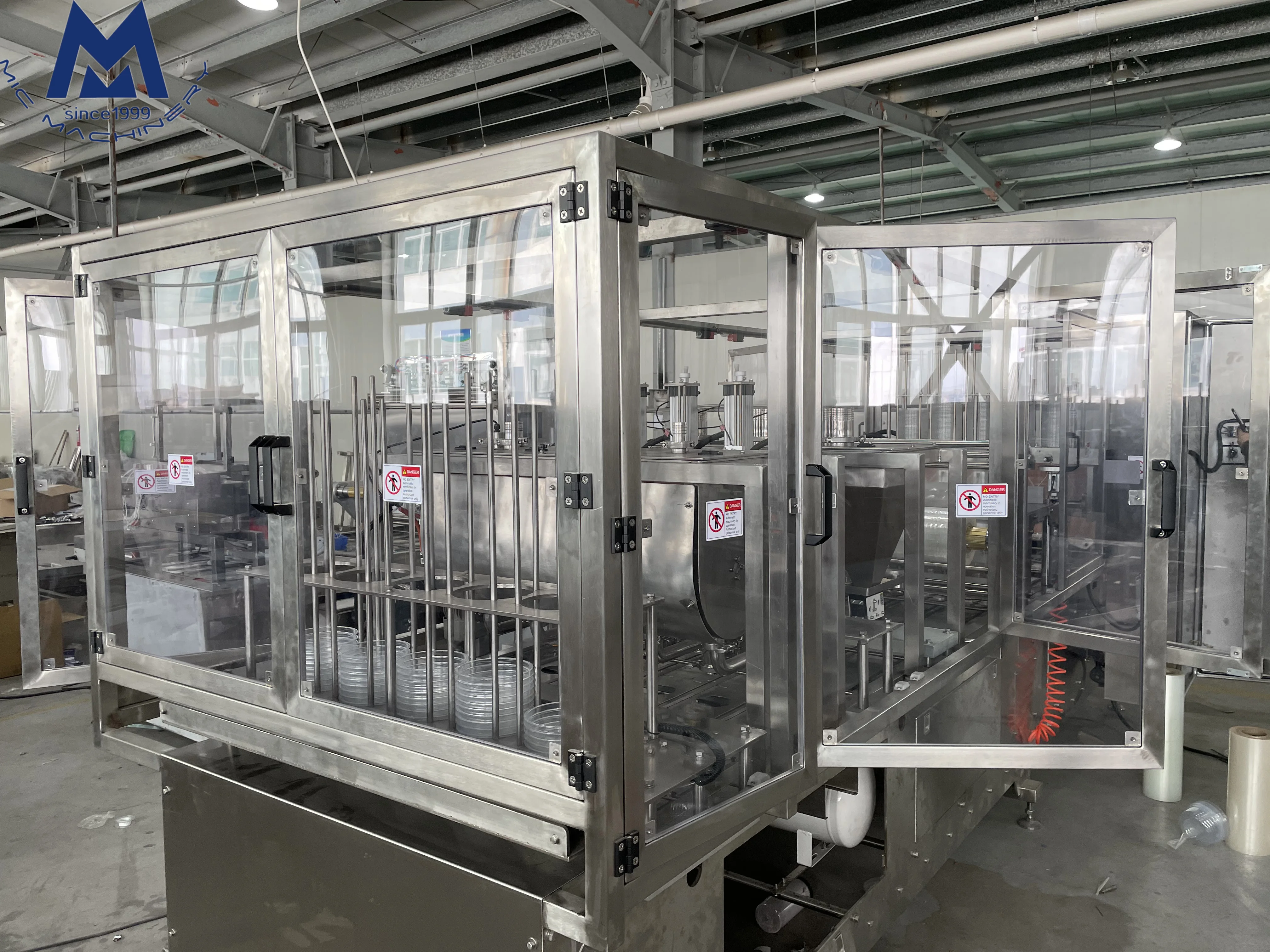

Automatic Open Door Then Stopping Protection Device
In order to protect the operator from being accidentally injured by the machine, and prevent the operator from accidentally opening the machine during the machine running so as to affect the operation of the machine.
More Detailed Photos
Why Choose Us
Mic Machinery Take "The Customer's Requirements As Our Standard" As Our Main Goal. With More Than 20 Years of Experience in Professional Design and Excellent Design Team, Providing Customers with Unique Professional Solutions Such As Filling Machine, Capping Machine, Labeling Machine, Packing Machine for Varies Area.
Our company had exported to Europe, America, the Middle East, Southeast Asia, South America and more than 100 countries, thus we have a very deep understanding of quality system such as the European CE certification system, SGS and ISO 9001 certification system,etc. The company has tens of millions of annual sales and at the same time, we maintains a long-term and stable cooperation relationship with local dealers.
We hope Mic Machinery will become your most trusted partner!
Our company had exported to Europe, America, the Middle East, Southeast Asia, South America and more than 100 countries, thus we have a very deep understanding of quality system such as the European CE certification system, SGS and ISO 9001 certification system,etc. The company has tens of millions of annual sales and at the same time, we maintains a long-term and stable cooperation relationship with local dealers.
We hope Mic Machinery will become your most trusted partner!
Certifications
FAQ
Q1：Are you a manufacturer or trading company?
We are the manufacturer in Zhejiang, we are doing machine production over 15 years, we offer steady machine and 100% machine is running oversea..
Q2：What is the payment way of your company?
① 30% deposit of contact in advance for start production, 70% balance payment should be paid after we video inspection or SGS inspection at site, before shipment.
② 100% Irrevocable letter of credit at sight.
③ To make the machine, we need buyer to provide samples and 30% deposit of contract to start production.
Q3：Is this machine in stock or customized for us?
Our machine is customized. Normally, it needs 30-40 days to deliver the goods.
Q4：What is the warranty and the maintenance you can supply?
Two Year Warranty, lifetime maintenance, one year free spare parts shipping. (Not damaged by human factors.)
Q5：How can I install this machine when it arrives at our factory?
We have machine manual which made for each machine, we will have machine test before shipment and make video to teach you how to adjust machine for all process, we are always available for video chat appointment for installation. We are able fly to your site for installation and training.
