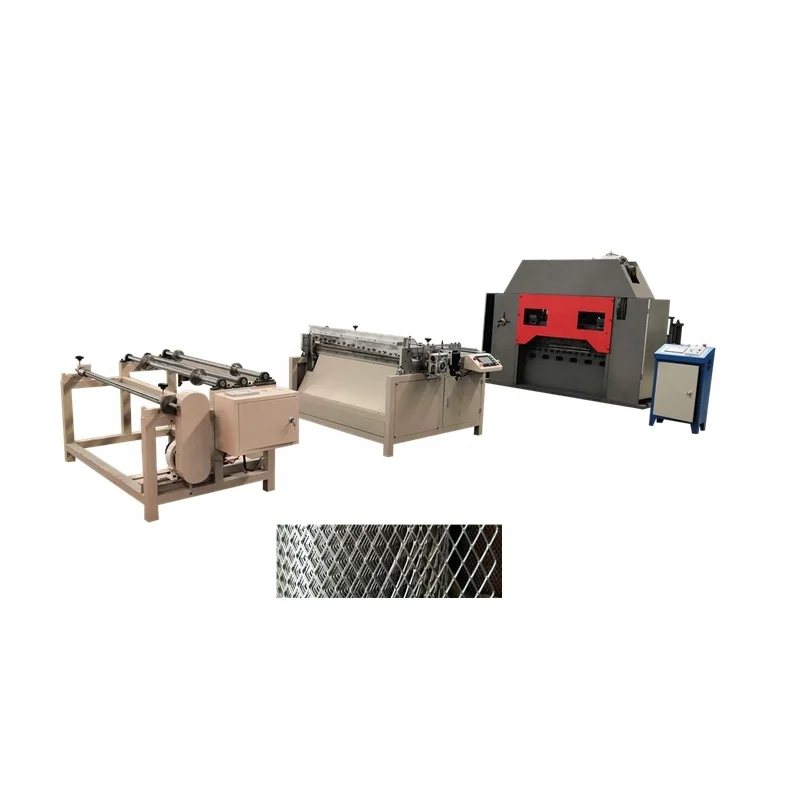

Well made aluminum steel expanded metal mesh making machine automatic production line different shape expanded mesh machine
- Category: >>>
- Supplier: Hebei Sade Machine Manufacturing Co. Ltd.
Share on (1600517935495):
Product Overview
Description

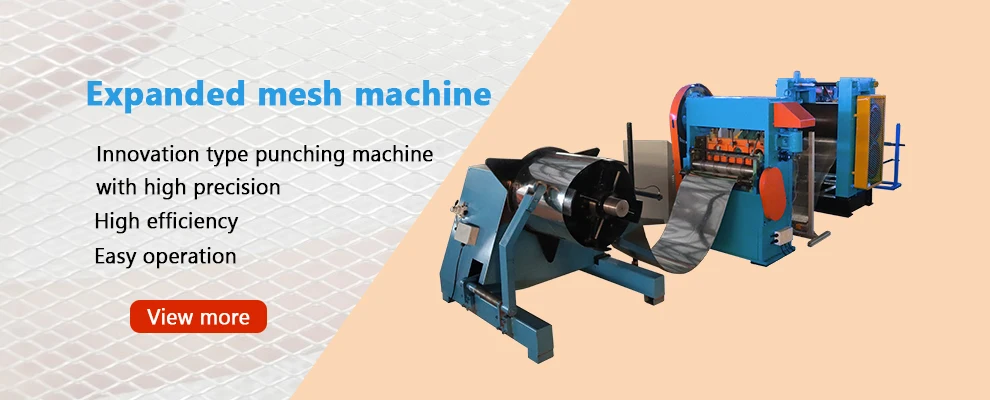

Full-automatic expanded metal mesh machine line
Good effect, control ability,stability and safety has been greatly increased
Product Description

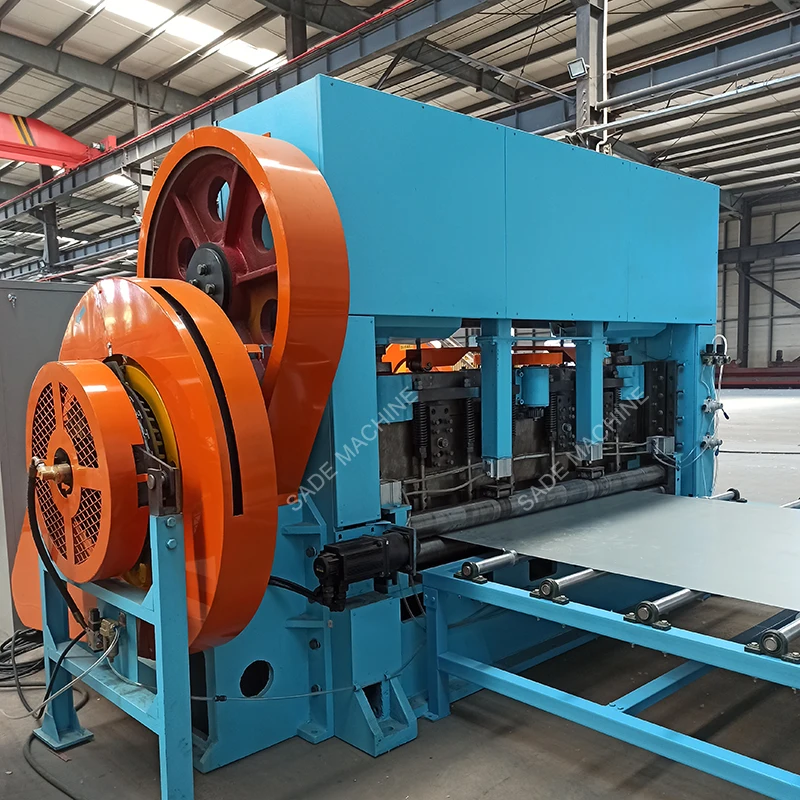

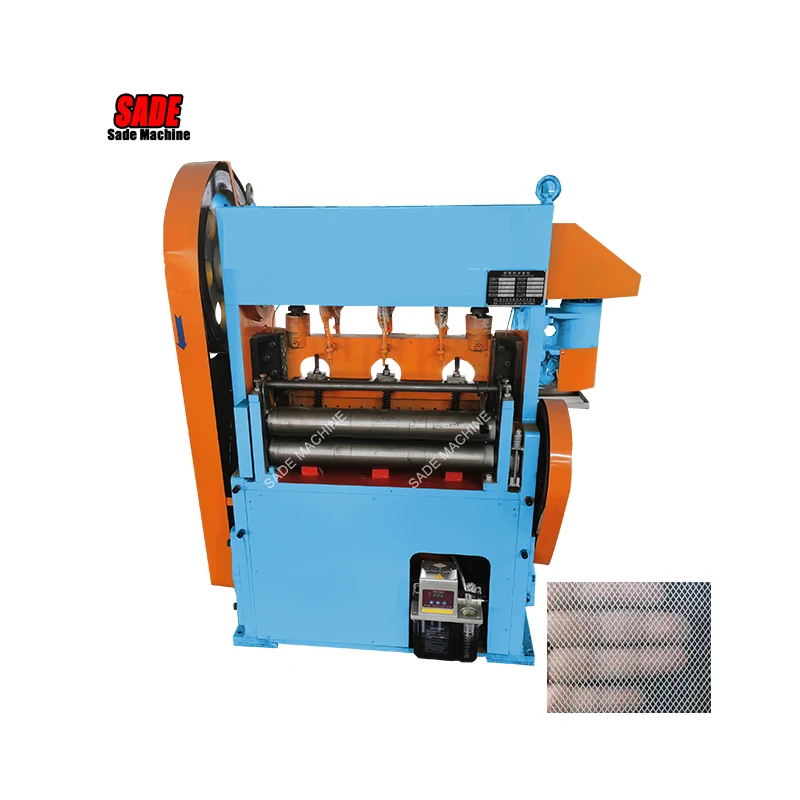

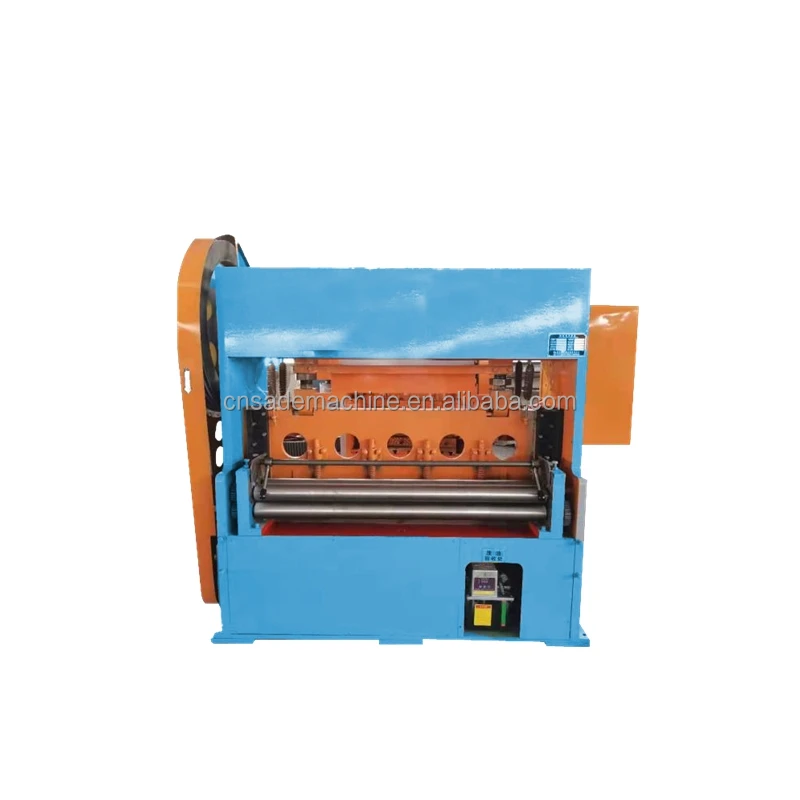

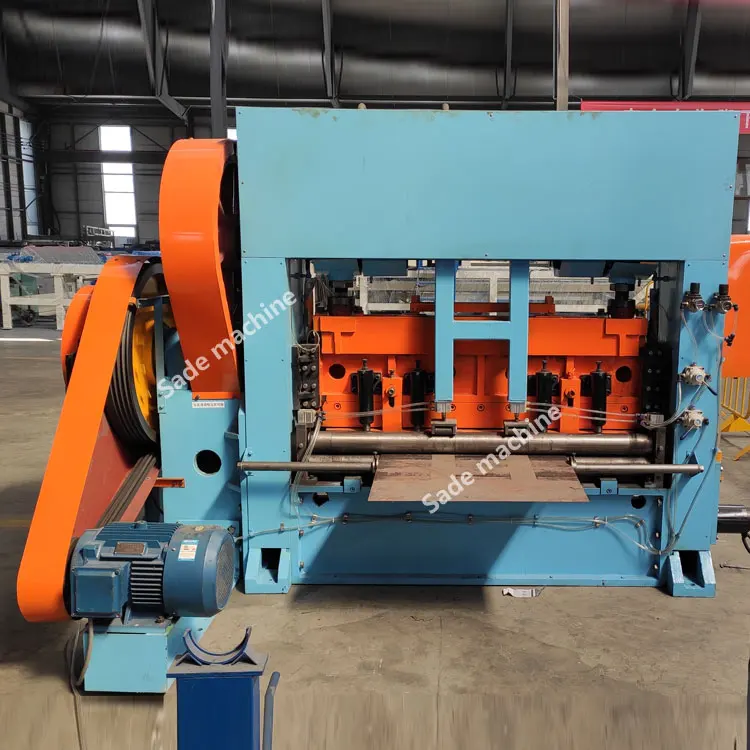

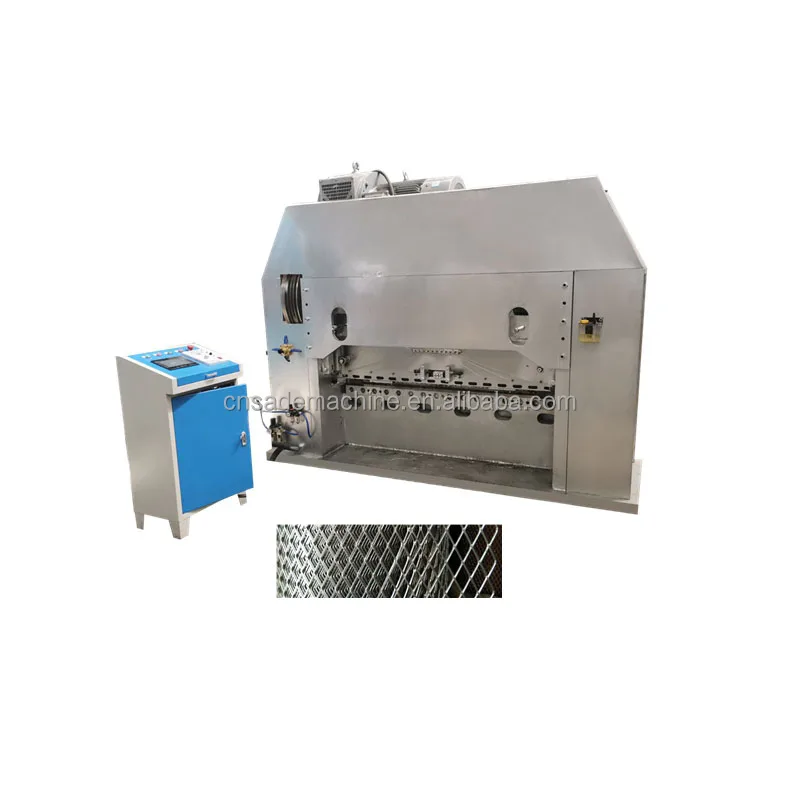

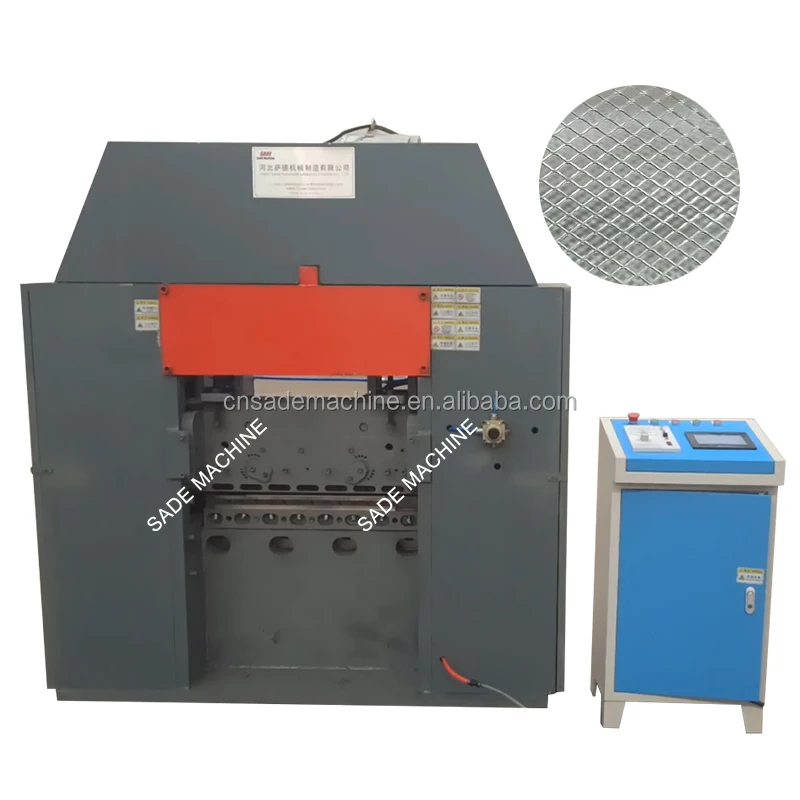

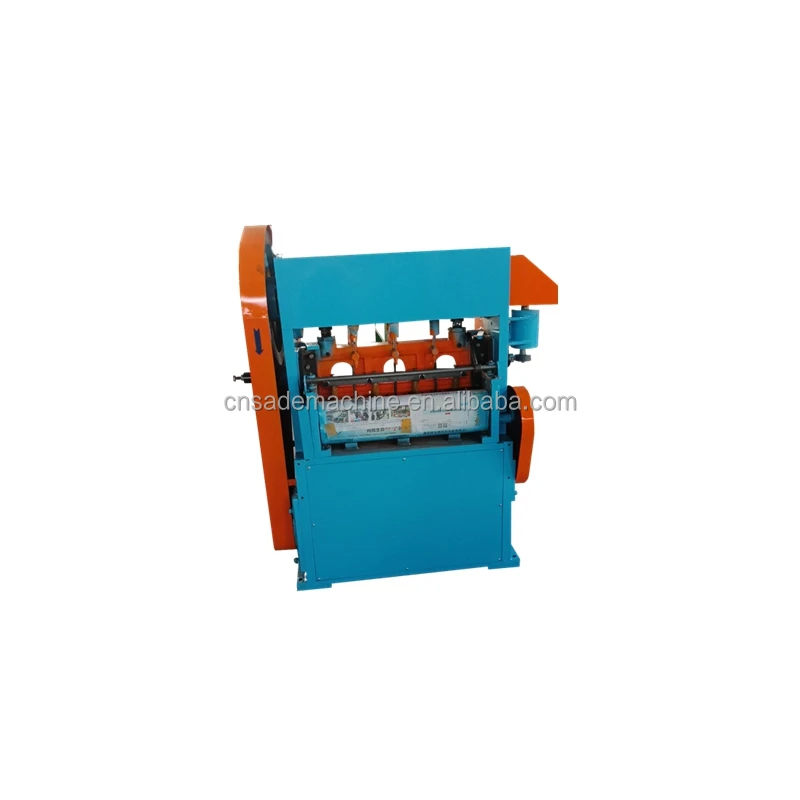

Expanded Metal Mesh Machine
Adopts mature technologies of the past as well as new technologie:
1. Full-automatic lubricating
2. NC stepping motor feeding or Servo motor feeding.
3. Siemens PLC +Touch screen + Inverter control
4. Heavy expanded metal machine sheet feeding, light exapnded metal mchine could be coil or sheet feeding
5. Speed: 55-700 times/min, different sizes machine speed diffrent
6. Automatic production line Set

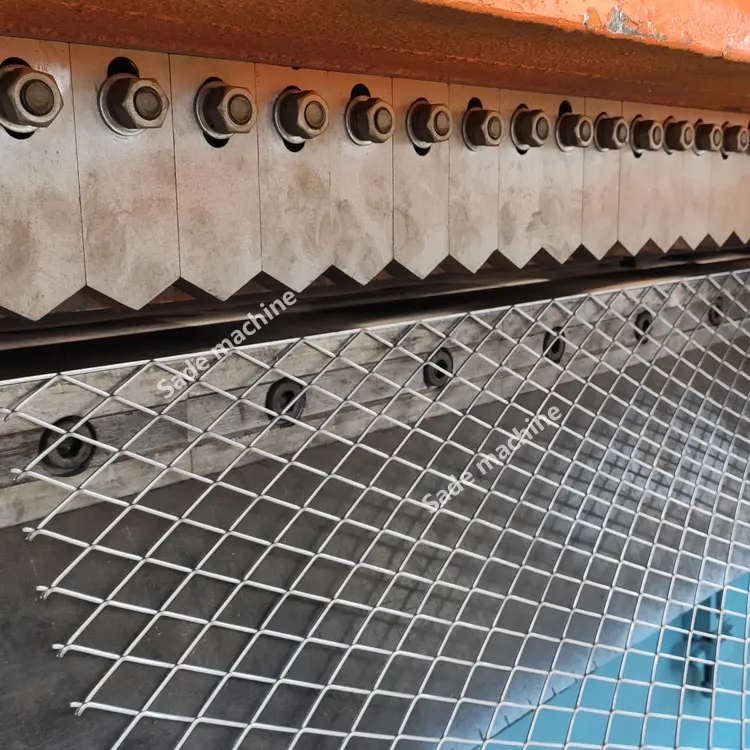

Expanded mesh machine function: the machine use for punching and cutting metal plate, then stretches it to mesh.

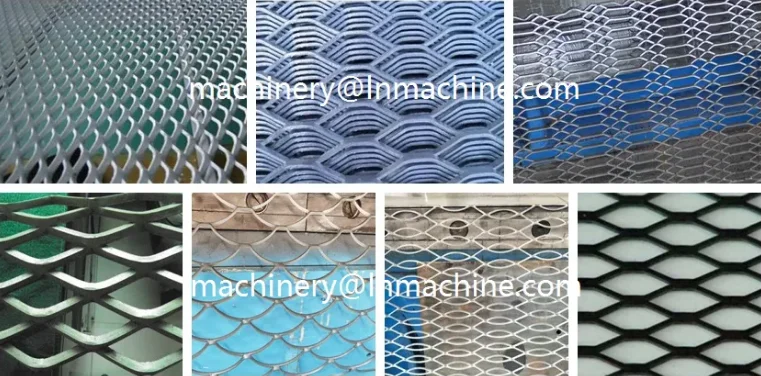

The machine could expanding diamond hole, circular hole, hexagonal hole, fancy hole etc.
Applicable material: low carbon steel , aluminum, stainless steel, aluminum magnesium alloy , copper , Nickel etc .
The material could be sheet or coil according the machine you choice requirements.

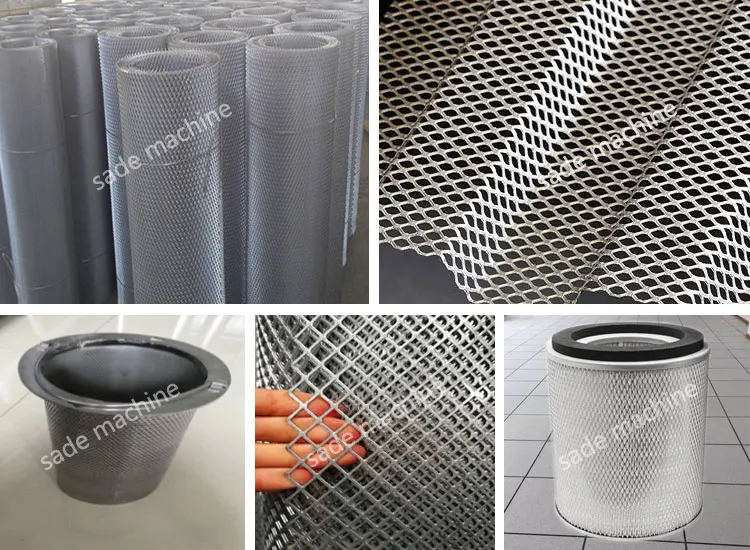

Finish Expanded Metal Mesh: The expanded metal mesh widely used in concrete mesh in buildings and constructions, maintenance of equipments, filter filed, making arts and crafts, covering screen for first class sound case etc.
Exactly such as: fencing, studio, filter tube or fitler mesh, walking way, celing board, grating, step mesh , working platform, walk way, boiler, petroleum and mine well, automobile vehicles, big ship etc.

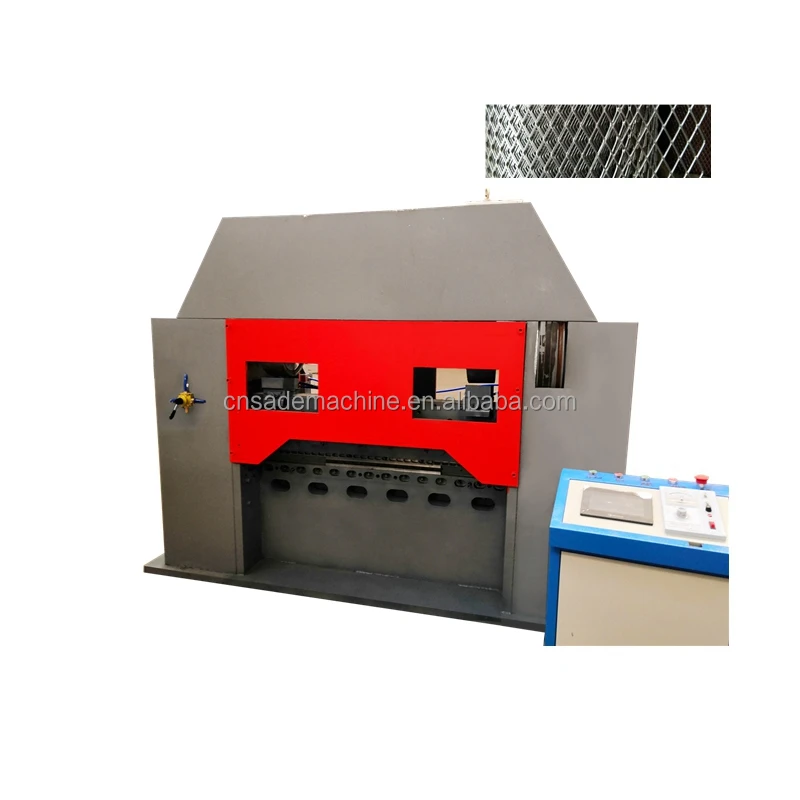

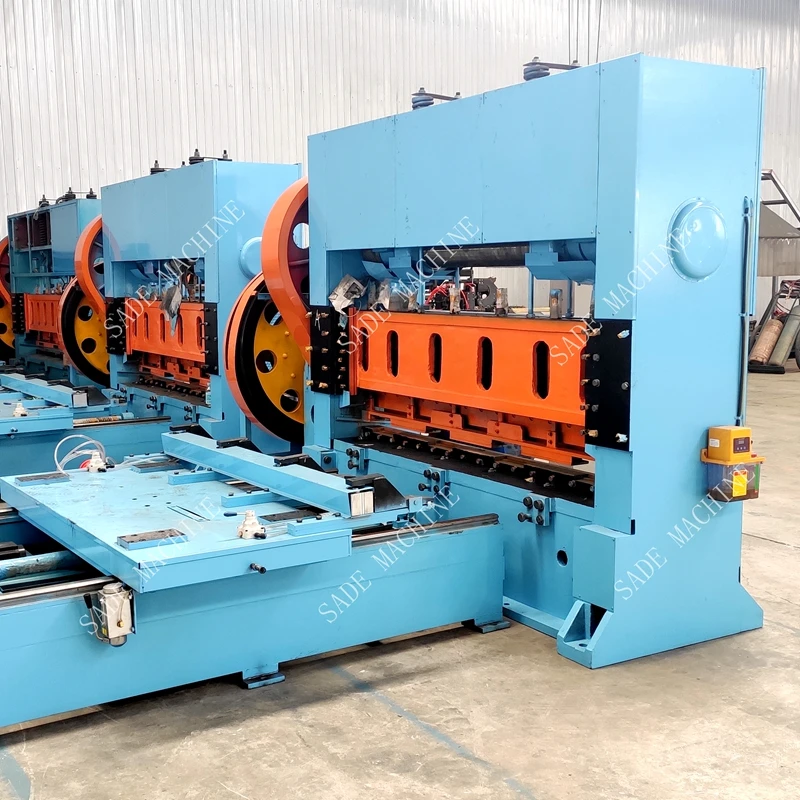

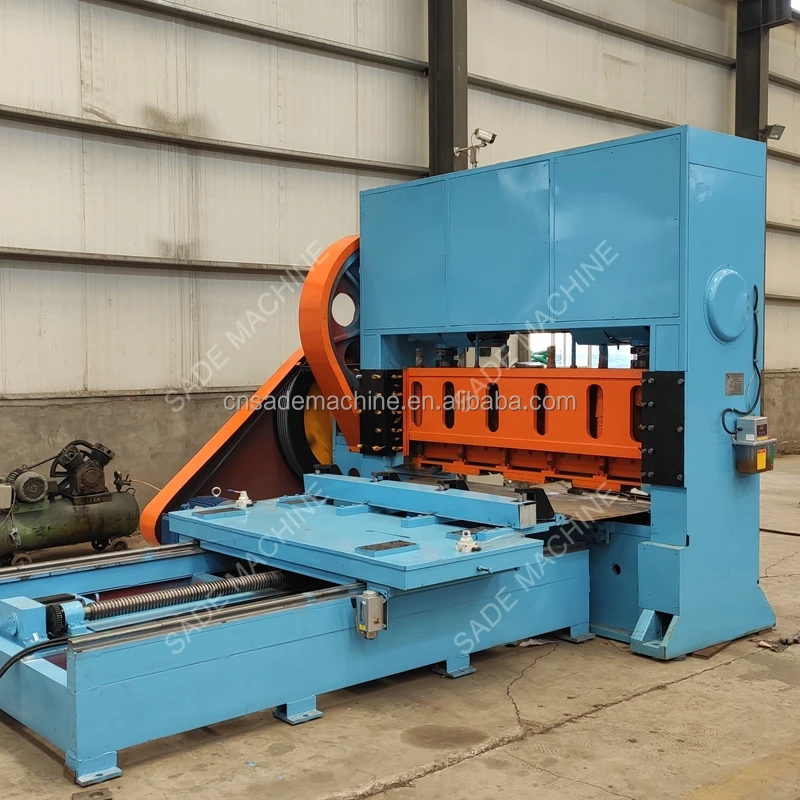

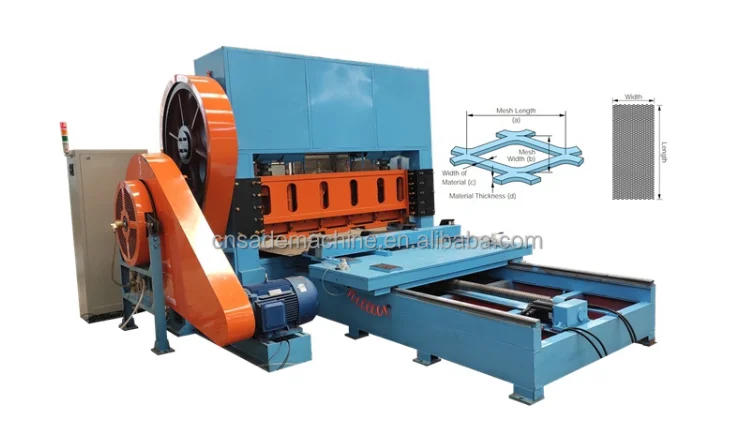

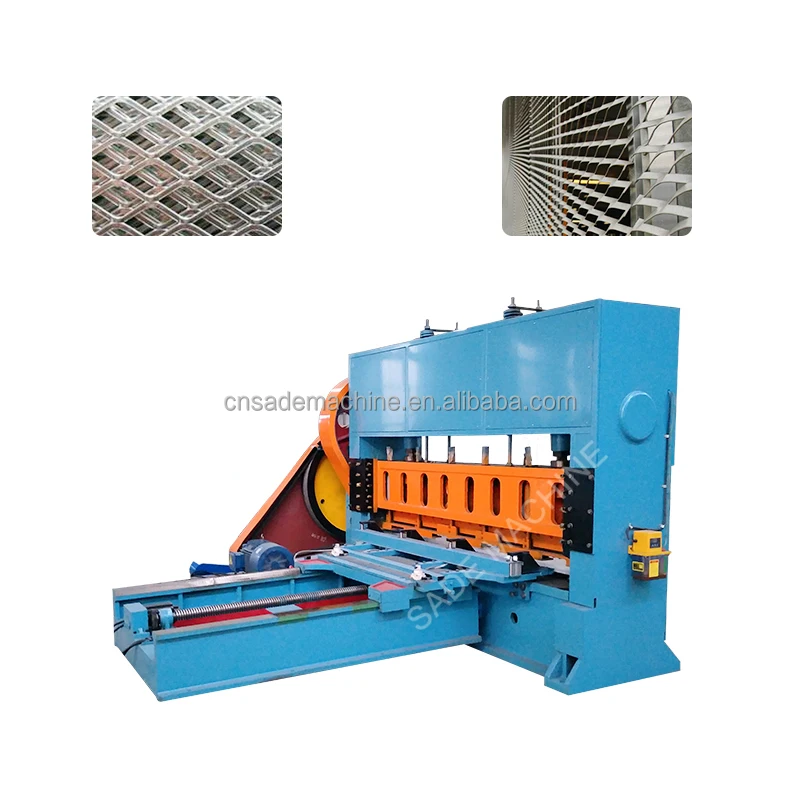

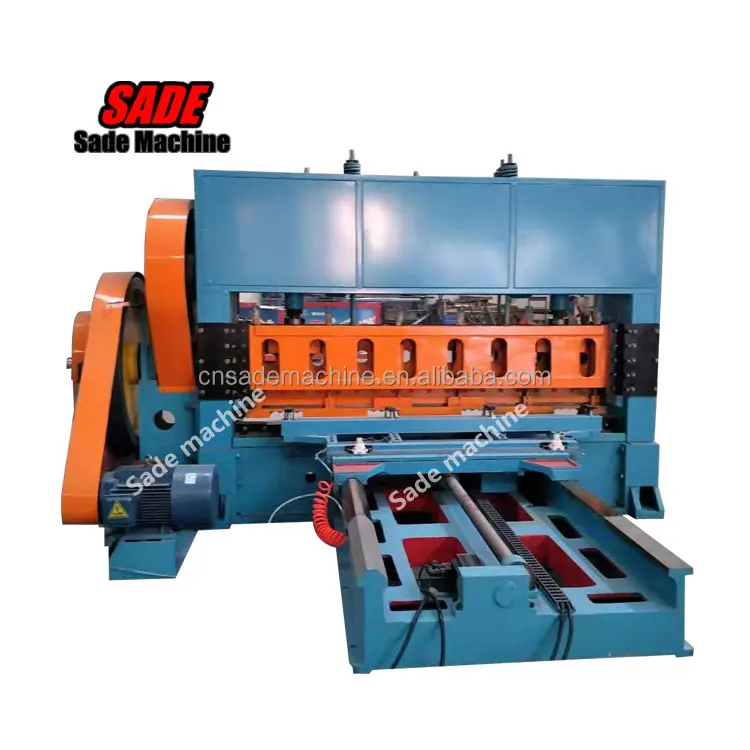

Heavy Duty Expanded Machines
JQ25-100 Expanded Metal Machine Width: 2000/2500mm Thickness: 6mm/4mm max Material type: sheet
| JQ25-160 Expanded Metal Machine Width: 2000/2500/3200mm Thickness: 8/6mm Material type: sheet
|
JQ25-100 Expandedc Metal Mesh Machine Width: 2000mm Thickness: 4mm Material type: sheet or coil
| JQ25-260 Expanded Metal Machine Width: 2000/2500/3200/4000mm Thickness: 10/8/6mm Material type: sheet
|
JQ25-40 Expanded Metal Machine Width: 1500/1600 Thickness: 2.5mm Material type: sheet or coil
| JQ25-63 Expanded Metal Machine Width: 2000mm Thickness: 3mm Material type: sheet
|

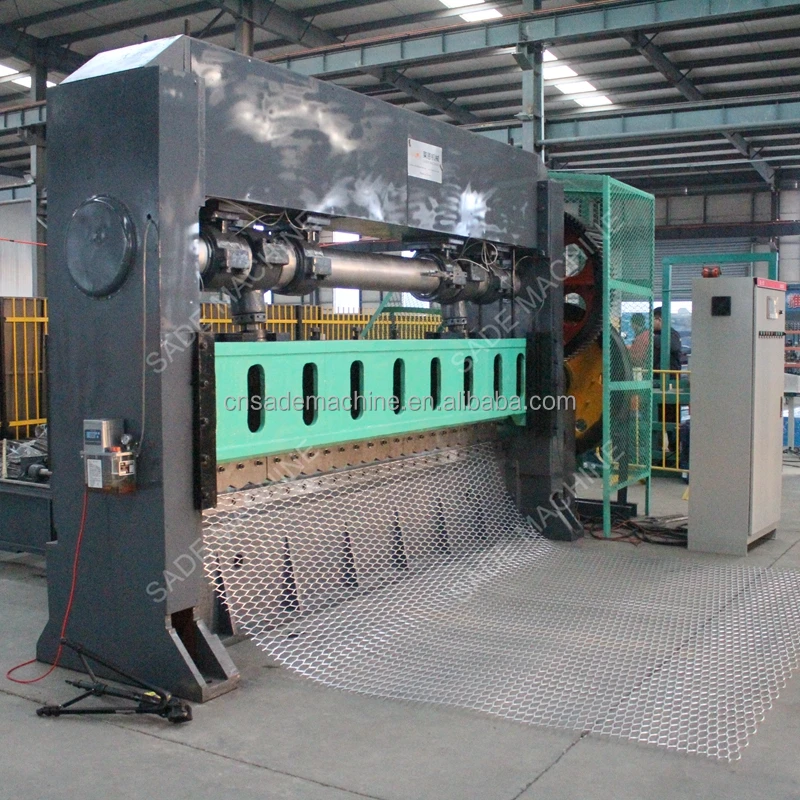

Heavy Expanded Metal Mesh
Full Automatic working Production Lines
You may choice automatic working line or only expanded metal mesh machines
Advantage:
1. Full automatic lubracation system with beautiful appearance, environmental protection and energy saving
2.High technology with Servo motor/step motor feeding,more stable
3.Equip good quality alloy cutter with YG20/YG22.
4.Frequency inverter control speed,high speed effeiciency and power saving.
5.PLC famous brand:Siemens Germany

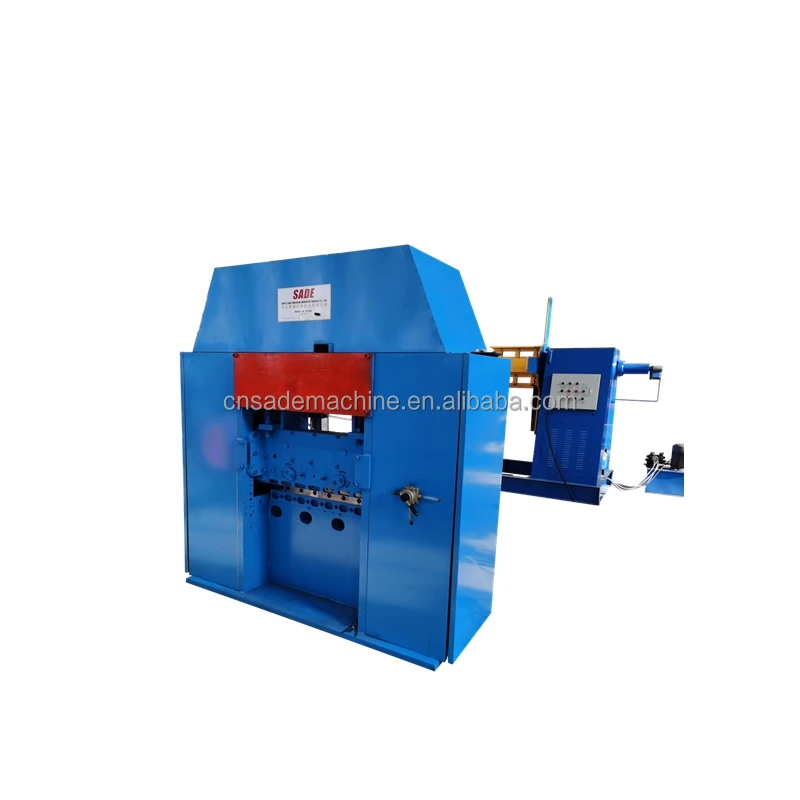

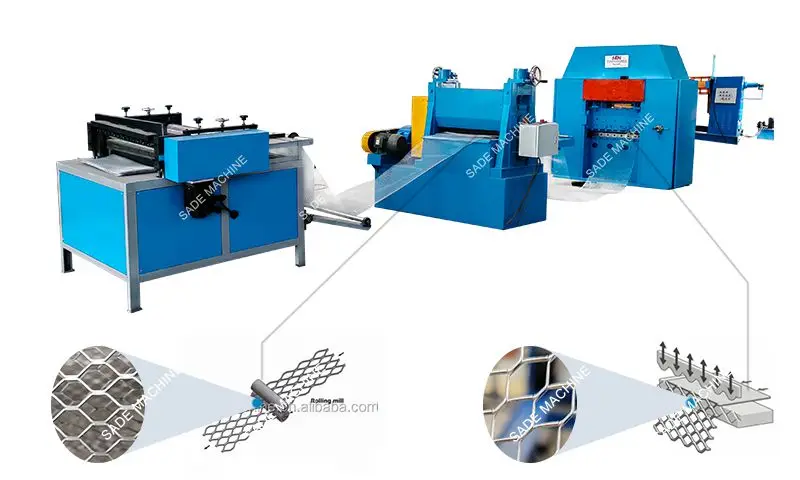

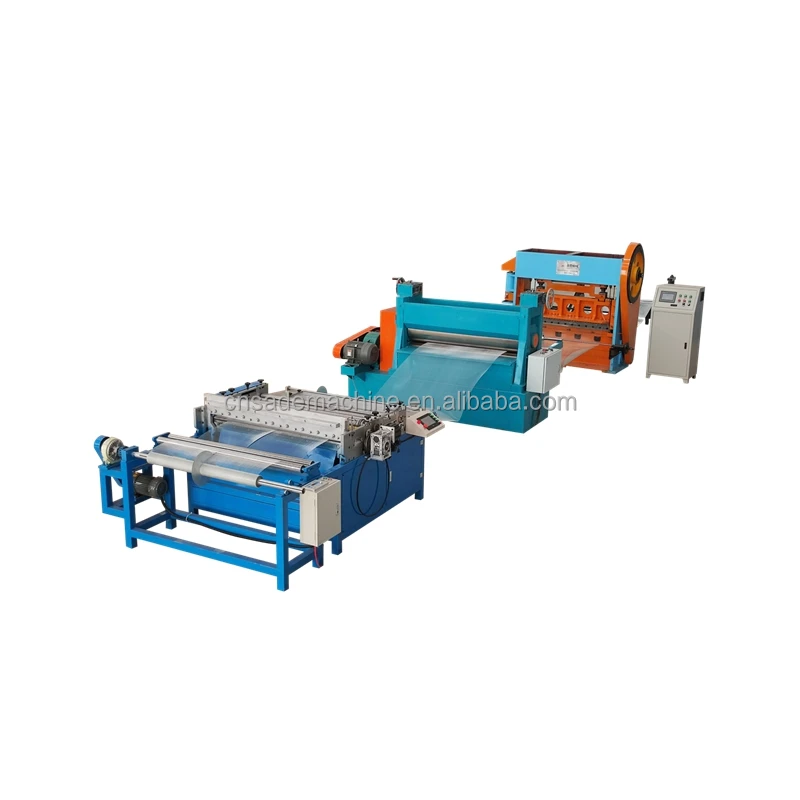

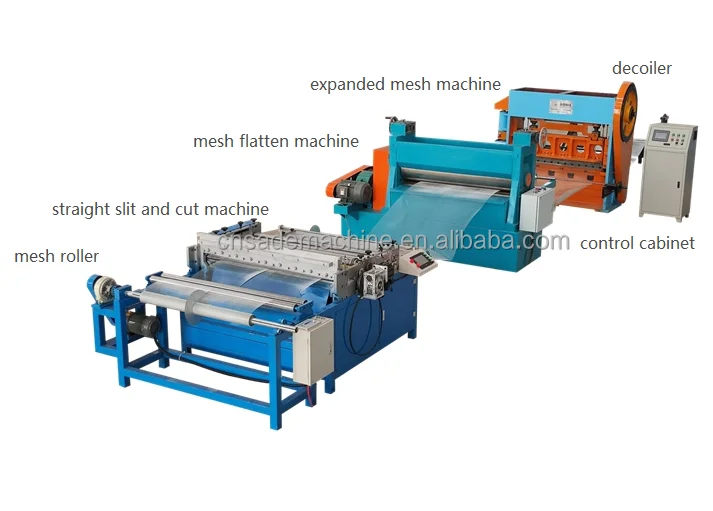

Full Line automatic expanded mesh machine contain machines:

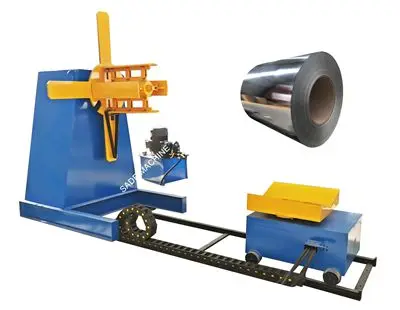

1. Decoiler- hydraulic type -use for unwinding coil
| 2. Expanded Metal mesh machine - use for expanding metal to mesh
|

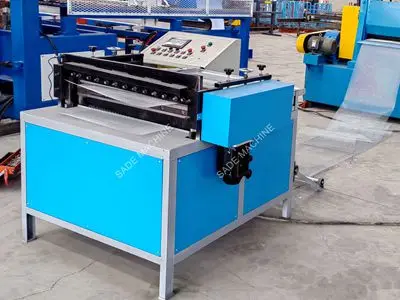

3. Straightening and cutting machine - use for straightening and cutting mesh
| 4. Mesh rolling machine -use coil mesh to roll mesh
|
Flatted Expanded Metal Mesh Production line also supplying:

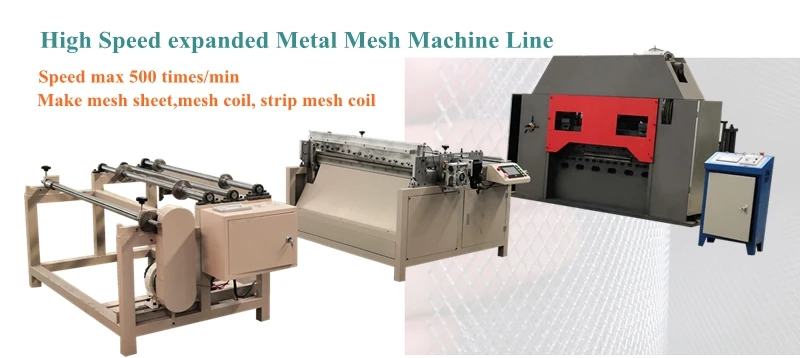

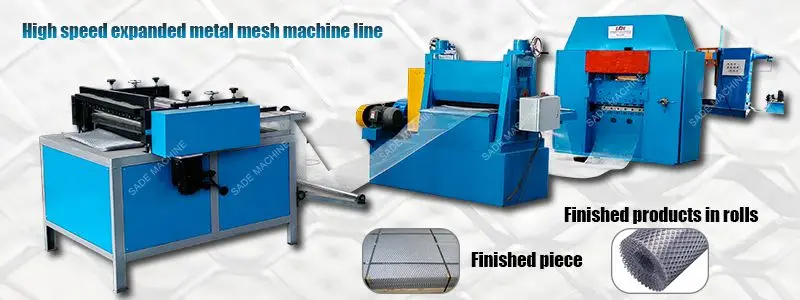

High Speed Expanded Metal Machine Parameters:
Model | JQ25-4G | JQ25-6.3G | JQ25-25G | JQ25-40GL | JQ25-40G |
Type(mm) | 400 | 700 | 1250 | 1580 | 1580 |
Thickness(mm) | 0.15-0.6 | 0.15-1 | 0.3-1.2 | 0.5-2 | 0.8-4 |
Width(mm) | 400 | 700 | 1300 | 1580 | 1580 |
Speed(strokes/min) | 700 | 600 | 500 | 380 | 260 |
Motor(kw) | 3 | 5.5 | 7.5 | 22 | 3 |
 |  |
 |  |

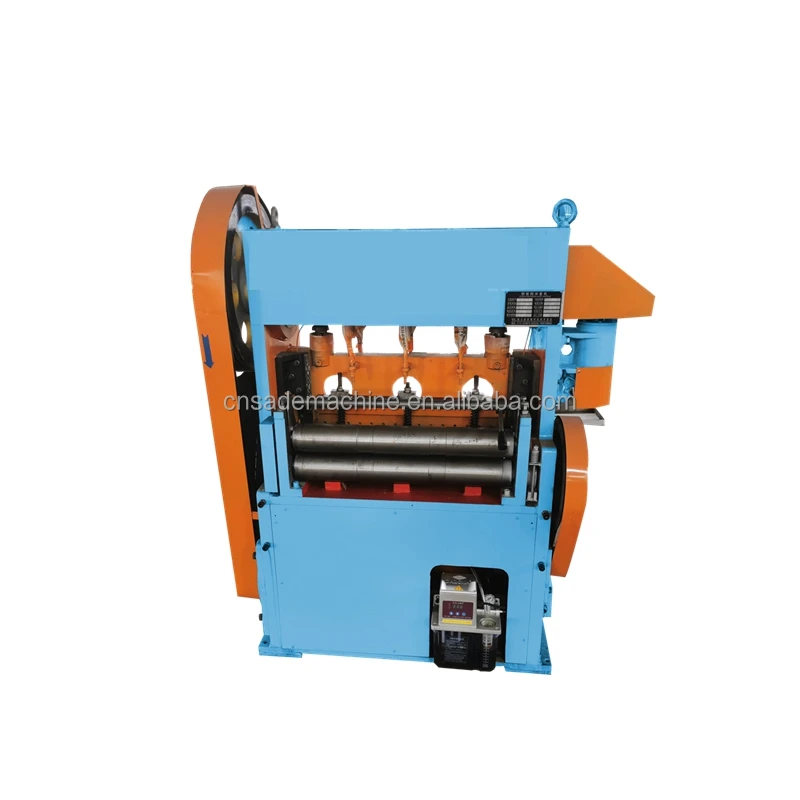

Normal High Speed Expanded Metal Mesh Machine Technical Parameters:
| Model | JQ25-6.3H | JQ25-16H | JQ25-25H |
| Thickness | 1mm | 1mm | 1.5mm |
| Width | 650mm | 1000mm | 1250mm |
| Length of mesh | 20mm | 25mm | 40mm |
| Speed | 320 times/min | 280 times/min | 230 times/min |
| Motor | 2.2kw | 4kw | 5.5kw |
JQ25-6.3 | JQ25-16 | JQ25-25 |
Thin Expanded Mesh

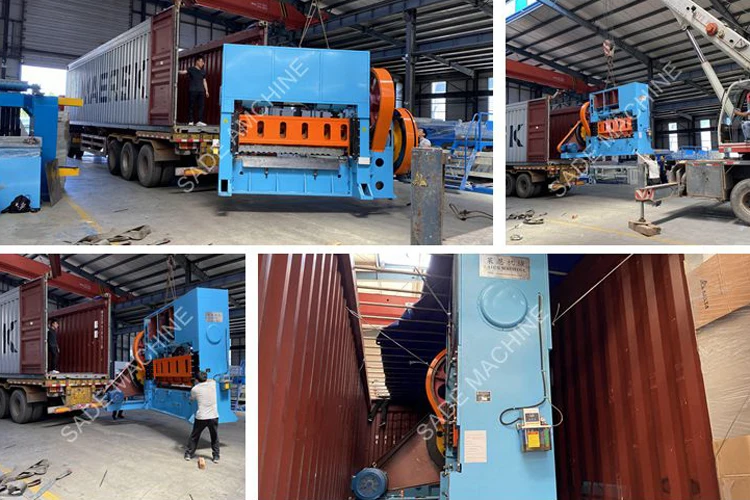

Packaging & Shipping
Our Services
| Normal Questions You May Care |
ABOUT AFTER SALES SERVICE:
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE:
1. Warranty period: Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE:
1. Warranty period: Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
QUESTIONS
√: Are you the factory?
Yes, our factory design and produce kinds of different wire mesh machines.
√: Where is your factory located? How can i visit there?
Our factory is located in anping, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if you from guangzhou come here, then you can choice take air , it will need about 3hours.
√: What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's require.
√: How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the accurate price.
√: What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others.... It is negotiationable.
√: Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
√: How long is your delivery time?
Usually it will need about 30 days after received the deposit.
√: How long of your warranty?
Usually one year warranty.
Yes, our factory design and produce kinds of different wire mesh machines.
√: Where is your factory located? How can i visit there?
Our factory is located in anping, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if you from guangzhou come here, then you can choice take air , it will need about 3hours.
√: What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's require.
√: How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the accurate price.
√: What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others.... It is negotiationable.
√: Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
√: How long is your delivery time?
Usually it will need about 30 days after received the deposit.
√: How long of your warranty?
Usually one year warranty.

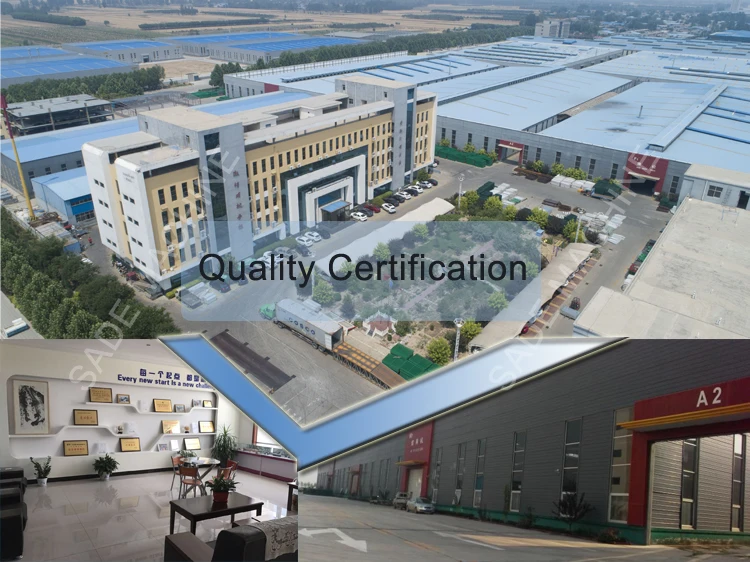

Company Information
| Company Information |
Sade Machine provide a full range of production solutions, based on your application requirements and the local market environment needs, we propose a reasonable solution to meet the different needs of customers. And we welcome & provide O E M and O D M machines producing service.
Our machines not only welcome by Chinese domestic users, but also more and more foreign users know and choose our equipment in recent years, we had sold to Mid East, Africa, South East Asia, North America, part of Europe in total more than 70 countries now.
We have obtained C E certificates, it help us strictly control over every processes of production and assembly. Our experienced Production Team, professional R & D Team, strict Quality Control Team, excellent Sales and After-sales Team is your trusted and solid backing rely on.
We are sincerely welcome your visit!
Our main products:
1. welding machines:
Wire mesh welding machine, Automatic fence mesh welding machine line, automatic BRC wire mesh welding machine, automatic reinforcing mesh welding machine, Grating mesh welding machine, Wire mesh cable tray welding and bending machine, cage mesh welding machine, etc.
2. Punching machines:
Expanded meta machine, flattening machine, leveling machine, straightening slitting and cutting machine, perforated machine, razor wire machine.
3. Weaving machines:
Automatic gabion box production line, gabion mesh machine, normal and reverse twisted hexagonal wire mesh machine, horizantal gabion mesh machine, full automatic chain link fence machine, grassland fence machine, crimped mesh machines. barbed wire making machine
4. Wire processing machine:
Straight line wire drawing machine, pulley wire drawing machine, water tank wire drawing machine, vertical wire drawing machine, cold ribbed wire rolling machine, wire pvc coating machine.
5. Other related machines
Fence panel pvc coating line, slitting line, cut to length line, angle bead machine, plaster bead machine, brick mesh machine, coil lath machine etc.
Customers Visiting
