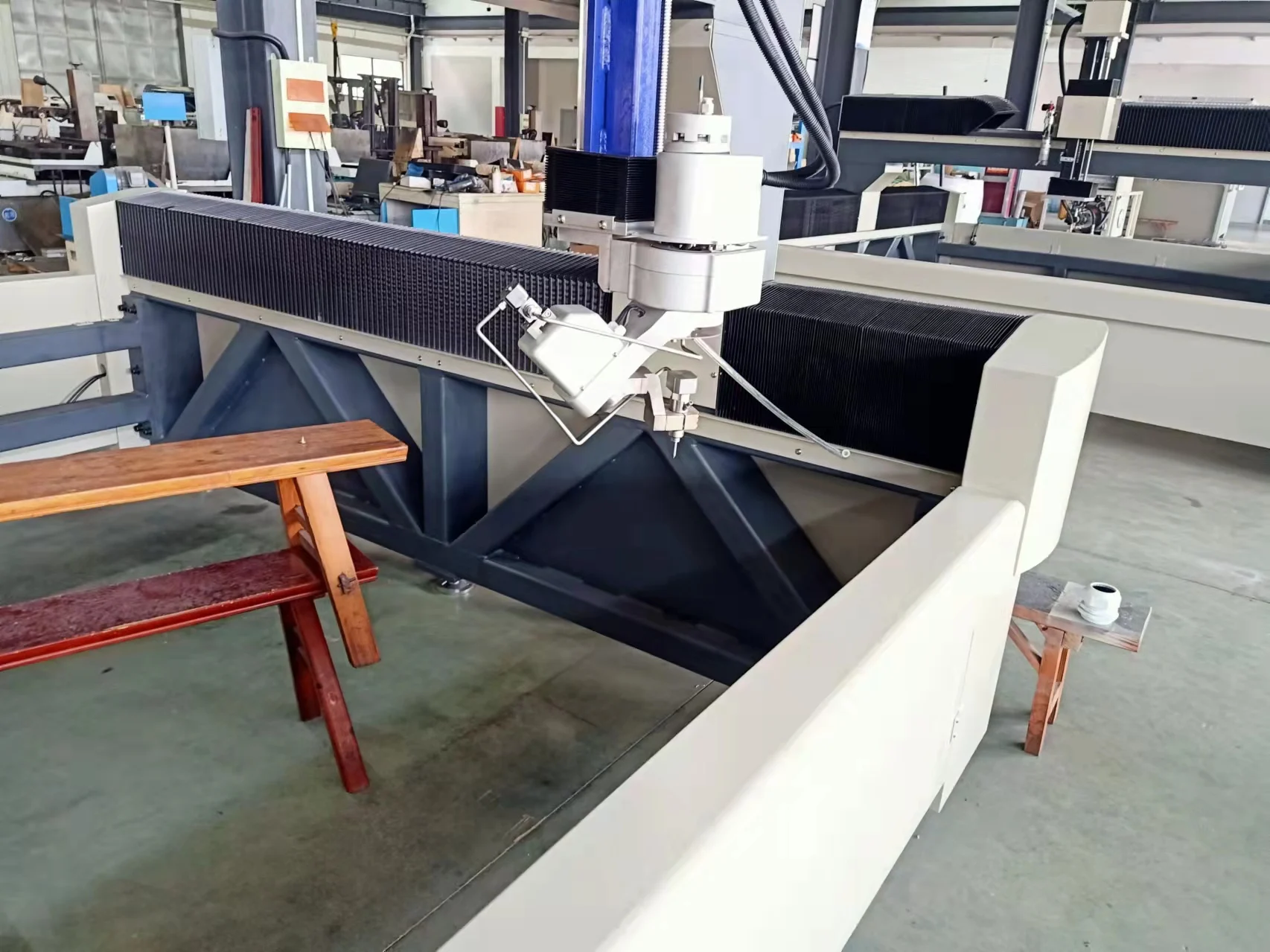

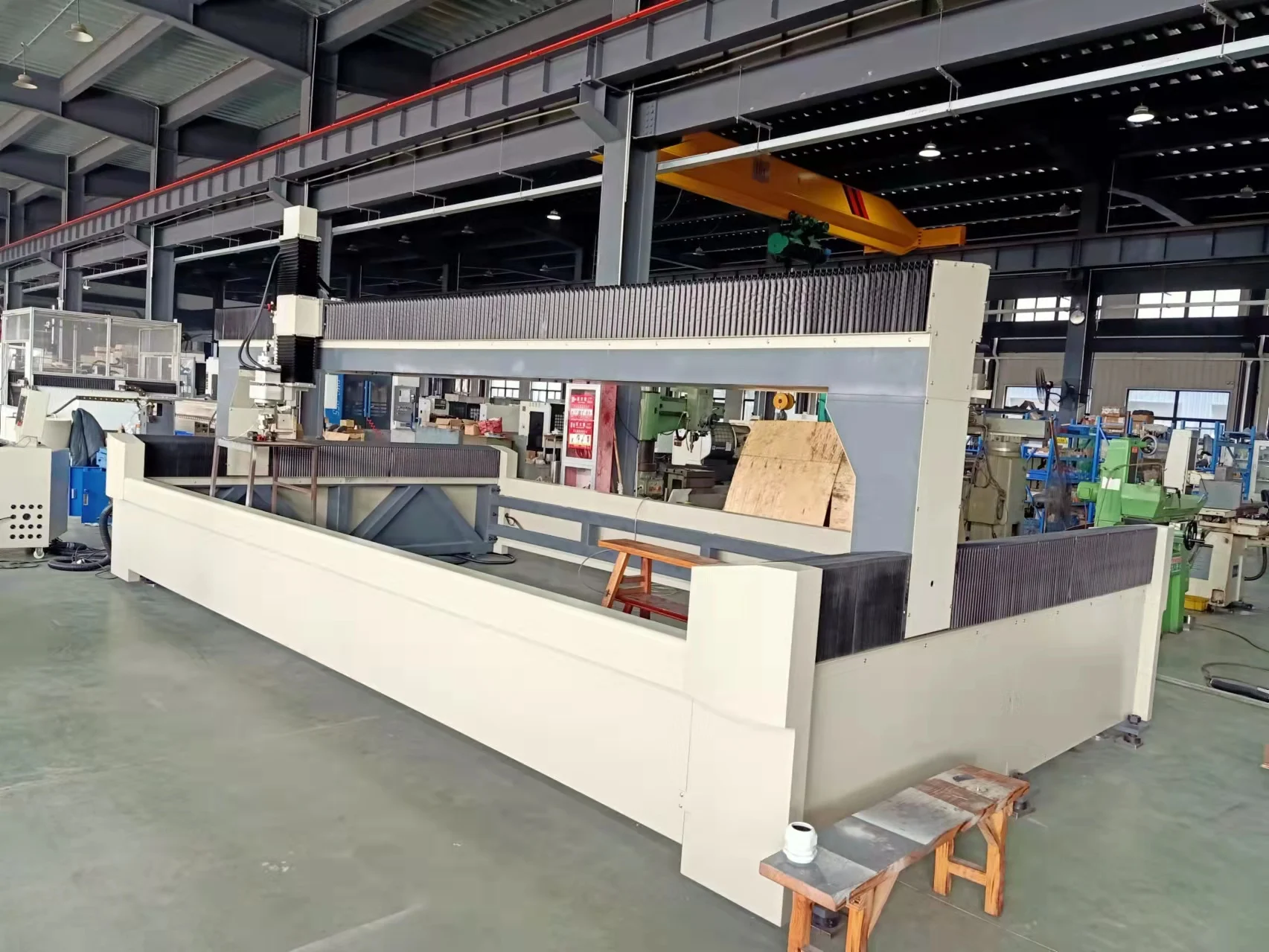

Waterjet cutting head big 5 axis dynamic cutting head CNC water jet machine 3D cutting metal glass stone
- Category: >>>
- Supplier: Shanghai Yuanhong Ultra High Pressure Waterjet Technology Co. Ltd.
Share on (1600517974623):
Product Overview
Description
Products Description

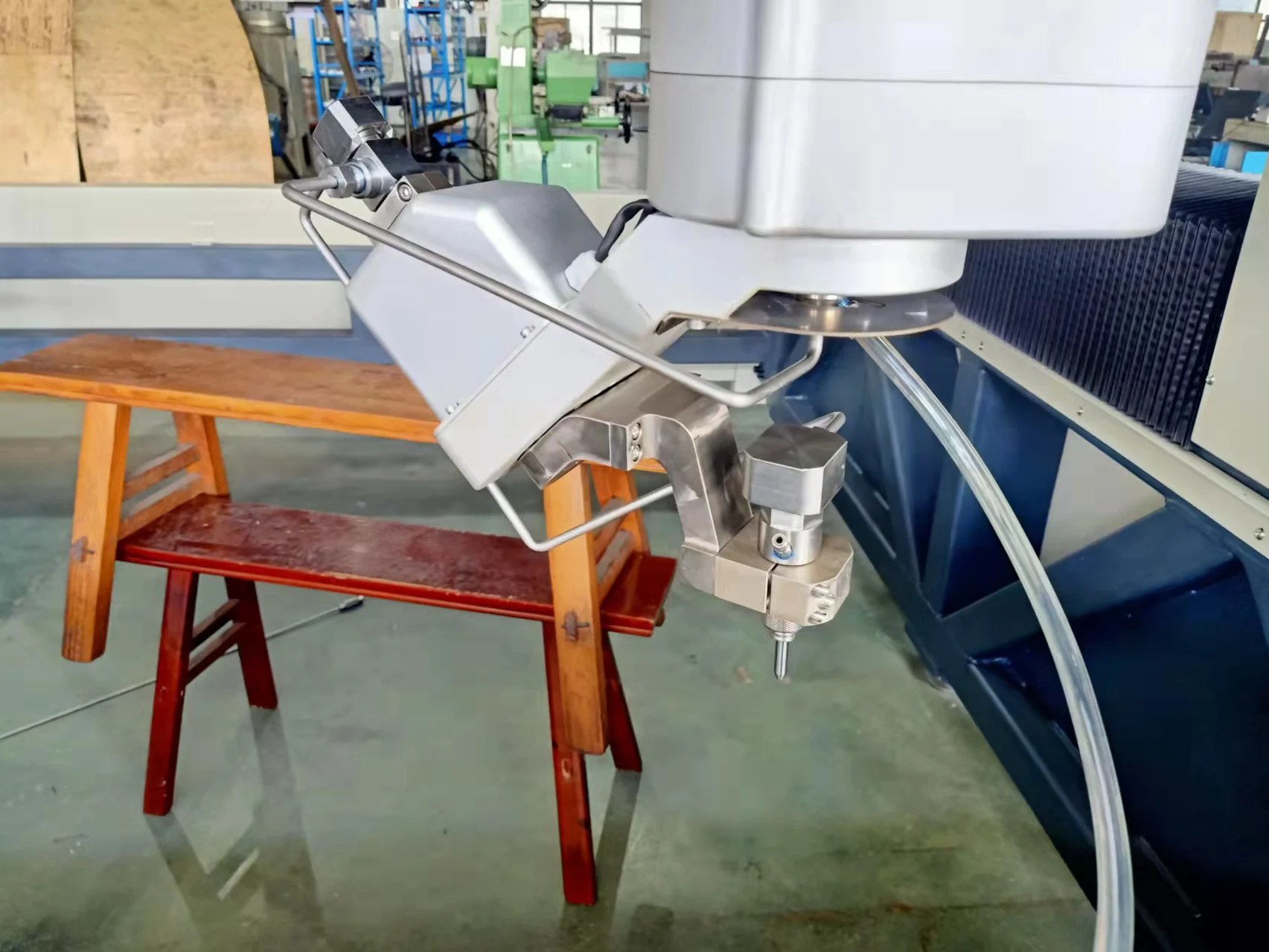

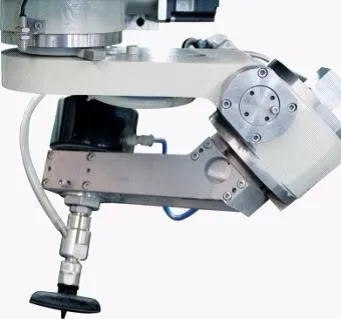

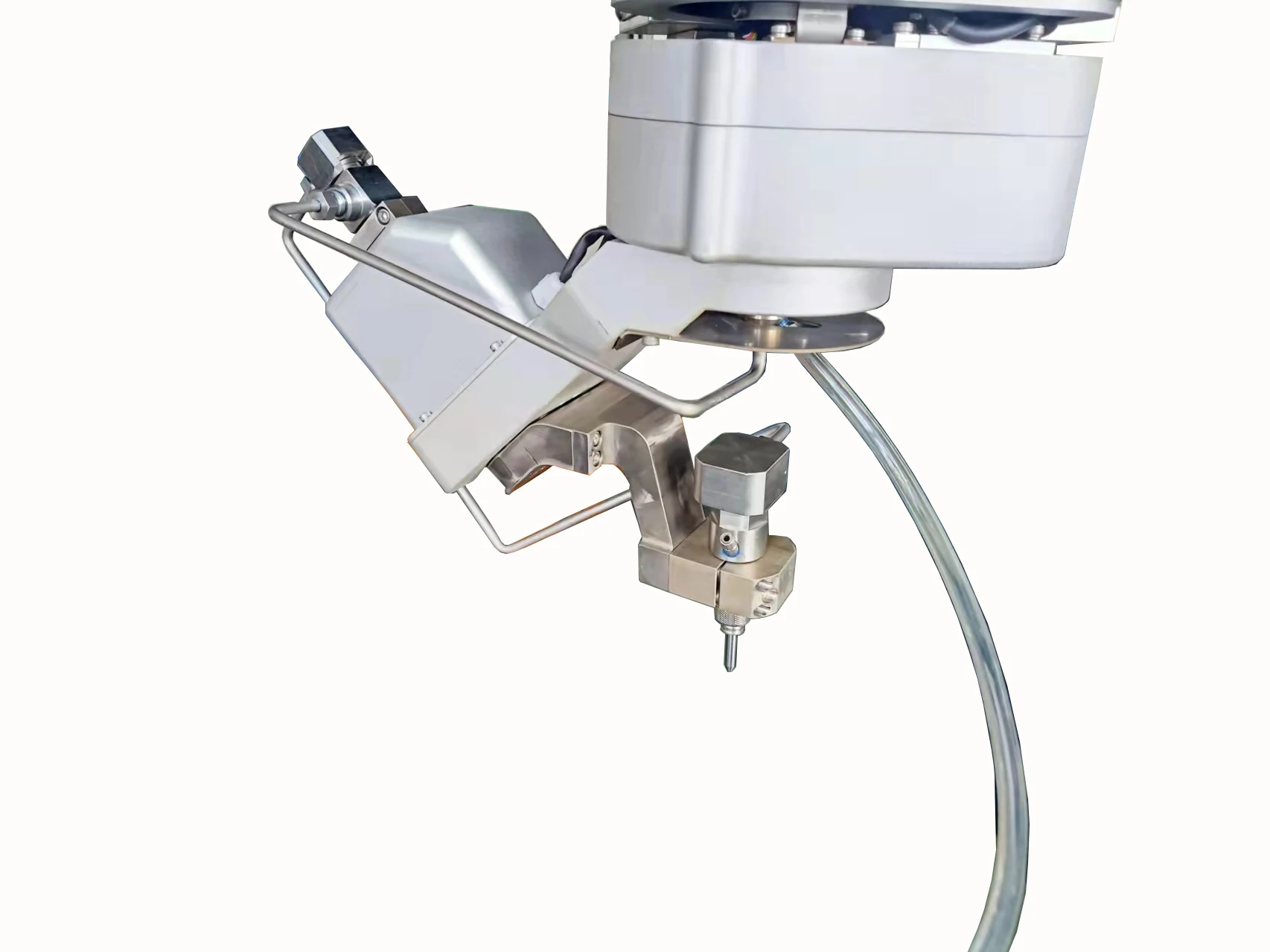

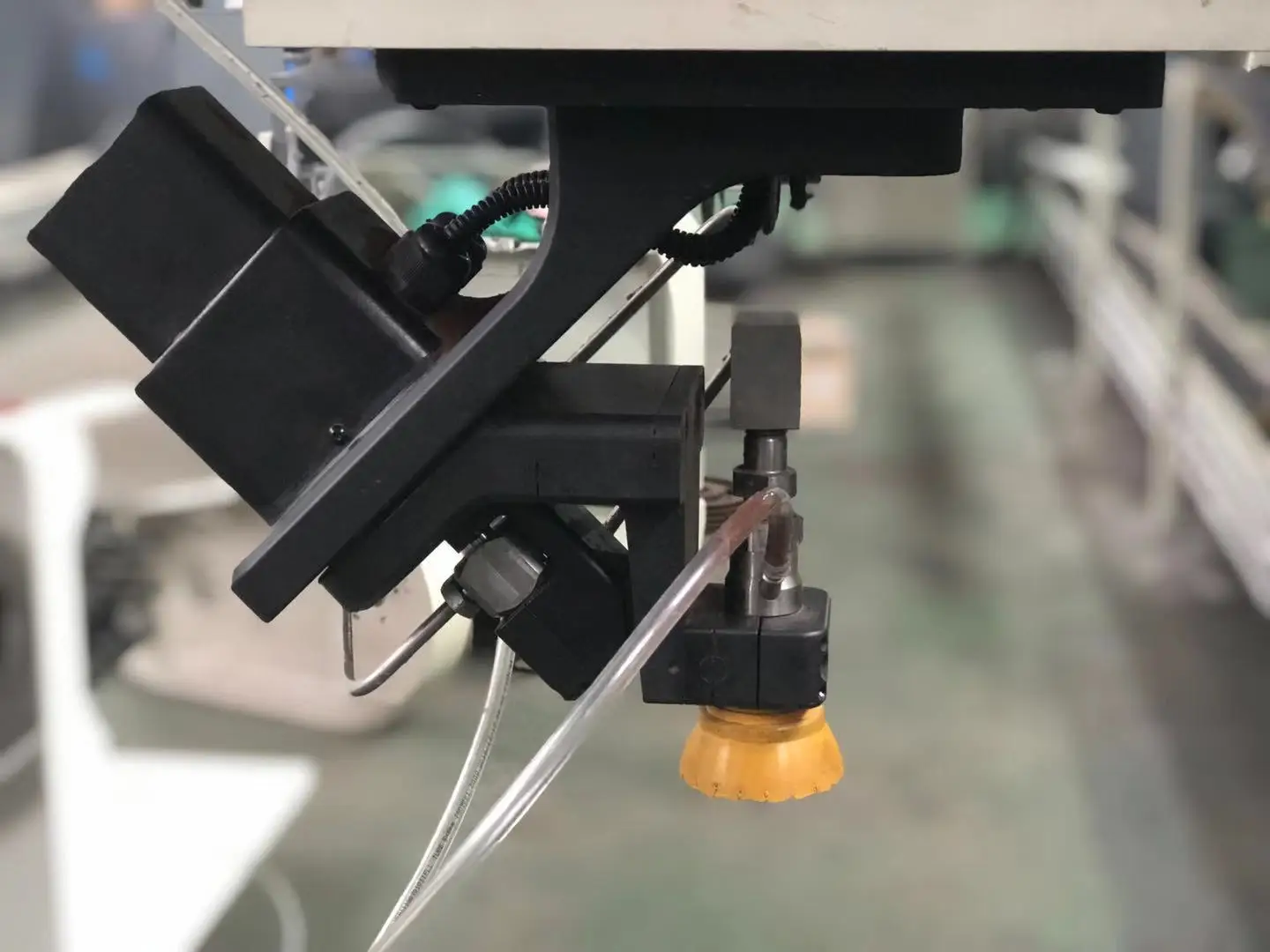

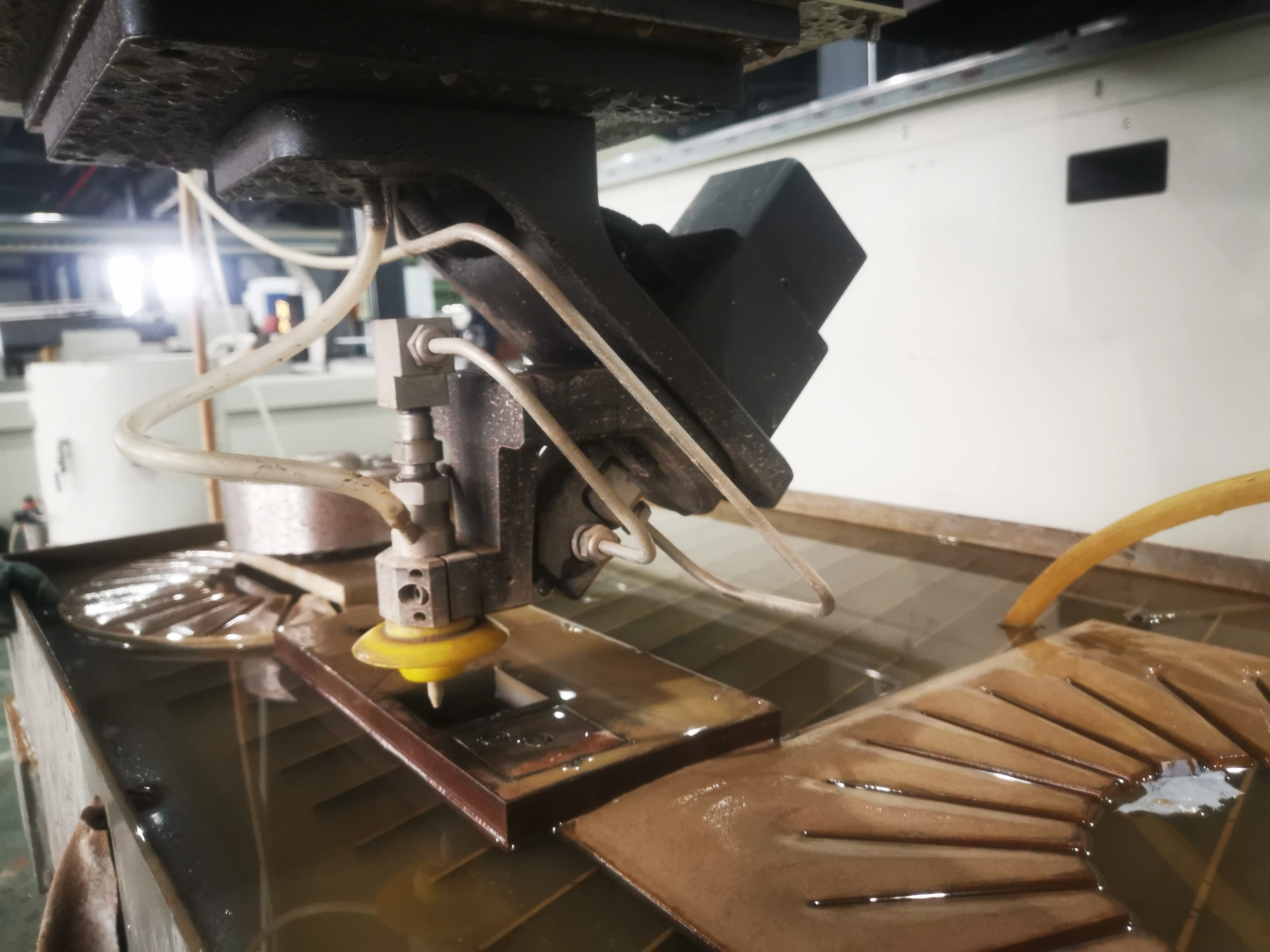

Big five axis dynamic cutting head
1. Advantages
Operation simple and cost savings. YH's system operate simple and convenient, Can be cut any design and creative graphics.
2. Safety
Does not produce dust and poisonous gas, We provide comprehensive security measures.
3. Help manufacturers to develop new markets
a) five-axis dynamic water cut is very suitable for the current flat cutting customers or other previously thought traditional
abrasive water jet cutting technology is not accurate too slow or too expensive use. For the existing water jet users to develop new markets.
b) five-axis dynamic water jet can under the high speed, Produce higher quality of the work piece. And traditional water jet can produce high quality of the work piece under low speed. Five-axis dynamic water jet produces better than the traditional water jet cutting quality and work piece geometry.
4. Improve productivity
Five-axis cutting head to a maximum of 61 degree Angle of the cutting, cambered surface cut maximum to 81 degrees
Compared with the traditional plate cutting machine, Work piece cutting speed can increase 25% to 400%, And
25 MM thick steel plate up and down the difference between the single edge not greater than 0.06 MM.
a) Faster cutting speed to improve the cutting tolerance and geometric shapes, Reduce the work piece cost,
The real work piece laminated ability, Remain consistent between layers of tolerance, without secondary processing.
b) Can cut all kinds of different materials: Such as metal, stone, glass and composite materials
c) Easy programming and operation, Do not need special training and knowledge requirements. Any use of cutting the patterns of the CAD files and documents.
Operation simple and cost savings. YH's system operate simple and convenient, Can be cut any design and creative graphics.
2. Safety
Does not produce dust and poisonous gas, We provide comprehensive security measures.
3. Help manufacturers to develop new markets
a) five-axis dynamic water cut is very suitable for the current flat cutting customers or other previously thought traditional
abrasive water jet cutting technology is not accurate too slow or too expensive use. For the existing water jet users to develop new markets.
b) five-axis dynamic water jet can under the high speed, Produce higher quality of the work piece. And traditional water jet can produce high quality of the work piece under low speed. Five-axis dynamic water jet produces better than the traditional water jet cutting quality and work piece geometry.
4. Improve productivity
Five-axis cutting head to a maximum of 61 degree Angle of the cutting, cambered surface cut maximum to 81 degrees
Compared with the traditional plate cutting machine, Work piece cutting speed can increase 25% to 400%, And
25 MM thick steel plate up and down the difference between the single edge not greater than 0.06 MM.
a) Faster cutting speed to improve the cutting tolerance and geometric shapes, Reduce the work piece cost,
The real work piece laminated ability, Remain consistent between layers of tolerance, without secondary processing.
b) Can cut all kinds of different materials: Such as metal, stone, glass and composite materials
c) Easy programming and operation, Do not need special training and knowledge requirements. Any use of cutting the patterns of the CAD files and documents.
Effect of cutting data (the big 5 axis). | ||||
Five-axis dynamic cutting head | ||||
C/B Accuracy | C-axis | B-axis | ||
Rotary Axis Travel: | ±270° | ±90° | ||
Rotary Axis Travel: | ±0.2° | ±0.2° | ||
Rotary Positioning Repeatability: | ±0.2° | ±0.2° | ||
Maximum Rapid Traverse Speed: | 90°/sec | 90°/sec | ||
Maximum Control Speed: | 90°/sec | 90°/sec | ||
Accuracy Tests at 10° Increments Tram ±0.005 in .Taken on 39.4 in. diaCircle with 4 readings every 90° apart | ||||
B-Axis Program range is ±180°, Effective tilt is ±90° | ||||
Related Products

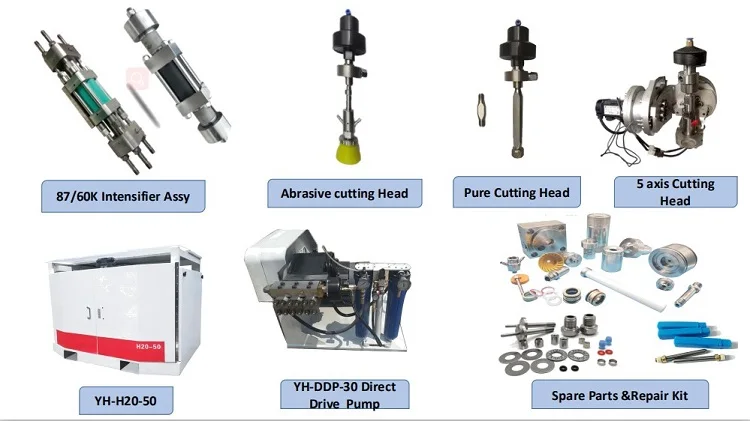

Waterjet cutting machine

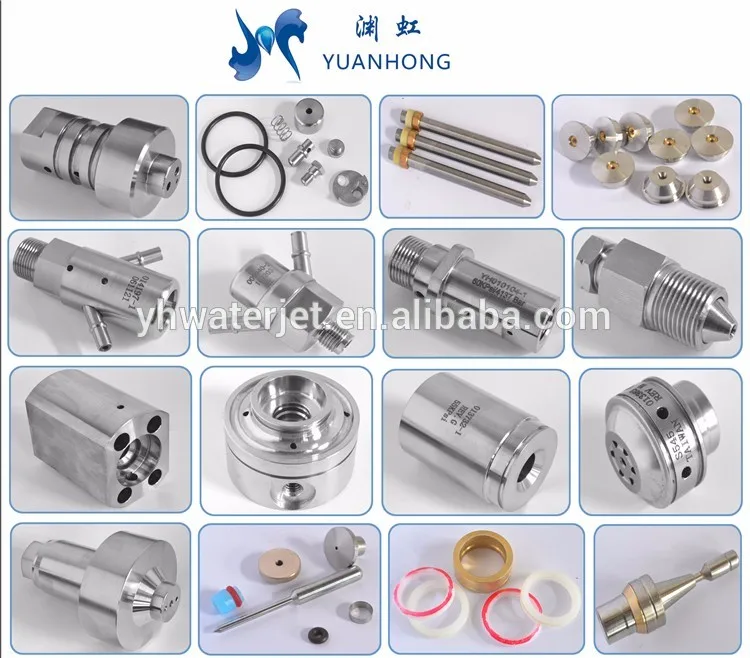

WaterJet Spare Parts.

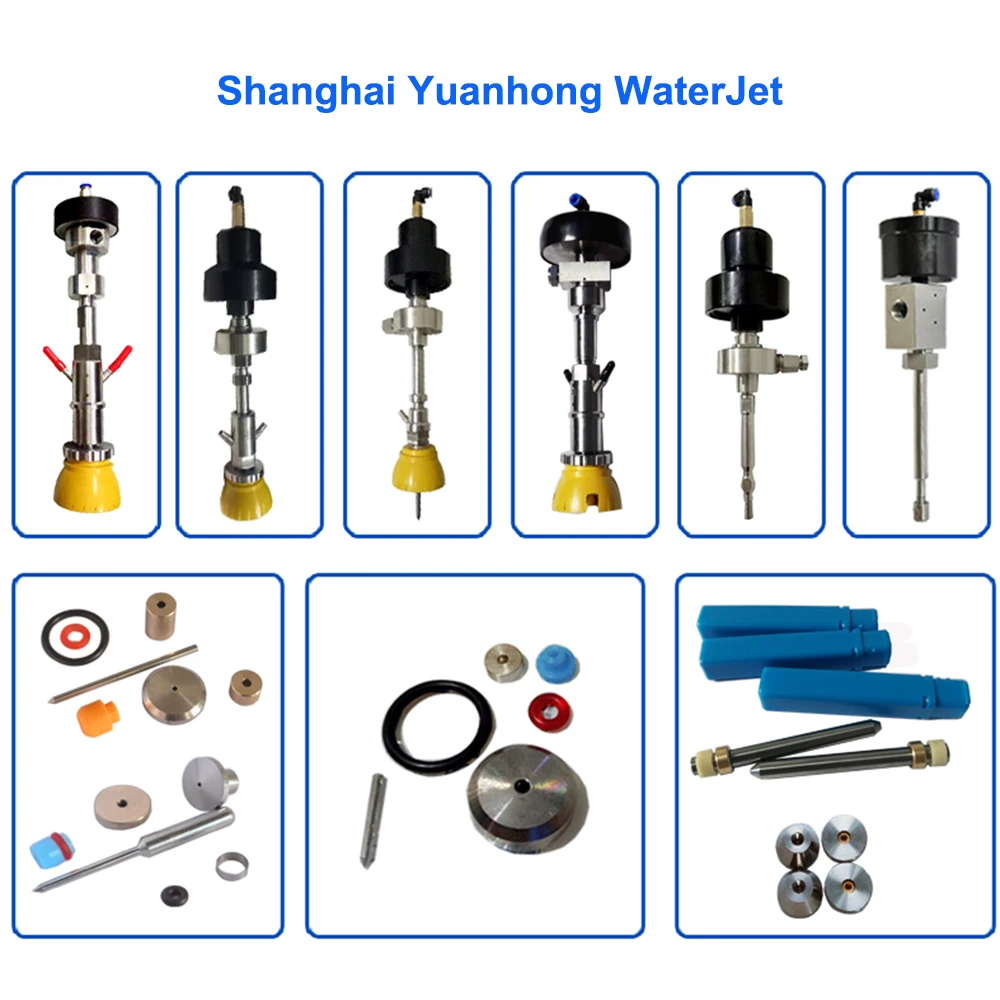

Other related spare parts, like cutting head, and repair kits.
Company Profile
Shanghai Yuanhong ultra-high pressure water jet technology Co., Ltd.
Shanghai Yuanhong ultra-high pressure water jet technology Co., Ltd. is a professional water jet equipment supplier engaged in the research, development, production, sales and service of ultra-high pressure water jet equipment.
The company's brand "YH water jet" CNC machine has several years of experience in product research and development, high-precision electronic equipment manufacturing, and machining. In view of the current uneven technology and process status of hydraulic cutter CNC machine tools, it has continuously studied, improved and successfully developed the hydraulic cutter CNC machine tools in Microelectronics industry, and applied the world's advanced visual automatic alignment platform technology in water cutting On the equipment, the accuracy, efficiency and cutting performance of "YH water jet" water cutting equipment are improved better.
The company's brand "YH water jet" CNC machine has several years of experience in product research and development, high-precision electronic equipment manufacturing, and machining. In view of the current uneven technology and process status of hydraulic cutter CNC machine tools, it has continuously studied, improved and successfully developed the hydraulic cutter CNC machine tools in Microelectronics industry, and applied the world's advanced visual automatic alignment platform technology in water cutting On the equipment, the accuracy, efficiency and cutting performance of "YH water jet" water cutting equipment are improved better.
Shanghai Yuan Hong ultra high pressure water jet technology Co., Ltd. will take the concept of "customer first, quality first",
and exploit the essence of all water knives, and provide the best solution for users according to the needs of customers, and provide perfect supporting services.
and exploit the essence of all water knives, and provide the best solution for users according to the needs of customers, and provide perfect supporting services.

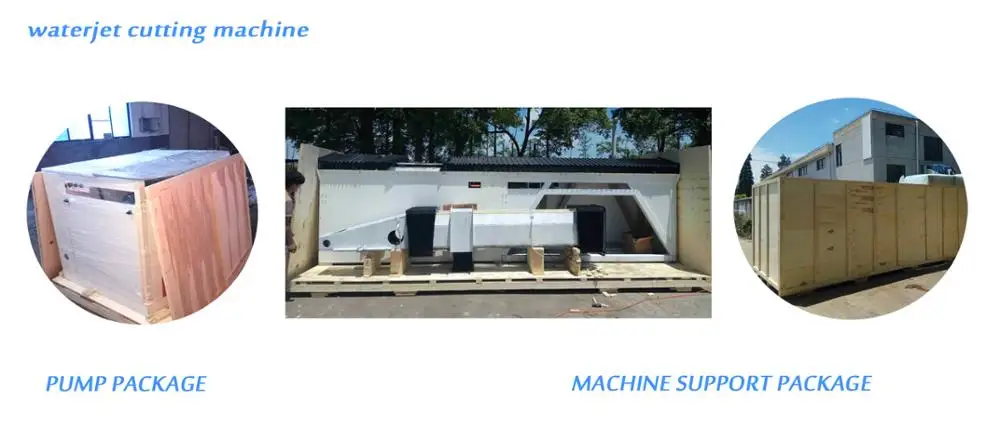

Product Package /Shipping
Why Choose Us
1, Research and Development
The company has also set up an ultra-high pressure DR center, employing the technical personnel of the original well-known domestic and foreign water knife cutting companies as the research and development personnel, and hired the famous materials The doctoral work of the university provides technical support.2, Production

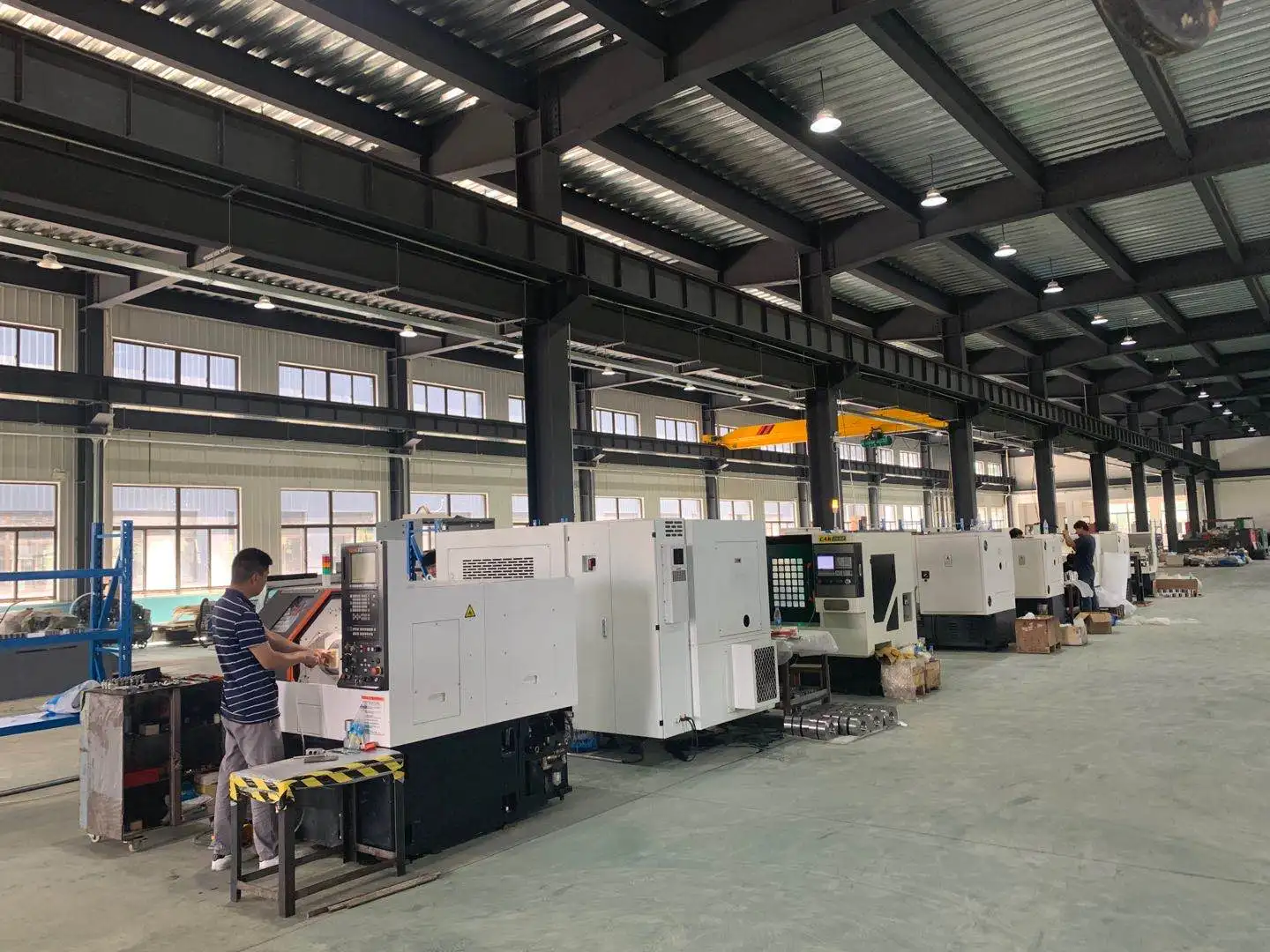

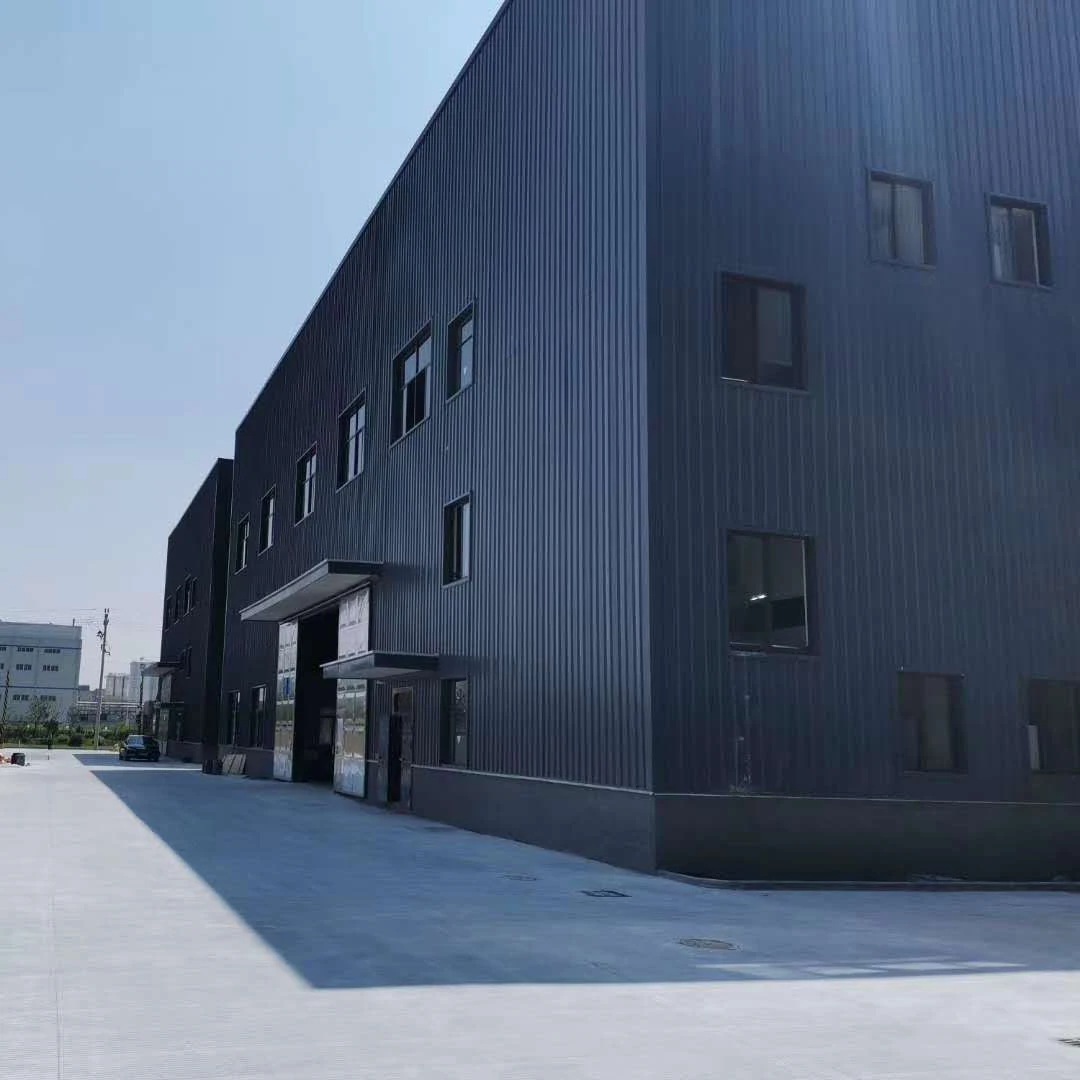

We have our own factory, which is located in Jiaxing, Zhejiang. We directly produce orders for customers, control the cost, the price more competitive.
3, Sales and Market
Yuanhong products are widely used in various industries, such as water cutting, high-pressure cleaning, detection and testing, etc. they are involved in military manufacturing, aircraft wing cutting, orbital oil fields and other industries that need cold cutting treatment, providing technical support and solutions for customers to enter new fields.
4, Service
Yuanhong take the concept of "customer first, quality first", and exploit the essence of all water knives, and provide the best solution for users according to the needs of customers, and provide perfect supporting services.
