Wireless Sonar Fish finder

Product Overview

Description

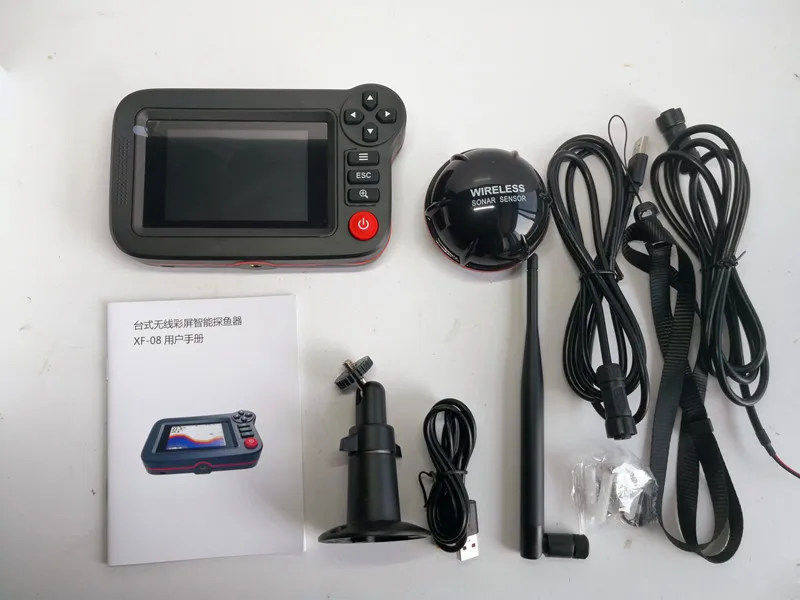

1. Packing list

Host x1, wireless probe x1, manual x1, USB charging cable x1, 12V power cable x1, 5V power cable x1, mounting bracket x1, mounting bracket screw x3, host mounting screw x4, lanyard x1, external antenna x1.





1. Specifications

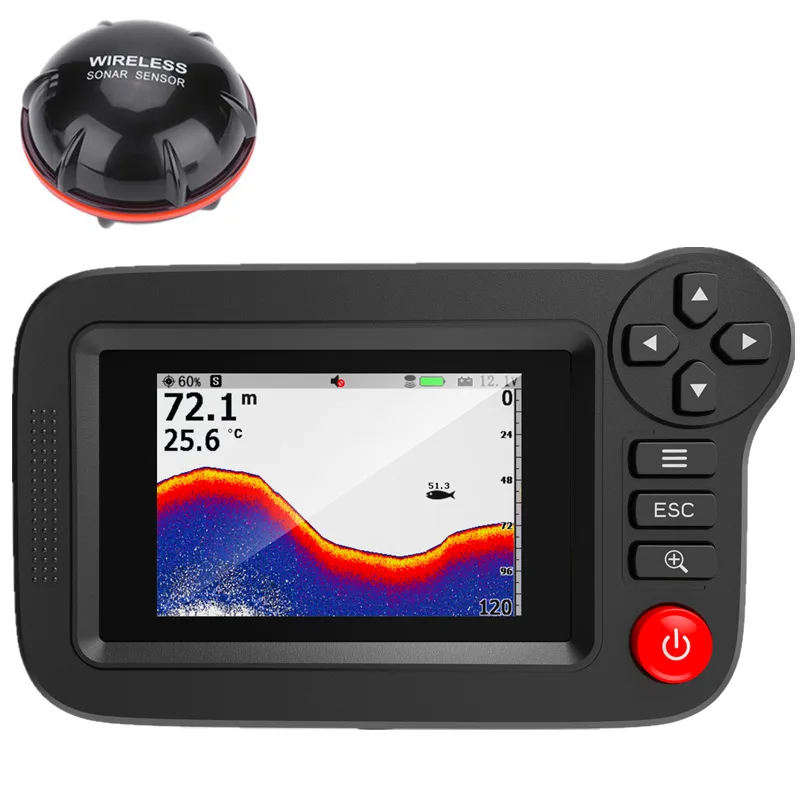

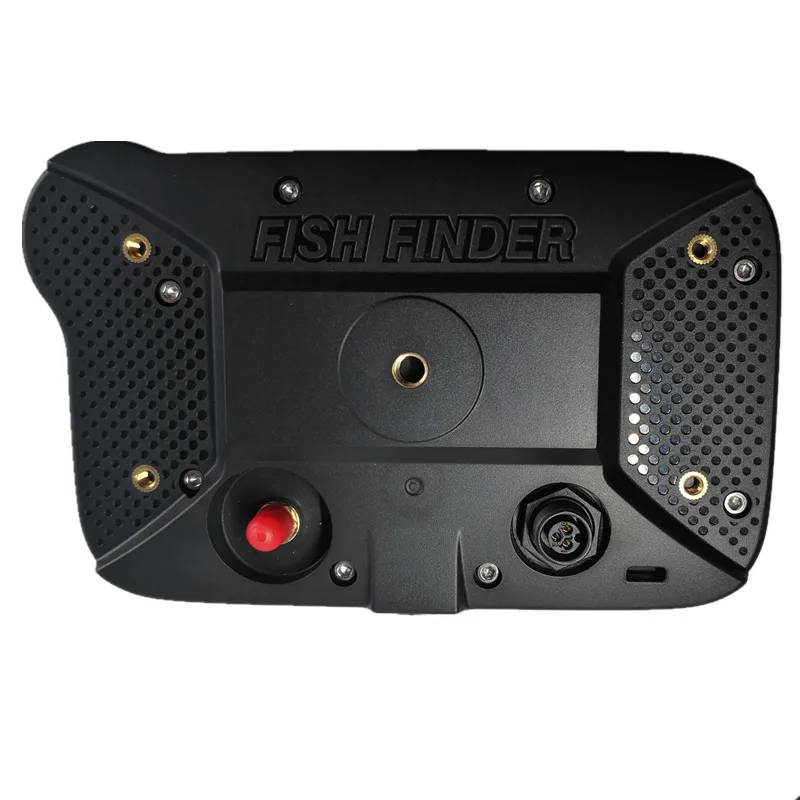

1. Host

Dimensions: L158.5xW98.5xH47mm

Weight: about 215 grams

Display type: LED color sunlight screen

Display size: 3.5 inches

Display resolution: 480*320

Language: Chinese/English

Unit of measure: m/ft

Power input: DC5V/DC12V

Working temperature: -20~60℃

Storage temperature: -20-70℃

Fuse: Specifications to be confirmed, tentatively set to 0.3A



2. Wireless probe

Detection depth range: 0.8-50 meters

Sonar frequency: 125 KHz

Sonar radiation angle: 105 degrees

Dimensions: Ø69xH51mm

Weight: about 75 grams

Charging voltage: DC5V

Working temperature: -10~60℃

Storage temperature: -20-70℃

Charging time: about 2 hours



3. Wireless FM part

Wireless connection distance: 100-200 meters (related to the use environment, the ideal environment can reach 200 meters)

Wireless frequency: 433MHz
