Oil extractor 200l supercritical CO2 extraction machine
- Category: >>>
- Supplier: Weihai Huixin Chemical Machinery Co. Ltd.
Share on (1600518111254):
Product Overview
Description
Product Description
Volume | 200 liters |
Pressure | Max 350bar |
Temperature | 150℃ |
Material | CS, SS304 SS316 |
Control | PLC control system |
Application | Extraction |
Oil extractor 200liters supercritical co2 extraction machine
Supercritical extraction is the first and most extensive application of supercritical extraction. The extraction of plant oil, the extraction of the active ingredients of traditional Chinese medicine, the extraction of plant pigments, the extraction of plant spices, the extraction of the active ingredients of hops, etc. The most commonly used working medium for supercritical extraction is carbon dioxide. For different extraction materials, ethanol, freon, etc. can also be used as the extraction medium, or adding entrainment agent.Supercritical extraction equipment mainly includes extraction kettle, separation kettle, extraction heater, separation heater, carbon dioxide recycling storage tank, cooler and exhaust gas recovery storage tank, among which extraction kettle is the core equipment.

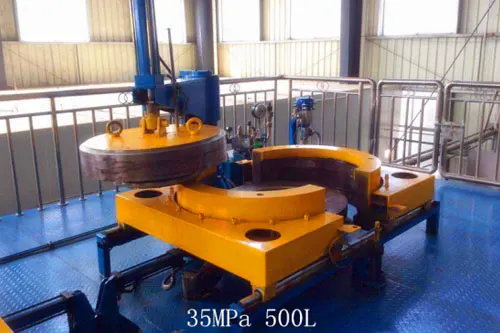

Extraction kettle adopts hydraulic or electric open structure, with a safety interlock, general working temperature of 40-60 ℃, working pressure, 28-50 mpa, 35 to 60 mpa design pressure.
Product Features
* Easy to operate and adjust.
* High extraction rate and short operation time.
* Low energy consumption, stable and reliable.
* Low operating temperature to keep the extracts natural.
* Faster extractions and cold separation processing.
* Low operating temperature to keep the extracts natural.
* Faster extractions and cold separation processing.
* Quick openning device for easy operate.
* Closed loop system recovers 95% of the CO2.
* No residue of solvent, no nitrate and ions of heavy metal.
* Accuracy temperature and pressure control and display system.
* Fully automated and PLC can be designed.
* Customized according to customer needs.
* Closed loop system recovers 95% of the CO2.
* No residue of solvent, no nitrate and ions of heavy metal.
* Accuracy temperature and pressure control and display system.
* Fully automated and PLC can be designed.
* Customized according to customer needs.
Product Paramenters
No. | Type | Specification | Pressure | Flow | Area | Height | Capacity of raw material |
1 | 5L+1L | Two extractors two separators | 300-500bar | 60L/H | 10 m2 | 2.5 m | Testing purpose |
2 | 10L | Three extractors two separators | 600bar | 100L/H | 10 m2 | 3 m | 10 to 20 kg |
3 | 25LX3 | three extractors two separators | 600bar | 300L/H | 20 m2 | 4.5 m | 50 to 150 kg |
4 | 50LX3 | three extractors two separators | 400bar ~ 500bar | 600L/H | 80 m2 | 5.5 m | 0.1 to 0.3 ton |
5 | 100LX3 | three extractors two separators | 400bar ~ 500bar | 1000L/H | 130 m2 | 7 m | 0.2 to 0.6 ton |
6 | 200LX3 | three extractors two separators | 400bar ~ 500bar | 1500L/H | 200 m2 | 8.5 m | 0.5 to 1.2 ton |
7 | 300LX3 | three extractors two separators | 400bar ~ 500bar | 2500L/H | 300 m2 | 9 m | 0.7 to 2 ton |
8 | 400LX3 | three extractors two separators | 400bar ~ 500bar | 3500L/H | 400 m2 | 9.5 m | 1 to 2.5 ton |
9 | 500LX3 | three extractors two separators | 400bar ~ 500bar | 4000L/H | 450 m2 | 10 m | 1 to 3 ton |
10 | 600LX3 | three extractors two separators | 400bar ~ 500bar | 4000L/H | 500 m2 | 10 m | 1.5 to 3.5 ton |
11 | 800LX3 | three extractors two separators | 400bar ~ 500bar | 6000L/H | 540 m2 | 12 m | 2.5 to 4.5 ton |
12 | 1000LX3 | three extractors two separators | 400bar ~ 500bar | 8000L/H | 540 m2 | 14 m | 3 to 6 ton |
13 | 1500LX3 | three extractors two separators | 400bar ~ 500bar | 8000L/H | 600 m2 | 14 m | 3.5 to 8 ton |
14 | 2000LX3 | three extractors two separators | 400bar ~ 500bar | 10000L/H | 600 m2 | 16 m | 5 to 12 ton |
15 | 3500LX3 | three extractors two separators | 400bar ~ 500bar | 16000L/H | 700 m2 | 16 m |
Customization
Complete supercritical CO2 extraction system including:
* Extractor
* Separator; Fine distillation column can be added if possible.
* CO2 high pressure pump, co-solvent pump
* Chiller, Heater,
* CO2 storage tank
* Purification system;Full recirculating system
* Monitor and control of temperature and safety protection
* CO2 level gauge, flow meter, safety valve, etc.
* Extractor
* Separator; Fine distillation column can be added if possible.
* CO2 high pressure pump, co-solvent pump
* Chiller, Heater,
* CO2 storage tank
* Purification system;Full recirculating system
* Monitor and control of temperature and safety protection
* CO2 level gauge, flow meter, safety valve, etc.
Pls list follow process data:
1. Capacity: ? 2. Number of extraction tank and separation tank?
3. Volume
4. Design pressure:?
3. Design temperature:?
3. Design temperature:?
4. Material:?
5. Process:?
6. Other requires?
We like to accomplish your plans.

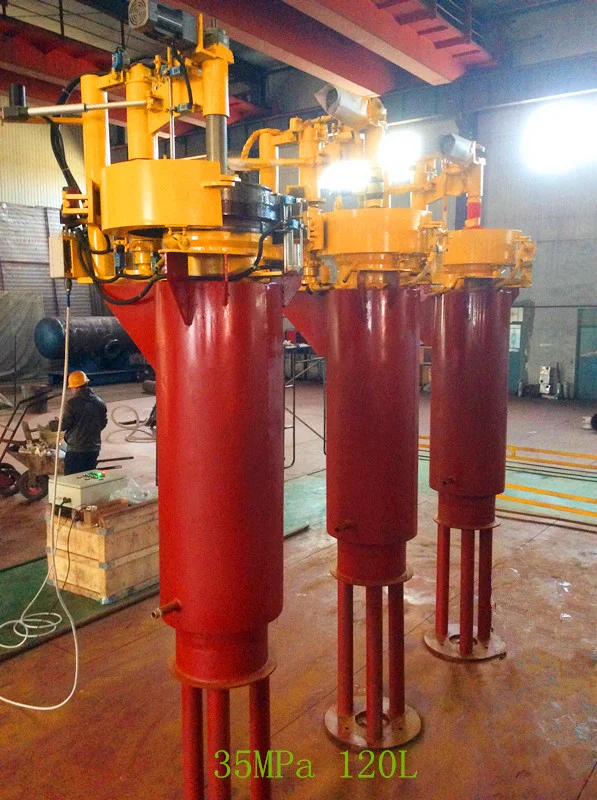

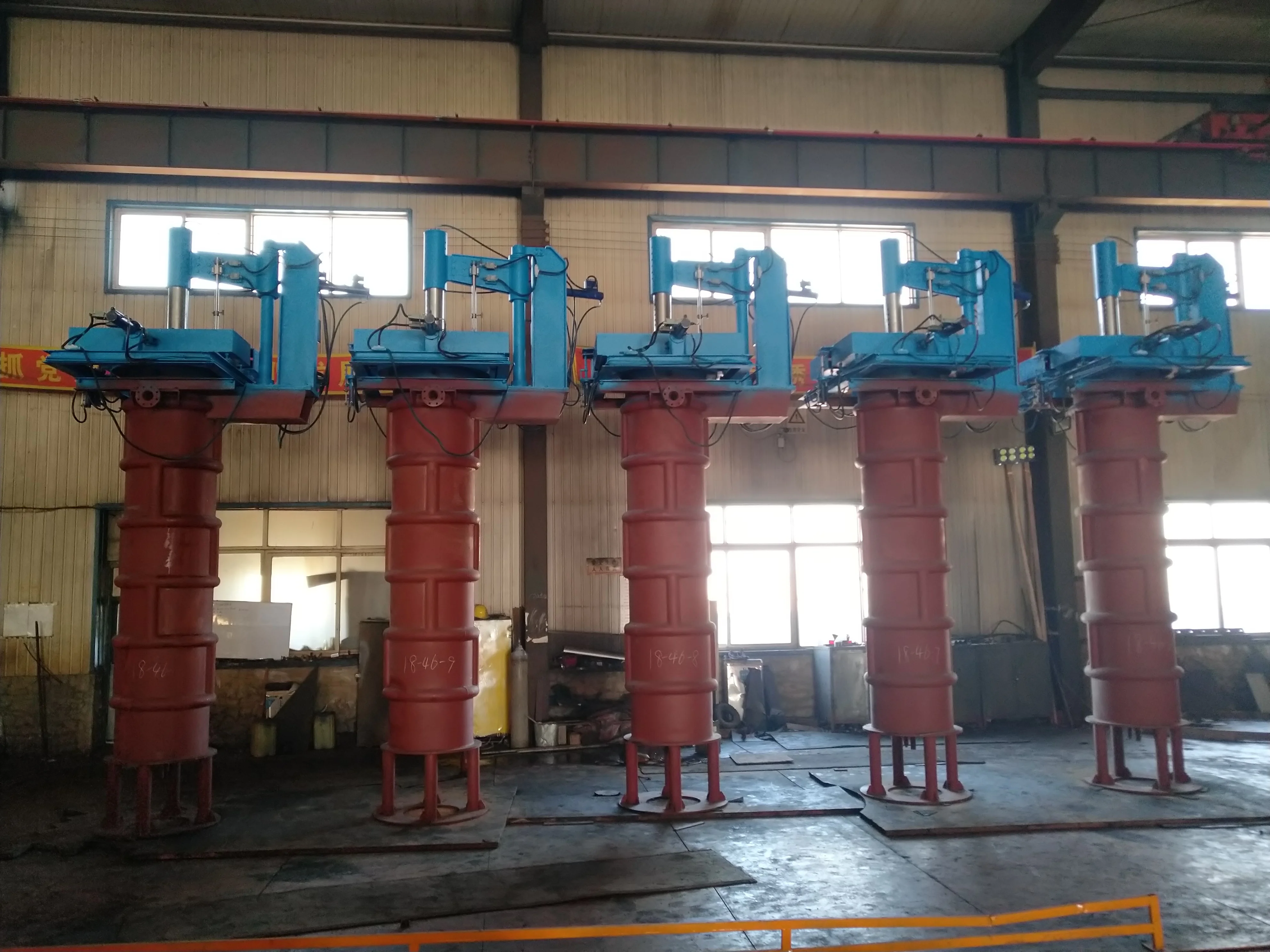

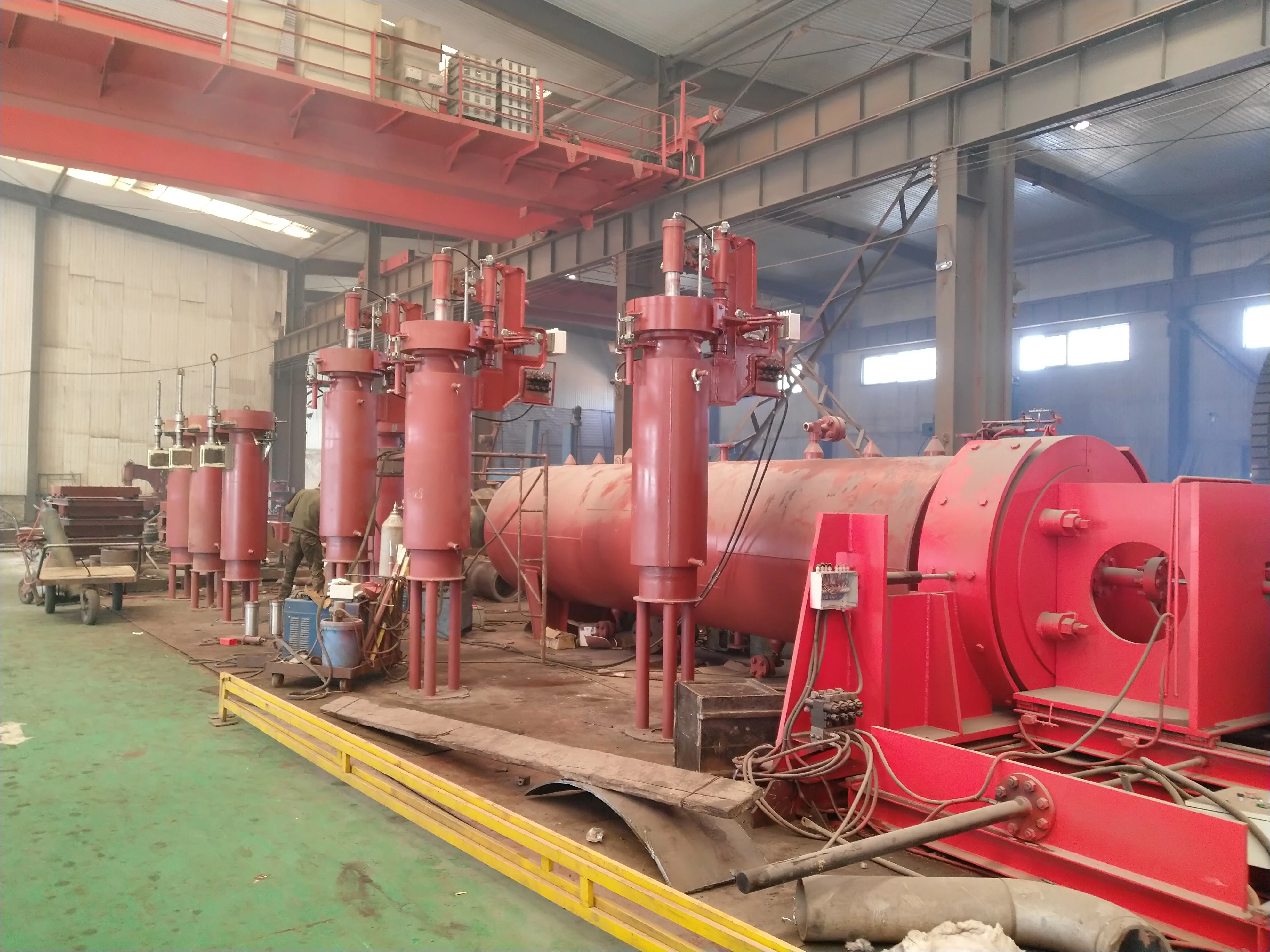

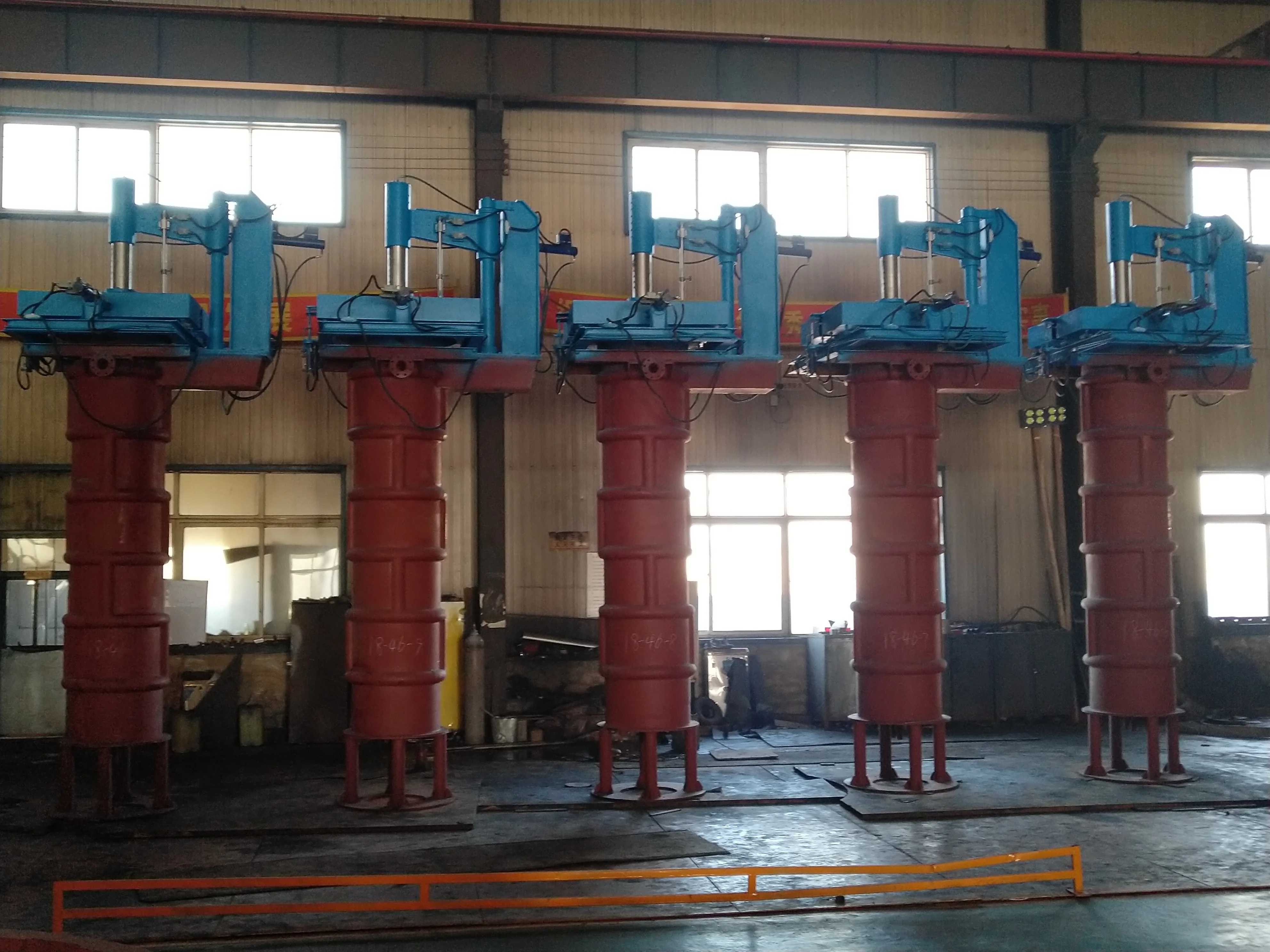

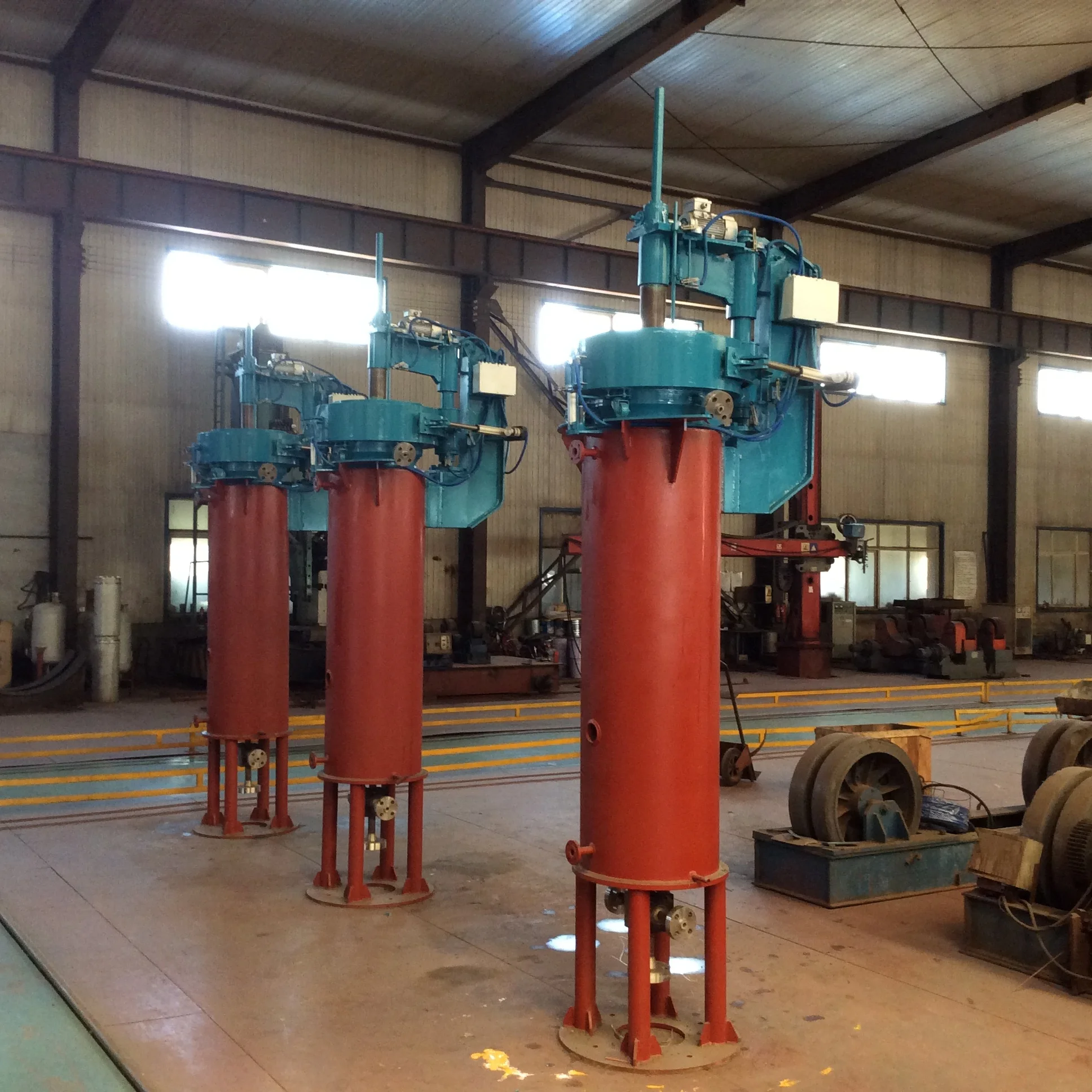

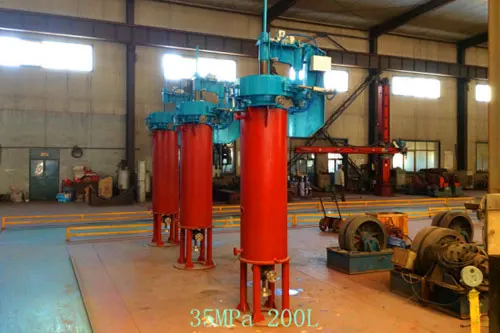

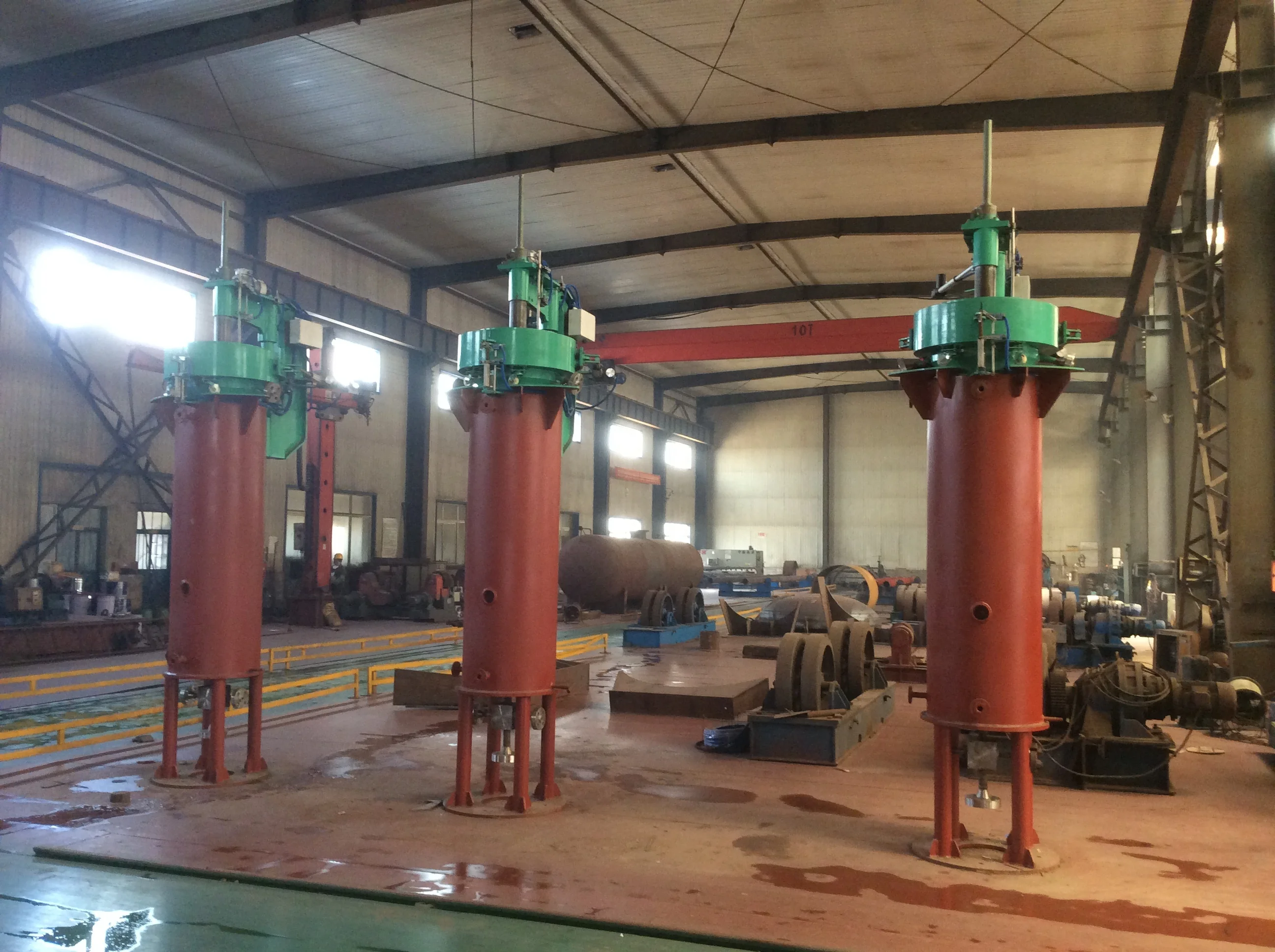

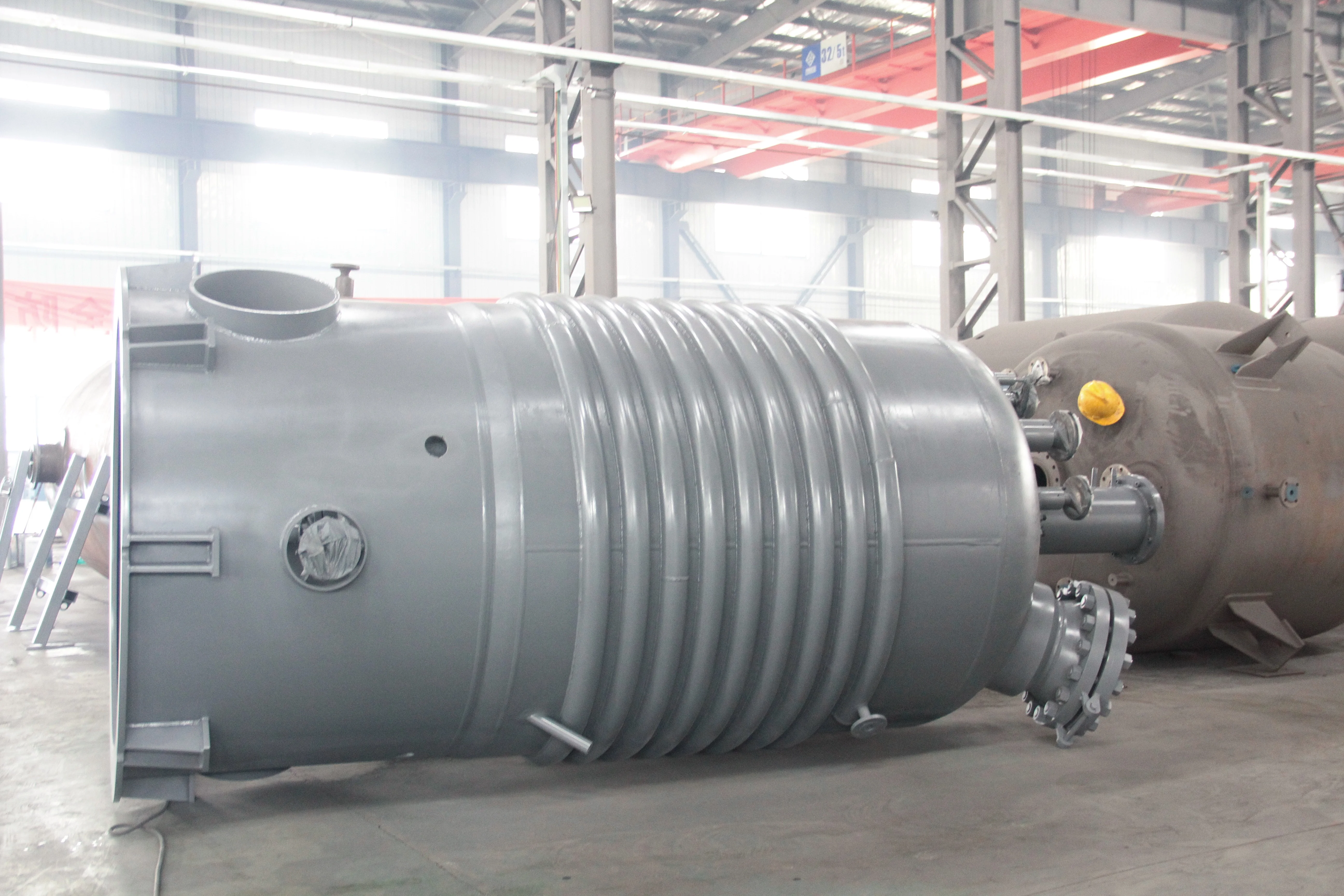

Detailed Images

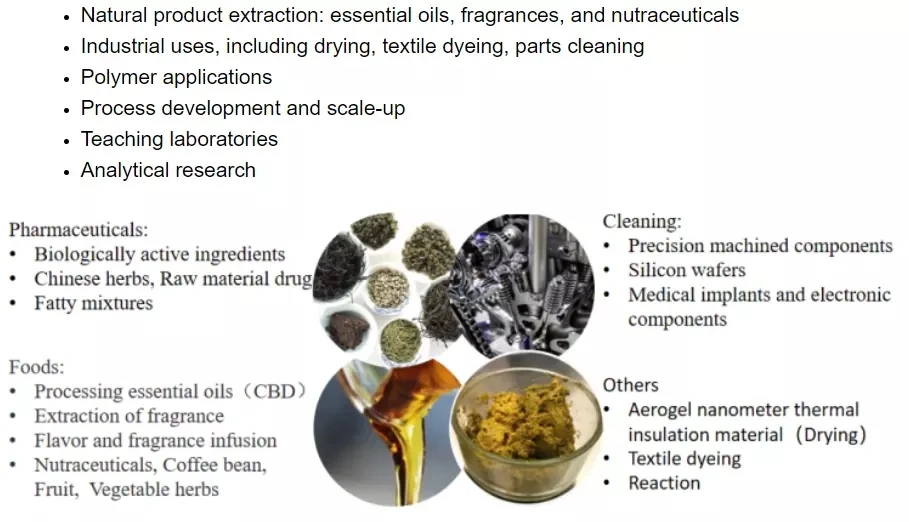

Application
