WDXS 2000 SF6 Hand held SF6 detector Quantitative portable sulfur hexafluoride leak detector
- Category: >>>
- Supplier: Wuhan Wugao Electric Measurement Co. Ltd.
Share on (1600518111410):
Product Overview
Description

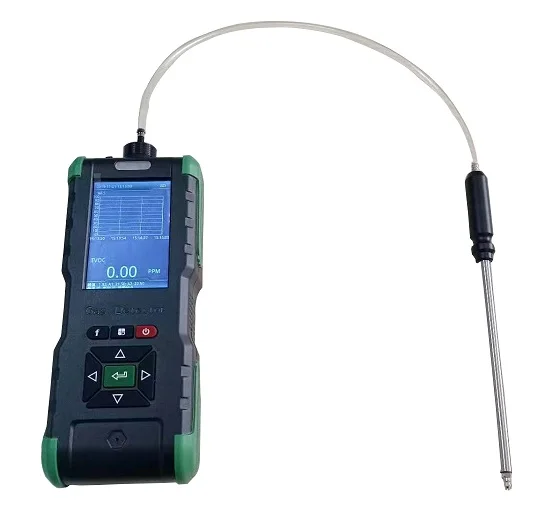

Hand-held SF6 detector
Handheld SF6 detector is mainly used in the power industry of high voltage switch cabinet SF6 leak detection, so also called SF6 leak detector XS-2000-SF6 is the use of imported infrared sensor principle, can accurately measure the very low concentration of sulfur hexafluoride gas, all also called quantitative sulfur hexafluoride leak detector
Quickly and accurately
Adopt world advanced sensor, high precision
The instrument contains a filter device, high efficiency filter oil, water, dust and other impurities,
Test results can be trusted even in harsh industrial environments
Humanized design, user easy to operate
3.5-inch HD color screen, which can be detected when the machine is turned on
Pure hardware one key switch machine, reduce power consumption
Optional long handle suction probe
Optional satchel bag is convenient to carry
"Sports car" shape, beautiful and generous
Fully functional
The realization data and concentration curve are also displayed
Equipped with high and low speed adjustable air pump
Four kinds of gas can be detected simultaneously
Optional external Bluetooth printer, detection data to achieve mobile printing
Optional bluetooth, ZIGBEE and other wireless communication modes
Support a variety of gas display units arbitrarily switch, the concentration value by the system automatic conversion
Chinese and English freely switch display
Large capacity fast storage function, storage space can be customized
Micro-USB interface charger, convenient charging at any time
Android universal data line, convenient to connect the computer to read historical data
It can detect gas in high temperature, high humidity and high dust environment (sampling gun is required)
Adopt world advanced sensor, high precision
The instrument contains a filter device, high efficiency filter oil, water, dust and other impurities,
Test results can be trusted even in harsh industrial environments
Humanized design, user easy to operate
3.5-inch HD color screen, which can be detected when the machine is turned on
Pure hardware one key switch machine, reduce power consumption
Optional long handle suction probe
Optional satchel bag is convenient to carry
"Sports car" shape, beautiful and generous
Fully functional
The realization data and concentration curve are also displayed
Equipped with high and low speed adjustable air pump
Four kinds of gas can be detected simultaneously
Optional external Bluetooth printer, detection data to achieve mobile printing
Optional bluetooth, ZIGBEE and other wireless communication modes
Support a variety of gas display units arbitrarily switch, the concentration value by the system automatic conversion
Chinese and English freely switch display
Large capacity fast storage function, storage space can be customized
Micro-USB interface charger, convenient charging at any time
Android universal data line, convenient to connect the computer to read historical data
It can detect gas in high temperature, high humidity and high dust environment (sampling gun is required)
Product Paramenters
Dimension | （H x W x D）231*86*52mm |
Weight | 500g |
Working principle of sensor | Infrared Principle(NDIR); |
Resolution | 0.2%FS |
Accuary | ±1%FS, Within the range of measured values below 25% ±2%FS, within the range of detection value below 50% ±5%FS ,Well above 50% |
Pump Capacity | Pump flow is adjustable, flow range: 0 ~ 500 cc/Min or 0 ~ 500mL/ Min |
Display | 3.5-inch color display (touch optional), resolution 480*320 |
Display Content | Gas molecular formula, measurement unit concentration real-time curve battery charge time alarm information, fault information |
Alerts | Buzzer, red alarm indicator, alarm state prompt on LCD, low battery alarm, etc |
Data recording | Independent SD memory card (optional) : Standard 2 GB, optional 6 GB, 8 GB, 16 GB, 32 GB Automatic recording function of measurement data, recording interval can be customized |
Communication and data download (optional) | Can be directly connected to the computer through USB, fast download data storage TXT documents; Download, store, analyze and print data with PC software |
Print function (optional) | Connect to external Bluetooth printer |
Print content (optional) | Real time concentration data, concentration curves |
Recharger | Universal micro-USB charging interface, 5V/2A standard charger |
Battery | 3000~6000 mAh rechargeable lithium battery |
WLAN | * Bluetooth transmits RF ZigBee |
Network frequency | 2.4G high frequency |
Language | Chinese and English switching |
Humidity | 0 ~95%RH (non-condensing), if the humidity is too high, the filter device can be selected |
Temperature | -20℃~ +50℃ |
Explosion-proof certification | Ex ia IIC T6 |
Protection grade | IP65 |
* Certificate | Explosion-proof certificate, CE certification |

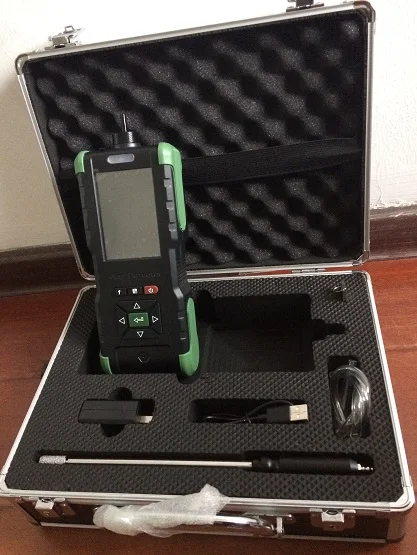

Product packaging
Our Advantages
1. The company was established in 2011 and is one of the early manufacturers of electric power instrumentation in Hubei.
2. Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the start-up stage to a total of 150 products in 14 categories. At present, the serialization, diversification and scale of products have been realized.
3. Wugao Electrical has passed the international quality management system certification (GB/T19001-2008/IS09001: 2008), the occupational health and safety management system certification (GB/T28001-2011/OHSAS 18001: 2007) and the environmental management system certification (GB/ T24001-2004/ISO 14001:2004), the company has the People's Republic of China Manufacturing Measuring Instruments License (CMC Ezhi No. 00000350), and is a member of the Hubei Electric Power Measurement and Testing Association.
4. Wugao Electric continues to develop new products to achieve product upgrades. Through years of accumulation, Wugao Electric has won a number of patented technologies with independent intellectual property rights, and has successively obtained more than a dozen invention patents and utility model patents.
2. Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the start-up stage to a total of 150 products in 14 categories. At present, the serialization, diversification and scale of products have been realized.
3. Wugao Electrical has passed the international quality management system certification (GB/T19001-2008/IS09001: 2008), the occupational health and safety management system certification (GB/T28001-2011/OHSAS 18001: 2007) and the environmental management system certification (GB/ T24001-2004/ISO 14001:2004), the company has the People's Republic of China Manufacturing Measuring Instruments License (CMC Ezhi No. 00000350), and is a member of the Hubei Electric Power Measurement and Testing Association.
4. Wugao Electric continues to develop new products to achieve product upgrades. Through years of accumulation, Wugao Electric has won a number of patented technologies with independent intellectual property rights, and has successively obtained more than a dozen invention patents and utility model patents.
Company Profile
Wuhan Wugao Electric measurement Co., Ltd.( abbreviated as Wugao Electric ), was established in 2011 and is one of the early manufacturers of electric power instrumentation in Hubei. our company mainly engaged in power products for the research and development, production, sales and technical consulting, technology transfer, installation and commissioning; power equipment, instrumentation, and power test equipment; computer integration; design and development of engineering equipment and installation tools; power Wholesale and retail sales of appliance C materials, wires and cables, and so on
Wugao Electric has always adhered to the slogan: "A little progress every day" as its core value, and everything is centered on the needs of the power industry. We hope that through professionalism and our unremitting efforts, we can reshape our corporate image and let our products gain the power industry recognized.
Wugao Electric has a plant area of 5,000 square meters and a total of more than 50 employees. The company has ten departments including the general manager's office, product research and development department, marketing department, production department, quality inspection center, administrative personnel department, marketing department, finance department, material department and after-sales service center.
Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the initial stage to the development and production of series resonance test devices, high-voltage insulation withstand voltage equipment, transformer testing instruments, and circuit breakers Testing equipment, relay protection/secondary circuit testing equipment, cable/line testing equipment, lightning arrester/insulator testing equipment, SF6 testing equipment, oil chemical testing equipment, DC system/battery testing equipment, reactive power compensation/generator testing equipment, There are a total of 150 products in 14 categories, including power metering products, grounding series/insulation series, and power test accessories. At present, the serialization, diversification and scale of products have been realized. After more than ten years, Wugao Electric has grown into a high-tech power service enterprise integrating scientific research, development, production, sales, consulting, installation, commissioning and service.
Wugao Electric has always adhered to the slogan: "A little progress every day" as its core value, and everything is centered on the needs of the power industry. We hope that through professionalism and our unremitting efforts, we can reshape our corporate image and let our products gain the power industry recognized.
Wugao Electric has a plant area of 5,000 square meters and a total of more than 50 employees. The company has ten departments including the general manager's office, product research and development department, marketing department, production department, quality inspection center, administrative personnel department, marketing department, finance department, material department and after-sales service center.
Wugao Electric has always adhered to the sustainable development path of investment, innovation, investment and innovation, from a single product at the initial stage to the development and production of series resonance test devices, high-voltage insulation withstand voltage equipment, transformer testing instruments, and circuit breakers Testing equipment, relay protection/secondary circuit testing equipment, cable/line testing equipment, lightning arrester/insulator testing equipment, SF6 testing equipment, oil chemical testing equipment, DC system/battery testing equipment, reactive power compensation/generator testing equipment, There are a total of 150 products in 14 categories, including power metering products, grounding series/insulation series, and power test accessories. At present, the serialization, diversification and scale of products have been realized. After more than ten years, Wugao Electric has grown into a high-tech power service enterprise integrating scientific research, development, production, sales, consulting, installation, commissioning and service.
Certifications
Why Choose Us
Wuhan Wugao Electric Co., Ltd. specializes in the research, manufacturing and sales of high-voltage testing equipment, and was awarded the title of "High-tech Enterprise" by the Wuhan Municipal Science and Technology Commission. The company has strong financial strength, and has a group of high-end scientific research personnel and a production team with rich manufacturing experience. The company has established extensive and close cooperative relations with many well-known experts from Wuhan University, Huazhong University of Science and Technology, and State Grid Electric Power Research Institute. This uninterrupted research and development benefited from continuous improvement and always striding forward to the highest standards.
FAQ
1.Are your products competitive?
We are manufacturers, we can guarantee preferential prices and high quality.
2. When can l get the price?
We usually quole within 6 hours after we get your inquiry. If you are vey urgent to get price, please call us or tell us in your inquiry so that we will deal with your inquiry priority.
3. Whal is your terms of delivery?
We accep EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convience and cost effeclive for you.
4. What if I have difficulty in using the instrument?
We will provide equipment operation manual, operation video and so on. We can also provide training through remote video call.
5. What about the leading time for production?
Honestly,it depends on the order qty and product item. For normal items, goods will be delivered within 3 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
6. How to deliver?
For most of our customers, we provide door-to-door service. You only need to go through the import customs clearance procedures and pay the import tariff.
7. How about the packing and will the goods be damaged?
We will do standard export packing for each equipment, so far there has been no damage to the goods.
We are manufacturers, we can guarantee preferential prices and high quality.
2. When can l get the price?
We usually quole within 6 hours after we get your inquiry. If you are vey urgent to get price, please call us or tell us in your inquiry so that we will deal with your inquiry priority.
3. Whal is your terms of delivery?
We accep EXW,FOB, CFR, CIF, ect. You can choose the one which is the most convience and cost effeclive for you.
4. What if I have difficulty in using the instrument?
We will provide equipment operation manual, operation video and so on. We can also provide training through remote video call.
5. What about the leading time for production?
Honestly,it depends on the order qty and product item. For normal items, goods will be delivered within 3 working days. The transportation time is determined by the logistics company, and the general transportation time is 5-7 days.
6. How to deliver?
For most of our customers, we provide door-to-door service. You only need to go through the import customs clearance procedures and pay the import tariff.
7. How about the packing and will the goods be damaged?
We will do standard export packing for each equipment, so far there has been no damage to the goods.
