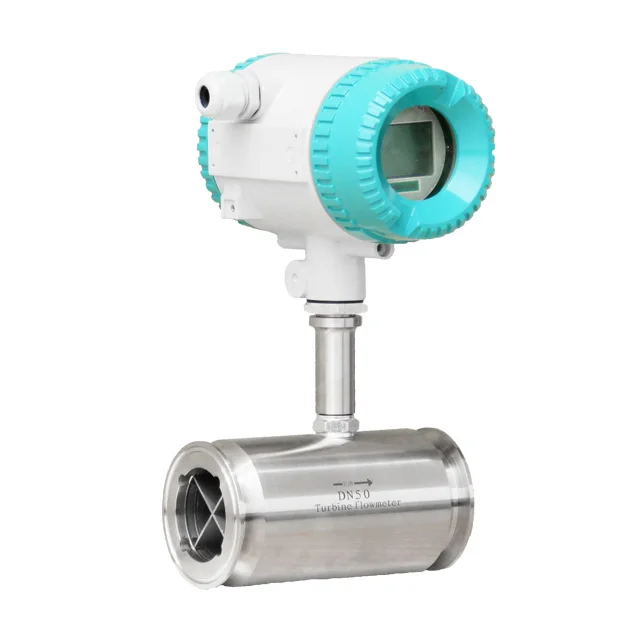

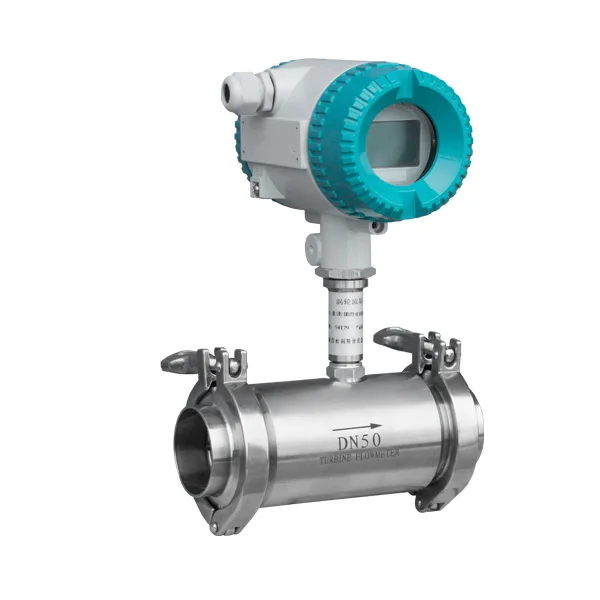

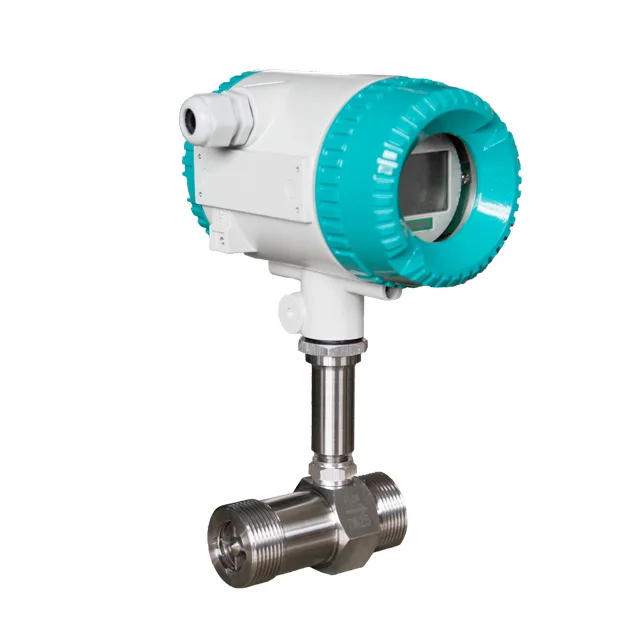

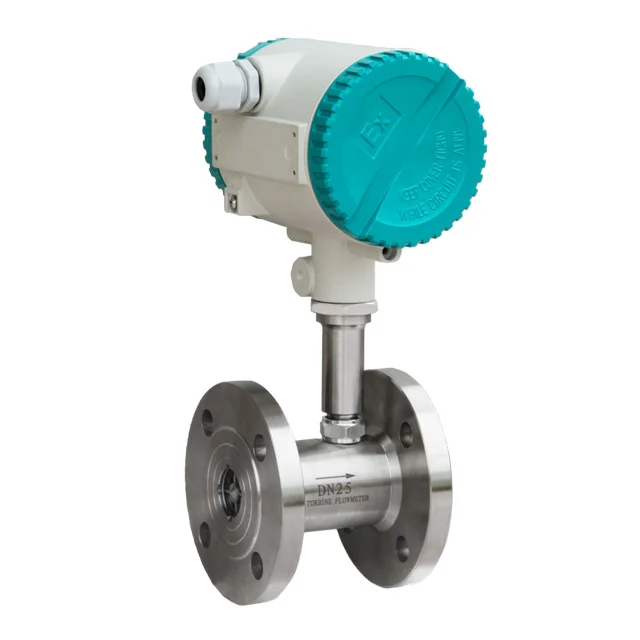

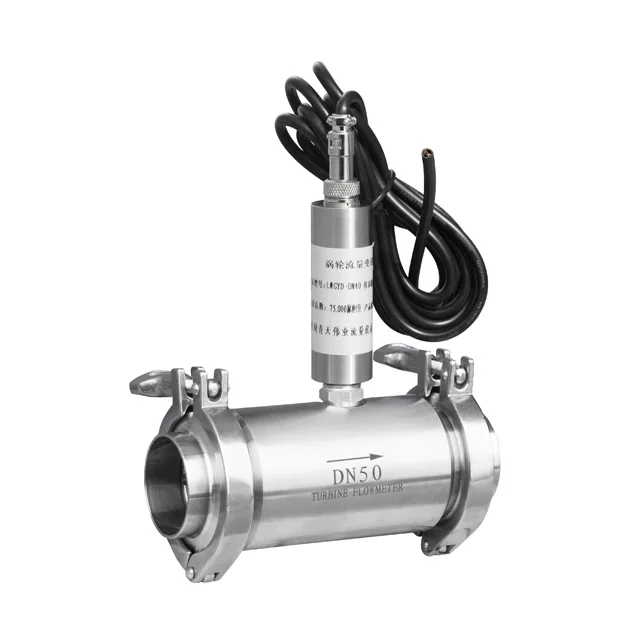

male thread turbine flowmeter
- Category: >>>
- Supplier: Q& T Instrument Co. Ltd.
Share on (1600518121110):
Product Overview
Description
male thread turbine flowmeter
Technical Parameters
| Size | DN4,6,10,15,20,32,40,50,65,80 |

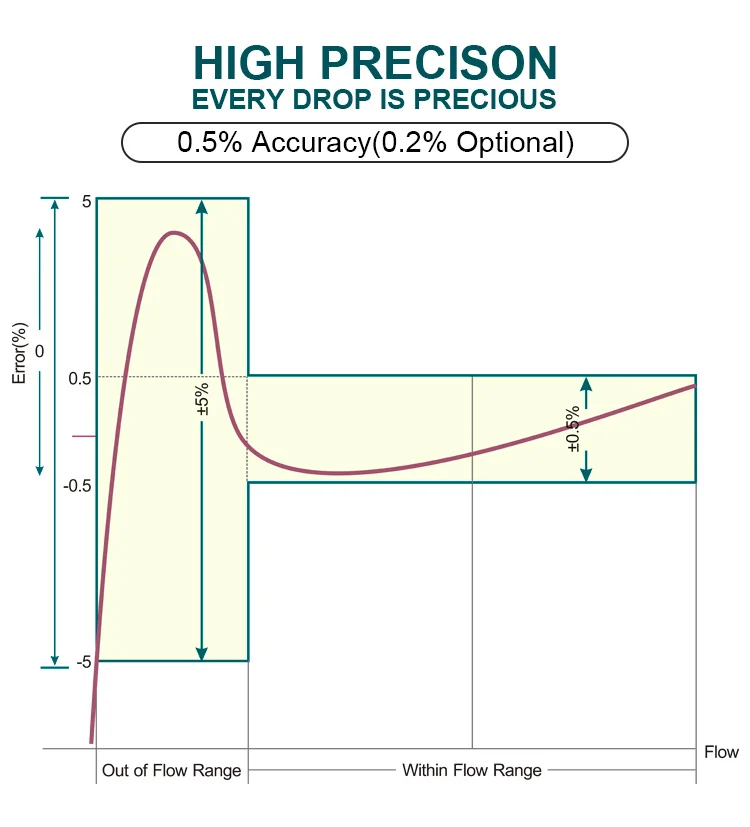

| Accuracy | ±0.5% (±0.2% Optional) |
| Sensor Material | SS304 (SS316L Optional) |
| Ambient Conditions | Medium temperature:-20℃~+150℃; Ambient temperature:-20℃~+60℃; |

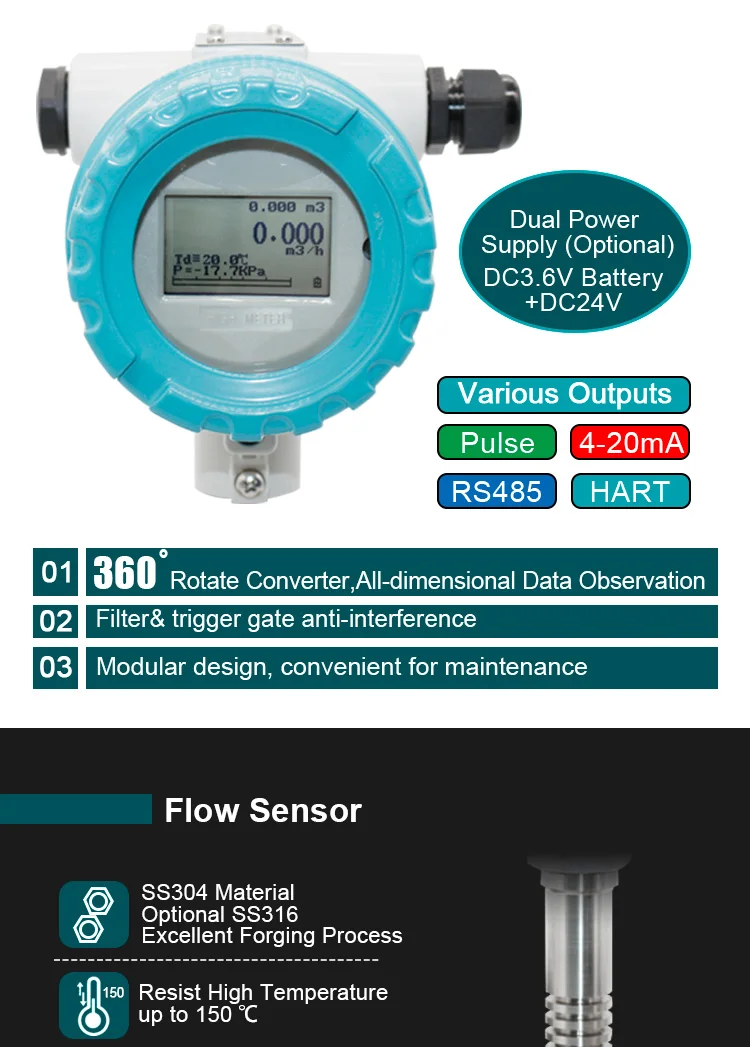

| Signal Output | Pulse, 4-20mA |
| Digital Communication | RS485, HART |
| Power Supply | 24V DC/3.6V Lithium Battery |
| Cable Entry | M20*1.5; 1/2"NPT |
| Explosion-proof class | Ex d IIC T6 Gb |
| Protection class | IP65 |
Flow Range
Diameter (mm) | Standard Range (m3/h) | Extended Range (m3/h) | Standard Pressure (Mpa) | Customized Pressure Rating(Mpa) |
| DN4 | 0.04~0.25 | 0.04~0.4 | 1.6 | 4.0
6.3
10
16
25
42
|
| DN6 | 0.1~0.6 | 0.06~0.6 | 1.6 | |
| DN10 | 0.2~1.2 | 0.15~1.5 | 1.6 | |
| DN15 | 0.6~6 | 0.4~8 | 1.6 | |
| DN20 | 0.8~8 | 0.45~9 | 1.6 | |
| DN25 | 1~10 | 0.5~10 | 1.6 | |
| DN32 | 1.5~15 | 0.8~15 | 1.6 | |
| DN40 | 2~20 | 1~20 | 1.6 | |
| DN50 | 4~40 | 2~40 | 1.6 | |
| DN65 | 7~70 | 4~70 | 1.6 | |
| DN80 | 10~100 | 5~100 | 1.6 |
