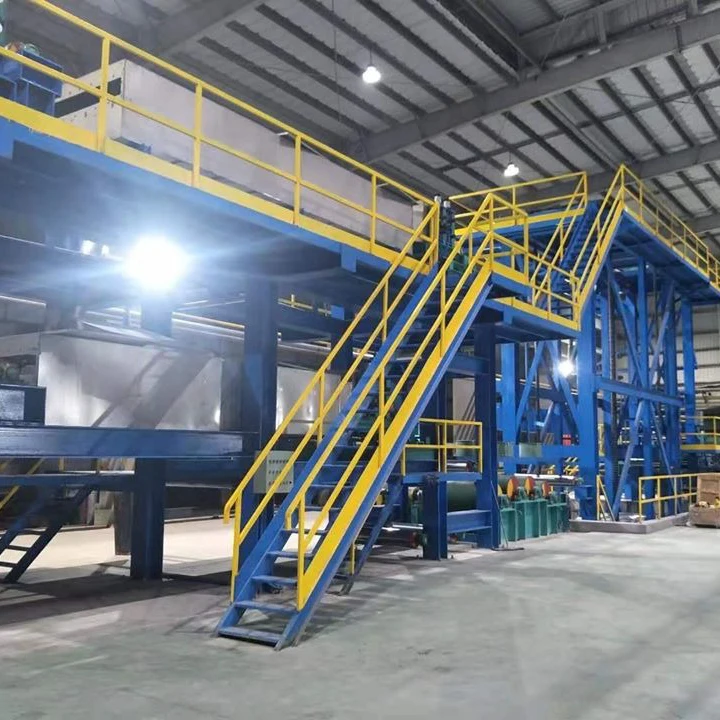

Sandwich Panel PPGI Production Machine Steel Coil Color Coating Line
- Category: >>>
- Supplier: Qingzhou Reachfly Environment Technology Co. Ltd.
Share on (1600518121932):
Product Overview
Description
Product Description
Sandwich Panel PPGI Production Machine Steel Coil Color Coating Line
This production line is used to produce color coating coil, which is mainly based on cold rolled plate, galvanized steel plate and aluminum alloy plate. This kind of plate has advantages of corrosion resistance and decoration, as well as directly providing raw material for construction industry, automobile manufacturing, electric and others.
It is practical, reliable and mature, client can produce stably and run in the long term, production capacity from 50000 to 200000 tons per year.
Raw Material: | GI, GL, CR, SS, AL |
Thickness: | 0.15 ~ 2.0mm |
Width: | 650 ~ 1650mm |
Designed Process Speed: | 30 ~200m/min |
Annual capacity: | 30,000 - 20,0000 tons |
Color: | Blue, Green, Black, Pink, Red etc |
Fuel: | Natural Gas, LPG, Electricity |
Application: | Construction, household appliances |
Main Features:
1) Apply continuous circulating alkali spraying, scrubbing and multi-stage circulating water spraying and fresh water spraying to enhance washing effect, clean the strip steel surface, guarantee the coating quality and strengthen the adhesive force between the plate strip surfaces and the glue coatings.
2) Adopt high-temperature high-pressure technology, and thus to reach high peeling strength.

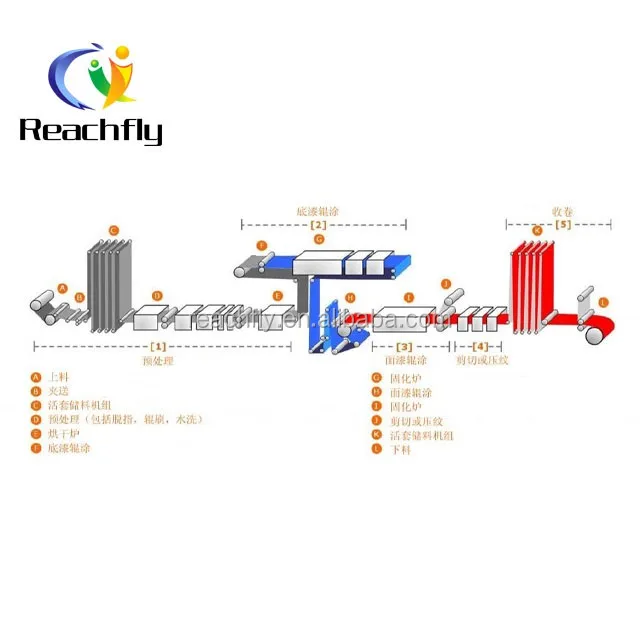

1. Line Type: one coating and one baking, two coating and two baking, three coating and three baking.
2. Product Grade: construction plate, decoration plate and household appliance plate.
3. Coating Type: epoxy resin, polyurethane, polyester, polypropylene, polyvinyl fluoride, silicon modified polyester
4. Other treatment: printing, hot laminating, cold laminating.
5. Chemical Coater: dual-head two-roll type (used in prime coating), three-roll type (used in finish coating front side), two-roll type (used in finish coating back side).
Packing & Delivery
1. Export standard wooden cases packed in suitable container.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
2. Cooperate with reliable shipping company to ensure the delivery time.
3. Customized Packing is allowed.
About us
REACHFLY ENVIRONMENT TECHNOLOGY CO., LTD.
We are manufacturer of metal strip coils processing equipment.
We can supply and install (turnkey project):
1.Continuous Coils Color Coating Line - CCL
2.Continuous Hot Dip Galvanizing / AL-ZN Coating Line - CGL / HDG
3.Slitting Line
4.Tension leveler Line
5.Skinpass Mill Line
We can supply and install (turnkey project):
1.Continuous Coils Color Coating Line - CCL
2.Continuous Hot Dip Galvanizing / AL-ZN Coating Line - CGL / HDG
3.Slitting Line
4.Tension leveler Line
5.Skinpass Mill Line
Pre Sales Service
1) The Machine Layout will be designed according to your factory conditions.
2) Providing a Sample Project for customer to visit.
3) Machine Manufacturing progress (with some photos).
3) Machine Manufacturing progress (with some photos).
After Sales Service
1) Tracking the running condition of machine.
2) Provide 12 months guarantee as well as full spare parts for free.
3) Life long technical support.
4) Installation and training service (Optional).
FAQ
1. Do you offer custom service?
● Of course, most of our machines are built according to customers specifications, using top brand name components.
2. How to ensure the quality?
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years.
● After all the equipment are completed, we will assembling all the machines and run parts testing for at least 12 hours to ensure the stable running in customers' factory.
3.Do you provide after-sales service?
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by standard export package for shipment.
● We will arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME!
